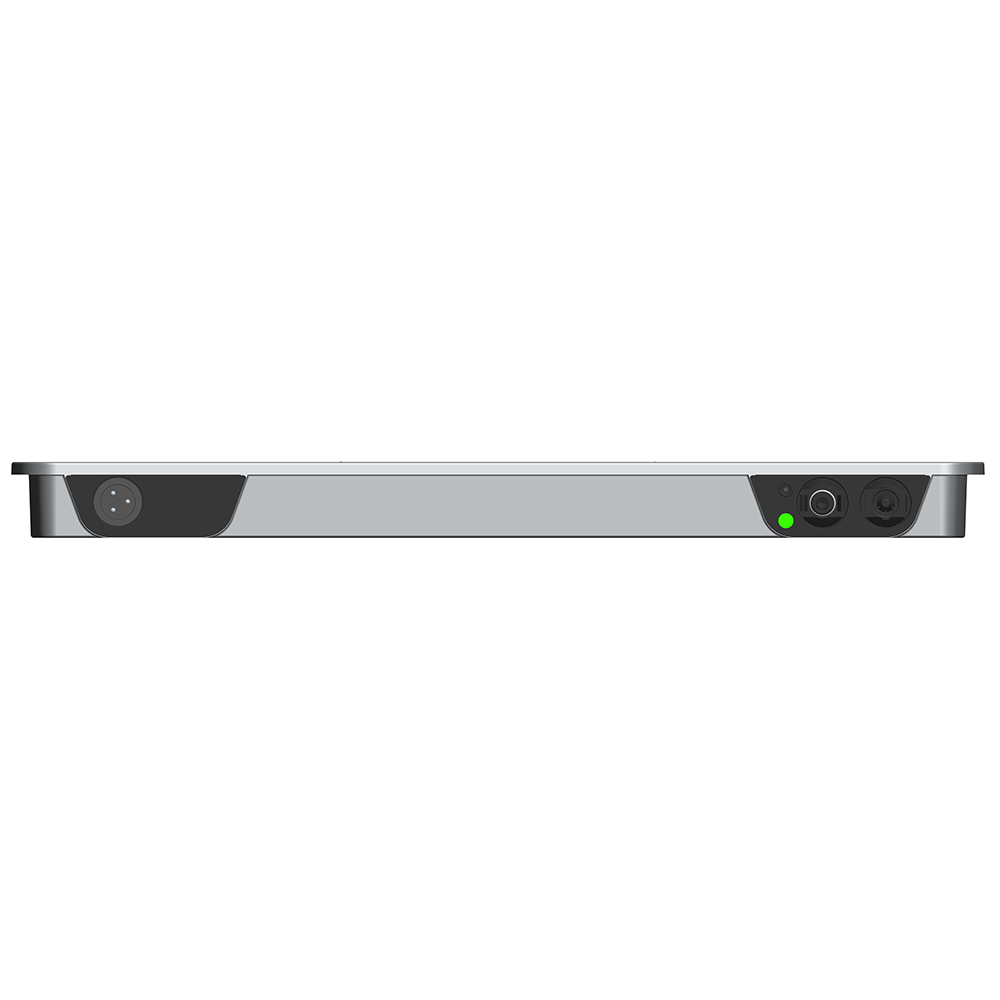

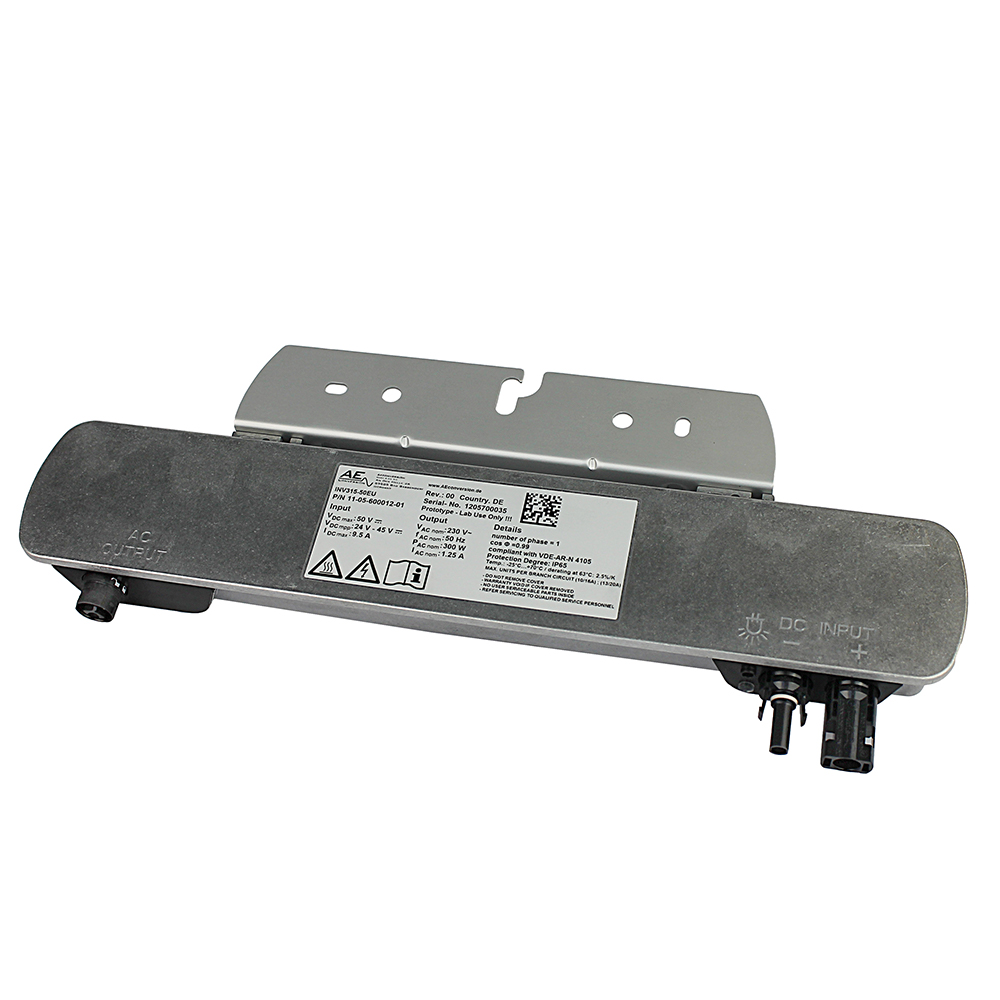

AEConversion inv315-50 Micro Inverter

This product is currently not available.

Nicht auf Lager

  • 1-75-013250
189.90€ *

Prices incl. VAT plus shipping costs

The inv315-50 from AEconversion (mpn 11-05-600012-xx) is a powerful 315w micro inverter that... more

The inv315-50 from AEconversion (mpn 11-05-600012-xx) is a powerful 315w micro inverter that converts the energy generated from your solar modules directly into grid-compliant 230v AC power. For this purpose, the micro inverter is directly connected to a photovoltaic module. This enables the optimal utilization of solar energy. The inv315-50 can work with a maximum input power of 315w as well as a maximum PV input voltage of 50v and has the important integrated NA protection according to vde ar-n-4105.

Features of the INV313-50

  • Low system cost, eliminating the need for individual DC components and complicated system and shadow planning
  • Integrated NA protection according to vde ar-n-4105
  • Higher yields due to module-based MPP tracking
  • Wide range of applications for both grid-connected systems and stand-alone systems with simple installation
  • Wide MPP tracking range increases system efficiency
  • High module compatibility
  • Display of battery charging phases
  • Voltage and charge current displays

Integrated disconnecting device according to vde ar-n-4105

The additional installation of an external disconnection device becomes unnecessary when using AEconversion micro inverters, as the legally required disconnection device according to vde ar-n-4105 is already integrated. In PV systems with micro inverters from AEconversion, component and installation costs can be reduced by up to 15%. DC components, such as DC junction boxes or DC disconnectors become unnecessary. System and shadow planning, such as for string systems, are eliminated, and the ease and speed of installation provided by the "plug-and-play" system further reduces capital costs. The cost-effective monitoring and system accessories make the AEconversion system an economical installation. AC cable is not included.

Micro inverter for the PV system

The micro-inverter is connected directly behind one or two modules and converts the generated direct current into grid-compliant alternating current. The individual conversion at each module allows the solar energy to be optimally utilized. In systems with micro-inverters, the modules operate independently and guarantee the highest yield. By performing "maximum power point tracking" (mppt) at the modular level, each inverter can harvest the highest possible power from each module while minimizing the impact of shading and module mismatch.

Technical data

  • Max. Input power: 315w
  • Recommended PV module power: 290W-340W
  • Max. DC voltage: 50v
  • Max. Dc current: 9.5A
  • AC rated power: 300W
  • AC rated voltage: 230v
  • DC connector: h4 (mc-4 compatible)
  • Housing protection class: ip65 & NEMA4
  • Dimensions: 390 x 100 x 30 mm
  • Weight: 0.8 kg
  • Communication: smart rf 2.4GHz
  • ENS integrated according to vde ar-n 4105

Scope of delivery:

1x AEconversion Micro inverter inv315-50 (11-05-600012-xx)
1x user manual

Voltage regulation 48V DC / 230V AC
Temperature range -25°C - +70°C
Weight 0,8kg
Hersteller Teilenummer 11-05-600012-XX
Dimensions 390 x 100 x 30 mm
Protection type IP65
shippingcosts 4,90 €
Rated output voltage 230 V / 50 Hz
Manufacturer AEconversion
delivery_time 1-3 Werktage
