The Ve.Direct cable from Victron Energy is available in different lengths. The cable has a straight connector on one end and a 90 degree angled connector on the other. Available lengths: 0,3m 0,9m 1,8m 3m 5m 10m

This VE.Can to CaN bus bms cable from Victron (mpn ass030710050) is needed to connect a CaN bus capable battery, which is not from Victron, to a Victron GX device. The cable, with a length of 5m, corresponds to type a, which can be used for the following batteries: BYD B-Box Pylontech us2000c / us3000c / Force-L Installation The side labeled "CaN-Bus bms" is plugged into the battery. The other side labeled "VE.Can" must be connected to either the VE.Can port of the GX device or the bms can port. Both port types of a GX device can be configured for use with a third-party CaN bus battery connected to a bms. For configuration information, refer to the manual for the battery you are using. Scope of delivery: 1x Victron VE.Can to CaN bus bms type a cable 5m (ass030710050)

This VE.Can to CaN bus bms cable from Victron (mpn ass030710018) is needed to connect a CaN bus capable battery, which is not from Victron, to a Victron GX device. The cable, with a length of 1.8m, corresponds to type a, which can be used for the following batteries: BYD B-Box Pylontech us2000c / us3000c / Force-L Installation The side labeled "CaN-Bus bms" is plugged into the battery. The other side labeled "VE.Can" must be connected to either the VE.Can port of the GX device or the bms can port. Both port types of a GX device can be configured for use with a third-party CaN bus battery connected to a bms. For configuration information, refer to the manual for the battery you are using. Scope of delivery: 1x Victron VE.Can to CaN bus bms type a cable 1.8m (ass030710018)

This VE.Can to CAN-bus-bms cable from Victron (mpn ass030720050) is needed to connect a CAN-bus capable battery, which is not from Victron, to a Victron GX device. The cable, with a length of 5m, corresponds to type b, which can be used for the following batteries: LG Chem Resu AXIstorage bMZ Pylontech us2000 / us3000 / UP2500 Installation The side labeled "CAN-bus bms" is plugged into the battery. The other side labeled "VE.Can" must be connected to either the VE.Can port of the GX device or the bms can port. both port types of a GX device can be configured for use with a third-party CAN-bus battery connected to a bms. For configuration information, refer to the manual for the battery you are using. Scope of delivery: 1x Victron VE.Can to CAN-bus bms type b cable 5m (ass030720050)

The VE.Bus Smart Dongle from Victron Energy (mpn ass030537010) combines two products in one: first, it allows you to pair Victron inverters/chargers with VE.Bus port to your smartphone or tablet via Bluetooth; second, it adds voltage and temperature sensing to these devices, which is especially useful when used with the Multiplus 2, as it does not have integrated terminals for voltage and temperature sensor wiring. Use your VE.Bus products with the VictronConnect app First, it is the Bluetooth accessory for our inverters / chargers: Multis, MultiPlus, MultiPlus-II, MultiGrid, MultiGrid-II, Quattros and our Phoenix Inverter series with VE.Bus connection. After installation, use the VictronConnect app to monitor operation and run the system: Change the input current limit and switch between Off, On, and Charger Only modes Second, it adds voltage and temperature sensing to the inverters / chargers. Works with all models and is especially useful in combination with the MultiPlus-II as it has no built-in terminals for voltage and temperature sensor wiring For monitoring, the device is a good alternative in caravans, smaller yachts and motorhomes, for which the Color Control gx or Venus gx are an uneconomical or simply not wanted or because it is simply more convenient to quickly retrieve the desired information via smartphone Scope of delivery: 1x Victron Energy ass030537010 VE.Bus Smart Dongle 1x Red battery (+) connection cable with 10mm eyelet and inline fuse 1x Black battery connection cable (-) with 10mm eyelet 1x Terminal block with screw terminals 1x User manual

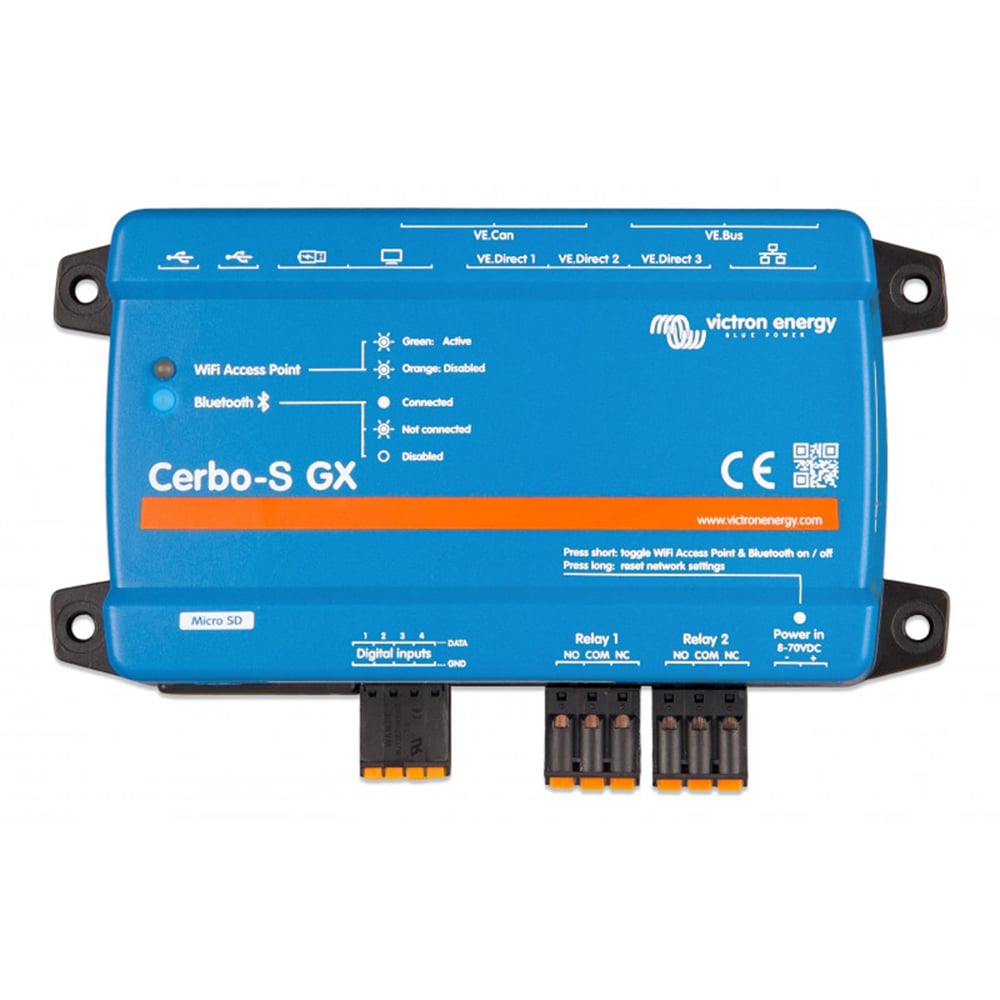

Die Cerbo-S GX Kommunikationszentrale von Victron Energy (MPN BPP900450120) ermöglicht die perfekte Kontrolle über Ihr System und maximiert seine Leistung. Die Maximierung der Systemleistung war noch nie so einfach. Die kostengünstigere Variante der Cerbo-GX Reihe verfügt bis auf den BMS-Can-Anschluss, Temperatursensoreingänge und resistive Tankpegeleingänge dennoch über alle wichtigen Features für eine einwandfreie Kommunikation. Einfache Überwachung und Steuerung Mit der Cerbo-S GX können Sie auf schnellstem Weg den Stromverbrauch, die Energiegewinnung aus PV, Generator und Netz von überall aus überwachen. Steuern Sie einfach die Strombegrenzung für die Landstromeinspeisung, den (automatischen) Start/Stopp-Generator oder ändern Sie beliebige Einstellungen, um das System zu optimieren. Verfolgen Sie Warnmeldungen, führen Sie Diagnoseprüfungen durch und lösen Sie Probleme aus der Ferne. Eigenschaften der Cerbo-S GX Kommunikationszentrale Einfache Kontrolle ihres Systems Flexible Verbindungsmöglichkeiten Maximierung Ihrer Systemleistung Unkomplizierte Montage Technische Daten Betriebsspannung: 8-70 V/DC Montage: Wand oder DIN-Schiene 35mm Maße: 78 x 154 x 48 mm Betriebstemperaturbereich: -20 bis +50°C Kabellänge: 2 Meter Sicherheit: IEC 62368-1 EMC EN: EN 301489-1, EN 301489-17 Verfügbare Anschlüsse 3 VE.Direct-Ports 3 USB-Ports 4 digitale Eingänge 2 Relais 2 VE.BUS 2 VE.CAN Flexible Verbindungsmöglichkeiten Die Systemkontrolle durch die Cerbo GX Kommunikationszentrale ist unabhängig von Ort und Zeit möglich. Das Gerät bietet drei verschiedene Optionen zur Verbindung. Entweder über das kostenlose Victron Remote Management (VRM) Portal, das Victron Energy GX Touch 50 (5-Zoll Touchscreen Display) oder über die VictronConnect App via Bluetooth. Lieferumfang: 1x Cerbo-S GX 1x Netzkabel mit Inline-Sicherung und M8-Anschlussaugen für Batterie- oder      DC-Sammelschienenbefestigung. 2x VE.Can-Abschlusswiderstände 1x Klemmenblöcke für alle Anschlüsse auf jeder Seite.

This VE.Can to CAN-bus-bms cable from Victron (mpn ass030720018) is needed to connect a CAN-bus capable battery, which is not from Victron, to a Victron GX device. The cable, with a length of 1.8m, corresponds to type b, which can be used for the following batteries: LG Chem Resu AXIstorage bMZ Pylontech us2000 / us3000 / UP2500 Installation The side labeled "CAN-bus bms" is plugged into the battery. The other side labeled "VE.Can" must be connected to either the VE.Can port of the GX device or the bms can port. both port types of a GX device can be configured for use with a third-party CAN-bus battery connected to a bms. For configuration information, refer to the manual for the battery you are using. Scope of delivery: 1x Victron VE.Can to CAN-bus bms type b cable 1.8m (ass030720018)

The minibms from Victron Energy (mpn bms400100000) is a simple and cost-effective alternative to the VE.Bus bms and can replace the VE.Bus bms in several applications. Important exceptions here are VE.Bus devices such as the Multiplus and Quattro series, because the minibms does not have its own VE.Bus port, unlike the VE.Bus bms. The minibms is designed for use with Victron Smart liFePo4 batteries with m8 round connector and has two outputs similar to the ve.bus bms. The operating voltage range is 9 - 70 VDC. Core tasks of the Victron minibms Switching off or disconnecting loads in the event of imminent undervoltage Switching off or disconnecting battery chargers in the event of imminent cell overvoltage or overtemperature "load Disconnect" (disconnect load) The "load Disconnect" output is normally high and is set to "free floating" when a cell undervoltage is imminent. Maximum current: 2A. The load Disconnect output can be used to control the following functions: remote on/off switching of a load and/or remote on/off switching of an electronic load switch (BatteryProtect) ) "Charge Disconnect" (charge disconnect) The Charge Disconnect output is normally high and will free float when a cell overvoltage or overtemperature is imminent. Maximum current: 10 mA. The Charge Disconnect output can be used to control the following functions: remote on/off switching of a charger and/or a Cyrix-li charger relay and/or a Cyrix-li-ct battery coupler The "System on/off" input The input "System on/off" controls both outputs. If it is off, both outputs are switched to "free floating". The loads and chargers are therefore switched off. The "System on/off" input has two connections: Remote l and Remote h. Between l and h, a remote on/off switch or a relay contact can be connected. Alternatively, terminal h can be connected to a battery positive terminal or l to a battery negative terminal scope of delivery: 1x Victron Energy bms400100000 minibms 1x instruction manual

The 2g 3g gsm outdoor antenna from Victron Energy (mpn gsm900100100) can be used with the gx gsm modem as a replacement for the modem's indoor gsm antenna. The outdoor antenna provides better reception than the standard gx gsm antenna supplied with the modem and has also been designed for outdoor use Features of outdoor 2g and 3g gsm antenna compatible with the Victron gx gsm modem suitable for outdoor mounting Support for 2g and 3g Scope of delivery: 1x Victron Energy gsm900100100 2g 3g gsm outdoor antenna 1x user manual

The gx gsm is a cellular modem from Victron Energy (mpn gsm100100) for Internet provisioning in locations where a regular Internet connection is not available. It is compatible with the Octo gx, Venus gx and Color Control gx and is designed to connect the local system to the Victron Remote Management (vrm) system. Operation requires an active standard SIM card that plugs directly into the gx gsm modem. The connection to the respective gx system is made via a supplied 1m usb cable. A small indoor gsm antenna is included as standard. Optionally there is also an active gsm outdoor antenna with 2 or 3 g support from Victron. gx gsm also has an integrated gPS receiver Besides the internet, the gx gsm also has a gPS receiver. To use this, purchase the optional active gsm antenna. (part number gsm900100100). Features of the gx gsm modem includes integrated gPS receiver (requires optional gPS antenna) for internet provisioning via SIM card includes 2g 3g indoor antenna compatible with the Octo gx, Venus gx and the Color Control gx important notice: The gx gsm only provides internet connection for the above gx system control units: So there is no way to share the internet with laptops, phones, or other devices. For installations where more devices need the internet, e.g. a yacht or a motorhome, you should install a mobile router instead. More information here Scope of delivery: 1x Victron Energy gsm100100 gx gsm modem1x 2g 3g indoor gsm antenna1x 1m usb connection cable1x user manual

The Active gps antenna from Victron Energy (mpn gsm900200100) is an accessory for the gx gsm modem. It enables the use of the gps receiver integrated in the gx gsm. This actively provides data about the current location or movement speed. Features of the active gps antenna from Victron Accessory part for the Victron gx gsm modem for using the integrated gps receiver in the gx gsm modem active gps antenna Scope of delivery: 1x Victron Energy gsm900200100 Active gps antenna 1x user manual

The VE.Bus bms to bms 12/200 Alternator Cable from Victron Energy (mpn ass030510120) allows the charge control function of the bms 12/200 to be used in conjunction with the VE.Bus bms. The bms 12/200 will limit the charging current for the alternator to a safety value, and stop charging when an alarm occurs Scope of delivery: 1x Victron Energy ass030510120 VE.Bus bms to bms 12/200 alternator cable

The Victron Energy Venus gx system control module (mpn bpp900400100) provides intuitive operation and monitoring of all power systems based on Victron components. It is particularly suitable as the heart of an ess (Energy Storage System). In terms of functionality, the Venus gx is similar to the Color Control gx from Victron, but without a display and without a built-in modem, but much cheaper. It transmits all system data to the free vrm portal from Victron, from where you can monitor and administer your power system worldwide. In addition to the power electronics, tank levels of up to 3 tanks can be monitored and visualized in the vrm portal. besides remote monitoring of the connected devices, remote configuration is also possible. Remote Console on the vrm Setup and monitoring is done via the remote console. Either via the vrm, via the built-in WiFi access point or via the local LAN/WiFi network. Automatic genset start/stop A highly flexible start/stop system. Use of charge, voltage, load and even more parameters. Specific settings for rest periods and optionally a monthly test run can be set. Internet connection The Venus gx can be connected to the Internet with an Ethernet cable and via Wi-Fi. The Venus gx does not have an internal cellular modem: there is no slot for a sim card. Use a commercially available gprs or 3 g router instead. Tank level indicator inputs The inputs for the tank level indicator are resistive: connect them to a resistive tank transmitter. Such tank transmitters are not offered by Victron. The ports of the tank level indicator can each be configured to work with European tank transmitters (0 - 180 ohms), or with US tank transmitters (240 - 30 ohms). Data logging If the system is connected to the internet, all data is sent to the vrm portal. If no internet connection is available, the Venus gx stores the data internally for up to 48 hours. By inserting a micro SD card or a usb stick, even more data can be stored. These files can be uploaded to the vrm portal or converted offline for analysis using the VictronConnect app. further highlights The Venus gx can automatically update itself via the Internet when a new software version is available. Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic. Use the Venus gx as a Modbus TCP gateway to all connected Victron products. Linux os based operating system supported products Multis and quattros, including split-phase and three-phase systems. monitoring and control (on/off and current limiter). Configuration change is possible (only remotely via internet, not without internet connection). BlueSolar mppt solar chargers with a VE.Direct port. BlueSolar mppt 150/70 and the mppt 150/85 with VE.Can port. When multiple BlueSolar mppts with VE.Can are used in Parallel connection, all information is combined in one. devices of the bmv-700 family can be connected directly to the VE.Direct ports on the Venus gx. Use The VE.Direct cable for this purpose. bmv-600 family devices can be connected to the VE.Direct ports on the Venus gx. An additional cable is required. Lynx Ion + Shunt Lynx Ion BMS Lynx Shunt VE.Can Skylla-i Battery Chargers NMEA2000 tank sensors A usb gPS can be connected to the usb port. The data is sent to the vrm portal for traceability. The map on the vrm then shows the most recent position. Fronius PV inverter Scope of delivery: 1x Victron bpp900400100 Venus gx system control module 1x user manual

The VE.Can adapter for resistance tank transmitters from Victron Energy (mpn bpp900600100) allows a tank level transmitter to be connected to the Color Control gx. It is compatible with both European standard 0-180 ohm and US standard 240-30 ohm tank level transmitters and is accurate to within ±1%. Use one adapter per tank if you have multiple tanks. You can connect up to 16 tanks of the same type in one VE.Can network. The setting of the tank type and the unique tynnumber is done by rotary switch. VE.Can network The unit receives its power through the VE.Can network. If you are using a Skylla-i, Lynx Ion, Lynx Shunt or mppt product with can Bus in the system, the power for the can Bus will be supplied from there. If the can Bus is not powered by a Skylla-i or an mppt, you need the new VE.Can power cable for the power supply Features High accuracy Suitable for transmitters with European standard 0-180 and US standard 240-30 Ohm Tank type easily selectable with rotary switch Selectable types: Fuel, oil, fresh water, waste water, well or oily water For multiple tanks, simply use multiple adapters in a network: up to 16 tanks of the same tank type Robust ABS construction according to IP67 Easy to install Simple switch setup without additional display Current consumption under 50mA Input voltage: 9-70v DC Scope of delivery: 1x Victron bpp900600100 VE.Can adapter for resistor tank transmitter

You need this VE.Can power cable (mpn ass030690000) from Victron to start up the VE.Can tank transmitter adapter if there is no product that supplies power to the VE.Can network (e.g. Skylla-i, Lynx Ion + Shunt, MPPT). Scope of delivery: 1x Victron Power cable ass030690000 Power cable

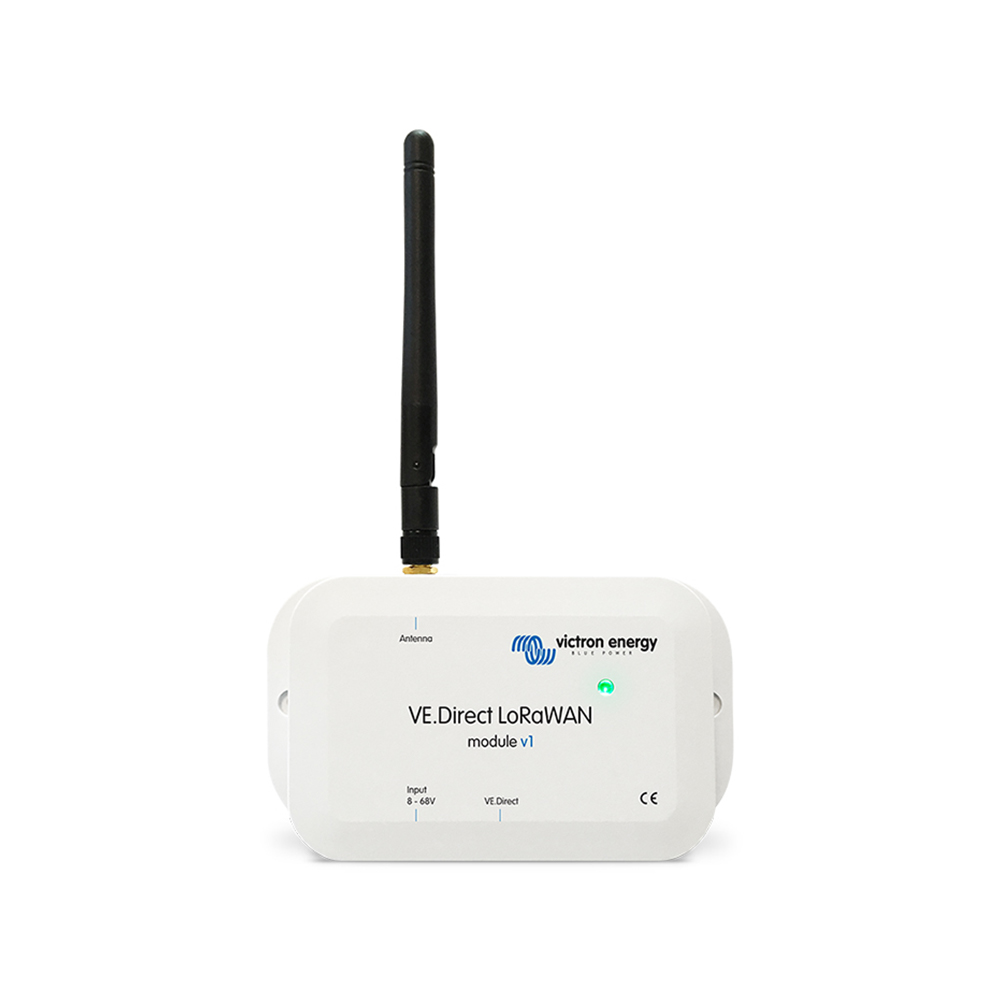

With the VE.Direct to LoRaWAN module from Victron Energy (mpn ass030538010), you can easily connect your BMV battery monitor, mppt charge controller or Phoenix inverter to the Victron Remote Management (vrm) portal. This allows you to view information such as battery voltage, state of charge, or solar power anywhere on your desktop or cell phone. The VRM portal from Victron is available to you free of charge. Product compatibility This product has a VE.Direct port and is compatible with the following Victron products: All mppt solar charge controllers with VE.Direct Port BMV Battery Monitor 700 Series BMV Battery Monitor 712 Smart Series Phoenix Inverter VE.Direct Models The following parameters can be read out After power up, the module collects information from the VE.Direct device. Upon reception, it connects to the LoRaWAN network and then sends all available data to the VRM portal. After this initial transmission, the most important data is sent every hour: BMV battery monitor (SmartShunt is not supported) Battery voltage Battery current Battery power State of charge Alarm status & reason mppt solar charger Solar energy Battery voltage Battery current Battery power Error code State of charge (Off, Bulk, Absorption, Equalize, Float) Phoenix VE.Direct Inverter Battery voltage AC output current Alarm status & reason Mode (On/Off/Eco) Long Range Wide Area Network The LoRaWAN is a wireless commercial network that uses the 868 Mhz frequency. It has a long range and requires very little power. The VE.Direct LoRaWAN module can send hourly data updates over this network. You don't have to register to use this network. If you don't have coverage in your area, you can add your own gateway. Scope of delivery: 1x Victron VE.Direct LoRaWan module with 1.5m VE.Direct cable 1x RPSMA antenna 1x 1.5m power cable with 3a inline fuse and m10 eyelets 1x quick installation guide

The Skylla-i remote on-off cable from Victron Energy (mpn ass030550400) is used to connect a Skylla-i battery charger to a VE.Bus bms. The VE.Bus bms deactivates the Skylla-i charger when the batteries are fully charged. Scope of delivery: 1x Victron Energy ass030550400 Skylla-i remote on-off cable 1x installation manual
