The Votronic Minus Distributor 12 (mpn 3208) is a compact minus distributor for up to 12 individual circuits. It is used for the professional distribution of small to medium consumers on the battery minus side. in addition, two large collective terminals for cable cross-sections up to 16 mm² and a current carrying capacity of max. 50 a are available for current routing and through distribution important product features of the Minus Distributor 12, 3208 suitable for battery voltages from 12v to 24v for a safe and professional installation of power networks in vehicles and similar applications Space for 12 individual circuits Two 16 mm² bus terminals with a maximum load of 50 a dimensions: 90x60x38 mm with a weight of only 90 grams The distribution terminals on the consumer side allow the connection of cable cross-sections up to 4 mm² with a maximum current-carrying capacity of 20 a. Also recommended for grounding of insulating vehicle superstructures or in case of insufficient ground ratios Scope of delivery: 1x Votronic 3208 Minus Distributor 12 Pieces cable lugs 16 mm2, strip fuse 40 a, 50 a, 60 a, blade fuses 1x 30 a, 2x 15 a and 2x 10 a 1x instruction manual

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The Victron et340 (mpn rel300300000) is a 3-phase electricity meter designed for a maximum current of 65a per phase The et340 electricity meter can be used for four different applications: Current meter and control input in an ess (home storage system) in conjunction with the Color Control gx and a Victron inverter Current measurement at the output of a PV inverter Current measurement at the output of an AC genset Wiring and connection of the et340 There are two possibilities in its wiring. One is the direct connection, via the rs485 to usb interface with 1.8m or 5m cable or alternatively the wireless connection via Zigbee. Scope of delivery: 1x Victron rel300000 et340 3-phase electricity meter 65a/phase1x user manual

The Hoymiles dtsu666 (ct-3 250a) electricity meter has an external current transformer and can be used to measure and display PV power supply, load consumption or export power.Hoymiles Smart Power Export ManagementHoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of power exported to the power grid. The management consists of a meter (CT optional), a Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and a Hoymiles microinverter. The Hoymiles electricity meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.Technical data Hoymiles electricity meter:Input voltage: 154-253v ACDimensions: 72 x 100 x 65 mmCT-Data dimensions: 44 x 77 x 33 mmAmbient temperature: -25°C to 70°CConnection: RS485Cable length: 6 mScope of delivery:1x Hoymiles electricity meter dtsu666 (ct-3 250a)1x connection cable

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The Victron et112 electricity meter 1-phase (mpn rel300100000) for a maximum current to be measured of 100a. The et112 electricity meter can be used for four different applications Electricity meter and control input in an ess (home storage system) in combination with the Color Control gx and a Victron inverter Current measurement at the output of a PV inverter Current measurement at the output of an AC genset Wiring and connection of the ETT112 There are two possibilities in its wiring. One is the direct connection, via the rs485 to usb interface with 1.8m or 5m cable or alternatively the wireless connection via Zigbee. Scope of delivery: 1x Victron rel300100000 et112 electricity meter 100A1x user manual

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. High switching current 100 A, short-time overload up to 180 A is admissible, can be switched over to 12 V/24 V board mains supply Based on programmed characteristic diagrams of battery, the intelligent automatic switching threshold always calculates the disconnection point “empty” being appropriate for optimized capacity utilization and safe protection of the battery, from powerful consumers (low switching threshold at shorter response time) to very small loads (e. g. “hidden” current consumers with response times over days/months with high response threshold) Operation with 3 defined disconnection thresholds can be (manually) adjusted The higher set values are keeping the starting ability of intervention vehicles with only one battery circuit (according to DIN EN 1789) The preliminary alarm with visual (LED) and audible indication (beeper, can be switched-off), as well as a separate warning terminal (PNP, plus output, 0.2 A) allow to the user to take countermeasures in time (such as to disconnect consumers, which are not required) Solid threaded battery connections for cable lugs M6, protection caps included in the standard delivery

The Hoymiles ddsu666 (ct-100a) 1-phase electricity meter has an external current transformer and can be used to measure and display PV power supply, load consumption or export power.Hoymiles Smart Power Export ManagementHoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of power exported to the power grid. The management consists of a meter (CT optional), a Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and a Hoymiles microinverter. The Hoymiles electricity meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.Technical data Hoymiles electricity meter:Input voltage: 154-286v ACDimensions: 36 x 100 x 65 mmCT-Data dimensions: 30 x 45 x 32 mmScope of delivery:1x Hoymiles electricity meter ddsu666 (ct-100a) 1-phase

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. High switching current 100 A, short-time overload up to 180 A is admissible, can be switched over to 12 V/24 V board mains supply Based on programmed characteristic diagrams of battery, the intelligent automatic switching threshold always calculates the disconnection point “empty” being appropriate for optimized capacity utilization and safe protection of the battery, from powerful consumers (low switching threshold at shorter response time) to very small loads (e. g. “hidden” current consumers with response times over days/months with high response threshold) Operation with 3 defined disconnection thresholds can be (manually) adjusted The higher set values are keeping the starting ability of intervention vehicles with only one battery circuit (according to DIN EN 1789) The preliminary alarm with visual (LED) and audible indication (beeper, can be switched-off), as well as a separate warning terminal (PNP, plus output, 0.2 A) allow to the user to take countermeasures in time (such as to disconnect consumers, which are not required) Solid threaded battery connections for cable lugs M6, protection caps included in the standard delivery

Hoymiles electricity meter dtsu666 (ct-3 100a) 3-phase has an external current transformer and can be used to measure and display PV power supply, load consumption or export power.Hoymiles Smart Power Export ManagementHoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of power exported to the power grid. The management consists of a meter (CT optional), a Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and a Hoymiles microinverter. The Hoymiles electricity meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.Technical data Hoymiles electricity meter:Input voltage: 154-253v ACDimensions: 72 x 100 x 65 mmCT-Data dimensions: 44 x 77 x 33 mmAmbient temperature: -25°C to 70°CConnection: RS485Cable length: 6 mScope of delivery:1x Hoymiles electricity meter dtsu666 (ct-3 100a) 3-phase1x connection cable

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

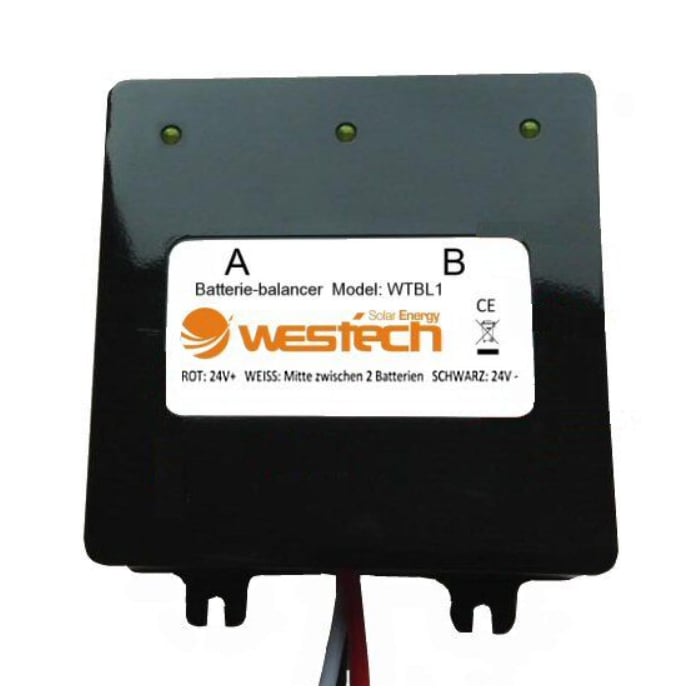

Battery balancer for 12V batteriesIf 12V batteries are integrated in a system of 24V 48V it might happen that the batteries are differently charged due to different capacities.One battery gets overloaded - the other is not fully charged. Consequence of different charging levels- acid-accumulation of the less charged battery (loss of capacity)- high oxidation and dehydration of the overloaded battery In both cases the battery's life-span is tremendously cut.In 48V-systems the different voltage is evan higher because the batteries should have the same voltage.If 2 or 4 batteries are connected in a row the charger only recognises the system's total voltage - not of evy single battery.If the voltage difference exceeds 10mV the balancer is activated. It's working power comes from the connected batteries.The balancer (or equalizer) tries to compensate the single battery voltages and to bring them on a equal level. During a discharge process in 24V or 48V systems all batteries are discharged equally to avoid an undervoltage.Because 12V batteries always have little tolerances within their production process it is absolutely recommended to use a battery balancer in every 48V system. Elsewise there will be a huge voltage difference between the batteries and fast maturing. For a 24V battery system consisting of 2 12V batteries you need 1 balancer. For a 48V battery system consisting of 4 12V batteries you need 3 balancers. Technical data:Starting voltage: 26VVoltage difference: <0,1VMax. equalizing current: 2A
