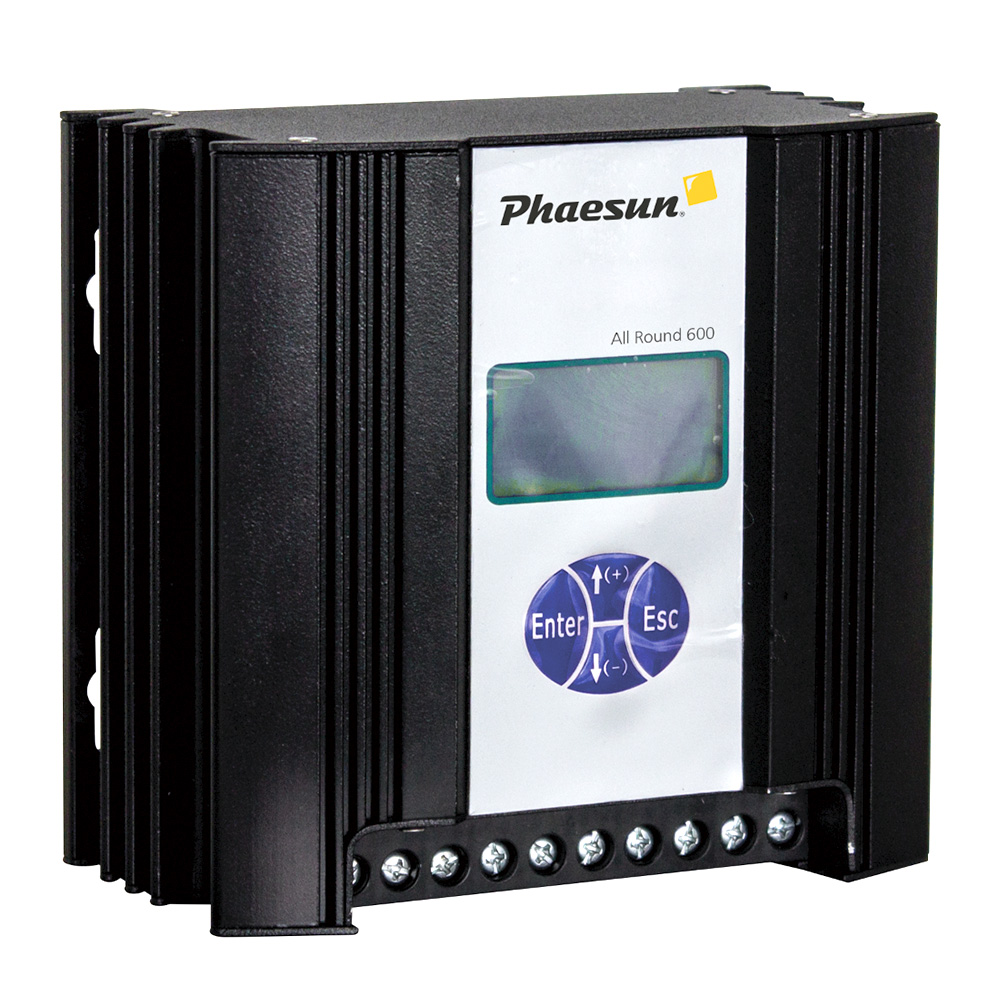

Phaesun Hybrid Charge Controller All Round 600_24V

This charge controller is connected in between a 12V DC solar panel and 1 or 2 accumulators to prevent an overload of the accumulators. When there are two accumulators connected they are charged separately. The accumulator with the lower charging voltage gains more charging current. It comes with status-LEDs and a high charging rate: max. 2 x 8A or 1 x 16A. Technical Data:Input voltage: Solar panels 15 - 30V DC no-load voltage; 12V DC nominal voltageMax. Charging current: 16A total (2 accumulators each with max. 8A or 1 accumulator which is parallel-connected to both outputs up to 16A)Connections: 1 or 2 accumulators 12V. If there is only one both connectors are parallel-linked to the accumulator.Displays: 1 display for each accumulator ("accumulator charging" and "all accumulators fully charged)Cooling: At a current of >4A the module has to be attached with the metal bottom side to a cooling element with a surface of more than 300cm²Fuse: a prelemanry fuse F16A is needed (not included)Switch-on voltage: accumulator ca. <12,9V DC (+/- 5%)Switch-off voltage: "fully charged" ca. 14,2V DC (+/- %5)Consumption: <2mANo current reflowDimensions: 87 x 60 x 33mm (with mounting panel) Important assembly note: Depending on the load the module can warm differently. The warmth occurs at the module's aluminium floor plate and might be attached to a cooling element (see assembly instructions).It is important that the panel is fixed planely to a cooling plate with 4 M3-screws or 2,9mm tapping screws. Also the backplate of a metal casing can be used. Only make sure that thealuminium plate cannot distort. This also means that you must not use bigger screws or enlarge the pre-drilled holes. The screws must not touch the module's plastic frame! Please makealso sure that the module is not distorted during the assembly. This can cause the SMD-elements' juntions to break loose and therefore break the module. Please note that the floor plate'smax. temperature according to the instrucions must not be exceeded. Elsewise a bigger cooling plate has to be attached.

The high-end Phaesun Hybrid Charge Controller All Round 400_12 was especially developed for 12VDC offgrid wind/solar hybrid systems. Thanks to many control possibilities the All Round series is very well suited to wind/solar systems, street lighting and surveillance systems. Technical data: for 12VDC-systems wind energy: max. 33A (400W) solar energy: max. 12A (150W) 2 x DC outputs: max. 10A, 3 different modes Features:Reliability: Intellegent, module based design, simple mechanics, various functions. Thanks to high-quality components and a strict production process the regulator is able to last very long even under bad circumstances. Steplessly PWM regulatedVoltage and current limitating charging mode: when the battery's max. voltage is reached the controller switches to voltage limitating mode. If the voltage, produced by the wind turbine, exceeds the max. voltage the regulator slows down the turbine. Each DC output with various control modes LCD Display:The LCD display shows status information and system parameter in numbers and graphical form: battery voltage; wind generator voltage and output; solar module voltage and performance, charging current, output control modes,time control, light controll option, day/night detection, charging level, under/overvoltage of the battery, etc.

The high-end hybrid charge-controller All Round 1000-24 from Phaesun was espcially designed for 48V DC offgrid wind/solar hybrid systems.Thanks to a many control functions the All Round series is very well-suited for wind/solar applications, street lighting or surveillance systems. Technical data: designed for 24V-systems max. 21A wind energy (1000W) max. 6A solar energy (300W) 2 x DC output: max. 10A total, 3 different modes Features:Reliability: Intellegent, module based design, simple mechanics, various functions. Thanks to high-quality components and a strict production process the regulator is able to last very long even under bad circumstances. Steplessly PWM regulatedVoltage and current limitating charging mode: when the battery's max. voltage is reached the controller switches to voltage limitating mode. If the voltage, produced by the wind turbine, exceeds the max. voltage the regulator slows down the turbine. Each DC output with various control modes LCD Display:The LCD display shows status information and system parameter in numbers and graphical form: battery voltage; wind generator voltage and output; solar module voltage and performance, charging current, output control modes,time control, light controll option, day/night detection, charging level, under/overvoltage of the battery, etc.

The Victron PWM-Light 48V 30A (MPN SCC040030020) is a reasonable-priced PWM charge controller that was especially developed to control lighting systems. There are several possibilities to configure the switching-off/on of these DC consumers. Of course with this charge controller other things like ventilation can be controlled.Please check the manual for detailled information about the possible configurations. Important product features: Load output with low battery voltage disconnect function. Lighting control function, one timer only. Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting. Three stage battery charging (bulk, absorption, float), not programmable. Load output protected against over load and short circuit. Protected against reverse polarity connection of the solar array and/or battery. Day/night timing options: see manual for details Delivery scope:1x Victron Energy SCC040030020 PWM-Light 48V-30A 1x Manual

Though a sound beginner's device the Victron BlueSolar PWM-PRO 10A (MPN SCC010010010) provides several professional functions. It can by applied in 12V and 24V systems and is therefore widely usable. Victron's BlueSolar-series provides more user comfort and possible configurations compared to the PWM-Light-series. Optionally a remote control display can be connected for an even more comfortable operation. All control parameters can be programmed freely via remote panel or USB link + PC-software Via the optional remote panel all relevant settings like charging voltage can be programmed freely. A feature normally found only in high-class devices. Specific charging and discharging voltage depending on the battery type as well as the switch-off/on tresholds of the consumer output can be adjusted. The remote panel is optional equipment and not included in the charge controller's delivery scope. You find this item in our shop under article number 8-67-008490. A more economical alternative to the remote panel is the Victron USB link cable. Additionally you receive the Victron Pc software which allows full programming of your charge controller as well as the generation of comprehensive performance statistics. This cable is available in our shop under article number 1-67-008500. Important features: 10A max. charging amperage, 10A max. solar performance optional remote panel available parameters like charging voltage freely programmable via remote panel suitable for AGM, gel and lead-acid batteries suitable for 12V and 24V battery voltage fully programmable lighting control full battery charging thanks to 3-step charging process consumer output with overload and short-circuit protection as well as switch-off function to avoid battery deep discharge optional temperature sensor available reverse polarity protection for solar and battery input Delivery scope:1x Victron MPN SCC010010010 BlueSolar PWM-PRO 10A 12V 24V1x Manual

The Victron MPPT 100/30 (MPN SCC020030200) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output. Compared to the 75/15 this controller processes a higher PV-Voltage and therefore handles a 100V DC safely. Next generation MPP-tracker Especially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Besides a higher charging and PV-capacity this Blue varys from the lower models. The 100/30 allows the programming and saving of different charging algorithms. Those can be adjusted simply via a switch-wheel on the device. This is the first model without a consumer output. Programming, real-time data and logging Latest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control. Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately. Important features: Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel Suitable for 12V and 24V systems Rated charging amperage: 30A 440W max. PV-performance at 12V and 880W at 24V 30A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection) Reverse polarity protection Multistep adaptive charging algorithm Battery charging algorithm programmable Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output Day/night-time control and dimming options VE.Direct data port integrated VE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct. Integrated battery life algorithm extends battery life If the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months. The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week. Delivery Scope: 1x Victron SCC020030200 BlueSolar MPPT 100/30 12V 24V 30A charge controller 1x Manual

The mppt rs SmartSolar from Victron Energy (mpn scc145110410) is a 48v solar charge controller with a PV input voltage of up to 450 vdc and an output current of 100a. It is used in grid-tied and off-grid Solaranapplications where maximum battery charging power is required. Features With ultra-fast maximum power point tracking (mppt) Multiple independent mppt tracking inputs Isolated PV connections for added safety Wide mppt voltage range Lightweight, efficient and quiet Integrated display and Bluetooth communication PV insulation resistance monitoring for safety at higher voltages VE.Can and VE.Direct connection I/O connections Configure and monitor with VictronConnect app or in VRM portal The integrated BluetoothSmart connection allows quick monitoring or configuration of settings via app. The integrated 30-day history shows the individual performance of each mppt tracker. The app enables the display of e.g. battery voltage and current, PV voltage and current, history data and trends. The VictronConnect app is available for Android, iOS, Windows and macOS x. When the solar controller is connected to a Gx device and the internet, the Victron Remote Management Portal (vrm) provides access to the full power of your SmartSolar rs charge controllers. Additional units connected in series The SmartSolar rs charge controller is equipped with VE.Can bus connections. This allows communication with additional SmartSolar rs & VE.Can mppt units. The additional units are simply "daisy chained" together with an RJ45 cable. When linked together, all individual charge controllers synchronize their charge levels. You can also send your data to a Gx device (such as the CerboGx) via the same cable for monitoring. Technical data Battery voltage: 48v Rated charging current: 100A Max. Charging power: 5.8kW at 57.6V Charging algorithm: multi-stage adaptive (customizable) Max. DC PV voltage: 450V mppt operating voltage range: 80-450V Number of trackers: 2 Max. PV operating input current: 18a per tracker Protection class: IP21 Dimensions: 440 x 313 x 126 mm Weight: 7,9 kg Scope of delivery: 1x Victron SmartSolar mppt rs 450/100 48v charge controller
