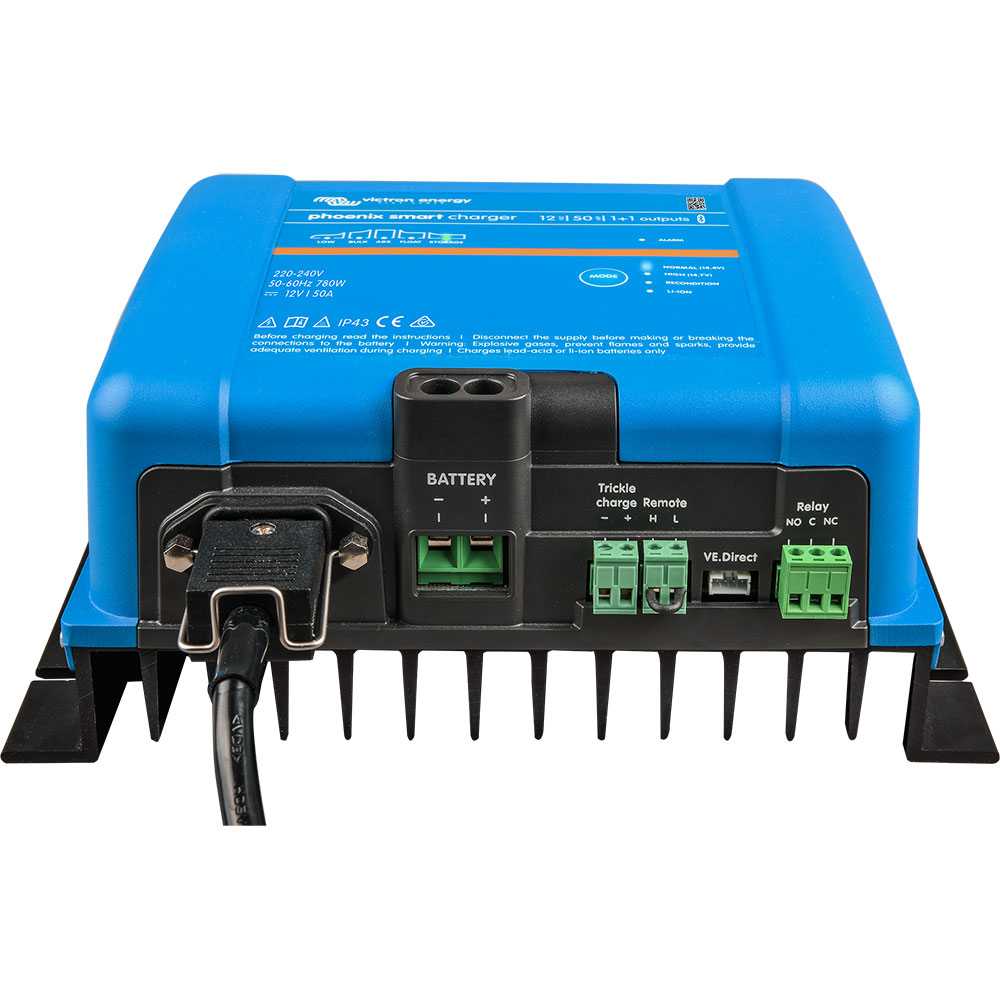

The Phoenix Smart Charger 12/50(1+1) ip43 from victron Energy (mpn psc125051085) is a powerful battery charger of the latest generation. The device is designed for 12v battery voltage and offers besides the strong 50a main charge output also a secondary charge output with 3a charge power for a starter battery

With its integrated Bluetooth module, the Phoenix Smart Charger 12/50(1+1) ip43 fits into the ever-growing Smart family from victron, which can be perfectly networked and also centrally controlled via various channels. In addition to the Bluetooth module, there is also a vE.Direct connection and a freely programmable relay. Optionally, the Smart Battery Sense can also be connected to control the battery temperature compensation. The proven five-stage charging algorithm and the possibility to program your own charging algorithm make the Phoenix Smart Charger 12/50(1+1) ip43 a universally applicable high-tech battery charger that can optimally charge almost any battery type

perfect battery charger for boats and vehicles

Phoenix Smart battery chargers, which include (1+1) in the model name, have a main charge output, with full charge current and a 3a auxiliary charge output for charging starter batteries. These models are therefore particularly suitable for mobile use. The Phoenix Smart models with (3) in the model name are especially designed with marine needs in mind and provide three full current outputs for charging 3 battery banks.

Highlights of the Phoenix Smart Charger 12/50(1+1) ip43

  • integrated bluetooth module
  • integrated vE.Direct connectors
  • 1x 50a main charge output and 1 additional secondary charge output for starter batteries
  • automatic voltage compensation
  • adaptive, five-stage charging algorithm
  • variable constant voltage phase
  • charges all common battery types optimally
  • prevention of damage due to gassing thanks to BatterySafe mode
  • reduced aging due to storage with the storage mode
  • also charges LiFePO4 batteries and can be connected to a bms via optocoupler
  • fully programmable charging algorithm
  • Remote on/off
  • can be used as a power source

phoenix Smart 12/30(1+1) technical features

  • victron Part number: psc125051085
  • Number of battery banks: 1+1 (1 main output with full power + 1x starter battery (max. 3a charge)
  • maximum rated charge current: 50a, battery voltage: 12v
  • high efficiency: 94%
  • Protection class: ip43 (electronic components), ip22 (connection area)
  • further data you will find at technical data

three integrated technologies for all around healthy batteries

variable constant voltage phase: always delivers the right amount of charge

In case of low battery discharge (e.g. a yacht connected to shore power), a short constant voltage phase is selected to avoid overcharging. After a deep discharge, the constant voltage phase is automatically extended to ensure that the battery is fully charged.

preventing damage from excessive gassing: the BatterySafe mode

To shorten the charging time, the highest possible charging current has been selected together with a high constant voltage. However, to avoid excessive gassing towards the end of the constant current phase, the charger limits the rate of voltage rise after the gassing voltage has been reached (see also the graphs in the brochure)

Less maintenance and aging when the battery is at rest: the storage mode

The storage mode is activated whenever there has been no discharge within 24 hours. In storage mode, the charge retention voltage is then lowered to 2.2 v/cell (13.2 v for a 24-v battery) to minimize gas generation and corrosion on the positive plates. Once a week, the voltage is increased to the level of the gassing voltage. This provides a type of equalization charge that prevents electrolyte stratification and sulfation, the two main causes of premature battery failure.

also perfect for LiFePO4 battery

The Phoenix Smart Charger 12/50(1+1) ip43 can have on/off control attached by connecting a relay or optocoupler open collector output from a Li-Ion bms to the remote on/off port. Alternatively, voltage and current can be fully controlled via bluetooth

vE.Direct interface, Bluetooth and programmable relay

The Phoenix Smart Charger 12/50(1+1) ip43 from victron is ideally suited for a wired data connection with a color control panel, pc or other devices thanks to the vE.Direct port. Also note the victronConnect app for Android and ios, which you can use with any smartphone or tablet to wirelessly control and read your Phoenix Charger via Bluetooth. Programmable relays can also be programmed via the vE.Direct interface or a Bluetooth-enabled device to trigger an alarm or other events

accessories needed

Please note that an AC connection cable is required to connect the Phoenix Smart Charger 12/50(1+1) ip43 to the mains. This is not included in the scope of delivery

Scope of delivery
1x psc125051085 victron Phoenix Smart Charger 12/50(1+1) ip43
1x AC cable clamp
1x user manual

Victron_Phoenix-Smart-IP43-Charger_CE.pdf Download
Victron_Phoenix-Smart-IP43-Charger-1-1-120-240V_Dimensions.pdf Download
Victron_Phoenix-Smart-IP43-Charger-120-240V_Datasheet.pdf Download
Victron_Phoenix-Smart-IP43-Charger-120-240V_Manual.pdf Download
Victron_Phoenix-Smart-IP43-Charger-120-240V_Certificate.pdf Download
Victron_Phoenix-Smart-IP43-Charger-120-240V_Datenblatt.pdf Download
Ambient temperature: -20°C - +60°C
Battery type adjustable: Acid, Gel, AGM, LiFePO4
Battery voltage: 12V
Charging characteristic: Adaptive battery management
Communication ports: Bluetooth, Ve.Direct
Manufacturer: Victron Energy
Number of charging outputs: 1 + 1
Protection type: IP43
Protective functions: Reverse polarity at battery, output short circuit, overtemperature
Temperature compensation: Yes, via Smart Battery Sense
Warranty: 2 years
Weight: 3,6 Kg
ean: 8719076041627
mpn: PSC125051085
