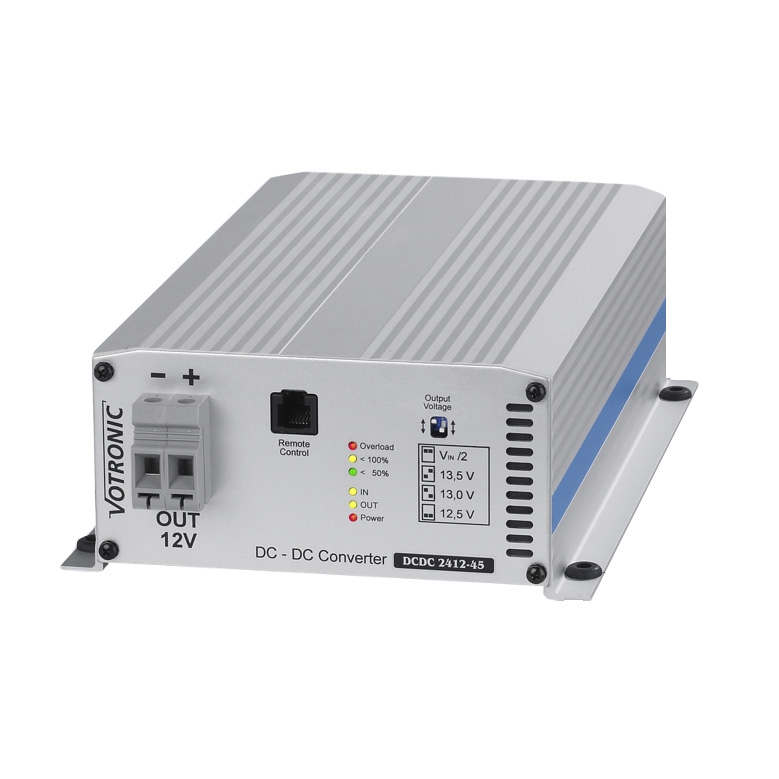

This VOTRONIC DC-inverter out of the DCDC-series allows a safe operation of 12V-consumers in 24V-on-board-systems without using a battery.

For a short time these inverters can even be run with an overload of up to 30%. Thanks to that starting, peak and initial currents of consumers can be compensated.

To prevent voltage breakdowns, defective ground wires or else the inverter is equipped with a galvanic isolation between input and output. This ensures a stable, separated mass ratio on both sides, espcially useful for big vehicles, containers, etc.
Starting the DC-inverter also activates the battery's voltage sensor (voltage recognition, undervoltage-shutdown).

Output voltage:
It is stabilized and smoothed and therefore also suitable for damageable consumers. The output voltage can be adjusted to 3 different, fixed and stabilized output voltages.
The fourth mode adjusts the output voltage according to the detected input voltage. In this mode it makes sense to use consumers which read out information from different voltages, for example the charging of a starter battery, automatic over/undervoltage shutdown, etc.

Features:

  • The output voltage is stabilized, smoothed, free from voltage peaks and filtered.
  • Galvanic isolation between input and output:
  • full separation of consumers and battery system, even when errors occure. This is especially important when a 12V-consumer is supplied with a 24V-system
  • no damaging of 12V-consumers through overvoltage because of 24V-breakdowns
  • no overvoltage at the output which protects consumer during a loss of the ground wire
  • clean and uninterrupted mass ratio even with extensive cabeling
  • stable operation voltage in mobile systems
  • filtering and surpression of malfunctions at input and output
  • Automatic continuous operation: The inverter can be constantly connected to battery and consumers and works manually or automatically according to predefined settings.
  • Surveillance-free operation: Multible protection against overload, overheating, overvoltage, short-circuit, malfunctions, deep discharge through electronical barriers and an auto-shutdown through integrated security switches.
  • Input cable compensation: voltage losses at the cables are considered
  • Integrated board mains suppression filters: This allows the parallel operation with solar systems, wind and fuel generators or grid-connected chargers at a battery.
Bedienungsanleitung_DCDC-2412-45.pdf Download
Battery capacity recommendation (min.): 50Ah
Continuous current: 45A / 58A
Manufacturer: Votronic
Measuring input starter battery: Yes
Mounting position: any
Output current (5 sec.): 58 A
Output voltage: 12,5 V / 13,0 V / 13,5 V / Vin/2
Power consumption max.: 730 W
Power consumption short-time max.: 960 W
Product Type: Voltage transformer
Protection type: IP21
Protective functions: 54828,54829,54830,54179,54827
Switching input (DKL): Yes
System voltage: 24V DC
Temperature range: -20 to + 45°C
Voltage range (max. 10s): 9,0 V - 16 V
Weight: 1800 g
