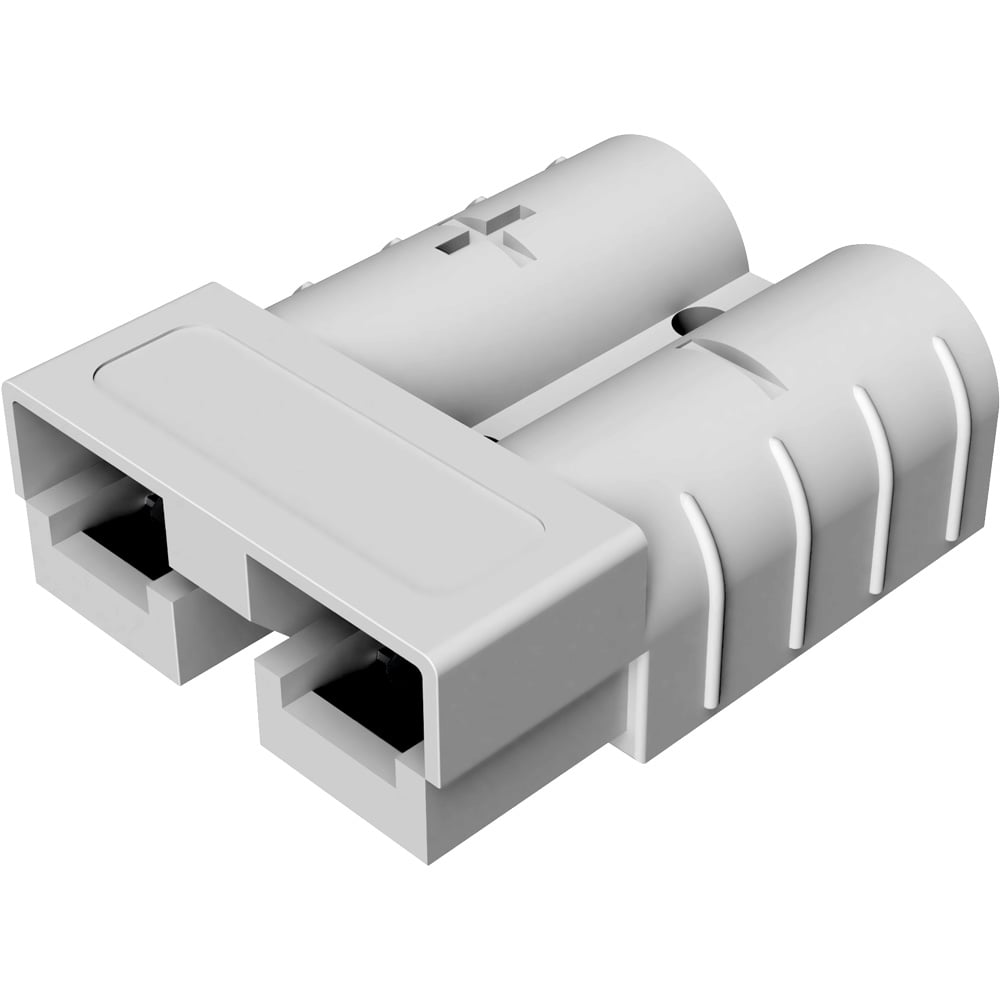

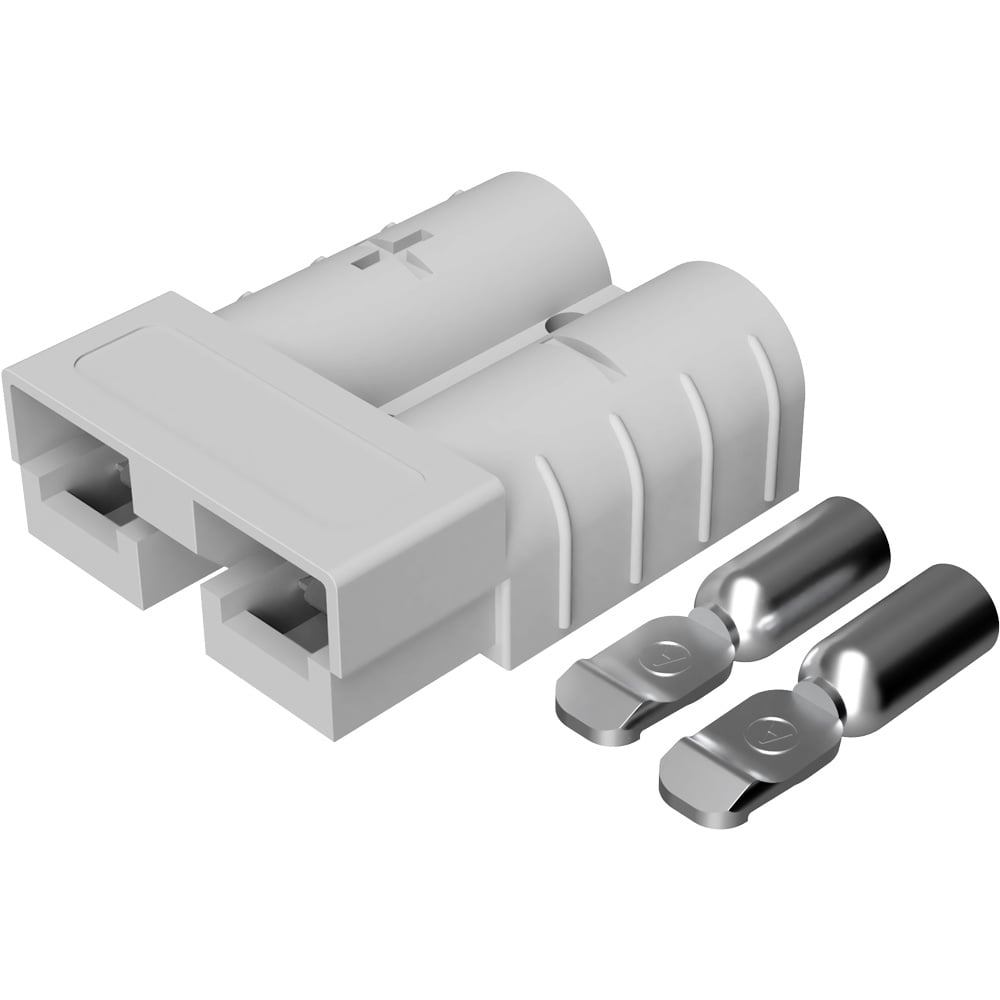

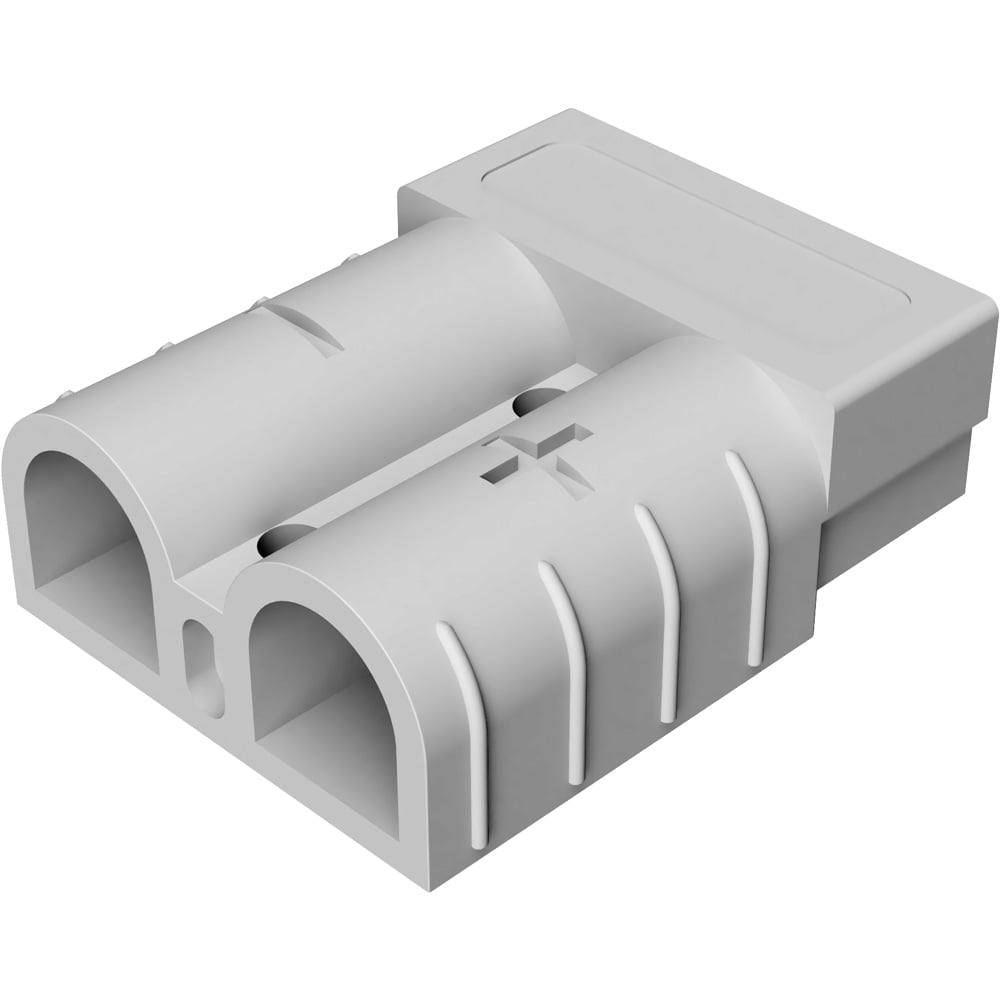

The Anderson connector pair sb50 from Offgridtec (mpn 8-01-010495) in gray comes incl. contact pins and is suitable for cables with a cross-section of 6-8mm². It is ideal for attaching a solar module moibil to the charge controller and thus provides you with maximum flexibility. But the connectors are also useful in many other applications.
Properties
Set: 2x plug + 2x contact pin pair
Rated current: 50 A
Rated voltage: 600 V

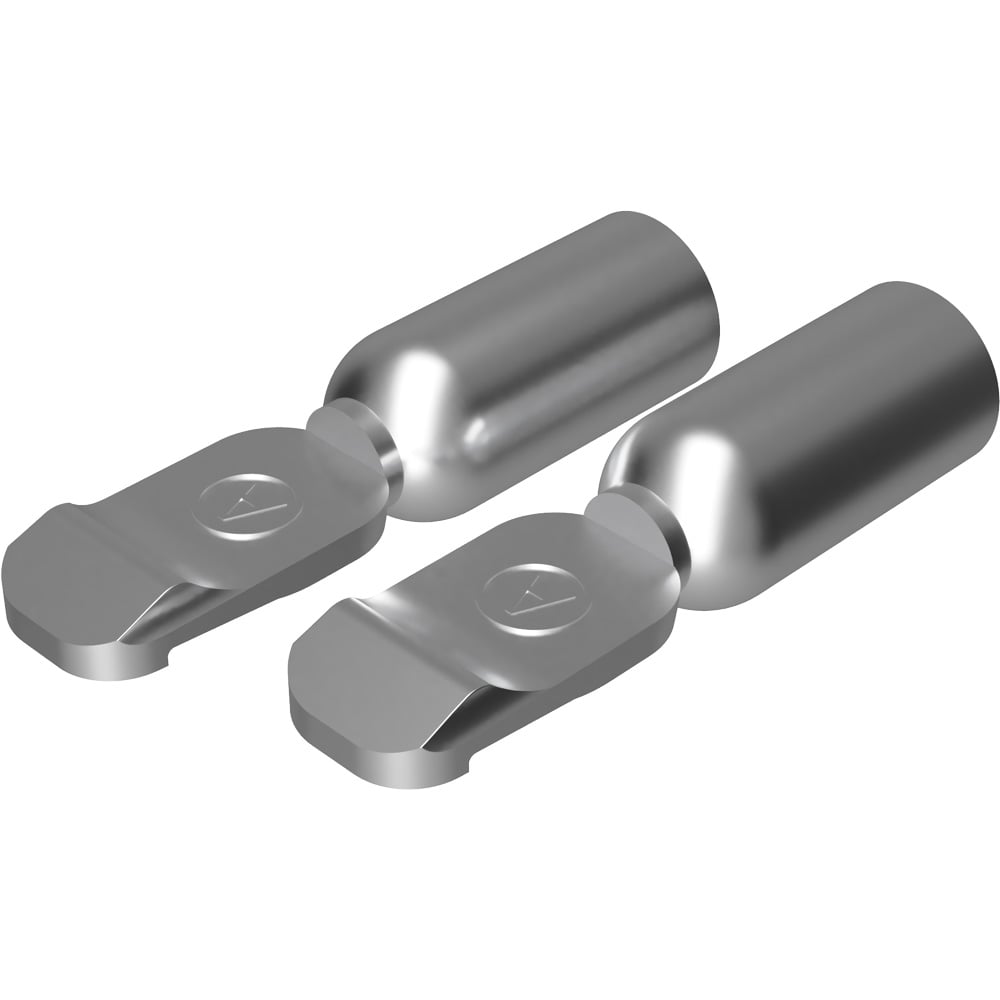

incl. contact pins
Cable cross section: 6-8 mm²
Material: polycarbonate
Operating temperature: -20°C - +105°C
Dimensions: 60 x 50 x 20 mm
Scope of delivery:
2x Anderson connector sb50 gray incl. contact pins
Manufacturer:Offgridtec
Weight:0,1 kg
ean:4250983254358
mpn:010495
8-01-010495
