The PV-Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With the push-in connection - plug, turn, power! - it enables crimp-free, fast and secure connection of solar panels, inverters and other components in PV systems. The PV-Stick is compact and easy to install, which saves time and costs. Electrical properties Push-in technology Protection class: II Complies with DIN EN 50521 Application information Push in the stripped photovoltaic cable (strip 15-16.5mm) without the wire end sleeve. An audible click indicates that the contact has been made securely. Tighten the screw cap with a few turns "Snap in" ensures that the connectors are firmly engaged Technical Data Continuous operating temperature: -40°C - + 85°C Rated voltage: 1500 V/DC Rated current: 30A Degree of protection mated condition: IP65 Degree of protection open condition: IP2x Protection class: II Conductor cross-section: 4mm²-6mm² PV conductor according to EN 50618:2014 Cable diameter: 6.1mm-6.2mm Overvoltage category: III/3 Clearance & creepage distance according to DIN EN 60664-1:2007 Contact resistance: IEC 62852:2014 Approval: IEC 62852:2014 Rated surge voltage: 16 kV Connection technology: PUSH IN (spring clamp connection) Mounting temperature: +10°C - +40°C Scope of delivery: 1x Weidmüller PV Stick MC4 Set

The Offgridtec 2-fold junction sockets incl. cable extension (mpn 010337) are compatible with solar connectors and are used to connect 2 modules in parallel. The design is identical to the 2-way junction boxes but these junction sockets have a cable extension. (Article total length: approx. 34cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with solar connectors Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel connection mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 2-fold junction Y-connector incl. cable extension

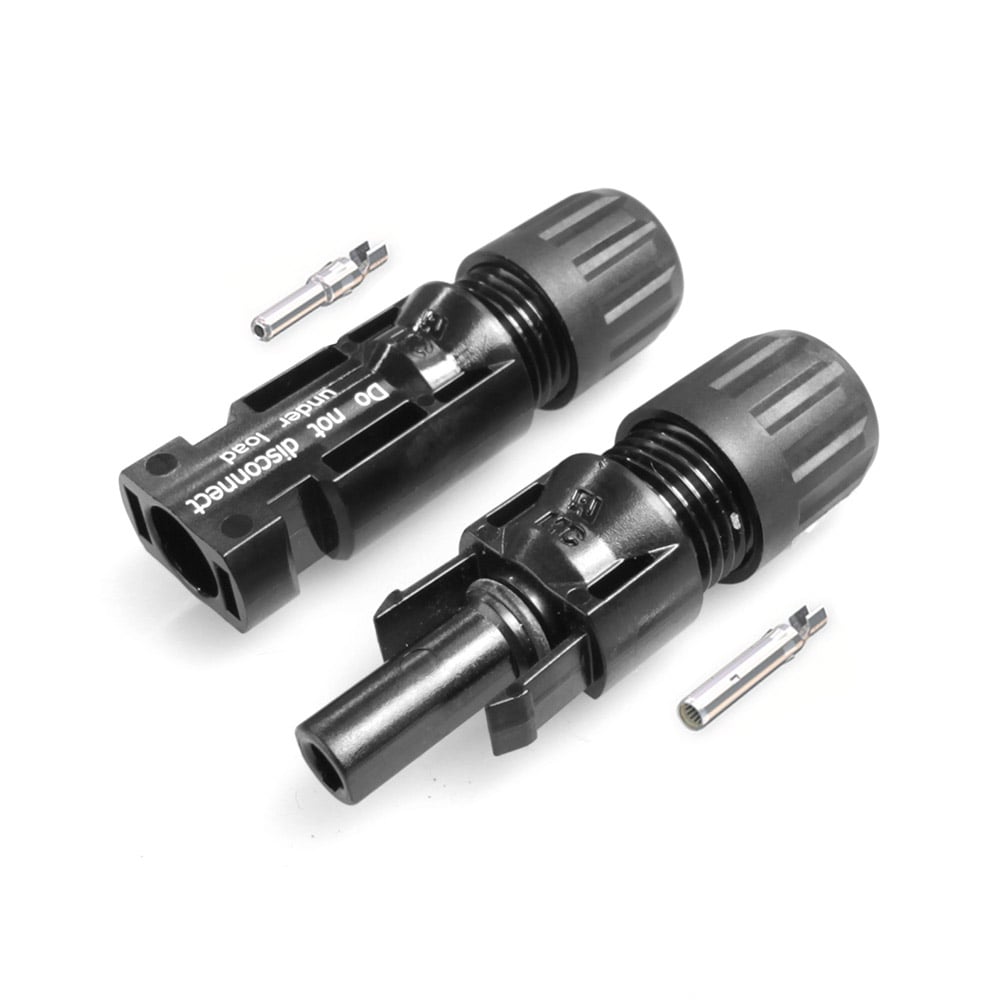

mc4 plug and socket pair for solar cables with 10mm² wire cross-section and an outer diameter of 5.5-9.0mm. Especially in the area of 12v Solaraapplications there are often large line losses due to too small cable cross sections. Therefore we offer the proven mc4 connector system also for 10mm² cables. important technical features for solar cables with outer diameter 5.5 - 9.0mm Touch protection, unplugged IP2X Protection class, mated IP67 Temperature application range -40° ...90° C max current: 42A Cable strain relief according to iec 61984 (06.2001) Contact system with MC contact blades Contact material copper, tin-plated System voltage up to 1000V other versions mc4 connector for 4-6mm solar cables Scope of delivery: 1x pair of Stäubli mc4 connectors for 10mm cable, PV-KST4/10II + PV-KBT4/10II

The Offgridtec 3-fold junction sockets incl. cable extension (mpn 010338) are compatible to solar connectors and are used to connect 3 modules in parallel. The design is identical to the 2-way Jacks but these jacks connect 3 instead of 2 modules and have a cable extension. (Total length: approx. 54cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with PV-KST 4/6ii solar connector Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel wiring mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit, the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 3-way junction T-connector incl. cable extension

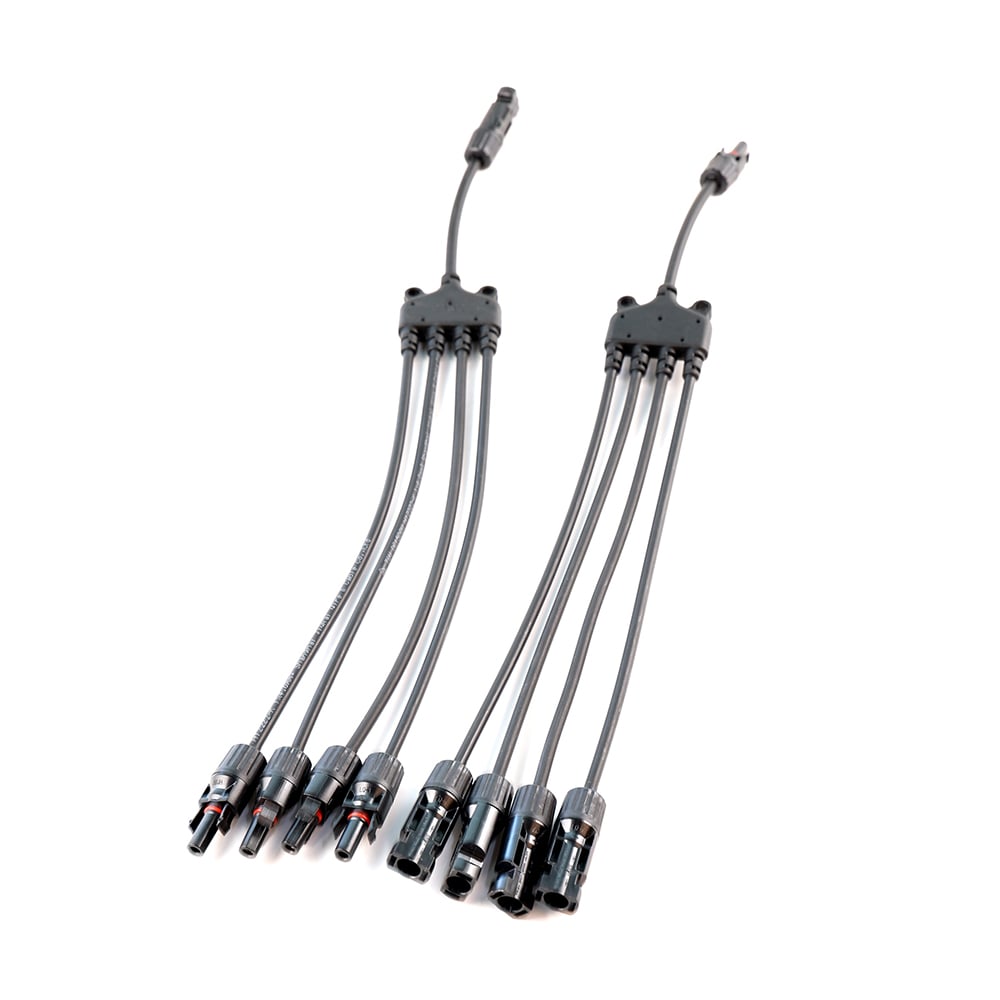

The Offgridtec 4-way jacks incl. cable extension (mpn 010339) are compatible to mc-4 connectors and are used to connect 4 modules in parallel. The design is identical to the 2-way jacks but these jacks connect 4 instead of 2 modules and have a cable extension. (Total length: approx. 54cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with PV-KST 4/6ii solar connector Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel wiring mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit, the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 4-way junction T-connector incl. cable extension

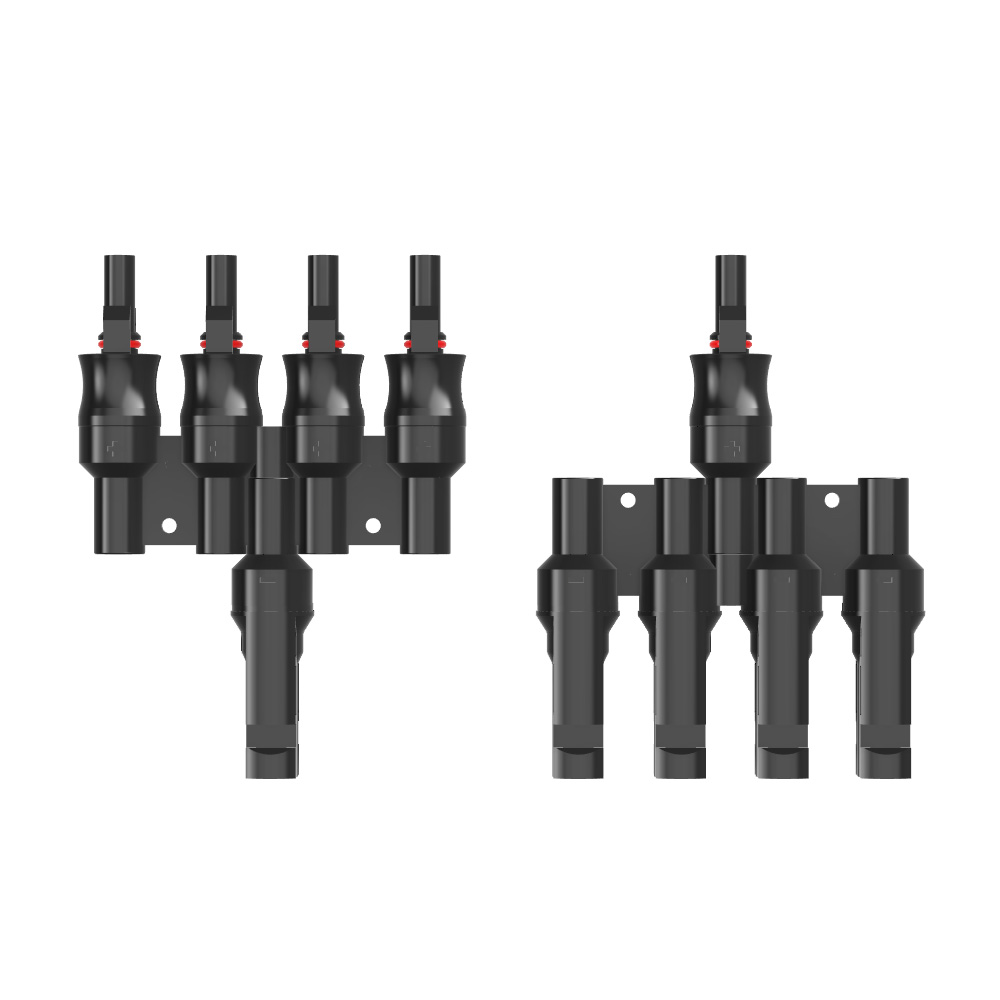

The Offgridtec 4-way junction sockets (MPN 010336) are compatible with solar connectors and are used to connect 4 modules in parallel. In terms of construction, they are identical to the 2-way junction sockets, but you can save costs by using these connectors, as you can connect 4 modules in parallel instead of 2. Important article features Branching sockets for parallel connection of several solar modulesSuitable for cables with a cross-section of 4mm²-6mm²Compatible with solar connectorsIdeal for 12V systems and thin-film modulesSnap-in lockingIP67 protection classWhat does parallel connection mean? With parallel connection, the plus and minus wires are bundled at one output. This circuit increases the current and the voltage remains the same.Practical example: You want to connect 3 pieces of 100W (Imp=5.56A Vmp=17.8V) solar modules to a charge controller with 20A and a max. input voltage of 30V/DC. To ensure that you do not exceed the permitted input voltage, you must wire the modules in parallel. So plus to plus and minus to minus.If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. This makes your solar configuration a perfect match for the charge controller. Scope of delivery: 1x pair of Offgridtec 4-way junction sockets T-connector

Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used. Application: Elastic connections and sealing for trains, caravans, trucks, cars,... Glueing windows of buses, trains, caravans,... Glueing of edge profiles (aluminium or polyester) of trailers Glueing of polyester components with metal frame Characteristics: Free of solvents, isocyanate and PVC Very UV- and age-resistant Very high initial strength. Very high adhesion in general even without priming on various surfaces. Constantly elastic within a temperature range of -40°C to +120° Neutral, odorless and quick-setting After skim-development paintable - normally this does not influence the setting-process Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended) We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test. Why Dekasyl? Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing. Details:Filling: 290mlMPN: 6252412Color: blackDelivery scope: 1 tube 290ml

12V cigarette lighter for cars F3A 250V fuse crease protection color: black RoHS-compliant

Die Engel-Steckdose von Offgridtec ist ein kompatibler Sockel. Die Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Engel-Steckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V Lieferumfang: 1x Offgridtec Engel-Steckdose

Die USB-Steckdose von Offgridtec bietet Ihnen die Möglichkeit, einen normalen USB Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V DC Beleuchtungsfarbe: Hell/Blau Abmessungen: Gesamtlänge: 52 mm Durchmesser Gewinde: 29 mm Korpuslänge: 32 mm Korpuslänge mit Kontakten: 40 mm Maximale Frontplattenstärke: 22 mm Lieferumfang: 1x Offgridtec USB-Steckdose

The connector st20i3s s1 yr2 v sw from Wieland (mpn 96.034.4153.1) has a 3-pole, 90° angled RST20i3 plug part in screw technology for a cable diameter of 10-14mm².Rated current: 20ARated voltage: 250vRated impulse voltage: 4 kvlockable: self-locking (can be released with tools)Coding color: blackCable diameter: min. 10mm² - max. 14mm²Protection class: ip66/68 (3m;2h) / IP69Housing material: polyamide

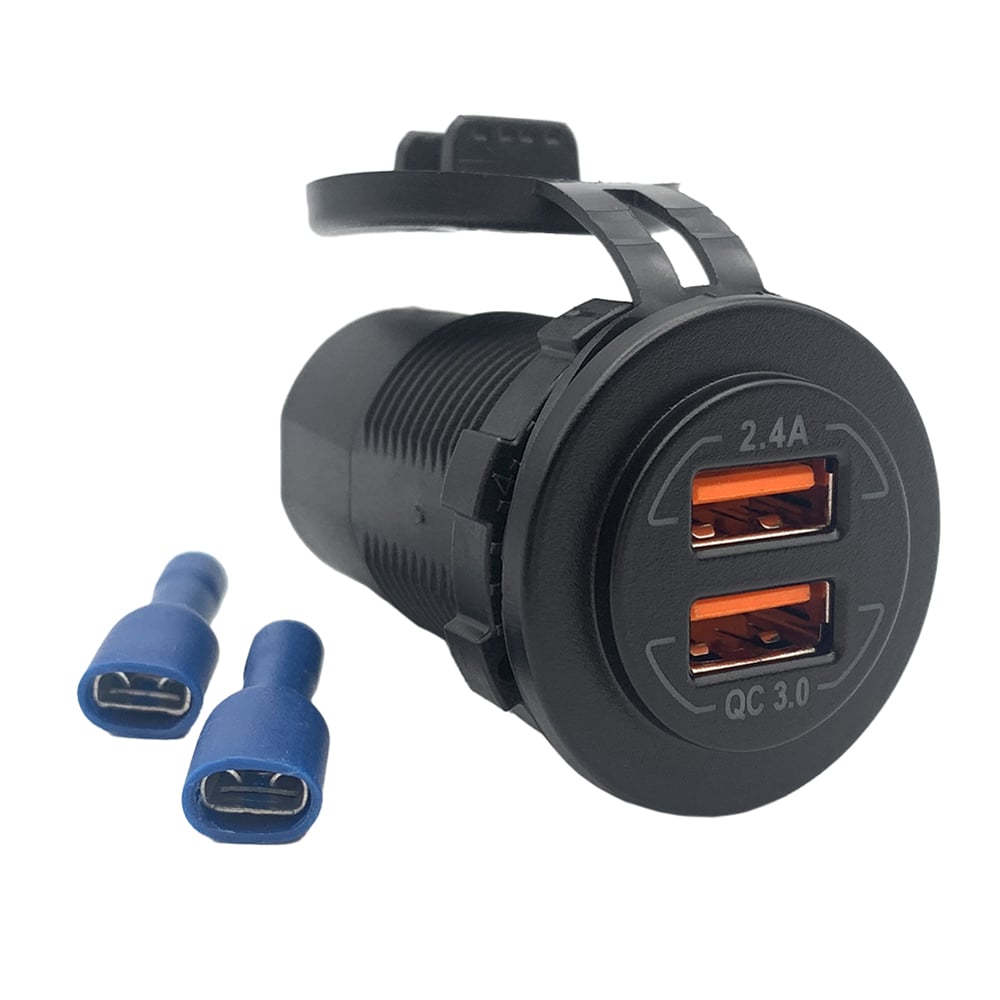

Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei normale USB Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V DC Beleuchtungsfarbe: blau Abmessungen: Gesamtlänge: 65 mm Durchmesser Gewinde: 29 mm Korpuslänge: 45 mm Korpuslänge mit Kontakten: 55 mm Max. Frontplattenstärke: 22 mm Lieferumfang: 1x Offgridtec USB Doppelsteckdose

WAGO lighting connectors serve as an ideal connection between single-wired, multi-wired and fine-wired conductors.These clamps come with the patented PUSH WIRE® and CAGE CLAMP® technology. Thanks to that single-wired conductors (circular opening) canbe easily connected to the clamp without any tools or pushing. Multi-wired conductors are placed in the rectangular opening and connected quick and easy thanks to PUSH WIRE®. Both technologies ensure a high degree of safety and an enormous tensile strength. As it is certified as isolated connection clamp by  VDE and UL according to EN 60998 1+2 it can also be used for other applications:shutters, sunblinds, heating systems, actuators, floor heating and much more. Features: single-wired connectable to: 1x cu 1-2.5 mm² / AWG 14-12 multi-wired connectable to: 1x 1-2,5mm² / AWG20-16

The new “WAGO” is more than 50% smaller than the original 273 Series, which has proven itself in billions of applications. The transparent enclosure of the connector provides secure and error-free connection of solid conductors. The 2273 Series COMPACT PUSH WIRE® Connector for Junction Boxes – Small is Big. How to develope the best push-wire connectors ever? Minimize the space requirements in the socket while ensuring maximum convenience, ease of use, safety and reliability: Convenience from every angle. Small yet powerful. The 2273 Series COMPACT PUSH WIRE® connectors for junction boxes are around 50% smaller than the original 273 Series “WAGOs” used successfully in billions of applications. This saves a great deal of space for electrical installations. The individually combinable connection cross sections from 0.5 to 2.5 mm², nominal current up to 24 A and clear, unique color coding for quick access provide you with perfect installation conditions. The new “WAGO” is more convenient and easy to use than ever! Everything under control The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check if the conductors have been stripped properly, ensuring protection against accidental contact. The test slots are optimized for all standard test probes. Delivery scope: 1 x WAGO Compact Push-Wire Connector

The new “WAGO” is more than 50% smaller than the original 273 Series, which has proven itself in billions of applications. The transparent enclosure of the connector provides secure and error-free connection of solid conductors. The 2273 Series COMPACT PUSH WIRE® Connector for Junction Boxes – Small is Big. How to develope the best push-wire connectors ever? Minimize the space requirements in the socket while ensuring maximum convenience, ease of use, safety and reliability: Convenience from every angle. Small yet powerful. The 2273 Series COMPACT PUSH WIRE® connectors for junction boxes are around 50% smaller than the original 273 Series “WAGOs” used successfully in billions of applications. This saves a great deal of space for electrical installations. The individually combinable connection cross sections from 0.5 to 2.5 mm², nominal current up to 24 A and clear, unique color coding for quick access provide you with perfect installation conditions. The new “WAGO” is more convenient and easy to use than ever! Everything under control The transparent enclosure allows visual inspection for correct wiring. You can use the clear port to check if the conductors have been stripped properly, ensuring protection against accidental contact. The test slots are optimized for all standard test probes. Delivery scope: 1 x WAGO Compact Push-Wire Connector

The Offgridtec 3-way solar connectors (8-01-010335) are used to connect 3 modules in parallel. They are identical in construction to the 2-way junction boxes, but you can save costs with these connectors because you can always connect 3 modules in parallel instead of 2.   Important article features - Solar connector compatible 3-way junction boxes for parallel connection of several solar modules -Suitable for cables with a cross-section of 4mm²-6mm² -Compatible with PV-KST 4/6II solar connectors ideal for 12V systems and thin-film modules -Snap-in locking -Protection class IP67 What does parallel connection mean? With parallel connection, the positive and negative leads are bundled at one output. This circuit increases the current and the voltage remains the same. Practical example: You want to connect 3 100 Watt (Imp=5,56A Vmp 17,8V) solar modules to a charge controller with 20A and a maximum input voltage of 30V/DC. To ensure that you do not exceed the permissible input voltage, you must connect the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp= 16.68A and Vmp = 17.8V. This means that your solar configuration is perfectly matched to the charge controller. The scope of delivery includes: 1x pair of Offgridtec 3-way solar connector junction boxes.

The EcoFlow 2-fold junction sockets incl. cable extension (mpn 50004032) are compatible with solar connectors and are used to connect 2 solar modules in parallel.FeaturesJunction sockets for parallel connection of several solar modulesCharge EcoFlow Powerstations faster with more solar powerCompatible with solar connectorsincl. 20cm cable extensionWhat does parallel connection mean?In parallel connection, the positive and negative wires are bundled at one output. Through this circuit, the current increases and the voltage remains the same. Depending on which solar modules you use to charge your EcoFlow Powerstation, you can connect up to four modules in parallel (multiple parallel connectors required). The maximum values at the solar input of the respective power station specify how many modules you can use (refer to the respective data sheet for information). Note that you can only connect modules together that have the same short-circuit current (isc) or the same open-circuit voltage (voc).Scope of delivery:1x pair of EcoFlow parallel connectors for solar connectors

Der Wippschalter von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Klick die Stromversorgung zu kappen. Er ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Material: Kunststoff Farbe: Schwarz Spannung: 12V DC Strom: max. 10A Abmessungen: Gesamtlänge: 25mm Durchmesser: 29mm Maximale Frontplattenstärke: 15mm Gewindelänge: 22mm Kontakte sind innerhalb des Gehäuses (stehen nicht über) Lieferumfang: 1x Offgridtec Wippschalter

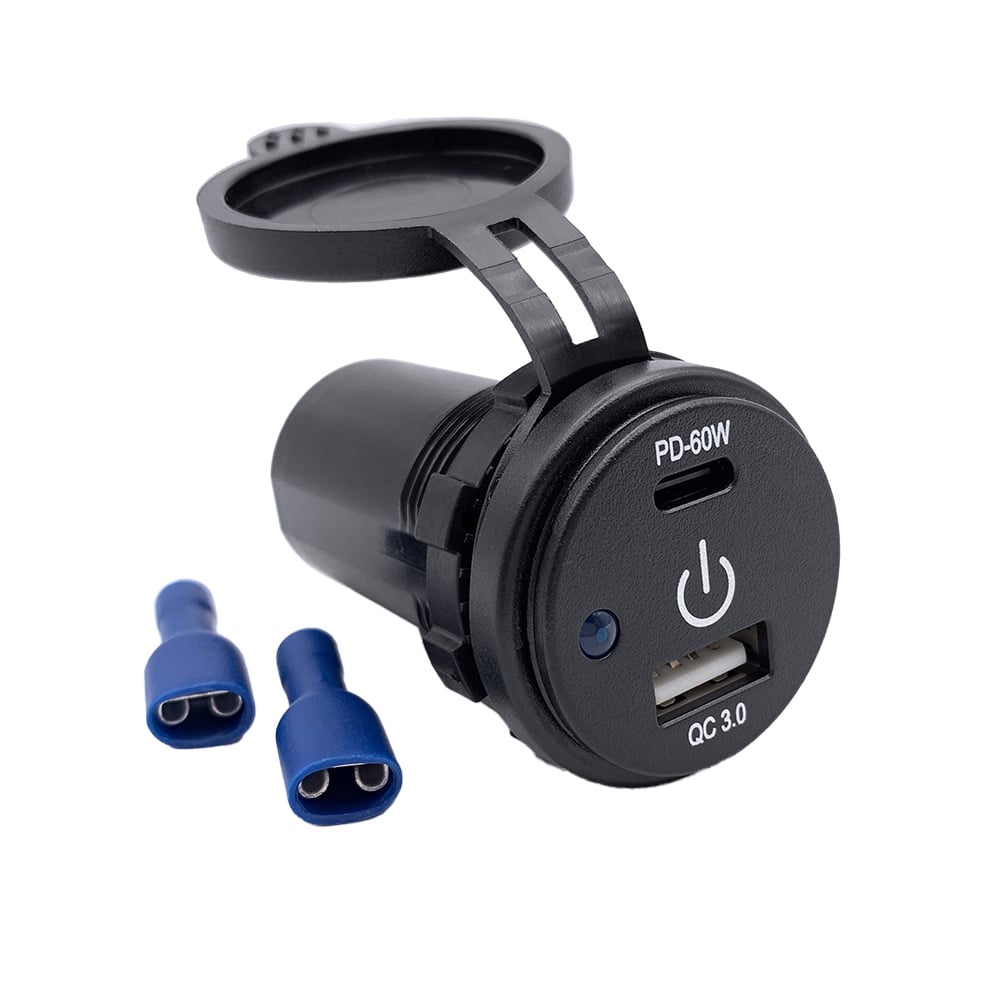

Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei normale USB Anschlussstecker oder einen USB-C Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V DC Lieferumfang: 1x Offgridtec USB Doppelsteckdose (2x USB-A und USB-C)

Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei normale USB Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V DC Beleuchtungsfarbe: blau Lieferumfang: 1x Offgridtec USB Doppelsteckdose

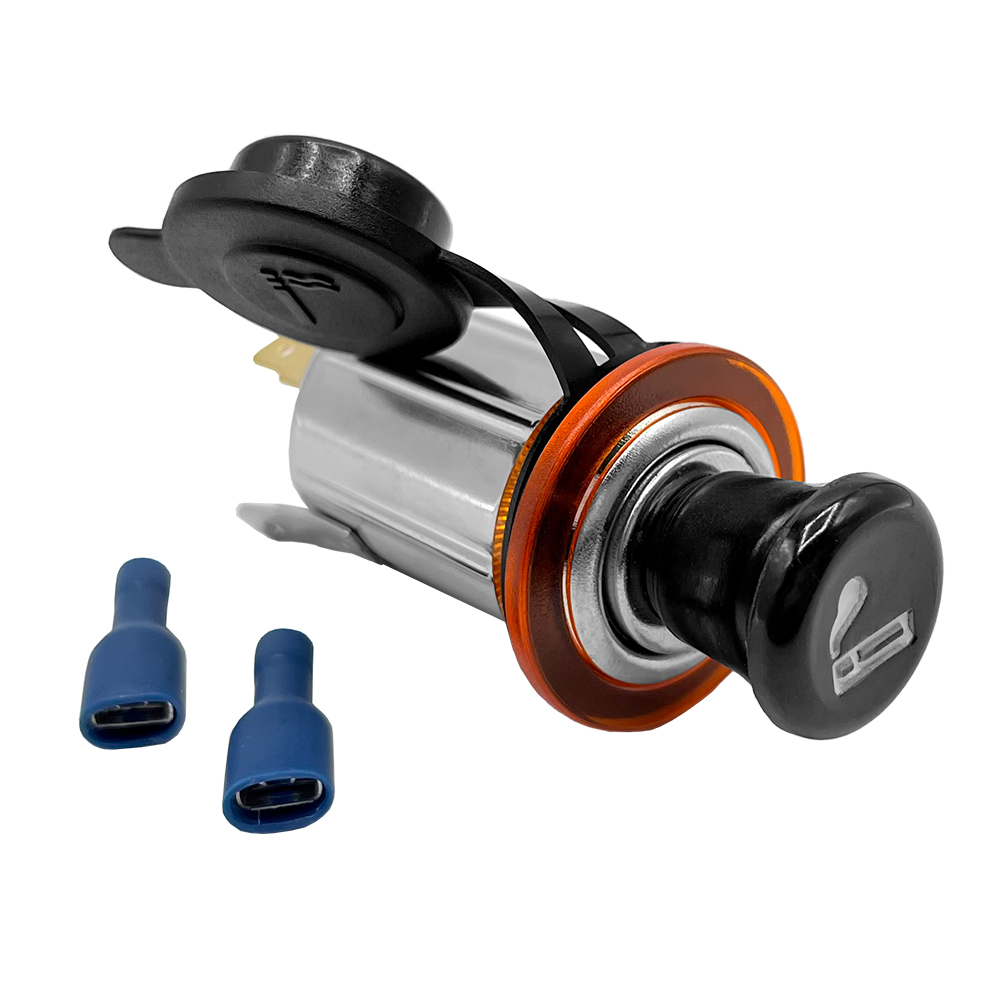

Die Zigaretten-Steckdose von Offgridtec ist ein kompatibler Sockel. Die Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Zigaretten-Steckdose ist für den Einsatz mit Montagegehäusen geeignet. Eigenschaften: Schutzklasse: IP65 Material: Kunststoff Farbe: Schwarz Spannung: 12-24V Lieferumfang: 1x Offgridtec Zigaretten-Steckdose

Assembled, 2m long Ethernet cable ip65 from AEconversion (16-05-500236-1), for interconnection of AEconversion micro inverters. In systems that are to be monitored and analyzed by means of rs485 communication network and corresponding data loggers. The Ethernet cable is supplied plug & play, so it is ready to use immediately, without you having to use any tools yourself Features of the AEconversion 2m Ethernet cable rs485 for AEconversion systems based on rs485 to connect the Micro-Inverters with each other 2m ethernet cable ip65 Scope of delivery: 1x AEconversion 16-05-500236-1 2m Ethernet cable ip65 for rs485 communication ports 1x user manual

The rj45 / rs485 termination plug from AEconversion (mpn 14-05-500422-1) is required if you want to use the rs485 communication ports on the micro inverters from AEconversion. The unused rs485 port must be equipped with this termination plug Using the rs485 termination plug rj45 IP67 When connecting 1 Micro-Inverter to a monitoring device, the unused communication port must be populated with the termination plug to close the network. Otherwise the rs385 system will not work The same applies if you want to operate several Micro-Inverters on one communication line. In this case all Micro-Inverters are connected to each other and the last Inverter has a free rs486 port. This would then also have to be assigned with the termination plug Scope of delivery: 1x AEconversion 14-05-500422-1 rj45 / rs485 termination plug 1x user manual

Der RJ45-Steckverbinder VS-08-RJ45-5-Q/ IP67-BK von AEconversion (MPN 51-05-500008-1) wird benötigt um ein RS485 Kommunikations-Netz aufzubauen. Es können sowohl die Inverter untereinander verbunden werden, als auch der Inverter mit dem mit einem entsprechenden Überwachungsgerät wie dem AEDL-LAN Datenlogger oder der AEDL-UH Version, beide ebenfalls von AEconversion. Eigenschaften des RJ45-Steckverbinder VS-08-RJ45-5-Q/IP67-BK RJ45 Steckverbinder (IP67, CAT5e, 8-polig) zur Verbindung der Inverter mit Kabel untereinander 8-polig, mit QUICKON-Schnellanschlusstechnik für 1-drähtige und 7-drähtige Adern, AWG 26- 22 für Kabeldurchmesser 5,0 mm - 8,0 mm zur Verbindung der Micro-Inverter untereinander oder zum Anschluss eines Micro-Inverters an ein kompatibles System-Überwachungsgerät Lieferumfang: 1x AEconversion 51-05-500008-1 RJ45-Steckverbinder VS-08-RJ45-5-Q/ IP67-BK
