The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 3.5 kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the previous model US3000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 3552 Wh Usable capacity (95% DoD): 3374 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 90A Max. (Discharge) charging current: 74A Recommended charge/discharge current: 37A Communication: rs485, CAN Weight: 32 kg Dimensions: 442 x 420 x 132 mm Protection class: IP20 Temperature range charge: 0°C - +50°C Temperature range discharge: -10°C - +50°C Temperature range storage: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery: 1x Pylontech us3000c LiFePO4 3.5 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x user manual
From
€1,013.31*
From €851.52**
The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands...
The Pytes e-box 48100r-c (mpn 110402100007) is a state-of-the-art LFP battery with 100 Ah capacity and is characterized by its high level of safety, sophisticated design and impressive performance. The battery is compact, easy to install, maintenance-free and can be used as the basic building block of an energy storage system by connecting it in parallel. Applications range from self-consumption coverage in private homes to small commercial and industrial energy storage systems, as well as in telecommunication stations.The Pytes E-BoxLatest generation LFP storageOver 6000 cycles at 90% DoDIntelligent energy managementIdeal for emergency power supplyExtensive compatibilityModularly expandableCAN and rs485 communicationIntelligent energy managementThe intelligent Pytes battery offers a comprehensive energy management system. Through real-time measurements, monitoring and management, it optimizes the system service life using intelligent algorithms. The battery thus ensures efficient and sustainable use of the available energy.Reliable emergency power supplyThe simple installation and user-friendly design make Pytes batteries a practical option for ensuring an uninterrupted power supply in your home. With their intelligent control features, Pytes batteries can optimize energy consumption and maximize battery life to ensure your backup power supply is efficient and reliable.Long service life and maximum safetyPytes batteries are characterized by their impressive service life and high level of safety. With over 6000 cycles at 90% depth of discharge (dod), they offer an exceptionally long service life. Whether it is a grid-connected solar system or a self-sufficient stand-alone system, the Pytes storage system offers several clear advantages over conventional lead batteries and other lithium technologies.Technical dataBattery chemistry: Lithium iron phosphate (LFP)Nominal voltage: 51.2 VVoltage range: 47.5-57.6 VNominal power: 100 AhNominal energy: 5.12 kWhMax. Charging current: 50 AMax. Discharge: 50 ACharging temperature: 0~50°CDischarging temperature: -10~50°CEfficiency: =95%Communication protocol: rs-232, rs-485, CANCycle life: >6000 cycles at 90% DoDDimensions: 440 x 620 x 117 mmWeight: 51 kgScope of delivery:1x Pytes E-Box 48100r-c
€1,307.81*
€1,099.00**
The Pytes e-box 48100r-c (mpn 110402100007) is a state-of-the-art LFP battery with 100 Ah capacity and is characterized by its high level of safety, s...
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A variety of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charge output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The unit automatically detects the system voltage of the starter battery (BATT-2) and charging of the BATT-2 begins as soon as the preset conditions are met.
The controller uses the advanced MPPT control algorithm that minimises the maximum power point loss rate and loss time, quickly tracks the maximum power point (MPP) of the PV generator, and processes the maximum energy from the PV generator under all conditions. Energy utilisation in a PV system with MPPT controller is increased by 20 to 30% compared to the PWM charging method.
Features Highlights of the MPPT Pro DUO 30 A
Max Power-Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%.
Advanced MPPT control algorithm to minimise MPP loss rate and minimise time loss.
Higher range of MPP operating voltage to improve PV module utilisation.
Possibility of limiting the charging power by user or automatic charging current (BATT-1).
Digital circuit control of adaptive three-stage charging mode to improve BATT-1 lifetime.
The product will enter power saving mode if no manual input has been made for a long time and charging conditions are not met (PV<5v).>
100% charge and discharge in the operating temperature range.
AES control signal for auto-refrigerator to avoid energy waste.
Standard Modbus protocol and RS485 communication port (5V/200mA).
Overview of the most important technical features
Maximum charging current: 30A at a battery voltage of 12V or 24V.
Optional remote display with mounting frame available.
Supports all major battery types.
Active temperature equalisation for optimal charging and ensuring long battery life.
Max. Solar power 390W at 12V system voltage and 780W at 24V system voltage.
100V max. PV input voltage
Grounding: Negative
Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH)
Connection terminals Battery 1: 16mm² (AWG6) / Battery 2: 4mm² (AWG12)
Weight: 1,4KG
Diameter of mounting holes: 5mm
Energy consumption: 26mA at 12V / 15mA at 24V
Max. Efficiency: 98
Intelligent energy saver
If there is no manual operation for an extended period of time and charging conditions are not present, the MPPT-Pro Duo will switch to energy saving mode, reducing the unit's energy consumption to a minimum. This behaviour also reduces wear and tear on the unit, which is reflected in a significantly longer service life. The system parameters are displayed and set directly via the intuitive control panel on the controller or via the MT11 remote control (accessory).
System communication and protection functions
The refrigerator's AES control signal is built into the controller, which delivers excess solar power to the refrigerator to prevent energy waste. The protection class of the MPPT Duo is IP33. It resists splashing water and is dust-tight. Our MPPT Pro DUO has multiple protection functions, including battery overcharge protection, discharge protection and reverse polarity protection of PV and battery, which effectively ensure the safety, stability and service life of the solar system.
Scope of delivery:
1x Offgridtec 1-01-011200 MPPT DUO charge controller.
1x instruction manual
€111.84*
€93.98**
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A vari...
The Multiplus-II 48/3000/35-32 gx is a high-end device combination from victron Energy (mpn pmp482306000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ess applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 35 a charging power, and is complemented by a 32 a transfer switch that allows lightning-fast switching between aC connections. Compared to the rest of the series, the gx variants have an integrated gx display with numerous other connection options. important features of the Multiplus-II 48/3000/35-32 gx integrated gx control unit with various communication ports PowerControl and Powerassist -increase of mains or generator performance built-in anti-islanding function and connection for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 3000w power at non-linear load 2400 w continuous load and 6000 w peak power for 48 v battery voltage, 32 a transfer switch and 35 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/3000/35-32 gx. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. Scope of the integrated gx device A vE.Can interface This can be used to connect vE.Can devices from victron (e.g. vE.Can mppt). The port can also be reconfigured via the remote console for use with a compatible CaN bus Li-Ion battery. 1xUSB connection 1x Ethernet port 1x vE.Direct connection many possibilities for system expansion Settings can be changed within minutes using the vEConfigure software (requires a computer or laptop and MK3 USB interface).multiple monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482306000 Multiplus-II 48/3000/35-32 gx 230 v 1x instruction manual
€800.10*
€672.35**
The Multiplus-II 48/3000/35-32 gx is a high-end device combination from victron Energy (mpn pmp482306000) that combines classic Multiplus components w...
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 150w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 2 bypass diodes - minimized power loss in shaded conditions The mono 150w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 150w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 7.5 A Short circuit current (Isc): 8.1 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1140 x 680 x 35 mm Weight: 12 kg Universally applicable Offgridtecs 150w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001255 150w mono 12v solar panel
€130.78*
€109.90**
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal f...
The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in the range. It has a 3-sided design and comes with a matching connection kit that allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged.
Performance that sets standards
The fsp-2 195w Ultra is equipped with American SPR back-contact cells from SunPower. The look of the cells is completely black, which also gives the fsp-2 195w a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and set new standards in this power class in combination with the low weight and compact dimensions of the fsp-2 panel.
extensive application possibilities:
excellent usable in the camping area
or for expeditions, climbing tours and much more...
for vehicles and boats without fixed solar installation ...
and numerous other applications in different areas...
technical highlights fsp-2 195w ultra foldable solar panel
Rated power: 195wp
Number of sides: 3 x 65 Wp
Module voltage (Vmp): 33,5 V
Max. Charge current (Imp): 5,82 A
Open circuit voltage (Voc): 39,4 V
Short circuit current (Isc): 6,17 A
Dimensions closed: 820 x 440 x 40 mm
Dimensions open designed: 820 x 1545 x 60 mm
Weight: 7,12 Kg
ETFE coating
SunPower high performance cells
6.0m 5mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side
0.5m 5mm² connection cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller)
1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on the battery side
Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fuse
the included Profi-Connection Kit
The connection kit included in the scope of delivery offers everything needed for a quick start-up of the mobile solar set. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller.
For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse.
customizable on request
All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred.
about the fsp-2 series
As with all Offgridtec solar module series, high quality has been emphasized in the fsp-2 series. The fsp-2 195w works with highly effective solar cells. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the complete fsp-2 series is coated with ETFE coating, which provides better protection and at the same time ensures very high light transmittance. Furthermore, we produce our solar modules according to current norms and standards which, together with the high-quality materials, makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions.
Scope of delivery
1x Offgridtec fsp-2 195w 12v, 3-01-012680
1x Offgridtec fsp-2 Connection-Kit
€403.23*
€338.85**
The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in...
Besides a 290ml cartridge this handy Dekalin adhesive-set also includes the Dekalin Dekavator, DEKACLEAN cloths and a sheet of very fine sandpaper for an ideal preparation of the surface.
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Glue color: blackDelivery scope: 1x cartridge 290ml Dekalin 6252412 Dekasyl MS-5 adhesive black, 1x sheet of sandpaper, 1x Dekalin Dekavator 6257812 bottle 30ml, DEKACLEAN cleaning cloths
Besides a 290ml cartridge this handy Dekalin adhesive-set also includes the Dekalin Dekavator, DEKACLEAN cloths and a sheet of very fine sandpaper for...
Dieses Set enthält alles was Sie brauchen um Module mit je max. 1m Breite auf einem Ziegeldach zu befestigen. Die enthaltenen Dach-Haken sind spezielle für Ziegeldächer konstruiert. Durch hochwertigste korrosionsfreie Materialien aus Edelstahl und Aluminium ist eine sichere und langlebige Montage gewährleistet.
Die Stücklisten der Befestigungskits sind für eine Montage der Module direkt nebeneinander konzipiert. Sollten Sie z.B. zwei Reihen untereinander mit je drei Solarmodulen planen benötigen Sie zwei Kits für je drei Module.
Beinhaltet:
Dachhaken 3-fach verstellbar (Edelstahl)
Solar-Profilschienen (Aluminium)
Endklemmen (Aluminium)
Nutensteine (Aluminium)
Endkappen
Alle notwendigen Schrauben und Muttern
Hinweis:
Nur für gerahmte Module mit 30mm/35mm Rahmenstärke
Module sind nicht im Lieferumfang enthalten
Variants from €106.95*
€255.45*
€214.66**
Dieses Set enthält alles was Sie brauchen um Module mit je max. 1m Breite auf einem Ziegeldach zu befestigen. Die enthaltenen Dach-Haken sind spe...
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and October. The generated power is stored in the cycle-proof 122Ah agm battery - the high-quality charge controller with integrated display gives you information about the charge status of the battery while your 230v consumers can be operated at the sine wave voltage converter. Of course, the whole thing is delivered including a professional connection cable kit - plug it together and get started. The system is suitable for a wide range of applications - from 12v lighting, charging laptop, cell phone and camera batteries and other small consumers, to 230v household appliances with a maximum continuous power of 1000w (15min)
Features of the Autark M-Master
If required, module side expandable by 2 x 100w with low installation effort
Average daily yield between March and October: approx. 800wh (approx. 66Ah)
Plug & Play ready-to-connect system - plug together and go
Allows operation of 12v and 230v loads, as well as 5v usb consumers
usb charging possibility directly at the charge controller (max. 2,4A)
Easy to read lcd display informs about all operating parameters
Flexible mounting possibility thanks to 8m connection cable from module to controller
Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
rs485 communication port on the voltage transformer offers extensive configuration possibilities via pc (interface cable rs485 to usb included)
Charge controller enables temperature compensated charging - temperature sensor included in delivery
Configurable 12v load output at the charge controller for loads up to max. 30a - suitable e.g. for lighting control
Application areas
This complete system can be used in many ways. Whether as a stationary system on the mountain hut or in the allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of cell phones and laptops succeeds easily with this system. The installation on the motor home is also conceivable - we also have the corresponding brackets and adhesive sets for the attachment.
Extensive connection options
230v ac 50hz 1000w (15min - 1000w / permanent - 800w / short time (starting currents) - 1600w) Schuko socket on the sine wave voltage converter
12v consumer output with 30a power directly at the charge controller
2 x usb charging port at the charge controller with max. 2.4a (total)
1 x usb charging port at the voltage converter with max. 1a power
Parts list - what's inside
2 x Offgridtec 100w V2 Solarpanel 23V black frame
1 x Pair of solar connector compatible junction boxes for parallel connection of the two solar modules
1 x 30a pwm charge controller with clear lcd display and usb charging possibility - the device also has a 30a load output and is easy to operate - all important parameters can be read on the display
1 x 122Ah agm battery with m8 screw terminal Dimensions: 406 x 174 x 233 mm(+5mm terminal) - the battery is absolutely maintenance free and leak proof and lasts up to 10 years depending on use
1 x 1000w 12v to 230v sine wave voltage converter with a shockproof socket incl. connection cable - the rated power of 1000w can be output by the device for 15 minutes - beyond that the inverter outputs 800w and can handle short time starting currents up to 1600w
1 x 8m 6mm² professional connection cable solar module to charge controller with original Stäubli solar-connectors and high quality Lapp Ölflex 2x6mm² solar cable
1 x 1.5m 10mm² professional battery connection cable with MIDI fuse holder, 40a MIDI fuse and m8 ring terminals for connection between charge controller and battery
1 x Temperature sensor with 3m length for connection of the controller to the batrie
1 x 1m 25mm² connection cable from inverter to battery (included with the voltage converter)
1 x Fuse holder + 125A Mega fuse for installation between voltage transformer and battery positive pole for protection against short circuit
Roof mount for the solar module
Since there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mount as standard. This can of course be purchased additionally - find suitable suggestions here:
Solar module holder for flat roof or wall mounting
Mounting kit for pitched roof mounting on roof tiles (Frankfurter Pfanne etc.)
Mounting kit for pitched roof mounting on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure
Fastening kit for pitched roof installation on Bieberschwanz tiles
Scope of delivery:
1x Solaranlage Autark M-Master with 2x100w solar panel, 30a pwm charge controller with lcd display and usb ports, 1000w sine wave voltage converter, 122Ah agm battery, user manuals
€741.44*
€623.06**
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and O...
Extremely versatile complete package The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. As well as being used as a usv backup solution with a choice between mains and battery priority, this PV system can also be used as a self-consumption system. There are virtually no limits to the performance of this Solarasystem - depending on personal requirements and on request, extensions are possible, both on the module and battery side. if a higher output power is required on the inverter, additional identical devices can also be connected here to increase performance. In addition to the power electronics, the storage system and the solar modules, all components required for the connection are also included in the scope of delivery, with the exception of the solar module holder, which must be ordered separately. all other components are plug and play - this means no annoying plug installation or the like - connect and you're done. Depending on your choice, the system is supplied with or without an electricity meter. Parts list - what's inside 30x Luxen Solar 430w Full Black Solar panel Luxneri Series 5 4 x 4.8kwh Pylontech us5000 LiFePo4 storage batteries 1x victron Energy mppt SmartSolar charge controller 450/200 48v 3x victron pmp482505010 Multiplus-II 48/5000/70-50a 1x Cerbo gx + 1x gx Touch 50 from victron Energy - the communication center of your system 1x victron Energy Lynx Distributor for dc distribution and protection 1x victron Energy Lynx Power In 3x 10m Offgridtec® Professional connection cable 6mm² solar module to charge controller for the connection between solar modules and charge controller 2 x Pylontechbattery connection cable set Pylontech to inverter 2 x 2.0m 25mm² amphenol to m8 1x 1m battery cable 50mm² m8 eyelets on both sides 3x 1m battery cable 35mm² m8 eyelets on both sides 3x 10m 6mm² mc-4 connection cable 1x vE.Can to CaN-Bus bms Type a cable 1.8m aSS030710018 for connecting the Cerbo gx to the memory 2x 3m victron rj45 utp cable for connecting the MultiPlus to the Cerbo gx 3x Mega fuse 125a / 70v 1x Mega fuse 250a / 70a 2x 0.9m victron rj45 utp cable 1x Pylontech Battery cabinet for us5000 When selecting electricity meter: 1x victron vm-3p75ct Energy Meter 1x victron 5m rj45 utp cable Extended use of your HomePremium system The HomePremium system is supplied either with or without victron electricity meter and cable, whereby an energy meter with connection cable is mandatory for the installation of an Energy Storage System. With this electricity meter, you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. thanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem. Luxen Solar 430w Full Black solar module The monocrystalline and bifacial 430w Full Black Series n5 solar module fromLuxen Solarsolar module impresses with a combination of different technologies, such as N-TOPCon cell technology and a 108 half-cell layout. The smbb half-cut cell technology was also used during production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE. Features Glass-glass module N-TOPCon cell technology smbb Half-Cut cell technology Low bos & LCOE Bifacial cell module technology excellent anti-PID and low lid performance 3 bypass diodes 30-year performance guarantee and 15-year product guarantee high cell efficiency of over 22% Half-cell technology In half-cell technology ("half-cut"), conventional silicon cells are cut in half using a laser. The resulting halves are then centrally connected in parallel, which leads to an increased output of the solar module by reducing resistance losses. Bifacial cells Bifacial means two-faced. And the name says it all: the Luxen Solar 430w n5 module is also equipped with solar cells on the back, which means that sunlight can be absorbed even better and the efficiency of the overall module is increased. Technical data maximum output: 430w Module voltage (vmp): 32.04v max. current (imp): 13.42a Open circuit voltage (voc): 38.96v Short-circuit current (Isc): 14.13a Module efficiency: 22.02% dimensions: 1722 x 1134 x 30 mm Operating temperature range: -40°C to +85°C Cells: 108 (6x18) max. operating voltage: 1500v dc Weight: 23,5kg LiFePo4 storage technology from Pylontech - proven, reliable, safe The us3000c storage battery from Pylontech is a latest-generation lithium iron phosphate battery that offers maximum safety and service life. Each module has a battery management system (bms) for comprehensive protection against deep discharge, overcharging and damage caused by high currents or extreme temperatures. Short circuits and reverse polarity are also excluded. Features of the Pylontech us3000c memory modules Extremely cycle-proof - over 6000 cycles at 95% DoD (discharge per cycle) absolutely intrinsically safe due to integrated protective shutdown (bms) High charging and discharging capacity of up to 5kw per module High storage density Low weight and compact design absolutely maintenance-free and easy to install 10-year guarantee The heart of the system - the victron MultiPlus-II 48/5000 The Multiplus-II 48/5000/70-50 from victron Energy combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100a and enables use in ESS applications. The setting options on the MultiPlus-II are extremely varied, as are its possible applications. We have already made the most important settings for you so that the system, as it is supplied, lives up to the description "Plug and Play" - the system can therefore be used immediately without any further configuration. Performance features and characteristics of the MultiPlus-II 48/5000 PowerControl and Powerassist - increasing mains or generator output Built-in anti-islanding function and connection option for external current sensor (optional) Can be used as a backup device in grid-connected systems vE.Bus interface for parallel and three-phase operation Remote monitoring and system integration Parallel and three-phase operation Approved according to vde-ar-n 4105 Technical data 5000 w power with non-linear load - 4000 w continuous load - 9000 w peak power For 48 v battery voltage, 50 a transfer switch and 70a battery charger output voltage: 230 vaC, frequency: 50 Hz Max. efficiency: 95% Protection class IP22 Maximum flexibility thanks to two AC outputs The MultiPlus-II offers uninterrupted operation by automatically taking over the supply to consumers in the event of mains failures or interruptions to the shore/generator power. The switchover takes place in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output supplies power only when alternating current is present at the input of the MultiPlus-II. This makes it possible to connect consumers such as a water heater that should not be discharged from the battery. Configuration The MultiPlus-II is supplied unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system, we can do this for you for an additional charge. To do this, place the article linked above "Offgridtec pre-configuration" in the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been completed. victron Energy Cerbo gx and gx Touch 50 - the communication center of your system The latest development in system monitoring from the company allows you to control and configure your system with ease. rounded off by the gxC Touch 50 - a waterproof 5 inch touchscreen - you always have an overview of your system parameters. The Cerbo's functions allow you to control and monitor your system perfectly and maximize system performance in an unprecedentedly simple way. victron Energy has developed a new system monitor that allows you to easily control and configure your system. The gx Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. The Cerbo module allows you to precisely monitor your system and maximize performance. It is compatible with both solar charge controllers and grid-connected inverters. Mounting material and connection cable are included in the scope of delivery. The Bluetooth function of the gx Touch 50 makes accessing your system even quicker and easier. An optional wall bracket is available. victron Remote portal The victron Remote Portal (vRM) is a free victron Energy service that allows you to read out your system data remotely and configure the devices accordingly. This means that you always have full control and an overview of all relevant system parameters, even when you are away. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage Safety note: Only have this complete system installed and commissioned by a qualified electrician.
Variants from €16,173.02*
€0.00*
€0.00**
Extremely versatile complete package The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. As well a...
Monitor and regulate your solar system with our high-quality solar charge controllers to protect your battery from unexpected overvoltages and disruptions. In addition to our proven PWM controller, we also offer two different MPPT series to maximize the efficiency of your system.
In our high-quality voltage converters, we exclusively use quality components to offer particularly reliable and durable products. In addition to our 230V inverters, you'll also find high-quality DC-DC converters here. With these, you can reliably supply various types of consumers with power from our high-quality energy storage solutions.
The all-in-one solution for your solar system: Offgridtec's device combinations combine various components into a single device to provide you with a convenient and straightforward solution. This eliminates the need for multiple individual parts, making the installation quick and easy – a must-have for your solar system.
These branch plugs are used to connect solar modules parallely to maintain a constant voltage. Ideal for 12V-systems or the connection of thin-film modules.
Details:
1 Pair Y-connectors for a parallel connection of solar modules
easy snap-in connection system
for cables with a max. diameter of 4 - 6mm²
ideal for 12V-systems and thin-film modules
suitable for voltages up to max. 1000V DC
snap-in connection system
IP67
compatible with solar connector plugs
Scope of Delivery:
1x Offgridtec branch plugs Y-Connectors (pair)
€3.63*
€3.05**
These branch plugs are used to connect solar modules parallely to maintain a constant voltage. Ideal for 12V-systems or the connection of thin-film mo...
The Offgridtec PWM 12/24-30 (MPN 1-01-010920) is a microprocessor controlled solar charge controller with 30A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 390W at 12V and 780W at 24V battery voltage.
During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery.
Features of the PWM-12/24-30
max. charging current 30A, for up to 390W PV power with 12V and 780W with 24V systems
for 12V systems maximum PV voltage of 22V, for 24V systems 50V
Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies)
3 battery types adjustable: AGM, GEL, and liquid lead acid
Intuitive operation via 2 buttons directly on the unit
Large LCD display with numerous display options, including kWh meter
2 USB ports with a maximum output of 2.4A
Large LCD display with numerous display options, including kWh meter
Load output with numerous configuration options, e.g. for light control
Temperature-compensated battery charging (optional temperature sensor required, not included)
Integrated device and battery protection
PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side.
PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side.
Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load.
Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again.
Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output.
Scope of Delivery
1x Offgridtec 1-01-010920 LCD 12/24-30 PWM 30A solar charge controller
1x Instruction manual (German)
€42.40*
€35.63**
The Offgridtec PWM 12/24-30 (MPN 1-01-010920) is a microprocessor controlled solar charge controller with 30A max. charge capacity and can charge both...
The 5m Plug & Play Micro Inverter Connection Cable from Offgridtec (mpn 8-01-013601) connects your Micro Inverter (e.g.Envertech) with a common grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply.
special features of the P&P inverter connection cable
Immediately ready for use since delivered as Plug & Play version
technical features of the 5m Microinverter connection cable
Offgridtec-Part number: 8-01-013601
Cable length: 5m
Usage; Connection of compatible micro inverters to the house power grid via feed-in socket
Connector on socket side: Schuko plug type-f angled
Connector on inverter side: Betteri bc01 socket
compatible micro inverters
EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S
TSUN tsol M350/M800
Bosswerk mi300 / MI600
Hoymiles mi-300 / MI-600
a.o. (e.g. Huayu)
Scope of delivery:
1x Offgridtec 8-01-013601 5m plug & play connection micro inverter to power outlet
€20.72*
€17.41**
5 Meter
(€4.14* / 1 Meter)
Content:
5 Meter
(€4.14* / 1 Meter)
The 5m Plug & Play Micro Inverter Connection Cable from Offgridtec (mpn 8-01-013601) connects your Micro Inverter (e.g.Envertech) with a common gr...
External temperature sensor (MPN 010930) compatible with the Offgridtec PWM Pro and MPPT PRO Duo charge controller series:
The sensor detects the battery temperature and forwards this information to the charge controller. Installation of the external sensor enables the charge controller to calculate the optimal charge current depending on the battery temperature.
Click here for the models:
Offgridtec PWM Pro Charge Controller 12V/24V 10A USB
Offgridtec PWM Pro Charge Controller 12V/24V 20A USB
Offgridtec PWM Pro Charge Controller 12V/24V 30A USB
Offgridtec PWM Pro Charge Controller 12V/24V 45A USB
Offgridtec MPPT Pro Duo Charge Controller r12V/24V 30A
Scope of delivery:
1x Offgridtec temperature sensor 1-02-010930
€3.89*
3 Meter
(€1.30* / 1 Meter)
Content:
3 Meter
(€1.30* / 1 Meter)
External temperature sensor (MPN 010930) compatible with the Offgridtec PWM Pro and MPPT PRO Duo charge controller series:
The sensor detects the batt...
This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge controller). Most 12V modules have MC4-plugs - if other plugs are needed you find adaptors in our shop.
All components are crimped with professional tools and show excellent connection characteristics. The cable is manufactured in our factory in Lower Bavaria.
Solar cable:
4mm cable diameter
double-insulated
very flexible
VDE 0295 class 5 and IEC 60228
restistant against UV, ozone, weather, water, chemicals, oil, fire (according to VDE 0482-332-2, DIN)
type of protection (plugged): IP67
temperature range: -40°C to 90°C
insulation material: PA
connection system: snap-in
cable relief according to IEC 61984
contact system: MC4 contact fins
contact material: tinned copper
flame class: UL94-V0
protection class: II
system voltage up to 1000V
Ferrules:
material: tinned copper
length: 12mm
€14.78*
€12.42**
3 Meter
(€4.93* / 1 Meter)
Content:
3 Meter
(€4.93* / 1 Meter)
This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge ...

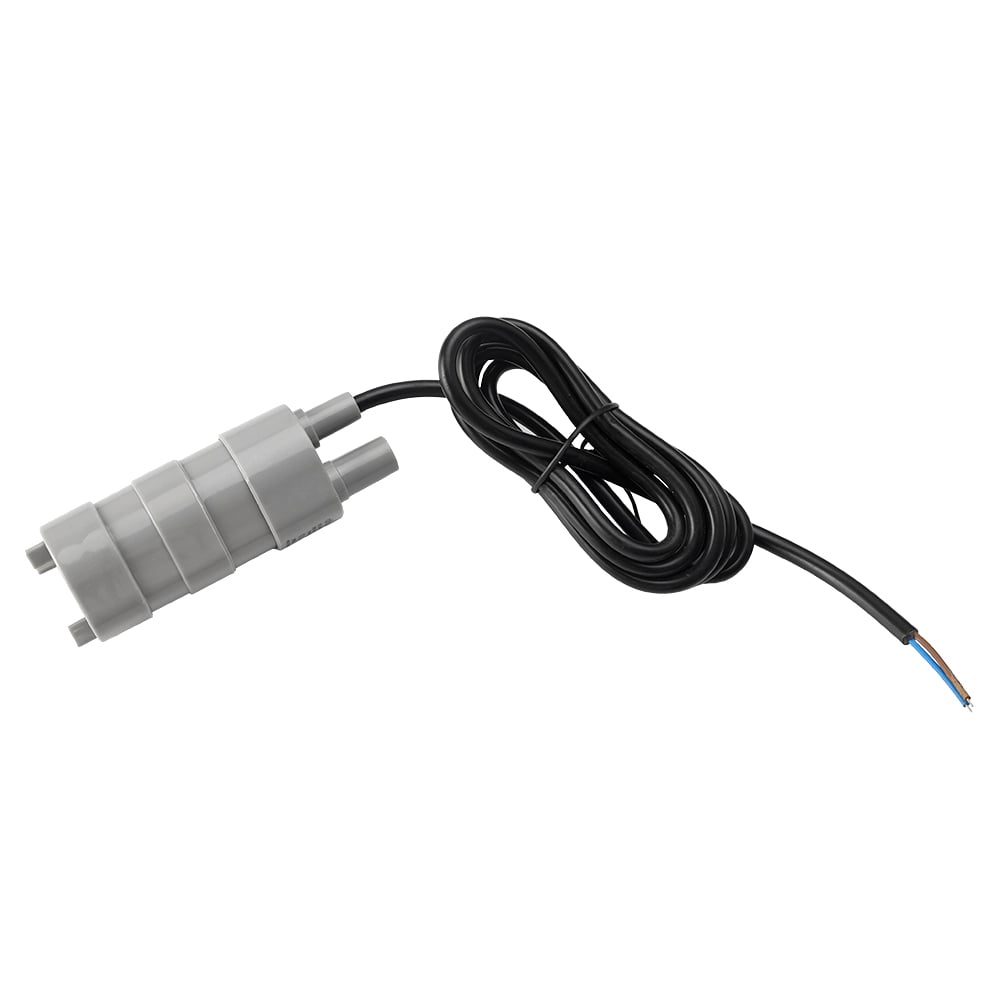

Mit der kompakten 12V Tauchpumpe von Offgridtec ist es dir möglich, Flüssigkeiten ganz leicht und ohne großen Aufwand abzupumpen. Hierbei wird die vielseitig einsetzbare Pumpe, im Gegensatz zu externen Modellen, direkt in das zu pumpende Medium getaucht. Sie liefert dir eine Fördermenge von 10l pro Minute und kann dabei max. 0,5 bar Druck erzeugen. Du kannst die Pumpe bequem beim Campen, im Wohnmobil oder zu Hause benutzen.
Über die Tauchpumpe
Kabellänge: 1,5 m
Material: ABS-Kunststoff
Kompakt und platzsparend
Vielseitig einsetzbar
Betriebsflüssigkeit: Wasser, Alkohol, Diesel, andere Flüssigkeiten
keine sauren oder alkalischen Lösungen
Lange Lebensdauer von >2000 h
Geräusche: <40 dB
Hinweise
1. Bei dieser Wasserpumpe handelt es sich um eine Gleichstrompumpe. Daher ist es erforderlich, dass die Spannungsquelle Gleichstrom aufweist, ähnlich wie bei Solarstrom, Batteriestrom oder einem Gleichstromversorger. Die Eingangsspannung sollte sich innerhalb des angegebenen Nennspannungsbereichs befinden.
2. Es ist wichtig darauf zu achten, dass das Gerät kontinuierlich mit Wasser durchströmt wird, um einen reibungslosen Betrieb zu gewährleisten. Versuche es zu vermeiden, dass die Pumpe mit sauren oder alkalischen Lösungen in Verbindung kommt. Des Weiternen solltest du das Gerät nicht in Flüssigkeiten mit Verunreinigungen oder magnetisch leitfähigen Partikeln größer als 0,5 mm einsetzen. Falls die Wasserqualität nicht optimal sein sollte, empfehlen wir dir, die Pumpenkammer regelmäßig zu reinigen.
Technische Daten
Spannung: 12V DC
DC-Strom: 1,2 A
DC-Nennleistung: 14,5 W
Anlaufspannung: 3V DC
Stromquelle: Kabelgebunden
Max. Pumpendruck: 0,5 bar
Max. Förderleistung: 10l pro Minute
Max. Durchflussrate: 600 L/h
Schutzart: IP68
Motor: RS-385 11000 rpm
Betriebstemperaturbereich: -40°C - +60°C
Lieferumfang:
1x Offgridtec Tauchpumpe 12V DC 10l 0,5 bar max. 5m Pumphöhe
€9.38*
Mit der kompakten 12V Tauchpumpe von Offgridtec ist es dir möglich, Flüssigkeiten ganz leicht und ohne großen Aufwand abzupu...
Mit der kompakten 24V Tauchpumpe von Offgridtec ist es dir möglich, Flüssigkeiten ganz leicht und ohne großen Aufwand abzupumpen. Hierbei wird die vielseitig einsetzbare Pumpe, im Gegensatz zu externen Modellen, direkt in das zu pumpende Medium getaucht. Sie liefert dir eine Fördermenge von 10l pro Minute und kann dabei max. 0,5 bar Druck erzeugen. Du kannst die Pumpe bequem beim Campen, im Wohnmobil oder zu Hause benutzen.
Über die Tauchpumpe
Kabellänge: 1,5 m
Material: ABS-Kunststoff
Kompakt und platzsparend
Vielseitig einsetzbar
Betriebsflüssigkeit: Wasser, Alkohol, Diesel, andere Flüssigkeiten
keine sauren oder alkalischen Lösungen
Lange Lebensdauer von >2000 h
Geräusche: <40 dB
Hinweise
1. Bei dieser Wasserpumpe handelt es sich um eine Gleichstrompumpe. Daher ist es erforderlich, dass die Spannungsquelle Gleichstrom aufweist, ähnlich wie bei Solarstrom, Batteriestrom oder einem Gleichstromversorger. Die Eingangsspannung sollte sich innerhalb des angegebenen Nennspannungsbereichs befinden.
2. Es ist wichtig darauf zu achten, dass das Gerät kontinuierlich mit Wasser durchströmt wird, um einen reibungslosen Betrieb zu gewährleisten. Versuche es zu vermeiden, dass die Pumpe mit sauren oder alkalischen Lösungen in Verbindung kommt. Des Weiternen solltest du das Gerät nicht in Flüssigkeiten mit Verunreinigungen oder magnetisch leitfähigen Partikeln größer als 0,5 mm einsetzen. Falls die Wasserqualität nicht optimal sein sollte, empfehlen wir dir, die Pumpenkammer regelmäßig zu reinigen.
Technische Daten
Spannung: 24V DC
DC-Strom: 0,75 A
DC-Nennleistung: 18 W
Anlaufspannung: 6V DC
Stromquelle: Kabelgebunden
Max. Pumpendruck: 0,5 bar
Max. Förderleistung: 10l pro Minute
Max. Durchflussrate: 600 L/h
Schutzart: IP68
Motor: RS-385 11000 rpm
Betriebstemperaturbereich: -40°C - +60°C
Lieferumfang:
1x Offgridtec Tauchpumpe 24V DC 10l 0,5 bar max. 5m Pumphöhe
€9.38*
Mit der kompakten 24V Tauchpumpe von Offgridtec ist es dir möglich, Flüssigkeiten ganz leicht und ohne großen Aufwand abzupu...
This two-cored solar cable connects charge controller and solar modules within a system in a professional way.On the module side it is equipped with original Multi-Contact MC4-plugs - the charge controller side with ferrules.Most modules work with MC4-plugs. If not you'll find fitting adaptors in our shop.
All components are prepared with professional tools and provide a high connection quality. The cable is manufactured in our factory in Lower Bavaria.
Data cable:
diameter 4mm
double-isolated
very flexible
VDE 0295 class 5 and IEC 60228
resistant against UV, ozone, weather,water, chemicals, oil
fire-resistant according to VDE 0482-332-2, DIN
safe from touch
protection IP: unplugged - IP2X; plugged - IP67
temperature range: -40° ...60° C
isolation material: PA
locking-system: snap-in
cable strain relief according to IEC 61984
contact system: MC Multilam
contact material: tinned copper
flame class: UL94-V0
protection class II
system voltage up to 1000V
Data ferrules:
material: tinned copper
length: 12mm
€18.67*
€15.69**
5 Meter
(€3.73* / 1 Meter)
Content:
5 Meter
(€3.73* / 1 Meter)
This two-cored solar cable connects charge controller and solar modules within a system in a professional way.On the module side it is equipped with o...
versatile all-rounder
Offgridtec Switching stations allow you to operate 230v consumers from two different voltage sources without interference. Typically, this is a voltage transformer or the public power grid
With the priority circuit you can determine which power source is to be used preferentially - if this voltage source is not available, the switchover is made to the substitute power source.
The use of high-quality relays guarantees on the one hand a particularly precise switching threshold, on the other hand your voltage transformer is optimally protected against backfeeding of external voltage.
Recommendations for use
Solar stand-alone systems
Service and commercial vehicles
Motorhomes and caravans
Sailboats and other watercrafts
Technical data
Input voltage: 230vac, 50/60Hz
Input current (max.): 12A
Output voltage: 230vac, 50/60Hz
Power (max.): 2700vA
Switching time: <500ms
Fuse: f 15a / 250v
Protection: overload, short circuit
Housing: plastic
Protection class: IP55
Inputs: screw terminals
Dimensions: (LxWxH): 120 x 120 x 58mm
Weight: 250g
Application example 1 - Mains priority circuit
The 230 v ac mains is connected to input ac2 (higher priority)
This means that the battery is protected and the inverter is protected from external voltage at the same time.
Only when ac2 is de-energized, input ac1 switches on the power supply via battery and inverter
Application example 2 - Inverter priority circuit
The inverter is connected to input ac2 (higher priority)
I.e. the current is primarily taken from the battery via the inverter (e.g. when using solar island systems)
Only when the inverter switches off due to deep discharge protection, the 230 v ac mains is connected via input ac1
Scope of delivery:
1x changeover station, ground terminal, operating instructions, de, gb, fR, NL
€79.90*
versatile all-rounder
Offgridtec Switching stations allow you to operate 230v consumers from two different voltage sources without interference. Typi...
Der MPPT PRO-X Solarladeregler 30A (MPN: 017380) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler der neuesten Generation von Offgridtec überzeugt durch hohe Effizienz und Flexibilität, sowie zuverlässige Leistung, vereint mit umfassendem Schutz und einfachen Überwachungsmöglichkeiten. Die fortschrittliche MPPT-Technologie und ultra-schnelle Tracking-Geschwindigkeiten gewähren eine beeindruckende Mindesteffizienz von 99,5% für maximale Erträge. Somit eignet sich der innovative High-End Solarregler hervorragend zur Anwendung für Haushaltssysteme, Feldüberwachung, USV, Notstromversorgung, Telekommunikation oder Beleuchtung, sowie auch für den Einsatz in Wohnmobilen oder auf Booten.
Highlights des MPPT PRO-X 30A
Hochentwickelte MPPT-Technologie mit 99,5 % Mindesteffizienz
Max. DC/DC Übertragungseffizienz von bis zu 98,1%, Volllasteffizienz bis zu 96,9%
Fortschrittlicher MPPT-Regelalgorithmus zur Minimierung der MPP-Verlustrate und -Verlustzeit
Präzise Erfassung und Verfolgung des Multiple Peaks Maximum Power Point
Max. 30A Ladestrom, geeignet für 12V,24V 36V und 48V Systeme
Unterstützt Blei-Säure- sowie moderne Lithium-Ionen-Batterien
Alternativ auch mit 10A, 20A und 40A Ladestrom erhältlich
Batterietemperatur-Kompensationsfunktion
Automatische Begrenzung von Ladeleistung und Ladestrom
Echtzeit-Energie-Statistik-Funktion
Volllastbetrieb ohne Kapazitätsverringerung im Betriebstemperaturbereich
Überhitzungsschutzfunktion, Mehrfachlastmodus und umfangreicher Elektronikschutz
RS-485-Kommunikations-Bus-Schnittstelle mit 5VDC-Stromversorgung und professionellem Schutz-Chip inkl. Modbus- Kommunikationsprotokoll, Überstrom- und Kurzschlusssicherung
Schutzart IP33
Integriertes LCD-Display
Zuverlässig, flexibel und sicher
Der Offgridtec MPPT PRO-X Solarladeregler ist ein vielseitig einsetzbares Kraftpaket. Er ist kompatibel mit Blei-Säure- und Lithium-Ionen-Batterien und ermöglicht die lokale Anpassung der Spannungsparameter für BCV, FCV, LVD und LVR. Die Begrenzungsfunktion der Ladeleistung und des Ladestroms sowie die automatische Absenkung der Ladeleistung sorgen für Stabilität, selbst bei überdimensionierten PV-Modulen oder hohen Temperaturen. Zusätzlich gewährleistet er im Volllastbetrieb innerhalb des Betriebstemperaturbereichs eine stabile Leistung ohne Kapazitätsverlust. Der IP33-Schutzstandard und das isolierte RS485-Design verbessern die Zuverlässigkeit und Sicherheit des Reglers. Der Mehrfachlastmodus sowie umfangreiche Elektronik- und Überhitzungsschutzfunktionen bieten Schutz vor Schäden an Solarregler und angeschlossenen Geräten.
Hochwertig und fortschrittlich
Der Solarladeregler der PRO-X Serie ist mit hochwertigen ST- und IR-Komponenten renommierter Marken ausgestattet, was eine lange Lebensdauer und hohe Zuverlässigkeit garantiert. Der auf einem digitalen Regelkreis basierende 3-Stufen-Lademodus verlängert die Batterielebensdauer effektiv, erhöht die Systemleistung deutlich und bietet umfassenden Schutz vor System- oder Installationsfehlern, die Schäden an Komponenten verursachen könnten. Dies führt zu erhöhter Betriebssicherheit und einer längeren Lebensdauer des gesamten Solarstromversorgungssystems. Zusätzlich ermöglicht die intuitive Steuerung über PC-Software oder mobile Apps eine einfache Fernüberwachung und -steuerung des Systems.
Ultraschnelles Maximum Power Point Tracking
Besonders unter wechselnden Lichtverhältnissen, wie bei bedecktem Himmel, steigert ein extrem schneller MPPT-Regler den Energieertrag erheblich und sichert eine Mindesteffizienz von 99,5%. Mit dem optimierten MPPT-Regelalgorithmus minimieren die Offgridtec-Controller aus der PRO-X Serie die MPP-Verlustrate sowie die MPP-Verlustzeit und verfolgen den maximalen Leistungspunkt (Multiple Peaks Maximum Power Point) des PV-Systems präzise. Dies garantiert die optimale Nutzung der Solarenergie unter allen Bedingungen und steigert das Energienutzungsverhältnis im Vergleich zur PWM-Lademethode um 10-30 %.
Technische Daten
System Nennspannung: 12/24/36/48VDC Auto
Nennladestrom: 30A
Nennentladestrom: 30A
Batteriespannung: 8 ~68V
max. PV-Leerlaufspannung: 150V/138V
MPP-Spannungsbereich: ~108V / Batteriespannung +2V
Nennladeleistung: 390W/12V 780W/24V 1170W/36V 1560W/48V
max. Umwandlungswirkungsgrad: 98,1%
Volllast-Wirkungsgrad: 96,9%
Eigenverbrauch: ≤30mA(12V) ≤16mA(24V) ≤13mA(36-48V)
Spannungabfall im Entladekreis: ≤0.23V
RS485 Schnittstelle: 5VDC/200mA (RJ45)
Temperaturkompensationskoeffizient: -3mV/℃/2V
Erdung: übliche Minus-Erdung
Anschluss: 6AWG(16mm²) empf. Kabel: 8AWG(10mm²)
Abmessungen: 255×187×75,5 mm
Gewicht: 2,07 kg
Lieferumfang:
1× Offgridtec 1-01-017380 MPPT PRO-X 30A
1× Bedienungsanleitung
€150.21*
€126.23**
Der MPPT PRO-X Solarladeregler 30A (MPN: 017380) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler de...
Der MPPT PRO-X Solarladeregler 40A (MPN: 017385) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler der neuesten Generation von Offgridtec überzeugt durch hohe Effizienz und Flexibilität, sowie zuverlässige Leistung, vereint mit umfassendem Schutz und einfachen Überwachungsmöglichkeiten. Die fortschrittliche MPPT-Technologie und ultra-schnelle Tracking-Geschwindigkeiten gewähren eine beeindruckende Mindesteffizienz von 99,5% für maximale Erträge. Somit eignet sich der innovative High-End Solarregler hervorragend zur Anwendung für Haushaltssysteme, Feldüberwachung, USV, Notstromversorgung, Telekommunikation oder Beleuchtung, sowie auch für den Einsatz in Wohnmobilen oder auf Booten.
Highlights des MPPT PRO-X 40A
Hochentwickelte MPPT-Technologie mit 99,5 % Mindesteffizienz
Max. DC/DC Übertragungseffizienz von bis zu 98,5%, Volllasteffizienz bis zu 97,2%
Fortschrittlicher MPPT-Regelalgorithmus zur Minimierung der MPP-Verlustrate und -Verlustzeit
Präzise Erfassung und Verfolgung des Multiple Peaks Maximum Power Point
Max. 30A Ladestrom, geeignet für 12V,24V 36V und 48V Systeme
Unterstützt Blei-Säure- sowie moderne Lithium-Ionen-Batterien
Alternativ auch mit 10A, 20A und 30A Ladestrom erhältlich
Batterietemperatur-Kompensationsfunktion
Automatische Begrenzung von Ladeleistung und Ladestrom
Echtzeit-Energie-Statistik-Funktion
Volllastbetrieb ohne Kapazitätsverringerung im Betriebstemperaturbereich
Überhitzungsschutzfunktion, Mehrfachlastmodus und umfangreicher Elektronikschutz
RS-485-Kommunikations-Bus-Schnittstelle mit 5VDC-Stromversorgung und professionellem Schutz-Chip inkl. Modbus- Kommunikationsprotokoll, Überstrom- und Kurzschlusssicherung
Schutzart IP33
Integriertes LCD-Display
Zuverlässig, flexibel und sicher
Der Offgridtec MPPT PRO-X Solarladeregler ist ein vielseitig einsetzbares Kraftpaket. Er ist kompatibel mit Blei-Säure- und Lithium-Ionen-Batterien und ermöglicht die lokale Anpassung der Spannungsparameter für BCV, FCV, LVD und LVR. Die Begrenzungsfunktion der Ladeleistung und des Ladestroms sowie die automatische Absenkung der Ladeleistung sorgen für Stabilität, selbst bei überdimensionierten PV-Modulen oder hohen Temperaturen. Zusätzlich gewährleistet er im Volllastbetrieb innerhalb des Betriebstemperaturbereichs eine stabile Leistung ohne Kapazitätsverlust. Der IP33-Schutzstandard und das isolierte RS485-Design verbessern die Zuverlässigkeit und Sicherheit des Reglers. Der Mehrfachlastmodus sowie umfangreiche Elektronik- und Überhitzungsschutzfunktionen bieten Schutz vor Schäden an Solarregler und angeschlossenen Geräten.
Hochwertig und fortschrittlich
Der Solarladeregler der PRO-X Serie ist mit hochwertigen ST- und IR-Komponenten renommierter Marken ausgestattet, was eine lange Lebensdauer und hohe Zuverlässigkeit garantiert. Der auf einem digitalen Regelkreis basierende 3-Stufen-Lademodus verlängert die Batterielebensdauer effektiv, erhöht die Systemleistung deutlich und bietet umfassenden Schutz vor System- oder Installationsfehlern, die Schäden an Komponenten verursachen könnten. Dies führt zu erhöhter Betriebssicherheit und einer längeren Lebensdauer des gesamten Solarstromversorgungssystems. Zusätzlich ermöglicht die intuitive Steuerung über PC-Software oder mobile Apps eine einfache Fernüberwachung und -steuerung des Systems.
Ultraschnelles Maximum Power Point Tracking
Besonders unter wechselnden Lichtverhältnissen, wie bei bedecktem Himmel, steigert ein extrem schneller MPPT-Regler den Energieertrag erheblich und sichert eine Mindesteffizienz von 99,5%. Mit dem optimierten MPPT-Regelalgorithmus minimieren die Offgridtec-Controller aus der PRO-X Serie die MPP-Verlustrate sowie die MPP-Verlustzeit und verfolgen den maximalen Leistungspunkt (Multiple Peaks Maximum Power Point) des PV-Systems präzise. Dies garantiert die optimale Nutzung der Solarenergie unter allen Bedingungen und steigert das Energienutzungsverhältnis im Vergleich zur PWM-Lademethode um 10-30 %.
Technische Daten
System Nennspannung: 12/24/36/48VDC Auto
Nennladestrom: 40A
Nennentladestrom: 40A
Batteriespannung: 8 ~68V
max. PV-Leerlaufspannung: 150V/138V
MPP-Spannungsbereich: ~108V / Batteriespannung +2V
Nennladeleistung: 520W/12V 1040W/24V 1560W/36V 2080W/48V
max. Umwandlungswirkungsgrad: 98,5%
Volllast-Wirkungsgrad: 97,2%
Eigenverbrauch: ≤30mA(12V) ≤16mA(24V) ≤13mA(36-48V)
Spannungabfall im Entladekreis: ≤0.23V
RS485 Schnittstelle: 5VDC/200mA (RJ45)
Temperaturkompensationskoeffizient: -3mV/℃/2V
Erdung: übliche Minus-Erdung
Anschluss: 6AWG(16mm²) empf. Kabel: 6AWG(16mm²)
Abmessungen: 255×189×83,2 mm
Gewicht: 2,47 kg
Lieferumfang:
1× Offgridtec 1-01-017380 MPPT PRO-X 40A
1× Bedienungsanleitung
€166.55*
€139.96**
Der MPPT PRO-X Solarladeregler 40A (MPN: 017385) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler de...
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A variety of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charge output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The unit automatically detects the system voltage of the starter battery (BATT-2) and charging of the BATT-2 begins as soon as the preset conditions are met.
The controller uses the advanced MPPT control algorithm that minimises the maximum power point loss rate and loss time, quickly tracks the maximum power point (MPP) of the PV generator, and processes the maximum energy from the PV generator under all conditions. Energy utilisation in a PV system with MPPT controller is increased by 20 to 30% compared to the PWM charging method.
Features Highlights of the MPPT Pro DUO 30 A
Max Power-Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%.
Advanced MPPT control algorithm to minimise MPP loss rate and minimise time loss.
Higher range of MPP operating voltage to improve PV module utilisation.
Possibility of limiting the charging power by user or automatic charging current (BATT-1).
Digital circuit control of adaptive three-stage charging mode to improve BATT-1 lifetime.
The product will enter power saving mode if no manual input has been made for a long time and charging conditions are not met (PV<5v).>
100% charge and discharge in the operating temperature range.
AES control signal for auto-refrigerator to avoid energy waste.
Standard Modbus protocol and RS485 communication port (5V/200mA).
Overview of the most important technical features
Maximum charging current: 30A at a battery voltage of 12V or 24V.
Optional remote display with mounting frame available.
Supports all major battery types.
Active temperature equalisation for optimal charging and ensuring long battery life.
Max. Solar power 390W at 12V system voltage and 780W at 24V system voltage.
100V max. PV input voltage
Grounding: Negative
Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH)
Connection terminals Battery 1: 16mm² (AWG6) / Battery 2: 4mm² (AWG12)
Weight: 1,4KG
Diameter of mounting holes: 5mm
Energy consumption: 26mA at 12V / 15mA at 24V
Max. Efficiency: 98
Intelligent energy saver
If there is no manual operation for an extended period of time and charging conditions are not present, the MPPT-Pro Duo will switch to energy saving mode, reducing the unit's energy consumption to a minimum. This behaviour also reduces wear and tear on the unit, which is reflected in a significantly longer service life. The system parameters are displayed and set directly via the intuitive control panel on the controller or via the MT11 remote control (accessory).
System communication and protection functions
The refrigerator's AES control signal is built into the controller, which delivers excess solar power to the refrigerator to prevent energy waste. The protection class of the MPPT Duo is IP33. It resists splashing water and is dust-tight. Our MPPT Pro DUO has multiple protection functions, including battery overcharge protection, discharge protection and reverse polarity protection of PV and battery, which effectively ensure the safety, stability and service life of the solar system.
Scope of delivery:
1x Offgridtec 1-01-011200 MPPT DUO charge controller.
1x instruction manual
€111.84*
€93.98**
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A vari...

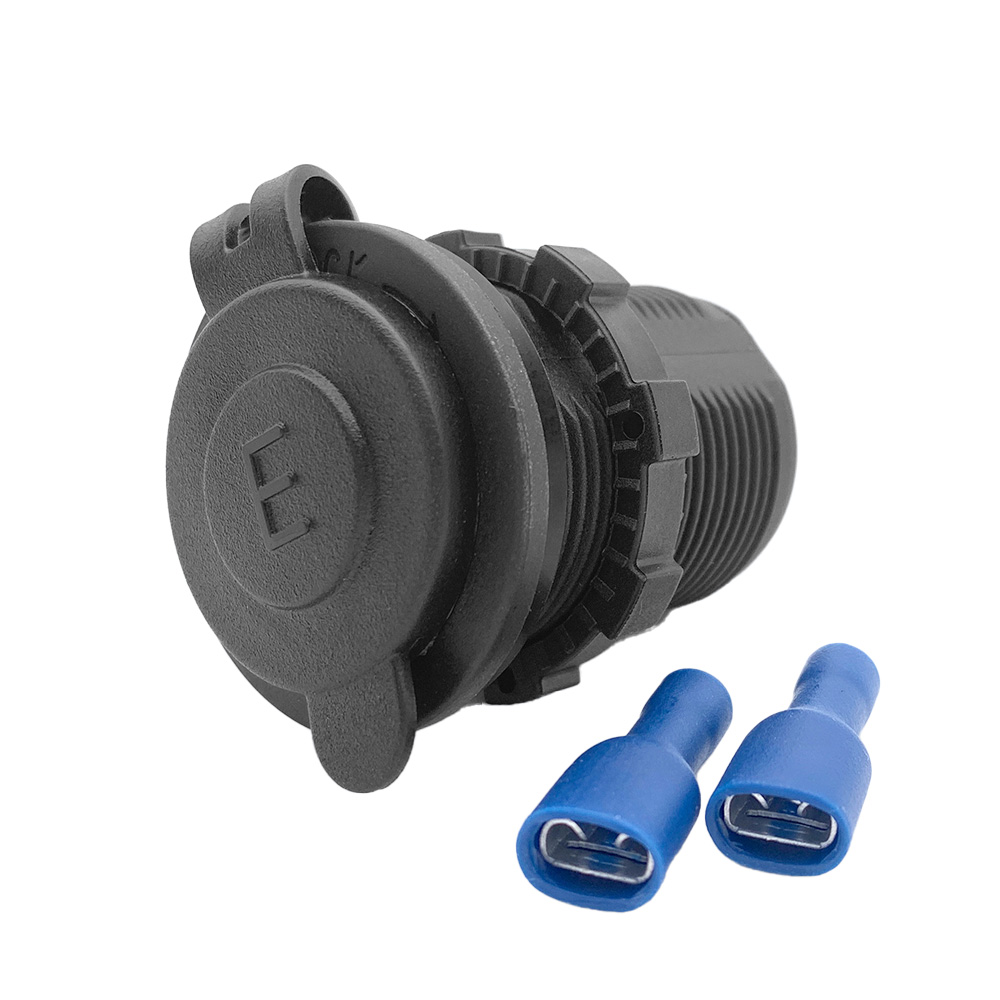

Die Zigaretten-Steckdose von Offgridtec ist ein kompatibler Sockel. Die Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Zigaretten-Steckdose ist für den Einsatz mit Montagegehäusen geeignet.
Eigenschaften:
Schutzklasse: IP65
Material: Kunststoff
Farbe: Schwarz
Spannung: 12-24V
Lieferumfang:
1x Offgridtec Zigaretten-Steckdose
€3.76*
Die Zigaretten-Steckdose von Offgridtec ist ein kompatibler Sockel. Die Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtver...
The Plug & Play Micro Inverter connection cables from Offgridtec connect your micro inverter from Envertech with the feed-in socket from Wieland (mpn 99.400.9999.7). The cable is equipped with Betterie bc01 connectors on the inverter side and with angled Wieland connectors on the socket side and, as a closed system, provides the optimum connection between the micro inverter and your household power grid.
Special features of the P&P inverter connection cable
Available in 3 lengths: 5m, 10m and 15m.
Can not be accidentally disconnected from the socket or inverter thanks to snap-in locking.
Absolutely waterproof connectors on both sides of the cable.
immediately ready for use since delivered as plug & play version
Technical features of the Microinverter connection cable
Cable lengths: 5m - 15m, please make your choice.
Usage; Connecting compatible microinverter to home power grid via power feed socket
plug connector on socket side: Wieland 96.034.4153.1 plug part rst 20i3 s sW 90degree bend
connector on inverter side: Betterie bc 01 connector IP68
Compatible micro inverters
EVT Inverter series from Envertech EVT300s / EVT560s / EVT1200s
TsUN TsOL M350/M800
Bosswerk mi300 / MI600
Hoymiles mi-300 / MI-600
a.o. (e.g. Huayu)
Scope of delivery:
1x Plug & Play connection micro inverter to socket, length at choice.
€49.90*
€41.93**
5 Meter
(€9.98* / 1 Meter)
Content:
5 Meter
(€9.98* / 1 Meter)
The Plug & Play Micro Inverter connection cables from Offgridtec connect your micro inverter from Envertech with the feed-in socket from Wieland (...
The Offgridtec PSI 12-1500 (MPN 011090) is an advanced 12V 230V sine wave voltage converter of the latest generation. The unit features a 16Bit SPWM chipset, numerous protection mechanisms and galvanically isolated inputs and outputs. The input voltage range is 10.6 and 16Vdc. The converter can deliver 1500W for 15 minutes or 1200W continuously. For short inrush currents, the PSI 12-1500 delivers 2400W. Thanks to its advanced constitution, even sensitive electrical appliances can be supplied with power reliably and permanently
Advanced development of the HP voltage transformer family
The PSI series is the further development of the HP voltage transformers and comes up trumps with numerous innovations and optimisations: Input and output of the PSI are galvanically isolated and the housing has an earth connection. Mains frequency (50Hz/60Hz) and output voltage (220V / 230V) can be set via a dip switch. The brand-new SPWM 16-bit chipset delivers power of the highest quality and allows even very sensitive electronics to be reliably supplied with power. Compared to older chipsets, it is much more solid and durable. PSI converters with a power of 1000W or more are also equipped with an RS485 data output. This allows you to configure numerous parameters and monitor the operation of the unit via a computer / notebook using the PSI software. (the required interface cable is included in the scope of delivery).
Configuration
The Offgridtec 12-1000 PSI converter is equipped with an RS485 data output, which provides you with the options for external communication and configuration:
RS485 to USB interface connection cable Part no.:
The interface cable, included as standard, allows you to monitor various performance parameters on a notebook or PC. In addition, the PSI 12-1500 can be conveniently configured via the free PSI-Control PC software.
Performance features of the PSI 12-1500 at a glance
Modern, safe design with galvanic isolation of input and output
RS485 communication module for configuration via PC / notebook with free configuration software from Offgridtec
Very low self-consumption in idle / stand-by, max. efficiency <>
Introduction of advanced SPWM technology, output of a perfect sine wave
New thermal design for optimal heat dissipation and reduced noise levels
adjustable output voltage 220 / 230VAC and mains frequency 50Hz / 60 Hz via remote meter
LED indicators for error status and working status
Input protection: overvoltage protection, low-voltage protection
Output protection: overload protection, short-circuit protection
Overtemperature protection: temperature-controlled cooling and automatic shutdown in case of overtemperature
Already included: High-quality battery connection cable with 1m length, RS485 to USB interface cable
1m 35mm² connection cable with M8 ring lugs
Performance parameters at a glance
Nominal power (continuous power / 15min power / peak power): 1200W / 1500W / 2400W
Input voltage range: 10.6 to 16 Vdc
Output voltage waveform: pure sine wave
USB output 5VDC / 1A, RS485 communication port
Significantly more efficiency thanks to the latest SPWM technology
all other technical data can be found in the data sheet
weight and dimensions (LxWxH): 3.9 kg at 296.3 × 231.5 × 98.5mm
all other technical data can be found in the data sheet
Scope of delivery:
1x Offgridtec 1-01-011090 PSI 12-1500 Sine wave voltage converter 12V 230V 1500W / 2400W
1x Set battery connection cable 1m 35mm² Red / Black
1x RS485 to USB interface cable 1x instruction manual
€257.96*
€216.77**
The Offgridtec PSI 12-1500 (MPN 011090) is an advanced 12V 230V sine wave voltage converter of the latest generation. The unit features a 16Bit SPWM c...
Der DEYE Mikroinverter SUN-M80G3-EU-Q0 ist der perfekte Wechselrichter für dein Balkonkraftwerk, der sich besonders durch das integrierte WIFI-Modul und sein integriertes NA-Relais auszeichnet. Zusätzlich verfügt er über intelligente Netzwerk- und Überwachungssysteme, die seine Leistungsfähigkeit von 800W unterstreichen.
Über den DEYE SUN-M80G3-EU-Q0
Integriertes NA Relais (Zulassung Bundesnetzagentur)
Ausgangsleistung von 800W, drosselbar auf 600W
Sichere und intelligente Überwachung auf Modulebene
Schnellabschaltfunktion
WIFI-Kommunikation
2 MPP-Tracker
15 Jahre Garantie
Netzanschluss Standard: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105
Sicherheit EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Integriertes Schutzrelais
Das integrierte Relais im Deye SUN-M80G3-EU-Q0 Inverter ermöglicht automatische Schaltvorgänge, die für den reibungslosen Betrieb der Solaranlage entscheidend sind.
Als Schaltzentrale steuert das Relais elektrische Prozesse und verbindet den Wechselrichter mit anderen Komponenten der Solaranlage, wie Batterien oder Lasten, für eine effiziente Nutzung des erzeugten Solarstroms. Das Relais spielt eine entscheidende Rolle bei der Sicherheit, indem es den Wechselrichter und angeschlossene Geräte vor Überlastungen oder Funktionsstörungen schützt. Diese präzise Überwachung der Stromflüsse gewährleistet die Stabilität und Langlebigkeit des gesamten Solarsystems.
Die Integration des, von der Bundesnetzagentur zugelassenen, zuverlässigen SUN-MI-RELAY in den Deye SUN-M80G3-EU-Q0 verbessert signifikant die Funktionalität und Sicherheit des Wechselrichters, ermöglicht eine effiziente Nutzung der Solarenergie und bietet Schutzmechanismen für das System.
Einfache Installation
Solange die Maximalwerte des Wechselrichters nicht überschritten werden, können einzelne PV-Module in einer beliebigen Kombination aus Modulanzahl, Richtung und Leistungsrate installiert werden. Das Erdungskabel (PE) des AC-Kabels ist im Mikrowechselrichter mit dem Chassis verbunden, wodurch eventuell die Einrichtung des Erdungskabels entfallen kann. Durch einen, sich in der Umgebung des Mikrowechselrichters befindenden WLAN-Router, kann die Datensammlung erfolgen. Über die App oder die Website können Sie dann die automatisch hochgeladenen Daten abrufen.
Unabhängige MPP-Tracker
Jeder Modulanschluss verfügt über eine individuelle MPPT-Steuerung. Dadurch wird sichergestellt, dass unabhängig von der Leistung der anderen PV-Module in der Anlage die maximale Leistung in das Stromnetz eingespeist wird. Wenn einzelne Solarmodule durch z.B. Schatten, Staub oder Ausrichtung beeinträchtigt werden, reduziert sich nicht die Leistung der gesamten Anlage, sondern nur des einzelnen Strangs.
Remote-Shutdown-Funktion
Die Remote-Shutdown-Funktion im Deye SUN-M80G3-EU-Q0 ermöglicht das ferngesteuerte Herunterfahren der Solaranlage in Notfällen. Dank der intelligenten Überwachungsplattform setzt dann die sofortige Fernabschaltung ein. Außerdem wird die Wartung der PV-Anlage durch die Möglichkeit der Ferneinstellung von Parametern und Firmware-Updates vereinfacht.
Technische Daten DEYE SUN-M80G3-EU-Q0
Allgemein
Max. Effizienz: 96,5%
Statischer MPPT-Wirkungsgrad: 99%
Stromverbrauch nachts: 50mW
Umgebungstemperatur: -40° bis +65°C (>45°C Leistungsminderung)
Schutzart: IP67
Abmessungen: 190 x 212 x 40mm
Gewicht: 2,8kg
Input (DC)
Empfohlene Eingangsleistung (STC): 210-600W (2 Stk.)
Max. Eingangsgleichspannung: 60V
MPPT-Spannungsbereich: 25-55V
Volllast-Gleichspannungsbereich: 33-55V
Max. DC-Kurzschlussstrom: 2x 19,5A
Max. Eingangsstrom: 2x13A
Anzahl der Strings pro MPPT(2x): 1
Output (AC)
Max. Scheinausgangsleistung: 800VA
Nennausgangsleistung: 800W
Nennausgangsstrom: 3,7/3,5A
Max. AC Ausgangsstrom: 3,7/3,5A
Nennfrequenzbereich: 50Hz/45Hz-55Hz - 60Hz/55Hz-65Hz
Leistungsfaktor: >0,99
Max. Einheiten pro Zweig: 6
Gesamtoberschwingungsgehalt (THD): <3%
Technische Daten SUN-MI-RELAY-01 (integriert)
Nennspannung: 220V/230V
Nennfrequenz: 50Hz
Maximaler Wechselstrom: 12A
Nennwechselstrom: 12A
Abmessungen: 111x95x37,7
Lieferumfang:
1x DEYE Mikroinverter SUN-M80G3-EU-Q0
1x Bedienungsanleitung
€130.78*
€109.90**
Der DEYE Mikroinverter SUN-M80G3-EU-Q0 ist der perfekte Wechselrichter für dein Balkonkraftwerk, der sich besonders durch das integrierte WIFI-Mo...
Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei normale USB Anschlussstecker oder einen USB-C Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet.
Eigenschaften:
Schutzklasse: IP65
Material: Kunststoff
Farbe: Schwarz
Spannung: 12-24V DC
Lieferumfang:
1x Offgridtec USB Doppelsteckdose (2x USB-A und USB-C)
€16.99*
Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei normale USB Anschlussstecker oder einen U...
The Offgridtec Remote Meter (mpn 012990) is specially designed for the Offgridtec psi-pro inverters. It displays the current parameters of the inverter on an LCD screen. Various parameters can be adjusted individually. Features Dual interface design Compatible with psi-pro series With limited possibilities also compatible with psi series (for explanations see user manual) LCD screen Dynamic real-time display of system data Visual error codes - timely notification of warnings and errors ON/OFF button control to directly control the load output Intuitive user interface Easy installation Technical data Power supply: 5 V/DC LCD backlight: Yes Installation method: Surface mount Working temperature: -20°C - +60°C Dimensions mounted: 100 x 19.4 mm (diameter x height) Size mounting holes: 3.5 mm Net weight: 65 g Scope of delivery: 1x Offgridtec Remote Meter 012990 1x rs485 to rj45 cable 1x user manual
€40.79*
The Offgridtec Remote Meter (mpn 012990) is specially designed for the Offgridtec psi-pro inverters. It displays the current parameters of the inverte...
Versatile all-rounder
Offgridtec Switching stations allow you to operate 230v consumers from two different voltage sources without interference. Typically, this is a voltage transformer or the public power grid
With the priority circuit you can determine which power source is to be used preferentially - if this voltage source is not available, the switchover is made to the substitute power source.
The use of high-quality relays guarantees on the one hand a particularly precise switching threshold, on the other hand your voltage transformer is optimally protected against backfeeding of external voltage.
Recommendations for use
Solar stand-alone systems
Service and commercial vehicles
Motorhomes and caravans
Sailboats and other watercrafts
Technical data
Input voltage: 230vac, 50/60Hz
Input current (max.): 16a
Output voltage: 230vac, 50/60Hz
Power (max.): 3600vA
Switching time: <500ms
Fuse: f 16a / 250v
Protection: overload, short circuit
Housing: plastic
Protection class: IP55
Inputs: Screw terminals, connection terminal
Dimensions: (LxWxH): 160 x 145 x 77mm
Weight: 450g
Application example 1 - mains priority circuit
The 230 v ac mains is connected to input ac2 (higher priority)
This means that the battery is protected and the inverter is protected from external voltage at the same time.
Only when ac2 is de-energized, input ac1 switches on the power supply via battery and inverter
Application example 2 - Inverter priority circuit
The inverter is connected to input ac2 (higher priority)
I.e. the current is primarily taken from the battery via the inverter (e.g. when using solar island systems)
Only when the inverter switches off due to deep discharge protection, the 230 v ac mains is connected via input ac1
Scope of delivery:
1x changeover station, PE connection terminal, operating instructions, de, gb, fR, NL
€109.90*
Versatile all-rounder
Offgridtec Switching stations allow you to operate 230v consumers from two different voltage sources without interference. Typi...
Der MPPT PRO-X Solarladeregler 20A (MPN: 017375) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler der neuesten Generation von Offgridtec überzeugt durch hohe Effizienz und Flexibilität, sowie zuverlässige Leistung, vereint mit umfassendem Schutz und einfachen Überwachungsmöglichkeiten. Die fortschrittliche MPPT-Technologie und ultra-schnelle Tracking-Geschwindigkeiten gewähren eine beeindruckende Mindesteffizienz von 99,5% für maximale Erträge. Somit eignet sich der innovative High-End Solarregler hervorragend zur Anwendung für Haushaltssysteme, Feldüberwachung, USV, Notstromversorgung, Telekommunikation oder Beleuchtung, sowie auch für den Einsatz in Wohnmobilen oder auf Booten.
Highlights des MPPT PRO-X 20A
Hochentwickelte MPPT-Technologie mit 99,5 % Mindesteffizienz
Max. DC/DC Übertragungseffizienz von bis zu 98,2%, Volllasteffizienz bis zu 96,2%
Fortschrittlicher MPPT-Regelalgorithmus zur Minimierung der MPP-Verlustrate und -Verlustzeit
Präzise Erfassung und Verfolgung des Multiple Peaks Maximum Power Point
Max. 20A Ladestrom, geeignet für 12V und 24V Systeme
Unterstützt Blei-Säure- sowie moderne Lithium-Ionen-Batterien
Alternativ auch mit 10A, 30A und 40A Ladestrom erhältlich
Batterietemperatur-Kompensationsfunktion
Automatische Begrenzung von Ladeleistung und Ladestrom
Echtzeit-Energie-Statistik-Funktion
Volllastbetrieb ohne Kapazitätsverringerung im Betriebstemperaturbereich
Überhitzungsschutzfunktion, Mehrfachlastmodus und umfangreicher Elektronikschutz
RS-485-Kommunikations-Bus-Schnittstelle mit 5VDC-Stromversorgung und professionellem Schutz-Chip inkl. Modbus- Kommunikationsprotokoll, Überstrom- und Kurzschlusssicherung
Schutzart IP33
Integriertes LCD-Display
Zuverlässig, flexibel und sicher
Der Offgridtec MPPT PRO-X Solarladeregler ist ein vielseitig einsetzbares Kraftpaket. Er ist kompatibel mit Blei-Säure- und Lithium-Ionen-Batterien und ermöglicht die lokale Anpassung der Spannungsparameter für BCV, FCV, LVD und LVR. Die Begrenzungsfunktion der Ladeleistung und des Ladestroms sowie die automatische Absenkung der Ladeleistung sorgen für Stabilität, selbst bei überdimensionierten PV-Modulen oder hohen Temperaturen. Zusätzlich gewährleistet er im Volllastbetrieb innerhalb des Betriebstemperaturbereichs eine stabile Leistung ohne Kapazitätsverlust. Der IP33-Schutzstandard und das isolierte RS485-Design verbessern die Zuverlässigkeit und Sicherheit des Reglers. Der Mehrfachlastmodus sowie umfangreiche Elektronik- und Überhitzungsschutzfunktionen bieten Schutz vor Schäden an Solarregler und angeschlossenen Geräten.
Hochwertig und fortschrittlich
Der Solarladeregler der PRO-X Serie ist mit hochwertigen ST- und IR-Komponenten renommierter Marken ausgestattet, was eine lange Lebensdauer und hohe Zuverlässigkeit garantiert. Der auf einem digitalen Regelkreis basierende 3-Stufen-Lademodus verlängert die Batterielebensdauer effektiv, erhöht die Systemleistung deutlich und bietet umfassenden Schutz vor System- oder Installationsfehlern, die Schäden an Komponenten verursachen könnten. Dies führt zu erhöhter Betriebssicherheit und einer längeren Lebensdauer des gesamten Solarstromversorgungssystems. Zusätzlich ermöglicht die intuitive Steuerung über PC-Software oder mobile Apps eine einfache Fernüberwachung und -steuerung des Systems.
Ultraschnelles Maximum Power Point Tracking
Besonders unter wechselnden Lichtverhältnissen, wie bei bedecktem Himmel, steigert ein extrem schneller MPPT-Regler den Energieertrag erheblich und sichert eine Mindesteffizienz von 99,5%. Mit dem optimierten MPPT-Regelalgorithmus minimieren die Offgridtec-Controller aus der PRO-X Serie die MPP-Verlustrate sowie die MPP-Verlustzeit und verfolgen den maximalen Leistungspunkt (Multiple Peaks Maximum Power Point) des PV-Systems präzise. Dies garantiert die optimale Nutzung der Solarenergie unter allen Bedingungen und steigert das Energienutzungsverhältnis im Vergleich zur PWM-Lademethode um 10-30 %.
Technische Daten
System Nennspannung: 12/24VDC Auto
Nennladestrom: 20A
Nennentladestrom: 20A
Batteriespannung: 8 ~32V
max. PV-Leerlaufspannung: 100V/92V
MPP-Spannungsbereich: ~72V / Batteriespannung +2V
Nennladeleistung: 260W/12V 520W/24V
max. Umwandlungswirkungsgrad: 98,3%
Volllast-Wirkungsgrad: 96,4%
Eigenverbrauch: ≤30mA(12V) ≤16mA(24V)
Spannungabfall im Entladekreis: ≤0.23V
RS485 Schnittstelle: 5VDC/200mA (RJ45)
Temperaturkompensationskoeffizient: -3mV/℃/2V
Erdung: übliche Minus-Erdung
Anschluss: 6AWG(16mm²) empf. Kabel: 10AWG(6mm²)
Abmessungen: 217×158×56,5 mm
Gewicht: 0,96 kg
Lieferumfang:
1× Offgridtec 1-01-017375 MPPT PRO-X 20A
1× Bedienungsanleitung
€94.40*
€79.33**
Der MPPT PRO-X Solarladeregler 20A (MPN: 017375) von Offgridtec setzt neue Maßstäbe für deine Solarversorgung. Der Regler de...
Die USB-Steckdose von Offgridtec bietet Ihnen die Möglichkeit, einen normalen USB Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet.
Eigenschaften:
Schutzklasse: IP65
Material: Kunststoff
Farbe: Schwarz
Spannung: 12-24V DC
Beleuchtungsfarbe: Hell/Blau
Abmessungen:
Gesamtlänge: 52 mm
Durchmesser Gewinde: 29 mm
Korpuslänge: 32 mm
Korpuslänge mit Kontakten: 40 mm
Maximale Frontplattenstärke: 22 mm
Lieferumfang:
1x Offgridtec USB-Steckdose
€6.13*
Die USB-Steckdose von Offgridtec bietet Ihnen die Möglichkeit, einen normalen USB Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleis...
Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei USB-C Anschlussstecker zu benutzen. Die USB-Abdeckung gewährleistet noch einmal zusätzlichen Schutz bei Nichtverwendung des Produkts. Diese kann auch von der Steckdose abmontiert werden. Die Doppelsteckdose ist für den Einsatz mit Montagegehäusen geeignet.
Eigenschaften:
Schutzklasse: IP65
Material: Kunststoff
Farbe: Schwarz
Spannung: 12-24V DC
Abmessungen:
Gesamtlänge: 52 mm
Durchmesser Gewinde: 29 mm
Korpuslänge: 32 mm
Korpuslänge mit Kontakten: 40 mm
Maximale Frontplattenstärke: 22 mm
Lieferumfang:
1x Offgridtec USB Doppelsteckdose (2x USB-C)
€23.01*
Die USB-Doppelsteckdose von Offgridtec bietet Ihnen die Möglichkeit, mittels einem Dual-Port, zwei USB-C Anschlussstecker zu benutzen. Die U...
Mit diesem praktischen Adapterkabel lassen sich die faltbaren Solarmodule und Solarkoffer von Offgridtec einfach und schnell an Geräte mit dem DC7909-Anschluss schalten. Das Kabel verfügt an einer Seite über einen Anderson-Stecker für die Solarmodule. Dank des Plug and Play Prinzips ist das Parallelschalten von zwei Modulen einfach und unkompliziert.
Eigenschaften
Anderson-Stecker 50A
Kompatibel zu Offgridtec FSP-Modulen, Solarkoffern und allen Solarmodulen mit 50A Anderson-Stecker (grau)
Länge: 20cm
Kabelquerschnitt: 16 AWG
Hohlstecker DC7909 (8mm)
Verpolungssicher
Schneller und einfacher Anschluss dank Plug and Play Prinzip
Offgridtec bietet stets höchste Qualität
Durch unsere langjährige Erfahrung auf dem Gebiet der Solarkabel und Leitungen bieten wir Ihnen mit unserem breiten Produktsortiment stets das Passende für Ihre Bedürfnisse und das mit der bekannten Offgridtec-Qualität. Unsere Kabel sind speziell zum Anschluss in Solar-Systemen geeignet, wo hohe mechanische Beanspruchungen und extreme Witterungseinflüsse auftreten können.
Lieferumfang:
1x Adapterkabel 20cm
€9.90*
0.2 Meter
(€49.50* / 1 Meter)
Content:
0.2 Meter
(€49.50* / 1 Meter)
Mit diesem praktischen Adapterkabel lassen sich die faltbaren Solarmodule und Solarkoffer von Offgridtec einfach und schnell an Geräte mit d...
