The bc01 Female from Betteri (mpn bc01B) is used for connection to a Envertech-, Hoymiles- or Huayu inverter. The opposite side can be connected to a h07rn-f rubber hose cable with a diameter of 10-14mm. It is a three-pole socket made of UV-resistant material. In addition, it is dustproof and waterproof according to protection class ip67, making it suitable for indoor and outdoor use. Product features Suitable for 1-phase inverters from e.g. Envertech, Hoymiles or Huayu Suitable for cables with a diameter of 10-14mm Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor installation Technical features Number of poles: 3-pole Material: plastic Operating temperature range: -40°C - +85°C Rated voltage: 230v AC Rated current: 25A Dimensions: 85.5 x 34.8 x 34.8 mm Weight: approx. 50g Scope of delivery: 1x Betteri bc01 female power plug

The end cap of Betterie (mpn bc01c) is used to close the unused 3 pole AC socket of the PV inverter of e.g. Envertech, Hoymiles or Huayu. Product features Suitable for 1-phase inverter from e.g. Envertech, Hoymiles or Huayu Closure of Betteri bc01 Female connector Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor mounting Scope of delivery: 1x Betteri Closure cap for bc01 socket

The bc01 connector Male from Betteri (mpn bc01B) is used for connection to a Envertech-, Hoymiles- or Huayu inverter. The opposite side can be connected to a h07rn-f rubber hose cable with a diameter of 10-14mm. It is a three-pin connector made of UV-resistant material. In addition, it is dustproof and waterproof according to protection class ip67, making it suitable for indoor and outdoor use Product features Suitable for 1-phase inverters from e.g. Envertech, Hoymiles or Huayu Suitable for cables with a diameter of 10-14mm Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor installation Technical features Number of poles: 3-pole Material: plastic Operating temperature range: -40°c - +85°c Rated voltage: 230v ac Rated current: 25a Dimensions: 85.2 x 34.8 x 34.8 mm Weight: approx. 50g Scope of delivery: 1x Betteri bc01 plug Male power plug

The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 75 10/15 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. The most important technical features at a glance 15a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 220W nominal PV power for 24v systems: 440W 15a load output high peak efficiency of 98% freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 75V Charging algorithm: multi-stage, adaptive integrated Bluetooth modu Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron EnergySCC075015060R Smartsolar mppt 75/15 15a 12v 24v solar charge controller 1x user manual

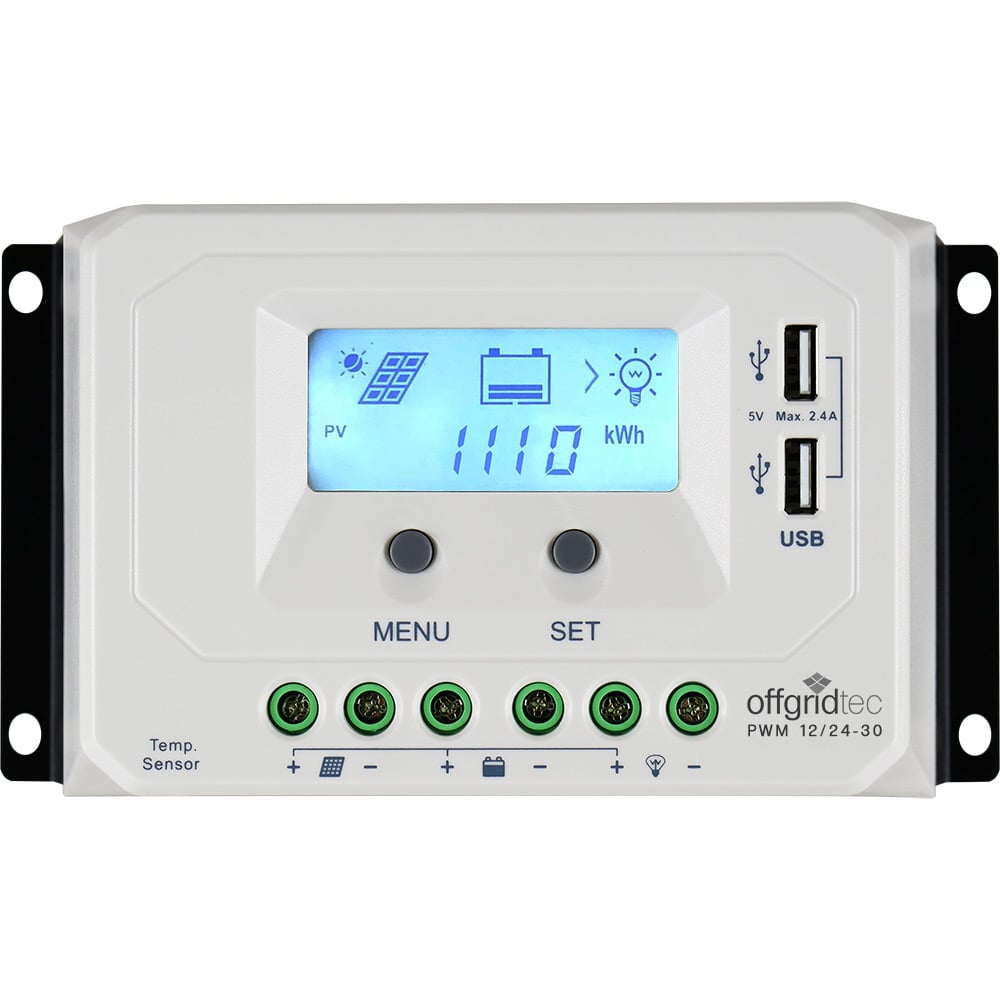

The Offgridtec PWM 12/24-30 (MPN 1-01-010920) is a microprocessor controlled solar charge controller with 30A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 390W at 12V and 780W at 24V battery voltage. During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery. Features of the PWM-12/24-30 max. charging current 30A, for up to 390W PV power with 12V and 780W with 24V systems for 12V systems maximum PV voltage of 22V, for 24V systems 50V Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB ports with a maximum output of 2.4A Large LCD display with numerous display options, including kWh meter Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required, not included) Integrated device and battery protection PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side. PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side. Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load. Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again. Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output. Scope of Delivery 1x Offgridtec 1-01-010920 LCD 12/24-30 PWM 30A solar charge controller 1x Instruction manual (German)

External temperature sensor (MPN 010930) compatible with the Offgridtec PWM Pro and MPPT PRO Duo charge controller series: The sensor detects the battery temperature and forwards this information to the charge controller. Installation of the external sensor enables the charge controller to calculate the optimal charge current depending on the battery temperature. Click here for the models: Offgridtec PWM Pro Charge Controller 12V/24V 10A USB Offgridtec PWM Pro Charge Controller 12V/24V 20A USB Offgridtec PWM Pro Charge Controller 12V/24V 30A USB Offgridtec PWM Pro Charge Controller 12V/24V 45A USB Offgridtec MPPT Pro Duo Charge Controller r12V/24V 30A Scope of delivery: 1x Offgridtec temperature sensor 1-02-010930

versatile all-rounder Offgridtec Switching stations allow you to operate 230v consumers from two different voltage sources without interference. Typically, this is a voltage transformer or the public power grid With the priority circuit you can determine which power source is to be used preferentially - if this voltage source is not available, the switchover is made to the substitute power source. The use of high-quality relays guarantees on the one hand a particularly precise switching threshold, on the other hand your voltage transformer is optimally protected against backfeeding of external voltage. Recommendations for use Solar stand-alone systems Service and commercial vehicles Motorhomes and caravans Sailboats and other watercrafts Technical data Input voltage: 230vac, 50/60Hz Input current (max.): 12A Output voltage: 230vac, 50/60Hz Power (max.): 2700vA Switching time: 1-2 secondsli> Fuse: f 15a / 250v Protection: overload, short circuit Housing: plastic Protection class: IP55 Inputs: screw terminals Dimensions: (LxWxH): 120 x 120 x 58mm Weight: 250g Application example 1 - Mains priority circuit The 230 v ac mains is connected to input ac2 (higher priority) This means that the battery is protected and the inverter is protected from external voltage at the same time. Only when ac2 is de-energized, input ac1 switches on the power supply via battery and inverter Application example 2 - Inverter priority circuit The inverter is connected to input ac2 (higher priority) I.e. the current is primarily taken from the battery via the inverter (e.g. when using solar island systems) Only when the inverter switches off due to deep discharge protection, the 230 v ac mains is connected via input ac1 Scope of delivery: 1x changeover station, ground terminal, operating instructions, de, gb, fR, NL

The Votronic 5543 tank electrode 12-24 k is a universal tank sensor for measuring the tank level. The tank electrode 12-24 k is suitable for service water and septic tanks as well as for fresh water tanks. By using appropriate materials, these tank sensors also comply with the drinking water regulation din 2001-2. It is designed for tanks with a height of between 12 and 24 cm. As a further special feature, the tank electrodes can be mounted on the top of the tank from the inside as well as from the outside. In the case of fresh water tanks, they can even be mounted on the underside of the tank. . essential product features of the 12-24 k tank electrode Rod electrode, easy to shorten to tank height for tanks with a height between 12 and 24 cm Installation diameter 38 mm (or pg 29 thread) Flange diameter 46.5 m Connection cable 75 cm long Easy adjustment to the given tank height linear, stepless signal of the filling level Test mark: E-testing (EMC/vehicle directive) suitable for 12v and 24v continuous operation optimal in combination with Votronic level indicators The tank sensor is compatible with the following Votronic indicators: . Fresh water tank gauge s, 5311 Waste water gauge s, 5313 Holding tank gauge s, 5315 Info Panel Pro, 5330 Info Panel Pro 24v VPC Terra VPC Mercury VPC Jupiter 100 Smart Shunt, 5747 VPC Jupiter 200 Smart Shunt, 5748 VPC Jupiter 400 Smart Shunt, 5749 Scope of delivery 1x Votronic 5543 12-24 k tank sensor 1x mounting material consisting of sealing ring, union nut pg 29, connection cable 75 cm1x instruction manual

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The Hoymiles Gateway dtu-wLite is a data transmission unit that uses 2.4G wireless communication to collect information and data from microinverters and transmits it to the Hoymiles S-Miles Cloud monitoring system via wLAN technology. The dtu is compatible with the Hoymiles hm and MI series.Using your dtu-wLite, you can easily read module-level data and alarms, and realize and store remote operation and maintenance of the microchanger system anytime, anywhere via the Hoymiles S-Miles Cloud. The monitoring capacity is limited to 4 modules. This makes the system ideally suited for small PV plants.Notice: dtu-wLite is connected to a house power outlet via 5v usb power supply. The power supply is not included in the scope of delivery. It works with almost all usb power supplies that can deliver at least 1a power.FeaturesMonitoring on module level, with up to 4 solar modulesEasy installation thanks to plug and playRemote maintenance of the system via the S-Miles CloudDirect connection (usb port)Real-time data and alarms from microinverters on S-Miles ToolkitLED displayS-Miles account creationThe creation of the S-Miles account can be done directly by the end user. In the download section of this article you can find the instructions from Hoymiles.Technical dataType: Proprietary 2.4 GHz protocol (Nordic)Maximum distance (open area and depending on installation environment): up to 150mLimitation of solar panel monitoring data: 4Signal: wLAN:802.11b/g/nSampling: every 15 minutesLocal app: S-Miles ToolkitPower consumption type 1.0 w / max 5.0 wInput voltage: 5vAmbient temperature range: -20 to +55°CDimensions (WxHxD): 143 x 33 x 12.5 mmWeight: 0,1kgCertificate: CEMicroinverter model: hm series and MI seriesScope of delivery:1x Hoymiles dtu-wLite data transmission unit

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

This disconnection aid is required for mounting the Hoymiles hmt microinverter. With the disconnection aid you can disconnect the inverter connection cable from the T-node. Made of Polycarbonate.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles disconnection aid

The LCD solar computer s was developed for operation with all previous and current Votronic solar controllers. Itis equipped with a large display for good readability, which has a time-controlled illumination. The solar charging current (a), solar power (w) and the voltage (v) of the solar battery are displayed. The current counter function counts the "harvested" ampere-hours (Ah) and watt-hours (Wh) and thus simplifies the control of the solaraplant. The counter values can be reset to zero at any time.In terms of dimensions, the device fits seamlessly into the VOTRONIC module system.Scope of delivery:Connection cable 5m, mounting screws, operating instructions, drilling template

This unlocking aid is required for mounting the Hoymiles hmt microinverter. With the unlocking aid you can open the T-node (AC-Box). Made of Polycarbonate.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles release aid

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The WiFi Switch eu from myStrom allows you to be smarter with your electronic devices. Measure your power consumption and costs and let the WiFi Switch switch the existing devices on or off automatically. By timer, schedule or stand-by. With the myStrom app you have full control over your devices, even if you are not directly on site. The WiFi Switch eu is also compatible with Amazon Echo, Google Assistant and many more.1. Attach device2. open myStrom app3. ConnectTechnical data :max. power consumption: 16AOperating voltage: 120VMaterial: polyvinyl chlorideWeight: 120gDimensions: 87 x 150 x 87mmScope of delivery:1x myStrom WiFi Switch eu

Der HMS-800W-2T (MPN: HMS-800W-2T) von Hoymiles ist der perfekte Mikrowechselrichter für ein Balkonkraftwerk. Neben dem hier zu erwähnenden, integrierten WiFi-Modul in Industrie+-Qualität, eignet sich das kompakte Leichtgewicht (nur 3,2kg) hervorragend für die Solarstromproduktion mit bis zu zwei Solarpanelen bis zu einer Leistung von je 320 bis 540+W. Genauso wie bei allen anderen Mikrowechselrichtern von Hoymiles ist er für lange Betriebsstunden und breiter PV-Modulanwendung geeignet, da seine Inbetriebnahme sehr niedrig (nur 22V) und der DC-Eingangsbereich der Betriebsspannung (16-60V) extrem breit ist. Der Wechselrichter wurde speziell für den Einsatz in Mini-PV-Systemen entwickelt und verfügt über ein hochwertiges WiFi-Modul. Mit dem benutzerfreundlichen HMS Plug&Play Kabel gestaltet sich die Installation mühelos. Der Mikrowechselrichter kann direkt an eine Steckdose angeschlossen werden, ohne das komplexe Verkabelungen nötig sind. Zudem vereinfacht der HMS-800-2T die Überwachung des Systems, da er einen Echtzeit-Zugriff auf Produktionsdaten ermöglicht, indem eine direkte Verbindung zum Smartphone hergestellt wird. Darüber hinaus ermöglicht die S-Miles Cloud die Fernüberwachung. Der HMS-800W-2T: Integriertes WiFi-Modul Minimierung der Auswirkungen von z.B. Verschattung, Staub oder Alterung durch MPPT Hochwertige Energiegewinnung mit hoher MPPT-Genauigkeit Optimale Systemzuverlässigkeit Spitzenwirkungsgrad von 96,7% 12 Jahre Produktgarantie Hohe Sicherheit durch integrierte Schutzfunktionen Einfache Installation Lange Lebensdauer Entspricht VDE-AR-N 4105: 2018, EN 50549-1: 2019, VFR 2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 Zwei MPP-Tracker für optimale Solar-Erträge Mit der Maximum Power Point Tracker Technologie wird der bestmögliche Ertrag einer Solaranlage generiert. Der MPPT stellt dabei im Tagesverlauf das optimale Verhältnis zwischen Bestrahlungsstärke, Temperatur am Modul und Solarzellentyp fest. Durch die zwei MPP-Tracker im HMS-800W-2T, kann der optimale Arbeitspunkt für die zwei PV-Stränge getrennt voneinander optimiert werden. Die beiden Tracker arbeiten unabhängig voneinander und so hätte z.B. eine Verschattung bei einem Strang keinen Einfluss auf den zweiten. Einfacher Aufbau PV-Systeme mit Hoymiles-Mikrowechselrichtern sind sehr einfach zu planen. Sie brauchen keine umständlichen herkömmlichen Wechselrichter zu installieren. Jeder Mikrowechselrichter kann schnell auf dem PV-Montagegestell oder direkt unter dem PV-Modul montiert werden. Das PV-Modul wird direkt vor Ort mit dem Mikrowechselrichter verbunden und eliminiert dadurch das Risiko, dass Personen einer gefährlich hohen Gleichspannung ausgesetzt sind. Optimale Zuverlässigkeit Mikro-Wechselrichtersysteme sind von Natur aus zuverlässiger als herkömmliche Wechselrichter. Der dezentrale Aufbau eines Mikrowechselrichtersystems stellt sicher, dass es bei einer Störung nicht zum Ausfall der gesamten PV-Anlage kommt. Hoymiles-Mikrowechselrichter sind für den Betrieb mit voller Leistung bei Umgebungstemperaturen von bis zu +65°C (150°F) ausgelegt. Das Gehäuse des Mikro-Wechselrichters ist für die Außeninstallation ausgelegt und entspricht der Schutzart IP67. S-Miles Accounterstellung Die Erstellung des S-Miles Accounts kann direkt vom Endnutzer vorgenommen werden. Im Downloadbereich dieses Artikels ist hierzu die Anleitung von Hoymiles zu finden. Technische Daten Empfohlene Modulleistung: bis zu 320W - 540+W (je Modul) MPPT Spannungsbereich: 16-60V Einschaltspannung: 22V Maximale Eingangsspannung: 65V Maximaler Eingangsstrom: 2*14A Maximaler Eingangskurzschlussstrom: 2*25A Nennausgangsleistung: 800VA Nennausgangsstrom: 3,48A Nennausgangsspannung/-bereich: 230V / 180-275V CEC Spitzenwirkungsgrad: 96,70% Umgebungstemperaturbereich: -40 - +65°C Lagertemperaturbereich: -40°C - +85°C Abmessungen (BxHxT): 261 x 180 x 35,1 mm Gewicht: 3,2kg Gehäuseeinstufung: IP67 Anzahl MPPT`s: 2 Lieferumfang: 1x Hoymiles HMS-800W-2T Mikrowechselrichter

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The Offgridtec PSI 12-1500 (MPN 011090) is an advanced 12V 230V sine wave voltage converter of the latest generation. The unit features a 16Bit SPWM chipset, numerous protection mechanisms and galvanically isolated inputs and outputs. The input voltage range is 10.6 and 16Vdc. The converter can deliver 1500W for 15 minutes or 1200W continuously. For short inrush currents, the PSI 12-1500 delivers 2400W. Thanks to its advanced constitution, even sensitive electrical appliances can be supplied with power reliably and permanently Advanced development of the HP voltage transformer family The PSI series is the further development of the HP voltage transformers and comes up trumps with numerous innovations and optimisations: Input and output of the PSI are galvanically isolated and the housing has an earth connection. Mains frequency (50Hz/60Hz) and output voltage (220V / 230V) can be set via a dip switch. The brand-new SPWM 16-bit chipset delivers power of the highest quality and allows even very sensitive electronics to be reliably supplied with power. Compared to older chipsets, it is much more solid and durable. PSI converters with a power of 1000W or more are also equipped with an RS485 data output. This allows you to configure numerous parameters and monitor the operation of the unit via a computer / notebook using the PSI software. (the required interface cable is included in the scope of delivery). Configuration The Offgridtec 12-1000 PSI converter is equipped with an RS485 data output, which provides you with the options for external communication and configuration: RS485 to USB interface connection cable Part no.: The interface cable, included as standard, allows you to monitor various performance parameters on a notebook or PC. In addition, the PSI 12-1500 can be conveniently configured via the free PSI-Control PC software. Performance features of the PSI 12-1500 at a glance Modern, safe design with galvanic isolation of input and output RS485 communication module for configuration via PC / notebook with free configuration software from Offgridtec Very low self-consumption in idle / stand-by, max. efficiency <> Introduction of advanced SPWM technology, output of a perfect sine wave New thermal design for optimal heat dissipation and reduced noise levels adjustable output voltage 220 / 230VAC and mains frequency 50Hz / 60 Hz via remote meter LED indicators for error status and working status Input protection: overvoltage protection, low-voltage protection Output protection: overload protection, short-circuit protection Overtemperature protection: temperature-controlled cooling and automatic shutdown in case of overtemperature Already included: High-quality battery connection cable with 1m length, RS485 to USB interface cable 1m 35mm² connection cable with M8 ring lugs Performance parameters at a glance Nominal power (continuous power / 15min power / peak power): 1200W / 1500W / 2400W Input voltage range: 10.6 to 16 Vdc Output voltage waveform: pure sine wave USB output 5VDC / 1A, RS485 communication port Significantly more efficiency thanks to the latest SPWM technology all other technical data can be found in the data sheet weight and dimensions (LxWxH): 3.9 kg at 296.3 × 231.5 × 98.5mm all other technical data can be found in the data sheet Scope of delivery: 1x Offgridtec 1-01-011090 PSI 12-1500 Sine wave voltage converter 12V 230V 1500W / 2400W 1x Set battery connection cable 1m 35mm² Red / Black 1x RS485 to USB interface cable 1x instruction manual

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The Smartsolar 100/20-48 from Victron Energy (mpn scc110020160r) is a mppt solar charge controller with 20a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar version, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 100/20 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. The most important technical features at a glance 20a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 290W nominal PV power for 24v systems: 580W nominal PV power for 48v systems: 1160W 20a load output high peak efficiency of 98 freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 100V Charging algorithm: multi-stage, adaptive integrated Bluetooth module Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. Intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron Energy Smartsolar mppt 100/20-48 20a 12v 24v 48v solar charge controller 1x instruction manual Note The device shows the imprint 48v - on the packaging of the device the data sheet of the 48v version is printed on the side. Contrary to this confusing information on the device itself, this is as described for both 12v and 24v - and now also suitable for 48v battery banks. Until recently these were separate devices - one for 12v/24v and one for 48v - these two have now been combined and the printing on the case and packaging has been taken from the 48v version

Bluetooth Connector s-bc from Votronic The Votronic Energy Monitor consists of a special communication module (Bluetooth Connector s-bc), which in conjunction with a Votronic solar charge controller (from 2014 serial number (serial number 14Vxx.xxxxx)) with lcd solar computer s and/or the lcd battery computer s or vpc Jupiter with smart shunt additionally transmits the values shown on the corresponding display to a mobile device via Bluetooth. The required app for Android or IOs is available free of charge in the Google Play store or IOs App store respectively Connecting the Bluetooth Connector s-bc is very easy. It is simply plugged between the Votronic solar charge controller and the lcd-solar computer s or between the smart shunt and the lcd-battery computer s or vpc Jupiter using the modular cables included in the scope of delivery The device has 2 inputs and outputs each, so that 1 solar controller with lcd-solar computer and 1 smart-shunt with lcd-battery computer or vpc Jupiter can be connected together to one communication module In this way, the entire information of the on-board battery, such as voltage, charging or discharging currents and the remaining capacity, as well as all data of the solar system can be read comfortably via the cell phone or tablet. In addition, the most important data is logged, graphically processed and stored for a longer period of time. even the output as CsV file for own analysis purposes is possible. Of course, the Bluetooth Connector s-bc can also be installed subsequently at any time Technical features Connection via Bluetooth 4.0 (2.4Ghz) Range up to 50 outdoors Compatible with Votronic solar controller, VBCs Triple Charger, lcd battery computer and vpc Jupiter Dimensions HxWxD in mm: 75 x 47 x 24 Weight: 37g Approval mark: ce, e-test (EMC/vehicle directive) Scope of delivery: Votronic Bluetooth Connector s-bc (mpn 1430), operating instructions, 2 x control cable 6-pin 1m long

Connects capacitively all 3 in-house mains phases with each other so that transfer rates of up to 650 Mbit via the mains supply can be reached for the internet and computer networking (depending on the nature of the mains supply). If the signal is fed into 1 phase only, the phase coupler connects all 3 phases with each other so that these become permeable to the power line signal and the internet or computer signal will also be available at all other sockets of the in-house network. Also suitable for wireless intercoms! A considerable increase of the range and transmission quality may be achieved!
