A proper power installation in the vehicle is not only a matter of orderliness but rather a compelling need to ensure safety on board. The frequently encountered cable clutter behind the furniture walls complicates the troubleshooting in case of a malfunction and could be a diversifiable risk. The compact and indispensable peripheral units from VOTRONIC are used for a professional distribution and protection on the plus side of the battery and sufficient ground ratio.Plus Distributor 6 The compact, efficient plus distributor with 6 separate electric circuits allows professional distribution and protection of small and average consumers on the plus side of the battery. Two large collective terminals (cable cross-sections up to 16 mm², maximum admissible current 50 A) serve for power supply from the battery, and can also be used for a further plus distribution. The fuse holders on the consumer’s side are designed for commercial car fuses of the capacities 1 A to 20 A. The standard delivery includes the types 15 A, 10 A and 4 x 7.5 A. The supplied six large distribution terminals allow cable cross-sections up to 4 mm² at a maximum admissible current rate of 20 A. Marking areas on the housing facilitate the allocation of the fuses to their electric circuits. It is suitable for 12 V and 24 V operations.

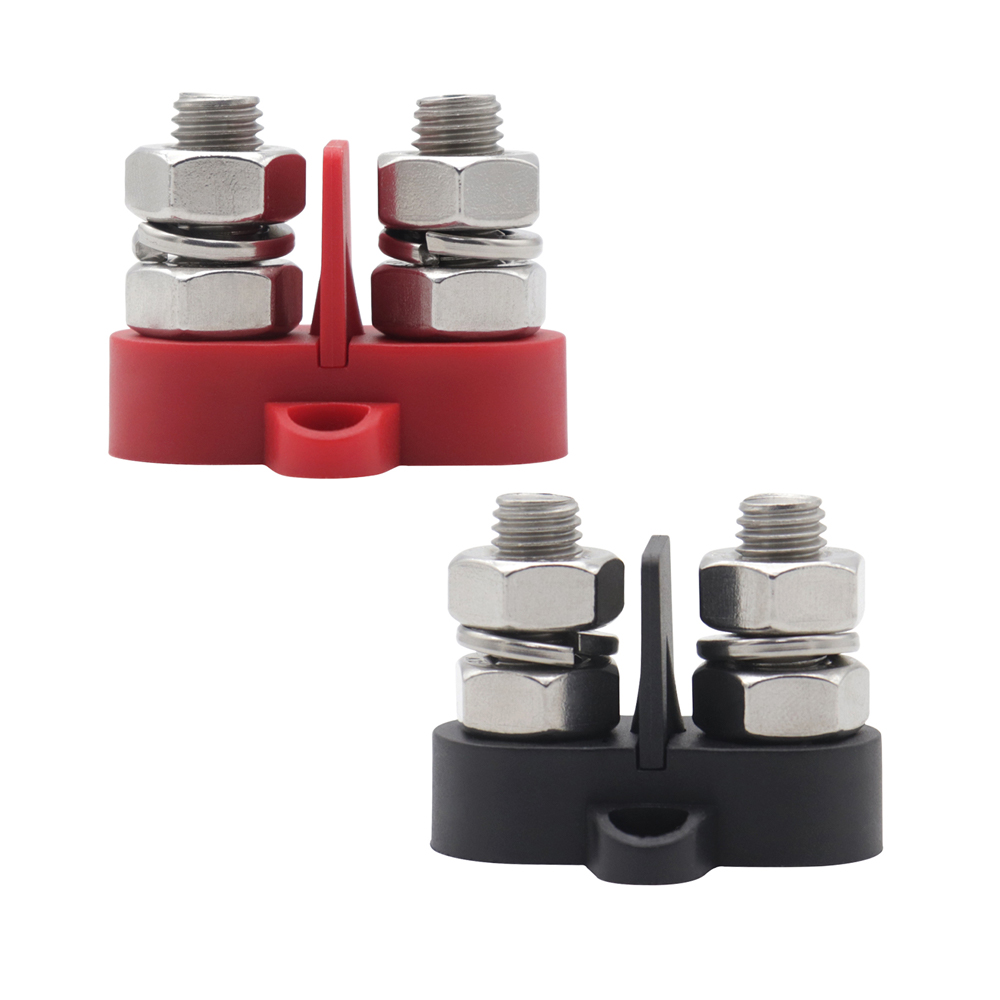

The 2-way connection bolts from Offgridtec (mpn 013355) are ideal for connecting multiple power lines to one source and provide neat wiring. They allow you to connect high power cables (negative and positive) for one or more connections. Suitable for 12v / 24v / 48V DC - motorhomes, trucks, coaches, boats, automobiles and other applications Selectable sizes 2x m8 (5/16'') 2x m10 (3/8'') 1x m8 (5/16'') / 1x m10 (3/8'') Features set of 2 - red and black with matching mounting screws Max. Current: 150A Max. Voltage: 70v DC Material bolt: Tinned copper Material base: Glass fiber reinforced nylon Dimensions: 48.5 x 43 x 32 (38) mm Weight: 70g Scope of delivery: 1x Offgridtec connection bolt (set of 2 - red & black) 4x mounting screws

A proper power installation in the vehicle is not only a matter of orderliness but rather a compelling need to ensure safety on board. The frequently encountered cable clutter behind the furniture walls complicates the troubleshooting in case of a malfunction and could be a diversifiable risk. The compact and indispensable peripheral units from VOTRONIC are used for a professional distribution and protection on the plus side of the battery and sufficient ground ratio.Plus Distributor 8 This is a efficient plus distributor with six fuse-protected outputs of different capacity values. The plus feed line of the battery is connected to a solid terminal block with cable lug (cable cross-section 16 mm², total max. admissible current 96 A). Distribution is the following:Connection 1:  Terminal block with cable lug (16 mm²) and strip fuse 40 A, 50 A or 60 A, with light-emitting diode display, as main protection or for larger consumers, such as inverters up to 12 V / 600 W or 24 V / 1200 W, powerful chargers etc.Connection 2:  Terminal 6 mm² with flat plug fuse 30 A, such as for average consumers or charger. This branch can either be supplied by the main circuit by means of an internal bridge, or optionally separated from the other circuits over a second terminal 6 mm².Connection 3-6:  Terminal screws with large clamping range (4 mm², max. 20 A) and fuse holder for commercial car fuses of the capacities 1 A to 20 A. The standard delivery includes the types 1 x 30 A, 2 x 15 A and   2 x 10 A. The cover with cable guiding unit ensures safe fixing of the cables and neat appearance. The light-emitting diode for supervision of the strip fuse connection 1 is also visible with installed distributor casing. Marking areas on the housing facilitate the allocation of the fuses. It is suitable for 12 V and 24 V operations.

The Mastervolt DC Distribution 500 is a connection device that allows the save connection of up to 4 different consumers. The internal fuses are surveilled and - their status can be recalled via the MasterBus communication platform. The DC Distribution 500 is the smallest distribution model available. It connects up to four DC devices to the DC groups, such as a battery charger, inverter, alternators and solar panels. With the included plug & play cable it can be easily connected to the MasterBus network. To display the distributor's measurement data as well as its configuration a monitoring device like the Maserview Easy 3.5 Touch is needed. Alternatively the configuration of the Mastershunt can be done even easier via USB interface and the free software MasterAdjust. The MasterView panel gives all fuses logical names to ensure you receive understandable error notifications (for example charger fuse defect). The DC Distribution always comes with four ANL fuses: 80, 80, 125 and 160 A, and a spare fuse of 125 A. Important product features: connection of up to 4 devices to the main-DC-conduction, fusing on the plus-conductor easy installation up to 4 fuses applicable exact warning display for system fuses remote monitoring of fuses supports MasterBus network LEDs display data traffic and alarm status solid fuse casing with DC-connector separation control via optional touch display MasterView Easy 3.5 part of the Mastconnect system (easy plug connection to Mastershunt and Digital DC 10x10A) Event-dependent programmingAn event is a condition under which you want the device to perform another task. If a fuse is tripped maybe a consumer should be shut off. To choose this device a certain signal is needed which communicates that the according fuse tripped. This signal is enabled by this event. The DC Distribution provides 4 parameters which serve as event. These can be ON (operating) or OFF (enabled). Delivery scope1x Mastervolt 77020200 DC Distribution 5001x Mastervolt 77040000 MasterBus Connection Device (Terminator)1x Mastervolt 77040050 0,5m MasterBus Connection Cable2x Mastervolt 77049080 ANL-Fuse 80A2x Mastervolt 77049125 ANL-Fuse 125A1x Mastervolt 77049160 ANL-Fuse 160A1x Manual
