Charging current distributor
20 Results
Sorting
8-67-009285

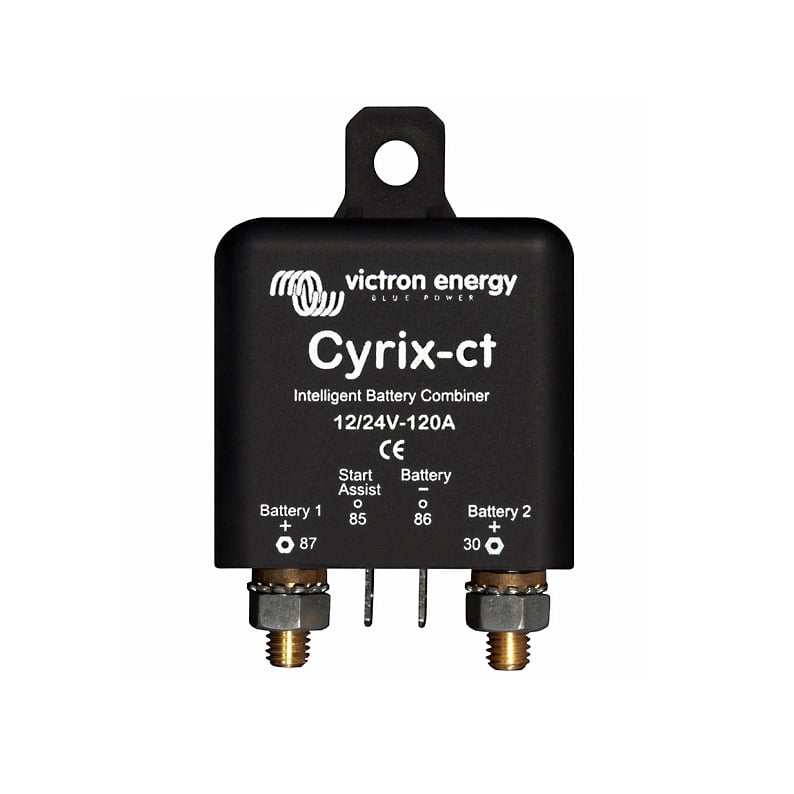

Victron Cyrix-ct 12/24V-120A intelligent battery combiner
The Victron Cyrix-ct 12/24V-120A battery combiner (MPN CYR010120011R) is a high-performing microprocessing-controlled relay that automatically switches batteries parallely when a certain predefined voltage is reached (which shows that the battery is charged).It separates the batteries when voltage falls below the trickle charge value (which shows that one of the batteries is discharged). Cyrix battery combiners are an ideal replacement for common isolators. Their main characteristic is that there is nearly no voltage loss.That means that the AC-generator's or battery charger's output voltage does not need to be increased.
Important details:
120A constant current
180A peak-current (5s)
12V/24V operation voltage (auto-detection)
MPN: CYR010120011R
Intelligent battery monitoring to prevent unwanted switchingA battery combiner (also called voltage-controlled relay or split-charge relay) disconnect batteries when there is a short but high-ampere load. Sometimes a battery bank is not connected because its DC-voltage instantly falls below the disconnection-threshold.
The Cyrix-ct 12/24's software does more than only connecting or disconnecting depending on the battery voltage and with a certain time-delay. It observes the general tendency (voltage goes up or down) and only returns earlier measures if the tendency turns within a certain period of time.Time-delay is depending on how much the voltage deviates from the tendency.
Long binding posts to connect more than one cableCyrix 12/24-120: 13 mm (M6) Cyrix 12/24-230: 16 mm (M8)
LED-status-displayLED-status-display (only Cyrix 12/24 230)LED on: connected - LED burns for 10s: disconnectedLED burns for 2s: connecting - LED flashes in a 2s-interval: disconnectingLED flashes in a 0.25s-interval: alarm (overheating, voltage >16V, both batteries < 10V, one battery < 2V (x2 for 24V batteries)
The Cyrix battery combiner is an alternative to isolator diodes. As there is barely any voltage loss an increase of the charging voltage of battery charger or generator is not needed for compensation.
Prioritizing of the starter batteryNormally the AC-generator is connected directly to the starter battery. The supply battery or thruster battery on a boat and others are connected via a Cyrix. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging.
Bidirectional voltage measuring and power supplyThe Cyrix measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-operation.
To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery) or 4V (24V battery).
Parallel connection in case of an emergency (Start Assist)The Cyrix can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective.
Delivery scope:1x Victron CYR010120011R Cyrix-ct 12/24V-120A battery combiner1x Manual
The Victron Cyrix-ct 12/24V-120A battery combiner (MPN CYR010120011R) is a high-performing microprocessing-controlled relay that automatically switche...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009295
Victron Cyrix-ct 12/24V-230A intelligent battery combiner
The Victron Cyrix-ct 12/24V-230A battery combiner (MPN CYR010230010R) is a high-performing microprocessing-controlled relay that automatically switches batteries parallely when a certain predefined voltage is reached (which shows that the battery is charged).It separates the batteries when voltage falls below the trickle charge value (which shows that one of the batteries is discharged). Cyrix battery combiners are an ideal replacement for common isolators. Their main characteristic is that there is nearly no voltage loss.That means that the AC-generator's or battery charger's output voltage does not need to be increased.
Important details:
230A constant current
500A peak-current (5s)
12V/24V operation voltage (auto-detection)
MPN: CYR010230010R
Intelligent battery monitoring to prevent unwanted switchingA battery combiner (also called voltage-controlled relay or split-charge relay) disconnect batteries when there is a short but high-ampere load. Sometimes a battery bank is not connected because its DC-voltage instantly falls below the disconnection-threshold.
The Cyrix-ct 12/24's software does more than only connecting or disconnecting depending on the battery voltage and with a certain time-delay. It observes the general tendency (voltage goes up or down) and only returns earlier measures if the tendency turns within a certain period of time.Time-delay is depending on how much the voltage deviates from the tendency.
Long binding posts to connect more than one cableCyrix 12/24-120: 13 mm (M6) Cyrix 12/24-230: 16 mm (M8)
LED-status-displayLED-status-display (only Cyrix 12/24 230)LED on: connected - LED burns for 10s: disconnectedLED burns for 2s: connecting - LED flashes in a 2s-interval: disconnectingLED flashes in a 0.25s-interval: alarm (overheating, voltage >16V, both batteries < 10V, one battery < 2V (x2 for 24V batteries)
The Cyrix battery combiner is an alternative to isolator diodes. As there is barely any voltage loss an increase of the charging voltage of battery charger or generator is not needed for compensation.
Prioritizing of the starter batteryNormally the AC-generator is connected directly to the starter battery. The supply battery or thruster battery on a boat and others are connected via a Cyrix. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging.
Bidirectional voltage measuring and power supplyThe Cyrix measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-operation.
To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery) or 4V (24V battery).
Parallel connection in case of an emergency (Start Assist)The Cyrix can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective.
Delivery scope:1x Victron CYR010230010R Cyrix-ct 12/24V-230A battery combiner1x Data cable for Cyrix-ct 12/24-230, 1m1x Manual
The Victron Cyrix-ct 12/24V-230A battery combiner (MPN CYR010230010R) is a high-performing microprocessing-controlled relay that automatically s...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009300

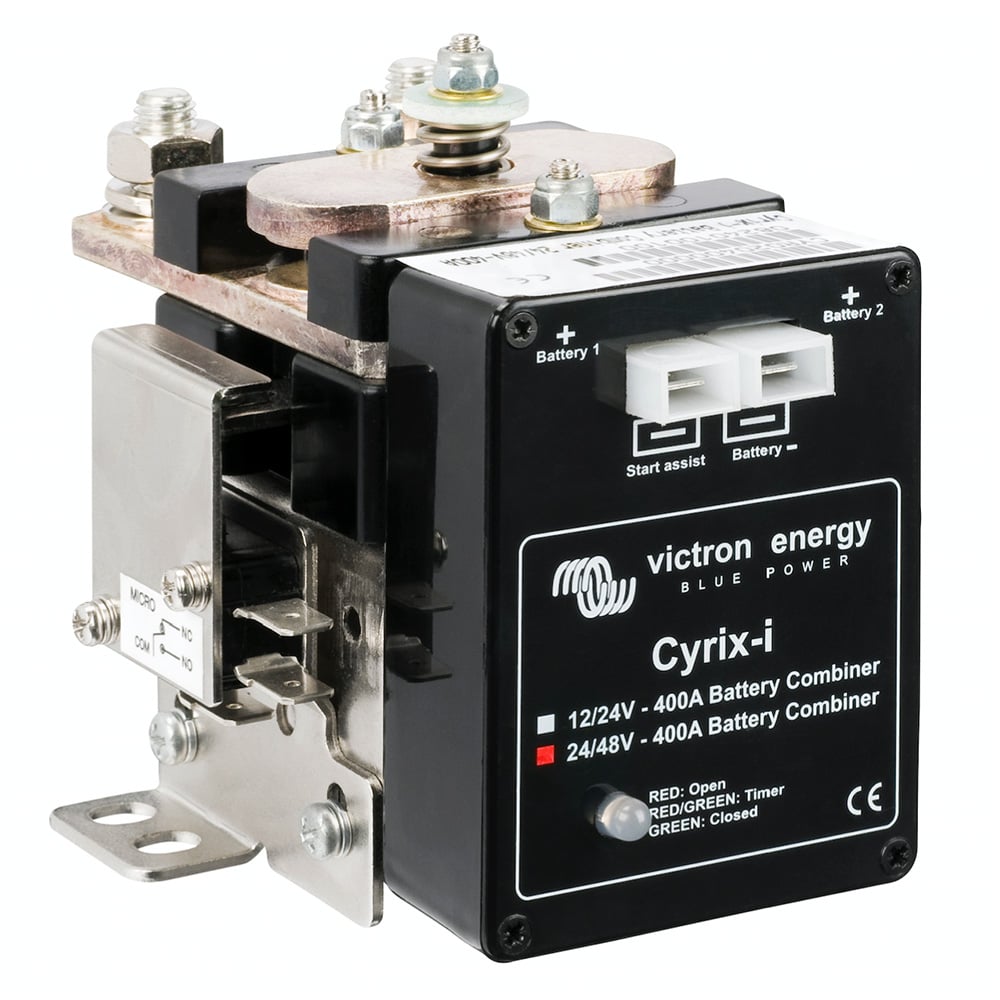

Victron Cyrix-i 12/24V-400A Intelligent Battery Combiner
The Victron Cyrix-i 12/24V-400A (MPN CYR010400000) is an advanced battery combiner the prevents unwanted switching during current distribution.
Some battery relays perform separation procedures when there are high currents. It is also possible that a big but empty battery group can't be connected because voltage would fall below the switch-off threshold.The Cyrix-i's software does not work with voltage values or time intervals. Instead it regards the trend (voltage/time) and only reacts when the trend changes within a certain interval. The time delay is proportional to the trend's voltage deviation.Additionally up to 4 different switching/time settings can be adjusted.
Important features:
constant output: 400A
max. peak current (1s): 1000A
operation voltage range: 24/48V (auto-adjustment)
MPN: CYR010400000
Auto-voltage-range-setting 12/24V and 24/48VThe Cyrix-i recognizes the voltage automatically.
No voltage lossThe Cyrix-i battery control is an alternative to isolation diodes. As there is barely any voltage loss an increase of the charging voltage of alternator or generator is not needed for compensation.
Prioritizing of the starter batteryNormally the alternator is connected directly to the starter battery. The supply battery or thruster battery and others are connected via a Cyrix-i. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging.
Bidirectional voltage measurement and power supplyThe Cyrix-i measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix-i has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-i operation.
To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery), 4V (24V battery) or 8V (48V battery).
Parallel connection in case of an emergencyThe Cyrix-i can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective.
Delivery scope:1x Victron CYR010400000 Cyrix-i 12/24V-400A Battery Combiner1x Manual
The Victron Cyrix-i 12/24V-400A (MPN CYR010400000) is an advanced battery combiner the prevents unwanted switching during current distribution.
Some ...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009220
Victron Stainless Steel Installation Socket Caravan Boat Yacht
The 16A Victron shore power socket (SHP301602000R) was designed especially for caravans and boats. This model comes with a high-quality stainless steel blind and is compatible with Victron shore power cables.
Technical Data:
Protection: IP57
Blind: stainless steel
Weight: 0,34kg
Max. voltage: 250V AC
Max. amperage: 16A
Standard: IEC 60309, 2p+E
Blind type: PA6
Suitable for:
Victron Shore-power cable 15m 16A
Victron Shore-power cable 25m 16A
Delivery scope:1x Victron Shore Power Socket (SHP301602000R) Stainless Steel
The 16A Victron shore power socket (SHP301602000R) was designed especially for caravans and boats. This model comes with a high-quality stainless stee...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009270
Victron Argo FET 100-3 100A Battery FET-Isolator
The Victron Argo FET-isolator 100-3 (MPN ARG100201020R) allows the supply of 3 separate battery circuits with up to 100A charging current via one power source. This source can be the alternator or a charger.
As the single battery banks are not connected it is not possible that they discharge or affect each other. The difference between isolators and FET-isolators is that FET-isolators barely generate any voltage losses and therefore are much more efficient.
Features:
max. charging current of 100A and connectors for 3 battery circuits
with 0.02V at low and 0.1V on high currents there is only a very small voltage loss which makes a compensating voltage increase unnecessary
proven Victron quality with a guarantee of 5 years
Only small voltage lossesCompared to common isolators there are only very small voltage losses with FET-isolators - only 0.02V at low and 0.1V on high currents. With Argo FET-isolators there is no voltage increase necessary. You should still keep an eye on short cable lengths and sufficient cable diameters.
Example: A current of 100A at a cable length of 10m and 50m² cable diameter has a voltage loss of 0.26V. At a cable of 5m and 10mm² a 50A-current generates a loss of 0.35V! That's why FET-isolators belong to the most efficient charging current distributors on the market.
Delivery scope:1x Victron ARG100301020R FET 100-3 FET Isolator 100A for 3 batteries
The Victron Argo FET-isolator 100-3 (MPN ARG100201020R) allows the supply of 3 separate battery circuits with up to 100A charging current via one powe...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009225
Victron Stainless Steel Installation Socket 32A Shore Power Caravan Boat Yacht
The 32A Victron shore power socket (SHP303202000) was designed especially for caravans and boats. This model comes with a high-quality stainless steel blind and is compatible with Victron shore power cables.
Technical Data:
Protection: IP57
Blind: stainless steel
Weight: 0,65kg
Max. voltage: 250V AC
Max. amperage: 32A
Standard: IEC 60309, 2p+E
Blind type: PA6
Suitable for:
Victron Shore-power cable 15m 16A
Victron Shore-power cable 25m 16A
Victron Shore-power cable 15m 25A
Victron Shore-power cable 25m 32A
Delivery scope:1x Victron Shore Power Socket (SHP303202000) Stainless Steel 32A
The 32A Victron shore power socket (SHP303202000) was designed especially for caravans and boats. This model comes with a high-quality stainle...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009250
Victron Argo-diode 140-3AC 140A Battery isolator
The Victron Argo 140-3AC battery isolator (MPN ARG140301020R) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 140-3AC provides a max. charging current of 140A and supports 3 batteries or battery banks
alternator max. current 140A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG140301020R Argo 140-3AC Isolator 140A for 3 batteries1x Manual
The Victron Argo 140-3AC battery isolator (MPN ARG140301020R) allows the current distribution out of one energy source (e.g. alternator) to multiple b...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009260
Victron Argo-diode 180-3AC 180A Battery isolator
The Victron Argo 180-3AC battery isolator (MPN ARG180301020) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 180-3AC provides a max. charging current of 180A and supports 3 batteries or battery banks
alternator max. current 180A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG180301020 Argo 180-3AC Isolator 180A for 3 batteries1x Manual
The Victron Argo 180-3AC battery isolator (MPN ARG180301020) allows the current distribution out of one energy source (e.g. alternator) to multiple ba...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009235
Victron Argodiode 80-2SC 80A Battery Isolator
The Victron Argo 80-2SC battery isolator (MPN ARG080202000R) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.Compared to the 80-2AC this model is not equipped with current-limiting generator connection.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
Argo 80-2SC provides a max. charging current of 80A and supports 2 batteries or battery banks
alternator max. current 80A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG080202000R Argo80-2SC Isolator 80A for 2 batteries1x Manual
The Victron Argo 80-2SC battery isolator (MPN ARG080202000R) allows the current distribution out of one energy source (e.g. alternator) to multiple ba...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009315

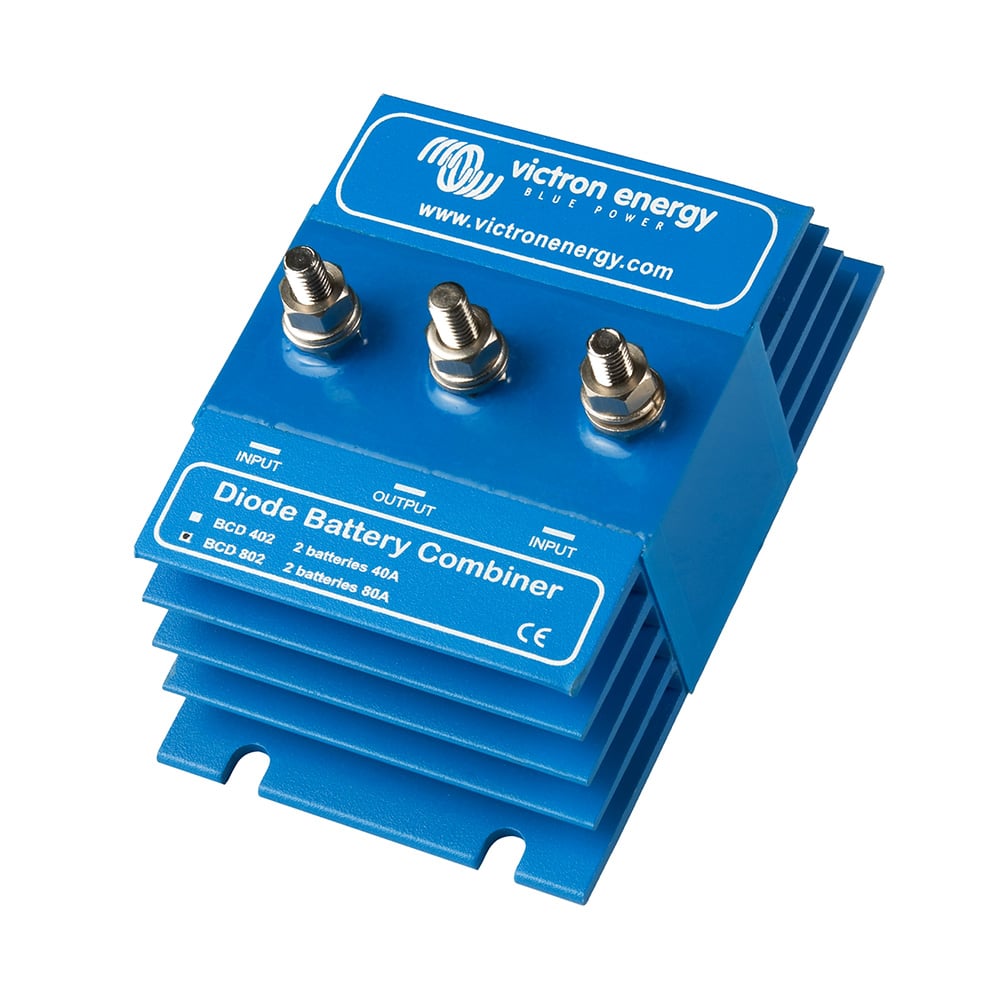

Victron BCD 802 Diode Battery Combiner 80A
The Victron BCD 802 2 with 80A DC-performance (MPN BCD000802000) is a diode battery combiner and is used to to supply important consumers with a stable DC-current. Thanks to these diodes this current can come from 2 sources, for example 2 battery circuits.If one source is not sufficient the second one is used additionally.
Diode battery combiners are used to ensure a constant DC-current for important consumers, for example an electronical motor-control-system. With help of these combiners two or more DC-sources can be connected parallely. If one source is not sufficient or if there is a failure power supply is not interrupted.
Argo battery combiners produce only a very small voltage loss due to the use of Schottky-diodes: voltage loss (low current) at ~ 0.3V and nominal output ~ 0.45V.
Delivery scope:1x Victron BCD000802000 Victron BCD 802 2 Diode Battery Combiner 80A DC
The Victron BCD 802 2 with 80A DC-performance (MPN BCD000802000) is a diode battery combiner and is used to to supply important consumers with a stabl...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009310
Victron BCD 402 Diode Battery Combiner 40A
The Victron BCD 402 2 with 40A DC-performance (MPN BCD000402000) is a diode battery combiner and is used to to supply important consumers with a stable DC-current. Thanks to these diodes this current can come from 2 sources, for example 2 battery circuits.If one source is not sufficient the second one is used additionally.
Diode battery combiners are used to ensure a constant DC-current for important consumers, for example an electronical motor-control-system. With help of these combiners two or more DC-sources can be connected parallely. If one source is not sufficient or if there is a failure power supply is not interrupted.
Argo battery combiners produce only a very small voltage loss due to the use of Schottky-diodes: voltage loss (low current) at ~ 0.3V and nominal output ~ 0.45V.
Delivery scope:1x Victron BCD000402000 Victron BCD 402 Diode Battery Combiner 40A DC
The Victron BCD 402 2 with 40A DC-performance (MPN BCD000402000) is a diode battery combiner and is used to to supply important consumers with a stabl...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009280
Victron Argo FET 200-3 200A Battery FET-Isolator
The Victron Argo FET-isolator 200-3 (MPN ARG200301020R) allows the supply of 3 separate battery circuits with up to 200A charging current via one power source. This source can be the alternator or a charger.
As the single battery banks are not connected it is not possible that they discharge or affect each other. The difference between isolators and FET-isolators is that FET-isolators barely generate any voltage losses and therefore are much more efficient.
Features:
max. charging current of 200A and connectors for 3 battery circuits
with 0.02V at low and 0.1V on high currents there is only a very small voltage loss which makes a compensating voltage increase unnecessary
proven Victron quality with a guarantee of 5 years
Only small voltage lossesCompared to common isolators there are only very small voltage losses with FET-isolators - only 0.02V at low and 0.1V on high currents. With Argo FET-isolators there is no voltage increase necessary. You should still keep an eye on short cable lengths and sufficient cable diameters.
Example: A current of 100A at a cable length of 10m and 50m² cable diameter has a voltage loss of 0.26V. At a cable of 5m and 10mm² a 50A-current generates a loss of 0.35V! That's why FET-isolators belong to the most efficient charging current distributors on the market.
Delivery scope:1x Victron ARG200201020R FET 200-3 FET Isolator 200A for 3 batteries
The Victron Argo FET-isolator 200-3 (MPN ARG200301020R) allows the supply of 3 separate battery circuits with up to 200A charging current via one powe...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009245
Victron Argo-diode 100-3AC 100A Battery isolator
The Victron Argo 120-2AC battery isolator (MPN ARG120201020R) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 120-2AC provides a max. charging current of 120A and supports 2 batteries or battery banks
alternator max. current 100A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG120201020R Argo 120-2AC Isolator 120A for 2 batteries1x Manual
The Victron Argo 120-2AC battery isolator (MPN ARG120201020R) allows the current distribution out of one energy source (e.g. alternator) to multiple b...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009240
Victron Argodiode 100-3AC 100A Battery isolator
The Victron Argo 100-3AC battery isolator (MPN ARG100301000R) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 100-3AC provides a max. charging current of 100A and supports 3 batteries or battery banks
alternator max. current 100A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG100301000R Argo 100-3AC Isolator 100A for 3 batteries1x Manual
The Victron Argo 100-3AC battery isolator (MPN ARG100301000R) allows the current distribution out of one energy source (e.g. alternator) to multiple b...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009305
Victron Cyrix-i 24/48V-400A Intelligent Battery Combiner
The Victron Cyrix-i 24/48V-400A (MPN CYR020400000) is an advanced battery combiner the prevents unwanted switching during current distribution.
Some battery relays perform separation procedures when there are high currents. It is also possible that a big but empty battery group can't be connected because voltage would fall below the switch-off threshold.The Cyrix-i's software does not work with voltage values or time intervals. Instead it regards the trend (voltage/time) and only reacts when the trend changes within a certain interval. The time delay is proportional to the trend's voltage deviation.Additionally up to 4 different switching/time settings can be adjusted.
Important features:
constant output: 400A
max. peak current (1s): 1000A
operation voltage range: 24/48V (auto-adjustment)
MPN: CYR020400000
Auto-voltage-range-setting 12/24V and 24/48VThe Cyrix-i recognizes the voltage automatically.
No voltage lossThe Cyrix-i battery control is an alternative to isolation diodes. As there is barely any voltage loss an increase of the charging voltage of alternator or generator is not needed for compensation.
Prioritizing of the starter batteryNormally the alternator is connected directly to the starter battery. The supply battery or thruster battery and others are connected via a Cyrix-i. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging.
Bidirectional voltage measurement and power supplyThe Cyrix-i measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix-i has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-i operation.
To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery), 4V (24V battery) or 8V (48V battery).
Parallel connection in case of an emergencyThe Cyrix-i can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective.
Delivery scope:1x Victron CYR020400000 Cyrix-i 24/48V-400A Battery Combiner1x Manual
The Victron Cyrix-i 24/48V-400A (MPN CYR020400000) is an advanced battery combiner the prevents unwanted switching during current distribution.
Some ...
Shipped in 1-3 days
Shipped in 1-3 days
8-67-009275
Victron Argo FET 200-2 200A Battery FET-Isolator
The Victron Argo FET-isolator 200-2 (MPN ARG200201020R) allows the supply of 2 separate battery circuits with up to 200A charging current via one power source. This source can be the alternator or a charger.
As the single battery banks are not connected it is not possible that they discharge or affect each other. The difference between isolators and FET-isolators is that FET-isolators barely generate any voltage losses and therefore are much more efficient.
Features:
max. charging current of 200A and connectors for 2 battery circuits
with 0.02V at low and 0.1V on high currents there is only a very small voltage loss which makes a compensating voltage increase unnecessary
proven Victron quality with a guarantee of 5 years
Only small voltage lossesCompared to common isolators there are only very small voltage losses with FET-isolators - only 0.02V at low and 0.1V on high currents. With Argo FET-isolators there is no voltage increase necessary. You should still keep an eye on short cable lengths and sufficient cable diameters.
Example: A current of 100A at a cable length of 10m and 50m² cable diameter has a voltage loss of 0.26V. At a cable of 5m and 10mm² a 50A-current generates a loss of 0.35V! That's why FET-isolators belong to the most efficient charging current distributors on the market.
Delivery scope:1x Victron ARG200201020R FET 200-2 FET Isolator 200A for 2 batteries
The Victron Argo FET-isolator 200-2 (MPN ARG200201020R) allows the supply of 2 separate battery circuits with up to 200A charging current via one powe...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009285_US
Victron Cyrix-ct 12/24V-120A intelligent battery combiner
The Victron Cyrix-ct 12/24V-120A battery combiner (MPN CYR010120011R) is a high-performing microprocessing-controlled relay that automatically switches batteries parallely when a certain predefined voltage is reached (which shows that the battery is charged).It separates the batteries when voltage falls below the trickle charge value (which shows that one of the batteries is discharged). Cyrix battery combiners are an ideal replacement for common isolators. Their main characteristic is that there is nearly no voltage loss.That means that the AC-generator's or battery charger's output voltage does not need to be increased.
Important details:
120A constant current
180A peak-current (5s)
12V/24V operation voltage (auto-detection)
MPN: CYR010120011R
Intelligent battery monitoring to prevent unwanted switchingA battery combiner (also called voltage-controlled relay or split-charge relay) disconnect batteries when there is a short but high-ampere load. Sometimes a battery bank is not connected because its DC-voltage instantly falls below the disconnection-threshold.
The Cyrix-ct 12/24's software does more than only connecting or disconnecting depending on the battery voltage and with a certain time-delay. It observes the general tendency (voltage goes up or down) and only returns earlier measures if the tendency turns within a certain period of time.Time-delay is depending on how much the voltage deviates from the tendency.
Long binding posts to connect more than one cableCyrix 12/24-120: 13 mm (M6) Cyrix 12/24-230: 16 mm (M8)
LED-status-displayLED-status-display (only Cyrix 12/24 230)LED on: connected - LED burns for 10s: disconnectedLED burns for 2s: connecting - LED flashes in a 2s-interval: disconnectingLED flashes in a 0.25s-interval: alarm (overheating, voltage >16V, both batteries < 10V, one battery < 2V (x2 for 24V batteries)
The Cyrix battery combiner is an alternative to isolator diodes. As there is barely any voltage loss an increase of the charging voltage of battery charger or generator is not needed for compensation.
Prioritizing of the starter batteryNormally the AC-generator is connected directly to the starter battery. The supply battery or thruster battery on a boat and others are connected via a Cyrix. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging.
Bidirectional voltage measuring and power supplyThe Cyrix measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-operation.
To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery) or 4V (24V battery).
Parallel connection in case of an emergency (Start Assist)The Cyrix can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective.
Delivery scope:1x Victron CYR010120011R Cyrix-ct 12/24V-120A battery combiner1x Manual
The Victron Cyrix-ct 12/24V-120A battery combiner (MPN CYR010120011R) is a high-performing microprocessing-controlled relay that automatically switche...
Soon available again
Soon available again
8-67-009265
Victron Argo FET 100-2 100A Battery FET-Isolator
The Victron Argo FET-isolator 100-2 (MPN ARG100201020R) allows the supply of 2 separate battery circuits with up to 100A charging current via one power source. This source can be the alternator or a charger.
As the single battery banks are not connected it is not possible that they discharge or affect each other. The difference between isolators and FET-isolators is that FET-isolators barely generate any voltage losses and therefore are much more efficient.
Features:
max. charging current of 100A and connectors for 2 battery circuits
with 0.02V at low and 0.1V on high currents there is only a very small voltage loss which makes a compensating voltage increase unnecessary
proven Victron quality with a guarantee of 5 years
Only small voltage lossesCompared to common isolators there are only very small voltage losses with FET-isolators - only 0.02V at low and 0.1V on high currents. With Argo FET-isolators there is no voltage increase necessary. You should still keep an eye on short cable lengths and sufficient cable diameters.
Example: A current of 100A at a cable length of 10m and 50m² cable diameter has a voltage loss of 0.26V. At a cable of 5m and 10mm² a 50A-current generates a loss of 0.35V! That's why FET-isolators belong to the most efficient charging current distributors on the market.
Delivery scope:1x Victron ARG100201020R Argo FET 100-2 FET Isolator 100A for 2 batteries
The Victron Argo FET-isolator 100-2 (MPN ARG100201020R) allows the supply of 2 separate battery circuits with up to 100A charging current via one powe...
Soon available again
Soon available again
8-67-009255
Victron Argo-diode 160-2AC 160A Battery isolator
The Victron Argo 160-2AC battery isolator (MPN ARG160201020) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 160-2AC provides a max. charging current of 160A and supports 2 batteries or battery banks
alternator max. current 160A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG160201020 Argo 160-2AC Isolator 160A for 2 batteries1x Manual
The Victron Argo 160-2AC battery isolator (MPN ARG160201020) allows the current distribution out of one energy source (e.g. alternator) to multiple ba...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
8-67-009230
Victron Argo Diode 80-2AC 80A Battery isolator
The Victron Argo 80-2AC battery isolator (MPN ARG080201000R) allows the current distribution out of one energy source (e.g. alternator) to multiple battery circuits.
With help of these isolators 2 or 3 separate battery circuits can be charged with only one power source. These batteries do not need to be connected which makes installation easier and reduces costs.
Features:
latest Schottky-diodes (hot-carrier-diodes) to keep voltage-loss at a minimum.
equipped with current-limiting connector for alternator energize input (generators, alternator,...)
Argo 80-2AC provides a max. charging current of 80A and supports 2 batteries or battery banks
alternator max. current 80A - supply battery can be used without discharging the starter battery
Minimum voltage loss thanks to latest Schottky-diodes (hot-carrier-diodes)Thanks to latest Schottky-diodes voltage loss is reduced to a minimum - 0.3V at low currents and 0.45V at nominal current. All models out of Victron's Argo-series are equipped with a compensation-diode which slightly increases the alternator's output voltage and therefore compensates the voltage loss caused by the Schottky-diodes.This is important because if the isolator is integrated into the cabling between battery and alternator without any compensation a voltage loss occurs that leads to incomplete charging and early battery aging.
Current-limiting alternator connectorSome kinds of generators need DC-voltage on their B+-pole as energize input. On one hand there is a direct connection of battery and generator, on the other hand the isolator prevents a current reflow that keeps the generator from starting.Arco-diodes (80-2AC or bigger) are equipped with a special alternator connector that allows an energize input when the generator is started. That ensures a smooth current flow between generator and battery.
Delivery scope:1x Victron ARG080201000R Argo 80-2AC Isolator 80A for 2 batteries
The Victron Argo 80-2AC battery isolator (MPN ARG080201000R) allows the current distribution out of one energy source (e.g. alternator) to multiple ba...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
Topseller
VAT-exempt delivery possible*
Top seller
8-01-005815
1.5m 6mm² MC4 Connection Cable Plug/Socket Extension
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1.5m
equipped with 1x MC4 male + 1x MC4 female
1.5 Meter (€6.82* / 1 Meter)
Content: 1.5 Meter (€6.82* / 1 Meter)
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
More versions available
8-01-013602
10m connection cable micro changeover switch with Betterie bc01 socket to earthed socket (plug angled)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply. special features of the P&P inverter connection cable Immediately ready for use since delivered as Plug & Play version technical features of the 5m Microinverter connection cable Offgridtec-Part number: 8-01-013602 Cable length: 10m Usage; Connection of compatible micro inverters to the house power grid via feed-in socket Cable type: heavy rubber cable H07RN-f 3x2,5 from Lapp-Kabel Connector on socket side: Schuko plug type-f angled Connector on inverter side: Betteri bc01 socket compatible micro inverters EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S TSUN tsol M350/M800 Bosswerk mi300 / MI600 Hoymiles mi-300 / MI-600 a.o. (e.g. Huayu) Scope of delivery: 1x Offgridtec 8-01-013602 10m plug & play connection micro inverter to power outlet
Variants from €44.90*
10 Meter (€5.49* / 1 Meter)
Content: 10 Meter (€5.49* / 1 Meter)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005785
1m 6mm² MC4 Connection Cable Plug/Socket Extension
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1m
equipped with 1x MC4 male + 1x MC4 female
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The eq...
Soon available again
Soon available again
Top seller
8-01-004950
2,5mm² standard flat fuse holder incl. cable
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. The holder is suitable for trucks, cars and much more. You can protect electronic components quickly and easily against overvoltages. You can find suitable flat fuses in our assortment.suitable for truck, car and 12v / 24v solar systems.Technical details:Rated current: max. 20ALxWxH 40x17x45mmTotal length: 25cmsplash water protected by rubber capHousing and cover made of solid rubberfor standard atc / car fusesCable cross section: approx. 2,5mm²/AWG14non-slip surface, therefore easy to open even when wetScope of delivery:1 holder without fuse
0.25 Meter (€7.16* / 1 Meter)
Content: 0.25 Meter (€7.16* / 1 Meter)
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. T...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005795
2m 6mm² MC4 Connection Cable Plug/Socket Extension
2m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 2m
equipped with 1x MC4 male + 1x MC4 female
2 Meter (€5.60* / 1 Meter)
Content: 2 Meter (€5.60* / 1 Meter)
2m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The e...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001310
2m Solar Profile Rail 4x4cm aluminium - sold by the meter
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
Length: 1mMaterial: aluminiumUpper mounting channel: solar sliding block M8 Slot 8Lower mounting channel: hex bolt / t-head bolt (DIN 933 M10)Dimensions: 4x4cm
These profiles are compatible with all installation equipment we offer.
As they are used for substructures these profile might have some slight scratches on the surface.
Note:Because of delivery costs these rails are normally delivered with a max. length of 2m. If a longer rail is needed (max. 6.1m) please contact us.
Alternatively it is possible to connect several profile rails with rail connectors until the needed length is reached. These connectors are alsoavailable in our shop.
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001325
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions: 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.25 Meter (€19.92* / 1 Meter)
Content: 1.25 Meter (€19.92* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
VAT-exempt delivery possible*
Top seller
8-01-001320
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.5 Meter (€19.93* / 1 Meter)
Content: 1.5 Meter (€19.93* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
Top seller
8-04-001170
2x Battery Pole Adaptors with external thread M8
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well as for batteries with M8 internal thread if you prefer to use a roundpole instead of a M8 bolt.
Pole adaptor set with various connection possibilities for batteris with internal thread to normal pole.
Perfect for caravan and boat owners, yacht sportsman, DIY people and solar systems
Product features:
- M8 external thread
- universal use
- for + and -
- for 6 and 12V batteries
- very robust through high-quality production
- very good conductivity
- Material: Copper with silver alloy
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well a...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-013755
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
Charging current distributor
Optimise your battery charging system with Victron Energy's high-quality charging current distributor. With its advanced technology, a Victron charging current distributor can distribute the charging current evenly and efficiently to several battery groups without any voltage losses. At Offgridtec you will find the perfect charging current distributor for your energy needs.
3 ways to charge several batteries at the same time
To prevent batteries connected together from discharging each other, three different parts can be used:
- Isolating diodes: These are semiconductor elements that regulate the current so that it can only flow in one direction. In this way, simultaneous charging is made possible, but mutual discharging is prevented. However, about 0.7V is lost when they are used, which is why the battery can never be fully charged.
- Isolating relay: This is the further development of the isolating diode - an electromagnetic switch that mechanically separates the batteries from each other, which results in no voltage loss. However, the simple cut-off relay mostly requires a pulse, usually from the D+ alternator.
- Charging current distributors: Distribute the charging current optimally to several batteries without coupling them to each other. In addition, this is the most effective way of preventing other batteries from discharging in the event of a more powerful consumer.
Victron charging current distributor for optimum charging of separate battery systems
To be able to charge independent battery systems as risk-free as possible, a charging current distributor from Victron Energy is best suited.
Buy high quality Victron charging current distributors online at Offgridtec
Experience the power of a high-quality charging current distributor from Victron Energy. With this device, you can easily distribute the charging current to several battery groups without any voltage losses. At Offgridtec you will find an extensive range of such high-quality Victron Energy charging current distributors, which are sure to meet your requirements!
If you have any questions about our range, our experts will be happy to help you. For both private customers and specialist dealers, our customer advisors are available on +49 8721 91994-00.
FAQ
- What is a charging current distributor? A charging current distributor bypasses the diode during charging, which prevents a voltage drop. This ensures that the battery receives the full charging voltage and the required current.
- What do I have to pay attention to when connecting two batteries together? When connecting several batteries together, always make sure that they have the same capacity and voltage. It is best if the batteries are also approximately the same age, so that their strength is roughly the same.
- What is an isolating diode? Isolating diodes allow batteries that are connected together to be charged at the same time. They prevent the batteries from discharging. However, a voltage loss of approx. 0.7V must be expected when using them. Nowadays, more effective devices such as charging current distributors are used for this purpose.
- What happens when two batteries are connected in parallel? When connected in parallel, the total capacity of the batteries (Ah) doubles, while the voltage (V) remains the same. When coupling, make sure to connect all positive terminals first and then all negative terminals.
