The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CAN data cable with rj45 connectors on both sides.The set is needed to connect the batteries of Pylontech with an inverter. Content 2m cable plus with m8 ring cable lug and amphenol connector (Pylontech) 2m cable minus with m8 ring cable lug and Amphenol connector (Pylontech) CAN data cable with rj45 connectors on both ends Scope of delivery: 1x 2m cable set (plus/minus) each with m8 ring cable lug and amphenol connector 1x data cable with rj45 connectors on both sides

The Pylontech brackets (mpn wj0zu2000b01) are used to stack the pylon battery modules us2000c vertically. With these stackable bracket holders you can stack the Pylontech batteries us2000c vertically and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. brackets stacked on top of each other can be connected and secured together via a clamping device on the sides of the brackets. A maximum of 4 batteries can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Properties Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries stackable Set of two brackets for one battery Scope of delivery: 2x Pylontech Brackets for us2000c

The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 3.5 kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the previous model US3000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 3552 Wh Usable capacity (95% DoD): 3374 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 90A Max. (Discharge) charging current: 74A Recommended charge/discharge current: 37A Communication: rs485, CAN Weight: 32 kg Dimensions: 442 x 420 x 132 mm Protection class: IP20 Temperature range charge: 0°C - +50°C Temperature range discharge: -10°C - +50°C Temperature range storage: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery: 1x Pylontech us3000c LiFePO4 3.5 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x user manual

The us3000c (mpn us3000c) from Pylontech is a lithium storage tank of the latest generation. The storage tank has been specially developed to fully meet the high demands placed on a solar storage tank today. Maximum safety and a long service life are guaranteed even with regular deep discharges thanks to the latest technology. The latest battery from the market-leading manufacturer, now with 3.5 kWh per module, once again has a battery management system (bms) built into each module and therefore offers a high level of safety. This means that the individual cells are monitored internally and protected against overvoltage, overtemperature, etc. in a balanced manner. The battery is compatible and certified with many available inverters. Features Extremely cycle-resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US3000 Service life over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging capacity possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect the ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects every battery cell installed from harmful influences over the entire service life of the module and effectively prevents premature failure. Protection against: overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Continuous monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech us3000c modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Combine your Pylontech set according to your requirements Depending on your selection you will receive between 1 and 8 units of Pylontech us3000c (3.5 - 28 kWh). You will receive an optional battery cabinet to match the selected us3000c quantity. The set includes a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is required to connect the batteries from Pylontech to an inverter. Technical data Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 48V Nominal capacity: 3552 Wh Usable capacity (95% DoD): 3374 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 90A Max. (discharging) charging current: 74A Recommended charge/discharge current: 37A Communication: rs485, CAN Weight: 32 kg Dimensions: 442 x 420 x 132 mm Protection class: IP20 Charging temperature range: 0°C - +50°C Discharge temperature range: -10°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 year manufacturer's warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by a forwarding agent! Scope of delivery (per selection): 1 - 8 x Pylontech us3000c LiFePO4, 3.5 kWh per battery (quantity depending on selection) 0 - 1 x battery cabinet 1 x battery connection cable set Pylontech to inverter

The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage tank of the latest generation. The accumulator has been specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 2.4kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US2000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the surge current when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us2000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage offers several advantages over typical lead-acid batteries and other lithium technologies. Combine your Pylontech set according to your wishes Per selection you will receive between 2 and 12 pieces Pylontech us2000c (4.8 - 28.8 kWh). Matching the selected us2000c quantity, you can choose a battery cabinet, as well as a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is needed to connect the batteries of Pylontech with an inverter. Technical data Battery type: Lithium iron phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 50 Ah / 2.4 kWh Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. (discharge) charging current: 90A Communication: rs485, CAN Weight: 24 kg Dimensions: 442 x 410 x 89 mm Protection class: IP20 Operating temperature range: 0°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: iec62619, ce, UN38.3 Due to classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery (per selection) 2 - 12 x Pylontech us2000c LiFePO4 (2.4 kWh per battery) 0 - 1 x battery cabinet 0 - 1 x battery connection cable set Pylontech to inverter

The us5000 is a lithium storage tank of the latest generation. The storage tank was specially developed to fully meet the high demands placed on a solar storage tank today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 4.8 kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us5000 modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 4800 Wh Usable capacity (95% DoD): 4560 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 200a (15sec) Max. (Discharge) charging current: 120a (15min) Recommended charge/discharge current: 75A Communication: rs485, CAN Weight: 38 kg Dimensions: 442 x 420 x 161 mm Protection class: IP20 Temperature range charge: 0°C - +55°C Temperature range discharge: -10°C - +55°C Temperature range storage: -20°C - +60°C Service life: over 15 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery: 1x Pylontech us5000 LiFePO4 4.8 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x instruction manual

In this bundle from Offgridtec (mpn 016070), in addition to the Pylontech us2000c LiFePO4 battery, you will also receive matching brackets, which are useful for better air circulation and vertical stacking of the batteries. You will also receive an inverter connection set for connecting all components. Below the description you will find a list of compatible inverters that have been tested by the manufacturer in conjunction with the battery storage system. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including for example Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Pylontech us2000c contains: 2x Pylontech us2000c LiFePO4 2x Pylontech Bracket for us2000c 1x Pylontech Battery connection cable set Pylontech to inverter Pylontech us2000c LiFePO4 The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage system of the latest generation. The storage system has been specially developed to meet the high demands placed on solar storage systems today. Even with regular deep discharges, the Pylontech us2000c guarantees maximum safety and a long service life thanks to the latest technology. In addition, the latest battery from the market-leading manufacturer, now with 2.4kWh per module, once again offers a high level of safety. The battery management system (bms) built into each module regulates this by monitoring and balancing and offers protection against: overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Continuous monitoring of the individual cell voltages (cell balance) Features Extremely cycle-resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US2000 Service life over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging capacity possible Integrated bms Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery Dual active protection at bms level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect the ESS system from overvoltage function Modular design By connecting several modules together, the modular system can be tailored precisely to the required storage capacity. Each storage module consists of an integrated bms and a high-performance lithium iron phosphate (LiFePo4) battery. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech us2000c modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Technical data Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 48V Nominal capacity: 50 Ah / 2.4 kWh Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. (discharging) charging current: 90A Communication: rs485, CAN Weight: 24 kg Dimensions: 442 x 410 x 89 mm Protection class: IP20 Operating temperature range: 0°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD bms / monitoring: integrated in each module Warranty: 10 year manufacturer's warranty Certification: iec62619, ce, UN38.3 Pylontech Brackets The Pylontech brackets (mpn wj0zu2000b01) are used to stack the Pylontech battery modules us2000c vertically. With these stackable bracket holders you can stack the Pylontech batteries us2000c vertically and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. a clamping device on the sides of the brackets can be used to connect and secure stacked brackets together. A maximum of 4 batteries can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Features Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries can be stacked Set of two brackets for one battery Connection set The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. The set is required to connect the batteries from Pylontech to an inverter. Contents 2m cable Plus with m8 ring terminal and Amphenol connection (Pylontech) 2m cable minus with m8 ring terminal lug and amphenol connection (Pylontech) CAN data cable with rj45 connectors on both sides

The Pylontech brackets are used for vertical stacking of the pylon battery modules us3000c. With these stackable brackets you can stack the Pylontech batteries us3000c and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. brackets stacked on top of each other can be connected and secured together via a clamping device on the sides of the bracket. A maximum of 4 batteirs can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Properties Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries stackable Set of two brackets for one battery Scope of delivery: 1x Pylontech Brackets Set for us3000c

Das Batteriemodul H48050 (V2) von Pylontech ist ein Hochvolt-Speicher mit LiFePO4-Zelltechnologie und bietet dir eine sehr lange Lebensdauer mit hoher Zyklenfestigkeit. Das flexible und stapelbare Konzept ermöglicht eine flexible Anwendung für verschiedene Szenarien und lässt sich sehr leicht installieren. Mit einer Nennspannung von 48V und einer Kapazität von 2,4 kWh bietet dir die Batterie hervorragende Leistungen bei hoher Belastung. Eine Kompatibilitätsliste für Pylontech mit über 30 Marken und Unternehmen, darunter beispielsweise Victron Energy, Growatt, Solis uvm., finden Sie als Download in unseren Anhängen! (Pylontech Compatibility List) Infos zum Powercube X1 Batteriemodul >5000 Zyklen bei 90% DoD LiFePO4 Zelltechnologie Hohe Zyklenfestigkeit und lange Lebensdauer Erweiterbar von 4,8kWh bis 24kWh Kapazität Flexibel und stapelbar Sehr niedrige Ausfallrate Das Powercube X1 Energiespeichersystem Der Powercube X1 von Pylontech ist ein Hochspannungsbatteriespeichersystem und besteht aus hocheffizienten Batteriemodulen. Das komplette System ist hierbei flexibel einsetzbar und bei Bedarf erweiterbar. Ein Energiesystem kann mit mindestens 2 und bis zu 10 Batteriemodulen errichtet werden. Zum Betrieb wird pro Powercube X1-Turm eine BMS-Steuerungseinheit benötigt. Vorsicht: Der Powercube besitzt keine Softstartschaltung! Flexibel Erweitern Das Powercube Batteriesystem von Pylontech bietet eine hohe Flexibilität durch seine erweiterbaren Konfigurationsmöglichkeiten, die von 4,8kWh bis zu 24kWh reichen. Die Installation und Erweiterung des Systems gestaltet sich einfach und unkompliziert durch das modulare Design und die Verwendung von Kabeln. Hohe Zyklen-Lebensdauer Die Pylontech H48050 Batteriemodule sind aufgrund ihrer extrem hohen Zyklen-Lebensdauer und der Verwendung von LiFePo4-Zellen eine ideale Speicherlösung für Photovoltaikanlagen. Unabhängig davon, ob es sich um ein netzgeführtes oder ein Inselsystem handelt, bietet der Powercube X1-Speicher im Vergleich zu herkömmlichen Bleibatterien und anderen Lithium-Technologien zahlreiche Vorteile. Bei 90% Entladetiefe bieten die Module bis zu 5000 Zyklen. Technische Daten Batteriechemie: LiFePO4 Kapazität: 2,4 kWh Nennspannung: 48V Betriebsspannungsbereich: 45-54V Nominale Kapazität: 50 Ah Max. Ladestrom: 50A Entladetiefe: 90% Kommunikation: RS232/CAN Schutzklasse: IP20 Gewicht: 24 kg Betriebstemperaturbereich: 0°C - +50°C Lagertemperatur: -20°C - +60°C Abmessungen: 442 x 390 x 100 mm Zertifikat: TÜV (IEC62619), UN38.3 Lieferumfang: 1x Pylontech H48050 Powercube X1 Batteriemodul 2,4 kWh 1x Batterieverbindungskabel Amphenol zu Amphenol 1x Kommunikationskabel

In this bundle from Offgridtec (mpn 016075), in addition to the Pylontech us2000c LiFePO4 battery, you will also receive matching brackets, which are useful for better air circulation and vertical stacking of the batteries. You will also receive an inverter connection set for connecting all components. Below the description you will find a list of compatible inverters that have been tested by the manufacturer in conjunction with the battery storage system. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including for example Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Pylontech us2000c contains: 3x Pylontech us2000c LiFePO4 3x Pylontech Bracket for us2000c 1x Pylontech Battery connection cable set Pylontech to inverter Pylontech us2000c LiFePO4 The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage system of the latest generation. The storage system has been specially developed to meet the high demands placed on solar storage systems today. Even with regular deep discharges, the Pylontech us2000c guarantees maximum safety and a long service life thanks to the latest technology. In addition, the latest battery from the market-leading manufacturer, now with 2.4kWh per module, once again offers a high level of safety. The battery management system (bms) built into each module regulates this by monitoring and balancing and offers protection against: overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Continuous monitoring of the individual cell voltages (cell balance) Features Extremely cycle-resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US2000 Service life over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging capacity possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect the ESS system from overvoltage function Modular design The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech us2000c modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Technical data Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 48V Nominal capacity: 50 Ah / 2.4 kWh Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. (discharging) charging current: 90A Communication: rs485, CAN Weight: 24 kg Dimensions: 442 x 410 x 89 mm Protection class: IP20 Operating temperature range: 0°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 year manufacturer's warranty Certification: iec62619, ce, UN38.3 Pylontech Brackets The Pylontech brackets (mpn wj0zu2000b01) are used to stack the us2000c pylon battery modules vertically. With these stackable bracket holders you can stack the Pylontech batteries us2000c vertically and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. a clamping device on the sides of the brackets can be used to connect and secure stacked brackets together. A maximum of 4 batteries can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Features Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries can be stacked Set of two brackets for one battery Connection set The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. the set is required to connect the batteries of Pylontech with an inverter. Contents 2m cable plus with m8 ring cable lug and Amphenol connection (Pylontech) 2m cable minus with m8 ring terminal lug and amphenol connection (Pylontech) CAN data cable with rj45 connectors on both sides

The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage tank of the latest generation. The accumulator has been specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 2.4kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US2000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us2000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 50 Ah / 2.4 kWh Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. (D)Charge current: 90A Communication: rs485, CAN Weight: 24 kg Dimensions: 442 x 410 x 89 mm Protection class: IP20 Operating temperature range: 0°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: iec62619, ce, UN38.3 Due to classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery 1x Pylontech us2000c LiFePO4 2.4 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x instruction manual

Bei dem Force-H2 3,55kWh Batteriemodul von Pylontech (MPN FH9637M) handelt es sich um einen 96V Hochvolt-Akku der neuesten Generation, welcher zum erneuten Male die bewährte Lithium-Eisenphosphat Speichertechnologie besitzt. Diese Akkumulatoren zeichnen sich vor allem, auch bei hoher Leistung, durch eine lange Lebensdauer und einer hohen Sicherheit aus. Durch eine sehr gute Zyklenfestigkeit und hohe Belastungsgrenze, sind die Batteriespeicher ein idealer Partner für eine Leistungsstarke Photovoltaikanlage, welche täglich den Speicher mehrfach laden kann. Eine Kompatibilitätsliste für passende Wechselrichter zu Pylontech-Akkus mit über 30 Marken und Unternehmen, darunter beispielsweise Victron Energy, Growatt, Solis uvm., finden Sie als Download in unseren Anhängen! (Pylontech Compatibility List) Eigenschaften der Force-H2 Serie LiFePO4 Speichertechnologie Dualer aktiver Schutz auf BMS-Ebene Hohe Lade- und Entladeleistung möglich Zyklenlebensdauer: über 5000 bei 95% DoD Vorladefunktion zum Schutz des ESS-Systems vor Überspannungsfunktion Zuverlässige Leistung dank langlebiger Komponenten Flexibel erweiterbar Kompakt und platzsparend Lebensdauer über 15 Jahre Mit vielen verfügbaren Wechselrichtern kompatibel Einfache Installation dank modularem Design Flexibel Erweitern Bei der Force-H2 - Serie tritt die flexible Konfiguration der Kapazität zum Vorschein. Diese ist von 7,1 kWh bis 14,2 kWh erweiterbar. Das modulare Design ist einfach gestaltet und erlaubt somit eine einfach Installation mit unkomplizierter Verbindungen der Kabel. Ein weiterer Fortschritt des neuen Speichersystems besteht darin, dass im Gegensatz zu anderen Systemen, kein Batterieschrank mehr benötigt wird. Durch den vielseitigen und platzsparenden Einsatz eignet sich die Force H2-Serie für verschiedenste Anwendungsszenarien. Hohe Zyklen-Lebensdauer Die extrem hohe Zyklen-Lebensdauer der verbauten LiFePo4 Zellen machen Pylontech Force-H2 Module zur optimalen Speicherlösung für Photovoltaikanlagen. Unabhängig ob es sich bei dem Solarsystem um eine netzgeführte- oder eine Inselanlage handelt, bietet der Pylontech Speicher einige Vorteile gegenüber typischen Bleibatterien und anderen Lithium Technologien. Eigenverbrauch optimal abdecken In Wohngebäuden ist der Energiebedarf morgens und abends höher, während die erzeugte Solarenergie erst am Mittag den Höchstwert erreicht. Die Batteriespeichersysteme der Force Serie von Pylontech gleichen diese Differenz zwischen Verbrauch und Erzeugung elektrischer Energie aus. Selbst ein kleiner Batteriespeicher mit einer Kapazität von bis zu 15 kWh kann den Eigenverbrauch in einem Mehrpersonenhaushalt spürbar optimieren und den ständig steigenden Stromkosten entgegenwirken. Größere Speicher ermöglichen durch gezielte Reduzierung der Entladetiefe eine längere Lebensdauer oder erhöhen die Reserven bei einem bewölkten Tag oder Stromausfall. Technische Daten Batterie-Typ: Lithium-Eisenphosphat (LiFePo4) Nennspannung: 96V DC Speicherkapazität: 3552 Wh Kommunikation: CAN, Modbus Gewicht: 35 kg Abmessungen: 450 x 296 x 296 mm Schutzart: IP55 Betriebstemperaturbereich: 0 - +50°C Temperaturbereich Lagerung: -20°C - +60°C Garantie: 15 Jahre Herstellergarantie Zertifizierung: VDE2510-50,IEC62619, IEC62477-1, IEC62040-1, CEC, CE, UN38.8 Aufgrund der Klassifizierung als Gefahrgut wird dieses Produkt per Spedition verschickt! Lieferumfang: 1x Pylontech Force-H2 3,55 kWh 96V Speicher 1x 3,5m DC-Kabelsatz 1x RJ45 Datenkabel 1x Montageschrauben 1x Bedienungsanleitung

In this bundle from Offgridtec (mpn 016080), in addition to the Pylontech us2000c LiFePO4 battery, you will also receive matching brackets, which are useful for better air circulation and vertical stacking of the batteries. You will also receive an inverter connection set for connecting all components. Below the description you will find a list of compatible inverters that have been tested by the manufacturer in conjunction with the battery storage system. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including for example Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Pylontech us2000c contains: 4x Pylontech us2000c LiFePO4 4x Pylontech Bracket for us2000c 1x Pylontech Battery connection cable set Pylontech to inverter Pylontech us2000c LiFePO4 The Pylontech us2000c (mpn us2000nb02v00201) is a lithium storage system of the latest generation. The storage system has been specially developed to meet the high demands placed on solar storage systems today. Even with regular deep discharges, the Pylontech us2000c guarantees maximum safety and a long service life thanks to the latest technology. In addition, the latest battery from the market-leading manufacturer, now with 2.4kWh per module, once again offers a high level of safety. The battery management system (bms) built into each module regulates this by monitoring and balancing and offers protection against: overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Continuous monitoring of the individual cell voltages (cell balance) Features Extremely cycle-resistant - over 6000 cycles at 95% DoD More usable energy content than the predecessor model US2000 Service life over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging capacity possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect the ESS system from overvoltage function Modular design The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech us2000c modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Technical data Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 48V Nominal capacity: 50 Ah / 2.4 kWh Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. (discharging) charging current: 90A Communication: rs485, CAN Weight: 24 kg Dimensions: 442 x 410 x 89 mm Protection class: IP20 Operating temperature range: 0°C - +50°C Storage temperature range: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 year manufacturer's warranty Certification: iec62619, ce, UN38.3 Pylontech Brackets The Pylontech brackets (mpn wj0zu2000b01) are used to stack the us2000c pylon battery modules vertically. With these stackable bracket holders you can stack the Pylontech batteries us2000c vertically and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. a clamping device on the sides of the brackets can be used to connect and secure stacked brackets together. A maximum of 4 batteries can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Features Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries can be stacked Set of two brackets for one battery Connection set The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. the set is required to connect the batteries of Pylontech with an inverter. Contents 2m cable plus with m8 ring cable lug and Amphenol connection (Pylontech) 2m cable minus with m8 ring terminal lug and amphenol connection (Pylontech) CAN data cable with rj45 connectors on both sides

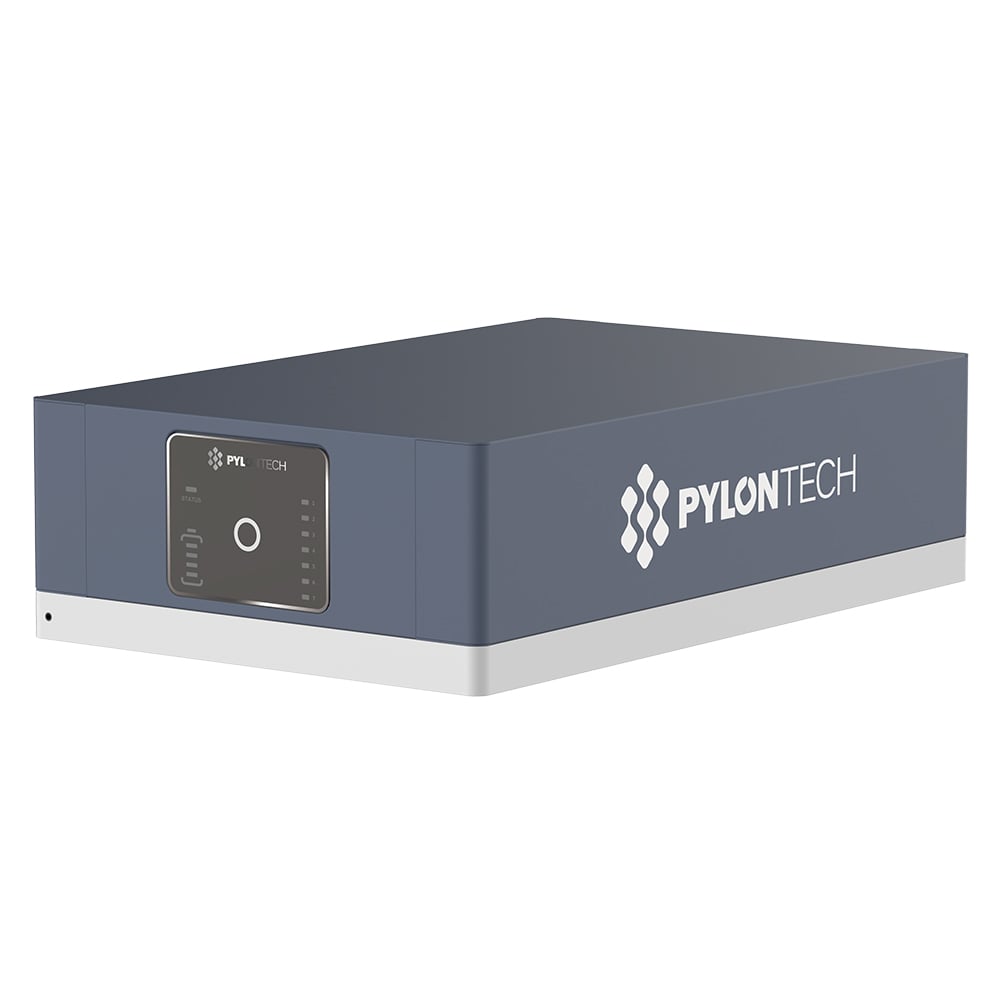

Das neue Force-H2 BMS von Pylontech (MPN FC0500M-40S-V2) ist eine Steuerungseinheit der neuesten Generation, die jedes Batteriemodul der Force-H2 - Serie vor widrigen Bedingungen schützt und dabei einen sicheren und störungsfreien Dauerbetrieb gewährleistet. Dabei ist es irrelevant, wie viele Speichermodule gleichzeitig im Einsatz sind. Wichtig ist, dass immer ein BMS pro Turm verwendet wird. Ein Turm besteht aus mindestens 2 bis maximal 4 Force-H2 3,55 kWh Batteriemodulen, woraus sich eine Speicherkapazität von 7,1-14,2 kWh ergeben kann. Das langjährig bewährte Kommunikationsprotokoll von Pylontech wird von einer Vielzahl von Wechselrichtern direkt unterstützt. Eine Kompatibilitätsliste für Pylontech mit über 30 Marken und Unternehmen, darunter beispielsweise Victron Energy, Growatt, Solis uvm., finden Sie als Download in unseren Anhängen! (Pylontech Compatibility List) Das Force-H2 BMS schützt vor: Tiefenentladung und Überladung Überspannung bei der Ladung zu hohen Strömen bei Ladung und Entladung Über- und Untertemperatur Kurzschluss- und Verpolung Höhere Kompatibilität als bei anderen BMS-Systemen Intuitives Bedienpanel mit LED-Anzeigen Mit dem Bedienpanel an der Steuerungseinheit kann der aktuelle Status des Batterieturms jederzeit kontrolliert werden. Zusätzlich kann die Kommunikationsgeschwindigkeit (Baud Rate) direkt an der Einheit eingestellt werden. Technische Daten: Abmessungen: 450 x 296 x 190 mm Gewicht: 12 kg Hersteller-Teilenummer: FC0500M-40S-V2 Lieferumfang: 1x Pylontech Force-H2 Steuerungseinheit BMS

With the Pylontech battery cabinet (mpn 09u) you can safely store and accommodate Pylontech battery modules of the us2000c and us3000c series. Ventilation slots allow air circulation in the cabinet. Features Pre-assembled, suitable for stand mounting Ventilation slots in the top Suitable for up to 4x us2000c Pylontech LiFePO4 batteries Or for up to 3x us3000c Pylontech LiFePO4 batteries Dimensions: 600 x 510 x 538 mm Weight: 20 kg Scope of delivery: 1x battery cabinet 09U

The Force-H2 power storage system from Pylontech (mpn fh9637m) is a 96v high-voltage battery of the latest generation, which once again features the proven lithium iron phosphate storage technology. These batteries are characterized above all by a long service life and a high level of safety, even at high power. Thanks to their very good cycle stability and high load limit, the battery storage systems are an ideal partner for a powerful photovoltaic system, which can charge the storage system several times a day. A Kompatibilitätsliste for suitable inverters for Pylontech batteries with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) Features of the Force-H2 series LiFePO4 storage technology Dual active protection at bms level High charging and discharging capacity possible Cycle life: over 5000 at 95% DoD Pre-charge function to protect the ESS system from overvoltage function Reliable performance thanks to durable components Flexibly expandable Compact and space-saving Service life over 15 years Compatible with many available inverters Easy installation thanks to modular design Flexible expansion With the Force-H2 series, the flexible configuration of the capacity comes to the fore. This can be expanded from 7.1 kWh to 14.2 kWh. The modular design is simple and therefore allows easy installation with uncomplicated cable connections. A further advance of the new storage system is that, unlike other systems, a battery cabinet is no longer required. Thanks to its versatile and space-saving use, the Force H2 series is suitable for a wide range of application scenarios. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech Force-H2 modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Optimum coverage of self-consumption In residential buildings, the energy demand is higher in the morning and evening, while the solar energy generated only reaches its maximum value at midday. The battery storage systems in the Force series from Pylontech compensate for this difference between consumption and generation of electrical energy. Even a small battery storage system with a capacity of up to 15 kWh can noticeably optimize self-consumption in a multi-person household and counteract the constantly rising cost of electricity. Larger storage systems enable a longer service life by specifically reducing the depth of discharge or increase the reserves in the event of a cloudy day or power outage. Technical data (single battery module) Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 96v DC Storage capacity: 3552 Wh Communication: can, Modbus Weight: 35 kg Dimensions: 450 x 296 x 296 mm Protection class: IP55 Operating temperature range: 0 - +50°C Storage temperature range: -20°C - +60°C Warranty: 15-year manufacturer's warranty Certification: vde2510-50,iec62619, iec62477-1, iec62040-1, cec, CE, UN38.8 Due to the classification as dangerous goods, this product will be shipped by a forwarding agent! Force-H2 hv control unit The new Force-H2 bms from Pylontech (mpn fc0500m-40) is a control unit of the latest generation that protects every battery module in the Froce-H2 series from adverse conditions and ensures safe and trouble-free continuous operation. It is irrelevant how many storage modules are in use at the same time. The important thing is that one bms is always used per tower. A tower consists of a minimum of 2 to a maximum of 4 Force-H2 3.55 kWh battery modules, which can result in a capacity of 7.1-14.2 kWh. The Force-H2 bms protects against: Deep discharge and overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Intuitive control panel with LED displays The current status of the battery tower can be checked at any time using the control panel on the control unit. In addition, the communication speed (baud rate) can be set directly on the unit. Technical data: Dimensions: 450 x 296 x 190 mm Weight: 12 kg Manufacturer part number: FC0500M-40 Scope of delivery: 2-4x Pylontech Force-H2 3.55 kWh 96v storage unit (depending on selection) 1x Pylontech Force-H2 control unit bms 2-4x cable set parallel connection incl. earthing (depending on storage selection) 2-4x rj45 data cable (depending on storage selection) 2-4x mounting screws (depending on memory selection) 1x operating instructions

The Pylontech lv-hub (mpn lvhubnna01v00101) acts as a communicative control unit for parallel connection of up to 5 Pylontech battery cabinets (maximum 16 modules per cabinet). The battery management system module is compatible with the Pylontech us2000c and us3000c batteries and is suitable for 48v parallel connection. Communication is via rs485 or can connection and allows a total capacity of 96kWh (5x8x2.4kWh) or 140kWh (5x8x3.5kWh). Features Communication between individual Pylontech battery cabinets possible Connection via can Bus or RS485 Compact and modern design Easy mounting of connectors minimizes time and cost of installation Technical data Operating voltage: 48 v DC Communication ports: can / RS485 Power consumption: 2W Protection class: IP20 Working temperature range: -20°C - +60°C Storage temperature range: -40°C - +80°C Dimensions: 442 x 150 x 44 mm Weight: 3,5 kg can (Max. 5 cabinets) Symbol rate - 500K RS485 (Max. 5 cabinets) Symbol rate - 9600 / 115200 Scope of delivery: 1x Pylontech lv-hub (mpn lvhubnna01v00101)

With the Pylontech battery cabinet (mpn 06u) you can safely store and accommodate Pylontech battery modules of the us2000c and us3000c series. Ventilation slots allow air circulation in the cabinet. Features Pre-assembled, suitable for stand mounting Ventilation slots in the top Suitable for up to 3x us2000c Pylontech LiFePO4 batteries Or for up to 2x us3000c Pylontech LiFePO4 batteries Dimensions: 600 x 510 x 404 mm Weight: 17 kg Scope of delivery: 1x battery cabinet 06U 4x cabinet feet 2x front rails

With the Pylontech battery cabinet (mpn 012u) you can safely store and accommodate Pylontech battery modules of the us2000c and us3000c series. Ventilation slots allow air circulation in the cabinet. Features Pre-assembled, suitable for stand mounting Ventilation slots in the top Suitable for up to 6x us2000c Pylontech LiFePO4 batteries Or for up to 4x us3000c Pylontech LiFePO4 batteries Dimensions: 600 x 510 x 671 mm Weight: 23 kg Scope of delivery: 1x Battery cabinet 012U

With the Pylontech battery cabinet (mpn 012u) you can safely store and accommodate Pylontech battery modules of the us2000c and us3000c series. Ventilation slots allow air circulation in the cabinet. Features Pre-assembled, suitable for stand mounting Ventilation slots in the top Suitable for up to 6x us2000c Pylontech LiFePO4 batteries Or for up to 4x us3000c Pylontech LiFePO4 batteries Dimensions: 600 x 510 x 671 mm Weight: 23 kg Scope of delivery: 1x Battery cabinet 012U

The sc0500-100s-v2 from Pylontech acts as a central unit for monitoring and controlling the latest generation. The bms forms an important part of the Powercube x1 high-voltage battery system and enables seamless communication with compatible inverters. To complete the entire system, a further 2-10 battery modules can be connected in addition to the bms, with each high-voltage battery having a capacity of 2.4 kWh. These are connected in series to form a battery tower with a control unit, which can have a maximum capacity of 24 kWh. If several towers are to be connected in parallel, one control unit is required per tower. The tried and tested communication protocol from Pylontech is directly supported by a large number of inverters. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Powercube x1 control unit protects against: Deep discharge and overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity The Powercube x1 energy storage system The Powercube x1 series from Pylontech is a high-voltage battery system of the latest generation. The complete system can be used flexibly and expanded as required. An energy system can be set up with at least 2 and up to 10 battery modules. One bms control unit is required per Powecube x1 tower for operation. Caution: The Powercube does not have a soft start circuit! Flexible expansion The Powercube battery system from Pylontech offers a high degree of flexibility thanks to its expandable configuration options, which range from 4.8kWh to 24kWh. Installation and expansion of the system is simple and straightforward thanks to the modular design and the use of cables. monitoring functions of the control unit: Operation recording Current Voltage Temperature State of charge Technical data Operating voltage range: 60~600V Max. Charging/discharging current: 100A Protection class: IP20 Power consumption: 8W Operating temperature range: -20°C - +65°C Storage temperature range: -40°C - +80°C Communication: Modbus RTU/CAN Dimensions. 442 x 390 x 132 mm Weight: 8.5 kg Scope of delivery: 1x Pylontech sc500-100s-v2 bms control unit 1x cable set parallel connection incl. earthing 4x m6 nuts + screws 1x manual and certificate

The Powercube x1 v2 high-voltage battery storage set from Pylontech is characterized by its modular and stackable design, which makes the system highly adaptable and can be expanded to up to 16.8kWh in a tower if required. A battery tower can be set up with a minimum of 2 to a maximum of 10 h48050 high-voltage battery modules. Each module has a capacity of 2.4 kWh and is connected in series. The system is only complete with the sc500-100s battery management system with additional connection cable set. If several towers are to be put into operation together, the Mbms control module is available as an option. Caution: The Powercube does not have a soft start circuit! One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Powercube x1 v2 series: >5000 cycles at 90% DoD LiFePO4 cell technology High cycle stability and long service life Expandable from 4.8kWh to 24kWh capacity Automatic management of charging and discharging current Self-cooling mode reduces system noise Low self-discharge, no memory effect Flexible and stackable Very low failure rate Comprehensive protection and monitoring functions Powercube x1 high-voltage battery module h48050 The h48050 (v2) battery module from Pylontech is a high-voltage storage system with LiFePO4 cell technology and offers you a very long service life with high cycle stability. The flexible and stackable concept enables flexible application for different scenarios and is very easy to install. With a nominal voltage of 48v and a capacity of 2.4 kWh, the battery offers you outstanding performance under high loads. High cycle life The Pylontech h48050 battery modules are an ideal storage solution for photovoltaic systems due to their extremely long cycle life and the use of LiFePo4 cells. Regardless of whether it is a grid-connected or off-grid system, the Powercube x1 storage system offers numerous advantages compared to conventional lead batteries and other lithium technologies. Technical data: Battery chemistry: LiFePO4 Capacity: 2.4 kWh Nominal voltage: 48v Operating voltage range: 45-54V Nominal capacity: 50 Ah Max. Charging current: 50A Discharge depth: 90% Communication: RS232/CAN Protection class: IP20 Weight: 24 kg Operating temperature range: 0°C - +50°C Storage temperature: -20°C - +60°C Dimensions: 442 x 390 x 100 mm Certificate: TÜV (iec62619), UN38.3 bms control unit The SC0500-100S-v2 from Pylontech acts as a central unit for monitoring and controlling the latest generation. The bms forms an important part of the Powercube x1 high-voltage battery system and enables seamless communication with compatible inverters. To complete the entire system, a further 2-10 battery modules can be connected in addition to the bms, with each high-voltage battery having a capacity of 2.4 kWh. These are connected in series to form a battery tower with a control unit, which can have a maximum capacity of 24kWh. If several towers are to be connected in parallel, one control unit is required per tower. The Powercube x1 control unit protects against: Deep discharge and overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity monitoring functions: Operation recording Current Voltage Temperature State of charge Technical data: Operating voltage range: 60~600V Max. Charging/discharging current: 100A Protection class: IP20 Power consumption: 8W Operating temperature range: -20°C - +65°C Storage temperature range: -40°C - +80°C Communication: Modbus RTU/CAN Dimensions. 442 x 390 x 132 mm Weight: 8.5 kg Scope of delivery: 2-10x Pylontech Powerube x1 v2 high-voltage storage system 2.4kWh (depending on selection) 1x Pylontech Powercube x1 v2 control unit bms 1x connection cable set

Mit dem ZeroCO2 16U Batterieschrank lassen sich Pylontech Batteriemodule der US2000C-, US3000C-, US5000- und UP2500-Serie verstauen und unterbringen. Die stabile Struktur des Gehäuses aus lackiertem und verzinktem Stahl mit Lüftungsgittern sorgt für die sichere Verwahrung der Batteriemodule. Das Gehäuse mit vorgestanzten Profilen ist mit Öffnungen am Boden, sowie der Oberseite versehen, um die Kabeleinführung so einfach wie möglich zu gestalten. Eigenschaften Einteiliger Batterieschrank aus lackiertem und verzinktem Stahl mit Lüftungsgittern Geprägte Oberfläche (Polyester-Pulverbeschichtung) Tür mit Vierteldrehverschluss Abnehmbare blinde Seitenwände mit Vierteldrehverschluss Frontschienen aus 19" Stahl Technische Merkmale Geeignet für  bis zu 8x US2000C Pylontech LiFePO4 Akkus bis zu 5x US3000C Pylontech LiFePO4 Akkus bis zu 4x US5000 Pylontech LiFePO4 Akkus bis zu 5x UP2500 Pylontech LiFePO4 Akkus Schutzart: IP20 Abmessungen: 581 x 510 x 858 mm Gewicht: 31 kg Maximale Kapazität (Gewicht): 189 kg Lieferumfang: 1x ZeroCO2 Batterieschrank 16U 1x Erdungssatz 1x Befestungssatz für verstellbare Füße

In this bundle from Offgridtec (mpn 016100), in addition to the Pylontech us5000 LiFePO4 battery, you will also receive matching brackets, which are useful for better air circulation and vertical stacking of the batteries. You will also receive an inverter connection set for connecting all components. Below the description you will find a list of compatible inverters that have been tested by the manufacturer in conjunction with the battery storage system. One Kompatibilitätsliste for Pylontech with over 30 brands and companies, including for example Victron Energy, Growatt, Solis and many more, can be found as a download in our appendices! (Pylontech Compatibility List) The Pylontech us5000 contains: 2x Pylontech us5000 LiFePO4 2x Pylontech Bracket for us5000 1x Pylontech Battery connection cable set Pylontech to inverter Pylontech us5000 LiFePO4 The Pylontech us5000 is a lithium storage system of the latest generation. The storage system has been specially developed to meet the high demands placed on solar storage systems today. Even with regular deep discharges, the Pylontech us5000 guarantees maximum safety and a long service life thanks to the latest technology. In addition, the latest battery from the market-leading manufacturer, now with 4.8 kWh per module, once again offers a high level of safety. The battery management system (bms) built into each module regulates this by monitoring and balancing and offers protection against: overcharging overvoltage during charging currents too high during charging and discharging over- and undertemperature Short circuit and reverse polarity Continuous monitoring of the individual cell voltages (cell balance) Features Extremely cycle-resistant - over 6000 cycles at 95% DoD Service life over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging capacity possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function, which is able to reduce the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect the ESS system from overvoltage function Modular design The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS. Long cycle life The extremely long cycle life of the LiFePo4 cells used make Pylontech us5000 modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is a grid-connected or stand-alone system, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies. Technical data Battery type: Lithium iron phosphate (LiFePo4) Nominal voltage: 48V Nominal capacity: 4800 Wh Usable capacity (95% DoD): 4560 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 200a (15sec) Max. (discharging) charging current: 120a (15min) Recommended charge/discharge current: 75A Communication: rs485, CAN Weight: 38 kg Dimensions: 442 x 420 x 161 mm Protection class: IP20 Charging temperature range: 0°C - +55°C Discharge temperature range: -10°C - +55°C Storage temperature range: -20°C - +60°C Service life: over 15 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 year manufacturer's warranty Certification: TÜV, ce, UN38.8 Pylontech Brackets The Pylontech brackets are used to stack the us5000 pylon battery modules vertically. These stackable brackets allow you to stack the Pylontech us5000 batteries and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. a clamping device on the sides of the bracket can be used to connect and secure stacked brackets together. A maximum of 4 batteries can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Features Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries can be stacked Set of two brackets for one battery Connection set The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with rj45 connectors on both sides. the set is required to connect the batteries of Pylontech with an inverter. Contents 2m cable plus with m8 ring cable lug and amphenol connection (Pylontech) 2m cable minus with m8 ring terminal lug and amphenol connection (Pylontech) CAN data cable with rj45 connectors on both sides
