Das monokristalline und bifaziale Solarmodul 405W S5 von Luxen Solar (MPN: LNVB-405MD) überzeugt durch eine Kombination verschiedener Technologien, wie zum Beispiel der Dotierung mit dem Metall Gallium, die das Phänomen der lichtinduzierten Degradation vorbeugt. Zur Leistungssteigerung wurde bei der Produktion außerdem die Halbzellen-Technologie angewandt. Und der Hersteller Luxen vertraut auf sein Produkt: Er garantiert eine 30-jährige Lebensdauer. Auf einen Blick: das Luxen S5 Galliumdotierung reduzierte Hot-Spot Temperatur Half-Cut Zelltechnologie hoher Zellwirkungsgrad von über 20% 30 Jahre Leistungsgarantie und 12 Jahre Produktgarantie TÜV Rheinland Zertifiziert: PV 50585684 Halbzellen-Technologie Bei der Halbzellen-Technologie ("Half-Cut") werden herkömmliche Silizium-Solarmodul mittels eines Lasers halbiert. Die entstandenen Hälften werden danach zentral parallel geschaltet, was durch die Verringerung von Widerstandsverlusten zu einer erhöhten Leistung des Solarmoduls führt. Bifaziale Zellen Bifazial heißt übersetzt zweigesichtig. Und der Name ist Programm: Das Luxen Solar 405W Modul ist auch auf der Rückseite mit Solarzellen ausgestattet, wodurch das Sonnlicht noch besser aufgenommen werden kann und der Wirkungsgrad des Gesamtmoduls steigt. Gallium gegen lichtinduzierte Degradation Lichtinduzierte Degradation - das bedeutet, dass Module beim ersten Lichtkontakt etwas an Effizienz verliert. Mit Gallium dotierte Solarzellen wie die von Luxen weisen jedoch auch nach längerer Sonnenbestrahlung noch eine hohe Spannung auf und sind stabiler als etwa mit Bor dotierte Zellen. Technische Daten maximale Leistung: 405W Modulspannung (Vmp): 37,33V max. Strom (Imp): 10,85A Leerlaufspannung (Voc): 44,42V Kurzschlussstrom (Isc): 11,82A Modulwirkungsgrad: 20,74% Abmessungen: 1722 x 1134 x 30 mm Betriebstemperaturbereich: -40°C bis +85°C max. Betriebsspannung: 1500V DC Gewicht: 23,5 kg   Lieferumfang: 1x Luxen Solar 405W Mono Bifazial Solarmodul Series 5 Full Black Half Cut (MPN: LNVB-405MD)

The Jinko Tiger Neo N-Type is a 415W solar module with monocrystalline cells and N-type technology. The solar cells use the Super Multi Busbar technology - with this, the loss due to microcracks has been efficiently reduced, the current transmission path reduced by 50% and the cell efficiency improved. The module is manufactured with Hot 2.0 technology. The Jinko solar module is certified for use in wind and snow loads of 2400-5400 Pa, as well as for its high salt and ammonia resistance. The tempered front glass with high light transmission and low iron content has a thickness of 3.2mm and an anti-reflective coating. The frame has an anodised aluminium alloy finish. Features 16 busbars (super multi-busbar technology) High efficiency of 21.00 PID resistance (Excellent anti-PID performance guarantee thanks to optimised mass production processes and material control) Hot 2.0 technology Positive power tolerance of 0~+3% Incl. connection cable Manufacturer's product warranty: 15 years Improved low light performance Improved mechanical resistance to external influences Max. Max. service life even under extreme environmental conditions Super-Multi-Busbar-Technology Busbars are located on each PV module. These are busbars that are permanently printed on each solar cell. They receive the generated direct current and conduct it to the busbars. By using more busbars, Jinko reduces shading, shortens transport distances and reduces resistance in the modules. N-Type Technology Compared to P-type products, N-type cells, which use a different doping technology, perform better in terms of power dissipation. The significant increase in the bifacial factor and the optimisation of the operating temperature also bring a higher power gain. When it comes to the LCOE value (cost of electricity), the analysis result has significantly reduced compared to conventional P-type modules. HOT 2.0-Technology Efficient passivation contact technology is applied in HOT 2.0 cells, which updates micro-nano-tunnelling through the oxide layer and carrier-selective lamination of microcrystalline silicon thin films on the backside. This advanced structure contributes to better passivation performance and electrical conductivity, increasing cell efficiency and power generation performance. Under mass production conditions, the maximum efficiency of the N-type HOT2.0 cell is over 21% and has a wide application prospect in the near future. Technical Data Power (Pmax): 415Wp-Voltage (Vmp): 31.3 V Max. Current (Imp): 13.17 A Open-circuit voltage (Voc): 37.73 V short-circuit current (Isc): 13.91 A cell efficiency: 21.00% Operating temperature: -40°C - +85°C Max. System voltage: 1000/1500VDC (IEC)cell type: N-type monocrystalline Number of cells: 108 (6 x 18) Weight: 22 kg Dimensions: 1722 x 1134 x 30 mm Protection class of junction box: IP68 Frame Color: Black Scope of delivery: 1x Jinko Tiger N-type 415W solar Panel blackframe

Das Offgridtec OLP 10W (MPN 3-01-013100) ist ein leistungsstarkes 12V Solarmodul mit innovativem Overlapping-Design, Wafer-Bestückung und weißt Abmessungen vor, die fast in den Bereich der Hochleistungssolarmodule reichen. Die Schindel-Anordnung der Wafer sorgt für einen optimalen Stromfluss durch minimierte Leistungsverluste und einen deutlich höheren Modulwirkungsgrad durch bessere Platzausnutzung. Die verwendete PERC-Technologie verbessert die Lichtaufnahme und erhöht den Leistungsertrag. Technische Merkmale des OLP 10W Leistung (Pmax): 10Wp Spannung (Vmp): 18,7V max. Strom (Imp): 0,53A Leerlaufspannung (Voc): 22,44V Kurzschlussstrom (Isc): 0,58A max. Systemspannung: 600V Umgebungstemperatur: -40°C - +85°C Abmessungen: 244 x 300 x 25 mm Gewicht: 1,05kg Hinweis: Keine Anschlusskabel enthalten! Alleinstellungsmerkmale der OLP-Serie von Offgridtec Einzigartiges Moduldesign mit überlappender Wafer-Anordnung (Overlapping-Design) sorgt für einen sehr hohen Modulwirkungsgrad durch bessere Flächenausnutzung und reduzierte Leistungsverluste durch Leitungswiderstände Moderne, homogene Optik ohne sichtbare Leiterbahnen Innovative PERC-Technologie sorgt für verbesserte Absorption bei längeren Wellenlängen, z.B. bei flachen Einstrahlungswinkeln (frühmorgens und abends) oder bei Bewölkung Weniger Verlust bei Teilverschattung Dank Endfertigung nach Overlapping-Design hat das Modul bei einer Nennleistung von 10W einen Platzbedarf von gerade einmal 244 x 300 x 25 mm. Der Zellwirkungsgrad liegt bei über 23% Innovative PERC-Technologie Die PERC-Technologie (Passivated Emitter Rear Cell bzw. Rückseitenpassivierung) in den Offgridtec OLP Solarmodulen sorgt mit seiner Schlüsseltechnologie für einen höheren Wirkungsgrad der Solarzellen. Auf der Zellenrückseite wird zwischen der herkömmlichen Aluminium-Metallisierung und der Siliziumwafer-Schicht eine dielektrische Schicht erzeugt, die durch einen Laser mit kleinsten Löchern versehen wird. Diese dielektrische Schicht reflektiert Licht, dass ohne Erzeugung von Ladungsträgern bis zur Rückseite dringt, in die Solarzelle. Durch die Reflexion erhalten die Photonen eine "zweite Chance" Strom zu erzeugen. Neben der höheren Effizienz bei unterschiedlichen Wellenlängen und der erhöhten Wahrscheinlichkeit, dass Elektronen zur Leistung beitragen, trägt die PERC-Technologie zu niedrigeren Systemkosten und einer Steigerung des Flächenenergieertrags bei. Lieferumfang: 1x 3-01-013100 Offgridtec® OLP 10W 12V PERC Overlapping Solarpanel Schindeltechnologie

Luxpower 410w Full Black Series 5 solar panel from Luxen Solar, is a monocrystalline and advanced module with gallium-doped technology and 108 half-cell layout. Thanks to the multi-busbar technology, three integrated by-pass diodes, and the two-cell array layout, this solar panel offers high hot-spot resistance in solo operation and solid power output in strings with many modules, even in low light and partial shading. The classy full-black design makes it a good choice when it comes to finding a solar cell for rooftop installations on residential buildings or for balcony power plants and many other applications.FeaturesGallium-doped technologyReduced hot spot temperatureMulti-busbar technology3 bypass diodesPID resistance (Excellent anti-PID performance guarantee thanks to optimized mass production processes and material control)Improved low light performanceImproved mechanical resistance to external influencesHigh efficiency of 21Manufacturer product warranty: 25 yearsGallium-doped technologyGallium doping is a method of preventing light-induced degradation (lid). The wounding of this technology definitely leads to better performance of solar cells and pv modules, as well as improving their long-term performance and reliability.Reduced hot-spot temperatureAnother advantage of half-cut manufacturing By halving the electric current of both cells and cell strings, the hot-spot temperature can be reduced by 50%, which increases the reliability of the pv module.25% reduced thermal power lossBecause the halved cells have only half the working current, the thermal power loss of the pv module during operation can be considerably reduced by 25%, and the operating temperature of the pv module is also lower, which improves the reliability of the pv module, and increases the overall performance.Multi-busbar technologyBusbars are located on each pv module. They are busbars that are permanently printed on each solar cell. They receive the generated DC current and route it to the busbars. By using more busbars, Luxen Solar reduces shading, shortens transport distances and reduces resistance in the modules.Technical dataPower (Pmax): 410 WpVoltage (Vmp): 31.83 VMax. Current (Imp): 12.88 AOpen circuit voltage (Voc): 37.98 VShort circuit current (Isc): 13.77 AModule efficiency: 21Operating temperature: -40°C - +85°CMax. System voltage: 1500 vdc (IEC)Cell type: Half-Cut - MonocrystallineNumber of cells: 108 (6x18)Weight: 21 kgDimensions: 1722 x 1134 x 30 mmJunction box protection: IP68Module color: blackScope of delivery:1x Luxen Solar 410w Full Black solar panel luxpower series 5

The Offgridtec olp 100w (mpn 3-01-011070) is a powerful 12v solar module with innovative overlapping design wafer assembly and features dimensions that almost reach the range of high power solar modules. The shingle arrangement of the wafers ensures optimal current flow due to minimized power losses and significantly higher module efficiency due to better space utilization. The PERC technology used improves light absorption and increases the power yield. Unique selling points of the olp series of Offgridtec Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency through better area utilization and reduced power losses due to line resistances. Modern, homogeneous appearance without visible conductor tracks. Innovative PERC technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning and evening) or in cloudy conditions No hotspot hazard Less loss in case of partial shading Thanks to finishing according to overlapping design, the module has a footprint of just 988 x 560 x 30mm at a rated power of 100w. The cell efficiency is over 23%. Innovative PERC technology The PERC technology (Passivated Emitter Rear Cell) in the Offgridtec olp solar modules ensures a higher efficiency of the solar cells with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, PERC technology contributes to lower system costs and an increase in area energy yield. Technical Data Generator output: 100Wp System voltage: 12V/DC Module voltage (Vmp): 18.7V Max. Current (Imp): 5.53A Open-circuit voltage (Voc): 22.1V Short-circuit current (Isc): 5.67A Max. System voltage: 1000V/DC Cell type: monocrystalline PERC Ambient temperature: -40°C to +85°C Cell efficiency: >23 Dimensions: 988 x 560 x 30mm Weight: 6.09 kg Scope of delivery: 3-01-011070 Offgridtec® olp 100w 12v PERC overlapping solar panel 12v shingle technology

Das Luxneri 370W Full-Black der Series 4 von Luxen Solar, ist ein modernes, monokristallines Solarmodul im Twin-Panel Design und 120er Halb-Zellen Layout. Dank der (9x) Multi-Busbar Technologie, drei integrierter By-Pass Dioden sowie der zweigeteilten Anordnung der Zellstränge, bietet dieses Solarpanel im Solobetrieb eine hohe Hot-Spot Resistenz und in Strings mit vielen Modulen eine solide Stromausbeute, selbst bei schlechtem Licht und Teilbeschattung. Das edle Full-Black Design macht es zu einer guten Wahl, wenn es darum geht, eine Solarzelle für Dachanlagen auf Wohngebäuden oder für Balkonkraftwerke und viele weitere Anwendungsbereiche zu finden. Technische Daten Leistung (Pmax): 370 Wp Spannung (Vmp): 34,13 V Max. Strom (Imp): 10,84 V Leerlaufspannung (Voc): 41,18V Kurzschlussstrom (Isc): 11,34 A Modulwirkungsgrad: 20,28% Betriebstemperatur: -40°C - +85°C Max. Systemspannung: 1500 VDC (IEC) Zelltyp: Half-Cut - Monokristallin • Anzahl Zellen: 120 (6x20) Gewicht: 20 kg Abmessungen: 1756 x 1039 x 35 mm Schutzart Anschlussdose: IP68 Modulfarbe: Full-Black Half-Cut Fertigung + Twin-Panel-Design = Mehr Ertrag bei weniger Hitze Bei der Half-Cut-Cell Fertigung werden die Solarzellen mittels Infrarotlaser zerstörungsfrei halbiert. Dadurch können die 6 Zellstränge gebildet werden statt der üblichen 3. Diese Technologie halbiert den elektrischen Strom der Zelle und reduziert effektiv den inneren elektrischen Widerstand auf den Leiterbahnen und erhöht die Modulleistung um 2%. Die Half-Cut Fertigung ermöglicht zudem das Twin-Panel Design, denn dank der 6 Zellstränge lassen sich zwei separate Strompreise bilden, die je eine Hälfte des Solarmodul abdecken. Somit minimiert die Twin-Panel Technologie den Leistungsverlust bei Abschattungen und verbessert den Wirkungsgrad des gesamten PV-Systems. reduzierte Hot-Spot Temperatur Ein weiterer Vorteil der Half-Cut Fertigung Durch die Halbierung des elektrischen Stroms sowohl der Zellen als auch der Zellstränge kann die Hot-Spot-Temperatur um 50 % gesenkt werden, was die Zuverlässigkeit des PV-Moduls erhöht. 25% reduzierter, thermischer Leistungsverlust Da die halbierten Zellen nur den halben Arbeitsstrom haben, kann der thermische Leistungsverlust des PV-Moduls während des Betriebs beträchtlich um 25% reduziert werden und die Betriebstemperatur des PV-Moduls ist ebenfalls niedriger, was die Zuverlässigkeit des PV-Moduls verbessert, und die Gesamtleistung erhöht. Multi-Busbar Technologie Im Vergleich zum konventionellen 5-Busbar-Design kann das innovative Multi-Busbar-Design mit 9 Busbars den Stromsammelpfad um 50 % verkürzen und dadurch den Innenwiderstand der Zelle deutlich verringern, was zu einer Leistungssteigerung von 1 % bis 1,5 % im Vergleich zum 5-Busbar-Design beiträgt. Das MBB-Design kann auch den Leistungsverlust abmildern, der durch blockierte elektrische Pfade im Falle von Mikrorissen in der Zelle und Erosion der Fingerelektroden aufgrund externer Faktoren verursacht wird. Lieferumfang 1x 3-01-016420 Luxen Solar Luxneri Series 4 Full-Black von Luxen Solar 370W

Das Jinko Tiger Neo N-Type ist ein 440W starkes Solarmodul mit monokristallinen Zellen und N-Typ-Technologie. Die Solarzellen nutzen die Super-Multi-Busbar-Technologie. Mit dieser wird der Verlust durch Microcracks effizient reduziert, der Stromübertragungsweg um 50% reduziert und die Zelleffizienz verbessert. Das Modul ist mit der Hot 2.0 Technologie gefertigt. Das Jinko Solarmodul ist für den Einsatz unter Wind- und Schneelasten von 2400-5400 Pa. zertifiziert und weisen eine hohe Betsädnigkeit gegen Salz und Ammoniak auf. Es besitzt ein eisenarmes, gehärtetes Frontglas mit hoher Lichtdurchlässigkeit, weist eine dicke von 3,2mm auf und verfügt über eine Antireflexion-Beschichtung. Der Rahmen besteht aus einer eloxierten Aluminiumlegierung. Eigenschaften Super-Multi-Busbar-Technologie PID-Resistenz (Exzellente Anti-PID-Leistungsgarantie dank optimierter Massenproduktionsprozesse und Materialkontrolle) Positive Leistungstoleranz von 0~+3% Hoher Wirkungsgrad von über 22% Hersteller Produktgarantie: 15 Jahre Hot 2.0 Technologie Verbesserte mechanische Widerstandsfähigkeit gegen externe Einflüsse Verbesserte Leistung bei schwachem Licht Super-Multi-Busbar-Technologie Busbars befinden sich auf jedem PV Modul. Es handelt sich dabei um Stromschienen, die auf jeder Solarzelle fest aufgedruckt sind. Sie nehmen den erzeugten Gleichstrom auf und führen diesen zu den Sammelschienen. Durch die Verwendung von mehr Busbars reduziert Jinko die Abschattung, verkürzt die Transportwege und verringert den Widerstand in den Modulen. N-Typ Technologie Im Vergleich zu P-Typ-Produkten schneiden N-Typ-Zellen, die mit einer anderen Dotierungstechnologie eingesetzt werden, bei der Leistungsabnahme besser ab. Die signifikante Erhöhung des Bifazial-Faktors und die Optimierung der Betriebstemperatur bringen auch einen höheren Leistungsgewinn. Wenn es um den LCOE-Wert (Stromgestehungskosten) geht, hat sich das Analyseergebnis im Vergleich zu herkömmlichen P-Typ-Modulen deutlich reduziert. HOT 2.0-Technologie Die effiziente Passivierungskontakttechnologie wird in HOT 2.0-Zellen angewendet, die das Micro-Nano-Tunneln durch die Oxidschicht und die trägerselektive Laminierung von mikrokristallinen Silizium-Dünnschichten auf der Rückseite aktualisiert. Diese fortschrittliche Struktur trägt zu einer besseren Passivierungsleistung und elektrischen Leitfähigkeit bei, wodurch der Wirkungsgrad der Zelle und die Stromerzeugungsleistung erhöht werden. Unter den Bedingungen der Massenproduktion liegt der maximale Wirkungsgrad der N-Typ HOT2.0-Zelle bei über 22% und hat eine breite Anwendungsperspektive in der nahen Zukunft. Technische Daten Leistung (Pmax): 440Wp Spannung (Vmp): 32,81V Max. Strom (Imp): 13,41A Leerlaufspannung (Voc): 39,38V Kurzschlussstrom (Isc): 13,86A Zellenwirkungsgrad: 22,02% Betriebstemperatur: -40°C - +85°C Max. Systemspannung: 1000/1500VDC (IEC) Zelltyp: N-Typ Monokristallin Anzahl Zellen: 108 Gewicht: 22 kg Maße: 1762 x 1134 x 30 mm Schutzart Anschlussdose: IP68 Rahmenfarbe: Schwarz Lieferumfang: 1x Jinko Tiger Neo N-Typ 440W Solarmodul Blackframe

The solar module 5w mono from Offgridtec (mpn 3-01-002960) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee thanks to modern manufacturing a constant high quality and performance with maximum service life. Features of Offgridtec 5w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline silicon solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems Frame in anodized aluminum The mono 5w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 20W Working voltage (Vmp): 17.8V Open circuit voltage (Voc): 22.3 V max. current (Imp): 0.28 A Short circuit current (Isc): 0.3 A max. system voltage: 600 V permissible ambient temperature: -40°C - +85°C Dimensions: 250 x 180 x 25 mm Weight: 0,6 kg Universally applicable Offgridtecs 5w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The solar panel is supplied without connection cable. Scope of delivery: Offgridtec 3-01-002960 5w mono 12v solar panel

The Offgridtec olp 180w (mpn 3-01-013105) is a high-performance 12v solar module with innovative overlapping design, wafer assembly and features dimensions that until now only high-performance solar modules could achieve. The shingle arrangement of the wafers ensures an optimal current flow through minimized power losses and a significantly higher module efficiency through better space utilization. The perc technology used improves light absorption and increases the power yield. Unique selling points of the olp series from Offgridtec® Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency through better area utilization and reduced power losses due to line resistances Modern, homogeneous appearance without visible conductor tracks Innovative perc technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning or evening) or in cloudy conditions No hotspot hazard Less loss in case of partial shading Thanks to finishing according to overlapping design, the module has a footprint of just 680 x 1330 x 35 mm at a rated power of 180w Cell efficiency of over 23 Innovative perc technology The perc technology (Passivated Emitter Rear Cell) in the Offgridtec olp solar modules ensures a higher efficiency of the solar cells with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, perc technology contributes to lower system costs and an increase in area energy yield. Technical data: Generator power: 180 Wp Module voltage (Vmp): 24.8 V Max. Current (Imp): 7.26 A Open circuit voltage (Voc): 29.76 V Short circuit current (Isc): 7.84 A Max. System voltage: 600v DC Dimensions: 680 x 1330 x 35 mm Weight: 11,54 kg Scope of delivery: 1x Offgridtec® olp 180w 12v perc overlapping solar panel 12v shingle technology

The Offgridtec olp 155w (mpn 3-01-011075) is a powerful 12v solar module with innovative overlapping design wafer assembly and features dimensions that until now only high-performance solar modules could achieve. The shingle arrangement of the wafers ensures an optimal current flow through minimized power losses and a significantly higher module efficiency through better space utilization. The perc technology used improves light absorption and increases the power yield. Unique selling points of the olp series of Offgridtec Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency through better area utilization and reduced power losses due to line resistances. Modern, homogeneous appearance without visible conductor tracks. Innovative perc technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning or evening) or in cloudy conditions No hotspot hazard Less loss in case of partial shading Thanks to finishing according to overlapping design, the module has a footprint of just 650 x 1310 x 35mm at a rated power of 155w. The cell efficiency is over 23%. Innovative perc technology The perc technology (Passivated Emitter Rear Cell) in the Offgridtec olp solar modules ensures a higher efficiency of the solar cells with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, perc technology contributes to lower system costs and an increase in area energy yield. Technical data Generator output: 155Wp Module voltage (VMP): 21.8V Short-circuit current (ISC): 7.54A Open circuit voltage (VOC): 25.7V Max. Current (IMP): 7.11A Max. System voltage: 1000 V/DC Cell efficiency: >23 Ambient temperature: -40 to +85°C Dimensions: 1310 x 650 x 35mm Weight: 9.37kg Scope of delivery: Offgridtec® olp 155w 12v perc overlapping solar panel 12v shingle technology

The solar module 30w mono from Offgridtec (mpn 3-01-001530) works with monocrystalline solar cells with a high efficiency of >18% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are used and guarantee thanks to modern manufacturing a constant high quality and performance with maximum lifetime. Features of Offgridtec 30w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems Frame in anodized aluminum The mono 30w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 30w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 1.5 A Short circuit current (Isc): 1.62 A max. system voltage: 600 V permissible ambient temperature: -40°C - +85°C Dimensions: 560 x 360 x 25 mm Weight: 2,5 kg Universally applicable Offgridtecs 30w 12v Mono is universally applicable for example in 12 volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Scope of delivery: Offgridtec 3-01-001530 30w mono 12v solar panel

Das Jinko Tiger Neo N-Type ist ein 435W starkes Solarmodul mit monokristallinen Zellen und N-Typ-Technologie. Die Solarzellen nutzen die Super-Multi-Busbar-Technologie. Mit dieser wird der Verlust durch Microcracks effizient reduziert, der Stromübertragungsweg um 50% reduziert und die Zelleffizienz verbessert. Das Modul ist mit der Hot 2.0 Technologie gefertigt. Das Jinko Solarmodul ist für den Einsatz unter Wind- und Schneelasten von 2400-5400 Pa. zertifiziert und weisen eine hohe Betsädnigkeit gegen Salz und Ammoniak auf. Es besitzt ein eisenarmes, gehärtetes Frontglas mit hoher Lichtdurchlässigkeit, weist eine dicke von 3,2mm auf und verfügt über eine Antireflexion-Beschichtung. Der Rahmen besteht aus einer eloxierten Aluminiumlegierung. Eigenschaften Super-Multi-Busbar-Technologie PID-Resistenz (Exzellente Anti-PID-Leistungsgarantie dank optimierter Massenproduktionsprozesse und Materialkontrolle) Positive Leistungstoleranz von 0~+3% Hoher Wirkungsgrad von 2177% Hersteller Produktgarantie: 15 Jahre Hot 2.0 Technologie Verbesserte mechanische Widerstandsfähigkeit gegen externe Einflüsse Verbesserte Leistung bei schwachem Licht Super-Multi-Busbar-Technologie Busbars befinden sich auf jedem PV Modul. Es handelt sich dabei um Stromschienen, die auf jeder Solarzelle fest aufgedruckt sind. Sie nehmen den erzeugten Gleichstrom auf und führen diesen zu den Sammelschienen. Durch die Verwendung von mehr Busbars reduziert Jinko die Abschattung, verkürzt die Transportwege und verringert den Widerstand in den Modulen. N-Typ Technologie Im Vergleich zu P-Typ-Produkten schneiden N-Typ-Zellen, die mit einer anderen Dotierungstechnologie eingesetzt werden, bei der Leistungsabnahme besser ab. Die signifikante Erhöhung des Bifazial-Faktors und die Optimierung der Betriebstemperatur bringen auch einen höheren Leistungsgewinn. Wenn es um den LCOE-Wert (Stromgestehungskosten) geht, hat sich das Analyseergebnis im Vergleich zu herkömmlichen P-Typ-Modulen deutlich reduziert. HOT 2.0-Technologie Die effiziente Passivierungskontakttechnologie wird in HOT 2.0-Zellen angewendet, die das Micro-Nano-Tunneln durch die Oxidschicht und die trägerselektive Laminierung von mikrokristallinen Silizium-Dünnschichten auf der Rückseite aktualisiert. Diese fortschrittliche Struktur trägt zu einer besseren Passivierungsleistung und elektrischen Leitfähigkeit bei, wodurch der Wirkungsgrad der Zelle und die Stromerzeugungsleistung erhöht werden. Unter den Bedingungen der Massenproduktion liegt der maximale Wirkungsgrad der N-Typ HOT2.0-Zelle bei über 21% und hat eine breite Anwendungsperspektive in der nahen Zukunft. Technische Daten Leistung (Pmax): 435Wp Spannung (Vmp): 32,59 V Max. Strom (Imp): 13,35 A Leerlaufspannung (Voc): 39,16 V Kurzschlussstrom (Isc): 13,80 A Zellenwirkungsgrad: 21,77% Betriebstemperatur: -40°C - +85°C Max. Systemspannung: 1000/1500VDC (IEC) Zelltyp: N-Typ Monokristallin Anzahl Zellen: 108 (6 x 18) Gewicht: 22 kg Maße: 1762 x 1134 x 30 mm Schutzart Anschlussdose: IP68 Rahmenfarbe: Schwarz Lieferumfang: 1x Jinko Tiger Neo N-Typ 435W Solarmodul Blackframe

Monocrystalline 150W high power solar panel with back-contacted high power solar cells from Sunpower. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. Suitable for 12v and 24V systems (12v only in combination with a suitable mppt charge controller). Important features Module efficiency of over 24 Monocrystalline high power solar cells Back contact (back contact) Black aluminum frame Highly durable 44V module voltage Integrated bypass diodes Ideal for motorhomes, boats/yachts and small areas Noble optics Low weight Only monocrystalline SunPower solar cells of the highest quality are used in the production of our modules. In contrast to conventional solar modules, the cells are connected to each other on the back side (back contact), which increases the cell efficiency and ensures a noble appearance. The module has a black aluminum frame and has a specially hardened ESG solar glass. The connection cables are 80 cm long and equipped with MC4 connectors. Technical data Power(Pmax): 150W Voltage(Vmp): 44V Max. Current(Imp): 3,41A Open circuit voltage(Voc): 51,79V Short circuit current(Isc): 3,69A Max. System voltage: 600 V/DC Cell efficiency: >24% Ambient temp.: -40...+85°C Dimensions: 1320 x 550 x 35 mm Weight: 9.37 kg

The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in the range. It has a 3-sided design and comes with a matching connection kit that allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged. Performance that sets standards The fsp-2 195w Ultra is equipped with American SPR back-contact cells from a well-known manufacturer. The look of the cells is completely black, which also gives the fsp-2 180w a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and set new standards in this power class in combination with the low weight and compact dimensions of the fsp-2 panel. extensive application possibilities: excellent usable in the camping area or for expeditions, climbing tours and much more... for vehicles and boats without fixed solar installation ... and numerous other applications in different areas... technical highlights fsp-2 195w ultra foldable solar panel Rated power: 195wp Number of sides: 3 x 69wp Module voltage (Vmp): 33,5 V Max. Charge current (Imp): 5,82 A Open circuit voltage (Voc): 39,4 V Short circuit current (Isc): 6,17 A Dimensions closed: 820 x 440 x 40 mm Dimensions open designed: 820 x 1545 x 6 mm Weight: 8,2 Kg ETFE coating SunPower high performance cells 6.0m 5mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side 0.5m 5mm² connection cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller) 1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on battery side Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fuse Including Victron SmartSolar 75/15 charge controller The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. The most important technical features at a glance 15a load output high peak efficiency of 98 freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 75V Charging algorithm: multi-stage, adaptive integrated Bluetooth module Dimensions: 100 x 113 x 40 mm Weight: 0,5 kg The included Profi-Connection Kit The included connection kit provides everything needed to get the mobile solar set up and running quickly. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller. For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal alligator clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse. Customizable on request All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred. about the fsp-2 series As with all Offgridtec solar module series, great emphasis has been placed on high quality and durability in the fsp series. The fsp 2 195w Ultra uses back-contacted solar cells like those used in our SP high performance series. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the complete fsp 2 series is coated with ETFE for better protection and very high light transmission. Furthermore, we produce our solar modules according to current norms and standards, which together with the high quality materials makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions. Scope of delivery 1x Offgridtec fsp-2 195w 12v, 3-01-012680 with Victron SmartSolar 75/15 mppt charge controller 1x Offgridtec fsp-2 connection kit

The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in the range. It has a 3-sided design and comes with a matching connection kit that allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged. Performance that sets standards The fsp-2 195w Ultra is equipped with American SPR back-contact cells from SunPower. The look of the cells is completely black, which also gives the fsp-2 195w a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and set new standards in this power class in combination with the low weight and compact dimensions of the fsp-2 panel. extensive application possibilities: excellent usable in the camping area or for expeditions, climbing tours and much more... for vehicles and boats without fixed solar installation ... and numerous other applications in different areas... technical highlights fsp-2 195w ultra foldable solar panel Rated power: 195wp Number of sides: 3 x 65 Wp Module voltage (Vmp): 33,5 V Max. Charge current (Imp): 5,82 A Open circuit voltage (Voc): 39,4 V Short circuit current (Isc): 6,17 A Dimensions closed: 820 x 440 x 40 mm Dimensions open designed: 820 x 1545 x 60 mm Weight: 7,12 Kg ETFE coating SunPower high performance cells 6.0m 5mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side 0.5m 5mm² connection cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller) 1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on the battery side Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fuse the included Profi-Connection Kit The connection kit included in the scope of delivery offers everything needed for a quick start-up of the mobile solar set. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller. For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse. customizable on request All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred. about the fsp-2 series As with all Offgridtec solar module series, high quality has been emphasized in the fsp-2 series. The fsp-2 195w works with highly effective solar cells. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the complete fsp-2 series is coated with ETFE coating, which provides better protection and at the same time ensures very high light transmittance. Furthermore, we produce our solar modules according to current norms and standards which, together with the high-quality materials, makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions. Scope of delivery 1x Offgridtec fsp-2 195w 12v, 3-01-012680 1x Offgridtec fsp-2 Connection-Kit

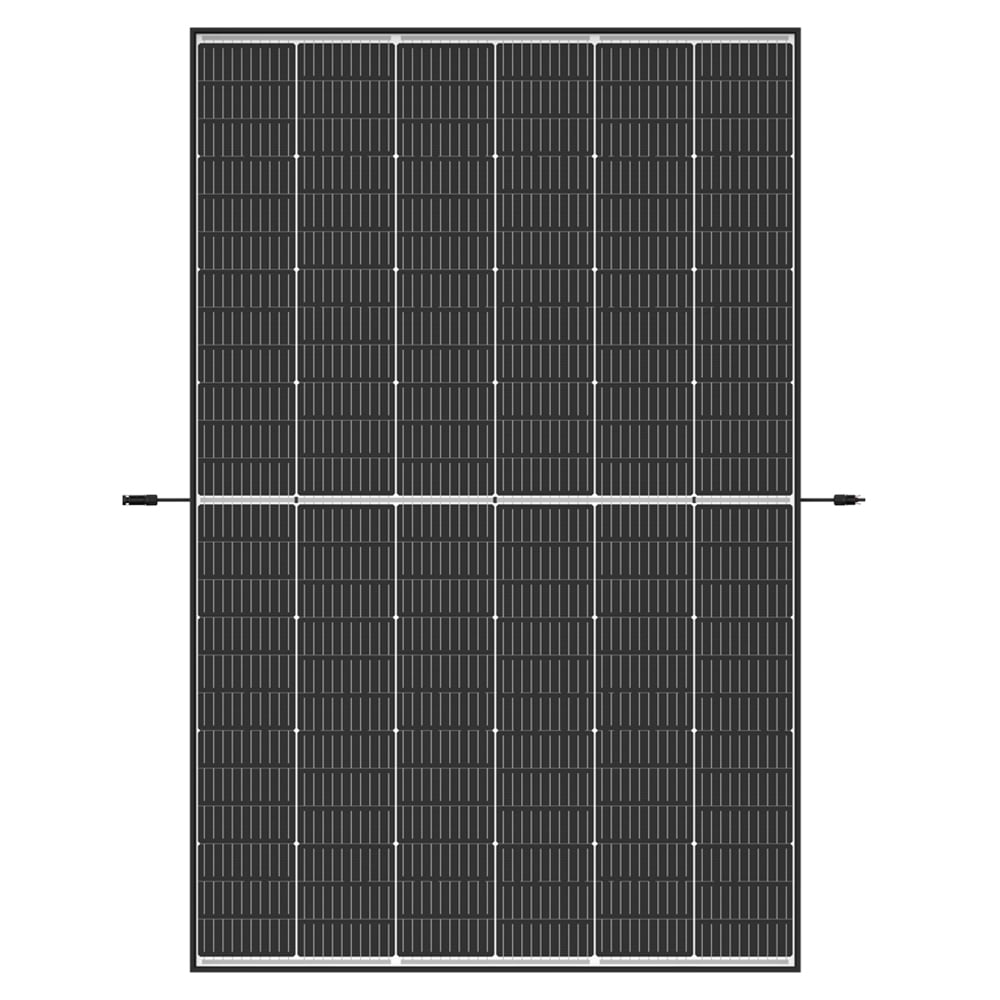

Das Trina Solar Vertex S ist ein 425W Solarmodul mit monokristallinen Zellen und High-Density-Zellverbindungstechnologie. Verglichen mit dem Trina Vertex S 400W der ersten Generation, kann das verbesserte 425W Solarmodul mehr Energie kostengünstiger erzeugen, was den außergewöhnlichen Wert des Systems unter Beweis stellt. Seine Multi-Busbar-Technologie sorgt für mehr Absorption, geringen Serienwiderstand, verbesserte Stromableitung und erhöhte Zuverlässigkeit. Das Trina Solar Vertex S ist für den Einsatz bei Wind- und Schneelasten von 4000 - 6000 Pa (Testlasten) zertifiziert. Das hochtransparente und hitzevorgespannte Glas weist eine Dicke von 3,2mm auf und verfügt über eine Antireflexion-Beschichtung. Der Rahmen verfügt über eine 30mm eloxierte Aluminiumlegierung. Eigenschaften Multi-Busbar-Technologie Hoher Wirkungsgrad von 21,3% Hersteller Produktgarantie: 15 Jahre Verbesserte Energieerzeugung Inkl. Anschlusskabel Exzellentes Schwachlichtverhalten (IAM) Leichte Handhabung Flexible Installationslösungen für den Systemeinsatz Multi-Busbar-Technologie Busbars befinden sich auf jedem PV Modul. Es handelt sich dabei um Stromschienen, die auf jeder Solarzelle fest aufgedruckt sind. Sie nehmen den erzeugten Gleichstrom auf und führen diesen zu den Sammelschienen. Durch die Verwendung von mehr Busbars reduziert Trina Solar die Abschattung, verkürzt die Transportwege und verringert den Widerstand in den Modulen. Technische Daten Leistung (Pmax): 425 W Spannung (Vmp): 42,2 V Max. Strom (Imp): 10,08 A Leerlaufspannung Voc): 50,2 V Kurzschlussstrom (Isc): 10,61 A Betriebstemperatur: -40°C - +85°C Max. Systemspannung: 1500V DC Zellenwirkungsgrad: 21,3% Anzahl Zellen: 144 Abmessungen: 1762 x 1134 x 30 mm Gewicht: 21,8 kg Schutzart Anschlussdose: IP68 Lieferumfang: 1x Trina Solar Vertex S TSM-DE09R.08 425W Solarmodul monokristallin (Black Frame)

The FSP-Max 440w from Offgridtec (mpn 014560) is a foldable high-end solar module with connection kit, as well as firmly integrated fold-out supports, in order to be able to set up the module easily and everywhere at a 45 degree angle. The module is equipped with high-efficiency monocrystalline solar cells and delivers 440w of solar power in optimal orientation and sunshine. The combination of the compact dimensions when closed and the low total weight of just under 13kg sets new standards in terms of flexibility and efficiency of mobile solar modules. The supply of mobile or permanently installed energy storage units is thus possible flexibly and easily. The solution for solar-assisted mobile battery charging In the camping area For expeditions For vehicles and boats without fixed solar installation For off-grid power supply at home And numerous other applications in a wide variety of areas Important features: High output power Compatible with a wide range of 1-2.5 kWh mobile power stations Made of high quality polymer composite Quickly assembled and connected Cell efficiency of over 22 Compact dimensions With practical carrying handle and protective bag Easy to use anywhere Four feet are permanently attached to the solar case, which can be easily folded out if necessary to place the panel on the ground at a bang 45 degrees. Thus, the module is fully assembled and ready for use within a minute. The angled orientation ensures an ideal solar yield. In combination with the low weight, the folding module with the compact dimensions and the practical carrying handle is suitable for many different applications and is without much effort, quickly ready for use. The included Profi-Connection Kit The connection kit included in the scope of delivery contains everything that is needed for a quick start-up of the mobile solar module. It has a 6m connection cable, which is equipped with a high-quality Anderson connector at one end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of your charge controller and is equipped with the corresponding Anderson connector on the other end. This allows you to connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller. For the connection of the charge controller to your battery, a 1m long plug&play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal alligator clips on the battery side, ,which can be easily connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with appropriate fuse. With the 6m connection cable can, with a suitable adapter, also be connected to a suitable power station (with integrated charge controller) Technical data Rated power (Pmax): 440w (4x110W) Module voltage (Vmp): 40v Module current max (Imp): 11a Open circuit voltage (Voc): 48v Short circuit current (Isc): 12a Max. System voltage: 200V/DC Cell efficiency: 22.62% Cell type: Monocrystalline Weight: 13.2kg Dimensions closed: 1072 x 547 x 90 mm Dimensions opened: 1072 x 2188 x 22.5 mm Scope of delivery: 1x Offgridtec FSP-Max 440w foldable solar panel 1x professional connection kit 1x protective bag

100W / 12V solar panel with monocrystalline solar cells. Ideal for 12V-systems. Features: Monocrystalline solar cells 2 bypass-diodes: minimizes power degradation during shady periods Surface: hardened ESG-solarglass and weather resistant coating Frame: anodized aluminium Connection cable: 80cm; MC4 plug Ideal for 12V-systems Performance guarantee: < 10 years - 90%; <25 years 80% For the production of our modules we only use high-quality monocrystalline solar cells. The module frame made of anodized aluminium and a special ESG-solar glass make the module very resistant against abrasion.

The fsp-2 225w 12v is the largest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in the range. It has a 5-sided design and comes with a matching connection kit, which allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged. The fsp-2 225w 12v can be ordered in three variants. Offgridtec is also happy to customize any fsp module in terms of cable set and charging technology on request. The connection kit is stored in a lockable bag, directly on the module. So you always have a ready to use small power plant at your side. Performance that sets standards The fsp-2 225w Ultra is equipped with American SPR back-contact cells from a well-known manufacturer. The cells are completely black, which gives the fsp-2 225w a very modern, high-quality look. The SPR cells provide a very high efficiency of the panel and set in combination with the low weight and compact dimensions of the fsp-2 panel new standards in this power class. extensive application possibilities: excellent usable in the camping area or for expeditions, climbing tours and much more... for vehicles and boats without fixed solar installation ... and numerous other applications in different areas... technical highlights fsp 2 225w ultra foldable solar panel Rated power: 225wp Number of sides: 5 x 45 Wp Module voltage (Vmp): 37,2V Max. Charge current (Imp): 6,05A Open circuit voltage (Voc): 43,7V Short circuit current (Isc): 6,41A Dimensions closed: 560 x 440 x 20 mm Dimensions open designed: 560 x 2430 x 8 mm Weight: 6 kg ETFE coating SunPower high performance cells 6.0m 2x6mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side 0.5m 5mm² connection cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller) 1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on the battery side Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fuse the included Profi-Connection Kit The connection kit included in the scope of delivery offers everything needed for a quick start-up of the mobile solar set. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller. For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal alligator clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse. customizable on request All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred. about the fsp-2 series As with all Offgridtec solar module series, great emphasis has been placed on high quality and durability in the fsp series. The fsp 2 225w Ultra uses back-contacted solar cells like those used in our SP high performance series. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the complete fsp 2 series is coated with ETFE for better protection and very high light transmission. Furthermore, we produce our solar modules according to current norms and standards, which together with the high quality materials makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions. Scope of delivery 1x Offgridtec FSP-2 225W 12/24V, 3-01-010765 1x 6m 2x6mm² module connection with Anderson SB50 connector 1x Offgridtec FSP-2 Connection-Kit

The fsp-2 225w ultra kit 12v is a combination of the foldable 225w fsp-2 solar panel and smart latest generation mppt controller. The fsp-2 225w is one of the newest models in the family and also one of the most powerful foldable solar modules currently available. It has a 2-sided design and comes with a matching connection kit that allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged. When it comes to charging technology, we rely on the high-quality Victron Smart-Solar 75/15 charge controller for the fsp-2 225w kit mppt. A high quality device which can be conveniently controlled via Bluetooth and a free app and is also equipped with a 15a load output for dc consumers. The connection kit is housed in a lockable bag, directly on the module. So you always have a ready-to-use, small power plant at your side. Performance that sets standards The fsp-2 225w Ultra is equipped with American SPR back-contact cells from a well-known American manufacturer. The cells are completely black, which gives the fsp-2 225w a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and, in combination with the low weight and compact dimensions of the fsp-2 panel, set new standards in this power class. extensive application possibilities: excellent usable in the camping area or for expeditions, climbing tours and much more... for vehicles and boats without fixed solar installation ... and numerous other applications in different areas... technical highlights fsp 2 225w ultra foldable solar panel Rated power: 225wp, number of sides: 5 x 45 Wp Dimensions closed: 560 x 440 x 20 mm, open designed: 560 x 2430 x 8 mm Lightweight: only 6 kg weight incl. mppt charge controller 75/15 15a and Bluetooth for configuration via free app 15a load output for dc 12v power consumers equipped with high-end solar cells, made in USA Module voltage (Vmp): 37,2V max. charging current (Imp): 6,05A Open circuit voltage (Voc): 43,7V Short circuit current (Isc): 6,41A 6.0m 2x6mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side 0.5m 5mm² connecting cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller) 1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on battery side Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fusethe supplied Profi-Connection Kit The connection kit included in the scope of delivery provides everything needed for quick commissioning of the mobile solar set. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller. For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse. Including Victron SmartSolar mppt 75/15 charge controller The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the BlueSolar 75/15, the Smart version has built-in Bluetooth, eliminating the need to purchase a Bluetooth dongle. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices. The most important technical features of the charge controller at a glance 15a load output high peak efficiency of 98 freely programmable battery charging algorithm (via the free Victron Connect app) Light dimming functions programmable (via the free Victron Connect app) Ultra fast maximum power point tracking max. PV open circuit voltage: 75V Charging algorithm: multi-stage, adaptive integrated Bluetooth module Dimensions: 100 x 113 x 40 mm Weight: 0,5 kg customizable on request All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred. about the fsp-2 series As with all Offgridtec solar module series, great emphasis has been placed on high quality and durability in the fsp series. The fsp 2 225w Ultra uses back-contacted solar cells like those used in our SP high performance series. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, we produce our solar modules according to current norms and standards which, together with the high-quality materials, makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions. Scope of delivery 1x Offgridtec FSP-2 225W 12V, 3-01-010765 1x Victron Energy scc075015060r Smartsolar mppt 75/15 15a 12v 24v solar charge Controller 1x 6m 2x6mm² module Connection Anderson SB50 connector 1x Offgridtec FSP-2 Connection-Kit

The solar module 200w mono from Offgridtec (mpn 3-01-010850) with 5 busbar technology uses monocrystalline solar cells with a high efficiency of >22% and is ideally suited for 24v systems and 12v systems with mppt charge controllers thanks to its 40v operating voltage (12v systems only with mppt charge controllers that can handle the high module voltage). This constitution ensures high performance and reduced yield losses due to voltage drops. In Offgridtec mono solar modules only cells of the highest quality grade are used and guarantee thanks to modern manufacturing a constant high quality and performance with maximum lifetime. Features of Offgridtec 200 40v mono solar module Power (Pmax): 200w proven quality directly from Offgridtec high operating voltage of 40v, perfect for 24v systems with the use of a mppt charge controller can also be excellently integrated into 12v solar systems manufactured according to the latest standards monocrystalline A-grade solar cells works with 5 busbar technology extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v-24v systems on land or in mobile solar systems Proven, immediately operational solar module The mono 200w 40v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtec's experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. Heavy hail and storms or extreme cold and heat it survives without any problems and thanks to the monocrystalline A-grade cells you can expect significant yields even on cloudy days. The most important technical data at a glance Working voltage (Vmp): 40 V Open circuit voltage (Voc): 46.6 V max. current (Imp): 5.05 A Short circuit current (Isc): 5,45 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1520 x 680 x 35 mm Weight: 11 Kg Part number: 3-01-010850 Universally applicable Offgridtec's 200w 40v mono is universally applicable for example in 12/24 volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Scope of delivery: Offgridtec 3-01-010850 200w mono 40v solar panel

The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 150w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 2 bypass diodes - minimized power loss in shaded conditions The mono 150w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 150w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 7.5 A Short circuit current (Isc): 8.1 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1140 x 680 x 35 mm Weight: 12 kg Universally applicable Offgridtecs 150w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001255 150w mono 12v solar panel

The pcb-etfe 100w 39v from Offgridtec (mpn 3-01-010835) belongs to the latest generation, semi-flexible solar panels. The pcb-etfe class sets new standards in stability and reliability by the composition of highest quality materials. While the front side is based on Teflon derivative (ptfe), the back side is made of fiberglass (pcb). In addition, the module works with modern 3-busbar technology. These and other quality features make the pcb-etfe 100w from Offgridtec a universally applicable product of the upper class that feels just as comfortable on boats as on vehicle roofs or other surfaces and combines stability, maximum reliability and performance like no other. Thanks to its high operating voltage of 39,6v, it is ideally suited for 24v systems or 12v systems (12v only in conjunction with mppt charge controllers that can handle a corresponding maximum module voltage). The pcb-etfe 100w 12v solar cell is flexible and, compared to normal flexible solar cells, can also be walked on without hesitation when fully bonded. Technical characteristics pcb-etfe 100w 36v solar panel 100w rated power, high efficiency and 3-busbar technology equipped with monocrystalline A-grade solar cells higher heat tolerance compared to tpt modules thanks to PCB backsheet, thus less susceptible to bubble formation due to poor adhesion walkable and even in wet condition more slip resistant than comparable solar modules on the market semi-flexible - can be bent up to a maximum of 18 degrees (longitudinally) easy mounting of the solar panel by gluing or using the ring eyelets unrestrictedly suitable for salt water, universally applicable etfe High-Tec plastic ensures weight saving and at the same time a high light transmission of max. 96% Junction box with high protection class IP67 easy installation thanks to pre-assembled solar cable with mc4 plug and socket proven Offgridtec quality: manufactured exclusively from premium raw materials of the highest quality grade etfe high-tech plastic on the front side The front side of the solar panel is covered with a high-tech plastic layer based on ethylene-tetrafluoroethylene copolymer etfe - a teflon derivative (ptfe) - and offers excellent protection against harmful environmental influences and is also suitable for use in salt water. etfe is lighter and at the same time more translucent than other plastic solutions on the market.   Extremely stable fiberglass (pcb) backing plate as backside The fiberglass (pcb) backing makes the module much more stable than conventional panels with tpt backing. This structure offers you the following advantages: prevents bubble formation, which can occur with tpt modules due to incorrect bonding tolerates higher temperatures compared to tpt assembly reduces the risk of cell breakage due to accidental over-bending of the panel by the user Technical features pcb-etfe 100w 39,6v solar panel Working voltage (Vmp): 39,6 V Open circuit voltage (Voc): 46.61 V max. current (Imp): 2,53 A Short circuit current (Isc): 2,73 A max. system voltage: 200 V Dimensions: 845 x 680 x 3 mm Weight: 3,8 Kg Part number: 3-01-010835 Applications of the Offgridtec pcb-etfe series can be used without restrictions in the marine sector best suitable for mounting on motorhome, bus and other vehicles for installation on rounded sheet metal roofs recommended for all systems where highest reliability and performance are required ideally suited for suspension e.g. tents when camping, due to the PCB carrier layer the ring eyelets also withstand very high mechanical loads about the pcb-etfe series This product is the result of accumulated experience from thousands of installations in every imaginable field of application. Already 5 years ago we were able to successfully establish our first series of flexible solar cells on the market and since then we have continuously developed and optimized our modules. With the pcb-etfe series, you benefit from this unique expertise and can look forward to a durable product that will reliably produce electricity for many years. Scope of delivery: Offgridtec 3-01-010835 pcb-etfe 100w 39v semi-flexible solar panel
