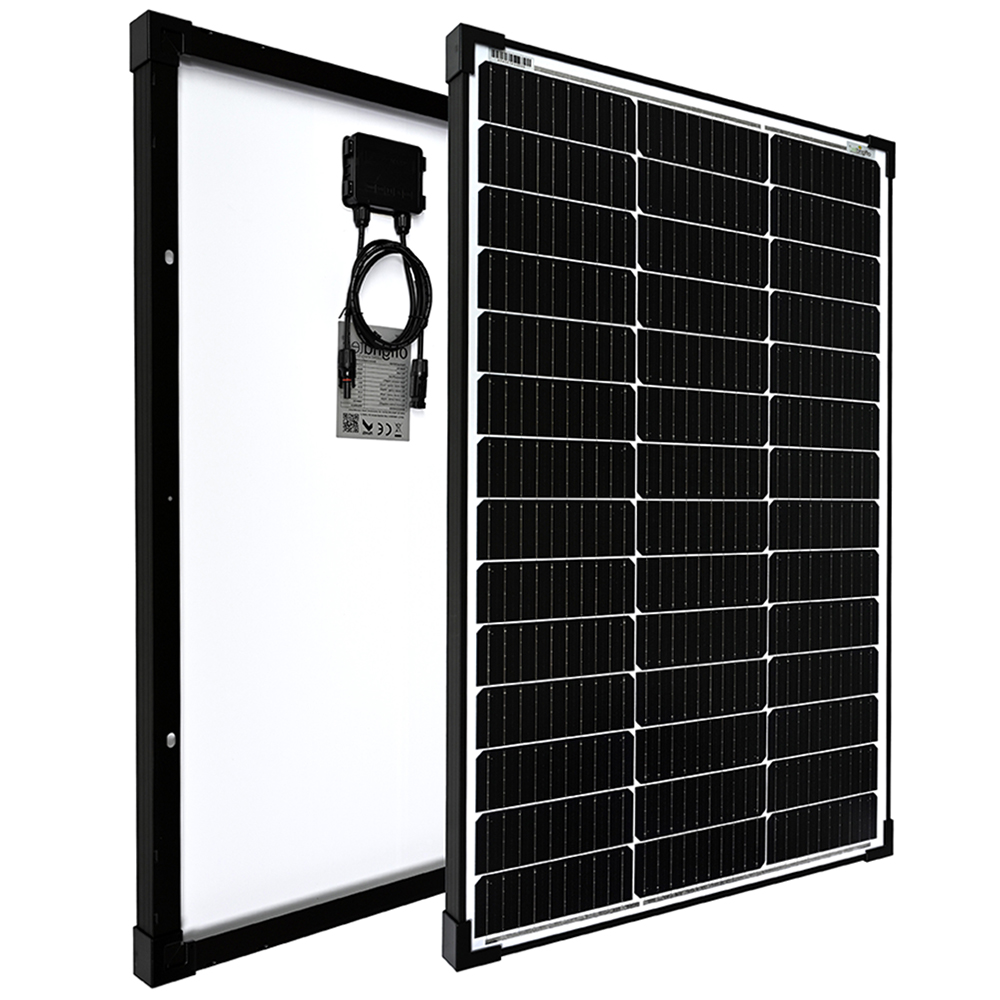

The mono 100w solar module Black Frame v2 from Offgridtec (mpn 018385) works with monocrystalline solar cells with a high efficiency of 22.3%. Thanks to its 23v operating voltage, it is suitable for a wide range of applications. This constitution ensures high performance and reduced yield losses due to voltage drops.

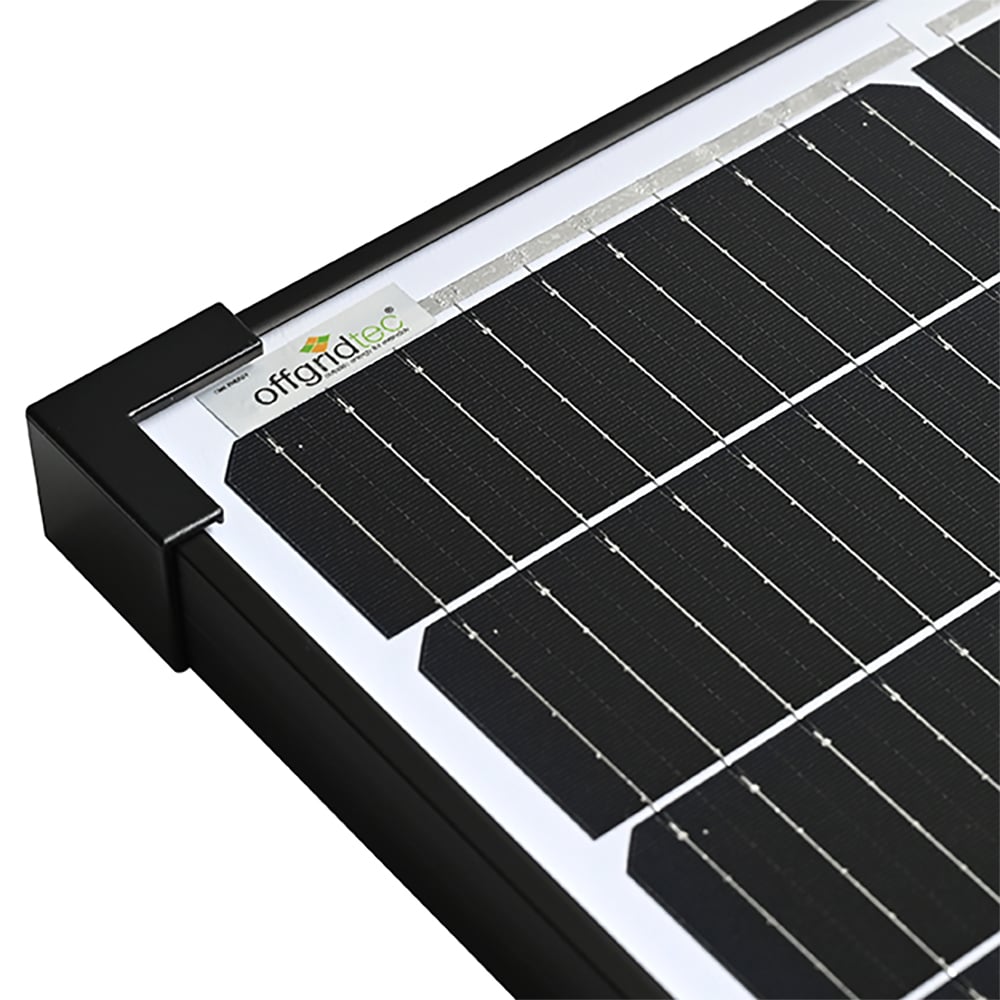

This is the new and improved version of the popular mono 100w solar module (mpn 3-01-001245). In the new version, the solar modules are equipped with both improved solar cells and 11 busbars, which leads to improved light absorption and reduces the effect of partial shading.

about the Offgridtec mono 100w v2 solar module

  • proven quality directly from Offgridtec
  • manufactured according to the latest standards
  • monocrystalline perc solar cells
  • extremely resistant ESG glass makes the module suitable for use even under the most adverse environmental conditions
  • 2 bypass diodes - minimized power drop when shaded

Proven, ready-to-use solar module

The mono 100w 23v is one of over 40 tried and tested solar panels from the Offgridtec portfolio and benefits from Offgridtecs experience in the manufacture of high-quality 12v and 24v solar cells. Thanks to the extremely resistant solar glass, the module can also be used in very adverse operating conditions. It can withstand storms or extreme cold and heat without any problems and thanks to the monocrystalline perc cells, you can expect significant yields even on cloudy days.

Monocrystalline modules

Monocrystalline solar modules are an advanced form of photovoltaic module made from a single crystal lattice. This crystalline structure enables higher efficiency in the conversion of sunlight into electrical energy compared to other types of solar modules. The monocrystalline cells are characterized by their uniform structure, which enables a more efficient movement of the charge carriers. This leads to better performance, especially in situations where space is limited, as monocrystalline modules have a higher power density.

Technical data

  • Output (Pmax): 100w
  • Operating voltage (Vmp): 23.9 V
  • Open circuit voltage (Voc): 28 V
  • max. current (Imp): 4.2 A
  • Efficiency: 22,3%
  • NOCT: 45+/2°C
  • Short-circuit current (Isc): 4.4 A
  • max. system voltage: 1000 V
  • permissible ambient temperature: -40°C - +85°C
  • Dimensions: 925 x 590 x 35 mm
  • Part number: 3-01-018385
  • Weight: 6,22kg

Universally applicable

Offgridtecs 100w 23v 2V Mono can be used universally, for example in 12 volt Solaranlagen on garden sheds, allotments or for the power supply of lighting applications. But this panel also cuts a fine figure in mobile systems such as mobile home solar systems.

Thanks to the integrated bypass diodes, the module can continue to produce electricity even when there is shade or low light.

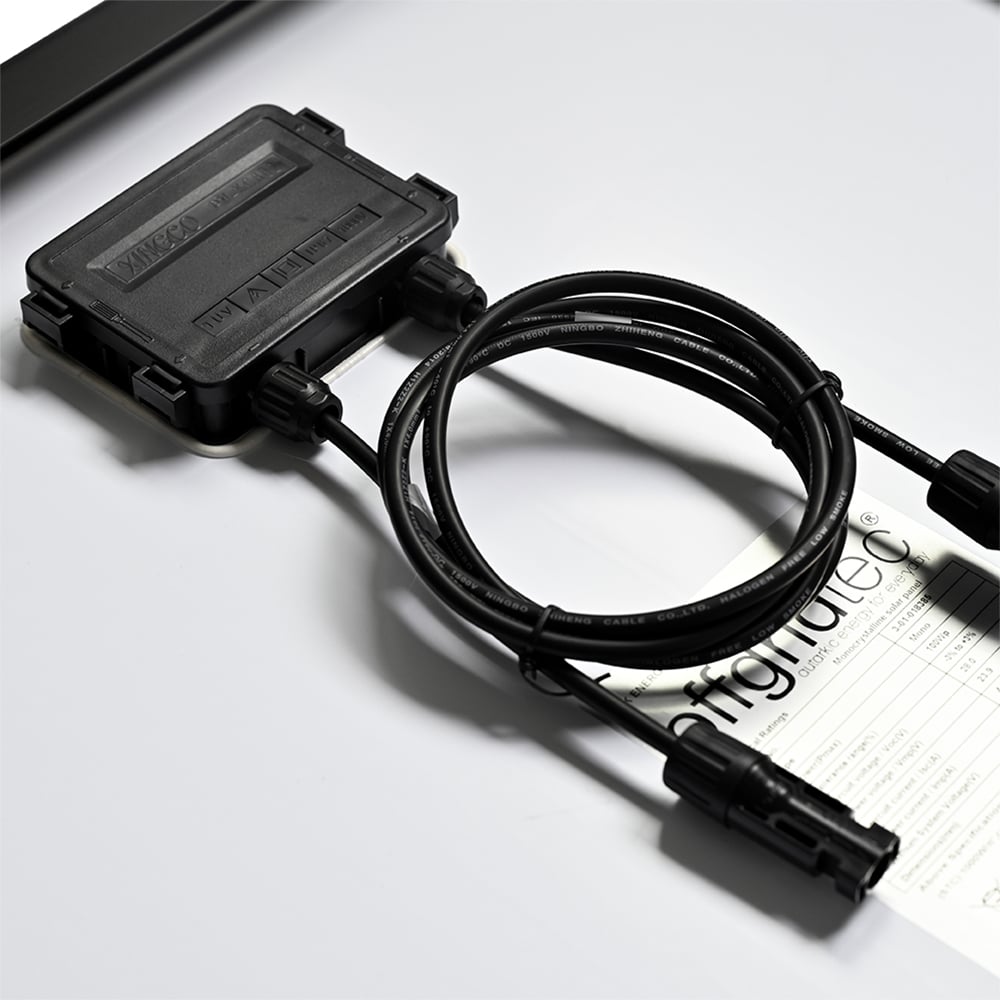

The connection cables are 80 cm long and fitted with MC4 connectors.

Scope of delivery

1x Offgridtec® mono 100w v2 solar panel 23v Black Frame

Datenblatt_Mono-V2-Module.pdf Download
Garantiebestimmung_Solarmodule.pdf Download
Datasheet_Mono-V2-modules.pdf Download
Ambient temperature: -40°C - +85°C
Cell efficiency: 22,3%
Cell type: monocrystalline
Generator output wp: 100 Wp
Manufacturer: Offgridtec
Max. System voltage: 1000 V, 1000 V/DC
Module voltage (VMP): 23,9 V
Open circuit voltage (VOC): 28V
Solar module - Format drill holes: 8 x 20 mm
Solar module - Number of cable entries: n.a.
Solar module - Terminal standard: n. a.
Solar module - cable length: 0,8 m
Solar module - cell type: SW monocrystalline
Solar module - diodes installed: 2x IOSQO50 Bypass Diode
Solar module - frame thickness: 1 mm
Solar module - junction box: PV-JB-018
Solar module - junction box (ABM): 100 x 77,5 x 25mm
Solar module - junction box (IP): IP65
Solar module - junction box (K max.): n.a.
Solar module - performance guarantee: 10 years*
Solar module - plug type: MC4
Solar module - size connection cable: 4 - 6 mm
Solar module - terminal connection: n.a.
Tolerance: +/- 3%
Warranty: 5 years
Weight: 6,22kg
ean: 4262440561541
mpn: 018385 Reviews with
