The evt560 from Envertech (mpn et99560009021) is a 1-phase inverter and can be connected simultaneously to two solar modules, each with an output of 180 - 370w. The advanced MPPT technology ensures effective optimization and maximum energy harvest. Features Minimize the effects of e.g. shading, dust or aging through MPPT High quality energy harvesting with high MPPT accuracy System monitoring via the EnverView smartphone app or the EnverPortal website (optional with the EnverBridge unit) Optimal system reliability Maximum efficiency of 95.4 15 years product warranty High safety due to integrated protective functions Easy installation Long service life Functionality The Envertech micro inverter converts the solar power generated by your photovoltaic system in conformity with the AC grid and feeds it directly into the utility grid. Each Envertech microinverter is connected to up to two pv modules of your system. This unique configuration means that each pv module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other pv modules in the system. Thus, if individual pv modules in the system are affected by shading, soiling, alignment, or mismatch, the evt560 still ensures peak power for its associated pv module. The result is the maximum possible energy production from your pv system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire pv system will not fail in the event of a malfunction. Envertech -microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design pv systems with Envertech microinverters are very easy to design and install. You can install a combination of pv modules of different types, in any orientation and in a desired number (max. 20 modules per phase). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the pv mounting rack or directly under the pv module. The pv module is connected to the microinverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage. Technical data Recom. pv power: (180w - 370wp)*2 Max. pv voltage: 54V Max. dc current: 12A*2 AC rated power: 600W Max. Output current: 2.54A Max. Efficiency: 95.6% AC rated voltage: 230V Operating temperature range: -40°C - +65°C Protection class: IP67 Dimensions: 248 x 236 x 27.5 mm Weight: 2.8 kg Scope of delivery: 1x Envertech evt560 micro inverter

The Offgridtec psi-pro 24-3000 (mpn 012955) is an advanced 24v 230v sine wave voltage converter with a nominal power of 3000w. The device features a 16bit spwm chipset, numerous protection mechanisms and galvanically isolated inputs and outputs. The input voltage range is 21.6 - 32 VDC. For short inrush currents, the psi-pro delivers 6000w. Thanks to its advanced constitution, even sensitive electrical devices can be supplied with power reliably and permanently. Performance features of the psi-pro 24-3000 at a glance modern, safe design with galvanic isolation of input and output rs485 communication module for configuration via pc / notebook with free configuration software from Offgridtec Optional: LCD remote meter for monitoring and control Very low power consumption in idle / stand-by, max. efficiency Introduction of advanced spwm technology, output a perfect sine wave New thermal design for optimal heat dissipation and reduced noise adjustable output voltage 220 / 230VAC and mains frequency 50Hz / 60 Hz via remote meter LED indicators for error status and working status Input protection: reverse polarity protection, undervoltage, overvoltage Output protection: overload, short circuit, overheating overtemperature protection: temperature controlled cooling and automatic shutdown in case of overtemperature Already included: rs485 to usb interface cable & toggle switch for control via remote contact Configuration The Offgridtec 24-3000 psi transducer is equipped with an rs485 data output, providing you with options for external communication and configuration: rs485 to usb interface connection cable The standard included interface cable allows monitoring of various performance parameters on a notebook or pc. Furthermore, the psi 24-3000 can be configured comfortably via the free psi-Control pc software. Performance parameters at a glance Rated power / peak power 3000w / 6000W Input voltage range: 21.6 - 32 VDC Output voltage waveform: pure sine wave Communication module: rs485 usb output 5vdc / 1a, rs485 communication port significantly more efficiency thanks to latest spwm technology all other technical data can be found in the datasheet Weight and dimensions (LxWxH): 8kg at 521 x 274 x 148 mm Scope of delivery: 1x Offgridtec 1-01-012955 psi-pro 24-3000 sine wave voltage converter 1x toggle switch for remote control 1x user manual

The evt300 from Envertech (mpn et99300009002) is a 1-phase inverter and can be connected to solar modules with a power of 180 - 400w each. The advanced MPPT technology ensures effective optimization and maximum energy harvest. Features Minimize the effects of e.g. shading, dust or aging through MPPT High quality energy harvesting with high MPPT accuracy System monitoring via the EnverView smartphone app or the EnverPortal website (optional with the EnverBridge unit) Optimal system reliability Maximum efficiency of 95.4 15 years product warranty High safety due to integrated protective functions Easy installation Long service life Functionality The Envertech micro inverter converts the solar power generated by your photovoltaic system in conformity with the AC grid and feeds it directly into the utility grid. Each Envertech microinverter is connected individually to a pv module of your system. This unique configuration means that each pv module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other pv modules in the system. Thus, if individual pv modules in the system are affected by shading, soiling, alignment, or mismatch, the evt300 still ensures peak power for its associated pv module. The result is the maximum possible energy production from your pv system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire pv system will not fail in the event of a malfunction. Envertech -microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design pv systems with Envertech microinverters are very easy to design and install. You can install a combination of pv modules of different types, in any orientation and in a desired number (max. 20 modules per phase). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the pv mounting rack or directly under the pv module. The pv module is connected to the microinverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage. Technical data Recom. pv power: 180w - 400wp Max. pv voltage: 54V Max. dc current: 12A AC rated power: 300W Max. Output current: 1.36A Max. Efficiency: 95.4% AC rated voltage: 220V/230V Operating temperature range: -40°C - +65°C Protection class: IP67 Dimensions: 163 x 216 x 27 mm Weight: 1,8 kg Scope of delivery: 1x Envertech evt300 micro inverter

The Offgridtec PSI 24-2000 (MPN 011255) is an advanced 24V 230V sine wave voltage converter with a continuous output of 1600W and 2000W for a maximum of 15 minutes. The unit features a 16Bit SPWM chipset, numerous protection mechanisms and galvanically isolated inputs and outputs. The input voltage range is 21.6 and 32Vdc. The converter can deliver 2000W for 15 minutes or 1600W continuously. For short inrush currents, the PSI 24-2000 delivers 3200W. Thanks to its advanced constitution, even sensitive electrical appliances can be supplied with power reliably and permanently Advanced development of the HP voltage transformer family The PSI series is the further development of the HP voltage transformers and comes up trumps with numerous innovations and optimisations: Input and output of the PSI are galvanically isolated and the housing has an earth connection. Mains frequency (50Hz/60Hz) and output voltage (220V / 230V) can be set via a dip switch. The brand-new SPWM 16-bit chipset delivers power of the highest quality and allows even very sensitive electronics to be reliably supplied with power. Compared to older chipsets, it is much more solid and durable. PSI converters with a power of 1000W or more are also equipped with an RS485 data output. This allows you to configure numerous parameters and monitor the operation of the unit via a computer / notebook using the PSI software. (the required interface cable is included in the scope of delivery). Configuration The Offgridtec 12-1000 PSI converter is equipped with an RS485 data output, which provides you with the options for external communication and configuration: -RS485 to USB interface connection cable Part no.: The interface cable, included as standard, allows you to monitor various performance parameters on a notebook or PC. In addition, the PSI 24-2000 can be conveniently configured via the free PSI-Control PC software. Performance features of the PSI 24-2000 at a glance modern, safe design with galvanic isolation of input and Output RS485 communication module for configuration via PC / notebook with free configuration software from Offgridtec Very low self-consumption in idle / stand-by, max. efficiency <> Introduction of advanced SPWM technology, output of a perfect sine wave New thermal design for optimal heat dissipation and reduced noise Levels adjustable output voltage 220 / 230VAC and mains frequency 50Hz / 60 Hz via remote meter LED indicators for error status and working Status Input protection: overvoltage protection, low-voltage protection Output protection: overload protection, short circuit protection Overtemperature protection: temperature-controlled cooling and automatic shutdown in case of overtemperature Already included: High-quality battery connection cable with 1m length, RS485 to USB interface cable Performance parameters at a glance -Nominal power (continuous power / 15min power / peak power): 1600W / 2000W / 3200W -Input voltage range: 21.6 to 32 Vdc -Output voltage waveform: pure sine wave -Communication module: RS485 -USB output 5VDC / 1A, RS485 communication port -Significantly more efficiency thanks to the latest SPWM technology -all other technical data can be found in the data sheet -Weight and dimensions (LxWxH): 4.6 kg at 326.5 × 231.5 × 98.5mm Scope of delivery: 1x Offgridtec 1-01-0155 PSI 24-2000 Sine wave voltage converter 24V 230V 2000W / 3200W 1x Set battery connection cable 1m 25mm² Red / Black 1x RS485 to USB interface cable 1x instruction manual

The Victron Phoenix 24/500 VE.Direct (MPN PIN245010200) is a small sine inverter with a constant output of 400W. It converts a 24V DC voltage into 230V AC with pure sine wave, suitable to supply even sensitive electronic devices.Its efficiency level is very high and thanks to the integrated ECO-mode one of the highest in this class. Via the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone which allows the configuration of various system parameters, for example the switch-on and switch-off voltage at low battery charge.Other adjustments like output frequency or voltage as well as a bipolar alarm-contact are only some of this inverter's features. The performance range of the Phoenix series VE.Direct 250-500 at this price is unique on the market and exceeds the abilities of other devices of this performance class enormously. Technical data: 400W constant output at 230V 50Hz sine voltage for 24V battery voltage, works with all common battery types 230V AC current with pure sine wave provides perfect current quality freely programmable switch-on7off threshold adjustable output voltage from 210 - 245V Technical highlights of the Phoenix VE.Direct series 250VA – 500VA 24V VE.Direct output allows the connection of the inverter to a computer (VE.Direct-to-USB cable needed) or your smartphone - together with the free Victron app it is possible to always keep an eye on your device (VE.Direct Bluetooth Smart Dongle needed) Fully programmable parameters: thresholds for activating or resetting alarms at low battery charge + thresholds for activating or restarting at low battery voltage + output voltage 210 - 245V + frequency of 50Hz or 60Hz + thresholds for ECO-mode on/off and ECO-mode sensor Integrated ECO-mode: In this mode the inverter switches to standby as soon as the load falls under a predefined value. In standby-mode the inverter reactivates for a short time (adjustable default setting: every 2.5s). If the load exceeds a predefined threshold the inverter stays activated. Proven reliability of this inverter:The full override via a torodial transformer topology has often proven itself over the last years. This inverters are save from short-circuits and overheating (caused by overload or ambient temperature).High starting performance: This is needed to activate loads like LED-drivers, halogen lamps or electrical tools.Remote controlled on/off-switching possible: A remote on/off-switch can be installed via a bipolar plug between the battery's +-pole and the left contact of the plug. Delivery scope:1x Victron PIN245010200 Phoenix 24/500 24V to 230V 400W 50Hz 60Hz

The Victron Phoenix 24/375 VE.Direct (MPN PIN243750200) is a small sine inverter with a constant output of 300W. It converts a 24V DC voltage into 230V AC with pure sine wave, suitable to supply even sensitive electronic devices.Its efficiency level is very high and thanks to the integrated ECO-mode one of the highest in this class. Via the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone which allows the configuration of various system parameters, for example the switch-on and switch-off voltage at low battery charge.Other adjustments like output frequency or voltage as well as a bipolar alarm-contact are only some of this inverter's features. The performance range of the Phoenix series VE.Direct 250-500 at this price is unique on the market and exceeds the abilities of other devices of this performance class enormously. Technical data: 300W constant output at 230V 50Hz sine voltage for 24V battery voltage, works with all common battery types 230V AC current with pure sine wave provides perfect current quality freely programmable switch-on7off threshold adjustable output voltage from 210 - 245V Technical highlights of the Phoenix VE.Direct series 250VA – 500VA 24V VE.Direct output allows the connection of the inverter to a computer (VE.Direct-to-USB cable needed) or your smartphone - together with the free Victron app it is possible to always keep an eye on your device (VE.Direct Bluetooth Smart Dongle needed) Fully programmable parameters: thresholds for activating or resetting alarms at low battery charge + thresholds for activating or restarting at low battery voltage + output voltage 210 - 245V + frequency of 50Hz or 60Hz + thresholds for ECO-mode on/off and ECO-mode sensor Integrated ECO-mode: In this mode the inverter switches to standby as soon as the load falls under a predefined value. In standby-mode the inverter reactivates for a short time (adjustable default setting: every 2.5s). If the load exceeds a predefined threshold the inverter stays activated. Proven reliability of this inverter:The full override via a torodial transformer topology has often proven itself over the last years. This inverters are save from short-circuits and overheating (caused by overload or ambient temperature).High starting performance: This is needed to activate loads like LED-drivers, halogen lamps or electrical tools.Remote controlled on/off-switching possible: A remote on/off-switch can be installed via a bipolar plug between the battery's +-pole and the left contact of the plug. Delivery scope:1x Victron PIN243750200 Phoenix 24/375 24V to 230V 300W 50Hz 60Hz

The Victron Phoenix 48/500VE.Direct (MPN PIN485010200) is a small sine inverter with a constant output of 400W. It converts a 48V DC voltage into 230V AC with pure sine wave, suitable to supply even sensitive electronic devices.Its efficiency level is very high and thanks to the integrated ECO-mode one of the highest in this class. Via the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone which allows the configuration of various system parameters, for example the switch-on and switch-off voltage at low battery charge.Other adjustments like output frequency or voltage as well as a bipolar alarm-contact are only some of this inverter's features. The performance range of the Phoenix series VE.Direct 250-500 at this price is unique on the market and exceeds the abilities of other devices of this performance class enormously. Technical data: 400W constant output at 230V 50Hz sine voltage for 48V battery voltage, works with all common battery types 230V AC current with pure sine wave provides perfect current quality freely programmable switch-on7off threshold adjustable output voltage from 210 - 245V Technical highlights of the Phoenix VE.Direct series 250VA – 500VA 48V VE.Direct output allows the connection of the inverter to a computer (VE.Direct-to-USB cable needed) or your smartphone - together with the free Victron app it is possible to always keep an eye on your device (VE.Direct Bluetooth Smart Dongle needed) Fully programmable parameters: thresholds for activating or resetting alarms at low battery charge + thresholds for activating or restarting at low battery voltage + output voltage 210 - 245V + frequency of 50Hz or 60Hz + thresholds for ECO-mode on/off and ECO-mode sensor Integrated ECO-mode: In this mode the inverter switches to standby as soon as the load falls under a predefined value. In standby-mode the inverter reactivates for a short time (adjustable default setting: every 2.5s). If the load exceeds a predefined threshold the inverter stays activated. Proven reliability of this inverter:The full override via a torodial transformer topology has often proven itself over the last years. This inverters are save from short-circuits and overheating (caused by overload or ambient temperature).High starting performance: This is needed to activate loads like LED-drivers, halogen lamps or electrical tools.Remote controlled on/off-switching possible: A remote on/off-switch can be installed via a bipolar plug between the battery's +-pole and the left contact of the plug. Delivery scope:1x Victron PIN485010200 Phoenix 48/500 48V to 230V 400W 50Hz 60Hz

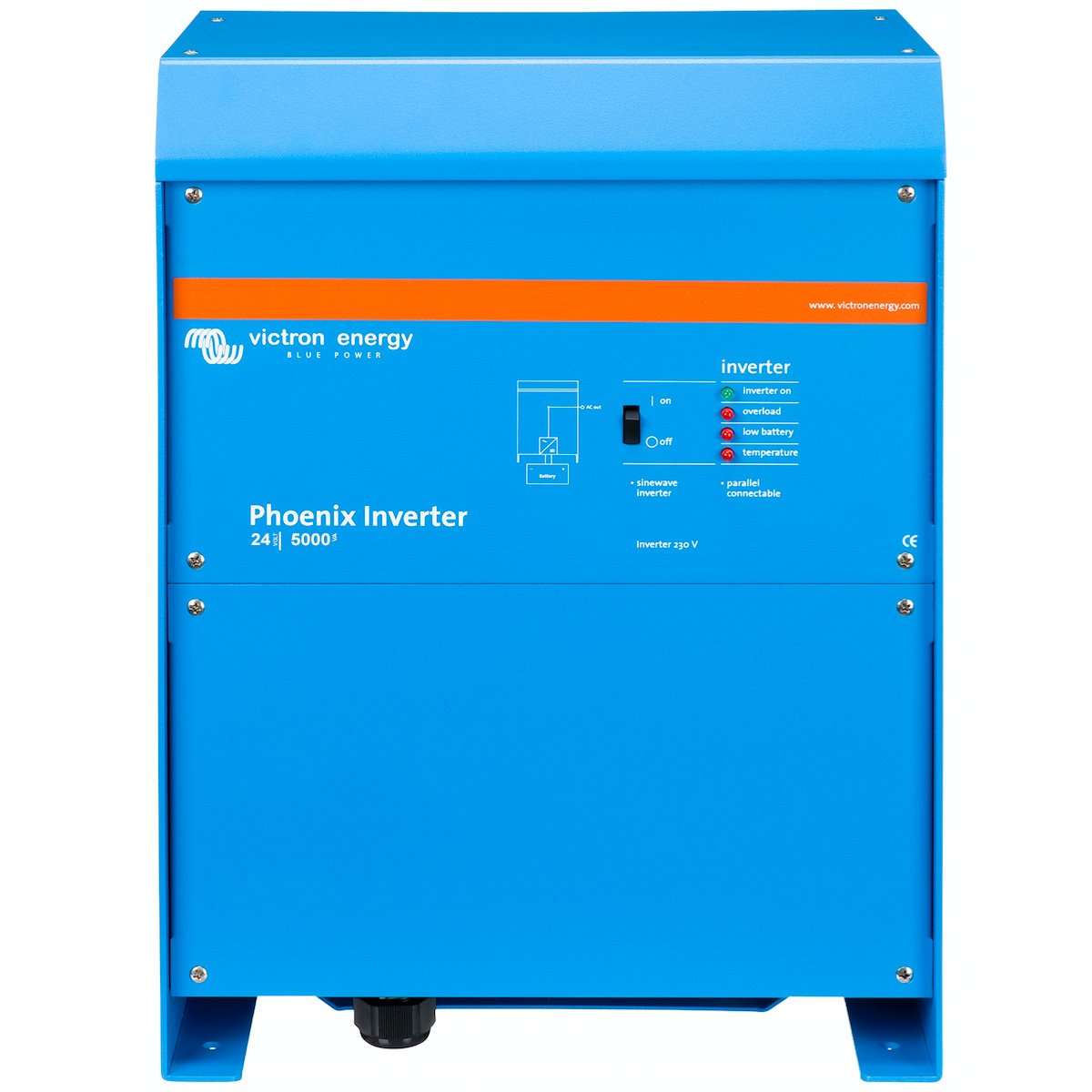

The Victron Phoenix Inverter 24/5000 (PIN245020000) is the largest 24V Phoenix inverter. Especially in terms of communication there are several new features which make the 24/5000 a future-proof investment that provides a constant performance of 4000W. This device converts a 24V DC battery current into a 230V AC current with a pure sine wave at 50Hz which also allows the supply of very sensitive electronic components.This inverter comes with excellent consumption and efficiency characteristics and moreover supports the parallel and three-phase operation with other Phoenix inverters out of this series. VE.Bus RS-485 communication port - extensive, new possibilitiesAll Phoenix inverters out of the 12V/24V/48V-3000-5000 series are equipped with a RS-485 data port. Via the optional VE Interface MK2-USB you can connect the inverter to a PC or notebook. This allows many new possibilities in terms of configuration and monitoring. Following some of the most important new features: individual adjustment of parameters such as output voltage, frequency, upper and lower voltage limit and much more... can be integrated in a computer-aided monitoring and control system all Phoenix inverters can also be used with VENet - Victron's innovative monitoring network - or any other computer-aided control and monitoring system easy programing of the integrated relay. The relay can be used to produce signals for special events or to start a generator, for example parallel or three-phase operation with other Phoenix inverters The main focus during the development of the new Phonex series was to create an inverter with a clean sine output and high efficiency. Thanks to latest hybrid-HF technology Victron was able to create a high-quality product with small dimensions and low weight which provides any needed performance easily.Additionally SinusMax technology, new within this series, allows very high peak-currents of 10.000W! Technical data 4000W constant output, suitable for all common 24V batteries pure sine wave (50Hz) higher peak-currents thanks to Victron's Sinus-Max technology converts 24V DC into 230V AC (pure sine wave) advanced hybrid-HF technology - more performance and less vulnerable to faults compared to common high-frequency technology very low consumption, high efficiency integrated energy-saving mode bipolar alarm contact that can be used as output for an on/off-remote control SinusMax technologyThe most important characteristic about this technology is a very high starting current capacity which is not possible with common HF-technology.Phoenix inverters can easily handle high starting currents of, for example, refrigerating compressors, tools and others.Nearly unlimited performance through parallel and three-phase operation:Up to six inverters can be connected parallely to increase performance. Also three-phase operation is possible.Load switch to other AC-current sources:Automatic load switch: For smaller performance demands we recommend the Filax auto-switch. With its help computers and other sensitive electronic devices can be supplied free of interruptions as the switching times are very short (<20ms). Delivery scope:1x Victron PIN245020000 Phoenix Sine Inverter 24/5000 - 24V to 230V 4000W 10000W1x Manual

Der Quattro-II 48/5000/70-50 230V (MPN QUA482504010) von Victron Energy ist, ähnlich wie der MultiPlus-II, eine Kombination aus Wechselrichter und Ladegerät. Er kann außerdem zwei AC-Eingänge annehmen und sich automatisch mit der aktiven Quelle verbinden. Diese elegante Lösung bietet zahlreiche Funktionen wie die eines echten Sinus-Wechselrichters und beinhaltet eine adaptive Ladefunktion, Hybrid PowerAssist-Technologie und mehrere Möglichkeiten zur Systemintegration, darunter der 3-Phasen- oder Split-Phasen-Betrieb, sowie der Parallel-Betrieb, bei dem bis zu 6 Quattro-II bei hohem Leistungsbedarf zusammengeschalten werden können. Das fest integrierte Batterieladegerät leistet beachtliche 70A womit auch große Batterien schnell voll geladen werden können wenn Land-/Netzstrom zur Verfügung steht. Der im Quattro-II verbaute 48V Sinus Spannungswandler wandelt Ihren Batteriestrom in 230V Wechselstrom um. Dank der echten Sinuswelle ist die Stromqualität auch für empfindliche elektronische Geräte perfekt geeignet. Wesentliche Leistungsmerkmale des Quattro-II 48/5000/70-50 230V Gerätekombination aus Wechselrichter mit Transfer-Switch und 70A Batterielader liefert reinste 230V Sinusspannung und eine saubere 50Hz Frequenz 2 Wechselstromein- und ausgänge mit integriertem Transferschalter  autonomer Betrieb bei Netzausfall unterstütz den Drei-Phasen-Betrieb (3 gleiche Einheiten des selben Models benötigt) und liefert 72kW/90kVA Wechselrichterleistung und mehr als 1200A Ladekapazität. eingebauter Batterie-Motor (ideale Lösung, wenn der Quattro-II Teil eines Hybridsystems bildet) PowerControl Funktion ermöglicht das Arbeiten mit begrenzter Generatorleistung so wie eingeschränktem Land- oder Netzstrom PowerAssist Funktion ermöglicht  “Leistungssteigerung“ von Generatoren und Landanschlussunterstützung im Bedarfsfall programmierbares Relais (z.B. als Generator-Startrelais ) sehr hoher Wirkungsgrad und niedriger Eigenverbrauch Zwei AC- Eingänge und zwei AC-Ausgänge Der Quattro-II kann an zwei unabhängige Wechselstrom-Quellen, wie z.B. an einen landseitigen Stromanschluss und einen Generator oder auch an zwei Generatoren angeschlossen werden. Der Hauptausgang stellt eine unterbrechungsfreie Funktionalität sicher. Tritt ein Stromausfall ein oder wird die Verbindung zum landseitigen Strom, bzw. Generatorstrom unterbrochen, übernimmt der Quattro-II die Versorgung der angeschlossenen Verbraucher. Die Umschaltung geschieht so schnell (in weniger als 20 Millisekunden), dass ein unterbrechungsfreier betrieb von Computern und anderen elektronischen Geräten gewährleistet ist. Der zweite Ausgang liefert nur dann Strom, wenn an einem der Eingänge des Quattro Wechselstrom verfügbar ist. Verbraucher, die die Batterie nicht entladen dürfen, wie z. B. ein Wassererhitzer, können an diesen Ausgang angeschlossen werden. PowerControl - Optimierung der Stromversorgung bei begrenztem Wechselstrom Der Quattro-II ist in der Lage, einen sehr hohen Ladestrom bereitzustellen. Dies bedeutet für die Wechselstromversorgung bzw. den Generator eine starke Belastung. Aus diesem Grund kann ein Maximalstrom eingestellt werden. Der Quattro-II berücksichtigt dann den bereits anliegenden Verbrauch und nutzt lediglich den „überschüssigen“ Strom zur Batterieladung. Der Wechselstrom-Eingang AC-in-1, an den in der Regel ein Stromaggregat angeschlossen ist, kann auf einen festen Höchstwert eingestellt werden, so dass das Aggregat nie überlastet wird. - Der Wechselstromeingang AC-in-2 kann ebenfalls auf einen festen Maximalwert eingestellt werden. Bei mobilen Anwendungen (Boote, Fahrzeuge) wird allerdings üblicherweise eine variable Einstellung mit dem Multi Control Panel bevorzugt. So kann der maximale Landstrom den verfügbaren Werten einfach angepasst werden. PowerAssist - Erweiterte Nutzungsmöglichkeiten von Generator oder Landanschluss Mit dieser Funktion erhält das PowerControl-Prinzip eine neue Dimension, da der Quattro-II eine zu schwache alternative Quelle unterstützen kann. Lastspitzen treten häufig nur für einen begrenzten Zeitraum auf. In einem solchen Fall stellt der Quattro-II sicher, dass eine zu schwache Netzstrom- bzw. Generatorleistung sofort durch Energie aus der Batterie kompensiert wird. Wird die Last reduziert, d. h. werden Verbraucher ausgeschaltet, kann die dann wieder ausreichend vorhandene Energie zum Laden der Batterien genutzt werden. ESS - Energy-Speicher-Systeme (Rückführung von Energie an das Stromnetz) Wenn der Quattro-II in einer Konfiguration verwendet wird, in der es Energie in das Stromnetz zurückspeist, ist es erforderlich, die Einhaltung des Netzcodes zu ermöglichen, indem mit dem Tool VEConfigure die entsprechende Ländereinstellung für den Netzcode ausgewählt wird. Nachdem die entsprechenden Anschlussbedingungen festgelegt wurden, können diese bzw. einzelne ihrer Parameter nur noch mithilfe eines Passwortes deaktiviert oder verändert werden. Wenn der lokale Netzcode vom Quattro-II nicht unterstützt wird, sollte eine externe zertifizierte Schnittstellenvorrichtung verwendet werden, um den Quattro-II an das Stromnetz anzuschließen. Der Quattro-II kann auch als zweiseitiger, netzunabhängiger Wechselrichter verwendet werden, der in ein kundenspezifisches System (SPS oder andere) integriert ist, das den Regelkreis und die Netzmessung übernimmt. Remotekonfiguration und -überwachung Installieren Sie einen Cerbo GX oder ein anderes GX-Produkt, um eine Verbindung zum Internet herzustellen. Betriebsdaten können kostenlos auf unserer VRM-Website (Victron Remote Management) gespeichert und angezeigt werden. Wenn Sie mit dem Internet verbunden sind, kann aus der Ferne auf Systeme zugegriffen und Einstellungen geändert werden. Weiter GX-Optionen stehen Ihnen beispielsweise zur Verfügung: Victron Color Control GX Victron Venus GX Systemüberwachung BPP900400100   Technische Daten: Abmessungen: 560 x 328 x 148mm Gewicht: 30kg DC-Eingangsspannungsbereich: 38-66V AC-Eingangsspannungsbereich: 187-265V AC Ausgangsspannung: 230V AC max. Batterieladestrom: 70A Betriebstemperaturbereich: -40 - +65°C Schutzart: IP22 Lieferumfang: 1x Quattro-II 48/5000/70-50 230V

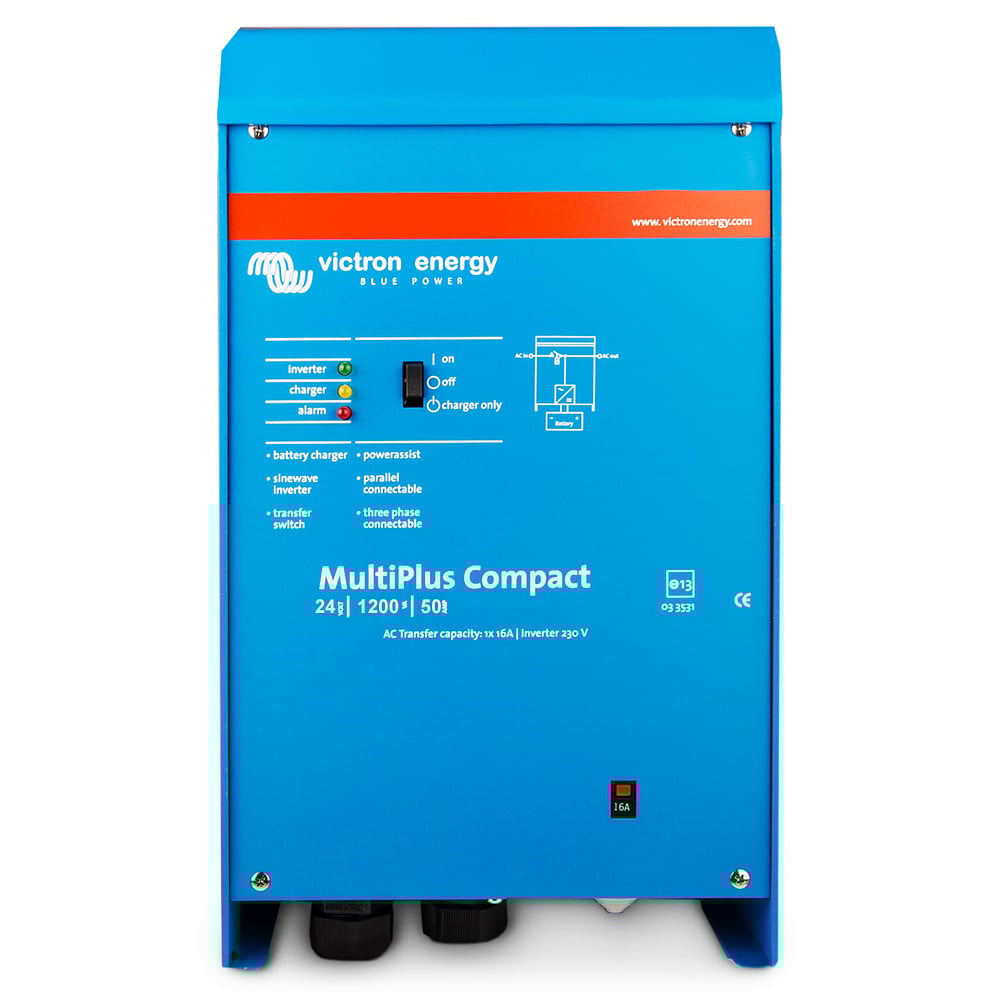

The new MultiPlus 24/1200/25-16 (Victron Energy, pmp242120000) is the successor of the Multiplus Compact 24/1200. This unit is a modern device combination consisting of a powerful 24v / 230v inverter with pure sine wave, an advanced 25a battery charger using adaptive charging technology, and a 16a high speed AC transfer switch. In the event of a mains fault or, if the shore power or on-board generator is interrupted, the multi's inverter is automatically switched on and takes over the supply of the connected loads. The switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. main features of the MultiPlus 24/1200/25-16 Cont. Output power at 25°c: 1000w / 1200w at non-linear load Victron Energy mpn: pmp242120000 for 24 system voltage integrated 25a mains charger for your batteries integrated 16a mains transfer switch USV operation possible Extensive accessories available Can be used in numerous applications, whether on land or mobile proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature) PowerControl - (Multiplus 800va 1200va only) The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes into account other connected AC loads and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded PowerAssist - (Multiplus 800va 1200va only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries High switch-on power This is required for switching on loads with high inrush currents, such as voltage converters for LED lamps, halogen lamps or power tools Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or low load and turn back on every two seconds for a short period of time. if the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low) Scope of delivery: Victron Energy pmp242120000, MultiPlus 24/1200/25-16

The Victron Phoenix 48/500VE.Direct (MPN PIN485010200) is a small sine inverter with a constant output of 400W. It converts a 48V DC voltage into 230V AC with pure sine wave, suitable to supply even sensitive electronic devices.Its efficiency level is very high and thanks to the integrated ECO-mode one of the highest in this class. Via the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone which allows the configuration of various system parameters, for example the switch-on and switch-off voltage at low battery charge.Other adjustments like output frequency or voltage as well as a bipolar alarm-contact are only some of this inverter's features. The performance range of the Phoenix series VE.Direct 250-500 at this price is unique on the market and exceeds the abilities of other devices of this performance class enormously. Technical data: 400W constant output at 230V 50Hz sine voltage for 48V battery voltage, works with all common battery types 230V AC current with pure sine wave provides perfect current quality freely programmable switch-on7off threshold adjustable output voltage from 210 - 245V Technical highlights of the Phoenix VE.Direct series 250VA – 500VA 48V VE.Direct output allows the connection of the inverter to a computer (VE.Direct-to-USB cable needed) or your smartphone - together with the free Victron app it is possible to always keep an eye on your device (VE.Direct Bluetooth Smart Dongle needed) Fully programmable parameters: thresholds for activating or resetting alarms at low battery charge + thresholds for activating or restarting at low battery voltage + output voltage 210 - 245V + frequency of 50Hz or 60Hz + thresholds for ECO-mode on/off and ECO-mode sensor Integrated ECO-mode: In this mode the inverter switches to standby as soon as the load falls under a predefined value. In standby-mode the inverter reactivates for a short time (adjustable default setting: every 2.5s). If the load exceeds a predefined threshold the inverter stays activated. Proven reliability of this inverter:The full override via a torodial transformer topology has often proven itself over the last years. This inverters are save from short-circuits and overheating (caused by overload or ambient temperature).High starting performance: This is needed to activate loads like LED-drivers, halogen lamps or electrical tools.Remote controlled on/off-switching possible: A remote on/off-switch can be installed via a bipolar plug between the battery's +-pole and the left contact of the plug. Delivery scope:1x Victron PIN485010200 Phoenix 48/500 48V to 230V 400W 50Hz 60Hz

The victron MultiPlus 12/3000/120-16 (MPN PMP123020001) is a combination of 12V 2400W inverter and battery charger. The integrated battery charger provides 120A which allows quick charging even for bigger batteries as long as there is a grid connection.The 12V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.Integrating the MultiPlus in your system can be done via VE.Bus-port or COM-port which allows nearly unlimited networking. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 16A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 2400W constant output and 6000W peak current, for 12V battery voltage combination of inverter with transfer switch and 120A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available Besides the VE.Bus-port MultiPlus devices 3000 or bigger additionally come with an COM-port the allows nearly unlimited system integration PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron PMP123020001 Multiplus 12/3000/120-16 Combination of 12V 2400W sine inverter and 12V 120A battery charger + transfer-switch1x Manual

The victron MultiPlus C 24/2000/50 (MPN CMP242020000) is a combination of 24V 1600W inverter and battery charger. The integrated battery charger provides 50A which allows quick charging even for bigger batteries as long as there is a grid connection.The 24V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 30A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 1600W constant output and 4000W peak current, for 24V battery voltage combination of inverter with transfer switch and 50A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron CMP242020000 Multiplus C 24/2000/50 Combination of 24V 1600W sine inverter and 24V 50A battery charger1x Manual

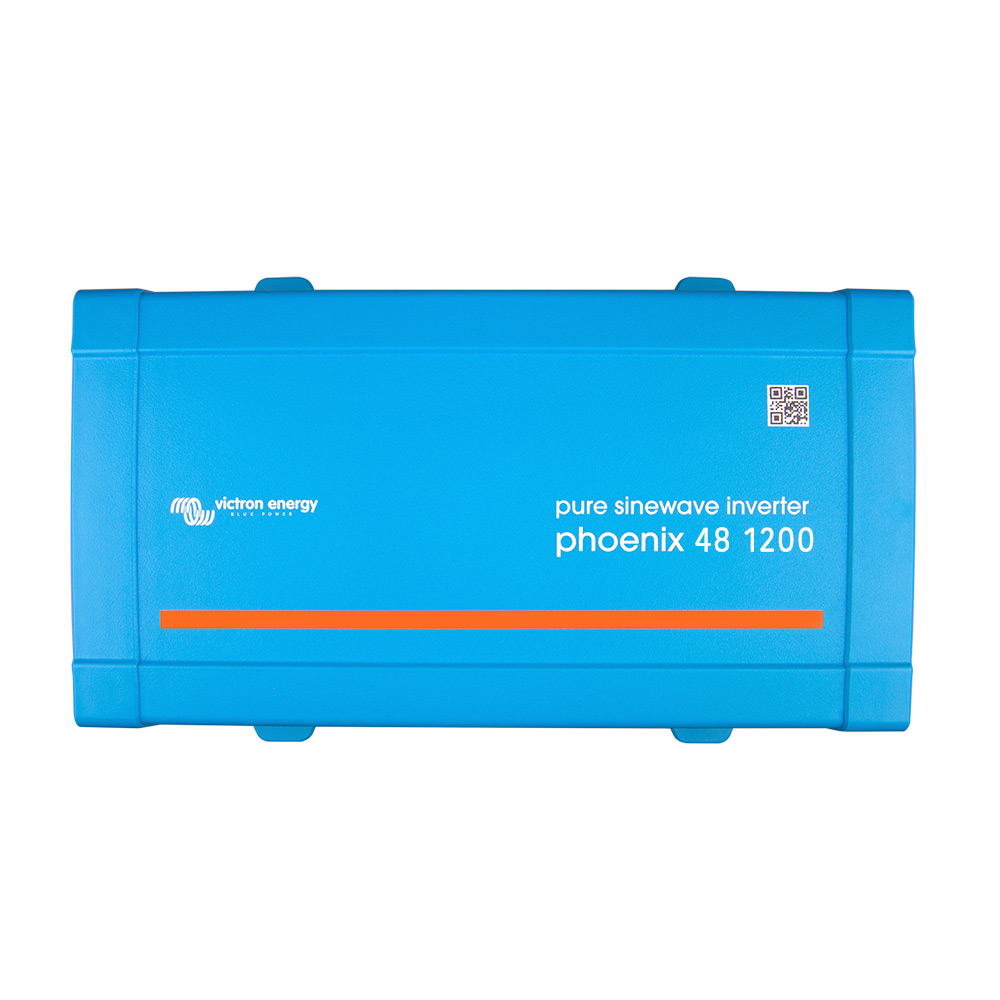

The Victron Phoenix 48/1200VE.Direct (mpn pin482120200) is a small sine wave inverter with 1200w continuous power. The unit converts 48v DC from your battery to 230v ac AC with a pure sine wave voltage and uncompromising power quality that is ideal for sensitive electronic products trend-setting efficiency and modern system communicationThe efficiency of the Phoenix is outstanding and one of the highest in its class thanks to the ECO mode. using the VE.Direct communication port with optional accessories, you can connect the device to a computer or smartphone and program some system parameters such as the switch-off voltage and switch-on voltage when the battery is empty completely freely! Many other configuration options such as output frequency and output voltage as well as a 2-pole alarm contact are among the features of this voltage converter The performance range of the Phoenix series VE.Direct 48/1200 is unique on the market at the moment for the price and goes far beyond the capabilities of other devices in the same performance classes.technical features of the Phoenix 48/1200 VE.Direct 1000 watts continuous power at 230v 50Hz sine wave voltage 1200 watts continuous power at non-linear load full control over almost all system parameters suitable for all common batteries with 48v battery voltage 230v ac power with pure sine wave provides perfect power quality free programmable on and off thresholds freely adjustable output voltage in the range of 210 - 245V technical highlights of the Phoenix VE.Direct series 250va - 1200VA VE.Direct connection allows you to connect the power converter to a computer (VE.Direct to USB interface cable required) or to your smartphone where you can always keep an eye on the status of your device with the free Victron app (VE.Direct Bluetooth Smart Dongle required). Fully programmable parameters: Thresholds to trigger and reset low battery alarms + Thresholds to turn off and restart at low battery voltage levels + Output voltage 210 - 245V + Thresholds to turn off and restart at low battery voltage levels + Frequency 50 Hz or 60 Hz + Threshold for ECO mode on/off and ECO mode sensor ECO mode integrated: In ECO mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). if the load exceeds a preset threshold, the inverter remains switched on Proven reliability of the current inverter: Full bypassing in addition with a ring transformer topology has been proven for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature) High inrush power: This is needed to switch on loads such as voltage converters for LED lamps, halogen lamps or power tools Remote on/off switching possible: a remote on/off switch can be connected with a two-pole plug or between the positive pole of the battery and the left contact of the two-pole plug Scope of delivery:1x Victron pin482120200 Phoenix 48/1200 48v to 230v 1000w 50Hz 60Hz

The Victron Phoenix Inverter C24/2000 (CIN242020000) belongs to the next generation after Victron's Phoenix 12/80-1200 series. Compared to their preceding models devices out of the compact-class come with a widely enhanced range of functions. Especially in terms of communication there are several new features which make the C24/2000 a future-proof investment that provides a constant performance of 1600W. This device converts a 12V DC battery current into a 230V AC current with a pure sine wave at 50Hz which also allows the supply of very sensitive electronic components. This inverter comes with excellent consumption and efficiency characteristics and moreover supports the parallel and three-phase operation with other Phoenix inverters out of this series. VE.Bus RS-485 communication port - extensive, new possibilities All Phoenix inverters out of the compact-series are equipped with a RS-485 data port. Via the optional VE Interface MK2-USB you can connect the inverter to a PC or notebook. This allows many new possibilities in terms of configuration and monitoring. Following some of the most important new features: individual adjustment of parameters such as output voltage, frequency, upper and lower voltage limit and much more... can be integrated in a computer-aided monitoring and control system all Phoenix inverters can also be used with VENet - Victron's innovative monitoring network - or any other computer-aided control and monitoring system easy programing of the integrated relay. The relay can be used to produce signals for special events or to start a generator, for example parallel or three-phase operation with other Phoenix inverters The main focus during the development of the new Phoenix series was to create an inverter with a clean sine output and high efficiency. Thanks to latest hybrid-HF technology Victron was able to create a high-quality product with small dimensions and low weight which provides any needed performance easily. Additionally SinusMax technology, new within this series, allows very high peak-currents of 4000W. Technical data 1600W constant output, suitable for all common 24V batteries pure sine wave (50Hz) higher peak-currents thanks to Victron's Sinus-Max technology converts 24V DC into 230V AC (pure sine wave) advanced hybrid-HF technology - more performance and less vulnerable to faults compared to common high-frequency technology very low consumption, high efficiency integrated energy-saving mode bipolar alarm contact that can be used as output for an on/off-remote control SinusMax technology The most important characteristic about this technology is a very high starting current capacity which is not possible with common HF-technology. Phoenix inverters can easily handle high starting currents of, for example, refrigerating compressors, tools and others. Nearly unlimited performance through parallel and three-phase operation: Up to six inverters can be connected parallely to increase performance. Also three-phase operation is possible. Load switch to other AC-current sources: Automatic load switch: For smaller performance demands we recommend the Filax auto-switch. With its help computers and other sensitive electronic devices can be supplied free of interruptions as the switching times are very short (<20ms). Delivery scope: 1x Victron CIN242020000 Phoenix Compact Sine Inverter C24/2000 - 24V to 230V 1600W 4000W 1x Manual

The victron MultiPlus 24/5000/120-100 (MPN PMP245021010) is a combination of 24V 4000W inverter and battery charger. The integrated battery charger provides 120A which allows quick charging even for bigger batteries as long as there is a grid connection.The 24V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.Integrating the MultiPlus in your system can be done via VE.Bus-port or COM-port which allows nearly unlimited networking. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 100A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 4000W constant output and 10.000W peak current, for 24V battery voltage combination of inverter with transfer switch and 120A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available Besides the VE.Bus-port MultiPlus devices 3000 or bigger additionally come with an COM-port the allows nearly unlimited system integration PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron PMP245021010 Multiplus 24/5000/120-100 Combination of 24V 4000W sine inverter and 24V 100A battery charger + transfer-switch1x Manual

The new MultiPlus 48/1200/13-16 (Victron Energy, pmp482120000) is the successor to the Multiplus Compact 48/1200. This unit is a modern combination of devices consisting of a powerful 48v / 230v inverter with pure sine wave, an advanced 13a battery charger using adaptive charging technology, and a 16a high-speed AC transfer switch. In the event of a mains fault or, if the shore power or on-board generator is interrupted, the multi's inverter is automatically switched on and takes over the supply of the connected loads. The switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. main features of the MultiPlus 48/1200/13-16 Cont. Output power at 25°c: 1200W Victron Energy mpn: PMP482120000 for 48v system voltage integrated 13a mains charger for your batteries integrated 16a mains transfer switch usv operation possible Extensive accessories available Can be used in numerous applications, whether on land or mobile proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature) PowerControl - (Multiplus 800va 1200va only) The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes into account other connected AC loads and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded PowerAssist - (Multiplus 800va 1200va only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries High switch-on power This is required for switching on loads with high inrush currents, such as voltage converters for LED lamps, halogen lamps or power tools Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or low load and turn back on every two seconds for a short period of time. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low) Scope of delivery: Victron Energy pmp482120000, MultiPlus 48/1200/13-16

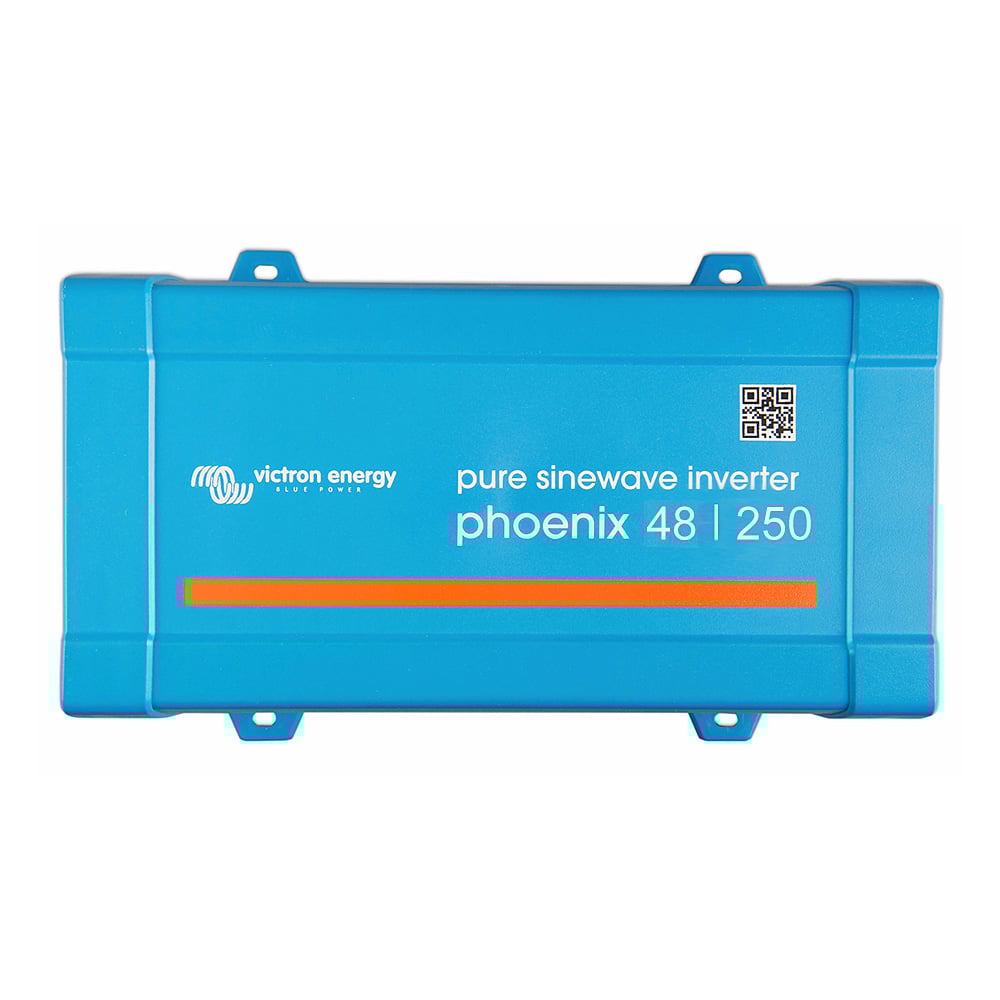

The Victron Phoenix 48/250 VE.Direct (MPN PIN482510200) is a small sine inverter with a constant output of 200W. It converts a 48V DC voltage into 230V AC with pure sine wave, suitable to supply even sensitive electronic devices.Its efficiency level is very high and thanks to the integrated ECO-mode one of the highest in this class. Via the VE.Direct communication port and optional equipment it is possible to connect the inverter to a computer or smartphone which allows the configuration of various system parameters, for example the switch-on and switch-off voltage at low battery charge.Other adjustments like output frequency or voltage as well as a bipolar alarm-contact are only some of this inverter's features. The performance range of the Phoenix series VE.Direct 250-500 at this price is unique on the market and exceeds the abilities of other devices of this performance class enormously. Technical data: 200W constant output at 230V 50Hz sine voltage for 48V battery voltage, works with all common battery types 230V AC current with pure sine wave provides perfect current quality freely programmable switch-on7off threshold adjustable output voltage from 210 - 245V Technical highlights of the Phoenix VE.Direct series 250VA – 500VA 48V VE.Direct output allows the connection of the inverter to a computer (VE.Direct-to-USB cable needed) or your smartphone - together with the free Victron app it is possible to always keep an eye on your device (VE.Direct Bluetooth Smart Dongle needed) Fully programmable parameters: thresholds for activating or resetting alarms at low battery charge + thresholds for activating or restarting at low battery voltage + output voltage 210 - 245V + frequency of 50Hz or 60Hz + thresholds for ECO-mode on/off and ECO-mode sensor Integrated ECO-mode: In this mode the inverter switches to standby as soon as the load falls under a predefined value. In standby-mode the inverter reactivates for a short time (adjustable default setting: every 2.5s). If the load exceeds a predefined threshold the inverter stays activated. Proven reliability of this inverter:The full override via a torodial transformer topology has often proven itself over the last years. This inverters are save from short-circuits and overheating (caused by overload or ambient temperature).High starting performance: This is needed to activate loads like LED-drivers, halogen lamps or electrical tools.Remote controlled on/off-switching possible: A remote on/off-switch can be installed via a bipolar plug between the battery's +-pole and the left contact of the plug. Delivery scope:1x Victron PIN482510200 Phoenix 48/250 48V to 230V 200W 50Hz 60Hz

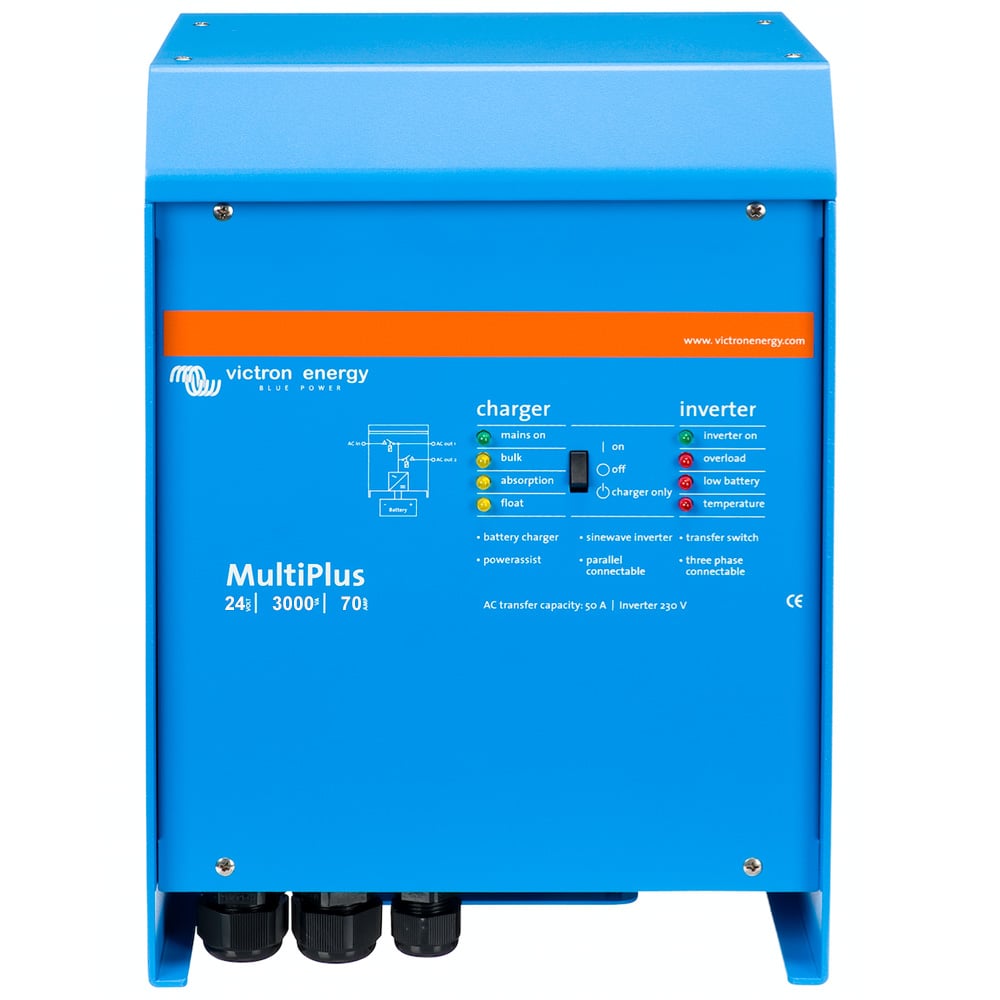

The victron MultiPlus 24/3000/70-50 (MPN PMP243021011) is a combination of 24V 2400W inverter and battery charger. The integrated battery charger provides 70A which allows quick charging even for bigger batteries as long as there is a grid connection.The 24V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.Integrating the MultiPlus in your system can be done via VE.Bus-port or COM-port which allows nearly unlimited networking. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 50A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 2400W constant output and 6000W peak current, for 24V battery voltage combination of inverter with transfer switch and 70A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available Besides the VE.Bus-port MultiPlus devices 3000 or bigger additionally come with an COM-port the allows nearly unlimited system integration PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron PMP243021011 Multiplus 24/3000/70-50 Combination of 24V 2400W sine inverter and 24V 70A battery charger + transfer-switch1x Manual

The victron MultiPlus 48/3000/35-50 (MPN PMP243021011) is a combination of 48V 2400W inverter and battery charger. The integrated battery charger provides 35A which allows quick charging even for bigger batteries as long as there is a grid connection.The 48V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.Integrating the MultiPlus in your system can be done via VE.Bus-port or COM-port which allows nearly unlimited networking. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 50A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 2400W constant output and 6000W peak current, for 48V battery voltage combination of inverter with transfer switch and 35A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available Besides the VE.Bus-port MultiPlus devices 3000 or bigger additionally come with an COM-port the allows nearly unlimited system integration PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron PMP483021010 Multiplus 48/3000/35-50 Combination of 48V 2400W sine inverter and 48V 35A battery charger + transfer-switch1x Manual

The Victron Phoenix Inverter 48/3000 (PIN483020000) is the second-largest 48V Phoenix inverter.Especially in terms of communication there are several new features which make the 48/3000 a future-proof investment that provides a constant performance of 2400W. This device converts a 48V DC battery current into a 230V AC current with a pure sine wave at 50Hz which also allows the supply of very sensitive electronic components.This inverter comes with excellent consumption and efficiency characteristics and moreover supports the parallel and three-phase operation with other Phoenix inverters out of this series. VE.Bus RS-485 communication port - extensive, new possibilitiesAll Phoenix inverters out of the 12V/24V/48V-3000-5000 series are equipped with a RS-485 data port. Via the optional VE Interface MK2-USB you can connect the inverter to a PC or notebook. This allows many new possibilities in terms of configuration and monitoring. Following some of the most important new features: individual adjustment of parameters such as output voltage, frequency, upper and lower voltage limit and much more... can be integrated in a computer-aided monitoring and control system all Phoenix inverters can also be used with VENet - Victron's innovative monitoring network - or any other computer-aided control and monitoring system easy programing of the integrated relay. The relay can be used to produce signals for special events or to start a generator, for example parallel or three-phase operation with other Phoenix inverters The main focus during the development of the new Phonex series was to create an inverter with a clean sine output and high efficiency. Thanks to latest hybrid-HF technology Victron was able to create a high-quality product with small dimensions and low weight which provides any needed performance easily.Additionally SinusMax technology, new within this series, allows very high peak-currents of 6000W. Technical data 2400W constant output, suitable for all common 48V batteries pure sine wave (50Hz) higher peak-currents thanks to Victron's Sinus-Max technology converts 48V DC into 230V AC (pure sine wave) advanced hybrid-HF technology - more performance and less vulnerable to faults compared to common high-frequency technology very low consumption, high efficiency integrated energy-saving mode bipolar alarm contact that can be used as output for an on/off-remote control SinusMax technologyThe most important characteristic about this technology is a very high starting current capacity which is not possible with common HF-technology.Phoenix inverters can easily handle high starting currents of, for example, refrigerating compressors, tools and others.Nearly unlimited performance through parallel and three-phase operation:Up to six inverters can be connected parallely to increase performance. Also three-phase operation is possible.Load switch to other AC-current sources:Automatic load switch: For smaller performance demands we recommend the Filax auto-switch. With its help computers and other sensitive electronic devices can be supplied free of interruptions as the switching times are very short (<20ms). Delivery scope:1x Victron PIN483020000 Phoenix Sine Inverter 48/3000 - 48V to 230V 2400W 6000W1x Manual

The Victron Phoenix Inverter 48/5000 (PIN485020000) is the largest 48V Phoenix inverter. Especially in terms of communication there are several new features which make the 48/5000 a future-proof investment that provides a constant performance of 4000W. This device converts a 48V DC battery current into a 230V AC current with a pure sine wave at 50Hz which also allows the supply of very sensitive electronic components.This inverter comes with excellent consumption and efficiency characteristics and moreover supports the parallel and three-phase operation with other Phoenix inverters out of this series. VE.Bus RS-485 communication port - extensive, new possibilitiesAll Phoenix inverters out of the 12V/24V/48V-3000-5000 series are equipped with a RS-485 data port. Via the optional VE Interface MK2-USB you can connect the inverter to a PC or notebook. This allows many new possibilities in terms of configuration and monitoring. Following some of the most important new features: individual adjustment of parameters such as output voltage, frequency, upper and lower voltage limit and much more... can be integrated in a computer-aided monitoring and control system all Phoenix inverters can also be used with VENet - Victron's innovative monitoring network - or any other computer-aided control and monitoring system easy programing of the integrated relay. The relay can be used to produce signals for special events or to start a generator, for example parallel or three-phase operation with other Phoenix inverters The main focus during the development of the new Phonex series was to create an inverter with a clean sine output and high efficiency. Thanks to latest hybrid-HF technology Victron was able to create a high-quality product with small dimensions and low weight which provides any needed performance easily.Additionally SinusMax technology, new within this series, allows very high peak-currents of 10.000W! Technical data 4000W constant output, suitable for all common 48V batteries pure sine wave (50Hz) higher peak-currents thanks to Victron's Sinus-Max technology converts 48V DC into 230V AC (pure sine wave) advanced hybrid-HF technology - more performance and less vulnerable to faults compared to common high-frequency technology very low consumption, high efficiency integrated energy-saving mode bipolar alarm contact that can be used as output for an on/off-remote control SinusMax technologyThe most important characteristic about this technology is a very high starting current capacity which is not possible with common HF-technology.Phoenix inverters can easily handle high starting currents of, for example, refrigerating compressors, tools and others.Nearly unlimited performance through parallel and three-phase operation:Up to six inverters can be connected parallely to increase performance. Also three-phase operation is possible.Load switch to other AC-current sources:Automatic load switch: For smaller performance demands we recommend the Filax auto-switch. With its help computers and other sensitive electronic devices can be supplied free of interruptions as the switching times are very short (<20ms). Delivery scope:1x Victron PIN485020000 Phoenix Sine Inverter 48/5000 - 48V to 230V 4000W 10000W1x Manual

The Victron Phoenix Inverter C24/1600 (CIN241620000) belongs to the next generation after Victron's Phoenix 12/80-1200 series. Compared to their preceding models devices out of the compact-class come with a widely enhanced range of functions.Especially in terms of communication there are several new features which make the C24/1600 a future-proof investment that provides a constant performance of 1300W. This device converts a 12V DC battery current into a 230V AC current with a pure sine wave at 50Hz which also allows the supply of very sensitive electronic components.This inverter comes with excellent consumption and efficiency characteristics and moreover supports the parallel and three-phase operation with other Phoenix inverters out of this series. VE.Bus RS-485 communication port - extensive, new possibilitiesAll Phoenix inverters out of the compact-series are equipped with a RS-485 data port. Via the optional VE Interface MK2-USB you can connect the inverter to a PC or notebook. This allows many new possibilities in terms of configuration and monitoring. Following some of the most important new features: individual adjustment of parameters such as output voltage, frequency, upper and lower voltage limit and much more... can be integrated in a computer-aided monitoring and control system all Phoenix inverters can also be used with VENet - Victron's innovative monitoring network - or any other computer-aided control and monitoring system easy programing of the integrated relay. The relay can be used to produce signals for special events or to start a generator, for example parallel or three-phase operation with other Phoenix inverters The main focus during the development of the new Phonex series was to create an inverter with a clean sine output and high efficiency. Thanks to latest hybrid-HF technology Victron was able to create a high-quality product with small dimensions and low weight which provides any needed performance easily.Additionally SinusMax technology, new within this series, allows very high peak-currents of 2400W. Technical data 1300W constant output, suitable for all common 24V batteries pure sine wave (50Hz) higher peak-currents thanks to Victron's Sinus-Max technology converts 24V DC into 230V AC (pure sine wave) advanced hybrid-HF technology - more performance and less vulnerable to faults compared to common high-frequency technology very low consumption, high efficiency integrated energy-saving mode bipolar alarm contact that can be used as output for an on/off-remote control SinusMax technologyThe most important characteristic about this technology is a very high starting current capacity which is not possible with common HF-technology.Phoenix inverters can easily handle high starting currents of, for example, refrigerating compressors, tools and others.Nearly unlimited performance through parallel and three-phase operation:Up to six inverters can be connected parallely to increase performance. Also three-phase operation is possible.Load switch to other AC-current sources:Automatic load switch: For smaller performance demands we recommend the Filax auto-switch. With its help computers and other sensitive electronic devices can be supplied free of interruptions as the switching times are very short (<20ms). Delivery scope:1x Victron CIN241620000 Phoenix Compact Sine Inverter C24/1600 - 24V to 230V 1300W 3000W1x Manual

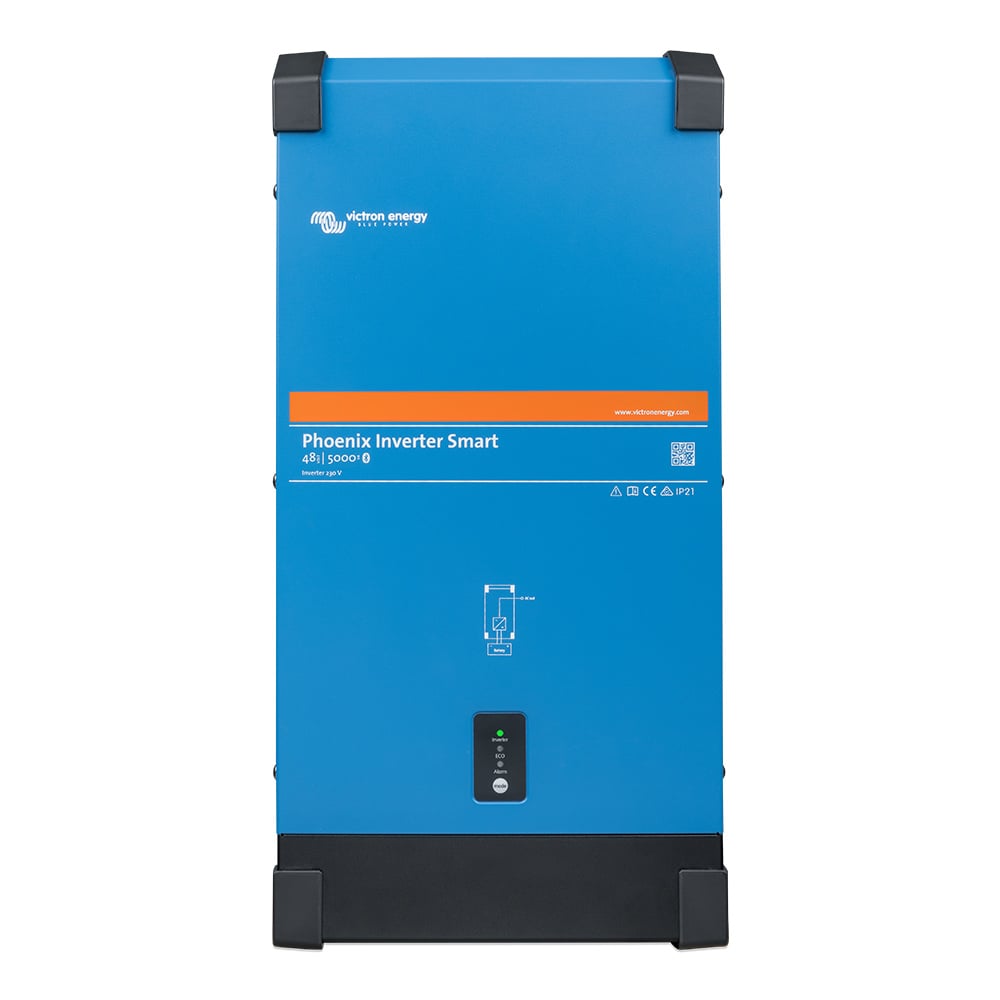

The Phoenix 48/5000 Smart Inverter from Victron Energy Victron Energy (mpn pin482500000), is an advanced inverter based on the proven Phoenix series. It offers 5000w of continuous power and is rated for 48v battery voltage. Compared to the previous models, the Phoenix-Smart series has a Bluetooth module and VE.Direct output for wireless remote monitoring and system configuration. The Phoenix 48/5000 Smart is further characterized by its high switch-on power and reliability and, thanks to the integrated eco mode, also plays in the top league of this device class in terms of self-consumption and efficiency. performance features Phoenix 48/5000 Smart for 48v battery voltage, output voltage 230 vac ±2% Output power (non-linear): 5000w, 4000w linear continuous load at 25 degrees ambient temperature 10000w peak power handling high starting currents integrated Bluetooth module and VE.Direct port for wireless monitoring and system integration designed for high inrush currents integrated alarm relay, eco mode monitoring of input and output voltage, load and alarms etc. via Bluetooth or VE.Direct integrated two-pole plug for connection of an on/off switch (remote control) parameters configurable via Bluetooth or VE.Direct Low battery voltage alarm Threshold values for switching off and restarting at low battery voltage values Dynamic shutdown: load-dependent shutdown threshold value Output voltage: 230 vac ±2%, frequency: 50 hz or 60 hz Threshold for eco mode on/off and eco mode sensor Alarm relay high reliability thanks to ring transformer topology The complete bridging additionally with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or by the ambient temperature). Very high inrush power This is required for switching on loads such as voltage converters for led lamps, halogen lamps or power tools. Eco mode In eco mode, the inverter switches to standby as soon as the load drops below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable). if the load exceeds the preset threshold, the inverter remains on. Remote on/off switching A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the h terminal (left) of the two-pin connector can be connected to a battery positive terminal or the l terminal (right) of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example). scope of delivery: 1x Victron pin482500000 Phoenix Smart 48/5000 1x instruction manual
