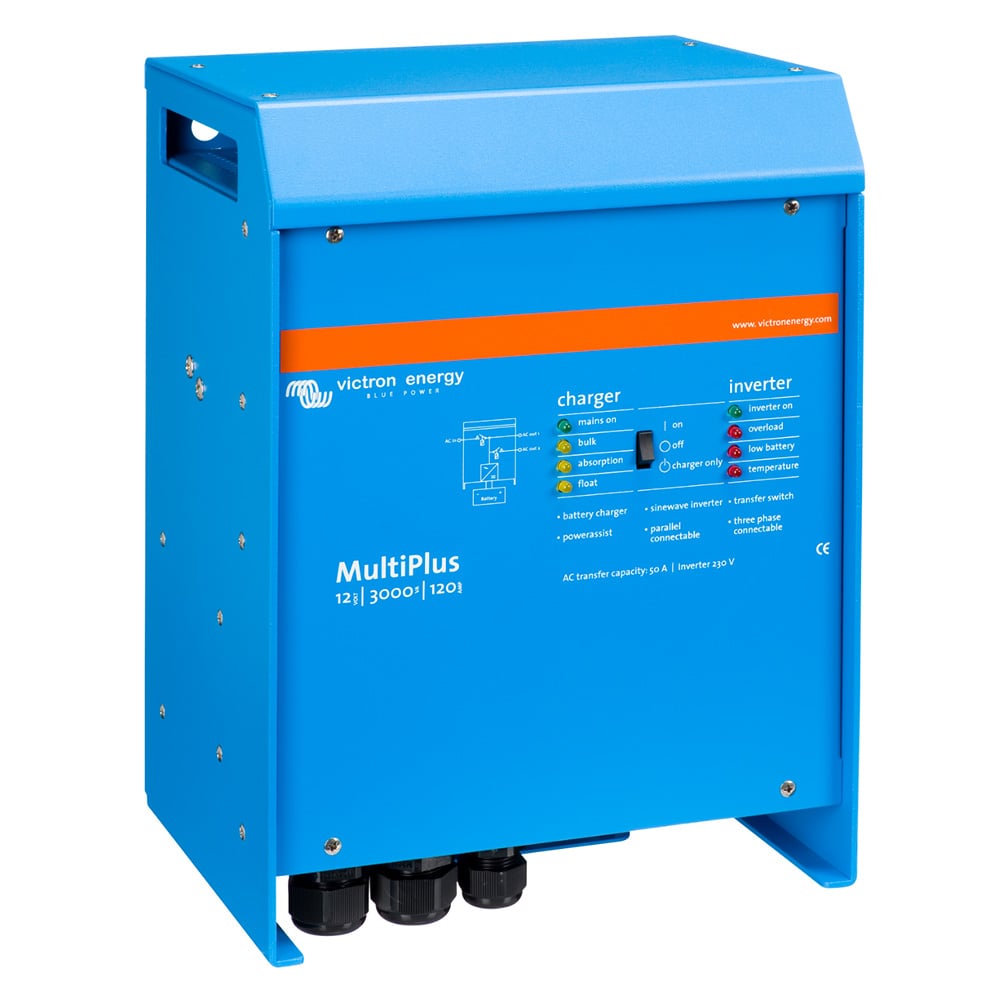

Victron MultiPlus 12/3000/120-16 12V 230V 2400W 6000W inverter 120A charger

The Multiplus 12/3000/120-16 from Victron Energy (MPN PMP123020001) is a combination device consisting of a 12V 2400W sine wave inverter and a battery charger. The permanently integrated battery charger delivers an impressive 120A, which means that even large batteries can be fully charged quickly when shore power is available. The 12V sine wave voltage converter built into the Multiplus converts the power from your battery into 230V AC.

Thanks to the true sine wave, the power quality is also perfectly suited for sensitive electronic devices. In addition to the two integrated device types, a lightning-fast transfer switch is also installed, which can be used to implement numerous grid-connected solutions. For system integration, a COM port is available in addition to the VE.Bus port, enabling virtually unlimited networking of the Multiplus.

Comprehensive and flexible

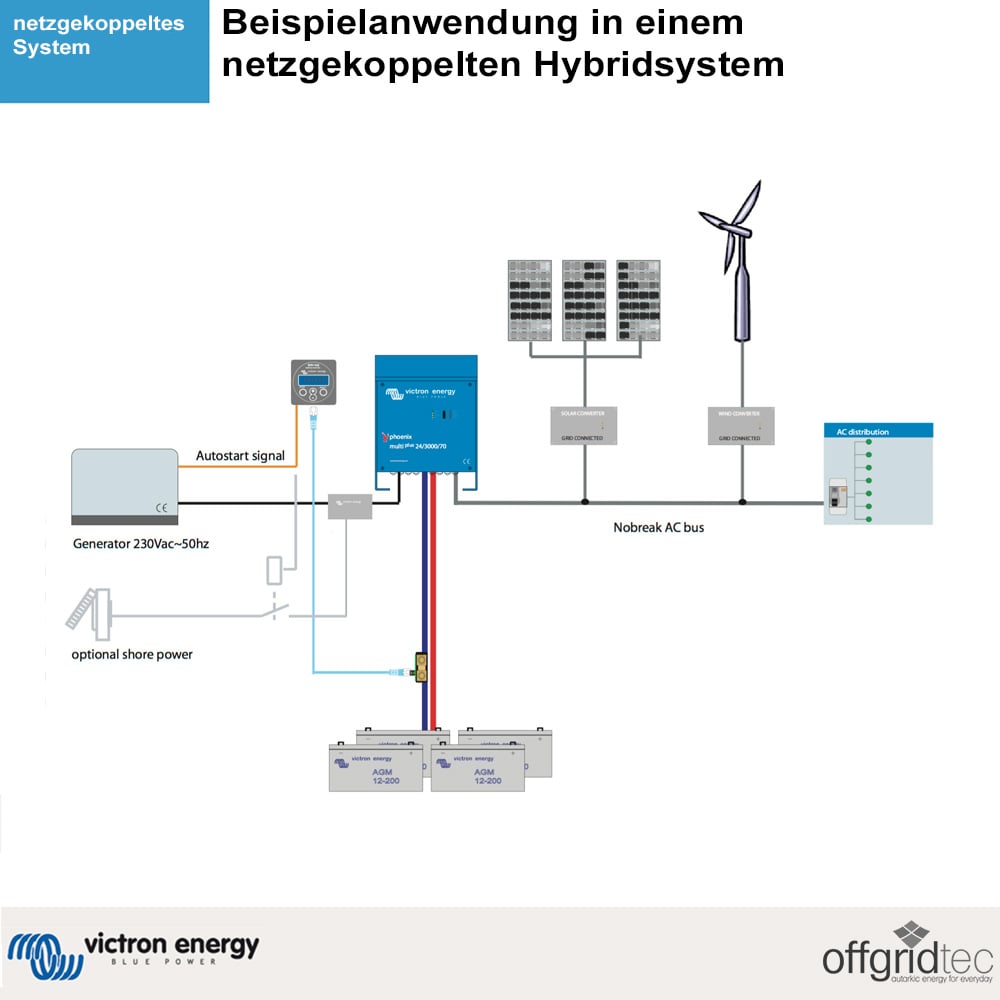

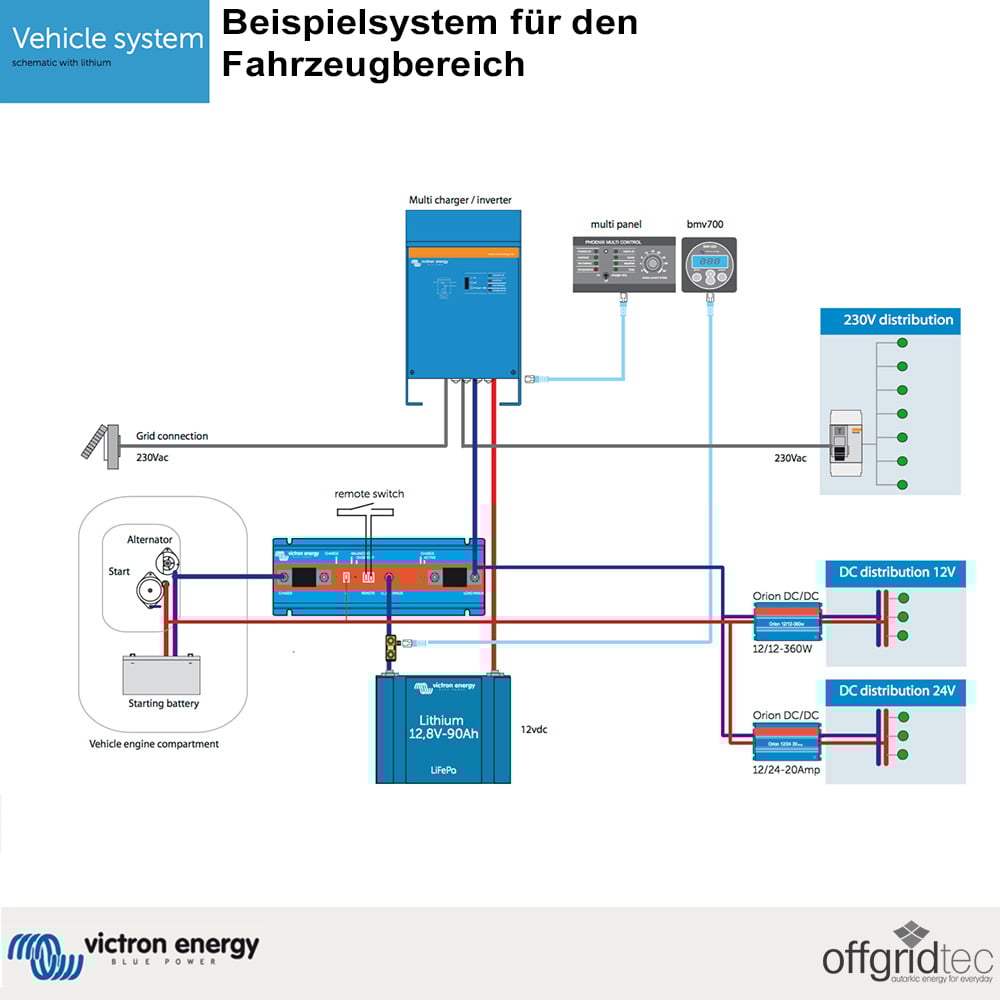

This inverter combines a charger, inverter, and a fast transfer switch, making it perfect for motorhomes, boats, yachts, and grid connection. It ensures an uninterrupted power supply in the event of grid fluctuations or failures. Also ideal for self-consumption systems that only access grid power when battery power is low, or as a UPS solution that ensures an uninterrupted flow of power when the grid fails.

about the Multiplus 12/3000/120-16

• Powerful: 2400W continuous power, 6000W peak power at 12V battery voltage
• All-in-one device: inverter with transfer switch, 120A battery charger
• Reliable power supply: Pure 230V sine wave voltage, 50Hz frequency
• Connectivity: VE.Bus communication port enables comprehensive networking, configuration, and control
• Scalability: Parallel connection of up to 6 devices possible for higher power
• Flexibility: 2 AC outputs, COM port from Multiplus 3000 for advanced system integration
• Functions: PowerControl, PowerAssist for optimized power usage
• Versatility: Can be used as a UPS, suitable for grid-connected self-consumption systems
• Compatibility: Supports various Victron control and display panels
• Three-phase operation possible with identical MultiPlus inverters

Massive power expansion possible

In addition to parallel connection, three units of the same model can also be configured for a three-phase output. But that's not all: up to six sets of three units can be connected in parallel to achieve a huge 75 kW / 90 kVA inverter and over 2,000 A charging capacity (calculated with the 5000 version)

PowerControl

Working with limited generator power, restricted shore power or mains power

The MultiPlus is a very powerful battery charger. It therefore draws a lot of current from the generator or shore power supply (almost 10A per 5kVA Multi at 230 VAC). The Multi Control remote control panel can be used to set the maximum mains or generator current that can be drawn. The MultiPlus then takes other connected AC consumers into account and only uses the power that is "left over" for charging. This prevents the generator or shore power connection from being overloaded.

PowerAssist

"Power boost" for generators and shore power support

Backup system: AC power even during a power failure

Simple system configuration

monitoring options and local control

remote monitoring and control

Remote configuration

Technical data:

• Input voltage range: 9.5-17V, 19-33V, 38-66V
• Output voltage: 230VAC±2% - 50Hz ± 0.1%
• Peak power: 6000W
• Continuous power: 2400W
• Battery connection: Four M8 bolts (2 positive and 2 negative connections)
• 230VAC connection: Screw terminals 13mm² (6 AWG)
• Max. efficiency: 95%
• Protection class: IP21
• Dimensions: 362 x 258 x 218 mm
• Weight: 18 kg

Scope of delivery:

1x Victron PMP123020001 Multiplus 12/3000/120-16 device combination
1x operating instructions
