The bc01 Female from Betteri (mpn bc01B) is used for connection to a Envertech-, Hoymiles- or Huayu inverter. The opposite side can be connected to a h07rn-f rubber hose cable with a diameter of 10-14mm. It is a three-pole socket made of UV-resistant material. In addition, it is dustproof and waterproof according to protection class ip67, making it suitable for indoor and outdoor use. Product features Suitable for 1-phase inverters from e.g. Envertech, Hoymiles or Huayu Suitable for cables with a diameter of 10-14mm Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor installation Technical features Number of poles: 3-pole Material: plastic Operating temperature range: -40°C - +85°C Rated voltage: 230v AC Rated current: 25A Dimensions: 85.5 x 34.8 x 34.8 mm Weight: approx. 50g Scope of delivery: 1x Betteri bc01 female power plug

The end cap of Betterie (mpn bc01c) is used to close the unused 3 pole AC socket of the PV inverter of e.g. Envertech, Hoymiles or Huayu. Product features Suitable for 1-phase inverter from e.g. Envertech, Hoymiles or Huayu Closure of Betteri bc01 Female connector Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor mounting Scope of delivery: 1x Betteri Closure cap for bc01 socket

The PV-Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With the push-in connection - plug, turn, power! - it enables crimp-free, fast and secure connection of solar panels, inverters and other components in PV systems. The PV-Stick is compact and easy to install, which saves time and costs. Electrical properties Push-in technology Protection class: II Complies with DIN EN 50521 Application information Push in the stripped photovoltaic cable (strip 15-16.5mm) without the wire end sleeve. An audible click indicates that the contact has been made securely. Tighten the screw cap with a few turns "Snap in" ensures that the connectors are firmly engaged Technical Data Continuous operating temperature: -40°C - + 85°C Rated voltage: 1500 V/DC Rated current: 30A Degree of protection mated condition: IP65 Degree of protection open condition: IP2x Protection class: II Conductor cross-section: 4mm²-6mm² PV conductor according to EN 50618:2014 Cable diameter: 6.1mm-6.2mm Overvoltage category: III/3 Clearance & creepage distance according to DIN EN 60664-1:2007 Contact resistance: IEC 62852:2014 Approval: IEC 62852:2014 Rated surge voltage: 16 kV Connection technology: PUSH IN (spring clamp connection) Mounting temperature: +10°C - +40°C Scope of delivery: 1x Weidmüller PV Stick MC4 Set

The bc01 connector Male from Betteri (mpn bc01B) is used for connection to a Envertech-, Hoymiles- or Huayu inverter. The opposite side can be connected to a h07rn-f rubber hose cable with a diameter of 10-14mm. It is a three-pin connector made of UV-resistant material. In addition, it is dustproof and waterproof according to protection class ip67, making it suitable for indoor and outdoor use Product features Suitable for 1-phase inverters from e.g. Envertech, Hoymiles or Huayu Suitable for cables with a diameter of 10-14mm Dust and waterproof according to ip67 UV resistant - Suitable for indoor and outdoor installation Technical features Number of poles: 3-pole Material: plastic Operating temperature range: -40°c - +85°c Rated voltage: 230v ac Rated current: 25a Dimensions: 85.2 x 34.8 x 34.8 mm Weight: approx. 50g Scope of delivery: 1x Betteri bc01 plug Male power plug

These branch plugs are used to connect solar modules parallely to maintain a constant voltage. Ideal for 12V-systems or the connection of thin-film modules. Details: 1 Pair Y-connectors for a parallel connection of solar modules easy snap-in connection system for cables with a max. diameter of 4 - 6mm² ideal for 12V-systems and thin-film modules suitable for voltages up to max. 1000V DC snap-in connection system IP67 compatible with solar connector plugs Scope of Delivery: 1x Offgridtec branch plugs Y-Connectors (pair)

ÖLFLEX© solar xls-r t bk/rd solar cables - Key product features: 1. ÖLFLEX® solar xls-r t are halogen-free, double-insulated and cross-linked twin cables for permanent outdoor use. These cables are used in the construction of photovoltaic systems both for wiring the individual solar modules to each other and for wiring to the inverter 2. Construction data --- Conductor: Fine stranded tinned cu wire, according to iec 60228, class 5 --- Core insulation: temperature resistant and halogen-free co-polyolefin, radiation crosslinked Pair colors: black/red --- Outer sheath: flame retardant and halogen-free co-polymer, radiation crosslinked Outer sheath color: black 3. Special features of the cross-linked compound are, besides the extended temperature range, very good values regarding uv-, ozone-, and weathering resistance as well as abrasion resistance. They are used for cabling solar modules to each other, as well as for connecting the individual module rows and the inverter. This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length. Electrical properties Rated voltage u0/u according to vde: ac 600/1000 v / dc 900/1500 v Maximum permissible dc voltage: 1.8 kv dc (conductor/conductor, not grounded system) Test voltage ac 6.5 kv dielectric strength tests according to en 50395 thermal properties temperature range fixed: -40° c to +100° c max. conductor temperature Short circuit temperature +200°c installation temperature flexible: max. -25 °c thematic life according to en 60216-2 Thermal pressure resistance according to en 60811-3-1 Humidity-heat test according to en 60068-2-78 at 85% humidity Mechanical properties Minimum bending radius occasionally moved: 15 x cable diameter permanently installed: 5 x cable diameter Dynamic penetration: according to requirement profile ak 411.2.3 appendix F Tear propagation resistance: according to requirement profile ak 411.2.3 Annex G Testing of insulation and sheath tear strength as well as elongation: according to en 60811 chemical properties Ozone resistance: according to en 50396 part 8.1.3 method B Weathering / Uv resistance according to hd 605/A1 Fire behavior flame retardant according to iec 60332-1-2 Halogen-free according to iec 60754-1 Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda) EC Directives The cables conform to the EC directives 2006/95/ec (low voltage directive) and 2002/95/ec and 2011/65/ec (RoHS, restriction of the use of certain hazardous substances). installation in the ground In principle, solar cables can be laid underground in protective pipes suitable for underground installation if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The installation of the cables and the correct design of the cable trench must comply with vDE 0100 part 520 or comparable standards.

The Offgridtec 2-fold junction sockets incl. cable extension (mpn 010337) are compatible with solar connectors and are used to connect 2 modules in parallel. The design is identical to the 2-way junction boxes but these junction sockets have a cable extension. (Article total length: approx. 34cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with solar connectors Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel connection mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 2-fold junction Y-connector incl. cable extension

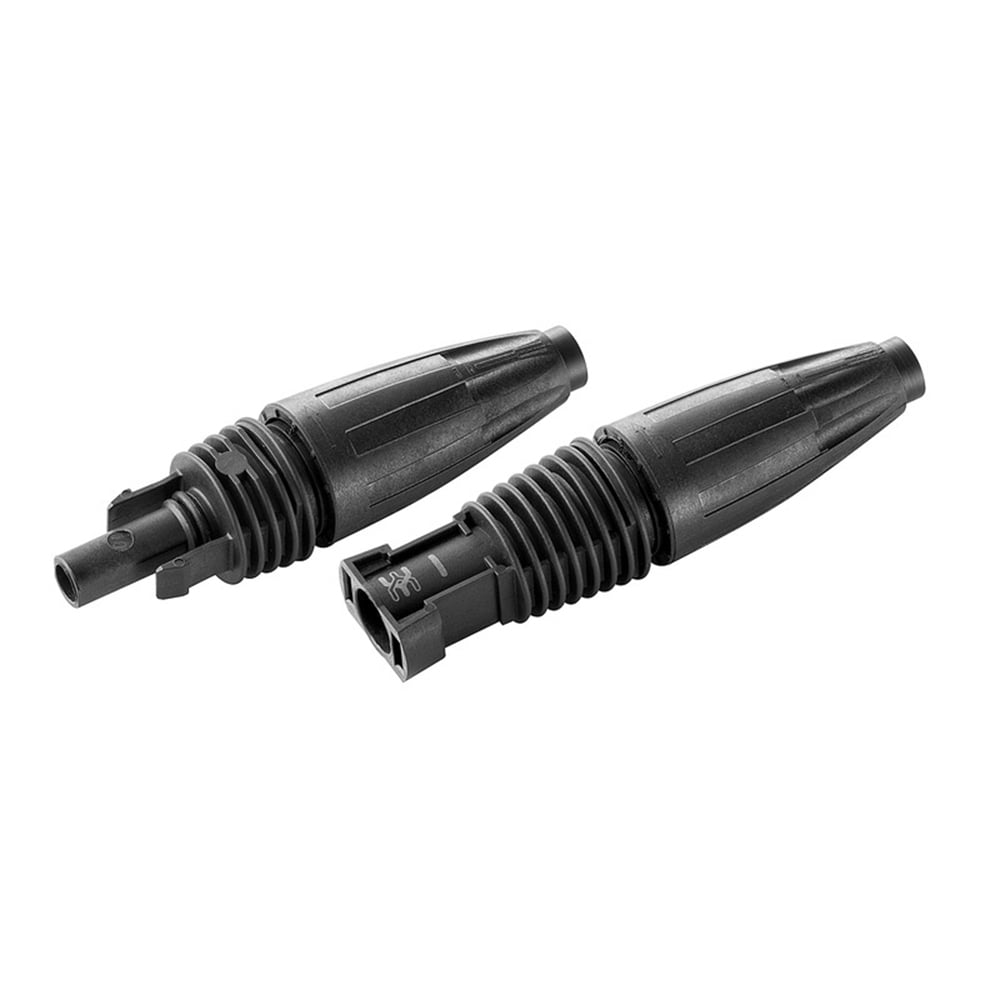

This set includes a male and a female MC4-plug. These plugs are original Stäubli MC4-plugs. Details: touchproof, unplugged IP2X protection, plugged IP67 temperature range from -40° to 90°C isolation material: PA snap-in locking-system cable strain relief according to IEC 61984 (06.2001) contact system: MC-contact lamellas contact material: tinned copper flame class:UL94-V0 protection class: II system voltage up to 1000V rated amperage up to 30A

The 10mm² Offgridtec solar cable is used to wire solar modules and is suitable for direct burial and for use in and on protective insulated equipment and installations. This item is sold by the meter. Each item is equivalent to one meter. For example, if you buy 10x this item, you will receive a coherent piece with 10m length. Scope of delivery: 1x 10mm² Offgridtec solar cable (quantity according to meter specification)

ÖLFLEX® solar xlr-r cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect grounded and ungrounded photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜv Rheinland according to 2 PfG 1169/08.2007 (pv1-f) design.Important product features:Cable cross-section: 1x4mmManufacturer: Lapp KabelColor outer insulation: BlackColor inner insulation: Whitexlr-r solar cables from Lapp can generally be laid in protective tubes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with vde 0100 part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted.Conductor construction1. Conductor: Fine stranded wire of tinned cu-wires, according to iec 60228, class 52. Core insulation: electron beam crosslinked polyolefin co-polymer3. Outer sheath Electron beam crosslinked polyolefin co-polymer Outer sheath color: black or black with red or blue stripeElectrical propertiesRated voltage: u0 /u according to iec ac 600/1000 v dc 900/1500 vMax. permissible system voltage: 1.8 kv dc (conductor/conductor, not grounded system) according to TÜv 2 PfG 1169/08.2007 Test voltage ac 6.5 kvThermal characteristicsTemperature range fixed: -40° c to +120° c max. conductor temperature (according to en 60216-2)Temperature range according to fixed installation: -40 °c to +90 °c ambient temperature TÜv 2 PfG 1169/08.2007installation temperature flexible: max. -25 °cThermal pressure resistance according to en 60811-3-1Humidity-heat test according to en 60068-2-78 at 85% humiditymechanical propertiesMinimum bending radius occasionally moved: 15 x cable diameterpermanently installed: 5 x cable diameterDynamic penetration according to dke requirement profile Pv1-F ak 411.2.3 appendix FTear resistance according to dke requirement profile Pv1-F ak 411.2.3 Annex GTesting of tensile strength and elongation according to en 60811chemical propertiesWeathering / Uv resistance according to hd 605/A1Ozone resistance according to en 50396Halogen free according to en 50267Fire resistance flame retardant according to iec 60332-1-2Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda)

The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply. special features of the P&P inverter connection cable Immediately ready for use since delivered as Plug & Play version technical features of the 5m Microinverter connection cable Offgridtec-Part number: 8-01-013602 Cable length: 10m Usage; Connection of compatible micro inverters to the house power grid via feed-in socket Cable type: heavy rubber cable H07RN-f 3x2,5 from Lapp-Kabel Connector on socket side: Schuko plug type-f angled Connector on inverter side: Betteri bc01 socket compatible micro inverters EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S TSUN tsol M350/M800 Bosswerk mi300 / MI600 Hoymiles mi-300 / MI-600 a.o. (e.g. Huayu) Scope of delivery: 1x Offgridtec 8-01-013602 10m plug & play connection micro inverter to power outlet

The Offgridtec 3-fold junction sockets incl. cable extension (mpn 010338) are compatible to solar connectors and are used to connect 3 modules in parallel. The design is identical to the 2-way Jacks but these jacks connect 3 instead of 2 modules and have a cable extension. (Total length: approx. 54cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with PV-KST 4/6ii solar connector Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel wiring mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit, the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 3-way junction T-connector incl. cable extension

With this practical adapter cable (mpn 8-01-012660), the solar cases and foldable solar modules from Offgridtec can be easily connected to various devices. The cable has an Anderson plug for the solar module at one end and leads to an solar connector, which is suitable for many devices. Anderson plug 50a - compatible with solar modules solar-connector plug Length: 20 cm Scope of delivery: 1x adapter cable 20 cm

Info: This article is here as meter goods for sale. 4 articles would thus make, for example, a cable with 4m length.The cable is designed for worldwide use and the most diverse climatic regions. For power generation with wind and / or photovoltaic systems, this cable is ideally suited and will be a perfect connecting link. Whether used for connecting individual solar cells together or for wiring to the inverter. The cable is also ideal for laying in mobile homes and boats, because it is very flexible despite its two wires and can be laid over any corner.Other special features of this cable are that they achieve excellent values in terms of weather and uv - resistance. The extended temperature range makes it possible to use the cable even in the most extreme climatic environments, specifically counteracts heat aging and thus guarantees the function of the PV system for many years at any time of the year. And the cross-linked insulation material prevents the insulation from flowing away in the event of a short circuit. Advantages of this cable:resistant to ozone and weather influencesBurning behavior according to vde 0482-332-1-2, din en 60332-1-2/iec 60332-1 (corresponds to din vde 0472 part 804 test type b)Ozone resistance of the insulating sheaths according to din vde 0472 part 805, test type a or part 805 a1, test type cOil resistance, test according to en 60811-2-1construction data:cu stranded wire bare, flexible according to din vde 0295 cl. 5, bs 6360 cl. 5, IEc 60228 or hd 383Rubber core insulation ei4 according to din vde 0282 part 1Insulation wall thickness according to din vde 0282 part 4wire marking according to din vde 0293-308 or hd 186core colors blue, brownRubber outer sheath em 2 according to din vde 0282 part 1Sheath wall thickness according to din vde 0282 part 4

With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to various power stations with dc-7909 - 8mm connector. The cable has a pure Anderson 50a connector on one end and a dc-7909 - 8mm male connector on the other end. Thanks to the Plug and Play principle, connecting Offgridtec FSP modules or solar cases to a compatible Power Station is simple and straightforward. Features Anderson connector 50a dc-7909 - 8mm Male Connector - Shank Length 9mm Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (grey) Compatible with Power Stations with DC-8mm connector Length: 20cm Wire gauge: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Shank length DC connector 9mm - Please check if the connector of your power station is compatible before purchase Offgridtec always offers the highest quality Thanks to our many years of experience in the field of solar cables and wires, our wide range of products always offers you the right one for your needs and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm

ÖLFLEX© solar xls-r t 2x2,5mm is a radiation crosslinked high-end solar cable made in Germany with optimized cable design is the solar cable -slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the cable together. This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length. Product features Weather/Uv resistant according to hd 605/a1 Ozone resistant according to en 50396 Halogen free and flame retardant Good notch and abrasion resistance xls-r t= X-Linked Standard-Reduced twin - Proven electron beam crosslinked quality Standard references / Approvals Also available as tÜv pv1-f certified version on request - Ideal for pv stand-alone systems Areas of application Ideal for pv stand-alone systems Gable and flat roof photovoltaic systems Photovoltaic or solar field systems Flexible or building-integrated pv systems Benefit Easy to separate into two individual lines Reduced outer diameters enable space and weight-saving installation Robust against mechanical impact Reduction of fire propagation and toxic smoke gas formation in the event of fire Exact quantity control during installation thanks to meter marking on the cable sheathing Structure Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of radiation crosslinked copolymer Outer sheath color: black Cores connected in parallel with separating web technical data Core ID code: black / red blue / red Classification: EtIM 5.0 Class ID: ec001578 EtIM 5.0 Class description: Flexible cable Conductor stranding: Fine stranded according to vde 0295, class 5 / iec 60228 Cl.5 Minimum bending radius: Fixed installation: 4 x outer diameter Nominal voltage: AC u0/u : 600/1000 v dc u0/u : 900/1500 v max. permissible system voltage: dc 1.8 kv (conductor-conductor, not grounded system) Test voltage: AC 6500 v temperature range: 40°C to +100°c max. conductor temperature ÖLFLEX© solar xls-r t 2x2,5mm is a radiation crosslinked high-end solar cable made in Germany with optimized cable design the solar cable is -slim, light and robust and saves a lot of time during installation.

The Offgridtec 4-way jacks incl. cable extension (mpn 010339) are compatible to mc-4 connectors and are used to connect 4 modules in parallel. The design is identical to the 2-way jacks but these jacks connect 4 instead of 2 modules and have a cable extension. (Total length: approx. 54cm) Important article features Branching sockets for parallel connection of several solar modules Suitable for cables with a cross-section of 4mm²-6mm² Compatible with PV-KST 4/6ii solar connector Ideal for 12V systems and thin film modules Easy-click system / snap-in lock Protection class ip67 when plugged in What does parallel wiring mean? In parallel connection, the positive and negative wires are bundled at one output. Through this circuit, the current increases and the voltage remains the same. Practical example: You want to connect 3 pieces of 100w (Imp=5,56A Vmp=17,8V) solar modules to a charge controller with 20a and a max. input voltage of 30v/dc. In order not to exceed the allowed input voltage, you must wire the modules in parallel. So plus to plus and minus to minus. If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. So your solar configuration fits perfectly to the charge controller. Scope of delivery: 1x pair Offgridtec 4-way junction T-connector incl. cable extension

Suitable for Maxi flat fuses for additional protection of electric consumers. Splash proof. Features:Solid rubber protection cap - splash proofCable diameter: 10mm²Nominal current: 60A

With this practical adapter cable (mpn 013365), the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected in parallel. The cable has an Anderson connector for the solar modules at both ends. Thanks to the plug and play principle, connecting two modules in parallel is simple and straightforward. Features Anderson connector on both sides 50a Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (gray) Length: 20cm Cable cross section: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Offgridtec always offers highest quality Thanks to our many years of experience in the field of solar cables and conductors, we can always offer you the right product for your needs with our wide product range and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems, where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm

The Offgridtec 4-way junction sockets (MPN 010336) are compatible with solar connectors and are used to connect 4 modules in parallel. In terms of construction, they are identical to the 2-way junction sockets, but you can save costs by using these connectors, as you can connect 4 modules in parallel instead of 2. Important article features Branching sockets for parallel connection of several solar modulesSuitable for cables with a cross-section of 4mm²-6mm²Compatible with solar connectorsIdeal for 12V systems and thin-film modulesSnap-in lockingIP67 protection classWhat does parallel connection mean? With parallel connection, the plus and minus wires are bundled at one output. This circuit increases the current and the voltage remains the same.Practical example: You want to connect 3 pieces of 100W (Imp=5.56A Vmp=17.8V) solar modules to a charge controller with 20A and a max. input voltage of 30V/DC. To ensure that you do not exceed the permitted input voltage, you must wire the modules in parallel. So plus to plus and minus to minus.If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp=16.68A and Vmp=17.8V. This makes your solar configuration a perfect match for the charge controller. Scope of delivery: 1x pair of Offgridtec 4-way junction sockets T-connector

This high-quality cable is needed to connect your charging regulator to an accumulator. The cable comes with a wire end sleeve for a connection to the charging regulator and M8 circular eyelets to connect to a battery. The binding posts are included in the scope of delivery. Features: 1,5m /2 x 6mm² battery cable with 20A fuse connects charging regulator and battery professional manufactured high-quality materials quick and easy installation Technical data:Cable diameter: 2 x 6mm²Fuse: 20ALength: 1,5m

H07RN-F 1x10 (heavy standard structure, corresponding HAR) is a heavy rubber connection and control cable with a wide range of possible applications.It is very well suited for inside and outside installations and is often used in industries and farming. Details: 1x10mm, heavy standard version flame retardant according to IEC 60332-1-2 oil resistant according to EN 60811-404 cold-resistant UV-resistant Examples of application: construction site extension cable extension cable for outside applications of average mechanical load (industial, agricultural use) devices according to HD 516 / VDE 0298-300 dry and humid rooms as well as outside (with regard to all cable characteristics) according to HD 516/ VDE 0298-300 Application: for more mechanically demanding application in business or private areas max. 1000V AC protected + laid firmly arrays of single-core rubber cables 07RN-F can be used for short-circuit and earth-leakage safe installations according to IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 part 520 Structure: blank copper-wire according to HAR-standard wire isolation: mixed rubber type EI 4 coating: mixed rubber type EM 2 Standard references / Certification H07RN-F structure certified according to EN 50525-2-21 product details flame retardant according to IEC 60332-1-2 oil resistant according to EN 60811-404 Lappkabel is a German manufacturer who produces cables for various purposes. All cables are made  in several facilities in Germany under strict quality standards.

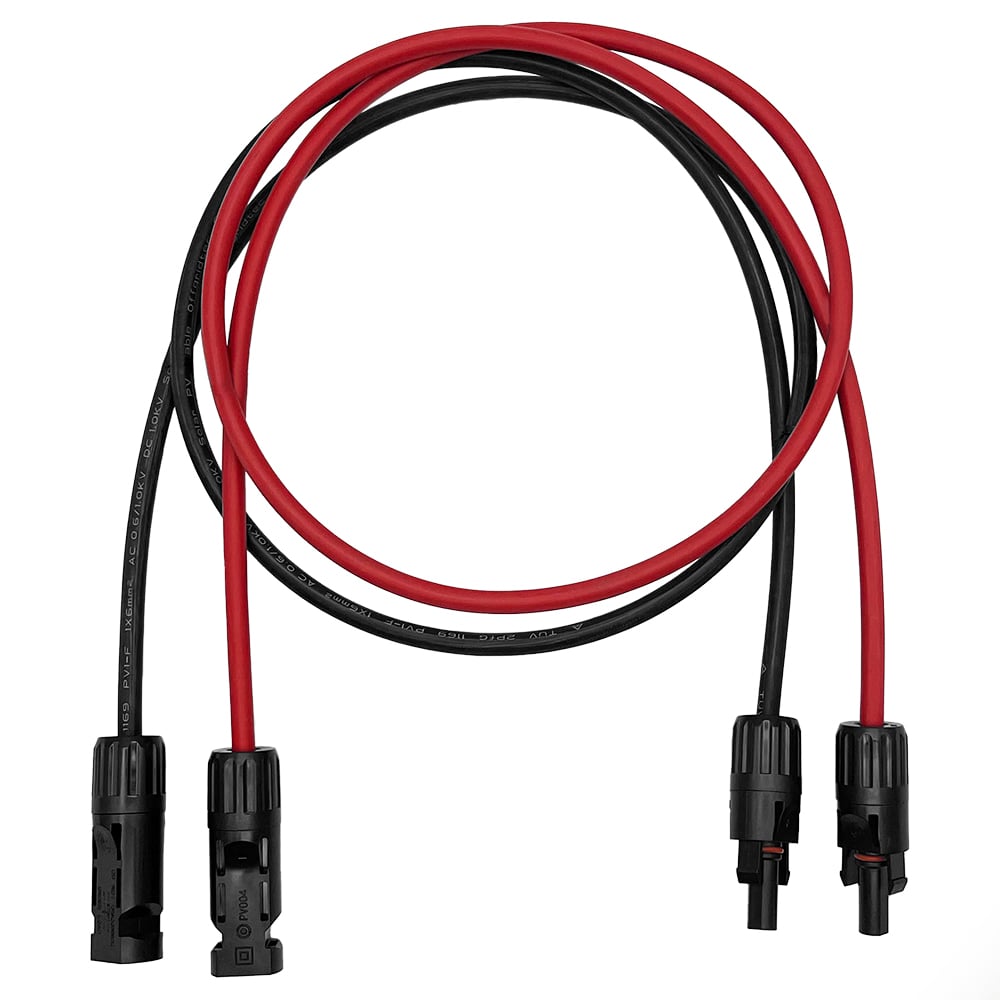

6mm² solar cable from Helu-Kabel (made in Germany) with original MC4-plug - completely prefabricated. These cables are prepared with special tools and can be used instantly.Features: original MC4-plugs prefabricated with special tools plug & play made in Germany Technical data: cable diameter: 6mm² cable length: 50cm plugs: 2 x MC4-plugs (male / female)
