The Offgridtec® mobileblack series impresses with an appealing optical design in noble black and with its extremely convincing performance parameters. Starting with the olp solar modules in the latest shingle design and an outstanding cell efficiency of over 21%, up to the Offgridtec® mppt Pro dual charge controller, one can really speak of a successful selection and product composition from Offgridtec. 100w mobileblack m caravan complete system This complete system contains everything you need to charge your batteries mobile. The dual controller included in the set allows you to charge your on-board battery and at the same time charge the starter battery, because it has a corresponding secondary charging output. The scope of delivery includes extensive information material, in which the assembly and connection are explained step by step - this concerns both the technical connection and the bonding of the retaining spoilers and the roof duct. The grommet is made of the same material as the spoilers - the peg screw connection complies with protection class ip68 and is therefore absolutely watertight when installed correctly. scope of delivery of the mobileblack m 100w caravan solar system 1x Offgridtec® olp solar panel 100w 12w perc with shingle technology 1x Offgridtec abs cable gland 1-way - black with waterproof peg gland 1x Offgridtec 55cm abs mounting profiles (1pair) - for mounting the solar modules in black 1x Offgridtec 8m 2x6mm h07rnf - connection cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 10mm² battery connection cable with mIDI fuse holder and 40a mIDI fuse - connection cable solar charge controller to battery with battery pole terminals and m8 cable lug connection 1x Offgridtec® 30a mppt dual solar charge controller with auxiliary charge and aes switching output 1x remote display for mppt Pro Duo charge controller 1x Dekalin adhesive set with Dekasyl mS-5 polymer adhesive, Dekavator bonding agent, cleaning cloth and operating instructions 1x mC-4 extension cable 50cm to connect a connection cable located at the module with the module connection cable The Offgridtec® mppt Pro Duo 30a solar charge controller The mppt Pro Duo controller can handle a maximum charge current of 30a. This means that this system is theoretically expandable to nearly 400w of solar module power. In addition, the device has a secondary charge output via which the starter battery can be charged in parallel to the on-board battery during longer periods of standstill - a feature that is certainly very appreciated in the mobile home. So that in terms of efficiency can really be spoken of the optimum, the device also has an aes switching output - this allows in excess solar power, the automatic switching of refrigerators with "aes" from gas to 12v operation. maximum charging current 30a - 390w module power theoretically usable 30a load output for 12v loads directly on the charge controller the clear remote display allows the regulator to be mounted in hard-to-reach places in the vehicle without limiting the operation and overview of the system parameters aes control signal for car refrigerator to avoid energy waste 100V maximum pv input voltage Digital circuit control of adaptive three-stage charging mode to improve battery life max power point tracking technology with ultra-fast tracking speed and guaranteed tracking efficiency of 99.5% minimum Dimensions: 24.7cm x 16.5cm x 6.9cm (lxwxh) Weight: 1,4KG Power consumption: 26mA at 12v Active temperature equalization for optimal charging and ensuring long battery life Supports all major battery types (lead acid, AGm, gel, liFePo4) max. efficiency: 98 The 100w olp solar panel with the latest shingle technology The 100w olp solar module with perc technology used in the system impresses on the one hand with its unique module design with overlapping wafer arrangement (overlapping design), and on the other hand with its high module efficiency, which makes this module particularly interesting for applications on vehicles due to the limited space available. module voltage (Vmp): 18.7V max. current (Imp): 5,35A open circuit voltage (Voc): 22.1V Short circuit current (Isc): 5.67A Cell efficiency: >23% Ambient temperature: -40°C - +85°C Temperature coefficient power: -0.43%/°C Temperature coefficient voltage: -0.34 %/°C Temperature coefficient current: -0.05 %/°C Weight: 6,09KG Dimensions: 988mm x 560mm x 30mm Protection class junction box: ip68 (waterproof) length of preassembled connection cables: 55cm pre-assembled connectors: mC4 compatible connectors Number of cells: 108 (6x18) The professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 55cm x 8.9cm (of which about 3cm bearing surface module per spoiler) x 6.5cm. The gluing Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The Dekalin glue set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. This is because even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the surface on which they are to be mounted Note: Our mounting spoilers are designed for a module frame height of 35mm. With a frame height of 30mm, special care must be taken to screw the fastening screws horizontally or at a slight downward angle. Otherwise, the sensitive rear side of the module will be damaged by the fastening screws! The professional cabling set All necessary cables are delivered plug and play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mC-4 connectors. Individual system customization possible on request We strive to implement every wish of our customers in the best possible way. With the individual requirements of a solar system, this is of course not always 100% possible. If you should therefore wish adaptations at one of our systems send us simply a mail to [email protected] - just tell us briefly which system your request refers to, which change you would like to have (e.g. additional module, color spoiler, adhesive or bushing, other charge controller, etc.) and you will receive an appropriate offer from our sales team as soon as possible. scope of delivery: 1x Offgridtec 4-01-012875 Offgridtec® mobileblack m 100w 12v mppt caravan solar system

The Offgridtec® mobileblack series impresses with an appealing optical design in noble black and with its extremely convincing performance parameters. Starting with the olp solar modules in the most modern shingle design and an outstanding cell efficiency of over 21%, up to the Offgridtec® mppt Pro dual charge controller, one can really speak here of a successful selection and product composition from the house Offgridtec. 200w mobileblack m caravan complete system This complete system contains everything you need to charge your batteries mobile. The dual controller included in the set allows you to charge your on-board battery and at the same time charge the starter battery, because it has a corresponding secondary charging output. The scope of delivery includes extensive information material, in which the assembly and connection are explained step by step - this concerns both the technical connection, as well as the bonding of the retaining spoilers and the roof duct. The grommet is made of the same material as the spoilers - the peg screw connection complies with protection class ip68 and is therefore absolutely watertight when installed correctly. scope of delivery of the mobileblack m 200w caravan Solaranlage 2x Offgridtec® olp solar panel 100w 12w perc with shingle technology 1x Offgridtec abs cable gland 1-way - black with waterproof peg gland 2x Offgridtec 55cm abs mounting profiles (1pair) - for mounting the solar modules in black 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 10mm² battery connection cable with mIDI fuse holder and 40a mIDI fuse - connection cable solar charge controller to battery with battery pole terminals and m8 cable lug connection 1x Offgridtec® 30a mppt dual solar charge controller with auxiliary charge and aes switching output 1x remote display for mppt Pro Duo charge controller 1x Dekalin adhesive set with Dekasyl mS-5 polymer adhesive, Dekavator bonding agent, cleaning cloth and operating instructions 1x single cartridge of Dekasyl mS-5 adhesive from Dekalin 1x junction boxes for parallel connection of solar modules 2x solar connector extension cable 50cm to connect the connection cables on the module with the junction boxes The Offgridtec® mppt Pro Duo 30a solar charge controller The mppt Pro Duo controller can handle a maximum charge current of 30a. This means that this system is theoretically expandable to nearly 400w of solar module power. In addition, the device has a secondary charge output via which the starter battery can be charged in parallel to the on-board battery during longer periods of standstill - a feature that is certainly very appreciated in the mobile home. So that in terms of efficiency can really be spoken of the optimum, the device also has an aes switching output - this allows in excess solar power, the automatic switching of refrigerators with "aes" from gas to 12v operation. maximum charging current 30a - 390w module power theoretically usable 30a load output for 12v consumers directly on the charge controller the clear remote display allows the controller to be mounted in hard-to-reach places in the vehicle without limiting the operation and overview of the system parameters aes control signal for car refrigerator to avoid energy waste 100V maximum pv input voltage Digital circuit control of adaptive three-stage charging mode to improve battery life max power point tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5% Dimensions: 24.7cm x 16.5cm x 6.9cm (lxwxh) Weight: 1.4KG Power consumption: 26mA at 12v Active temperature equalization for optimal charging and ensuring long battery life Support of all major battery types (lead acid, AGm, gel, liFePo4) max. efficiency: 98 The 100w olp solar panel with latest shingle technology The 100w olp solar module with perc technology used in the system impresses on the one hand with its unique module design with overlapping wafer arrangement (overlapping design), and on the other hand with its high module efficiency, which makes this module particularly interesting for applications on vehicles due to the limited space available. module voltage (Vmp): 18.7V max. current (Imp): 5.35A open circuit voltage (Voc): 22,1V Short circuit current (Isc): 5.67A Cell efficiency: >23% Ambient temperature: -40°C - +85°C Temperature coefficient power: -0.43%/°C Temperature coefficient voltage: -0.34 %/°C Temperature coefficient current: -0.05 %/°C Weight: 6,09KG Dimensions: 988mm x 560mm x 30mm Protection class junction box: ip68 (waterproof) length of preassembled connection cable: 55cm Number of cells: 108 (6x18) The professional solar mounting system Spoile profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 55cm x 8.9cm (of which approx. 3cm support surface module per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set allows even a layman to create an absolutely firm connection between spoilers and the respective substrate. The Dekalin gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles Cable penetrations from the roof into the interior are always quite tricky, since it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the surface on which they are to be mounted Note: Our mounting spoilers are designed for a module frame height of 35mm. With a frame height of 30mm, special care must be taken to screw the fastening screws horizontally or at a slight downward angle. Otherwise, the sensitive rear side of the module will be damaged by the fastening screws! The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the solar connectors. Individual system adaptation possible on request We strive to implement every wish of our customers in the best possible way. With the individual requirements of a Solarasystem, this is of course not always 100% possible. Therefore, if you need any customization on one of our systems just send us an email to [email protected] - just tell us briefly which system your request refers to, which modification you would like to have (e.g. additional module, color spoiler, adhesive or bushing, other charge controller, etc.) and you will receive a corresponding offer from our sales team as soon as possible. Any costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-012876 Offgridtec® mobileblack m 200w 12v mppt caravan Solaranlage

The mTriple Flex l solaranlagen offer the ideal power supply for your motorhome or camper. The combination of the vbcs Triple from Votronic and the ETFE-Al solar module from Offgridtec offers a secure power supply and optimum yields. The permanent supply is ensured in three different ways. Charging from the grid in standby mode, while driving with the help of the charge booster, and the combination of solar module and MPPT charge controller in sunshine. With the device combination and the semi-flexible solar module, the total weight of the system is reduced to a minimum, ideal for mounting on a camper or motor home. Features of the mTriple Flex l Average daily yield of 640Wh or 1280Wh (March - October) Permanent power supply with 3 charging options Device combination of mains charger, charge booster and solar controller Suitable for all common battery types (lead-acid, agm, GEl, lithium) light & extremely flat solar module - ideal for motorhome mounting With lCD display for monitoring the system parameters Mounting material and cable package included All components perfectly matched quick and easy installation according to plug & play principle The mTriple Flex l solaranlage contains: Offgridtec ETFE-Al 160w 12v semi-flexible solar panel (1x or 2x depending on selection) 1x Votronic vbcs 45/30/350 Triple-CI device combination 1x Votronic 1247 Charge Control s Display or 1x Votronic 5748 vpc Jupiter 200 combo panel 1x Offgridtec Roof bushing 1-fold for cable diameter 13mm-18mm white 1x Dekalin Dekasyl Ms-5 adhesive set white 1x 8m Offgridtec Connection cable from solar module to charge controller 2x6mm² 1x 1,5m 10mm² Offgridtec battery cable with MIDI fuse holder - screw terminal connection on M8 1x 2.5m 10mm² Offgridtec Battery cable with MIDI fuse holder - screw terminal connection on M8 1x Offgridtec 60a 58v MIDI fuse & 1x Offgridtec 80a 58v MIDI fuse additional for 2 modules 1x Offgridtec Branching sockets & 1x Dekalin adhesive Ms-5 white The electronics core - the Votronic vbcs triple device combination The vbcs Triple ensures your permanent power supply in three ways. With the Pb mains charger with 30a you can charge your battery efficiently in standby mode from the mains. The VCC charging converter with 45a allows you to charge your on-board battery while driving. The third option offers the charging with solar energy with the help of the MPP solar regulator for max.350Wp.The supplied temperature sensor ensures the optimal charging of your batteries. PB mains charger:The powerful charging of the on-board battery and supply of the 12v consumers from the mains. The full charging power in the universal range of 110v/ac-230v/ac without switching is available worldwide even in case of large deviations of the mains supply (undervoltage/overvoltage, sinusoidal shape, frequency). Thanks to the long-term charging characteristics, the device can be constantly connected to the mains (operational, winter break) VCC charge converter:The powerful charge booster allows full charging of the on-board battery while driving. It increases/decreases the voltage to the required level so that the on-board battery can be charged with the optimal charging characteristic. It fully compensates for line losses and severe alternator voltage fluctuations, which are common in Euro 6 vehicles. The supplied 12v consumers are protected against overvoltage and voltage fluctuations. MPP solar controller:The MPP charge controller ensures a charge current gain of 10-30%, shorter charging times and the best possible power utilization of your solarasystem. The MPP technology automatically determines the maximum power output of the connected solar modules several times per second. The complete system also includes either the Charge Control s display or the vpc Jupiter 200 combination panel from Votronic. With both displays, the current output of the solarasystem can be reliably displayed, monitored and controlled. The Jupiter panel offers the additional options of a battery computer and water management. Flexible solar supply - the Offgridtec ETFE-Al 160w solar module The semi-flexible solar module is based on the material composition aluminum-ETFE and is equipped with highly effective monocrystalline solar cells. The superimposed ETFE layers on the front provide solid protection for the cells inside and a high light yield over many years. In addition, the modules are walkable and non-slip, making them the perfect choice for mobile applications. The AlU backing almost completely prevents cell cracking due to incorrect handling or installation. Power management is handled by five busbars, ensuring solid throughput without heat loss even at high currents. power (Pmax): 160wp voltage (Vmp): 18V max. current (Imp): 8,89A Short circuit current (Isc): 9,42A max. system voltage: 200V/DC Bendable: max. 10° (l) Weight: 6,6kg Dimensions: 665 x 1310 x 4 mm Optimal cabling - Manufactured in the Offgridtec cable manufactory The mTriple solarasystem is supplied, according to the plug & play principle, with all the connecting cables required for commissioning the system. The cables are all manufactured in our own cable factory and have an optimal connection quality. The 8m long connection cable from module to charge controller allows a flexible installation, depending on the conditions on site. The battery cables have an integrated MIDI fuse holder to protect the charge controller and the technology behind it in the event of a short circuit or overcurrent. The appropriate fuses for the system are also included. Mounting material included The complete system is delivered with all mounting material needed to mount it on your vehicle. The Dekalin adhesive set for bonding the solar modules to the vehicle roof contains, in addition to the white power adhesive, cleaning cloths, a wool wiper and the Dekavator bonding agent. The Offgridtec roof feed-through creates the connection between the solar module on the roof and the charge controller inside the vehicle. The version with two solar modules also contains a pair of junction boxes for parallel connection of the two modules. Individual adaptations As with all our complete systems, individual adaptations are possible. contact us! Please ask our customer service for possible costs.

This solar set for autarkic power supply in caravans leaves nothing to be desired. Innovative Mpp-Dual charge controller technology combined with a high-efficient Offgridtec 150W SP-Ultra 24 High-End Solar Module guarantees a very high energy output. This system is especially designed for caravans and includes everything - except batteries - for installation and operation. The charge controller also allows the connection to the caravan's Schaudt-EBL (EBL-connection-cable needed). All components in this set meet highest demands. Special features: The solar-generator is a high-end solar module with American Sunpower back-contact cells. The degree of effectiveness (>20%) is much above average. The included modules out of the SPR-series are much smaller than common modules with the same performance. Dual-Charging-Technology made in Germany allows the the charging of on-board and starter battery at the same time. MPP-Tracker: Maximum Power Point Tracking ensures the highest possible output EBL-option: can be operated on a Schaudt-EBL or directly on up to 2 different battery cycles Daily output: Average output during summer (May - October): 520Wh daily (measured in the north of Germany - more output can be expected in the south) Our Solar-Mobil-line provides high-quality components at a fair price. Simply compare the item prices of the included products. Components: 1 x Offgridtec 150W SP-ULtra 24V High-End Solar Panel 1 x Votronic MPP 165 Duo Digital Solar Charge Controller 1 x Votronic LCD Solar Computer S 1 x cable entry black 1 x roof-spoiler set black 1 x 8m solar cable (2x6mm²) - plug & play 1 x 1,5m battery cable with fuse and EBL-connection-cable 1 x Mounting-Glue Set with needed accessories to prepare your roof 1 x MC4-Y connector pair   With this set you have everything to charge your batteries. Our special mounting system is and can easily be glued on your caravan's roof. If you have to reach the surface beneath the module it can be screwed off the mounting-spoilers at any time. All our sets can be expanded by modules of the same performance class. The critical spot of the mounting system is the cableentry through your roof. We use the same high-quality material as we do for the mounting-spoilers and is also attached with Mounting-glue. The cable entry is absolutly waterproof and lasts for many years. Our Solar-Mobil-line provides high-quality components at a fair price. Simply compare the item prices of the included products.           Offgridtec 150W SP-Ultra 12V Solar Module Monocrystalline 150W / 12V high-end solar panel with back-contacted high-power solar cells produced by Sunpower - a high-quality product with an efficiency of 21%. The world's best solar cells meet with the new Back-Contact process. The outcome is a high-end product at an adequate price. We made sure that the other components match the these special solar cells. This panel is lighter and has a smaller surface  than common panels with the same performance. Additionally the SP-line's light conversion rate is much higher compared to the mono-line - even during shady periods. Technical data: Performance (Pmax): 150W Voltage (Vmpp): 23.2V Max. current (Impp): 6.47A No-load voltage (Voc):  27.38V Short-circuit current (Isc): 6.98A Ambient temperature: -40...+85°C Max. system voltage: 1000V DC Dimensions: 1440 x 540 x 35mm Weight: 9,37 kg Votronic MPP 165 Duo Digital Solar Charge Controller Controllers according to the MPP technology are continuously and automatically calculating the maximum power yield (MPP) of the solar modules several times per minute. The voltage surplus of the solar module will be transformed to a higher charging current for the battery (realised by high-frequency switching controller technology with high efficiency). This surplus of charging current ensures short charging times and the best possible power yield of the solar system. Main Charging Port I: Automatic charging and conservation of charge of the (main) board supply battery Auxiliary Charging Port II: Current and voltage reduced for recharging as well as trickle charge of the vehicle’s starter battery, thus ensuring continuous starting capacity Continuous control, full batteries by immediate recharging in case of current consumption Automatic charging programs adjustable for gel, acid/lead-acid and AGM/fleece batteries for optimum charging results Indicators for operating state "Full", "Charging", "MPP" and "Low Voltage" Very low own electricity consumption, high efficiency LCD Solar Computer S This computer measures and displays all values to improve the control and surveillance of your solar system. The currently produced solar energy is displayed as bar chart for a quick check up. The display has background lighting so all data can also be read from greater distance and bad illumination. Roof-spoiler Mounting Kit Spoiler profiles are the first choice when it comes to proper attachment of solar modules on caravans. Aligned in driving direction wind noises are no problem, even on caravans with an alcove. Thanks to the spoiler's closed design branches can not get under the module. The Bonding A proper adhesion is superior to every screw connection. On a lacquered surface or on fiberglass a tractive power of more than 4 N/mm2 can be reached, a value that could not be reached with screws in a very thin aluminum or fiberglass sheet. Even for amateurs it is possible to make a perfectly firm connection between spoilers and surface.   Cable Set You don't have to buy extra tools for the MC4-plugs in this set as all necessary cables are already crimped. The comes with a length of 8m and consists of 2x4mm²-wires. Double Cable Entry Cable entries that lead cables into the your caravan are always a most critical spot as they have to be absolutely waterproof for years. Even the smallest water inlet can cause irreparable damage especially where humidity is not easily noticed. To avoid such problems cable entries were developed: The cable entries are made of the same UV- and corrosion resistant material as the mounting profiles you find in our shop. They are very robust and absolutely treadable. The broad adhesive edge keeps it waterproof. They are also attached with Sikaflex-glue and can be painted in a color fitting the vehicle.

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the highly efficient 120w sp-Ultra 12v high-end solar module fromOffgridtec(efficiency >21%) ensure high yields. The island solar system is specially designed for motorhomes. except for the batteries, it contains everything you need to install and start up the 12vSolarasystem. Furthermore, the charge controller offers the possibility to connect the Solarasystem to the Schaudt electric block (ebl) of the motorhome (ebl connection cable required).all components included in the set meet the highest quality standards. special features Solar generator consisting of an absolute high-end solar modules which are equipped with American Sunpower cells and contacted on the back. The module efficiency is with more than 21% far above the average The supplied module of the spR series is significantly smaller and lighter than comparable conventional solar modules with the same performance Dual charge controller - innovative technology made in Germany enables charging of residential and starter battery mpp tracker - maximum power point tracking ensures more yield because the entire module voltage is taken off Ebl capable - can be operated both on the Schaudt electric block and directly on up to 2 different battery circuits     Daily yield Average daily yield in summer from May to October: 480Wh daily (measured in northern Germany, the further south the more yield you can calculate) With the Solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. compare the individual prices of our included components! The supplied components:     1x Offgridtec® 120w sp-Ultra 12v High-End Solarpanel 1x votronic mpp 165 Duo Digital Solar Charge Controller 1x votronic lcd Solarcomputer S 1x cable bushing 1-fold suitable for supplied module connection cable 1x Offgridtec 006550 55cm Montage-Profile schwarz - heavy duty version 1x8m Offgridtec 005095 professional connection cable - high quality professional version for caravans 1x 1,5m Offgridtec 005175 30a Profi-batteriekabel mit Sicherung 1x mounting glue set with instructions and necessary accessories for pre-treatment 1x Ebl cable set The set contains all the components you need to charge your batteries on the move. The special thing about our Solarasystems for mobile homes: We use an exra solid mounting system that can be simply glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. we have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable gland supplied is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts many, many years. Offgridtec® 120w sp-Ultra 12v high end solar panel Monocrystalline 120w / 12v Hígh-End solar panel with back-contacted high-power solar cells from the American manufacturer Sunpower - currently the best that can be processed with an efficiency of more than 21%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. In addition, we have taken special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. the light yield in poorer conditions is also higher in the sp series than in our normal mono series. Technical data 120w sp-Ultra 12v solar panel 120 Watt Maximum Power Maximum current(imp): 6.05a Voltage (vmp): 19,8v Short circuit current (Isc): 6,41a open circuit voltage (voc): 23.35v dimensions: 1055 x 540 x 35mm (HxWxD) Weight; 7,5kg The votronic mpp 165 Duo Digital Solar Charge Controller Highly efficient dual charge controller - charges service and starter battery ! offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using mpp technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the Solarasystem. Technical data mpp 165 Duo Digital charge controller Mpp - Dual - charge controller up to 165 Wp module power max. 10 a module current max. 50 v dc module voltage charging options: 1 supply battery and 1 starter battery supported battery types: Acid, gel, aGM, liFePO4 max. charging current: battery1: 12a battery2: 1a Protection functions: overcharge protection, reverse current lock (night), protection against overload, overheating, reverse polarity lcd solar computer S the measured values are shown clearly on the display and can be easily operated at the touch of a button for better control and use of the solar system. The current solar power is also always shown as a bar graph, enabling control at a glance. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions. Roof spoiler mounting set Spoiler profiles are the first choice, especially for caravans and motor homes, when it comes to a clean mounting of the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoilers, no branches or similar can get caught under the solar modules. spoiler dimensions: l x w x h: 54.5cm x 8.9cm (of which approx. 3cm module contact surface per spoiler) x 6.5cm wiring set all necessary cables are already pre-crimped with special tools. So you don't need to buy special pliers for the mc-4 connectors. The cable has a length of 8m and accommodates 2 wires á 4mm². Cable gland Cable feed-throughs from the roof into the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. Because even the smallest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often only noticed quite late. for this reason, the roof bushings were developed: The housings are made of the same Uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. the bushings can be glued on with the adhesive set that you also need to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the surface on which they are to be mounted. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat applications. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, a value that would never be attainable with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The glue kit contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual change requests on request If you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. the color of the spoilers and the roof grommet can also be changed from black to white. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be requested from customer service.

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the highly efficient 120w sp-Ultra 12v high-end solar module fromOffgridtec(efficiency >21%) ensure high yields. The island solar system is specially designed for motorhomes. except for the batteries, it contains everything you need to install and start up the 12vSolarasystem. Furthermore, the charge controller offers the possibility to connect the Solarasystem to the Schaudt electric block (Ebl) of the motorhome. All components included in the set meet the highest quality standards. special features Solar generator consisting of two absolute high-end solar modules which are equipped with American Sunpower cells and contacted on the back. The module efficiency is with over 21% far above average The supplied modules of the spR series are significantly smaller and lighter than comparable conventional solar modules with the same performance Dual charge controller - innovative technology made in Germany enables charging of residential and starter battery MPP tracker - maximum power point tracking ensures more yield because the entire module voltage is taken off Ebl capable - can be operated both on the Schaudt electrical block and directly on up to 2 different battery circuits if you have any questions or modification requests, our customer service will be happy to help you (e-mail: [email protected] Tel: +49 (0) 8721 7786187).     Daily yield Average daily yield in summer from May to October: 960Wh daily (measured in northern Germany, the further south the more yield you can calculate) With the Solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. compare the individual prices of our included components! The supplied components:     2 x Offgridtec® 120w sp-Ultra 12v high end solar panel 1 x votronic MPP 250 Duo Digital Solar Charge Controller 1 x votronic lcd solar computer S 1 x cable gland (black) 1-fold - fit to the supplied cable 2 x roof spoiler set to fix the solar panels (black) 1 x 8m solar cable (2x6mm² wires in one cable) - completely ready for connection 1 x 1,5m battery cable with fuse and Ebl connection cable 1 x mounting adhesive set with instructions and necessary accessories for pre-treatment competent help if needed included! The set contains all the components you need to charge your batteries mobile. The special thing about our Solarasystems for motorhomes: We use an exra solid mounting system that can be simply glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts many, many years.... Offgridtec® 120w sp-Ultra 12v high end solar panel Monocrystalline 120w / 12v Hígh-End solar panel with back-contacted high-power solar cells from the American manufacturer Sunpower - currently the best that can be processed with an efficiency of over 21%. Here the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. In addition, we have taken special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. Also, the light output under worse conditions is higher with the sp series than with our normal mono series. Technical data 120w sp-Ultra 12v solar panel - 120 Watt Maximum Power - Maximum current(imp): 6.05A - Voltage (vmp): 19,8v - Short circuit current (Isc): 6,41A - open circuit voltage (voc): 23.35v - Dimensions; 1055 x 540 x 35 mm (HxWxD) - Weight; 7,5 kg The votronic MPP 250 Duo Digital Solar Charge Controller Highly efficient dual charge controller - charges service and starter battery ! offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using MPP technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the Solarasystem. Technical data MPP 250 Duo Digital charge controller - Mpp - Dual - charge controller - up to 250 Wp module power - max. 15a module current - max. 50 v DC module voltage - charging options: 1 supply battery and 1 starter battery - supported battery types: Acid, gel, agm, liFePO4 - max. charging current: battery1: 18a battery2: 1A - Protection functions: overcharge protection, reverse current lock (night), protection against overload, overheating, reverse polarity lcd solar computer S clearly arranged and easy to operate at the touch of a button, the measured values are shown on the display for better control and use of the solar system. The current solar power is also always shown as a bar graph, enabling control at a glance. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions. Roof spoiler mounting set Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 54.5cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm cabling set All necessary cables are already pre-crimped with specialized tools. So you don't need to buy special pliers for the solar connectors. The cable has a length of 8m and accommodates 2 wires á 6mm². Cable gland Cable penetrations from the roof into the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can often cause irreparable damage to interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same Uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. The bushings can be glued on with the adhesive set that you also need for gluing on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, a value that would never be attainable with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual change requests gladly on request If you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. Also the color of the spoiler and the roof grommet can be changed from black to white. A short request for quotation with article number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service.

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the highly efficient 150w sp-Ultra high-end solar module fromOffgridtec(efficiency >24%) ensure high yields. The island solar system is specially designed for motorhomes. it includes everything you need to install and start up the Solarasystem, except for the batteries. Furthermore, the charge controller offers the possibility to connect the Solarasystem to the Schaudt electric block (ebl) of the motorhome (ebl connection cable required).all components included in the set meet the highest quality standards. special features High-end solar modules which are equipped with American Sunpower cells and contacted on the back. The module efficiency is with almost 24% far above the average The supplied modules of the spR series are significantly smaller and lighter than comparable conventional solar modules with the same performance Dual charge controller - innovative technology for charging the on-board and starter battery for a variety of battery types MPP tracker - maximum power point tracking ensures more yield because the entire module voltage is picked up With lCD remote display for easy readout of key performance indicators and setting of important system parameters of the solar system AES control signal and ebl capable - can be operated both on the Schaudt electrical block and directly on up to 2 different battery circuits Daily yield Average daily yield in summer from May to October: 1200Wh daily (measured in the north of Germany, the further south the more yield you can calculate) With the Solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. Compare the individual prices of our included components! The supplied components: 2x Offgridtec® 150w sp-Ultra high-end solar panel 1x Offgridtec® mppt Pro Duo charge controller 30a 12/24v for two battery circuits 1xOffgridtec® Remote display for mppt Pro Duo 1xOffgridtec 1-fold cable bushing black 2x 55cm Montage Profile schwarz, Offgridtec 006550 - heavy duty version 1x 8m Offgridtec 005095 Profi-Verbindungskabel - high quality professional version for the Womo-area 1x 1,5m Offgridtec 30a Profi-batteriekabel mit Sicherung 1x Mounting adhesive set with instructions and necessary accessories for pre-treatment 1x Solar-Y connector pair 1x ebl cable set The set contains all components you need to charge your batteries mobile. The special thing about our Solarasystems for motorhomes: We use an exra solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time, should you ever need to the surface under the solar module. Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. Offgridtec® 150w sp-Ultra high end solar panel Monocrystalline 150w Hígh-End solar panel with back-contacted high-power solar cells from the American manufacturer Sunpower - currently the best that can be processed with an efficiency of almost 24%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. In addition, we took special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. Also, the light output under worse conditions is higher with the sp series than with our normal mono series. Technical Data 150w sp-Ultra Solar Panel power(Pmax): 150w Voltage(Vmp): 44V Max. Current(Imp): 3.41A open circuit voltage(Voc): 51,79V Short circuit current(Isc): 3,69A Max. System voltage: 600 V/DC Cell efficiency: >24% Ambient temp.: -40...+85°C Dimensions: 1320 x 550 x 35 mm Weight: 9,37 kg Offgridtec® mppt Pro Duo charge controller 30a 12/24v Highly efficient dual charge controller for charging the service and starter battery. offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using MPP technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the Solarasystem. The most important technical features of the mppt Pro Duo charge controller Max. charge current: 30a at battery voltage of 12v or 24V Support of all major battery types (incl. liFePO4) Max power point tracking technology with ultra-fast tracking speed and guaranteed tracking efficiency of min. 99.5% Active temperature equalization for optimal charging and ensuring long battery life AES control signal for car refrigerator to avoid energy waste Max. Solar power 380w at 12v system voltage and 780w at 24V Max. pv input voltage: 100V Grounding: negative Dimensions: 247 x 165 x 69 mm Weight: 1,4kg Offgridtec® Display Remote display for mppt Pro Duo The lCD remote display for the mppt Pro Duo solar charge controller enables a convenient readout of important performance figures of the solar system and furthermore the adjustment of important system parameters. The display is delivered together with a mounting frame for wall mounting. Real-time display of operating data, operating status and error information of the connected device Real-time data available: solar power (w), solar voltage (v), energy yield (Wh), battery voltage (v), battery charging current (A) Possibility to set battery type and temperature directly on the remote display Data display in graphical form on large area display Simple and intuitive operation via 3 touch buttons on the front of the display No external power supply necessary Mounting & cabling Roof spoiler mounting kit Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 54.5cm x 8.9cm (of which approx. 3cm support surface module per spoiler) x 6.5cm Cable grommet Cable ducts from the roof into the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. Even the slightest water ingress can often cause irreparable damage to the interior insulation and furnishings, especially as the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. The bushings can be glued on with the adhesive set that you also need to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted. Wiring set All necessary cables are already pre-crimped with specialized tools. So you don't need to buy special pliers for the solar connectors. The cable has a length of 8m and accommodates 2 cores á 6mm² The bonding A properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, this would be a value calculated on the glued surface, which could never be achieved with a screw connection in the thin aluminum or GRP carrier layer. This gluing set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual change requests gladly on request If you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. Also the color of the spoiler and the roof grommet can be changed from black to white. A short offer request with article number and change request to our customer service is sufficient (e-mail: [email protected] - Tel: +49 (0) 8721 91994-00). Please contact customer service for any costs that may be incurred.

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the flexible 120w sP-Ultra 12v high-end solar module fromOffgridtec(efficiency >24%) ensure high yields. The island solar system is specially designed for motorhomes. except for the batteries, it contains everything you need to install and start up the 12v-solarasystem. Furthermore, the charge controller offers the possibility to connect the solarasystem to the schaudt electric block (ebl) of the motorhome (ebl connection cable required). all components included in the set meet the highest quality standards. Special features Flexible high-end solar module which is equipped with American sunpower cells and contacted on the back. The module efficiency is over 24% and thus far above the average The supplied semi-flex modules of the sPR series are significantly smaller and lighter than comparable conventional solar modules with the same power. they can be bent up to a curvature of 30% Dual charge controller - innovative technology made in Germany enables charging of residential and starter batteries MPP tracker - maximum power point tracking ensures more yield because the entire module voltage is picked up EBL capable - can be operated on the schaudt electric block as well as directly on up to 2 different battery circuits If you have any questions or modification requests, our customer service will be happy to help you (e-mail: [email protected] Tel: +49 (0) 8721 77861-87). Daily yield Average daily yield in summer from may to october: 480Wh daily (measured in the north of germany, the further south the more yield you can calculate) With the solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. compare the individual prices of our supplied components! The supplied components: 1 x Offgridtec© 120w high power flexible solar panel (Back-Contact) 1 x votronic MPP 165 Duo Digital solarladeregler 1 x votronic lcd solarcomputer s Fernanzeige / Fernbedienung 1 x Offgridtec 1-fold cable gland black 1 x8m 2x6mm Offgridtec 005095 Wohnmobil solar-verbindungskabel- solar module to charge controller, special motorhome version 1 x 1,5m 2x6mm 30a Offgridtec 005175 Batteriekabel mit sicherung 1 x mounting adhesive set incl. instructions and required components for pre-treatment 1x EBL cable set competent help included if needed! The set contains all the components you need to charge your batteries mobile. Offgridtec© 120w high power flexible solar panel (Back-Contact) semi-flexible monocrystalline 120w / 12v Hígh-End solar panel with back-contact high-power solar cells from the american manufacturer sunpower - currently the best that can be processed with an efficiency of over 24%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. in addition, we have taken special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. the light yield in poorer conditions is also higher in the sP series than in our normal mono series. The modules are flexible up to a curvature of 30% This corresponds to a bendability of up to 30 cm measured from the center of the module at a module length of 1 meter. We recommend to glue the module with the included glue set all over the surface. In addition, the module has fastening eyelets. Technical data 120w high power flexible solar module (back contact) Power: 120wp voltage: 19,8v current: 6,05a Open circuit voltage: 23,4v Short circuit current: 6,41a Max. system voltage: 200v DC Cell efficiency: >24% Dimensions: 1070 x 540 x 2 mm Weight: 2.08 kg Thevotronic MPP 165 Duo Digital solar charge controller Highly efficient dual charge controller - charges service and starter battery ! Offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using MPP technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the solarasystem. Technical data MPP 165 Duo Digital charge controller Mpp - Dual - charge controller up to 165 Wp module power max. 10 a module current max. 50 v DC module voltage Charging options: 1 supply battery and 1 starter battery supported battery types: acid, gel, aGM, LiFePO4 max. charging current: battery1: 18a battery2: 1a protection functions: overcharge protection, reverse current lock (night), protection against overload, overheating, reverse polarity lcd solar computer s the measured values are shown clearly on the display and can be easily operated at the touch of a button for better control and use of the solar system. The current solar power is also always shown as a bar graph, enabling control at a glance. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions. cabling set all necessary cables are already pre-crimped with specialist tools. so you do not need to buy special pliers for the mc-4 connectors. The cable has a length of 8m and accommodates 2 wires á 6mm². Cable gland Cable feed-throughs from the roof into the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. Even the slightest water ingress can cause irreparable damage to the interior insulation and furnishings. Especially since moisture is often not noticed until quite late. this is why the roof penetrations were developed: The housings are made of the same Uv- and weather-resistant material as the mounting brackets offered in the online store. they are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. the bushings can be glued on with the adhesive set that you also need to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat applications. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, a value that would never be attainable with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The bonding set contains all components necessary for even the do-it-yourself installer to create a professional bond. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The bonding set contains all the components necessary for even do-it-yourselfers to make a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual modification requests are welcome on request if you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. the color of the spoilers and the roof duct can also be changed from black to white. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be requested from customer service.

The Offgridtec mPremium+ xl-300w 12v (mpn 4-01-012410) is a premium solar kit for caravans and motor homes. The expected daily output (April to October) is 1200Wh/day on average (max. 2400 Wh on sunny days in Germany). Thanks to the included mppt solar charge controller, almost all common battery types such as 12v agm, gel or modern lithium can be mobile charged without any problems and according to their type. The system can be conveniently analyzed and even configured from a smartphone or tablet using a free app. Since the mPremium+ series is a further development of the popular mPremium series and differs only in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile. 300W caravan complete set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our Solarasystems for caravans: We use an extra solid mounting system that can be simply glued on. The module can be unscrewed from the spoiler at any time, should you need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class We have also paid special attention to quality at the critical point, the cable feed-through into the interior of the motorhome. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. scope of delivery of the mPremium+ xl-150w caravan Solaranlage 2x Offgridtec 150w 12v - monocrystalline solar module equipped with highly efficient solar cells 1x Offgridtec abs cable gland 1-way - white with waterproof PEG gland 2x Offgridtec 68cm abs mounting profiles (1pair) - for mounting the solar modules 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 2x4mm² 20a battery connection cable - connection cable solar charge controller to battery 1x Offgridtec battery terminals (1 pair) 1x Y-connector 1x Victron Energy Smart mppt 100/20 solar charge controller with bluetooth module, load output and extensive configuration options. 1x mounting adhesive set with instructions and necessary accessories for pre-treatment competent help if needed included! All integrated system components at a glance The Victron SmartSolar mppt 100/20 The Smartsolar 100/20 from Victron Energy (mpn scc110020060r) is a mppt solar charge controller with 20a max. charge current for charging 12v and 24v batteries of various types. Equipped with powerful charging algorithms and a bluetooth-based communication interface, the 100/20 offers all the features expected from a modern high-end charge controller: bluetooth Smart integrated: allows setup and monitoring with a smartphone or other bluetooth enabled device. Ultra fast maximum power point tracking (mppt). Advanced maximum power point detection in case of partial shading. 20a load output batterylife: intelligent battery management through load shedding. Automatic battery voltage detection. Flexible charging algorithms and much more. overheating protection and load reduction at high temperatures. The Offgridtec 150w 12v solar panel monocrystalline solar cells of the highest quality are used exclusively in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): average 120Wh/day (max. 2400 Wh on sunny days in Germany) Solar module dimensions: 1140mm x 680mm x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 68cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding A properly executed bonding is superior to any screw connection in the hard use of motorhomes or boats. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set allows even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles 2 pairs Offgridtec 68cm abs mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec abs cable roof grommet to lead the solar cable from the vehicle roof to the interior Cable feedthroughs from the roof to the interior are always quite tricky, as it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the solar connectors. 1x Offgridtec 8m 2x6mm² h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x4mm² battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round poles. 1x Y-branch socket set Individual system adaptation possible on request If you would like to have a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. A short quote request with part number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service.

The Offgridtec 300W Premium-L 12V (MPN 4-01-010960) is the perfect solar set for self-sufficient power supply in your motorhome or caravan and really leaves nothing to be desired. Installation takes less than two hours - practised hands are much quicker still. The expected daily output (April to October) is an average of 1200Wh/day (max. 2400 Wh on sunny days in Germany). The system is ideally suited for charging 12V AGM, GEL or lead-acid batteries. 300W complete motorhome set: simple, proven, high quality The set contains all the components you need to charge your batteries on the move. The special thing about our solar systems for motorhomes: we use an extra-solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time should you ever need to access the area under the solar module. This set is designed so that it can be extended by another module in the same power class. We have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years. Important performance features We are the only manufacturer to offer you a complete mobile home solar system in which all components are supplied from our own production - of course, as usual, in the highest Offgridtec quality. The Premium-Mobile system class is probably the best-selling motorhome solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again on the basis of customer experience and constantly supplemented with technical innovations. As a customer, you therefore benefit from a product that is highly mature and reliable. Components of the Offgridtec 300W Premium L 12V 1x Offgridtec PWM-Pro12/24-30 PWM solar charge controller - 12V 30A PWM controller with display, load output, USB and much more 2x Offgridtec 150W 12V - monocrystalline solar module equipped with highly efficient cells 1x Offgridtec ABS cable gland 1-fold - white; with waterproof PEG gland 2x Offgridtec 68cm ABS mounting profiles (1pair) - for attaching the solar modules 1x Offgridtec 8m 2x6mm H07RN-F - Connection cable solar module to solar charge controller in motorhome version 1x Offgridtec Solar Plug Junction Sockets 1x Offgridtec 1.5m 10mm Battery Connection Cable with MIDI Fuse Holder Connection Cable Solar Charge Controller to Battery 1x Offgridtec Battery Clamps (1 Pair) 1 x Mounting adhesive set with instructions and necessary accessories for pre-treatment 1x Dekalin 6252212 DEKAsyl MS-5 290 ml white; single cartridge power adhesive 1x MIDI fuse 40A 58V The Offgridtec PWM-PRO solar charge controller The Offgridtec PWM-Pro 12V 30A charge controller series offers a large, convenient LCD display and works with the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. A controllable load output and 2 USB 5V outputs are also integrated into the controller and supply your 12V and 5V DC consumers with power. Please refer to the documentation of the charge controller for the complete range of functions. The Offgridtec 300W 12V Solar Panel Only monocrystalline solar cells of the highest quality are used in the production of our modules.  The module has a frame made of anodised aluminium and has specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): on average 1200Wh/day (max. 2400 Wh on sunny days in Germany).Solar module dimensions: 1140mm x 680mm x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motor homes when it comes to neatly mounting the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoilers, no branches or similar can get caught under the solar modules.Dimensions spoiler: L x W x H: 68cm x 8.9cm (of which approx. 3cm module support surface per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminium or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Components of the solar mounting system The ABS mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. Because even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. Especially since the dampness is often only noticed quite late. This is why the roof penetrations were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The enclosures can also be painted to match the surface on which they are to be mounted. 2 pairs of Offgridtec 68cm ABS mounting profilesmatching stainless steel screws to fix the module to the profiles 1x Offgridtec ABS cable roof grommet for feeding the solar cable from the vehicle roof to the interior of the vehicle The professional cabling set All cables required for commissioning the solar system are included. In addition, all cables are supplied Plug & Play, i.e. they are fully equipped and processed with professional tools, which you therefore do not have to purchase separately. Components of the cabling set 1x Offgridtec 8m 2x6mm H07RN-F connection cable solar module to solar charge controller complete with appropriately equipped cable ends 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of pole terminals. The cable fits M8 screw terminals or batteries with round terminals. 1x Offgridtec solar connector junction set - for parallel connection of the two solar modules. Individual system adaptation possible on request If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if the cables should have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be enquired about with customer service. Scope of delivery: 1x Offgridtec 4-01-010960 Premium-L 300W 12V motorhome solar system with all the above-mentioned components.1x instruction manual

The Offgridtec 200W Premium-L 12V (MPN 4-01-002735) is the perfect solar set for self-sufficient power supply in your motorhome or caravan and really leaves nothing to be desired. Installation takes less than two hours - practised hands are even much faster. The expected daily output (April to October) is 800 Wh/day on average (max. 1700 Wh on sunny days in Germany). The system is ideally suited for charging 12V AGM, GEL or lead-acid batteries. 200W complete motorhome set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our solar systems for motorhomes: We use an exra solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time if you need to access the area under the solar module. This set is designed so that it can be extended by another module in the same power class. We have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years. Important performance features We are the only manufacturer to offer you a complete motorhome solar system in which all components are supplied from our own production - of course, as usual, in the highest Offgridtec quality. The Premium-Mobile system class is probably the best-selling motorhome solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again on the basis of customer experience and constantly supplemented with technical innovations. As a customer, you therefore benefit from a product that is highly mature and reliable at a solid price. Components of the Offgridtec 200W Premium L 12V 1x solar charge controller - 12V 30A PWM controller with display, load output, USB etc. 2x Offgridtec 100W 12V - monocrystalline solar module 1x Offgridtec ABS cable gland 1-fold - white with waterproof PEG gland 2x Offgridtec 55cm ABS mounting profiles (1pair) - for mounting the solar modules 1x Offgridtec 8m 2x6mm H07RN-F - connection cable solar module to solar charge controller in motorhome design 1x Offgridtec solar connector branching sockets 1x Offgridtec 1,5m 10mm² battery connection cable with MIDI fuse holder - connection cable solar charge controller to battery 1x Offgridtec battery terminals (1 pair) 1 x Mounting adhesive set with instructions and necessary accessories for pre-treatment 1x MIDI fuse 40A 58V 1x Dekalin 6252212 DEKAsyl MS-5 290ml white single cartridge power adhesive The Offgridtec PWM-PRO solar charge controller The Offgridtec PWM-Pro 12V 30A charge controller series offers a large, convenient LCD display and works with the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. A controllable load output and 2 USB 5V outputs are also integrated in the controller and supply your 12V and 5V DC consumers with power. Please refer to the documentation of the charge controller for the complete range of functions. The Offgridtec 100W 12V Solar Panel Only monocrystalline solar cells of the highest quality are used in the production of our modules. The module has a frame made of anodised aluminium and has specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): on average 800 Wh/day (max. 1700 Wh on sunny days in Germany). Dimensions of solar module: 1030 x 520 x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to neatly mounting the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoilers, no branches or similar can get caught under the solar modules. Dimensions spoiler: L x W x H: 54.5cm x 8.9cm (of which approx. 3cm module support surface per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminium or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Components of the solar mounting system The ABS mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. After all, even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. Especially since the dampness is often only noticed quite late. This is why the roof penetrations were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The enclosures can also be painted as desired and thus adapted to the surface on which they are to be mounted. 2 pairs of Offgridtec 55cm ABS mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec ABS cable roof grommet for feeding the solar cable from the vehicle roof into the interior area The professional cabling set All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. You therefore do not need to buy special pliers for the solar connectors. Components of the wiring set 1x Offgridtec 8m 2x6mm H07RN-F connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of pole terminals. The cable fits M8 screw terminals or batteries with round terminals. 1x Offgridtec solar connector junction socket set - for parallel connection of the two solar modules. Individual system adaptation possible on request If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if you would like the cables to have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. Simply send a quotation request with the item number and change request to our customer service. Any costs that may be incurred should be enquired about with customer service. Scope of delivery: 1x Offgridtec 4-01-002735 Premium-L 200W 12V motorhome solar system with all the above-mentioned components. 1x instruction manual

The Offgridtec 150W Premium-L 12V (MPN 4-01-007500) is the perfect solar set for self-sufficient power supply in your motorhome or caravan and really leaves nothing to be desired. Installation takes less than two hours - practised hands are much quicker still. The expected daily output (April to October) is 600Wh/day on average (max. 1200 Wh on sunny days in Germany). The system is ideally suited for charging 12V AGM, GEL or lead-acid batteries. 150W complete motorhome set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our solar systems for motorhomes: We use an exra solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time if you need to access the area under the solar module. This set is designed so that it can be extended by another module in the same power class. We have also paid special attention to the critical point, the cable feed-through into the interior of the motorhome. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years. Important performance features We are the only manufacturer to offer you a complete motorhome solar system in which all components are supplied from our own production - of course, as usual, in the highest Offgridtec quality. The Premium-Mobile system class is probably the best-selling motorhome solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again on the basis of customer experience and constantly supplemented with technical innovations. As a customer, you therefore benefit from a product that is highly mature and reliable at a solid price. Components of the Offgridtec 150W Premium L 12V 1x Offgridtec PWM-Pro12/24-30 PWM Solar Charge Controller - 12V 30A PWM controller with display, load output, USB and more 1x Offgridtec 150W MONO 12V - monocrystalline solar module 1x Offgridtec ABS cable entry 1-fold - white with waterproof PEG gland 1x Offgridtec 68cm ABS mounting profiles (1pair) - for attaching the solar modules 1x Offgridtec Connection cable solar module to solar charge controller in motorhome design 1x Offgridtec 1,5m 10mm² Battery connection cable with MIDI fuse holder - Solar charge controller to battery connection cable 1x Offgridtec Battery poles clamps (1 pair) 1x Assembly adhesive set with instructions and necessary accessories for pre-treatment 1x MIDI fuse 40A 58V The Offgridtec PWM-PRO 12/24-30 Solar Charge Controller The Offgridtec PWM-Pro 12/24 charge controller series offers a large, convenient LCD display and works with the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. A controllable load output and 2 USB 5V outputs are also integrated into the controller and supply your 12V and 5V DC consumers with power. Please refer to the documentation of the charge controller for the complete range of functions. The Offgridtec 150W MONO 12V solar panel Only monocrystalline solar cells of the highest quality are used in the production of our modules. The module has a frame made of anodised aluminium and has specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): 600Wh/day on average (max. 1200 Wh on sunny days in Germany). Solar module dimensions: 1140mm x 680mm x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to neatly mounting the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). The closed construction of the spoilers also means that no branches or similar can get caught under the solar modules. Dimensions spoiler: L x W x H: 68cm x 8.9cm (of which approx. 3cm module support surface per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminium or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth.   Components of the solar mounting system De ABS mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. After all, even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. Especially since the dampness is often only noticed quite late. This is why the roof penetrations were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The enclosures can also be painted to match the surface on which they are to be mounted. 1 pair of Offgridtec 68cm ABS mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec ABS cable roof grommet for feeding the solar cable from the vehicle roof into the interior area The professional cabling set All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. So you do not need to buy special pliers for the MC-4 connectors. Components of the wiring set 1x Offgridtec 8m 2x6mm H07RN-F connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of pole terminals. The cable fits M8 screw terminals or batteries with round terminals. Individual system adaptation possible on request If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if you would like the cables to have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be enquired about with our customer service. Scope of delivery: 1x Offgridtec 4-01-007500 Premium-L 150W 12V motorhome solar system with all the above components 1x instruction manual

The Offgridtec® MobileBlack series impresses with its appealing visual design in elegant black and its extremely convincing performance parameters. Starting with the OLP solar modules in state-of-the-art shingle design and an outstanding cell efficiency of over 21%, through to the Offgridtec® MPPT Pro dual charge controller, one can truly speak of a successful selection and product composition from Offgridtec. MobileBlack XL Caravan Complete System This complete system contains everything you need to charge your batteries on the move. In addition to charging your on-board battery, the dual regulator included in the set also allows you to charge the starter battery at the same time, as it has a corresponding secondary charging output. The scope of delivery includes extensive information material in which the assembly and connection are explained step by step - this applies to both the technical connection and the bonding of the retaining spoiler and the roof grommet. The roof duct is probably one of the most critical points, as this is where the transition to the interior of the camper takes place. The grommet is made of the same material as the spoiler - the PEG screw connection complies with protection class IP68 and is therefore absolutely waterproof when installed correctly. Scope of delivery of the MobileBlack XL caravan solar system Offgridtec® OLP solar module 180W 12V PERC with shingle technology (1x or 2x depending on choice) 1x Offgridtec® 30A MPPT dual solar charge controller with auxiliary charge and AES switching Output 1x remote display for MPPT Pro Duo charge Controller 1x Offgridtec ABS cable gland 1-way - black with waterproof PEG Gland Offgridtec 68cm ABS mounting profiles (1 pair) - for mounting the solar modules in black (1x or 2x depending on choice) 1x Offgridtec 8m 2x6mm H07RNF - connection cable solar module to solar charge controller in caravan Version 1x Offgridtec 1.5m 10mm² battery connection cable with MIDI fuse holder - connection cable solar charge controller to battery with battery terminals and M8 cable lug Connection 1x Dekalin adhesive set with Dekasyl MS-5 polymer adhesive, Dekavator bonding agent, cleaning cloth and operating instructions 40A MIDI fuse additional for 2 modules: 1x Offgridtec MC4 branching socket & 1x Dekalin Dekasyl MS-5 polymer adhesive The Offgridtec® MPPT Pro Duo 30A Solar Charge Controller The MPPT Pro Duo controller can handle a maximum charge current of 30A. This means that this system can theoretically be expanded to almost 400W solar module output - however, taking into account the module selection (expansion only with identical panels), an expansion by a maximum of 1 module would probably make the most sense with this system. In addition, the unit has a secondary charging output that can be used to charge the starter battery in parallel with the on-board battery during longer periods of standing - a feature that is certainly much appreciated in the mobile home. To ensure optimum efficiency, the unit also has an AES switching output - this enables refrigerators with "AES" to be switched automatically from gas to 12 V operation in the event of surplus solar power. maximum charging current 30A - 390W module power theoretically usable 30A load output for 12V consumers directly at the charge Controller the clear remote display allows the controller to be mounted in hard-to-reach places in the vehicle without restricting operation and overview of the system Parameters AES control signal for car refrigerator to avoid energy waste 100V maximum PV input voltage Digital circuit control of adaptive three-stage charging mode to improve battery life Max power point tracking technology with ultra-fast tracking speed and guaranteed tracking efficiency of at least 99.5%. Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH) Weight: 1.4KG Power consumption: 26mA at 12V Active temperature equalisation for optimal charging and ensuring long battery life Supports all major battery types (lead acid, AGM, GEL, LiFePo4) Max. Efficiency: 98 The 180W OLP solar module with the latest shingle Technology The 180W OLP solar module (1x or 2x depending on the selection) with PERC technology used in the system is impressive on the one hand due to its unique module design with overlapping wafer arrangement (overlapping design), and on the other hand due to its high module efficiency, which makes this module particularly interesting for applications on vehicles due to the limited space available. Module voltage (Vmp): 24.8V Max. Current (Imp): 7.26A Idle voltage (Voc): 29.76V Short-circuit current (Isc): 7.84A cell efficiency: >23 ambient temperature: -40°C - +85°C Temperature coefficient power: -0.43%/°C Temperature coefficient voltage: -0.34 %/°C Temperature coefficient current: -0.05 %/°C Weight: 11.54KG Dimensions: 1330mm x 680mm x 35mm Protection class junction box: IP68 (waterproof) Length of pre-assembled connection cables: 55cm Pre-assembled connectors: MC4 compatible connectors Number of cells: 180 (4x45) The professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to neatly mounting the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoilers, no branches or similar can get caught under the solar modules. Dimensions spoiler: L x W x H: 68cm x 8.9cm (of which approx. 3cm support surface module per spoiler) x 6.5cm. The gluing A properly executed gluing is superior to any screw connection in the hard use of campers or boats. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminium or GRP support layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The Dekalin adhesive set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The ABS mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. After all, even the slightest ingress of water can lead to often irreparable damage to the interior insulation and furnishings. Especially since the dampness is often only noticed quite late. This is why the roof penetrations were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The enclosures can also be painted to match the surface on which they are to be mounted. The professional cabling set All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. So you don't need to buy special pliers for the MC-4 connectors. Individual system customisation possible on request We strive to implement every wish of our customers in the best possible way. With the individual requirements of a solar system, this is of course not always 100% possible. Therefore, if you would like to have adjustments made to one of our systems, simply send us an e-mail to [email protected] - just tell us briefly which system your enquiry relates to, what change you would like (e.g. additional module, colour spoiler, adhesive or bushing, different charge controller, etc.) and you will receive an appropriate offer from our sales team as soon as possible. Scope of delivery: 1x Offgridtec 4-01-014245-001 Offgridtec® MobileBlack XL 180W 12V MPPT Caravan Solar Power System or 1x Offgridtec 4-01-014245-002 Offgridtec® MobileBlack XL 360W 12V MPPT Caravan Solar Power System

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the flexible 120w sP-Ultra 12v high-end solar module fromOffgridtec(efficiency >24%) ensure high yields. The island solar system is specially designed for motorhomes. except for the batteries, it contains everything you need to install and start up the 12v-solarasystem. Furthermore, the charge controller offers the possibility to connect the solarasystem to the schaudt electric block (ebl) of the motorhome (ebl connection cable required).all components included in the set meet the highest quality standards. Special features Flexible high-end solar modules which are equipped with American sunpower cells and contacted on the back. The module efficiency is with more than 24% and thus far above the average The supplied semi-flex modules of the sPR series are significantly smaller and lighter than comparable conventional solar modules with the same output. they can be bent up to a curvature of 30% Dual charge controller - innovative technology made in Germany enables charging of residential and starter batteries MPP tracker - maximum power point tracking ensures more yield because the entire module voltage is picked up EBL capable - can be operated both on the schaudt electric block and directly on up to 2 different battery circuits Daily yieldaverage daily yield in summer from May to October: 960Wh daily (measured in the north of Germany, the further south the more yield you may calculate) With the solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. compare the individual prices of our supplied components! The supplied components: 2 x Offgridtec© 120w high power solar module flexible (Back-Contact) 1 x votronic MPP 250 Duo Digital solar charge controller 1 x votronic lcd solarcomputer s Fernanzeige / Fernbedienung 1 x 8m 2x6mm Offgridtec 005095 Profiverbindungskabel - solar modules to charge controller, special motorhome version 1 x 1,5m 2x6mm 30a Offgridtec Batteriekabel mit sicherung 1 x mounting adhesive set with instructions and necessary accessories for pretreatment 1 x sikaflex 252 Montagekleber solarbefestigung 1 x solar Y connector (branch connector) pair 1x EBL cable set 1 x Offgridtec cable bushing black 1-fold suitable for supplied module connection cable competent help included if needed! The set contains all the components you need to charge your batteries mobile. 2x Offgridtec© 120w high power flexible solar panel (back contact) semi-flexible monocrystalline 120w 12v Hígh-End solar panel with back-contact high-power solar cells from the american manufacturer sunpower - currently the best that can be processed with an efficiency of more than 24%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. in addition, we took special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. the light yield in poorer conditions is also higher in the sP series than in our normal mono series. The modules are flexible up to a curvature of 30% This corresponds to a bendability of up to 30 cm measured from the center of the module at a module length of 1 meter. We recommend to glue the module with the included glue set all over the surface. In addition, the module has fastening eyelets. Technical data - 120w high performance flexible solar module (Back-Contact) Power: 120wp voltage: 19,8v current: 6,05a Open circuit voltage: 23,4v Short circuit current: 6.41a Max. system voltage: 200v DC Cell efficiency: >24% Dimensions: 1070 x 540 x 2 mm Weight: 2,08 Kg Thevotronic MPP 250 Duo Digital solar charge controller High efficiency dual charge controller - charges service and starter battery ! Offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using MPP technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the solarasystem. Technical data MPP 250 Duo Digital charge controller Mpp - Dual - charge controller up to 250 Wp module power max. 15 a module current max. 50 v DC module voltage Charging options: 1 supply battery and 1 starter battery supported battery types: acid, gel, aGM, LiFePO4 max. charging current: battery1: 18a battery2: 1a protection functions: overcharge protection, reverse current lock (night), protection against overload, overheating, reverse polarity lcd solar computer s the measured values are shown clearly on the display and can be easily operated at the touch of a button for better control and use of the solar system. The current solar power is also always shown as a bar graph, enabling control at a glance. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions. cabling set all necessary cables are already pre-crimped with specialist tools. so you don't need to buy special pliers for the solar connectors. The cable has a length of 8m and accommodates 2 wires á 6mm². Cable gland Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that even after years everything is absolutely tight and also remains tight. Even the slightest water ingress can cause irreparable damage to the interior insulation and furnishings. Especially since moisture is often not noticed until quite late. this is why the roof penetrations were developed: The housings are made of the same Uv- and weather-resistant material as the mounting brackets offered in the online store. they are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. the bushings can be glued on with the adhesive set that you also need to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat applications. GRP surfaces, a strength of more than 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The bonding set contains all components necessary for even the do-it-yourself installer to create a professional bond. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual modification requests are welcome on request if you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. the color of the spoilers and the roof duct can also be changed from black to white. A short request for quotation with article number and change request to our customer service is sufficient. Any costs that may be incurred should be requested from customer service.

This solar set for self-sufficient power supply in a motorhome really leaves nothing to be desired. Innovative Mpp dual charge controller technology combined with the highly efficient 120w sp-Ultra 12v high-end solar module from Offgridtec (efficiency >21%) ensure high yields. The island solar system is specially designed for motorhomes. except for the batteries, it contains everything you need to install and start up the 12vSolarasystem. Furthermore, the charge controller offers the possibility to connect the Solarasystem to the Schaudt electric block (ebl) of the motorhome (ebl connection cable required).all components included in the set meet the highest quality standards. special features Solar generator consisting of three absolute high-end solar modules which are equipped with American Sunpower cells and contacted on the back. The module efficiency is with almost 21% far above average The supplied modules of the spR series are significantly smaller and lighter than comparable conventional solar modules with the same performance Dual charge controller - innovative technology made in Germany enables charging of residential and starter battery MPP tracker - maximum power point tracking ensures more yield as the entire module voltage is taken off Ebl capable - can be operated both on the Schaudt electrical block and directly on up to 2 different battery circuits if you have any questions or modification requests, our customer service will be happy to help you (e-mail: [email protected] Tel: +49 (0) 8721 91994-00). Daily yieldaverage daily yield in summer from May to October: 1440Wh daily (measured in the north of Germany, the further south the more yield you can calculate) With the Solar-Mobil series we rely on solid brand power and this despite the favorable conditions for our complete sets. Compare the individual prices of our included components! The supplied components: 3 x Offgridtec® 120w sp-Ultra 12v high end solar panel 1 x Votronic MPP 430 Duo Digital Solar Charge Controller 1 x Votronic lcd solar computer S 1 x cable gland (black) 3 x roof spoiler set to fix the solar panels 55cm (TÜV) (black) 1 x 10m solar cable (2x10mm² wires in one cable) - completely ready for connection 1 x 1,5m battery cable with fuseand Ebl connection cable 1 x mounting adhesive set with instructions and necessary accessories for pre-treatment 2 x Solar Y-connector (branching socket) pair 4 x 50cm solar connector connection cable competent help included if needed! The set contains all the components you need to charge your batteries mobile. The special thing about our Solarasystems for motorhomes: We use an exra solid mounting system that can be simply glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. Offgridtec® 120w sp-Ultra 12v high end solar panel Monocrystalline 120w / 12v Hígh-End solar panel with back-contacted high-power solar cells from the American manufacturer Sunpower - currently the best that can be processed with an efficiency of almost 21%. This is where the world's best solar cells and the new back-contact process meet. The result is a high-end product at a solid price. In addition, we took special care in the production of this series to ensure that the rest of the module also does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. Also, the light output under worse conditions is higher with the sp series than with our normal mono series. Technical data 120w sp-Ultra 12v solar panel 120 Watt Maximum power Maximum current(Imp): 6,05A Voltage(Vmp): 19.8V Short circuit current (Isc): 6.41A open circuit voltage (Voc): 23,35A Dimensions: 1055 x 540 x 35 mm (HxWxD) Weight; 7,5 kg The Votronic MPP 430 Duo Digital Solar Charge Controller Highly efficient dual charge controller - charges service and starter battery ! offers the possibility to connect the photovoltaic system to the electric block of the motorhome. Using MPP technology, the controller automatically determines the maximum power output (mpp) of the solar modules several times per second. It then converts the voltage surplus of the solar module into a higher charging current for the battery. A special high-frequency switching controller technology with high efficiency makes this possible and thus ensures shorter charging times and the best possible power utilization of the Solarasystem. Technical data MPP 430 Duo Digital charge controller Mpp - Dual - charge controller up to 430Wp module power max. 26a module current max. 50v dc module voltage charging possibilities: 1 supply battery and 1 starter battery supported battery types: Acid, gel, agm, liFePO4 max. charging current: battery1: 31.5a - battery2: 1A Protection functions: overcharge protection, reverse current lock (night), protection against overload, overheating, reverse polarity lcd solar computer S clearly arranged and easy to operate at the touch of a button, the measured values are shown on the display for better control and use of the solar system. The current solar power is also always shown as a bar graph, enabling control at a glance. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions. Roof spoiler mounting set Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 54.5cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm Wiring kit All necessary cables are already pre-crimped with specialized tools. So you don't need to buy special pliers for the solar connectors. The cable has a length of 10m and accommodates 2 cores á 10mm² Cable gland Cable penetrations from the roof into the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. Because even the smallest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often noticed quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures optimum sealing. The bushings can be glued on with the adhesive set that you also need for gluing on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved, a value that would never be attainable with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. Individual change requests gladly on request If you would like a different charge controller from our range, or if the cables should have a different length, you are welcome to contact us at any time. Also the color of the spoiler and the roof grommet can be changed from black to white. A short request for quotation with article number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service.

The Offgridtec mPremium+ l-100w 12v (mpn 4-01-012415) is a premium solar kit for caravans and motor homes. The expected daily output (April to October) is 400Wh/day on average (max 800 Wh on sunny days in Germany) and can be installed as a 12v system. Thanks to the included mppt solar charge controller, almost all common battery types such as agm, gel or modern lithium can be charged easily and mobile according to their design. The system can be conveniently analyzed and even configured from a smartphone or tablet using a free app. Since the mPremium+ series is a further development of the popular mPremium series and differs only in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile. 100w caravan complete set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our Solarasystems for caravans: We use an extra solid mounting system that can be easily glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. scope of delivery of the mPremium+ l 100w caravan Solaranlage 1x Offgridtec 100w 12v - monocrystalline solar module equipped with high efficiency solar cells 1x Offgridtec abs cable gland 1-fold - white with waterproof PEG gland 1x Offgridtec 55cm abs mounting profiles (1pair) - for mounting the solar modules 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 2x6mm 15a battery connection cable - connection cable solar charge controller to battery, 20a fuse and pole terminals 1x Victron Energy Smart mppt 75/15 solar charge controller with bluetooth module, load output and extensive configuration options. 1x Mounting adhesive set with instructions and necessary accessories for pre-treatment All integrated system components at a glance The Victron SmartSolar mppt 75/15 The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 20a max. charge current for charging 12v and 24v batteries of various types. Equipped with powerful charging algorithms and a bluetooth based communication interface, the 75/15 offers all the features expected from a modern high-end charge controller: bluetooth Smart integrated: allows setup and monitoring with a smartphone or other bluetooth enabled device. Ultra fast maximum power point tracking (mppt). Advanced maximum power point detection in case of partial shading. 15a load output. batterylife: intelligent battery management through load shedding. Automatic battery voltage detection. Flexible charging algorithms and much more. overheating protection and load reduction at high temperatures. The Offgridtec 100w 12v solar panel monocrystalline solar cells of the highest quality are used exclusively in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weather, storm, hail, etc). The dimensions of the solar module are: 1030 x 520 x 35 mm (lxwxH). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to clean mounting of solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 55cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set allows even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles 1 pair Offgridtec 55cm abs mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec abs cable roof grommet to lead the solar cable from the roof of the vehicle to the interior Cable feedthroughs from the roof to the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mc-4 connectors. 1x Offgridtec 8m 2x6mm h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round terminals. Individual system customization possible on request If you want a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. A short quote request with part number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-012415 Offgridtec® mPremium+ l 100w 12v mppt Caravan Solaranlage 1x instruction manual including all components listed above

The Offgridtec mPremium+ l-200w 12v (mpn 4-01-012420) is a premium solar kit for caravans and motor homes. The expected daily output (April to October) is 800Wh/day on average (max 1600 Wh on sunny days in Germany) and can be installed as a 12v system. Thanks to the included mppt solar charge controller, almost all common battery types such as agm, gel or modern lithium can be charged easily and mobile according to their design. The system can be conveniently analyzed and even configured from a smartphone or tablet using a free app. Since the mPremium+ series is a further development of the popular mPremium series and differs only in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile. 200W caravan complete set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our Solarasystems for caravans: We use an extra solid mounting system that can be simply glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. scope of delivery of the mPremium+ l-200w Caravan Solaranlage 2x Offgridtec 100w 12v - monocrystalline solar module equipped with highly efficient solar cells 1x Offgridtec abs cable gland 1-way - white with waterproof PEG gland 2x Offgridtec 55cm abs mounting profiles (1pair) - for mounting the solar modules 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 2x6mm 15a battery connection cable - connection cable solar charge controller to battery 1x Offgridtec battery terminals (1 pair) 1x Y connector 1x Victron Energy Smart mppt 75/15 solar charge controller with bluetooth module, load output and extensive configuration options. 1x mounting adhesive set with instructions and necessary accessories for pre-treatment competent help if needed included! All integrated system components at a glance The Victron SmartSolar mppt 75/15 The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max. charge current for charging 12v and 24v batteries of various types. Equipped with powerful charging algorithms and a bluetooth based communication interface, the 75/15 offers all the features expected from a modern high-end charge controller: bluetooth Smart integrated: allows setup and monitoring with a smartphone or other bluetooth enabled device. Ultra fast maximum power point tracking (mppt). Advanced maximum power point detection in case of partial shading. 15a load output batterylife: intelligent battery management through load shedding. Automatic battery voltage detection. Flexible charging algorithms and much more. overheating protection and load reduction at high temperatures. The Offgridtec Mono 100w 12v Solar Panel monocrystalline solar cells of the highest quality are used exclusively in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weather, storm, hail, etc). The dimensions of the solar module are: 1030 x 520 x 35 mm (lxwxH). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to clean mounting of solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 55cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding A properly executed bonding is superior to any screw connection in the hard use of motorhomes or boats. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set allows even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles 2 pairs Offgridtec 55cm abs mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec abs cable roof grommet to lead the solar cable from the vehicle roof to the interior Cable feedthroughs from the roof to the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the solar connectors. 1x Offgridtec 8m 2x6mm h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round terminals. 1x mc4 Y-branch socket set Individual system adaptation possible on request If you would like to have a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. A short quote request with part number and change request to our customer service is sufficient. Possible costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-012420 Offgridtec® mPremium+ l-200w 12v mppt Caravan Solaranlage 1x instruction manual including all components listed above

The Offgridtec mPremium+ xl-150w 12v (mpn 4-01-012405) is a premium solar kit for caravans and motor homes. The expected daily output (April to October) is 600Wh/day on average (max. 1200 Wh on sunny days in Germany). Thanks to the included mppt solar charge controller, almost all common battery types such as 12v agm, gel or modern lithium can be mobile charged without any problems and according to their type. The system can be conveniently analyzed and even configured from a smartphone or tablet using a free app. Since the mPremium+ series is a further development of the popular mPremium series and differs only in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile. 150w caravan complete set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our Solaranlagen for caravans: we use an extra solid mounting system that can be easily glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. We have also paid special attention to quality at the critical point, the cable feed-through into the interior of the motor home. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. scope of delivery of the mPremium+ xl-150w caravan Solaranlage 1x Offgridtec 150w 12v - monocrystalline solar panel equipped with high efficiency cells 1x Victron Energy Smart mppt 100/20 solar charge controller with bluetooth module, load output and extensive configuration options. 1x Offgridtec abs cable bushing 1-fold - white with waterproof PEG gland 1x Offgridtec 68cm abs mounting profiles (1pair) - for fixing the solar modules 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 2x6mm 20a battery connection cable - connection cable solar charge controller to battery 1x Offgridtec battery terminals (1 pair) 1x Mounting adhesive set with instructions and need accessories for pretreatment All integrated system components at a glance The Victron SmartSolar mppt 100/20 The Smartsolar 100/20 from Victron Energy (mpn scc110020060r) is a mppt solar charge controller with 20a max. charge current for charging 12v and 24v batteries of various types. Equipped with powerful charging algorithms and a bluetooth-based communication interface, the 100/20 offers all the features expected from a modern high-end charge controller: bluetooth Smart integrated: allows setup and monitoring with a smartphone or other bluetooth enabled device. Ultra fast maximum power point tracking (mppt). Advanced maximum power point detection in case of partial shading. 20a load output. batterylife: intelligent battery management through load shedding. Automatic battery voltage detection. Flexible charging algorithms and much more. overheating protection and load reduction at high temperatures. The Offgridtec 150w 12v solar panel monocrystalline solar cells of the highest quality are used exclusively in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): 600Wh/day on average (max. 1200 Wh on sunny days in Germany) Solar module dimensions: 1140mm x 680mm x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or the like can get caught under the solar modules. Dimensions spoiler: l x w x h: 68cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The glue kit contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles 1 pair Offgridtec 68cm abs mounting profiles matching stainless steel screws to fix the module to the profiles 1x Offgridtec abs cable roof grommet to lead the solar cable from the vehicle roof to the interior Cable feedthroughs from the roof to the interior are always quite tricky, because it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. Glue the bushings with the adhesive set that you also use to glue the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mc-4 connectors. 1x Offgridtec 8m 2x6mm h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends. 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round terminals. Individual system customization possible on request If you want a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. A short message with the order number to our customer service is sufficient. Possible costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-012405 Offgridtec® mPremium-Xl+ 150w 12v mppt Caravan Solaranlage 1x instruction manual including all components listed above

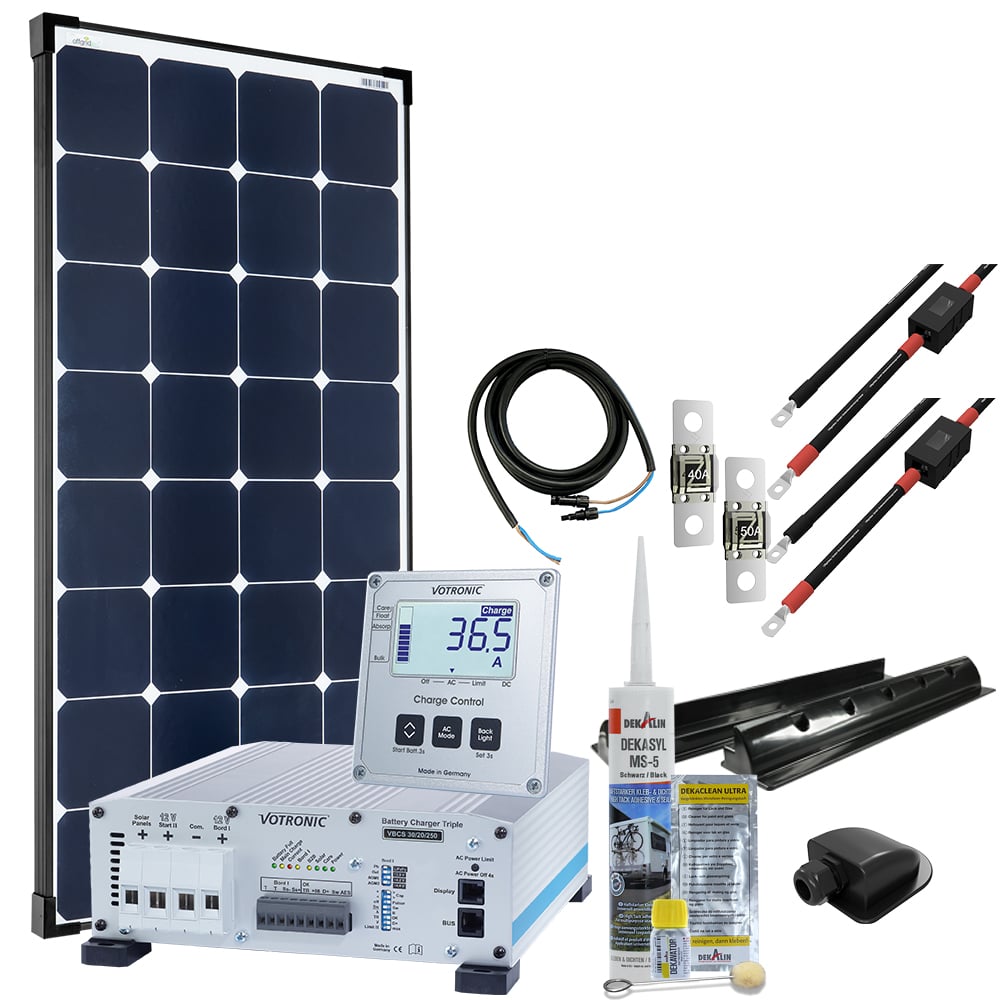

The mTriple l solaranlagen offer the ideal power supply for your motorhome or camper. The combination of the vbcs Triple from Votronic and the OlP solar module from Offgridtec provides a reliable power supply and optimum yields. The permanent supply is ensured in three different ways. Charging from the mains while stationary, while driving with the help of the charging booster, and the combination of solar module and MPPT charge controller in sunshine. The compact combination of the vbcs and the highly efficient solar module is ideal where installation space is limited. The system is not only suitable for stand-alone operation, and with the framed solar panel it is also predestined for use on expedition vehicles. Features of the mTriple l: Average daily yield of 720Wh or 1440Wh (March - October) Permanent power supply with 3 charging options Device combination of mains charger, charge booster and solar controller Suitable for all common battery types (lead-acid, agm, GEl, lithium) Resistant framed solar module - ideal for motorhome & camper mounting With lCD display for monitoring system parameters Mounting hardware and cable package included All components perfectly matched quick and easy installation according to plug & play principle The mTriple l solaranlage contains: Offgridtec 180w OlP solar panel 12v with shingle technology PERC (1x or 2x depending on selection) 1x Votronic 3244 vbcs 45/30/350 Triple-CI device combination 1x Votronic 1247 Charge Control s Display or 1x Votronic 5748 vpc Jupiter 200 combo panel 1x Offgridtec Roof bushing 1-fold for cable diameter 13mm-18mm black 1x Dekalin Dekasyl Ms-5 adhesive set black 1x 8m Offgridtec Connection cable from solar module to charge controller 1x 1,5m 10mm² Offgridtec battery cable with MIDI fuse holder - screw terminal connection on M8 1x 2.5m 10mm² Offgridtec Battery cable with MIDI fuse holder - screw terminal connection on M8 1x Offgridtec 60a 58v MIDI fuse & 1x Offgridtec 80a 58v MIDI fuse additional for 2 modules1x Offgridtec Jacks & 1x Dekalin Adhesive Ms-5 black The electronics core - the Votronic vbcs triple device combination The vbcs Triple ensures your permanent power supply in three ways. With the Pb mains charger with 30a you can charge your battery efficiently in standby mode from the mains. The VCC charging converter with 45a allows you to charge your on-board battery while driving. The third option offers the charging with solar energy with the help of the MPP solar regulator for max.350Wp.The supplied temperature sensor ensures the optimal charging of your batteries. PB mains charger:The powerful charging of the on-board battery and supply of the 12v consumers from the mains. The full charging power in the universal range of 110v/ac-230v/ac without switching is available worldwide even in case of large deviations of the mains supply (undervoltage/overvoltage, sinusoidal shape, frequency). Thanks to the long-term charging characteristics, the device can be constantly connected to the mains (operational, winter break) VCC charge converter:The powerful charge booster allows full charging of the on-board battery while driving. It increases/decreases the voltage to the required level so that the on-board battery can be charged with the optimal charging characteristic. It fully compensates for line losses and severe alternator voltage fluctuations, which are common in Euro 6 vehicles. The supplied 12v consumers are protected against overvoltage and voltage fluctuations. MPP solar controller:The MPP charge controller ensures a charge current gain of 10-30%, shorter charging times and the best possible power utilization of your solarasystem. The MPP technology automatically determines the maximum power output of the connected solar modules several times per second. The complete system also includes either the Charge Control s display or the vpc Jupiter 200 combination panel from Votronic. With both displays, the current output of the solarasystem can be reliably displayed, monitored and controlled. The Jupiter panel offers the additional options of a battery computer and water management. Highly efficient solar supply - the Offgridtec OlP 180w solar module The powerful 12v OlP solar module with innovative overlapping design delivers optimal power flow through minimized power losses and significantly higher module efficiency through better space utilization. The innovative PERC technology or backside passivation provides improved absorption at longer wavelengths, e.g. at flat irradiation angles or in cloudy conditions, and the potential loss in case of partial shading is reduced. The modern, homogeneous optics without visible conductor paths perfectly round off this high-quality module. power (Pmax): 180wp voltage (Vmp): 24.8V max. current (Imp): 7,26A Short circuit current (Isc): 7,84A max. system voltage: 600V/DC Weight: 11,54kg Dimensions: 680 x 1330 x 35 mm Optimal cabling - Manufactured in the Offgridtec cable manufactory The mTriple solarasystem is supplied, according to the Plug & Play principle, with all the connecting cables required for commissioning the system. The cables are all manufactured in our own cable factory and have an optimal connection quality. The 8m long connection cable from module to charge controller allows a flexible installation, depending on the conditions on site. The battery cables have an integrated MIDI fuse holder to protect the charge controller and the technology behind it in the event of a short circuit or overcurrent. The appropriate fuses for the system are also included. Mounting material included The complete system is delivered with all mounting material needed to mount it on your vehicle. The Dekalin adhesive set for bonding the solar modules to the vehicle roof contains, in addition to the white power adhesive, cleaning cloths, a wool wiper and the Dekavator bonding agent. The Offgridtec roof feed-through creates the connection between the solar module on the roof and the charge controller inside the vehicle. The version with two solar modules also contains a pair of junction boxes for parallel connection of the two modules. Individual adaptations As with all our complete systems, individual adaptations are possible. contact us! Please ask our customer service for possible costs.

The mTriple Flex s solarasystems offer the ideal power supply for your motorhome or camper. The combination of the VBCs Triple from Votronic and the etfe-sPR solar module from Offgridtec offers a secure power supply and optimum yields. The permanent supply is ensured in three different ways. Charging from the mains while stationary, while driving with the help of the charge booster, and the combination of solar module and MPPT charge controller in sunshine. The compact combination of the VBCs and the highly efficient flexible solar module is ideal when installation space is limited and reduces the total weight to a minimum. The system is not only suitable for self-sufficient standing and with the flexible solar panel also predestined for use on caravan campers. Features of the mTriple Flex s Average daily yield of 440Wh or 880Wh (March - October) Permanent power supply with 3 charging options Device combination of mains charger, charge booster and solar controller Suitable for all common battery types (lead-acid, agm, gel, lithium) Lightweight & extremely flat solar module - ideal for motorhome mounting With LCD display for monitoring system parameters Mounting material and cable package included All components perfectly matched quick and easy installation according to plug & play principle The mTriple Flex s solaranlage contains: Offgridtec 110w etfe-sPR flexible solar panel (1x or 2x depending on selection) 1x Votronic 3242 VBCs 30/20/250 Triple-CI device combination 1x Votronic 1247 Charge Control s Display or 1x Votronic 5747 vpc Jupiter 100 Combi Panel 1x Offgridtec Roof bushing 1-fold for cable diameter 13mm-18mm white 1x Dekalin Dekasyl Ms-5 adhesive set white 1x 8m Offgridtec connection cable from solar module to charge controller 1x 1,5m 10mm² Offgridtec battery cable with MIDI fuse holder - screw terminal connection on M8 1x 2.5m 10mm² Offgridtec Battery cable with MIDI fuse holder - screw terminal connection on M8 1x Offgridtec 40a 58v MIDI fuse & 1x Offgridtec 50a 58v MIDI fuse additional for 2 modules1x Offgridtec Jacks & 1x Dekalin Adhesive Ms-5 white The electronics core - the Votronic VBCs Triple device combination The VBCs Triple ensures your permanent power supply in three ways. With the Pb mains charger with 20a you can charge your battery efficiently in standby mode from the mains. The VCC charge converter with 30a allows you to charge your on-board battery while driving. The third option offers the charging with solar energy using the MPP solar regulator for max.250Wp.The supplied temperature sensor ensures the optimal charging of your batteries. Pb mains charger:The powerful charging of the on-board battery and supply 12V consumers from the mains. The full charging power in the universal range of 110v/ac-230v/ac without switching is available worldwide even with large deviations of the mains supply (under/over voltage, sinusoidal shape, frequency). Thanks to the long-term charging characteristics, the device can be constantly connected to the mains (operational, winter break) VCC charge converter:The powerful charge booster allows full charging of the on-board battery while driving. It increases/decreases the voltage to the required level so that the on-board battery can be charged with the optimal charging characteristic. It fully compensates for line losses and strong voltage fluctuations of the alternator, which are common in Euro 6 vehicles. The supplied 12V consumers are protected against overvoltage and voltage fluctuations. MPP solar controller:The MPP charge controller ensures a charge current gain of 10-30%, shorter charging times and the best possible power utilization of your solaranlage. The MPP technology automatically determines the maximum power output of the connected solar modules several times per second. The complete system also includes either the Charge Control s Display or the vpc Jupiter 100 combination panel from Votronic. Both displays can be used to reliably display, monitor and control the current output of the solaransystem. The Jupiter panel additionally offers the possibilities of a battery computer and water management. Flexible solar supply - the Offgridtec etfe-sPR 110w solar module The semi-flexible etfe-sPR 110w solar module is a high-performance solar cell that is ideally suited for mounting on a motorhome. The module of the plastic solar glass made of etfe is slightly corrugated and can be walked on without hesitation when fully bonded, even when wet. The etfe High-Tec plastic ensures weight savings and at the same time a high light transmission of max. 96%. Power (Pmax): 110wp voltage (Vmp): 18,56V max. current (Imp): 5,97A Short circuit current (Isc): 6,34A max. system voltage: 45V/DC Bendable: up to max. 30° Weight: 2,5 kg Dimensions: 540 x 1070 x 30 mm Optimal cabling - Manufactured in the Offgridtec cable manufactory The mTriple solarasystem is supplied, in line with the plug & play principle, with all the connecting cables required for commissioning the system. The cables are all manufactured in our own cable factory and have an optimal connection quality. The 8m long connection cable from module to charge controller allows a flexible installation, depending on the conditions on site. The battery cables have an integrated MIDI fuse holder to protect the charge controller and the technology behind it in the event of a short circuit or overcurrent. The appropriate fuses for the system are also included. Mounting material included The complete system is delivered with all mounting material needed to mount it on your vehicle. The Dekalin adhesive set for bonding the solar modules to the vehicle roof contains, in addition to the white power adhesive, cleaning cloths, a wool wiper and the Dekavator bonding agent. The Offgridtec roof bushing is used to create the connection between the solar module on the roof and the charge controller inside the vehicle. The version with two solar modules also contains a pair of junction boxes for parallel connection of the two modules. Individual adaptations As with all our complete systems, individual adaptations are possible. contact us! Please ask our customer service for possible costs.

The Offgridtec® Mobileblack series impresses with an appealing optical design in elegant black and with its extremely convincing performance parameters. Starting with the olp solar modules in the most modern shingle design and an outstanding cell efficiency of over 21%, up to the Offgridtec® mppt Pro dual charge controller, one can really speak here of a successful selection and product composition from the house Offgridtec. 155w Mobileblack l Caravan complete system This complete system contains everything you need to charge your batteries mobile. The dual controller included in the set allows you to charge your on-board battery and the starter battery at the same time, as it has a corresponding secondary charge output. The scope of delivery includes extensive information material, in which the assembly and connection are explained step by step - this concerns both the technical connection and the bonding of the retaining spoilers and the roof duct. The grommet is made of the same material as the spoilers - the peg screw connection complies with protection class ip68 and is therefore absolutely watertight when installed correctly. scope of delivery of the Mobileblack l 155w Caravan Solaranlage 1x Offgridtec® olp solar panel 155w 12w perc with shingle technology 1x Offgridtec abs cable gland 1-way - black with waterproof peg gland 1x Offgridtec 68cm abs mounting profiles (1pair) - for mounting the solar modules in black 1x Offgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in caravan design 1x Offgridtec 1,5m 10mm² battery connection cable with MIDI fuse holder and 40a MIDI fuse - connection cable solar charge controller to battery with battery terminals and m8 cable lug connection 1x Offgridtec® 30a mppt dual solar charge controller with auxiliary charge and aes switching output 1x remote display for mppt Pro Duo charge controller 1x Dekalin adhesive set with Dekasyl ms-5 polymer adhesive, Dekavator bonding agent, cleaning cloth and operating instructions 1x mc-4 extension cable 50cm for connecting a connection cable located on the module with the module connection cable The Offgridtec® mppt Pro Duo 30a solar charge controller The mppt Pro Duo controller can handle a maximum charge current of 30a. This means that this system is theoretically expandable to almost 400w solar module power - taking into account the module selection (expansion only with identical panels), an expansion of this system by a maximum of 1 module would probably make the most sense.in addition, the device has a secondary charge output via which the starter battery can be charged in parallel to the on-board battery during longer periods of standstill - a feature which is certainly very appreciated in the mobile home. So that in terms of efficiency can also be spoken of the optimum, the device also has an aes switching output - this allows in excess solar power, the automatic switching of refrigerators with "aes" from gas to 12v operation. maximum charging current 30a - 390w module power theoretically usable 30a load output for 12v consumers directly on the charge controller the clear remote display allows the controller to be mounted in hard-to-reach places in the vehicle without limiting the operation and overview of the system parameters aes control signal for car refrigerator to avoid energy waste 100V maximum pv input voltage Digital circuit control of adaptive three-stage charging mode to improve battery life Max power point tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5% Dimensions: 24.7cm x 16.5cm x 6.9cm (lxwxh) Weight: 1.4KG Power consumption: 26mA at 12v Active temperature equalization for optimal charging and ensuring long battery life Support of all major battery types (lead acid, agm, GEl, liFePo4) Max. Efficiency: 98% The 155w olp solar panel with the latest shingle technology The 155w olp solar module with perc technology used in the system impresses on the one hand with its unique module design with overlapping wafer arrangement (overlapping design), and on the other hand with its high module efficiency, which makes this module particularly interesting for applications on vehicles due to the limited space available. Module voltage (Vmp): 21.8V Max. Current (Imp): 7.11A open circuit voltage (Voc): 25.7V Short circuit current (Isc): 7.54A Cell efficiency: >23% Ambient temperature: -40°C - +85°C Temperature coefficient power: -0.43%/°C Temperature coefficient voltage: -0.34 %/°C Temperature coefficient current: -0.05 %/°C Weight: 9,37KG Dimensions: 1310mm x 650mm x 35mm Protection class junction box: ip68 (waterproof) length of preassembled connection cable: 55cm pre-assembled connectors: mc4 compatible connectors Number of cells: 168 (8x21) The professional solar mounting system Spoile profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or the like can get caught under the solar modules. Dimensions spoiler: l x w x h: 68cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding A properly executed bonding is superior to any screw connection in the hard use of motorhomes or boats. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set allows even a layman to create an absolutely solid connection between spoilers and the respective substrate. The Dekalin adhesive set contains all the components necessary so that even the do-it-yourself installer can create a professional connection. Stainless steel screws for fastening the solar modules are included as well as detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The abs mounting profiles Cable penetrations from the roof into the interior are always quite tricky, since it must be ensured that even after years everything is absolutely tight and also remains tight. This is because even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. Glued the bushings with the adhesive set that you also use to glue the solar mounting brackets. The housings can also be painted as desired and thus adapted to the surface on which they are to be mounted The professional cabling set All necessary cables are delivered plug & play and are already pre-crimped with professional tools. So you don't need to buy special pliers for the mc-4 connectors. Individual system adaptation possible on request We strive to implement every wish of our customers in the best possible way. With the individual requirements of a Solarasystem, this is of course not always 100% possible. Therefore, if you need any customization on one of our systems just send us a mail to [email protected] - simply tell us briefly which system your request refers to, which modification you would like (e.g. additional module, color spoiler, adhesive or bushing, other charge controller, etc.) and you will receive a corresponding offer from our sales team as soon as possible. Any costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-012877 Offgridtec® Mobileblack l 155w 12v mppt caravan Solaranlage

The Offgridtec mPremium+ series is a premium solar set for caravans and mobile homes. The expected daily output (April to October) is on average 1600Wh/day (XXL 400W) or 2400Wh/day (XXL 600W) (depending on choice) on sunny days in Germany). Thanks to the included MPPT solar charge controller, almost all common battery types such as 12V AGM, gel or modern lithium can be charged without any problems and according to their type of construction. The system can be conveniently analysed and even configured from a smartphone or tablet using a free app. As the mPremium+ series is a further development of the popular mPremium series and only differs in the charge controller used, you can look forward to system components that have been tried and tested thousands of times and will ensure a long and reliable power supply for your mobile. Caravan complete set: simple, proven, high quality The set contains all the components you need to charge your mobile batteries. The special thing about our solar systems for caravans: we use an extra-solid mounting system that can simply be glued on. The module can be unscrewed from the spoiler at any time if you need to access the area under the solar module. We have also paid special attention to quality at the critical point, the cable feed-through into the interior of the camper. The cable grommet supplied is made of the same sturdy material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely watertight and will last for many, many years. Scope of delivery of the mPremium+ XXL-400W caravan solar system 2x Offgridtec SWM 200W MONO 40V - monocrystalline solar module equipped with highly effective cells 2x Offgridtec 68cm ABS mounting profiles White - for mounting the solar modules 1x Offgridtec 1.5m 10mm² battery connection cable - with MIDI fuse holder screw terminal connection on M8 1x Offgridtec branch plug Y-connector (pair) 1x Victron SmartSolar MPPT 100/30 30A 12V 24V solar charge controller with permanently integrated Bluetooth module. 1x Mounting adhesive set DEKAsyl MS-5 with instructions and required accessories for pre-treatment 1x Dekalin DEKAsyl MS-5 single cartridge 1x MIDI fuse 40A max.58V Competent help included if required Scope of delivery of the mPremium+ XXL-600W caravan solar system 3x Offgridtec SWM 200W MONO 40V - monocrystalline solar module equipped with highly effective cells 3x Offgridtec 68cm ABS mounting profiles white (1pair) - for mounting the solar modules 1x Offgridtec 1.5m 16mm² battery connection cable - with MIDI fuse holder screw terminal connection on M8 1x Offgridtec branch plug Y-connector (pair) 2x Offgridtec 2-way junction Y-connector incl. cable extension (pair) 1x Offgridtec 3-way junction T-connector incl. cable extension (pair) 1x Offgridtec 8m motorhome solar module connection cable 2x6mm² 1x Victron SmartSolar MPPT 100/50 50A 12V 24V solar charge controller with permanently integrated Bluetooth module. 1x Mounting adhesive set DEKAsyl MS-5 with instructions and accessories required for pre-treatment 2x Dekalin DEKAsyl MS-5 single cartridge 1x MIDI fuse 60A max.58V Competent help included if required All integrated system components at a glance The Victron SmartSolar MPPT 100/30 / MPPT 100/50 The Smartsolar 100/30 and 100/50 from Victron Energy are MPPT solar charge controllers with 30A or 50A max. charge current for charging 12V and 24V batteries of various types. Equipped with powerful charging algorithms and a Bluetooth-based communication interface, both charge controllers offer all the features expected from a modern high-end charge controller: Bluetooth Smart integrated: enables setup and monitoring with a smartphone or other Bluetooth-enabled device. Ultra-fast Maximum Power Point Tracking (MPPT). Advanced Maximum Power Point detection for partial shading. Choice of 30A or 50A load output. BatteryLife: intelligent battery management through load shedding. Automatic battery voltage detection. Flexible charging algorithms and much more. Overheating protection and load reduction at high temperatures. The Offgridtec 200W MONO 40V solar module Only monocrystalline solar cells of the highest quality are used in the production of our modules. The module is particularly resistant to external influences (weathering etc.). The expected daily output (per 1 module April to October): on average 800Wh/day Solar module dimensions: 1500mm x 680mm x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to neatly mounting the solar modules. If you mount the modules in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoilers, no branches or similar can get caught under the solar modules. Dimensions spoiler: L x W x H: 68cm x 8.9cm (of which approx. 3cm module support surface per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of more than 4 N/mm2 can be achieved, which would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminium or GRP carrier layer. This bonding set enables even a layman to create an absolutely firm connection between spoilers and the respective substrate. The gluing set contains all the components necessary for even the do-it-yourself installer to create a professional connection. Stainless steel screws for fastening the solar modules are included, as are detailed bonding instructions. In addition, all you need is a standard hand lever press for cartridges and a lint-free cloth. The ABS mounting profiles Offgridtec 68cm ABS mounting profiles Matching stainless steel screws for fixing the module to the profiles 1x Offgridtec ABS cable roof grommet for feeding the solar cable from the vehicle roof to the interior of the vehicle Cable feed-throughs from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely tight and remains tight even after years. After all, even the slightest ingress of water can often cause irreparable damage to the interior insulation and furnishings. Especially since the dampness is often only noticed quite late. For this reason, the roof penetrations were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The enclosures can also be painted as desired and thus adapted to the surface on which they are to be mounted. The professional cabling set All necessary cables are supplied plug & play and are already pre-crimped with specialist tools. So you don't need to buy special pliers for the MC-4 connectors. Individual system adaptation possible on request If you would like a different charge controller from our range, for example to charge board and service batteries together via solar, or if the cables should have a different length, you are welcome to contact us at any time. The colour of the spoilers can also be changed from white to black. A short message with the order number to our customer service is sufficient. Scope of delivery: 1x Offgridtec 4-01-014250-001 Offgridtec® mPremium+-XXL+ 400W 12V MPPT Caravan Solar System 1x instruction manual or 1x Offgridtec 4-01-014250-002 Offgridtec® mPremium+-XXL+ 600W 12V MPPT caravan solar system 1x user manual

his set comes with a unbeatable price-performance ratio and provides everything to charge your on-board batteries with solar energy.In comparison to our Premium-series the included cables are not prefabricated and we mainly used components in the lower price segment.Yet the Basic-series follows the high Offgridtec quality demand. This set includes everything to install a solid solar-system on your caravan. Components: 1 x 100W polycrystalline solar module 12V1 x LS1024 12-24V 10A solar charger with battery-display and temperatur-sensor connection1 x 8m (2x4mm²) caravan solar cable - professional connection of module and charge controllerOffgridtec battery connection cable with flat fuse holder and fuse for M6 and M8 battery terminals1 x pair of MC-connectors (module-side of cable)1 x pair of ferrules (charge-controller side of cable)1 x pair of ABS roof-spoilers 68 cm, incl. screws1 x single cable entry for 2x4mm² solar cable1 x Sikaflex 252 glue1 x pair of batter pole clamps 100W solar panel: 1050 x 670 x 35mm 6.7kg 100W max. output 2 bypass-diodes - minimized power drop during shady periods Max. current (Imp): 5,68A Voltage (Vmp): 17,6V No-load voltage (Voc): 21,2V Short-circuit current (Isc): 6,14A LS1024 12-24V 10A charge controllerThe charge controller is linked between module and battery and keeps the battery always fully charged. keeps batteries fully charged works with acid, AGM and gel batteries protects batteries from overload protects batteries from deep discharge prevents from a current reflow into the module during the night reverse polarity protection for battery and solar panel automatic shutdown when the charging current exceeds the controller's capacity automatic shutdown at short-circuit automatic temperature compensation LEDs display the charging level PWM-modulation automatic switch-on/off of charging current depending on battery charge for 3 battery types (acid, gel, AGM) adjustable timer-funtion (1-15h) Sikaflex 252 glueA proper adhesion is superior to every screw connection. On a lacquered surface or on fiberglass a tractive power of more than 4 N/mm2 can be reached, a value that could not bereached with screws in a very thin aluminum or fiberglass sheet. Even for amateurs it is possible to make a perfectly firm connection between spoilers and surface.Please make sure to prepare primer, cleaner and adhesive cloth as the are not included in the Starter-series. Safe connections made in GermanyThe included connection components in this set are quality products made in Germany. There are no suitable, low-price alternatives which ensure a certain degree of safety. This countsfor the solar cable, battery connection cable and MC4-connectors.The Offgridtec battery connection cable comes with an attached fuse holder and fits M6 and M8 terminals as well es round poles.

The Offgridtec 100w Premium-l 12v (mpn 4-01-002710) is the perfect solar set for self-sufficient power supply in your camper or caravan and really leaves nothing to be desired. The installation takes less than two hours - trained hands are even much faster. The expected daily output (April to October) is on average 400Wh/day (max. 850 Wh on sunny days in Germany) The system is suitable to charge batteries of type agm, gel or lead acid. 100w camper complete set: simple, proven, high quality The set contains all components you need to charge your batteries mobile. The special thing about our Solarasystems for motorhomes: We use an extra solid mounting system that can be easily glued on. The module can be unscrewed from the spoiler at any time, should you ever need to get to the area under the solar module. This set is designed so that it can be extended by another module in the same power class. Also at the critical point, the cable grommet into the interior of the motorhome, we have paid attention to special quality. The supplied cable grommet is made of the same stable material as the roof spoiler for the solar modules and is simply glued on. The connection is absolutely waterproof and lasts for many, many years. Important performance features As the only manufacturer, we offer you a complete motorhome solar system, where all components are supplied from our own production - of course, as usual in the highest Offgridtec quality The Premium-Mobile system class is probably the best-selling mobile home solar system on the market and has already been successfully installed thousands of times. In addition, the Premium-Mobile series established itself on the market more than 5 years ago and has been improved again and again based on customer experience and constantly supplemented with technical innovations. As a customer, you thus benefit from a product that is highly mature and reliable and that is at Components of the Offgridtec 100w Premium l 12v 1x Offgridtec 100w 12v - monocrystalline solar panel 1xOffgridtecpWM-Pro 12/24-20 - 12v PWM solar charge controller with lCD display, load output, usb u.v.m. 1x Offgridtec Cable gland 1-way - white with waterproof PEG gland 1x Offgridtec55cm mounting roof spoiler set (1 pair) - for mounting the solar modules 1xOffgridtec 8m 2x6mm h07rnf - connecting cable solar module to solar charge controller in motorhome design 1x Offgridtec 1,5m 2x6mm 30a battery connection cable and terminals - connection cable solar charge controller to battery 1x Mounting glue set with instructions and need accessories for pre-treatment The Offgridtec pwm-pro solar charge controller The Offgridtec PWM-Pro charge controller series offers a large, convenient lCD display and uses the latest charging technologies. A large display informs the user about all operating states with the help of symbols. The state of charge is visually displayed in the manner of a fuel gauge. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. In addition, the controller has a KWh counter that the user can reset himself. Also a controllable load output as well as 2 usb 5v outputs are integrated in the controller and supply your 12v and 5v dc consumers with power. For the complete range of functions, please refer to the documentation of the charge controller The Offgridtec 100w 12v solar panel only the highest quality monocrystalline solar cells are used in the production of our modules. The module has a frame made of anodized aluminum and has a specially hardened ESG solar glass, which makes it particularly resistant to external influences (weathering, etc.). The expected daily output (April to October): on average 400Wh/day (max. 850 Wh on sunny days in Germany) Solar module dimensions: 1030 x 520 x 35 mm (HxWxD). Professional solar mounting system Spoiler profiles are the first choice especially for caravans and motorhomes when it comes to a clean mounting of the solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Due to the closed construction of the spoiler, no branches or similar can get caught under the solar modules. Dimensions spoiler: l x w x h: 54.5cm x 8.9cm (of which approx. 3cm bearing surface module per spoiler) x 6.5cm. The bonding Properly executed bonding is superior to any screw connection in tough motorhome or boat use. On painted or GRP surfaces, a strength of over 4 N/mm2 can be achieved. This would be a value calculated on the glued surface that could never be achieved with a screw connection in the thin aluminum or GRP support layer. This adhesive set allows even a layman to create an absolutely firm connection between spoilers and the respective substrate. components of the solar mounting system The AbS mounting profiles Cable penetrations from the roof into the interior are always quite tricky, as it must be ensured that even after years everything is absolutely tight and remains tight. This is because even the slightest water ingress can lead to often irreparable damage to the interior insulation and furnishings. especially since the moisture is often not noticed until quite late. For this reason, the roof penetrations were developed: The housings are made of the same uv- and weather-resistant material as the mounting brackets offered in the online store. They are extremely stable and absolutely slip-proof. The wide adhesive edge ensures an optimal seal. The bushings are glued with the adhesive set that you also use to glue on the solar mounting brackets. The housings can also be painted as desired and thus adapted to the substrate on which they are to be mounted 1 pair Offgridtec 55cm AbS mounting profiles suitable stainless steel screws to fix the module to the profiles 1x Offgridtec AbS cable roof grommet to lead the solar cable from the roof of the vehicle to the interior The professional cabling set All necessary cables are already pre-crimped with professional tools. So you don't need to buy special pliers for the mc-4 connectors. The cable has a length of 8m and accommodates 2 cores 6mm² components of the cabling set 1x Offgridtec 8m 2x6mm h07rn-f connection cable solar module to solar charge controller complete with appropriately equipped cable ends 1x Offgridtec 1.5m 2x6mm battery connection cable with flat fuse holder, matching ATO fuse and a pair of binding posts. The cable fits m8 screw terminals or batteries with round terminals. Individual system customization possible on request If you want a different charge controller from our range, for example to charge board and service batteries together via solar, or the cables should have a different length, you can always contact us. Also the color of the spoilers can be changed from white to black. To do this, simply send a quote request with the item number and change request to our customer service. Possible costs are to be inquired at the customer service. scope of delivery: 1x Offgridtec 4-01-002710 Premium-l 100w 12v motorhome Solaranlage with all the above-mentioned components 1x instruction manual
