Solar Module Accessories
114 Results
Sorting
VAT-exempt delivery possible*
8-01-007850
Weidmüller PV-Stick - MC4 - Set
The PV-Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With the push-in connection - plug, turn, power! - it enables crimp-free, fast and secure connection of solar panels, inverters and other components in PV systems. The PV-Stick is compact and easy to install, which saves time and costs.
Electrical properties
Push-in technology
Protection class: II
Complies with DIN EN 50521
Application information
Push in the stripped photovoltaic cable (strip 15-16.5mm) without the wire end sleeve.
An audible click indicates that the contact has been made securely.
Tighten the screw cap with a few turns
"Snap in" ensures that the connectors are firmly engaged
Technical Data
Continuous operating temperature: -40°C - + 85°C
Rated voltage: 1500 V/DC
Rated current: 30A
Degree of protection mated condition: IP65
Degree of protection open condition: IP2x
Protection class: II
Conductor cross-section: 4mm²-6mm²
PV conductor according to EN 50618:2014
Cable diameter: 6.1mm-6.2mm
Overvoltage category: III/3
Clearance & creepage distance according to DIN EN 60664-1:2007
Contact resistance: IEC 62852:2014
Approval: IEC 62852:2014
Rated surge voltage: 16 kV
Connection technology: PUSH IN (spring clamp connection)
Mounting temperature: +10°C - +40°C
Scope of delivery:
1x Weidmüller PV Stick MC4 Set
The PV-Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With the push-...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
The PV-Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With the push-in connection - plug, turn, power! - it enables crimp-free, fast and secure connection of solar panels, inverters and other components in PV systems. The PV-Stick is compact and easy to install, which saves time and costs.
Electrical properties
Push-in technology
Protection class: II
Complies with DIN EN 50521
Application information
Push in the stripped photovoltaic cable (strip 15-16.5mm) without the wire end sleeve.
An audible click indicates that the contact has been made securely.
Tighten the screw cap with a few turns
"Snap in" ensures that the connectors are firmly engaged
Technical Data
Continuous operating temperature: -40°C - + 85°C
Rated voltage: 1500 V/DC
Rated current: 30A
Degree of protection mated condition: IP65
Degree of protection open condition: IP2x
Protection class: II
Conductor cross-section: 4mm²-6mm²
PV conductor according to EN 50618:2014
Cable diameter: 6.1mm-6.2mm
Overvoltage category: III/3
Clearance & creepage distance according to DIN EN 60664-1:2007
Contact resistance: IEC 62852:2014
Approval: IEC 62852:2014
Rated surge voltage: 16 kV
Connection technology: PUSH IN (spring clamp connection)
Mounting temperature: +10°C - +40°C
Scope of delivery:
1x Weidmüller PV Stick MC4 Set
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-015625

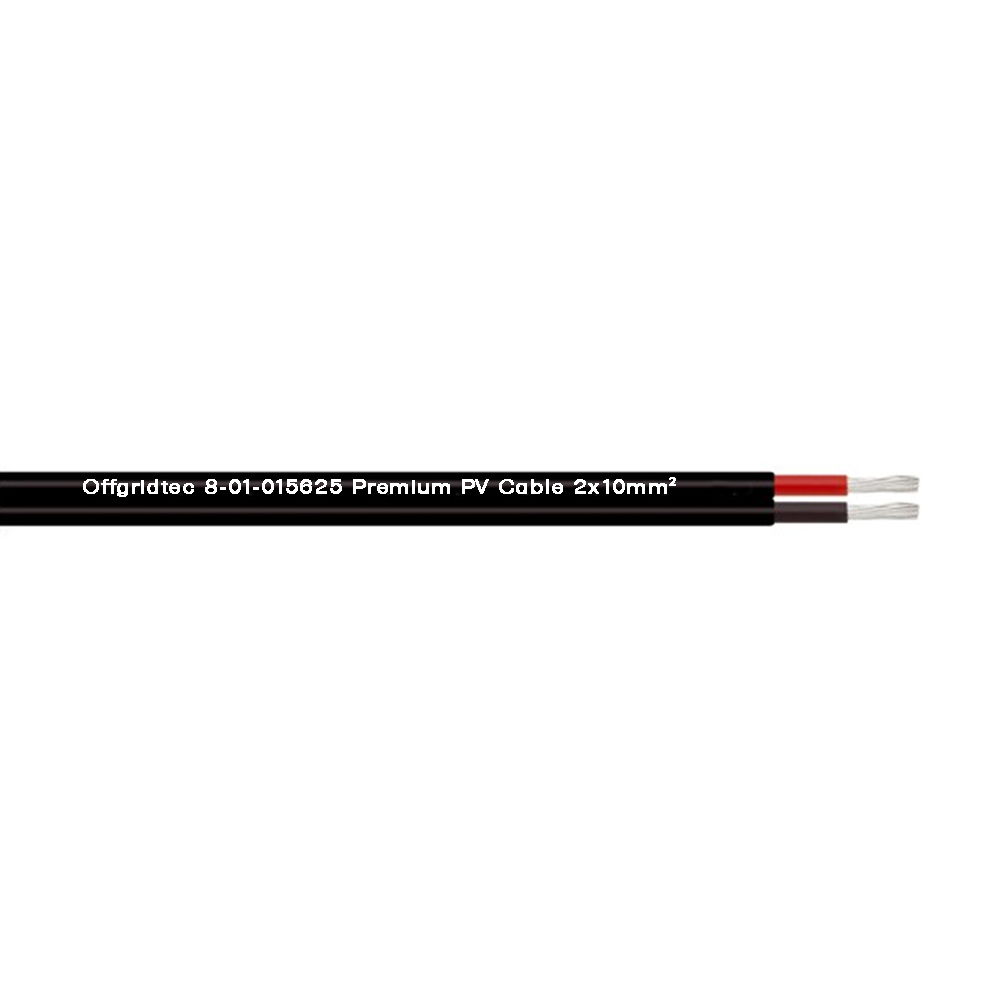

Offgridtec Solar Cable 2x10mm² pv1-f Two Core Solar Cable Black
The Offgridtec solar cable 2x10mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the line together. This article is sold by the meter. Each article corresponds to one meter. If you buy e.g. 10x this article, you will get a coherent piece with 10m length. Use Easily separable into two single lines Robust against mechanical impact Reduction of fire spread and toxic smoke formation in case of fire Structure Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of irradiated crosslinked copolymer Outer jacket color: Black (cores connected in parallel with separator) Scope of delivery: 1x 1m solar cable 2x10mm² (sold by the meter)
The Offgridtec solar cable 2x10mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light a...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
The Offgridtec solar cable 2x10mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the line together. This article is sold by the meter. Each article corresponds to one meter. If you buy e.g. 10x this article, you will get a coherent piece with 10m length. Use Easily separable into two single lines Robust against mechanical impact Reduction of fire spread and toxic smoke formation in case of fire Structure Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of irradiated crosslinked copolymer Outer jacket color: Black (cores connected in parallel with separator) Scope of delivery: 1x 1m solar cable 2x10mm² (sold by the meter)
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-015620
Offgridtec Solar cable 2x6mm² pv1-f 6mm² Two core solar cable Black
The Offgridtec solar cable 2x6mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the line together. This article is sold by the meter. Each article corresponds to one meter. If you buy e.g. 10x this article, you will get a coherent piece with 10m length. Use Easily separable into two single lines Robust against mechanical impact Reduction of fire spread and toxic smoke formation in case of fire Structure Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of irradiated crosslinked copolymer Outer jacket color: black (cores connected in parallel with separator) Scope of delivery: 1x 1m solar cable 2x6mm² (yard goods)
The Offgridtec solar cable 2x6mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light an...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
The Offgridtec solar cable 2x6mm² is a radiation crosslinked high-end solar cable. With optimized cable design, the solar cable is slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the line together. This article is sold by the meter. Each article corresponds to one meter. If you buy e.g. 10x this article, you will get a coherent piece with 10m length. Use Easily separable into two single lines Robust against mechanical impact Reduction of fire spread and toxic smoke formation in case of fire Structure Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of irradiated crosslinked copolymer Outer jacket color: black (cores connected in parallel with separator) Scope of delivery: 1x 1m solar cable 2x6mm² (yard goods)
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-013755
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-001295
Sliding Block ALU/A2 for solar profile rail - M8 screw thread
Sliding block with M8 screw thread. Can be easily pushed into the profile rail. The well designed spring-ball-mechanics allows aneasy installation and provides very good hold.
M8 screw thread
spring-ball-mechanics
material: aluminium
Sliding block with M8 screw thread. Can be easily pushed into the profile rail. The well designed spring-ball-mechanics allows aneasy installation and...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Sliding block with M8 screw thread. Can be easily pushed into the profile rail. The well designed spring-ball-mechanics allows aneasy installation and provides very good hold.
M8 screw thread
spring-ball-mechanics
material: aluminium
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-001285
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
Shipped in 1-3 days
8-01-007370
40mm end clamp aluminum for solar modules with 40mm frame thickness
With the help of 4 pcs. End clamps can be used to fix modules to profile rails.PropertiesMaterial: aluminumRecess for m8 screwsfor 40mm frame heightDimensions: 70x44x30mmRecommended screw length: 45mm
With the help of 4 pcs. End clamps can be used to fix modules to profile rails.PropertiesMaterial: aluminumRecess for m8 screwsfor 40mm frame heightDi...
Shipped in 1-3 days
Shipped in 1-3 days
With the help of 4 pcs. End clamps can be used to fix modules to profile rails.PropertiesMaterial: aluminumRecess for m8 screwsfor 40mm frame heightDimensions: 70x44x30mmRecommended screw length: 45mm
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-016005
Offgridtec Solarkabel 2x4mm² PV1-F 4mm² Zweiadriges Solarkabel Schwarz
Das Offgridtec Solarkabel 2x4mm² ist eine strahlenvernetzte High-End Solarleitung. Mit optimierten Leitungsdesign ist das Solarkabel schlank, leicht und robust und spart jede Menge Zeit bei der Installation.
Die Zwillingsleitung kann bei Bedarf leicht in zwei Leitungen getrennt werden. Dafür benötigen Sie keinerlei besonderes Werkzeug. Trotzdem ist die Verbindung der beiden Adern extrem stabil wenn Sie die Leitung lieber zusammen lassen möchten.
Bei diesem Artikel handelt es sich um Meterware. Jeder Artikel entspricht einen Meter. Wenn Sie z.B. 10x diesen Artikel kaufen, erhalten Sie ein zusammenhängendes Stück mit 10m Länge.
Nutzen
Einfach in zwei Einzelleitungen trennbar
Robust gegen mechanische Einwirkung
Reduktion der Brandausweitung sowie der toxischen Rauchgasbildung im Brandfall
Aufbau
Feindrähtiger, verzinnter Kupferleiter
Aderisolation aus strahlenvernetztem Copolymer
Außenmantel aus strahlenvernetztem Copolymer
Außenmantelfarbe: Schwarz (Adern parallel mit Trennsteg verbunden)
Lieferumfang:
1x 1m Solarkabel 2x4mm² (Meterware)
Das Offgridtec Solarkabel 2x4mm² ist eine strahlenvernetzte High-End Solarleitung. Mit optimierten Leitungsdesign ist das Solarkabel schlank, lei...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Das Offgridtec Solarkabel 2x4mm² ist eine strahlenvernetzte High-End Solarleitung. Mit optimierten Leitungsdesign ist das Solarkabel schlank, leicht und robust und spart jede Menge Zeit bei der Installation.
Die Zwillingsleitung kann bei Bedarf leicht in zwei Leitungen getrennt werden. Dafür benötigen Sie keinerlei besonderes Werkzeug. Trotzdem ist die Verbindung der beiden Adern extrem stabil wenn Sie die Leitung lieber zusammen lassen möchten.
Bei diesem Artikel handelt es sich um Meterware. Jeder Artikel entspricht einen Meter. Wenn Sie z.B. 10x diesen Artikel kaufen, erhalten Sie ein zusammenhängendes Stück mit 10m Länge.
Nutzen
Einfach in zwei Einzelleitungen trennbar
Robust gegen mechanische Einwirkung
Reduktion der Brandausweitung sowie der toxischen Rauchgasbildung im Brandfall
Aufbau
Feindrähtiger, verzinnter Kupferleiter
Aderisolation aus strahlenvernetztem Copolymer
Außenmantel aus strahlenvernetztem Copolymer
Außenmantelfarbe: Schwarz (Adern parallel mit Trennsteg verbunden)
Lieferumfang:
1x 1m Solarkabel 2x4mm² (Meterware)
Shipped in 1-3 days
8-08-002575

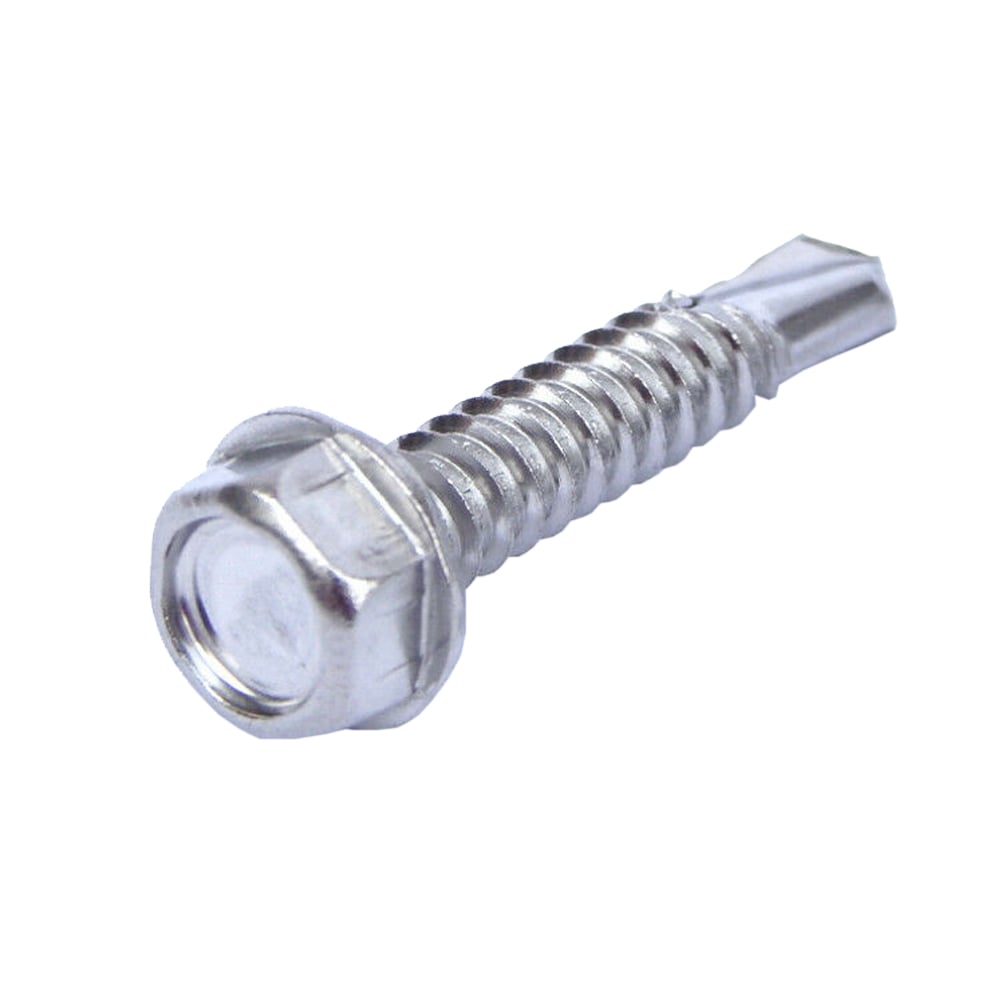

Hexagon drilling screws din 7504 a2 5,5x25 form k
Self-drilling screws are used, for example, to connect supporting structures, sheet metal or façade cladding. The high-quality a2 stainless steel provides a high level of corrosion protection and durability, making the screw ideal for indoor and outdoor use.
Self-drilling screws are used, for example, to connect supporting structures, sheet metal or façade cladding. The high-quality a2 stainless steel prov...
Shipped in 1-3 days
Shipped in 1-3 days
Self-drilling screws are used, for example, to connect supporting structures, sheet metal or façade cladding. The high-quality a2 stainless steel provides a high level of corrosion protection and durability, making the screw ideal for indoor and outdoor use.
Shipped in 1-3 days
8-01-007625
Dekalin 6417112 DEKAsyl MS-5 290ml white adhesive
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Filling: 290mlMPN: 6252212Color: whiteDelivery scope: 1 tube 290ml
290 Milliliter (€54.17* / 1000 Milliliter)
Content: 290 Milliliter (€54.17* / 1000 Milliliter)
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various compone...
Shipped in 1-3 days
Shipped in 1-3 days
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Filling: 290mlMPN: 6252212Color: whiteDelivery scope: 1 tube 290ml
Shipped in 1-3 days
290 Milliliter (€54.17* / 1000 Milliliter)
Content: 290 Milliliter (€54.17* / 1000 Milliliter)
VAT-exempt delivery possible*
More versions available
8-01-017740-001
Offgridtec 1m MC4 zu MC4 Verbindungskabel 6mm² rot/schwarz
Die 2x6mm² MC4-Verlängerungskabel (Bestückung MC4 Stecker und Buchse je Ader) mit strahlenvernetzten Solarkabeln von Offgridtec. Die Fertigung aller anwendungsbereiten Kabel findet in unser Manufaktur in Niederbayern statt.
Dabei verwenden wir hochwertiges Spezialwerkzeug und sorgen somit für eine extrem zugfeste Verbindung die auch sehr harten Umständen trotzt und der auch die Witterung über einen sehr langen Zeitraum nichts anhaben kann.
Anwendungsbereich
ideal für die flexible Verkabelung von Solarmodulen auf unterschiedlichen Dachseiten oder Modulreihen
für die parallele Verbindung von Solarmodulen
Nutzen
Plug and Play, auspacken und einsetzen, sie brauchen keinerlei Fachwerkzeug
Planungssicherheit durch eine lange Hersteller Garantie von 10 Jahren
Technische Daten
max. Spannung: 1000V
Kabellänge wählbar: 1m, 1,5m, 2m, 3m, 5m, 7m, 8m, 10m
Bestückung: 1 MC4 männlich + 1x MC4 weiblich je Ader (siehe Fotos)
Die 2x6mm² MC4-Verlängerungskabel (Bestückung MC4 Stecker und Buchse je Ader) mit strahlenvernetzten Solarkabeln von Offgridtec. Die Fe...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Die 2x6mm² MC4-Verlängerungskabel (Bestückung MC4 Stecker und Buchse je Ader) mit strahlenvernetzten Solarkabeln von Offgridtec. Die Fertigung aller anwendungsbereiten Kabel findet in unser Manufaktur in Niederbayern statt.
Dabei verwenden wir hochwertiges Spezialwerkzeug und sorgen somit für eine extrem zugfeste Verbindung die auch sehr harten Umständen trotzt und der auch die Witterung über einen sehr langen Zeitraum nichts anhaben kann.
Anwendungsbereich
ideal für die flexible Verkabelung von Solarmodulen auf unterschiedlichen Dachseiten oder Modulreihen
für die parallele Verbindung von Solarmodulen
Nutzen
Plug and Play, auspacken und einsetzen, sie brauchen keinerlei Fachwerkzeug
Planungssicherheit durch eine lange Hersteller Garantie von 10 Jahren
Technische Daten
max. Spannung: 1000V
Kabellänge wählbar: 1m, 1,5m, 2m, 3m, 5m, 7m, 8m, 10m
Bestückung: 1 MC4 männlich + 1x MC4 weiblich je Ader (siehe Fotos)
Shipped in 1-3 days
8-01-006420
Offgridtec© Roof Cable Entry 2x white
Lightweight version of the 2-fold cable roof gland with one entrance in the colour white. Made of solid ABS plastic and equipped with an IP68 screw connection. The bushings are designed for use in mobile areas on cars, motor homes or boats. The ideal feed-through for cables that are not subject to further mechanical stress and that never need to be entered (for maintenance or cleaning etc...).
The roof grommet is suitable for cables with an outer diameter of 3-12mm. No information can be given on the suitable cable cross-section, as the thickness of the cable insulation can vary.
If the roof duct has been professionally bonded, it offers solid protection against penetrating moisture and dust in conjunction with the PEG glands. The glands comply with protection class IP68 and are included in the scope of delivery.
As an adhesive, we recommend the Dekalin MS-5 adhesive set. (Not included in the scope of delivery).
Product featuresManufacturer: OffgridtecInputs: 2Material: ABS plasticColour: WhiteFor cable outer diameter of 3-12mmDimensions (LxWxH): 13 x 9.5 x 4 cmWeight: 0.048 kilogramFitting: 2x PEG fitting with rubber sealing ring (IP 68)Offgridtec part number: 006420
Lightweight version of the 2-fold cable roof gland with one entrance in the colour white. Made of solid ABS plastic and equipped with an IP68 screw co...
Shipped in 1-3 days
Shipped in 1-3 days
Lightweight version of the 2-fold cable roof gland with one entrance in the colour white. Made of solid ABS plastic and equipped with an IP68 screw connection. The bushings are designed for use in mobile areas on cars, motor homes or boats. The ideal feed-through for cables that are not subject to further mechanical stress and that never need to be entered (for maintenance or cleaning etc...).
The roof grommet is suitable for cables with an outer diameter of 3-12mm. No information can be given on the suitable cable cross-section, as the thickness of the cable insulation can vary.
If the roof duct has been professionally bonded, it offers solid protection against penetrating moisture and dust in conjunction with the PEG glands. The glands comply with protection class IP68 and are included in the scope of delivery.
As an adhesive, we recommend the Dekalin MS-5 adhesive set. (Not included in the scope of delivery).
Product featuresManufacturer: OffgridtecInputs: 2Material: ABS plasticColour: WhiteFor cable outer diameter of 3-12mmDimensions (LxWxH): 13 x 9.5 x 4 cmWeight: 0.048 kilogramFitting: 2x PEG fitting with rubber sealing ring (IP 68)Offgridtec part number: 006420
Shipped in 1-3 days
8-08-002580
End Cap PA black for 40 x 40mm aluminium profiles
Fitting end caps for our aluminiuim profile rails. These caps hide open rail ends and unsightly cuts it gives a professional look to your substructure. They are suitable for 40 x 40mm profiles.
Fitting end caps for our aluminiuim profile rails. These caps hide open rail ends and unsightly cuts it gives a professional look to your substructure...
Shipped in 1-3 days
Shipped in 1-3 days
Fitting end caps for our aluminiuim profile rails. These caps hide open rail ends and unsightly cuts it gives a professional look to your substructure. They are suitable for 40 x 40mm profiles.
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-001425
50cm MC4-Connection Cable 6mm²
6mm² solar cable - The cable is manufactured in our factory in Lower Bavaria.
These cables are prepared with special tools and can be used instantly.
Features:
original MC4-plugs
prefabricated with special tools
plug & play
made in Germany
Technical data:
cable diameter: 6mm²
cable length: 50cm
plugs: 2 x MC4-plugs (male / female)
0.5 Meter (€16.58* / 1 Meter)
Content: 0.5 Meter (€16.58* / 1 Meter)
6mm² solar cable - The cable is manufactured in our factory in Lower Bavaria.
These cables are prepared with special tools and can be used insta...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
6mm² solar cable - The cable is manufactured in our factory in Lower Bavaria.
These cables are prepared with special tools and can be used instantly.
Features:
original MC4-plugs
prefabricated with special tools
plug & play
made in Germany
Technical data:
cable diameter: 6mm²
cable length: 50cm
plugs: 2 x MC4-plugs (male / female)
Shipped in 1-3 days
8-01-006415
Offgridtec© Roof Cable Entry 2x black
Lightweight version of the 2-fold cable roof gland with one entrance in the colour black. Made of solid ABS plastic and equipped with an IP68 screw connection. The bushings are designed for use in mobile areas on cars, motor homes or boats. The ideal feed-through for cables that are not subject to further mechanical stress and that never need to be entered (for maintenance or cleaning etc...).
The roof grommet is suitable for cables with an outer diameter of 3-12mm. No information can be given on the suitable cable cross-section, as the thickness of the cable insulation can vary.
If the roof duct has been professionally bonded, it offers solid protection against penetrating moisture and dust in conjunction with the PEG glands. The glands comply with protection class IP68 and are included in the scope of delivery.
As an adhesive, we recommend the Dekalin MS-5 adhesive set. (Not included in the scope of delivery).
Product featuresManufacturer: OffgridtecInputs: 2Material: ABS plasticColour: BlackFor cable outer diameter of 3-12mmDimensions (LxWxH): 13 x 9.5 x 4 cmWeight: 0.048 kilogramFitting: 2x PEG fitting with rubber sealing ring (IP 68)Offgridtec part number: 006415
Lightweight version of the 2-fold cable roof gland with one entrance in the colour black. Made of solid ABS plastic and equipped with an IP68 screw co...
Shipped in 1-3 days
Shipped in 1-3 days
Lightweight version of the 2-fold cable roof gland with one entrance in the colour black. Made of solid ABS plastic and equipped with an IP68 screw connection. The bushings are designed for use in mobile areas on cars, motor homes or boats. The ideal feed-through for cables that are not subject to further mechanical stress and that never need to be entered (for maintenance or cleaning etc...).
The roof grommet is suitable for cables with an outer diameter of 3-12mm. No information can be given on the suitable cable cross-section, as the thickness of the cable insulation can vary.
If the roof duct has been professionally bonded, it offers solid protection against penetrating moisture and dust in conjunction with the PEG glands. The glands comply with protection class IP68 and are included in the scope of delivery.
As an adhesive, we recommend the Dekalin MS-5 adhesive set. (Not included in the scope of delivery).
Product featuresManufacturer: OffgridtecInputs: 2Material: ABS plasticColour: BlackFor cable outer diameter of 3-12mmDimensions (LxWxH): 13 x 9.5 x 4 cmWeight: 0.048 kilogramFitting: 2x PEG fitting with rubber sealing ring (IP 68)Offgridtec part number: 006415
Shipped in 1-3 days
8-01-011262
Offgridtec® Suction cups for fsp solar panels 8 pcs.
The ideal complement. With this gadget your Offgridtec fsp solar modules stay where they should be.
Through these 8 high-quality processed suction cups from Offgridtec (mpn 011262) for mounting, the solar module holds on your vehicle, whether on the windshield or on the roof. After use, they are easy to remove again without residue.
Features
8 transparent suction cups
optimal adhesive force
high quality material
ideal complement for fsp modules
diameter 5cm
screw 5mm
Scope of delivery:
8x Offgridtec Suction cups for fsp solar modules
The ideal complement. With this gadget your Offgridtec fsp solar modules stay where they should be.
Through these 8 high-quality processed suction cup...
Shipped in 1-3 days
Shipped in 1-3 days
The ideal complement. With this gadget your Offgridtec fsp solar modules stay where they should be.
Through these 8 high-quality processed suction cups from Offgridtec (mpn 011262) for mounting, the solar module holds on your vehicle, whether on the windshield or on the roof. After use, they are easy to remove again without residue.
Features
8 transparent suction cups
optimal adhesive force
high quality material
ideal complement for fsp modules
diameter 5cm
screw 5mm
Scope of delivery:
8x Offgridtec Suction cups for fsp solar modules
Shipped in 1-3 days
8-01-006430
Offgridtec© Roof Cable Entry 1x white
Light version of the roof cable entry with one entry in white. Made of sturdy ABS plastic and equipped with an IP68 screwing. These cable entries are designed for mobile applications on cars, caravans and boats.An ideal item for medium mechanical loads, for example walking over it occasionally during maintenance or cleaning.
If adhered properly these cable entries together with an PEG-screwing provide decent protection from humidity and dust. The screwing complies with IP68 and is included, of course.
As adhesive we recommend the Sika 252i (not included).
Details:Height: 40mmManufacturer: OffgridtecEntries: 1Material: ABSColor: whiteWeight: 0,036kgScrewing: 1x PEG-screwing with rubber sealing (IP68)MPN: 006430
Light version of the roof cable entry with one entry in white. Made of sturdy ABS plastic and equipped with an IP68 screwing. These cable entries are ...
Shipped in 1-3 days
Shipped in 1-3 days
Light version of the roof cable entry with one entry in white. Made of sturdy ABS plastic and equipped with an IP68 screwing. These cable entries are designed for mobile applications on cars, caravans and boats.An ideal item for medium mechanical loads, for example walking over it occasionally during maintenance or cleaning.
If adhered properly these cable entries together with an PEG-screwing provide decent protection from humidity and dust. The screwing complies with IP68 and is included, of course.
As adhesive we recommend the Sika 252i (not included).
Details:Height: 40mmManufacturer: OffgridtecEntries: 1Material: ABSColor: whiteWeight: 0,036kgScrewing: 1x PEG-screwing with rubber sealing (IP68)MPN: 006430
Shipped in 1-3 days
8-01-007630
Dekalin 6417112 DEKAsyl MS-5 290ml black adhesive
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Filling: 290mlMPN: 6252412Color: blackDelivery scope: 1 tube 290ml
290 Milliliter (€54.17* / 1000 Milliliter)
Content: 290 Milliliter (€54.17* / 1000 Milliliter)
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various compone...
Shipped in 1-3 days
Shipped in 1-3 days
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Filling: 290mlMPN: 6252412Color: blackDelivery scope: 1 tube 290ml
Shipped in 1-3 days
290 Milliliter (€54.17* / 1000 Milliliter)
Content: 290 Milliliter (€54.17* / 1000 Milliliter)
VAT-exempt delivery possible*
8-01-013370
Offgridtec® Adapter cable Anderson male to DC-8mm male for fsp modules and solar case 20cm
With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to various power stations with dc-7909 - 8mm connector. The cable has a pure Anderson 50a connector on one end and a dc-7909 - 8mm male connector on the other end. Thanks to the Plug and Play principle, connecting Offgridtec FSP modules or solar cases to a compatible Power Station is simple and straightforward. Features Anderson connector 50a dc-7909 - 8mm Male Connector - Shank Length 9mm Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (grey) Compatible with Power Stations with DC-8mm connector Length: 20cm Wire gauge: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Shank length DC connector 9mm - Please check if the connector of your power station is compatible before purchase Offgridtec always offers the highest quality Thanks to our many years of experience in the field of solar cables and wires, our wide range of products always offers you the right one for your needs and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm
0.2 Meter (€99.50* / 1 Meter)
Content: 0.2 Meter (€99.50* / 1 Meter)
With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to vario...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to various power stations with dc-7909 - 8mm connector. The cable has a pure Anderson 50a connector on one end and a dc-7909 - 8mm male connector on the other end. Thanks to the Plug and Play principle, connecting Offgridtec FSP modules or solar cases to a compatible Power Station is simple and straightforward. Features Anderson connector 50a dc-7909 - 8mm Male Connector - Shank Length 9mm Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (grey) Compatible with Power Stations with DC-8mm connector Length: 20cm Wire gauge: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Shank length DC connector 9mm - Please check if the connector of your power station is compatible before purchase Offgridtec always offers the highest quality Thanks to our many years of experience in the field of solar cables and wires, our wide range of products always offers you the right one for your needs and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm
Shipped in 1-3 days
8-01-013375
Offgridtec Flush mounting frame for Anderson connectors incl. cover dust protection (without Anderson connector)
The flush mounting frame from Offgridtec (mpn 013375) is suitable for sb50 Anderson connectors and is supplied incl. cover. For inconspicuous installation, for example in the camper, on the boat or in the garden shed. Features Suitable for sb50 Anderson connector (not included) Incl. cover for dust protection Protection class: IP65 Material: plastic Color: black Scope of delivery: 1x Offgridtec flush mounting frame for Anderson connectors (Anderson connectors, as well as mounting & M3 connection screws not included)
The flush mounting frame from Offgridtec (mpn 013375) is suitable for sb50 Anderson connectors and is supplied incl. cover. For inconspicuous installa...
Shipped in 1-3 days
Shipped in 1-3 days
The flush mounting frame from Offgridtec (mpn 013375) is suitable for sb50 Anderson connectors and is supplied incl. cover. For inconspicuous installation, for example in the camper, on the boat or in the garden shed. Features Suitable for sb50 Anderson connector (not included) Incl. cover for dust protection Protection class: IP65 Material: plastic Color: black Scope of delivery: 1x Offgridtec flush mounting frame for Anderson connectors (Anderson connectors, as well as mounting & M3 connection screws not included)
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-010335
3 way solar connector junction sockets compatible with solar connector systems.
The Offgridtec 3-way solar connectors (8-01-010335) are used to connect 3 modules in parallel. They are identical in construction to the 2-way junction boxes, but you can save costs with these connectors because you can always connect 3 modules in parallel instead of 2.
Important article features
- Solar connector compatible 3-way junction boxes for parallel connection of several solar modules
-Suitable for cables with a cross-section of 4mm²-6mm²
-Compatible with PV-KST 4/6II solar connectors ideal for 12V systems and thin-film modules
-Snap-in locking
-Protection class IP67
What does parallel connection mean?
With parallel connection, the positive and negative leads are bundled at one output. This circuit increases the current and the voltage remains the same.
Practical example: You want to connect 3 100 Watt (Imp=5,56A Vmp 17,8V) solar modules to a charge controller with 20A and a maximum input voltage of 30V/DC. To ensure that you do not exceed the permissible input voltage, you must connect the modules in parallel. So plus to plus and minus to minus.
If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp= 16.68A and Vmp = 17.8V. This means that your solar configuration is perfectly matched to the charge controller.
The scope of delivery includes:
1x pair of Offgridtec 3-way solar connector junction boxes.
The Offgridtec 3-way solar connectors (8-01-010335) are used to connect 3 modules in parallel. They are identical in construction to the 2-way junctio...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
The Offgridtec 3-way solar connectors (8-01-010335) are used to connect 3 modules in parallel. They are identical in construction to the 2-way junction boxes, but you can save costs with these connectors because you can always connect 3 modules in parallel instead of 2.
Important article features
- Solar connector compatible 3-way junction boxes for parallel connection of several solar modules
-Suitable for cables with a cross-section of 4mm²-6mm²
-Compatible with PV-KST 4/6II solar connectors ideal for 12V systems and thin-film modules
-Snap-in locking
-Protection class IP67
What does parallel connection mean?
With parallel connection, the positive and negative leads are bundled at one output. This circuit increases the current and the voltage remains the same.
Practical example: You want to connect 3 100 Watt (Imp=5,56A Vmp 17,8V) solar modules to a charge controller with 20A and a maximum input voltage of 30V/DC. To ensure that you do not exceed the permissible input voltage, you must connect the modules in parallel. So plus to plus and minus to minus.
If you now measure the string, you should be able to measure the following values under ideal lighting conditions: Imp= 16.68A and Vmp = 17.8V. This means that your solar configuration is perfectly matched to the charge controller.
The scope of delivery includes:
1x pair of Offgridtec 3-way solar connector junction boxes.
Shipped in 1-3 days
VAT-exempt delivery possible*
8-03-002560
Solar panel support Mono Axial Two Tilt adjustable 0-90°
The Mono Axial Two fromOffgridtec is a solar panel mount with adjustable tilt angle of 0-90° is specially designed for mounting one solar panel. Since the carrier is made of aluminum, it is corrosion resistant and lightweight.
The module holder can be mounted on the roof as well as on the wall. It can be mounted a module with a maximum width of 712mm
Modules with max. 712mm width
Tilt angle 0-90
Aluminum
incl. screws
The Mono Axial Two fromOffgridtec is a solar panel mount with adjustable tilt angle of 0-90° is specially designed for mounting one solar panel. ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
The Mono Axial Two fromOffgridtec is a solar panel mount with adjustable tilt angle of 0-90° is specially designed for mounting one solar panel. Since the carrier is made of aluminum, it is corrosion resistant and lightweight.
The module holder can be mounted on the roof as well as on the wall. It can be mounted a module with a maximum width of 712mm
Modules with max. 712mm width
Tilt angle 0-90
Aluminum
incl. screws
Shipped in 1-3 days
VAT-exempt delivery possible*
HM-95GD-Z587
Offgridtec 3m 4mm² Connection Cable - module to charge controller
This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge controller). Most 12V modules have MC4-plugs - if other plugs are needed you find adaptors in our shop.
All components are crimped with professional tools and show excellent connection characteristics. The cable is manufactured in our factory in Lower Bavaria.
Solar cable:
4mm cable diameter
double-insulated
very flexible
VDE 0295 class 5 and IEC 60228
restistant against UV, ozone, weather, water, chemicals, oil, fire (according to VDE 0482-332-2, DIN)
type of protection (plugged): IP67
temperature range: -40°C to 90°C
insulation material: PA
connection system: snap-in
cable relief according to IEC 61984
contact system: MC4 contact fins
contact material: tinned copper
flame class: UL94-V0
protection class: II
system voltage up to 1000V
Ferrules:
material: tinned copper
length: 12mm
3 Meter (€4.93* / 1 Meter)
Content: 3 Meter (€4.93* / 1 Meter)
This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
This 2-core cable connects charge controller and solar module in a professional way. It is equipped with MC4-connectors (module) and ferrules (charge controller). Most 12V modules have MC4-plugs - if other plugs are needed you find adaptors in our shop.
All components are crimped with professional tools and show excellent connection characteristics. The cable is manufactured in our factory in Lower Bavaria.
Solar cable:
4mm cable diameter
double-insulated
very flexible
VDE 0295 class 5 and IEC 60228
restistant against UV, ozone, weather, water, chemicals, oil, fire (according to VDE 0482-332-2, DIN)
type of protection (plugged): IP67
temperature range: -40°C to 90°C
insulation material: PA
connection system: snap-in
cable relief according to IEC 61984
contact system: MC4 contact fins
contact material: tinned copper
flame class: UL94-V0
protection class: II
system voltage up to 1000V
Ferrules:
material: tinned copper
length: 12mm
Shipped in 1-3 days
8-01-011260
3m Anderson extension cable for Offgridtec fsp modules and solar case
This Anderson extension cable from Offgridtec (mpn 8-01-011260) is compatible with the Offgridtec fsp solar modules and solar cases. This allows you to always remain flexible when planning and expanding your solar supply. The cable has a length of 3 meters and is made of high quality. Features 3 meters length in 6mm² wire cross section universal Anderson connectors compatible with Offgridtec fsp modules and solar cases Scope of delivery: 1x Offgridtec Anderson extension cable - 3 meters
3 Meter (€8.30* / 1 Meter)
Content: 3 Meter (€8.30* / 1 Meter)
This Anderson extension cable from Offgridtec (mpn 8-01-011260) is compatible with the Offgridtec fsp solar modules and solar cases. This allows you t...
Shipped in 1-3 days
Shipped in 1-3 days
This Anderson extension cable from Offgridtec (mpn 8-01-011260) is compatible with the Offgridtec fsp solar modules and solar cases. This allows you to always remain flexible when planning and expanding your solar supply. The cable has a length of 3 meters and is made of high quality. Features 3 meters length in 6mm² wire cross section universal Anderson connectors compatible with Offgridtec fsp modules and solar cases Scope of delivery: 1x Offgridtec Anderson extension cable - 3 meters
Shipped in 1-3 days
Solar Module Accessories
A photovoltaic system is a complex interaction of many individual components. To ensure that they all mesh smoothly, you need the right accessories and, in some cases, suitable spare parts. At Offgridtec you will find everything you need for the proper operation of your solar panel - in best quality made in Germany and at a fair price!
High quality solar and photovoltaic accessories and spare parts
You are planning a solar installation and are looking for the right solar accessories? We carry a wide range of photovoltaic accessories that you need for the installation of your solar system. Whether for private use or as a professional solar system operator - we have the right solar accessories and spare parts for you.
Offgridtec offers you a wide range of components that you need for the installation of your solar system. From solar controllers and inverters to cables and end clamps to elevations for solar radiation in mounting systems, you will find all the essentials with us. This makes the installation of your solar system easy and convenient.
Practical solar and photovoltaic accessories for camping
You also need the right solar accessories at the campsite and should be optimally equipped with spare parts. With special solar systems for the campsite, you are well prepared for your next camping holiday.
Buy high-quality electronic accessories and spare parts online now
At Offgridtec you will find accessories and spare parts of the best quality and at an unbeatable price. We are your one-stop shop for first-class products and friendly customer service! So if you have any questions about our solar system accessories or would like general information, don't hesitate to contact us. It's best to call us directly on +49 8721 91994-00 or send an email to [email protected] and let our experts advise you.
FAQ
- What components do you need for a solar power system? You need some components for a photovoltaic system: Most important are the solar modules as the main component of the PV system. In addition, there is a roof mount and wiring. To be able to use the electricity, you also need an inverter and a storage unit.
- What do you need for a solar system on the roof? For a solar system on the roof, you need a mounting bracket. Depending on the type of roof, an elevation should also be integrated to enable the optimum angle of incidence of the sun's rays.
- What do I need for a photovoltaic system with storage? A PV system with a storage tank is ideal for storing the electricity you generate, which you do not use immediately, for later. You will need solar modules, a storage unit, an inverter and wiring for all components.
- Where should the inverter be mounted? You should install an inverter in a cool and dry place that is easily accessible for maintenance.
