The Battery Charger VBCS Triple is a brand new type of device combination to ensure the energy supply in your caravan. It consists of a pb-grid-charger, VCC charging converter and MPP solar charge controller. The batteries are always charged automatically no matter if driving or parking. Especially the high charging performance (30A) of the integrated charging converter allows full charging of your batteries even on short drives. The VBCS Triple series provides the same quality, features and functions as the Votronic single devices and comes with a very compact and light design. These devices save costs and space within your caravan - installation, connection and wiring are reduced to a minimum. Important product features: integrated VCC charging converter 30A integrated Pb-grid- charger 20A integrated MPP solar charge controller for a max. module performance of 250W charges 1 supply battery, 1 starter battery or 2 supply batteries or 2 starter batteries constant full-automated charging very secure operation, soft battery charging 8 charging curves for acid, gel, AGM and modern LiFePO4 batteries control input for LiFePO4 - BMS for charging stop the charging voltages are free from spikes and controlled in a way to prevent from overloads precise battery temperature compensation, temperature sensor 825 included smart micro processor controlling considers connected consumers automatical battery recharge during longer standing times (twice a week) integrated battery pulser compensation of voltage loss (cables) for exact charging voltage reliable technique and compact design easy setup and short cabling plug&play connection for LCD-Charge Control S Suitable for all common battery sizes three different device combinations are available. All devices provide 8 charging curves for lead-acid, gel and AGM batteries as well as lithium-LiFePO4. The integrated battery trainer keeps the batteries maintained during longer standing times. LCD Charge Computer 1247 (optional)Especially designed for this device the LCD display and control unit shows important information. Additionally the charger can be adjusted to the power supply of the caravans pitch. Technical Data: Integrated MPP dual charge controller module performance: 40 - 250Wp Module amp max.:  15.0A Module voltage (Voc) max.: 28V Charging amp supply-/starter battery max.: 18.0/4.0A Integrated charger: operating voltage: 110 - 230V AC 45.65Hz (worldwide) Max. power consumption: 360W Charging amp supply-/starter battery max.: 20/4A Integrated 12V712V battery to battery VCC charging converter charging performance on-board battery max.: 30A automatic activation D+ / ignition starter battery LiMa voltage range (Euro6) / max. current: 11 - 16V/42A

The Battery Charger VBCS Triple is a brand new type of device combination to ensure the energy supply in your caravan. It consists of a pb-grid-charger, VCC charging converter and MPP solar charge controller. The batteries are always charged automatically no matter if driving or parking. Especially the high charging performance (45A) of the integrated charging converter allows full charging of your batteries even on short drives. The VBCS Triple series provides the same quality, features and functions as the Votronic single devices and comes with a very compact and light design. These devices save costs and space within your caravan - installation, connection and wiring are reduced to a minimum. Important product features: integrated VCC charging converter 45A integrated Pb-grid- charger 30A integrated MPP solar charge controller for a max. module performance of 350W charges 1 supply battery, 1 starter battery or 2 supply batteries or 2 starter batteries constant full-automated charging very secure operation, soft battery charging 8 charging curves for acid, gel, AGM and modern LiFePO4 batteries control input for LiFePO4 - BMS for charging stop the charging voltages are free from spikes and controlled in a way to prevent from overloads precise battery temperature compensation, temperature sensor 825 included smart micro processor controlling considers connected consumers automatical battery recharge during longer standing times (twice a week) integrated battery pulser compensation of voltage loss (cables) for exact charging voltage reliable technique and compact design easy setup and short cabling plug&play connection for LCD-Charge Control S Suitable for all common battery sizes three different device combinations are available. All devices provide 8 charging curves for lead-acid, gel and AGM batteries as well as lithium-LiFePO4. The integrated battery trainer keeps the batteries maintained during longer standing times. LCD Charge Computer 1247 (optional)Especially designed for this device the LCD display and control unit shows important information. Additionally the charger can be adjusted to the power supply of the caravans pitch. Technical Data: Integrated MPP dual charge controller module performance: 50 - 350Wp Module amp max.: 21.0A Module voltage (Voc) max.: 28V Charging amp supply-/starter battery max.: 25.5/5.0A Integrated charger: operating voltage: 110 - 230V AC 45.65Hz (worldwide) Max. power consumption: 520W Charging amp supply-/starter battery max.: 30/5A Integrated 12V712V battery to battery VCC charging converter charging performance on-board battery max.: 45A automatic activation D+ / ignition starter battery LiMa voltage range (Euro6) / max. current: 11 - 16V/42A

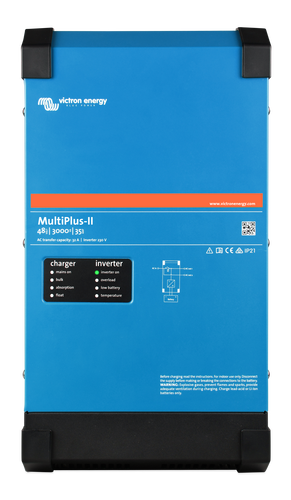

The Multiplus-II 48/3000/35-32 is a high-end device combination from victron Energy (mpn pmp482305010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ess applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 48 v battery charger is also very well proportioned with 35 a charging power and is complemented by a 32 a transfer switch that allows lightning-fast switching between the aC connections important features of the Multiplus-II 48/3000/35-32 PowerControl and Powerassist -increase of mains or generator power built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 3000w power at non-linear load 2400 w continuous load and 6000 w peak power for 48 v battery voltage, 32 a transfer switch and 35 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/3000/35-32. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482305010 Multiplus-II 48/3000/35-32a 1x user manual

The Multiplus-II 48/5000/70-50 is a high-end device combination from victron Energy (mpn pmp482505010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and expands the potential range of use to ess applications. The inverter module delivers a whopping 5000 w at non-linear load, or 4000 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 70 a charging power, and is complemented by a 50 a transfer switch that allows lightning-fast switching between aC connections important features of the Multiplus-II 48/5000/70-50 PowerControl and Powerassist -increase in mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 5000 w power at non-linear load 4000 w continuous load and 9000 w peak power for 48 v battery voltage, 50 a transfer switch and 70 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/5000/70-50. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482505010 Multiplus-II 48/5000/70-50a 1x user manual

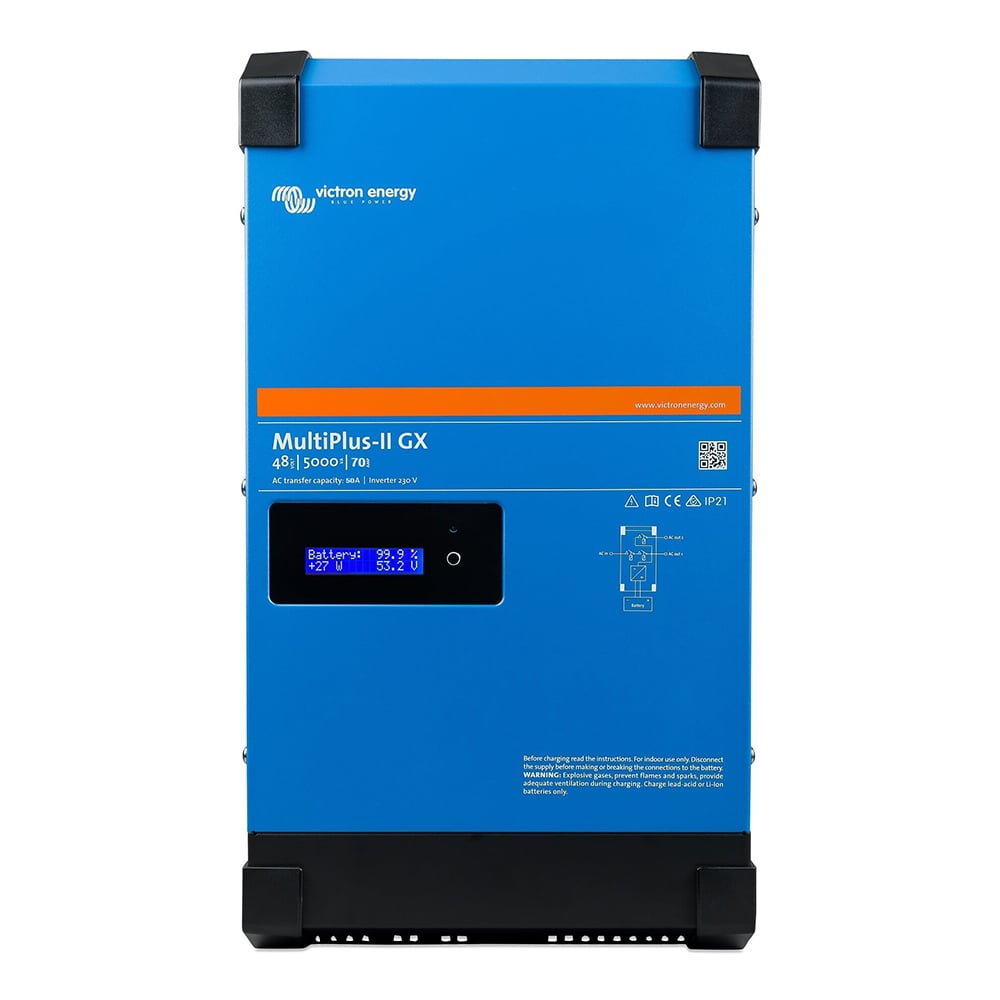

The Multiplus-II 48/5000/70-50 gx is a high-end device combination from victron Energy (mpn pmp482506000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and expands the potential range of use to ess applications. The inverter module delivers a whopping 5000 w at non-linear load, or 4000 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 70 a charging power, and is complemented by a 50 a transfer switch that allows lightning-fast switching between aC connections. Compared to the rest of the series, the gx variants have an integrated gx display with numerous other connection options. important features of the Multiplus-II 48/5000/70-50 gx integrated gx control unit with various communication ports PowerControl and Powerassist -increase of mains or generator power built-in anti-islanding function and connection for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 5000w power at non-linear load 4000 w continuous load and 9000 w peak power for 48 v battery voltage, 50 a transfer switch and 70 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/5000/70-50 gx. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries. Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. Scope of the integrated gx device A vE.Can interface This can be used to connect vE.Can devices from victron (e.g. vE.Can mppt). The port can also be reconfigured via the remote console for use with a compatible CaN-Bus Li-Ion battery. 1xUSB connection 1x Ethernet port 1x vE.Direct connection many possibilities for system expansion Settings can be changed within minutes using the vEConfigure software (requires a computer or laptop and MK3 USB interface).multiple monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel. Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482506000 Multiplus-II 48/5000/70-50 gx 230v 1x instruction manual

The Battery Charger VBCS Triple is a brand new type of device combination to ensure the energy supply in your caravan. It consists of a pb-grid-charger, VCC charging converter and MPP solar charge controller. The batteries are always charged automatically no matter if driving or parking. Especially the high charging performance (60A) of the integrated charging converter allows full charging of your batteries even on short drives. The VBCS Triple series provides the same quality, features and functions as the Votronic single devices and comes with a very compact and light design. These devices save costs and space within your caravan - installation, connection and wiring are reduced to a minimum. Important product features: integrated VCC charging converter 60A integrated Pb-grid- charger 40A integrated MPP solar charge controller for a max. module performance of 430W charges 1 supply battery, 1 starter battery or 2 supply batteries or 2 starter batteries constant full-automated charging very secure operation, soft battery charging 8 charging curves for acid, gel, AGM and modern LiFePO4 batteries control input for LiFePO4 - BMS for charging stop the charging voltages are free from spikes and controlled in a way to prevent from overloads precise battery temperature compensation, temperature sensor 825 included smart micro processor controlling considers connected consumers automatical battery recharge during longer standing times (twice a week) integrated battery pulser compensation of voltage loss (cables) for exact charging voltage reliable technique and compact design easy setup and short cabling plug&play connection for LCD-Charge Control S Suitable for all common battery sizes three different device combinations are available. All devices provide 8 charging curves for lead-acid, gel and AGM batteries as well as lithium-LiFePO4. The integrated battery trainer keeps the batteries maintained during longer standing times. LCD Charge Computer 1247 (optional)Especially designed for this device the LCD display and control unit shows important information. Additionally the charger can be adjusted to the power supply of the caravans pitch. Technical Data: Integrated MPP dual charge controller module performance: 60 - 430Wp Module amp max.:  26.0A Module voltage (Voc) max.: 28V Charging amp supply-/starter battery max.: 31.5/5.0A Integrated charger operating voltage: 110 - 230V AC 45.65Hz (worldwide) Max. power consumption: 700W Charging amp supply-/starter battery max.: 20/4A Integrated 12V712V battery to battery VCC charging converter charging performance on-board battery max.: 60A automatic activation D+ / ignition starter battery LiMa voltage range (Euro6) / max. current: 11 - 16V/82A

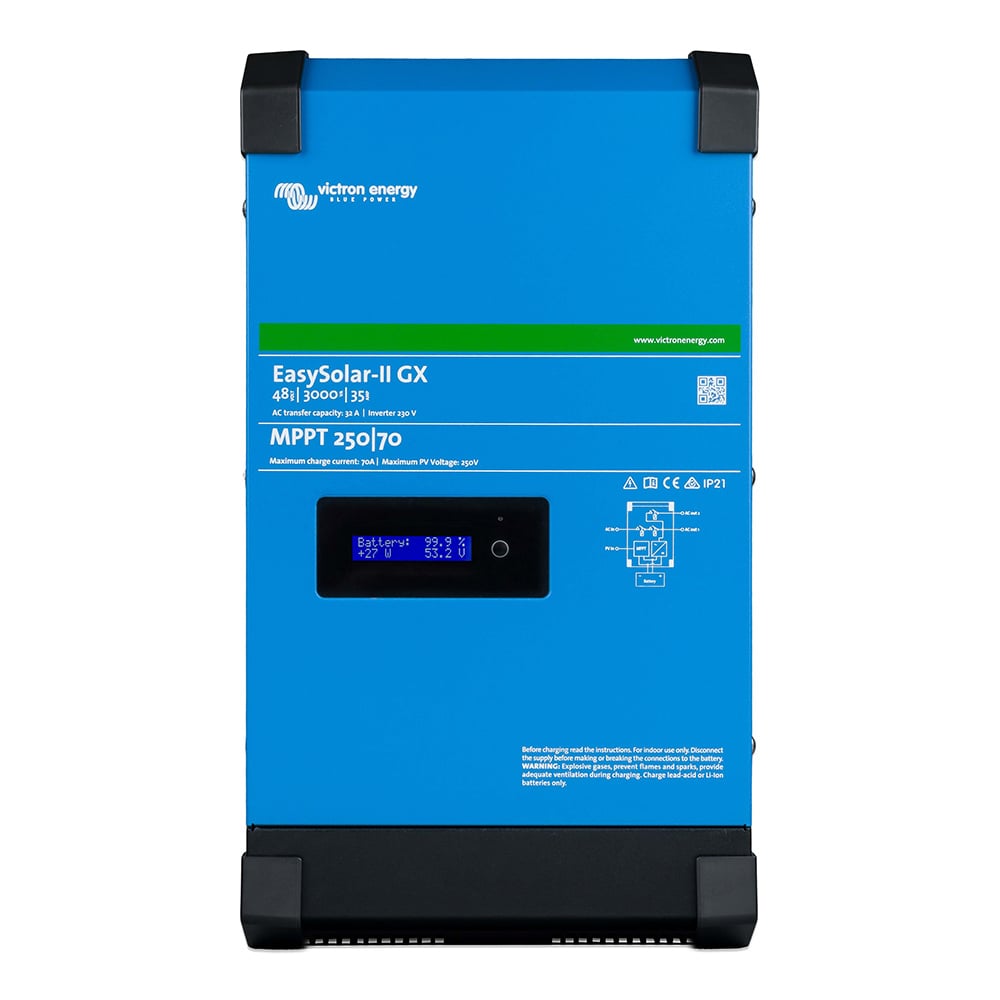

The Victron EasySolar-II device combination from Victron (mpn pmp482307010) combines an inverter/charger, a solar charge controller and a gx device. The elements are pre-wired and integrated into a single unit. This greatly simplifies most installations and saves time and money. Components MultiPlus II inverter/charger SmartSolar mppt 250/70-Tr solar charge controller gx device with 2x 16 characters display Display and Wi-Fi The display shows parameters for battery, inverter and solar charge controller. The parameters can be accessed using a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and change settings. Solar charge controller The DC output of the SmartSolar mppt is connected in parallel with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar mppt gx device The integrated gx device includes: A BMS-Can interface. This can be used to connect to a compatible CAN bus managed battery. Note that this is not a VE.Can compatible connection. A USB port An Ethernet port One VE.Direct port The gx device controls the MultiPlus-II and SmartSolar mppt with one VE.Bus and one VE.Direct connection each. Technical data Inverter: input voltage range 38-66v - output voltage 230 vac - const. Output power 3000w - Peak power 5500W Charger: Input voltage range 187-265 vac - Input frequency 45-65Hz - Max. Battery charging current 35A Solar charge controller: Max. Output current 70a - Max. PV power 4000w - Max. PV open circuit voltage 250v - Constant charge voltage 57.6V Interfaces: BMS-Can, usb, Ethernet, VE.Direct, Wi-Fi Protection class: IP21 Dimensions: 506 x 275 x 237 mm Weight: 26kg Scope of delivery: 1x Victron Energy EasySolar-II gx 48/3000/35-32 mppt 250/70 gx 1x user manual

The Multiplus-II 12/3000/120-32 is a high-end device combination from victron Energy (mpn pmp122305010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ESS applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 12 v battery charger is also very well proportioned, with 120 a charging power, and is complemented by a 32 a transfer switch that allows lightning-fast switching between aC connections. important features of the Multiplus-II 12/3000/120-32 PowerControl and Powerassist -increase in mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* Technical features 3000 w power at non-linear load 2400 w continuous load and 5500 w peak power for 12 v battery voltage, 32 a transfer switch and 120 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 Always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 12/3000/120-32. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries. Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. Maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In case of grid failure or interruption of shore/generator power, the MultiPlus-II takes over the supply of the connected loads. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel. Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp122305010 Multiplus-II 12/3000/120-32a 1x user manual

The Multiplus-II 48/3000/35-32 gx is a high-end device combination from victron Energy (mpn pmp482306000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ess applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 35 a charging power, and is complemented by a 32 a transfer switch that allows lightning-fast switching between aC connections. Compared to the rest of the series, the gx variants have an integrated gx display with numerous other connection options. important features of the Multiplus-II 48/3000/35-32 gx integrated gx control unit with various communication ports PowerControl and Powerassist -increase of mains or generator performance built-in anti-islanding function and connection for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 3000w power at non-linear load 2400 w continuous load and 6000 w peak power for 48 v battery voltage, 32 a transfer switch and 35 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/3000/35-32 gx. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. Scope of the integrated gx device A vE.Can interface This can be used to connect vE.Can devices from victron (e.g. vE.Can mppt). The port can also be reconfigured via the remote console for use with a compatible CaN bus Li-Ion battery. 1xUSB connection 1x Ethernet port 1x vE.Direct connection many possibilities for system expansion Settings can be changed within minutes using the vEConfigure software (requires a computer or laptop and MK3 USB interface).multiple monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482306000 Multiplus-II 48/3000/35-32 gx 230 v 1x instruction manual

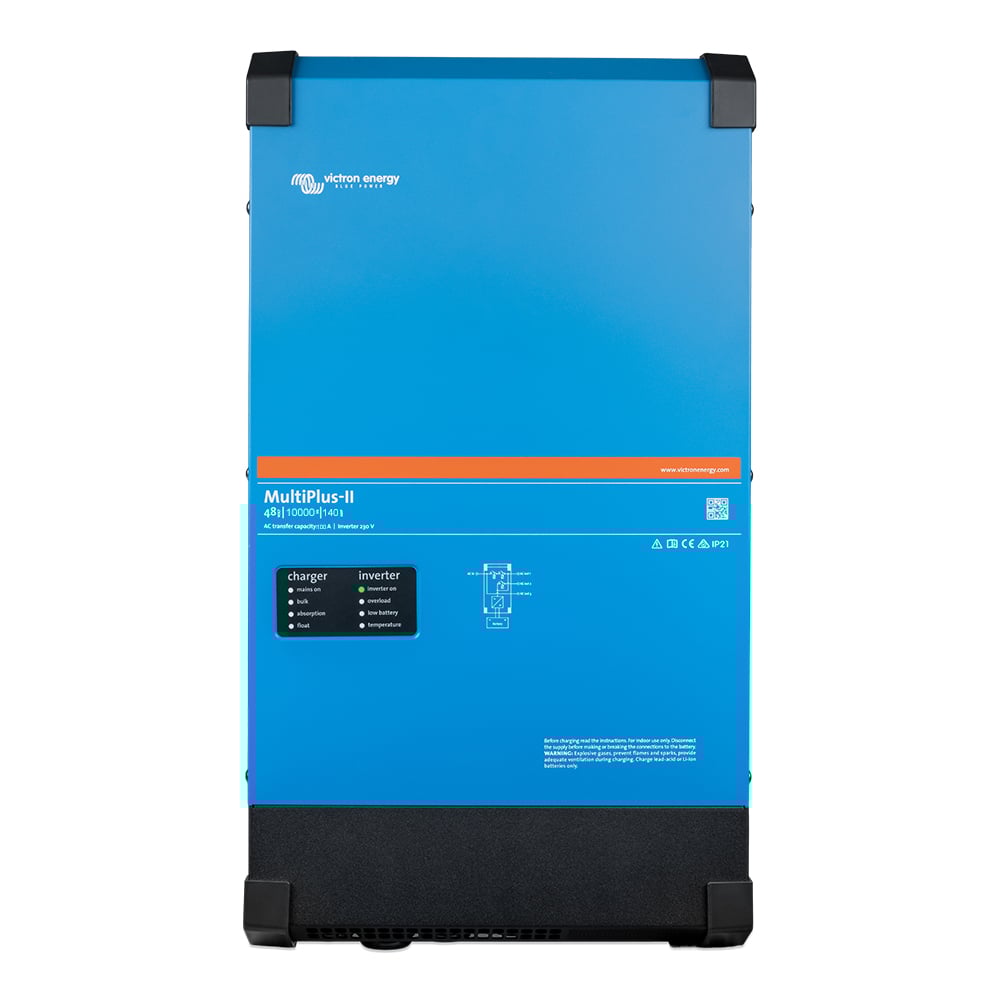

The Multiplus-II 48/10000/140-100 is a high-end device combination from victron Energy (mpn pmp483105000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and the potential range of use to ess applications. The inverter module delivers a whopping 10000 w at non-linear load, or 8000 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 140 a charging power, and is complemented by a 100 a transfer switch that allows lightning-fast switching between aC connections. important features of the Multiplus-II 48/10000/140-100 PowerControl and Powerassist -increase in mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 10000 w power at non-linear load 8000 w continuous load and 18000 w peak power for 48 v battery voltage, 100 a transfer switch and 140 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/10000/140-100. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then again sufficiently available can be used to charge the batteries. Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel. Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp483105000 Multiplus-II 48/10000/140-100a 1x user manual

The Multiplus-II 24/3000/70-32 is a high-end device combination from victron Energy (mpn pmp242305010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ess applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 24 v battery charger is also very well proportioned, with 70 a charging power, and is complemented by a 32 a transfer switch that allows lightning-fast switching between aC connections important features of the Multiplus-II 24/3000/70-32 PowerControl and Powerassist -increase in mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 3000 w power at non-linear load 2400 w continuous load and 6000 w peak power for 24 v battery voltage, 32 a transfer switch and 70 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 24/3000/70-32. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp242305010 Multiplus-II 24/3000/70-32a 1x user manual

The vac Triple 60-15/30 Battery Charger from votronic (mpn 0665) consists of a 45a vac mains charger and a 60a vcc charge converter including Battery Trainer. Compared to the vbcs Triple, an intelligent charge current distributor has been integrated instead of the integrated MPP solar charge controller. this distributes the charge current of the mains charger and supplies the starter battery with a charge current of 15a solid power supply for starter and supply batteries in this way, higher loads on the starter battery (entertainment, blue light, siren, etc.) can be buffered and the vehicle's starting ability permanently guaranteed. If the high charging current at the starter battery is no longer required, the charging current distributor also makes this available to the on-board battery key product features of the vac-60-15/30 Triple Same as vbcs Triple series but without MPP solar charge controller votronic part number 0665 instead with intelligent 15a charge current distributor Integrated vcc charge converter (battery to battery) with 60a Integrated battery trainer for life-extending care of your valuable batteries Integrated vac mains charger with a max. charging power of 45a Charging current distributor provides high charging current 12 v / 15a for fast charging of the starter battery and supply of the 12 v consumers connected to it during mains charging including charge maintenance for long periods of use and integrated module for battery care significant price advantage compared to purchasing the integrated components individually offers charging options for both supply and starter batteries Electronics moisture-proof can charge all common battery types, including lithium batteries The Triple units have charging programs for lead-acid, gel and aGM batteries and also 4 charging programs for lithium batteries, including a control input for connecting a LiFEPO4 battery management system (bms). massive price advantage compared to buying the components individually The generous features of the vac Triple units guarantee you a solid saving compared to buying all the integrated components individually. optional LCD remote control panel available If you also want to have full control and overview of your energy system in the cockpit, you should take a look at the optional votronic 1247 LCD Charge Control s. It can display all the essential information of the vac triple and is formatted to match the rest of the built-in panel program from votronic. Scope of delivery: 1x votronic 0665 vac 60-15/30 Triple Battery Charger 1x user manual

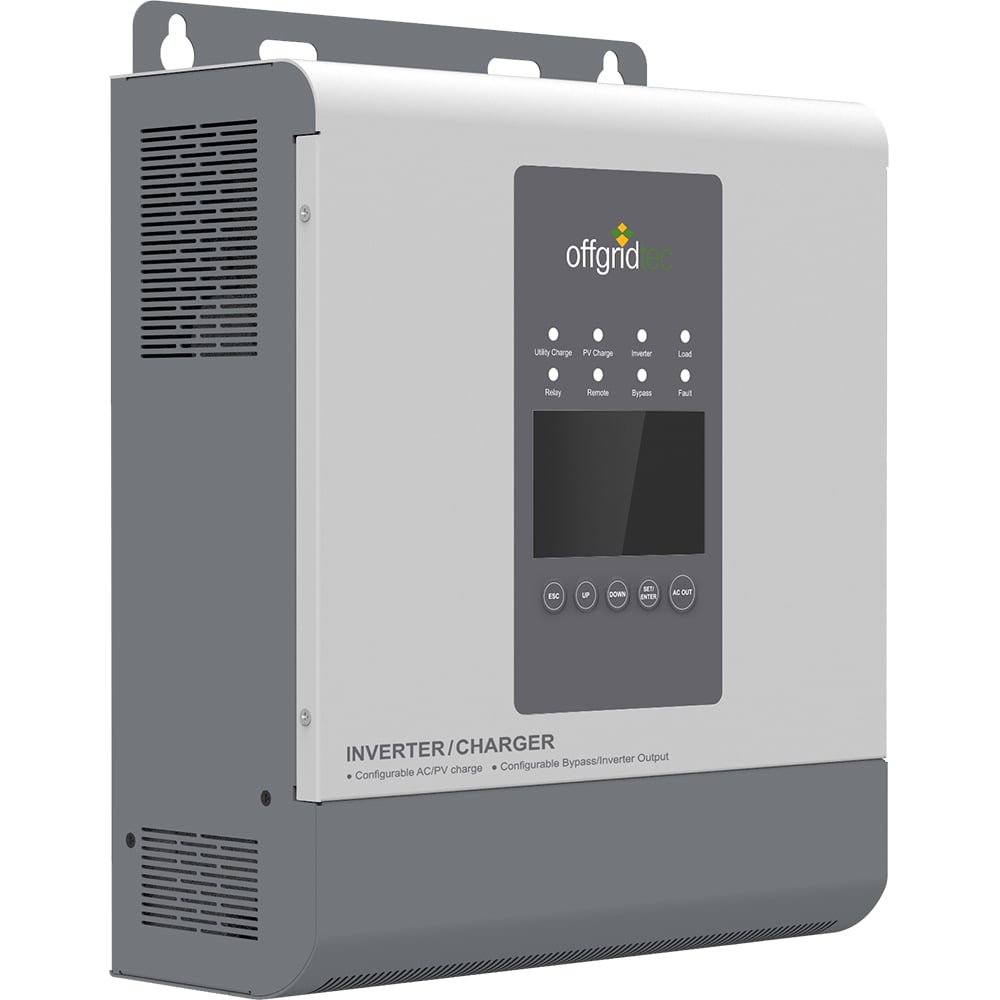

The ic-12/800/30/20 from Offgridtec (mpn 013695) is a new device combination that combines an inverter, battery charger and mppt charge controller. The device is ideally suited for energy storage devices as it integrates charging from the grid and from solar energy, as well as AC output. The powerful multi-core chip in the product with the advanced control algorithm enables intelligent management of the system. The device is suitable for battery systems with 12v voltage and lead-acid battery type (lead-acid, vrla-agm, -gel). Furthermore, the ic offers the function of adjusting the charging ratio of mains supply and Solaranlagen for different applications. Important features: Fully intelligent digital energy storage equipment Advanced MPP tracking technology Fully digitally controlled ac-dc charging modules High output voltage stability Four charging modes and two output modes LCD display to show various system parameters Supports cold and soft start RS485 isolated communication interface Different modes for various applications The device has a total of four charging modes. Priority can be set for mains operation or solar operation, a combination of mains and solar operation or pure solar operation. The output modes can be selected between battery and power supply. Technical features ic-12/800/30/20: Suitable for battery voltage: 12 V/DC Battery input voltage range: 10.8 - 16 V/DC Protection class: IP30 Rel. humidity: <95% (N.C.) Operating ambient temperature: -20°C - +50°C (full input and output power) Dimensions: 386 x 300 x 126 mm Weight: 7.3 kg Inverter with 800w continuous power DC-AC inverter module is based on fully digital and intelligent design. It uses advanced SPWM technology, outputs a pure sine wave and converts 12v/DC to 220/230v/ac. The module is suitable for AC loads of home appliances, power tools, electronic audio and video equipment and many other applications. Thanks to the innovative voltage, current and power control with multiple control loops, the device has a good dynamic response, high resistance to voltage spikes and high operational reliability. Technical features: Continuous output power: 800w Output power (15min): 1000W overload output power (5s): 1600W Max. Surge power: 2000W Output voltage range: 220v -6%~+5% / 230v -10%~+5% Output frequency: 50/60 ±0.1Hz Output mode: Single phase Output wave: Pure sine wave Max. Efficiency: 91% Transfer time: 20ms (resistive load) mppt charge controller with 30a max. PV charge current The charge controller module uses the latest optimized mppt technology. This process can help maximize the solar yield by ensuring the charge controller always gets the maximum out of the solar module power curve in changing conditions. Technical features: Max. PV open circuit voltage: 60v (at min. operating ambient temperature) Max. PV open circuit voltage: 46v (at 25°C ambient temperature) Max. PV input power: 390W Max. PV charging current: 30a Charging conversion efficiency: <98% Temperature compensation coefficient: -3mV /°C / 2v (default) Battery charger with 20a max charge current The ac-dc charger features a fully digital double control loop and has high response speed and stability. A wide ac input voltage and charging current limit can be set. This module has full input and output protection functions. With utility bypass charging function, the module can supply power to the load directly and charge the battery at the same time. Technical features: Suitable for battery voltage: 12v/DC Operating voltage range: 160v/AC~280V/AC Starting voltage range: 170V/AC~270V/AC Max. Charging current: 20a Extensive protection functions The ic device series has a wide range of protective functions: PV limit current, -short circuit, -polarity reversal Reverse current blocking AC-IN over & under voltage Battery Overvoltage & Overdischarge Load output short circuit & overload Device overheating Scope of delivery: 1x Offgridtec ic-12/800/30/20 device combination

The rs Smart Solar inverter from Victron Energy (mpn pin482601000) is a combination of a powerful 48vdc, 6kVA 230vac inverter and a high voltage 80-450 vdc, 4 kW mppt solar charger. Thanks to its advanced design and high frequency technology, the inverter weighs only 11 kg and has excellent efficiency, low standby power and very quiet operation. The inverter generates a perfect sine wave capable of powering high power devices. It is powered by a bidirectional DC-DC converter that either charges the battery when excess solar energy is available or converts from the battery when it is needed. The inverter is equipped with a display to show battery, inverter and solar charger details. These parameters can also be read via Bluetooth from the VictronConnect app. In addition, the inverter has a VE.Direct port and a VE.Can port for connection to a GX device for system monitoring. Features Off-grid solar inverter Combination of inverter, bidirectional DC-DC converter and MPPT Wide MPPT voltage range: 80-450vdc, PV starting voltage 120VDC Lightweight, efficient and quiet VE.Can and VE.Direct connection Built-in PV isolator I/O connections Lightweight, efficient and quiet Thanks to high frequency technology and a new design, this powerful inverter weighs only 11 kg. It also has excellent efficiency, low standby power and very quiet operation. Display and Bluetooth The display reads the battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and change settings using VictronConnect. Technical data Inverter Input voltage range: 38-64v DC Output voltage: 230v ac ±2%, frequency: 50 Hz ±0.1% Output power: increases linearly from 4800w at 46vdc to 5300w at 52VDC Peak power: 9000w for 3 seconds Charger Constant charging voltage: 57.6 VDC Float charge voltage: 55.2 VDC Max. Charge current: 100A Battery temperature sensor: Yes General Operating temperature range: -40°C - +65°C Humidity: max. 95% (non-condensing) Protection class: IP21 Weight: 11 kg Dimensions: 425 x 440 x 125 mm Scope of delivery: 1x Victron Inverter rs Smart Solar 48/6000 (pin482601000) 1x instruction manual

The new MultiPlus 48/1200/13-16 (Victron Energy, pmp482120000) is the successor to the Multiplus Compact 48/1200. This unit is a modern combination of devices consisting of a powerful 48v / 230v inverter with pure sine wave, an advanced 13a battery charger using adaptive charging technology, and a 16a high-speed AC transfer switch. In the event of a mains fault or, if the shore power or on-board generator is interrupted, the multi's inverter is automatically switched on and takes over the supply of the connected loads. The switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. main features of the MultiPlus 48/1200/13-16 Cont. Output power at 25°c: 1200W Victron Energy mpn: PMP482120000 for 48v system voltage integrated 13a mains charger for your batteries integrated 16a mains transfer switch usv operation possible Extensive accessories available Can be used in numerous applications, whether on land or mobile proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature) PowerControl - (Multiplus 800va 1200va only) The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes into account other connected AC loads and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded PowerAssist - (Multiplus 800va 1200va only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries High switch-on power This is required for switching on loads with high inrush currents, such as voltage converters for LED lamps, halogen lamps or power tools Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or low load and turn back on every two seconds for a short period of time. If the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low) Scope of delivery: Victron Energy pmp482120000, MultiPlus 48/1200/13-16

The Multiplus-II 24/5000/120-50a is a high-end device combination from victron Energy (mpn pmp242505010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and the potential range of use to ess applications. The inverter module delivers a whopping 5000 w at non-linear load, or 4000 w at linear continuous load. the 24 v battery charger is also very well proportioned, with 120 a charging power, and is complemented by a 50 a transfer switch that allows lightning-fast switching between aC connections. important features of the MultiPlus-II 24/5000/120-50 PowerControl and Powerassist -increase mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software Technical features 5000 w power at non-linear load 4000 w continuous load and 9000 w peak power for 24 v battery voltage, 50 a transfer switch and 120 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 Always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 24/5000/120-50. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries. Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. Maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In case of grid failure or interruption of shore/generator power, the MultiPlus-II takes over the supply of the connected loads. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel. Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp242505010 Multiplus-II 24/5000/120-50a 1x user manual

The Victron MultiPlus C 12/2000/80 (MPN CMP122020000) is a combination of 12V 1600W inverter and battery charger. The integrated battery charger provides 80A which allows quick charging even for bigger batteries as long as there is a grid connection.The 12V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Versatile and flexibleBesides inverter and charger the MulitPlus also contains a 30A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient. Important features: 1600W constant output and 4000W peak current, for 12V battery voltage combination of inverter with transfer switch and 80A battery charger provides pure sine wave at 50Hz VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened compatible with many Victron control- and monitoring-panels three-phase operation with other MultiPlus inverters of identical model possible Massive performance extensionBesides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model) PowerControl - operation with limited generator performance, shore or grid powerThe MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron CMP122020000 Multiplus C 12/2000/80 Combination of 12V 1600W sine inverter and 12V 80A battery charger1x Manual

Der MultiPlus 12/1600/70-16 (Victron Energy, PMP122160000) ist eine moderne Gerätekombination bestehend aus einem leistungsfähigen 12V 1300W Sinus-Wechselrichter, einem fortschrittlichen 70A Batterielader, der die adaptive Ladetechnologie nutzt, und einen 16A Hochgeschwindigkeits-Wechselspannungs-Transferschalter. Im Falle eines Netzfehlers oder, wenn der Landstrom bzw. Bordgenerator unterbrochen wird, wird der Wechselrichter des Multis automatisch eingeschaltet und übernimmt die Versorgung der angeschlossenen Verbraucher. Die Umschaltung geschieht so schnell (in weniger als 20 Millisekunden), dass ein unterbrechungsfreier Betrieb von Computern und anderen elektronischen Geräten gewährleistet ist. wichtigste Merkmale des MultiPlus 12/1600/70-16 Kont. Ausgangsleistg. bei 25°C: 1300W bei nicht linearer Last Victron Energy MPN: PMP122160000 für 12V Systemspannung integriertes 70A Netzladegerät für Ihre Batterien integrierter 16A Netztransferschalter USV Betrieb möglich, PowerAssist und PowerControl Funktion Umfangreiches Zubehör verfügbar Einsatzbar in zahlreichen Anwendungsbereichen, ob an Land oder mobil bewährte Zuverlässigkeit Die vollständige Überbrückung zusätzlich mit einer Ringtransformatorentopologie hat sich seit Jahren bewährt. Der Wechselrichter ist kurzschlussfest und vor Überhitzung (ob nun durch Überlastung oder durch die Umgebungstemperatur hervorgerufen) geschützt. PowerControl – (nur Multiplus 800VA 1200VA und 1600VA) Mit dem Fernbedienungspaneel Multi Control kann der maximal zu entnehmende Netz- bzw. Generatorstrom eingestellt werden. Der MultiPlus nimmt dann Rücksicht auf weitere angeschlossene Wechselstromverbraucher und nutzt zum Laden nur den Strom, der noch „übrig“ ist. So wird verhindert, dass der Generator- oder der Landstromanschluss überlastet wird. PowerAssist – (nur Multiplus 800VA 1200VA und 1600VA) Lastspitzen treten häufig nur für einen begrenzten Zeitraum auf. In einem solchen Fall stellt der MultiPlus sicher, dass eine zu schwache Landstrom- bzw. Generatorleistung sofort durch Energie aus der Batterie kompensiert wird. Wird die Last reduziert, d. h. werden Verbraucher ausgeschaltet, kann die dann wieder ausreichend vorhandene Energie zum Laden der Batterien genutzt werden. Hohe Einschaltleistung Diese wird zum Einschalten von Lasten mit hohen Einschaltströmen wie zum Beispiel Spannungsumformern für LED-Lampen, Halogenlampen oder Elektrowerkzeugen benötigt. Such-Modus Steht der Such-Modus auf 'ON', wird der Stromverbrauch des Wechselrichters bei Nulllastbetrieb um ungefähr 70% reduziert. In diesem Modus schaltet sich der Multi, wenn er im Wechselrichter-Modus betrieben wird, bei Null-Last bzw. bei nur geringer Last ab und ein Sensor misst alle 2 Sekunden den aktuellen Ausgangsstrom. Überschreitet der Ausgangsstrom einen eingestellten Grenzwert, nimmt der Wechselrichter den Betrieb wieder auf. Ist dies nicht der Fall, verweilt das Gerät weiterhin im energiesparenden Such-Modus. programmierbares Relais In der Grundeinstellung wirkt das Multifunktions-Relais als Alarmrelais d.h. es schaltet das Gerät bei Störungen ab (Gerät wird zu heiß, Brummspannung am Eingang zu hoch, Batteriespannung zu niedrig). Lieferumfang: 1x Victron Energy PMP122160000 MultiPlus 12/1600/70-16 1x Bedienungsanleitung

The Multiplus-II 48/8000/110-100 is a high-end device combination from victron Energy (mpn pmp482805000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and the potential range of use to ess applications. The inverter module delivers a whopping 8000 w at non-linear load, or 6400 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 110 a charging power, and is complemented by a 100 a transfer switch that allows lightning-fast switching between aC connections. important features of the Multiplus-II 48/8000/110-100 PowerControl and Powerassist -increase in mains or generator output built-in anti-islanding function and connection possibility for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 8000 w power at non-linear load 6400 w continuous load and 15000 w peak power for 48 v battery voltage, 100 a transfer switch and 110 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/8000/110-100. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries. Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. many possibilities for system expansion Settings can be changed in minutes using the vEConfigure software (which requires a computer or laptop and an MK3 USB interface).several monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel. Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482805000 Multiplus-II 48/8000/110-100a 1x user manual

The MultiPlus 12/500/20-16 (pmp121500000) from Victron Energy is a slimmed down version of the successful Multiplus Series and provides 500w of continuous power at 230v and 50Hz. Besides the sine wave voltage converter that converts the 12v dc voltage of your battery into a perfect 230v ac 50Hz sine wave voltage, the Multi 500 is also equipped with a 20a strong battery charger and a 16a transfer switch. This makes it very interesting for a wide range of applications and at a comparatively very reasonable price. essential features of the Multi 12/500/20 500w continuous power and 900w peak power, for 12v battery voltage Device combination sine wave voltage converter, 16a transfer switch and 20a battery charger provides purest 230v sine wave voltage and a clean 50Hz frequency thanks to transfer switch can be used as usv solution for uninterruptible power supply can be used for grid connected self-consumption systems that only draw power from the grid operator when battery capacity is insufficient or other programmable events have occurred programmable relay proven quality and reliability provides solid protection against overload and overheating versatile in mobile and stationary applications can also be used for highly sensitive electrical equipment applicable in usv solutions programmable relayThe Multi 12/500/20 has a programmable multi-function relay which operates as an alarm relay in the basic setting. However, this relay can be programmed for a variety of additional functions, such as a start relay for a generator Control and remote operabilityThe configuration takes place via a 3-position switch (DIP switch) directly on the multi. the maximum charging current strength of the AC input can be set. A VE.Bus or other communication ports as in the Multiplus series have been omitted.Lightning-fast, automatic 16a transfer switchIn the event of a power supply interruption or generator shutdown, Multi immediately switches to inverter mode to supply the connected loads. This happens so fast (less than 20 milliseconds) that e.g. the operation of computers or other electronic equipment continues without interruption (uninterruptible power supply - ups functionality) powerful 4-stage battery chargerAdaptive 4-stage charging characteristics: constant current ("bulk") phase, constant voltage ("absorption") phase, charge retention voltage ("float") phase, storage voltage ("storage") phaseThe battery charging system is controlled by microprocessors and can be adapted to different battery types. The charging process is adapted to the battery usage by adaptive control other highlights of the consumed charger include: variable constant voltage time 2 DC outputs for charging board and starter battery Extended battery life due to temperature compensation less battery aging due to integrated storage mode less harmful gas formation due to battery save mode For a detailed description of the charger's performance, please refer to the user manual which you can find under "Downloads" above.BackUp system: alternating current even in case of power failure The Multi 500 can be used in non-grid connected applications as well as in grid connected PV systems or alternative energy systems. Software is available to detect a grid failure. What is the difference between the Multi 500 and the Multi(Plus) 800 and Multiplus series? To clarify the differences, here is a small table that contains the criteria in which the device families Multi(Plus) and Multiplus differ Distinguishing features of the 3 Multi families Multi 500 Multi(Plus) Multiplus 2 ac outputs - - Yes Parallel connection of multiple devices - Yes Yes Series connection of multiple devices - - Yes completely remote controllable - - Yes VE.Bus connection - - Yes PowerAssist function - Yes Yes PowerControl function - Yes Yes Scope of deliveryg1x Victron Multi cmp125010000 12/500/20 1x instruction manual

The MultiPlus 24/500/10 (cmp245010000) from Victron Energy is a slimmed down version of the successful Multiplus Series and delivers 430w of continuous power at 230v and 50Hz. Besides the sine wave voltage converter that converts the 24v dc voltage of your battery into a perfect 230v ac 50Hz sine wave voltage, the MultiPlus 500 is also equipped with a 10a strong battery charger and a 16a transfer switch. This makes it very interesting for a wide range of applications and at a comparatively very reasonable price. essential features of the MultiPlus 24/500/10 430w continuous power and 900w peak power, for 24v battery voltage Device combination sine wave voltage converter, 16a transfer switch and 10a battery charger delivers purest 230v sine wave voltage and a clean 50Hz frequency thanks to transfer switch can be used as usv solution for uninterruptible power supply can be used for grid connected self-consumption systems that only draw power from the grid operator when battery capacity is insufficient or other programmable events have occurred programmable relay proven quality and reliability provides solid protection against overload and overheating versatile in mobile and stationary applications can also be used for highly sensitive electrical equipment applicable in usv solutions programmable relay The MultiPlus 24/500/10 has a programmable multi-function relay that operates as an alarm relay in the basic setting. However, this relay can be programmed for a variety of additional functions, such as a start relay for a generator Control and remote operability Configuration takes place via a 3-position switch (DIP switch) directly on the MultiPlusi. the maximum charging currentsta¨rke of the AC input can be set. A VE.Bus or other communication ports as in the MultiPlus series have been omitted. lightning fast automatic 16a transfer switch In the event of a power supply interruption or generator shutdown, MultiPlus immediately switches to inverter mode to supply the connected loads. This happens so fast (less than 20 milliseconds) that e.g. the operation of computers or other electronic equipment continues without interruption (uninterruptible power supply - ups functionality) powerful 4-stage battery charger Adaptive 4-stage charging characteristic: constant current ("bulk") phase, constant voltage ("absorption") phase, charge retention voltage ("float") phase, storage voltage ("storage") phase The battery charging system, controlled by microprocessors, can be adapted to different battery types. The charging process is adapted to the battery usage by adaptive control other highlights of the consumed charger include: variable constant voltage time 2 DC outputs for charging board and starter battery Extended battery life due to temperature compensation less battery aging due to integrated storage mode less harmful gas formation due to battery save mode For a detailed description of the charger's performance, please refer to the user manual which you can find under "Downloads" above. BackUp system: alternating current even in case of power failure The MultiPlus 500 can be used in non-grid connected applications as well as in grid connected PV systems or alternative energy systems. Software is available to detect a grid failure.         Scope of deliveryg 1x Victron Multi cmp245010000 24/500/10 1x instruction manual

The Multiplus 24/2000/50-32 from Victron (mpn pmp242200000) is a device combination of 24v 2000w sine wave inverter and battery charger. The integrated battery charger has an output of 50a, which means that even large batteries can be fully charged quickly if shore power is available. The 24v sine wave voltage converter built into the Multiplus converts your current from the battery to 230v AC. Thanks to the true sine wave, the power quality is perfect even for sensitive electronic devices. In addition to the two integrated device types, a lightning-fast 32a transfer switch is also built in, which can also be used to implement numerous grid-connected solutions. For system integration, the MultiPlus has a VE.Bus port, which enables virtually unlimited networking. Comprehensive and flexible use Since it has a lightning-fast 32a transfer switch in addition to the inverter and charger, it is an ideal inverter for motorhome, boat or yacht applications and the grid-connected area of uninterruptible power supply in the event of grid fluctuations or power outages. Also for use in grid-connected self-consumption systems that only draw power from the utility when the battery power is no longer sufficient or as a usv solution in which the Multiplus step in when the power from the grid operator suddenly fails and thus provide an uninterrupted power supply. Key features of the Multiplus 24/2000/50-32 1600W continuous power and 3500w peak power, for 24v battery voltage Device combination of inverter with transfer switch and 50a battery charger delivers purest 230v sine wave voltage and a clean 50Hz frequency VE.Bus communication port provides extensive networking, system integration, configuration and control of Multiplus devices from Victron supports three-phase operation (3 identical units of the same model required) Multiplus units can be connected in parallel, up to 6 units can be connected in parallel, significantly increasing system performance when needed PowerControl function allows working with limited generator power as well as limited shore or grid power PowerAssist function enables "power increase" of generators and shore power support in case of need can be used as usv solution for uninterruptible power supply, thanks to the integrated transfer switch can be used for grid-connected self-consumption systems that draw power from the grid operator only when battery capacity is insufficient or other programmable events have occurred compatible with numerous Victron control and display panels Massive power expansion possible Apart from the parallel connection, three units of the same model can also be configured for three-phase output. But that's not all: up to six sets of three units can be connected in parallel to achieve a huge charging capacity PowerControl - working with limited generator power, limited shore or mains power The MultiPlus is a very powerful battery charger. Therefore, it draws a lot of power from the generator or shore power. The Multi Control remote control panel can be used to set the maximum shore or generator current to be drawn. The MultiPlus then takes into account other connected AC consumers and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded. PowerAssist - "power enhancement" of generators and shore power support This function adds a new dimension to the PowerControl principle. It enables the MultiPlus to support alternative sources that are too weak. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that shore power or generator output that is too weak is immediately compensated for by energy from the battery. BackUp system: alternating current even in the event of a power failure The Multiplus can be used with both non-grid-connected and grid-connected PV systems, as well as with other alternative energy systems. Software is available to detect a grid failure. Simple system configuration If settings need to be changed on a single device, this can be done in minutes using a DIP switch setting procedure. Parallel connected and three-phase systems can be configured using the VE.Bus Quick Configure and VE.Bus System Configurator software. monitoring options and on-site control Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (usb or RS232). remote monitoring and control Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and remote monitoring of the MultiPlus. In addition, system data can be stored and viewed free of charge on the vrm (Victron Remote Management) website. Remote configuration If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely. Scope of delivery: 1x Victron pmp242200000 Multiplus 24/2000/50-32 device combination consisting of 24v 2000w sine wave converter + 24v 50a battery charger + 32a transfer switch 1x user manual

The Quattro 24/8000/220-100/100 (MPN QUA248020010) is a combination of a 24V 6500W sine inverter, a powerful battery charger and a transfer-switch. It is equipped with 2 AC-outputs and 2 AC-inputs and therefore can be connected to 2 separate AC-sources, for example the public grid or a generator. The Quattro connects automatically to the active source. The integrated battery charger provides 220A which allows quick charging even for bigger batteries as long as there is a grid connection.The 24V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.Integrating the Quattro into your system can be done via VE.Bus-port or 2 COM-port which allows nearly unlimited networking. Extremely flexible thanks to 2 AC-input and 2 AC-outputsThe main output ensures uninterrupted operation. In case of a blackout or a failure in the grid/generator the Quattro takes over the supply of connected consumers. Switching happens so fast (<20ms) that the uninterrupted supply of computers and other electronic devices is ensured.The second output only provides power if AC-power is available on one of the inputs. Consumers that must not discharge the battery - for example water boilers - can be connected to that output. Important details: 6500W constant output and 18.000W peak current, for 24V battery voltage combination of inverter with transfer switch and 220A battery charger provides pure 230V sine voltage at 50Hz 2x AC-inputs with intergerated transfer-switch / 2 x 100A max. switch-current 2x AC-outputs + 1 additional output that only works when AC-power is available on one of the AC-inputs. VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron Quattro devices supports three-phase operation (3 units of the same model needed) supports parallel operation - up to 6 units can be connected parallely to increase system power if needed besides the VE.Bus-port Quattro devices come with 2 additional COM-ports which allow nearly unlimited system integration PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened 3 separate relays - each programmable compatible with many Victron control- and monitoring-panels very high efficiency and low consumption Massive performance extensionUp to 6 Quattros can be connected parallely. This creates a system with 6 48/10000/140 units 54 kW/60 kVA performance or 840A charging current. Three units can be configured for three-phase operation. But that's not all: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 162 kW/180 kVA and over 2500A charging capacity. PowerControl - operation with limited generator performance, shore or grid powerThe Quattro is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The Quattro then priors other connected AC-consumers and uses only the "surplus" of energy for charging.This protects the generator or grid from an overload. PowerAssist - performance-increase of generators and shore power connectionWith this function PowerControl is put to a new dimension by enabling the Quattro to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the Quattro ensures that weak shore- or generator power is compensated instantly through battery power. BackUp-System: AC-power also during blackoutsThe Quattro can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available. Easy configurationIf setting of a device have to be changed this can be done with help of a DIP-switch within minutes.Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software. Monitoring and controlling on siteThere are several option: battery protector, MultiControl panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232). Remote monitoring and controllingVictron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Quattro. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website. Remote configurationIf the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely. Delivery scope:1x Victron QUA248020010 Quattro 24/8000/220-100/100 Combination of 24V 6500W sine inverter and 24V 220A battery charger + 2 AC-inputs with integrated transfer-switch1x Manual

The new MultiPlus 24/1200/25-16 (Victron Energy, pmp242120000) is the successor of the Multiplus Compact 24/1200. This unit is a modern device combination consisting of a powerful 24v / 230v inverter with pure sine wave, an advanced 25a battery charger using adaptive charging technology, and a 16a high speed AC transfer switch. In the event of a mains fault or, if the shore power or on-board generator is interrupted, the multi's inverter is automatically switched on and takes over the supply of the connected loads. The switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. main features of the MultiPlus 24/1200/25-16 Cont. Output power at 25°c: 1000w / 1200w at non-linear load Victron Energy mpn: pmp242120000 for 24 system voltage integrated 25a mains charger for your batteries integrated 16a mains transfer switch USV operation possible Extensive accessories available Can be used in numerous applications, whether on land or mobile proven reliability The complete bridging additionally with a ring transformer topology has proven itself for years. The inverter is short-circuit proof and protected against overheating (whether caused by overload or ambient temperature) PowerControl - (Multiplus 800va 1200va only) The Multi Control remote control panel can be used to set the maximum mains or generator current to be drawn. The MultiPlus then takes into account other connected AC loads and uses only the current that is "left over" for charging. This prevents the generator or shore power connection from being overloaded PowerAssist - (Multiplus 800va 1200va only) Load peaks often only occur for a limited period of time. In such a case, the MultiPlus ensures that insufficient shore power or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries High switch-on power This is required for switching on loads with high inrush currents, such as voltage converters for LED lamps, halogen lamps or power tools Search mode When the search mode is set to 'on', the power consumption of the inverter is reduced by approximately 70% during no-load operation. In this mode, when operating in inverter mode, the Multi will turn off at zero load or low load and turn back on every two seconds for a short period of time. if the output current exceeds a set limit, the inverter resumes operation. If this is not the case, the inverter switches off again programmable relay In the default setting, the multifunction relay acts as an alarm relay, i.e. it switches off the device in the event of faults (device becomes too hot, ripple voltage at the input too high, battery voltage too low) Scope of delivery: Victron Energy pmp242120000, MultiPlus 24/1200/25-16
