Battery pole adaptor (+ and -) with external thread for batteries with M6 internal thread Suitable for Westech Gel batteries 55Ah and 75Ah as well as for batteries with M8 internal thread if you prefer to use a roundpole instead of a M6 bolt. Pole adaptor set with various connection possibilities for batteris with internal thread to normal pole. Perfect for caravan and boat owners, yacht sportsman, DIY people and solar systems Product features: - M6 external thread - universal use - for + and - - for 6 and 12V batteries - very robust through high-quality production - very good conductivity - Material: copper with silver alloy

The Victron Cyrix-ct 12/24V-120A battery combiner (MPN CYR010120011R) is a high-performing microprocessing-controlled relay that automatically switches batteries parallely when a certain predefined voltage is reached (which shows that the battery is charged).It separates the batteries when voltage falls below the trickle charge value (which shows that one of the batteries is discharged). Cyrix battery combiners are an ideal replacement for common isolators. Their main characteristic is that there is nearly no voltage loss.That means that the AC-generator's or battery charger's output voltage does not need to be increased. Important details: 120A constant current 180A peak-current (5s) 12V/24V operation voltage (auto-detection) MPN: CYR010120011R Intelligent battery monitoring to prevent unwanted switchingA battery combiner (also called voltage-controlled relay or split-charge relay) disconnect batteries when there is a short but high-ampere load. Sometimes a battery bank is not connected because its DC-voltage instantly falls below the disconnection-threshold. The Cyrix-ct 12/24's software does more than only connecting or disconnecting depending on the battery voltage and with a certain time-delay. It observes the general tendency (voltage goes up or down) and only returns earlier measures if the tendency turns within a certain period of time.Time-delay is depending on how much the voltage deviates from the tendency. Long binding posts to connect more than one cableCyrix 12/24-120: 13 mm (M6) Cyrix 12/24-230: 16 mm (M8) LED-status-displayLED-status-display (only Cyrix 12/24 230)LED on: connected - LED burns for 10s: disconnectedLED burns for 2s: connecting - LED flashes in a 2s-interval: disconnectingLED flashes in a 0.25s-interval: alarm (overheating, voltage >16V, both batteries < 10V, one battery < 2V (x2 for 24V batteries) The Cyrix battery combiner is an alternative to isolator diodes. As there is barely any voltage loss an increase of the charging voltage of battery charger or generator is not needed for compensation. Prioritizing of the starter batteryNormally the AC-generator is connected directly to the starter battery. The supply battery or thruster battery on a boat and others are connected via a Cyrix. Only when the starter battery has reached a certain voltage the other batteries are connected for parallel charging. Bidirectional voltage measuring and power supplyThe Cyrix measures the voltage values of connected battery groups. It therefore reacts only if the supply battery is charged via a battery charger.The Cyrix has a double power supply. It also works if one of the batteries does not have enough voltage for Cyrix-operation. To avoid unwanted switching during installation or after unplugging the battery connector it will not switch when one of the battery connection falls under 2V (12V battery) or 4V (24V battery). Parallel connection in case of an emergency (Start Assist)The Cyrix can also be activated via a button (stays activated for 30s). Additionally there's a button for parallel connection of the batteries. This comes in handy when the starter battery is empty or defective. Delivery scope:1x Victron CYR010120011R Cyrix-ct 12/24V-120A battery combiner1x Manual

Smart battery monitoring The SmartShunt 500a from Victron Energy (mpn shu050150050) is an all-in-one battery monitor. It connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, such as state of charge, remaining runtime, history information and much more. Settings can also be easily changed via it. Alternatively, the SmartShunt can be connected and read by a GX device. The connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is required but less wiring and mess is desired. Features Equipped with Bluetooth Check battery parameters conveniently on smartphone or tablet Connection to GX device possible Additional input for further monitoring options uncomplicated installation Differences to the bmv-712 battery monitor No programmable visual and audible alarm No programmable relay Why is battery monitoring important? Batteries are used in versatile applications, in most cases to store energy for later use. However, the battery itself does not indicate the amount of energy stored. Battery life depends on many factors. Undercharging, overcharging, deep discharging, excessive charging or discharging currents and high ambient temperature can shorten the operating time. Monitoring with a battery monitor gives the user important feedback to take countermeasures to extend battery life if necessary. Scope of delivery: 1x SmartShunt 2x cable with fuse, for '+' connection and starter battery or midpoint connection

The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CAN data cable with rj45 connectors on both sides.The set is needed to connect the batteries of Pylontech with an inverter. Content 2m cable plus with m8 ring cable lug and amphenol connector (Pylontech) 2m cable minus with m8 ring cable lug and Amphenol connector (Pylontech) CAN data cable with rj45 connectors on both ends Scope of delivery: 1x 2m cable set (plus/minus) each with m8 ring cable lug and amphenol connector 1x data cable with rj45 connectors on both sides

The Offgridtec Anderson to xt60 adapter cable (mpn 013690) allows you to connect an EcoFlow portable power station (delta/river) to a solar panel with an Anderson connector. Length: 20cm Connects to solar modules with Anderson port - Fits the Offgridtec fsp-2 series xt60 connector for EcoFlow river or delta Powerstation Scope of delivery: 1x adapter cable Anderson to xt60, 20cm

This set of Offgridtec battery quick clamps (mpn 012845) is ideal when you need to do things quickly and without tools. Once the leads are connected to these clamps, you can disconnect the battery from the vehicle or system with little effort and completely without tools, and reconnect just as quickly. So perfect for use in RV, boat or seasonal vehicles. The gold plating of the clamps ensures flawless current flow. The set includes one red (positive) and one blue (negative) clamp. The cable is attached with a screw terminal, these are designed for round conventional terminal batteries. Features Marking "+" and "-" on the terminals Diameter positive electrode: about 19mm / 0.75 inch Diameter negative electrode: approx. 17mm / 0.67 inch max. cable cross section: 60mm² Size: approx. 68 x 48 x 25 mm / 2.68 x 1.89 x 0.98 inch Scope of delivery: 1x battery quick clamp positive (red) 1x battery quick clamp negative (blue)

The following data are measured, analyzed and displayed: battery voltage 7 - 32V (internal measurement resolution 0,1V) allows conclusions about battery behavour at different loads and serves as function control for chargers, solar-systems, alternators, etc. (warning light at overvoltage) battery current (charge/discharge) +/-0 to max. +/-1800A, internal measurement resolution 0,1A discharging currents (loads) by consumers, displayed by a "-"; charging currents, displayed by "charge" battery capacity (Ah and %) residual charge from 0Ah/0% (empty) to nominal capacity max. 2000Ah/100% (full) voltage of 2nd battery (e.g. starter battery), 7 - 32V, internal measurement resolution 0,1V programmable switching output (tactile) How much residual charge does my board battery have? Is the battery state really “Full”? Why is energy taken from the battery, although the consumers had been switched-off? The VOTRONIC LCD Battery Computer S gives the answer to these questions - exactly to percentage (%) an ampere-hour (Ah). At the touch of a button, it informs comprehensively of the instantaneous charging state of the battery, the flowing battery current rates, as well as the voltage situation of the battery. Based on the proved VOTRONIC LCD Battery Computer, the LCD Battery Computer S had been developed. The various display functions and the high operating convenience had been extended by a neatly arranged LCD display with white background illumination, which offers excellent legibility, even from a distance and with unfavourable lighting conditions. Since the unit is permanently in contact with “its battery”, it records and evaluates all battery actions. All charging and discharging currents are counted accurately. Battery size, self-discharge, battery load etc. are considered by programmed characteristic diagrams. Even the smallest leakage current is detected and recorded. The residual capacity of the battery is calculated from the measured values and the battery size. The result is a correct indication of the charging state (of the capacity, which is still available, the residual charge) of the board battery as numerical value in Ampere-hours (“Ah”) and as percentage (“%”), as well as in form of a clear level bar, such as it is known from a fuel gauge. The LCD Battery Computer S is suitable for all battery types (acid, gel, AGM, lithium adjustable) with 12 V and 24 V battery voltage. Of course, also the instantaneous battery voltage (“V”) and the instantaneous battery current (“A”) are displayed. Discharge current rates (consumers) are identified by a minus sign. Furthermore, the discharge current rates are marked with a well legible sign “Charge”. Apart from that, there is a further display possibility for the voltage of a second battery, such as for control of the vehicle’s starter battery. The LCD Battery Computer S is equipped with a freely programmable terminal for control, supervision and warning purposes. It can, for example, be used for automatic switching of consumers, independently of the board battery’s the charging state, or for warning signals. The on/off switching points can be adjusted freely and independently of each other as percentage (%) allowing any switching function. At the press of a button, manual control is possible at any time. Example for application: Automatic protection of the battery against harmful total discharge. The consumers are switched-off exactly according to charging state, for example, if the charging state is less than 25 %. An EMERGENCY-ON button allows continued supply of the consumers. Consequently, the unit can also be used as remote-controlled battery main switch (on/off) with protection against total discharge. A plug-and-go cable connects display and robust Precision Measuring Resistor (Shunt), which is directly connected to the negative pole of the board battery, and which receives the voltage and current rates of the battery. The terminal for connection of signal transmitters or powerful switching relays is also located here. Matching to the VOTRONIC modular system, appearance and mechanics (identical height 85 mm) of the unit are adapted to the other display modules, and the small mounting depth of only 22 mm allows an installation at almost any location.

The Victron Lynx Distributor (mpn lyn060102000) is a modular DC busbar with provisions for four DC fuses. It monitors the status of each fuse and displays their respective states via a led on the front panel. The Lynx Distributor contains one positive and one negative busbar and provides a connection for 4 individual DC device circuits, loads or DC groups. It provides space for individual DC fuses per DC group. Features of the Victron Lynx Distributor Connection for four individual DC device circuits, loads or groups Positive and negative busbar MEGA fuses easy installation Part of the Lynx modular distribution system Fuse display leds If you wish to use the fuse indicator leds on the Lynx Distributor, a connection to a Lynx Shunt is also required. The Lynx Shunt contains the required wide input power supply (8v - 70v dc) to output the required 5v (4.5v - 5.5v) current requirement of the Lynx Distributor PCB. The RJ11 cable required for connection is included. The Lynx Shunt has two ports, either of which can be used. When fully functional, only the central led will be green. If a fuse is blown (or missing), the leds of the central and fuse circuits will light red. If you are not using all the connection points in your DC distribution, dummy fuses may need to be fitted to clear the red leds. Fuses The Lynx distributor uses MEGA fuses. Please note that some MEGA fuses are rated for 36v only (suitable for 24V systems). For 48v systems, fuses rated at 58/64v must be used. Scope of delivery: 1x Victron Lynx Distributor 1x RJ11 cable

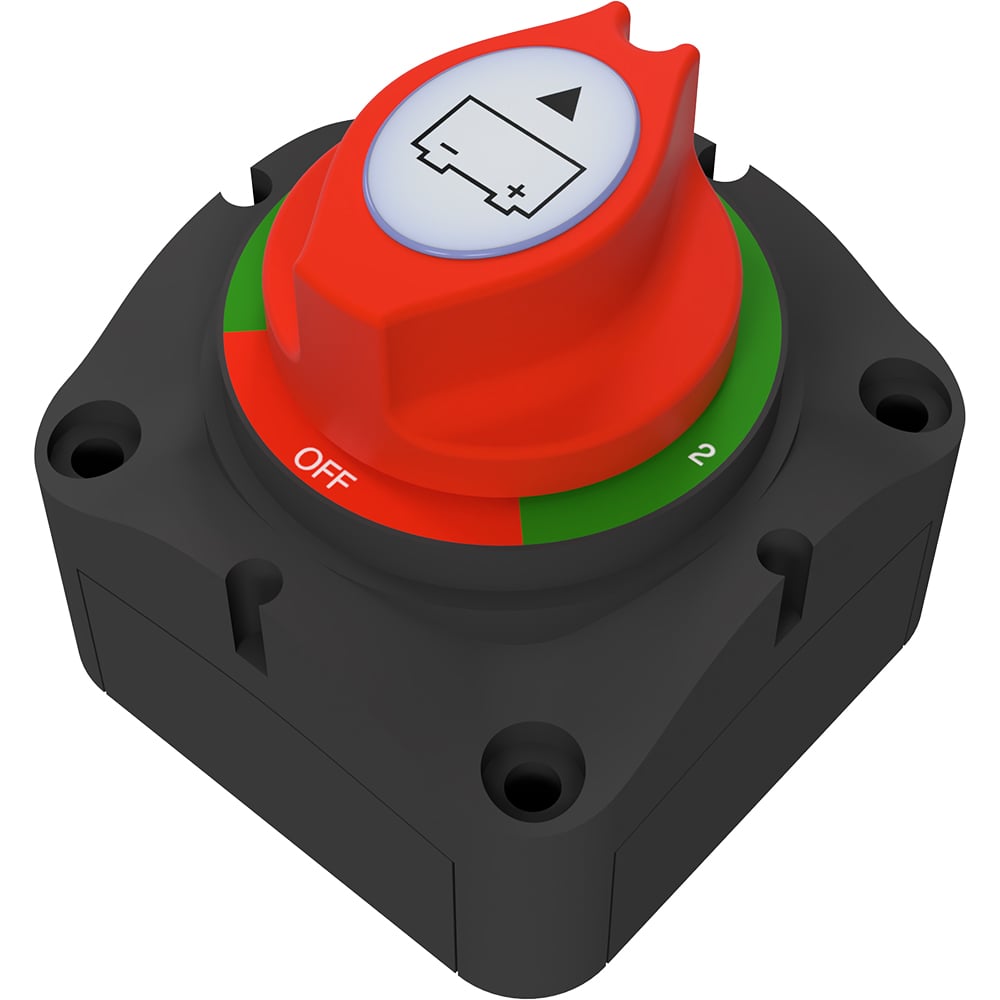

With the battery selector Switch by Offgridtec (MPN 012820) you can turn on an off two batteries as well as control them seperately to reduce the power consumption, when the device, vehicle or boat is not in use. The Switch is suitable for automotive electronic, electronic devices and all Kinds of 12V/24V/48V vehicles, boats, camper etc. The practical Rotary Switch is easy to serve and works smoothly. With Switch Position 1 or 2 you can turn on one of the connected batteries, with 1&2 both batteries are connected with the circuit and OFF (red) means turning off both batteries. When the device or vehicle is not in use, you can use the Switch to separate the Connection between the batteries safe and to reduce the energy consumption. Features Suitable for 12V/24V/48V Continuous current 12V DC: 200A Intermittently current 12V DC: 455A Momentary current 12V DC: 1250A Weight: 260g Dimensions: 97 x 73 x 73 mm Security locking system The locking System can be used as Independent unit or parallel to other Switches. It can protect the power supply, reduce the battery loss and extend the battery lifespan. More important is that the Switch prevents the leave of electricity and protect your personal security. Durable material The selector Switch is manufactured out of CE-certified, high-Quality ABS-flame retardant, reinforced Nylon and bolts made of silver plated red copper. It is humidity-, UV- and aging resistant and disposes a Long lifespan. The back cover is isolated, to prevent short circuits, fulfill security conditions and prohibit electrical accidents. Easy installation The battery selector Switch can be installed easily and fast. You have to keep an eye on the arragement of the positive and negative wires, then you install the corresponding covering lamella and tighten the four screws, to prevent the cable connector from oxidizing.  Scope of delivery: 1x Battery selector swith 4x detachable side plate 1x bottom plate 4x screws 4x nuts

The EcoFlow mc4 to xt60 cable (mpn 50004007) allows you to connect an EcoFlow portable power station (delta / river) to a solar panel with mc4 output. Length: 5m mc4 connection for solar module xt60 connection for EcoFlow river or delta Powerstation Compatible with many Offgridtec solar modules with suitable adapter also connection to FSP series possible Which power the solar module should provide for your power station depends on the model and can be taken from the technical data of the respective models. Scope of delivery: 1x EcoFlow mc4 to tx60 solar cable 5m

The Victron Lynx Power In module (mpn lyn020102000) is used to connect batteries via an external fuse. This can be useful if you have multiple parallel strings. Due to the extremely high short circuit current potential of most battery banks, it is recommended to use an external fuse system with a suitable fault current interrupting rating (e.g. an nh hrc). Features of the Victron Lynx Power In 1000A Negative and positive DC busbar easy installation Part of the Lynx modular distribution system Structure The Power In module contains a negative and a positive DC bus bar with M8 screws for connecting the battery cables. Cables up to 22mm in diameter can be routed through the bottom entries and across the two side terminals. Scope of delivery: 1x Victron Lynx Power In

Microprocessor controlled the following values were measured, calculated and displayed: Battery voltage board battery, 7 to 32 V (Volts), internal measuring scale 0.1 V Allows drawing conclusions from the battery behaviour in case of variations in load and serves as operational check, for instance, of the charger, the solar system, the dynamo etc.. Flashing warning signal in case of overvoltage. Battery current (charge/discharge) +/- 0 to max. +/- 1800 A, internal measuring scale 0.1 A Control of the discharge current rates (load) by the consumers, indicated by the sign “-“. Control of the discharge current rates identified by a “Charge“ sign. Battery Capacity (Ah and %) Residual charge from 0 Ah / 0% (empty) to nominal capacity max. 2000 Ah / 100% (full) Battery Voltage 2nd Battery (eg. Start Battery), 7 to 32 V (Volt), internal measuring scale 0,1 V Terminal, freely programmable and tactile (PNP, plus potential 12 V / 24 V, max. 0.5 A) How much residual charge does my board battery have? Is the battery state really “Full”? Why is energy taken from the battery, although the consumers had been switched-off? The VOTRONIC LCD Battery Computer S gives the answer to these questions - exactly to percentage (%) an ampere-hour (Ah). At the touch of a button, it informs comprehensively of the instantaneous charging state of the battery, the flowing battery current rates, as well as the voltage situation of the battery. Based on the proved VOTRONIC LCD Battery Computer, the LCD Battery Computer S had been developed. The various display functions and the high operating convenience had been extended by a neatly arranged LCD display with white background illumination, which offers excellent legibility, even from a distance and with unfavourable lighting conditions. Since the unit is permanently in contact with “its battery”, it records and evaluates all battery actions. All charging and discharging currents are counted accurately. Battery size, self-discharge, battery load etc. are considered by programmed characteristic diagrams. Even the smallest leakage current is detected and recorded. The residual capacity of the battery is calculated from the measured values and the battery size. The result is a correct indication of the charging state (of the capacity, which is still available, the residual charge) of the board battery as numerical value in Ampere-hours (“Ah”) and as percentage (“%”), as well as in form of a clear level bar, such as it is known from a fuel gauge. The LCD Battery Computer S is suitable for all battery types (acid, gel, AGM, lithium adjustable) with 12 V and 24 V battery voltage. Of course, also the instantaneous battery voltage (“V”) and the instantaneous battery current (“A”) are displayed. Discharge current rates (consumers) are identified by a minus sign. Furthermore, the discharge current rates are marked with a well legible sign “Charge”. Apart from that, there is a further display possibility for the voltage of a second battery, such as for control of the vehicle’s starter battery. The LCD Battery Computer S is equipped with a freely programmable terminal for control, supervision and warning purposes. It can, for example, be used for automatic switching of consumers, independently of the board battery’s the charging state, or for warning signals. The on/off switching points can be adjusted freely and independently of each other as percentage (%) allowing any switching function. At the press of a button, manual control is possible at any time. Example for application: Automatic protection of the battery against harmful total discharge. The consumers are switched-off exactly according to charging state, for example, if the charging state is less than 25 %. An EMERGENCY-ON button allows continued supply of the consumers. Consequently, the unit can also be used as remote-controlled battery main switch (on/off) with protection against total discharge. A plug-and-go cable connects display and robust Precision Measuring Resistor (Shunt), which is directly connected to the negative pole of the board battery, and which receives the voltage and current rates of the battery. The terminal for connection of signal transmitters or powerful switching relays is also located here. Matching to the VOTRONIC modular system, appearance and mechanics (identical height 85 mm) of the unit are adapted to the other display modules, and the small mounting depth of only 22 mm allows an installation at almost any location.

Indicates in 5 steps via 3 LEDs the actual charging condition during operation of an 12 V accumulators. Thus it is easier to control the accumulator and a total discharge can be prevented. In addition it is checked whether the accumulator is in order and it receives the full charging voltage from the battery charger. (If the Battery guard is connected during charging of the battery.) The Battery guard is designed to monitor a battery in a closed, active circuit.Very low consumption of less than 4.9 mA!

This high-quality cable is needed to connect your charging regulator to an accumulator. The cable comes with a wire end sleeve for a connection to the charging regulator and M8 circular eyelets to connect to a battery. The binding posts are included in the scope of delivery. Features: 1,5m /2 x 6mm² battery cable with 20A fuse connects charging regulator and battery professional manufactured high-quality materials quick and easy installation Technical data:Cable diameter: 2 x 6mm²Fuse: 20ALength: 1,5m

The Pylontech brackets are used for vertical stacking of the pylon battery modules us3000c. With these stackable brackets you can stack the Pylontech batteries us3000c and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. brackets stacked on top of each other can be connected and secured together via a clamping device on the sides of the bracket. A maximum of 4 batteirs can be stacked on top of each other in this way. One set consisting of two holders is required per Pylontech battery. Properties Best possible air circulation Connecting and securing stacked brackets via clamping device Up to four batteries stackable Set of two brackets for one battery Scope of delivery: 1x Pylontech Brackets Set for us3000c

The EcoFlow solar extension cable (mpn 50004052) is equipped with solar connectors male and female per wire. This allows you to extend the solar cables of the EcoFlow Powerstations river and delta by 3m.PropertiesLength: 3mEach with universal solar connectors male and female per wireideal for flexible cabling of solar module and powerstationPlug and Play - unpack and insertScope of delivery:1x EcoFlow solar cable with solar connectors 3m

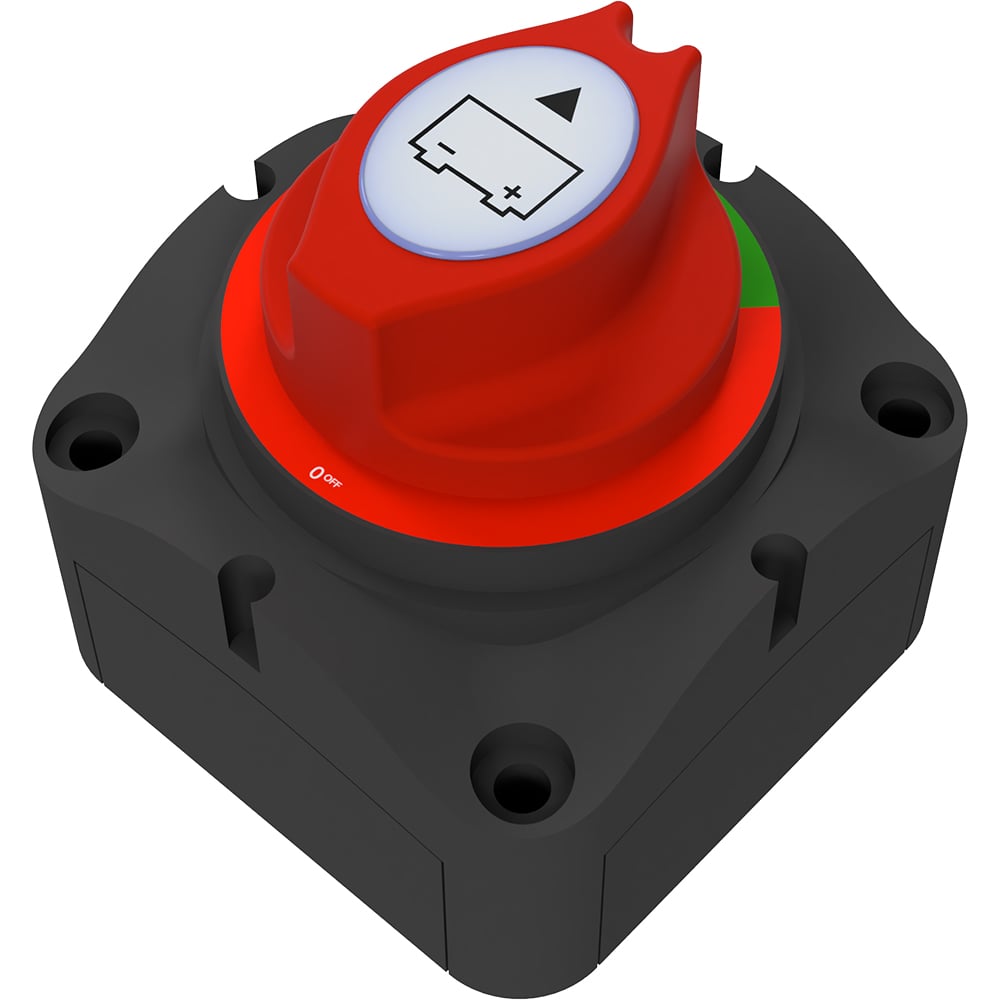

With the Battery Disconnect Switch by Offgridtec (MON 012815) your battery can be disconnected safe, to lower the power consumption, if the device, vehicle or boat is not in use. The switch is suitable for automotive electronics, electronic devices and all kinds of 12V/24V vehicles, boats, campers etc. The practically rotary switch is easy to serve and works smoothly. ON (Green) means switch on the circuit and OFF (Red) means switch off the circuit. Switch the power supply on and off, to avoid a electric shock. Features Suitable for 12V / 24V Continuous current 12V DC: 275A Intermittenly current 12V DC: 455A Currently current 12V DC: 1250A Weight: 260g Dimensions: 100 x 74 x 72 mm Safety locking system The locking system can be used as independent unit or parallel to other switches. It can effectively protect the power supply, reduce the battery loss and extend the battery lifespan. More important is that the leave of electricity can be prevented and your personal security can be protected. Durable material The switch ist manufactured from CE-certified, high-quality flame retardant, reinforced nylon and bolts out of silver plated red copper. It is humidity-, UV- and aging-resistant and provides a long lifespan. The back cover is isolated, to prevent short circuits, fulfill security requirements and prohibit electrical accidents. Easy installation The Switch can be installed easily and fast. You have to pay attention to the arrangement of the positive and negative wires, then you install the corresponding covering lamella and tighten up the four screws, to prevent the cable connector against air and oxidation. Scope of delivery: 1x Battery Disconnect Switch 1x bottom cover 4x screws + nuts for mounting

The Kemo m202 lead battery activator / refresher works against the deposition of lead sulfate and thus increases the service life of the car battery. By very violent, very short current pulses lead sulfate is actively reduced or the deposit is prevented. With led display. The lead battery activator can be permanently connected directly in parallel to the 12v car battery.Circuit descriptionSulfate forms on the plates of lead acid batteries, especially in batteries that are little used or only operated seasonally (e.g. motorcycles with winter break). During self-discharge during idle time, crystalline sulfates slowly cover the lead plates and lead to a reduction in the capacity of the lead-acid battery. The Lead-Acid Activator is simply connected in parallel with the battery and uses very short, very violent current pulses to reduce the sulfate deposits and allow existing sulfate deposits to slowly degrade. It does not matter whether the battery is being charged or not. A trickle charger can therefore be connected at the same time, e.g. in the case of Mottorad batteries. Of course, the lead battery activator also extends the life of car batteries that are in daily active operation.Technical dataOperating voltage: approx. >11-16VAutomatic deactivation: approx. <11vMax. Pulse current: approx. <100ADuration pulse current: approx. 100 µSekPulse sequence: approx. every 5 secCurrent consumption: ca. <0,2mAPulse display: ledCan also be used for GEL batteriesDimensions: approx. 74 x 51 x 30 mm (without mounting straps)Commissioning:If the lead battery activator has been connected to the battery and the battery has a voltage of at least 11v, then the built-in led flashes only briefly at intervals of about 5 sec. each time, signaling the operating status.Scope of delivery:1x Kemo m202 lead battery activator / refresher

The EcoFlow adapter (mpn 50052001) is used to connect the EcoFlow delta Pro power station (or delta Pro expansion battery) to the Smart Generator. This allows you to make your power supply even more efficient and is also ideally equipped for emergency situations.Features:Secure connectionCompatible with delta Pro Powerstation and extension batteryMore efficient charging optionsQuick and easy installationScope of delivery:1x EcoFlow Adapter delta Pro to Smart Generator1x user manual

The Smart BatteryProtect 12/24v-65a from victron Energy (mpn bpr065022000) offers solid battery protection for 12v and 24v batteries of various types. Compared to the previous series, the Smart version has an integrated Bluetooth module that connects the Smart BatteryProtect (bp-65) to a smartphone or tablet. This allows you to program all the necessary on/off thresholds or set the appropriate value from 9 predefined thresholds. The BatteryProtect 12/24v can also be used as a charge interrupter between the battery charger and a lithium battery. A wide operating voltage range of 6-35 v make the device universally applicable. The possibility to connect an external switch or alarm to the BatteryProtect makes the bp-65 Smart the perfect battery monitor. Features of the Smart BatteryProtect 12v/24v-65A 65A maximum switching capacity For 12v and 24v batteries with automatic detection of the voltage range of the battery bank Explosion protection through integrated MOSFET switches that replace the relays, reducing the risk of sparking to zero integrated Bluetooth module, optionally disengageable freely programmable switch-on and switch-off thresholds, easily and wirelessly via the victronConnect app alternative programming and status display of settings possible via seven-segment display integrated alarm output, 9 predefined thresholds selectable external alarm, led or relay can be connected to the alarm output via relay the load shedding of the bp can be controlled by external events, which can not be programmed in this way Output for delayed alarm The alarm output is activated when the battery voltage drops below the preset value for shutdown for more than 12 seconds. Therefore, turning on the engine will not activate the alarm. The alarm output is a short-circuit protected open collector output connected to the negative (minus) rail. Max. Current 50 mA. The alarm output is normally used to activate an audible signal, led or relay. solid battery protection for any type of battery With its multiple configuration options, the Smart bp-65 is the perfect protection device for your battery, ensuring maximum lifetime, because most voltage converters or charge controllers have undervoltage protection, but this only intervenes at already quite low values which are usually in the range of 10.5v / 21v. The higher this cut-off threshold, the longer you will enjoy your batteries, which are usually quite costly. Selection of the shutdown threshold Depending on the battery type, there are different minimum battery voltages that must be maintained in order not to damage the battery. For AGM/Gel batteries we recommend to set the Batteryprotect to 11,5v cutoff threshold. For lithium batteries (LifePo4) 12.0v cut-off threshold is recommended. Depending on the purpose of the battery, it may be necessary to change these limits. Manufacturers also give different specifications for their batteries. Therefore, always check with the battery manufacturer which shutdown threshold is the right one for your battery! Scope of delivery: 1x victron Energy bpR065022000 Smart BatteryProtect 12/24v 65A 1x user manual

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which  would damage the battery) or before it has insufficient power left to crank the engine.12/24V auto rangingThe BatteryProtect automatically detects system voltageProgramming made easyThe BatteryProtect can be set to engage / disengage at several different voltages.The seven segment display will indicate which setting has been chosen.A special setting for Li-ion batteriesIn this mode the Battery Protect can be controlled by the VE.Bus BMS.Ultra low current consumptionThis is important in case of Li-ion batteries, especially after low voltage shutdown.Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.Over voltage protectionTo prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16 V respectively 32 V.Ignition proofNo relays but MOSFET switches, and therefore no sparks.Delayed alarm outputThe alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50mA. The alarm output is typically used to activate a buzzer, LED or relay.Delayed load disconnect and delayed reconnectThe load will be disconnected 90 secondsafter the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected.The load  will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

This battery saver protects your car battery from total discharge by switching off consumers such as ice boxes, heaters, radios + television sets, etc. in time. It switches on again automatically after return of the normal voltage. The interrupting voltage is adjustable: approx. 10.4 - 13.3 V. Important installation instructions, please note! Depending on the load the module heats up. The heat is dissipated from the aluminum plate at the bottom of the module. Under certain circumstances it must be mounted on a cooling surface according to installation instructions. It is important that the module is fixed with 4 M3 screws (or 2.9mm metal screws) on the cooling surface. This may be the back wall of a metal casing. The aluminum plate on the bottom of the module must not bend, do not use larger screws and do not drill larger holes. The screw heads must rest on the plate of the module, rather than on the plastic edge of the module! During assembly, the module should not be curled up (if the ground is not flat). The reason: on the inside of the aluminum base of the module the thin insulating layer are directly soldered on the electronic SMD components. When the aluminum floor of the module curls up, the joints and the module start loosen and the module is defective. Please ensure that the maximum specified temperature (as specified in the module's description) is not exceeded. Otherwise apply a larger cooling plate.

Mit dem Batterietrennschalter von Offgridtec kann Ihre Batterie sicher getrennt werden, um den Stromverbrauch zu verringern, wenn das Gerät, Fahrzeug oder Boot nicht verwerndet wird. Der Schalter ist für die Automobilelektronik, elektrische Produkte und alle Arten von 12V/24V Fahrzeugen, Booten, Wohnmobilen usw. geeignet. Der praktische Drehschalter ist sehr einfach zu bedienen und funktioniert reibungslos. Schalten Sie die Stromversorgung sicher ein oder aus, um einen elektrischen Schlag zu vermeiden.   Lieferumfang: 1x Batterietrennschalter

Mit dem Batterietrennschalter von Offgridtec  kann Ihre Batterie sicher getrennt werden, um den Stromverbrauch zu verringern, wenn das Gerät, Fahrzeug oder Boot nicht verwerndet wird. Der Schalter ist für die Automobilelektronik, elektrische Produkte und alle Arten von 12V/24V Fahrzeugen, Booten, Wohnmobilen usw. geeignet. Der praktische Drehschalter ist sehr einfach zu bedienen und funktioniert reibungslos. Schalten Sie die Stromversorgung sicher ein oder aus, um einen elektrischen Schlag zu vermeiden.   Lieferumfang: 1x Batterietrennschalter
