The Offgridtec PWM 12/24-30 (MPN 1-01-010920) is a microprocessor controlled solar charge controller with 30A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 390W at 12V and 780W at 24V battery voltage. During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery. Features of the PWM-12/24-30 max. charging current 30A, for up to 390W PV power with 12V and 780W with 24V systems for 12V systems maximum PV voltage of 22V, for 24V systems 50V Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB ports with a maximum output of 2.4A Large LCD display with numerous display options, including kWh meter Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required, not included) Integrated device and battery protection PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side. PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side. Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load. Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again. Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output. Scope of Delivery 1x Offgridtec 1-01-010920 LCD 12/24-30 PWM 30A solar charge controller 1x Instruction manual (German)

The Smartsolar 100/20-48 from Victron Energy (mpn scc110020160r) is a mppt solar charge controller with 20a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar version, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. The most important technical features at a glance 20a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 290W nominal PV power for 24v systems: 580W nominal PV power for 48v systems: 1160W 20a load output high peak efficiency of 98 freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 100V Charging algorithm: multi-stage, adaptive integrated Bluetooth module Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron Energy Smartsolar mppt 100/20-48 20a 12v 24v 48v solar charge controller 1x instruction manual Note The device shows the imprint 48v - on the packaging of the device the data sheet of the 48v version is printed on the side. Contrary to this confusing information on the device itself, this is as described for both 12v and 24v - and now also suitable for 48v battery banks. Until recently these were separate devices - one for 12v/24v and one for 48v - these two have now been combined and the printing on the case and packaging has been taken from the 48v version

The Offgridtec PWM 12/24-45 (MPN 1-01-010925) is a microprocessor controlled solar charge controller with 45A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 590W at 12V and 1180W at 24V battery voltage. During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery. Features of the PWM-12/24-45 max. charging current 45A, for up to 590W PV power with 12V and 1180W with 24V systems Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB-Ports with a maximum output of 2.4A Large LCD display with numerous display options, including kWh meter Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required, not included) Integrated device and battery protection PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side. PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side. Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load. Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again. Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output. Scope of Delivery 1x Offgridtec 1-01-010925 LCD 12/24-45 PWM 45A solar charge controller 1x Instruction manual (German)

The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A variety of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charge output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The unit automatically detects the system voltage of the starter battery (BATT-2) and charging of the BATT-2 begins as soon as the preset conditions are met. The controller uses the advanced MPPT control algorithm that minimises the maximum power point loss rate and loss time, quickly tracks the maximum power point (MPP) of the PV generator, and processes the maximum energy from the PV generator under all conditions. Energy utilisation in a PV system with MPPT controller is increased by 20 to 30% compared to the PWM charging method. Features Highlights of the MPPT Pro DUO 30 A Max Power-Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%. Advanced MPPT control algorithm to minimise MPP loss rate and minimise time loss. Higher range of MPP operating voltage to improve PV module utilisation. Possibility of limiting the charging power by user or automatic charging current (BATT-1). Digital circuit control of adaptive three-stage charging mode to improve BATT-1 lifetime. The product will enter power saving mode if no manual input has been made for a long time and charging conditions are not met (PV<5v).> 100% charge and discharge in the operating temperature range. AES control signal for auto-refrigerator to avoid energy waste. Standard Modbus protocol and RS485 communication port (5V/200mA). Overview of the most important technical features Maximum charging current: 30A at a battery voltage of 12V or 24V. Optional remote display with mounting frame available. Supports all major battery types. Active temperature equalisation for optimal charging and ensuring long battery life. Max. Solar power 390W at 12V system voltage and 780W at 24V system voltage. 100V max. PV input voltage Grounding: Negative Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH) Connection terminals Battery 1: 16mm² (AWG6) / Battery 2: 4mm² (AWG12) Weight: 1,4KG Diameter of mounting holes: 5mm Energy consumption: 26mA at 12V / 15mA at 24V Max. Efficiency: 98 Intelligent energy saver If there is no manual operation for an extended period of time and charging conditions are not present, the MPPT-Pro Duo will switch to energy saving mode, reducing the unit's energy consumption to a minimum. This behaviour also reduces wear and tear on the unit, which is reflected in a significantly longer service life. The system parameters are displayed and set directly via the intuitive control panel on the controller or via the MT11 remote control (accessory). System communication and protection functions The refrigerator's AES control signal is built into the controller, which delivers excess solar power to the refrigerator to prevent energy waste. The protection class of the MPPT Duo is IP33. It resists splashing water and is dust-tight. Our MPPT Pro DUO has multiple protection functions, including battery overcharge protection, discharge protection and reverse polarity protection of PV and battery, which effectively ensure the safety, stability and service life of the solar system. Scope of delivery: 1x Offgridtec 1-01-011200 MPPT DUO charge controller. 1x instruction manual

The Offgridtec PWM 12/24-20 (MPN 1-01-010915) is a microprocessor controlled solar charge controller with 20A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 260W at 12V and 520W at 24V battery voltage. During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery. Features of the PWM-12/24-20 max. charging current 20A, for up to 260W PV power with 12V and 520W with 24V systems Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB ports with a maximum output of 2.4A Large LCD display with numerous display options, including kWh meter Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required, not included) Integrated device and battery protection PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side. PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side. Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load. Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again. Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output. Scope of Delivery 1x Offgridtec 1-01-010915 LCD 12/24-20 PWM 20A solar charge controller 1x Instruction manual (German)

The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. The most important technical features at a glance 15a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 220W nominal PV power for 24v systems: 440W 15a load output high peak efficiency of 98% freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 75V Charging algorithm: multi-stage, adaptive integrated Bluetooth modu Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron EnergySCC075015060R Smartsolar mppt 75/15 15a 12v 24v solar charge controller 1x user manual

The Offgridtec PWM 12/24-10 (MPN 1-01-010910) is a microprocessor controlled solar charge controller with 10A max. charge capacity and can charge both 12V and 24V batteries. It uses advanced 3-stage PWM modulation to get the most out of your AGM, GEL or lead acid batteries. It is suitable for solar systems with a max. PV power of 130W at 12V and 260W at 24V battery voltage. During charging, important environmental parameters such as battery temperature (only with optional sensor) are used to calculate the optimal charging current. As soon as the battery voltage is in the range of full charge, the charging voltage is reduced step by step. This prevents both gassing and heating of the batteries and thus maximises the service life of the batteries. Charging then continues at reduced voltage until your batteries are actually "full". The result of this method of operation is a better, faster charge without any deterioration in the health of your battery. Features of the PWM-12/24-10 max. charging current 10A, for up to 130W PV power with 12V and 260W with 24V systems Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB ports with a maximum output of 2.4A Large LCD display with numerous display options, including kWh meter Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required, not included) Integrated device and battery protection PV short circuit protection - Automatically interrupts the connection in the event of a short circuit on the solar side. PV polarity protection - Automatically interrupts the connection in the event of incorrectly connected polarity on the solar side. Overload protection - If the maximum permissible load current at the controller is exceeded by 5%, the controller automatically disconnects the existing load. Overheat protection - If the heat sink temperature in the controller rises above 85°C, the unit automatically switches off and on again as soon as the temperature is below 70°C again. Protection against short-circuit at the load output - Automatic disconnection in the event of a short-circuit at the load Output. Scope of Delivery 1x Offgridtec 1-01-010910 LCD 12/24 PWM 10A solar charge controller 1x Instruction manual (German)

MPP solar charge controller for high-quality caravans and boats. For solar modules with: - up to 165 Wp module performance- max. 10A module current- max. 50V module voltage Charging options: 1 supply and 1 starter battery Controllers according to the MPP technology are continuously and automatically calculating the maximum power yield (MPP) of the solar modules several times per minute. The voltage surplus of the solar module will be transformed to a higher charging current for the battery (realised by high-frequency switching controller technology with high efficiency). This surplus of charging current ensures short charging times and the best possible power yield of the solar system. Main Charging Port I: Automatic charging and conservation of charge of the (main) board supply batteryAuxiliary Charging Port II: Current and voltage reduced for recharging as well as trickle charge of the vehicle’s starter battery, thus ensuring continuous starting capacityContinuous control, full batteries by immediate recharging in case of current consumptionAutomatic charging programs adjustable for gel, acid/lead-acid, AGM/fleece and Lithium batteries for optimum charging resultsVery low own electricity consumption, high efficiencyConnection for Battery Temperature Sensor for temperature compensationIndicators for operating state "Full", "> 80%", "Charging", "MPP" and "Low Voltage"Control output EBL, prepared for “Elektroblock” with solar current display, cable set, Art. 2007, required

The Victron Energy SmartSolar mppt 100/50 50a 12v/24v solar charge controller (mpn scc110050210), is new version of the BlueSolar 100/50. The Smart version differs only in the from the Blue version mainly by the permanently integrated Bluetooth communication module. This allows the SmartSolar charge controller to be fully monitored and analyzed on any app-enabled device. The required Victron Connect app can be installed free of charge. key product features of the SmartSolar 100/50 50a 12v 24v mppt latest generation ultra-fast MPP tracker ensures best possible yield even in overcast conditions integrated VE.Direct data communication port high maximum efficiency of 98 for 12v and 24v systems integrated Bluetooth module 50a maximum charge current fully programmable charging algorithms that can later be manually activated and used via a switch on the case 100v maximum pv open circuit voltage 700W maximum pv power for 12v, 1400w for 24v systems integrated protection against battery polarity reversal multi-stage and adaptive charging algorithm Day/night time control and light dimming option more protection compared to the smaller models in the SmartSolar mppt seriesCompared to the 75/10, 75/15 and 100/15 model, the SmartSolar 100/30 mppt has overheating protection with shutdown function and automatic restart after reaching normal operating temperature VE.Direct data communication port VE.Direct in text mode transmits all important parameters to other devices linked to the charge controller every second, providing the possibility of communication with additional devices gx Color Control Panel from Victron. The VE.Direct connection is intended for products where a full Canbus integration (VE-Direct) would cause too high costs High-speed MPP tracker of the latest generation Especially in overcast conditions when light intensity is constantly changing, an extremely fast mppt controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. In addition, the 100/50 features several other innovative technologies such as the VE.Direct communication port. Options for programming, real-time data and viewing historyModern Apple and Android smartphones, tablets, Macbooks and other devices can be connected, for example, via the integrated Bluetooth Smart Dongles and the mppt app or the gx Color Control. Please note that Bluetooth Smart Dongles and gx Color Control are separate items which are not included in the delivery of the charge controller but can be purchased optionally.Flexible charging algorithms Fully programmable charging algorithm (please refer to the software page on our website) as well as eight pre-programmed algorithms that can be selected via a rotary knob (please refer to our manual for more details) Scope of delivery: 1x Victron Energy scc110050210 SmartSolar mppt 100/50 50a 12v/24v solar charge controller1x user manual

This controller is especially designed for caravans and boats. - up to 350Wp module performance- max. 21A module current- max. 50V module voltage Controllers according to the MPP technology are continuously and automatically calculating the maximum power yield (MPP) of the solar modules several times per minute. The voltage surplus of the solar module will be transformed to a higher charging current for the battery (realised by high-frequency switching controller technology with high efficiency). This surplus of charging current ensures short charging times and the best possible power yield of the solar system. Main Charging Port I: Automatic charging and conservation of charge of the (main) board supply battery Auxiliary Charging Port II: Current and voltage reduced for recharging as well as trickle charge of the vehicle’s starter battery, thus ensuring continuous starting capacity Continuous control, full batteries by immediate recharging in case of current consumption Automatic charging programs adjustable for gel, acid/lead-acid and AGM/fleece batteries for optimum charging results Indicators for operating state "Full", "Charging", "MPP" and "Low Voltage" Very low own electricity consumption, high efficiency Connection for Battery Temperature Sensor for temperature compensation

This controller is especially designed for caravans and boats. - up to 250Wp module performance- max. 15A module current- max. 50V module voltage Controllers according to the MPP technology are continuously and automatically calculating the maximum power yield (MPP) of the solar modules several times per minute. The voltage surplus of the solar module will be transformed to a higher charging current for the battery (realised by high-frequency switching controller technology with high efficiency). This surplus of charging current ensures short charging times and the best possible power yield of the solar system. Main Charging Port I: Automatic charging and conservation of charge of the (main) board supply battery Auxiliary Charging Port II: Current and voltage reduced for recharging as well as trickle charge of the vehicle’s starter battery, thus ensuring continuous starting capacity Continuous control, full batteries by immediate recharging in case of current consumption Automatic charging programs adjustable for gel, acid/lead-acid and AGM/fleece batteries for optimum charging results Indicators for operating state "Full", "Charging", "MPP" and "Low Voltage" Very low own electricity consumption, high efficiency Connection for Battery Temperature Sensor for temperature compensation

The Steca Solsum-F-generation is one of the most used charge controllers in the field of solar home systems.A multifunctional LED-display allows the quick and easy use of the device. Features:- serial-controller- voltage regulation- automatic voltage adjustment- PWM-regulation- multistep charge technology- current compensated shutdown threshold (loads)- automatic load restart- temperature compensation- joint positive or negative grounding of one clamp- monthly maintenance charge Protection functions:- overload- deep discharge- reverse polarity of module, load and battery- automatic electronical fuse- short-circuit- overvoltage at module input- no-load protection without battery- current reflow at night- overtemperature and overload protection- shutdown at battery overvoltage NOTE: Battery type can only be changed with optional equipment (Steca PA RC100).The default battery type is AGM-/gel-battery.If you want to use this controller to charge a lead-acid battery please let us know via emai or phone.

The Battery Charger VBCS Triple is a brand new type of device combination to ensure the energy supply in your caravan. It consists of a pb-grid-charger, VCC charging converter and MPP solar charge controller. The batteries are always charged automatically no matter if driving or parking. Especially the high charging performance (45A) of the integrated charging converter allows full charging of your batteries even on short drives. The VBCS Triple series provides the same quality, features and functions as the Votronic single devices and comes with a very compact and light design. These devices save costs and space within your caravan - installation, connection and wiring are reduced to a minimum. Important product features: integrated VCC charging converter 45A integrated Pb-grid- charger 30A integrated MPP solar charge controller for a max. module performance of 350W charges 1 supply battery, 1 starter battery or 2 supply batteries or 2 starter batteries constant full-automated charging very secure operation, soft battery charging 8 charging curves for acid, gel, AGM and modern LiFePO4 batteries control input for LiFePO4 - BMS for charging stop the charging voltages are free from spikes and controlled in a way to prevent from overloads precise battery temperature compensation, temperature sensor 825 included smart micro processor controlling considers connected consumers automatical battery recharge during longer standing times (twice a week) integrated battery pulser compensation of voltage loss (cables) for exact charging voltage reliable technique and compact design easy setup and short cabling plug&play connection for LCD-Charge Control S Suitable for all common battery sizes three different device combinations are available. All devices provide 8 charging curves for lead-acid, gel and AGM batteries as well as lithium-LiFePO4. The integrated battery trainer keeps the batteries maintained during longer standing times. LCD Charge Computer 1247 (optional)Especially designed for this device the LCD display and control unit shows important information. Additionally the charger can be adjusted to the power supply of the caravans pitch. Technical Data: Integrated MPP dual charge controller module performance: 50 - 350Wp Module amp max.: 21.0A Module voltage (Voc) max.: 28V Charging amp supply-/starter battery max.: 25.5/5.0A Integrated charger: operating voltage: 110 - 230V AC 45.65Hz (worldwide) Max. power consumption: 520W Charging amp supply-/starter battery max.: 30/5A Integrated 12V712V battery to battery VCC charging converter charging performance on-board battery max.: 45A automatic activation D+ / ignition starter battery LiMa voltage range (Euro6) / max. current: 11 - 16V/42A

The Victron PWM-Light 12V 24V 30A (MPN SCC010030020) is a reasonable-priced PWM charge controller that was especially developed to control lighting systems. There are several possibilities to configure the switching-off/on of these DC consumers. Of course with this charge controller other things like ventilation can be controlled.Please check the manual for detailled information about the possible configurations. Important product features: Load output with low battery voltage disconnect function. Lighting control function, one timer only. Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting. Three stage battery charging (bulk, absorption, float), not programmable. Load output protected against over load and short circuit. Protected against reverse polarity connection of the solar array and/or battery. Day/night timing options: see manual for details Delivery scope:1x Victron Energy SCC010030020 PWM-Light 12/24V-30A 1x Manual

The LS-EU economy solar charge controller is the new member of the Landstar family and ideal for small systems - especiall for home-systems. Based on the LS-E-series the LS-EU is equipped with a 5V/1.2A USB-output to charge cellphones or supply small electronical devices. Features:3 -step PWM-charging, bulk, balance and float charge supports 3 battery types: lead-acid, gel, AGM displays battery status via integrated LEDs battery temperature compensation very simple configuration and operation integrated USB-output to supply 5V consumers 5A 12V output for 12V DC consumers battery type and output can be configured via buttons on the charge controller Protection from: deep discharge of battery short-circuit on consumer-output battery overload Technical data:Operation voltage: 12VMax. charging amp battery: 5AMax. discharging amp battery: 5AMax. module voltage: 30V DCVoltage range: 8 - 16VPerformance USB-output: 5V 1.2APerformance consumer output: 12V 5ASupported battery types: lead-acid, gel, AGMDimensions: 110mm x 66mm x 21mm Delivery scope:1x charge controller LS0512EU11x certificate1x operation manual (englisch)

The Battery Charger VBCS Triple is a brand new type of device combination to ensure the energy supply in your caravan. It consists of a pb-grid-charger, VCC charging converter and MPP solar charge controller. The batteries are always charged automatically no matter if driving or parking. Especially the high charging performance (30A) of the integrated charging converter allows full charging of your batteries even on short drives. The VBCS Triple series provides the same quality, features and functions as the Votronic single devices and comes with a very compact and light design. These devices save costs and space within your caravan - installation, connection and wiring are reduced to a minimum. Important product features: integrated VCC charging converter 30A integrated Pb-grid- charger 20A integrated MPP solar charge controller for a max. module performance of 250W charges 1 supply battery, 1 starter battery or 2 supply batteries or 2 starter batteries constant full-automated charging very secure operation, soft battery charging 8 charging curves for acid, gel, AGM and modern LiFePO4 batteries control input for LiFePO4 - BMS for charging stop the charging voltages are free from spikes and controlled in a way to prevent from overloads precise battery temperature compensation, temperature sensor 825 included smart micro processor controlling considers connected consumers automatical battery recharge during longer standing times (twice a week) integrated battery pulser compensation of voltage loss (cables) for exact charging voltage reliable technique and compact design easy setup and short cabling plug&play connection for LCD-Charge Control S Suitable for all common battery sizes three different device combinations are available. All devices provide 8 charging curves for lead-acid, gel and AGM batteries as well as lithium-LiFePO4. The integrated battery trainer keeps the batteries maintained during longer standing times. LCD Charge Computer 1247 (optional)Especially designed for this device the LCD display and control unit shows important information. Additionally the charger can be adjusted to the power supply of the caravans pitch. Technical Data: Integrated MPP dual charge controller module performance: 40 - 250Wp Module amp max.:  15.0A Module voltage (Voc) max.: 28V Charging amp supply-/starter battery max.: 18.0/4.0A Integrated charger: operating voltage: 110 - 230V AC 45.65Hz (worldwide) Max. power consumption: 360W Charging amp supply-/starter battery max.: 20/4A Integrated 12V712V battery to battery VCC charging converter charging performance on-board battery max.: 30A automatic activation D+ / ignition starter battery LiMa voltage range (Euro6) / max. current: 11 - 16V/42A

The Steca Solsum-F-generation is one of the most used charge controllers in the field of solar home systems.Ideal for small solar systems with less than 10A current. Features: serial-controller voltage regulation automatic voltage adjustment PWM-regulation multistep charge technology current compensated shutdown threshold (loads) automatic load restart temperature compensation joint positive or negative grounding of one clamp monthly maintenance charge Protection functions: overload deep discharge reverse polarity of module, load and battery automatic electronical fuse short-circuit overvoltage at module input no-load protection without battery current reflow at night overtemperature and overload protection shutdown at battery overvoltage NOTE: Battery type can only be changed with optional equipment (Steca PA RC100).The default battery type is AGM-/gel-battery.If you want to use this controller to charge a lead-acid battery please let us know via emai or phone.

The mppt 100/20 from Victron Energy (mpn scc110020170r) is part of the BlueSolar mppt family of charge controllers and offers ultra-fast power tracking that can increase the yield of your solar system. mppt: Ultrafast Maximum Power Point Tracking By continuously monitoring the voltage and current output of your solar (PV) modules, mppt technology ensures that all the energy available is actually being drawn from the modules and stored. The benefit of this is most noticeable when the sky is partially overcast and the light intensity is constantly changing. Features Suitable for 12v/24v/48V systems Short circuit proof load output Intelligent battery management with Battery Life Programmable battery charging algorithm Day/night time control and light dimming option Intelligent VE.Direct data communication port for connection with additional devices such as Bluetooth Smart Dongle or gx Color Control Panel Integrated output short circuit / over temperature protection remote monitoring and control You can remotely control and monitor the extensive features of your BlueSolar mppt charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your system is connected to the Victron remote management internet portal (vrm) via a gx device, you have full access to your mppt anytime, anywhere. Both VictronConnect and vrm are available free of charge. Load output Battery over-discharge can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a predefined voltage value. Alternatively, an intelligent battery management algorithm can be selected: see Battery Life. The load output is short-circuit proof. Some loads (especially inverters) are best connected directly to the battery. Inverter remote control is best connected to the load output. A special interface cable may be required, please refer to the manual. Battery Life: Intelligent battery management if the solar charge controller is not able to charge the battery to its full capacity within one day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) damages a battery within a few weeks or months. The Battery Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Technical data Battery voltage (automatic selection): 12v/24v/48V Rated charging current: 20A Nominal PV power 12v / 24v / 48v: 290w / 580w / 1160W Max. PV open circuit voltage: 100V Peak efficiency: 98% Charging algorithm: multi-stage, adaptive Operating temperature range: -30°C - +60°C Protection class: ip43 (electronic components), ip22 (connection area) Dimensions: 100 x 113 x 60 mm Weight: 0,65 kg Scope of delivery: 1x Victron scc110020170r BlueSolar mppt 100/20-48v charge controller

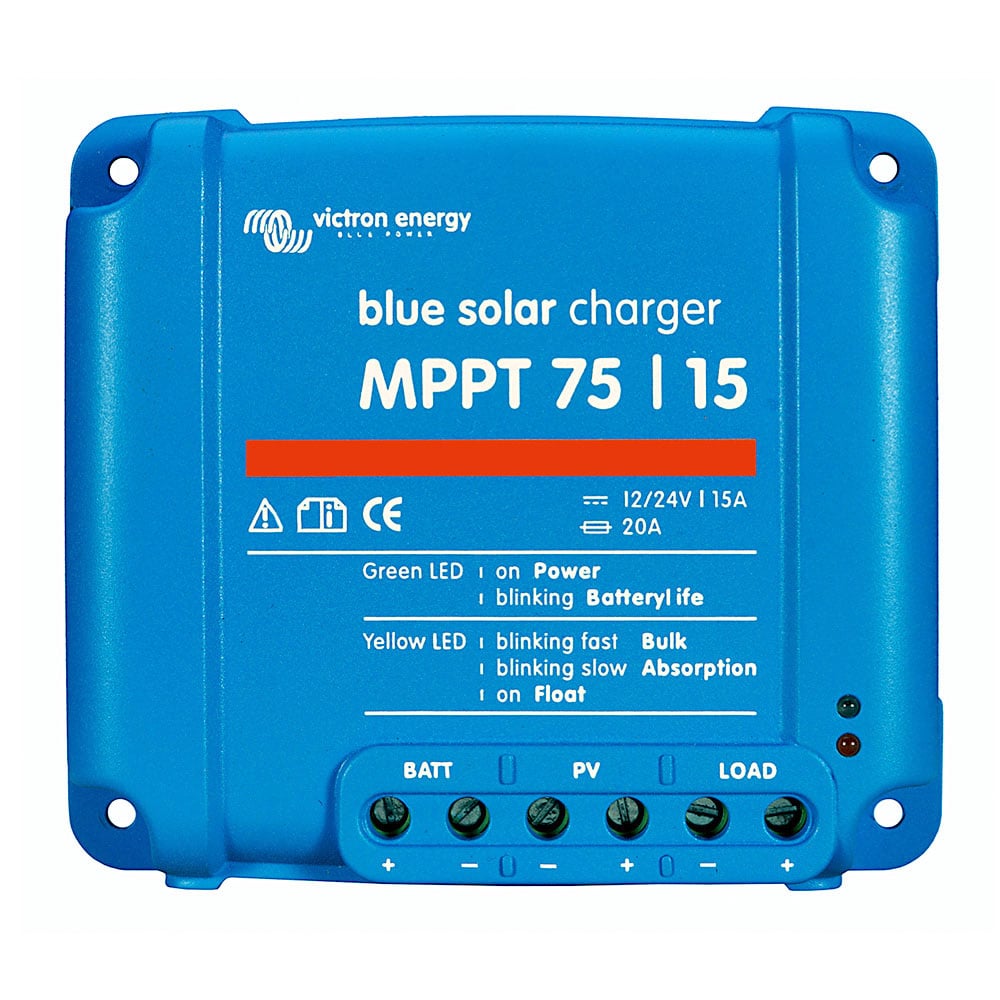

The Victron MPPT 75/15 (MPN SCC010015050R) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output. Next generation MPP-tracker Especially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Moreover the 75/15 comes with further innovative technologies. Programming, real-time data and logging Latest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control. Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately. Important features: Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel Suitable for 12V and 24V systems Rated charging amperage: 15A 200W max. PV-performance at 12V and 400W at 24V 15A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection) Reverse polarity protection Multistep adaptive charging algorithm Battery charging algorithm programmable Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output Day/night-time control and dimming options VE.Direct data port integrated VE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct. Integrated battery life algorithm extends battery life If the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months. The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week. Delivery Scope: 1x Victron SCC010015050R BlueSolar MPPT 75/15 12V 24V 15A charge controller 1x Manual

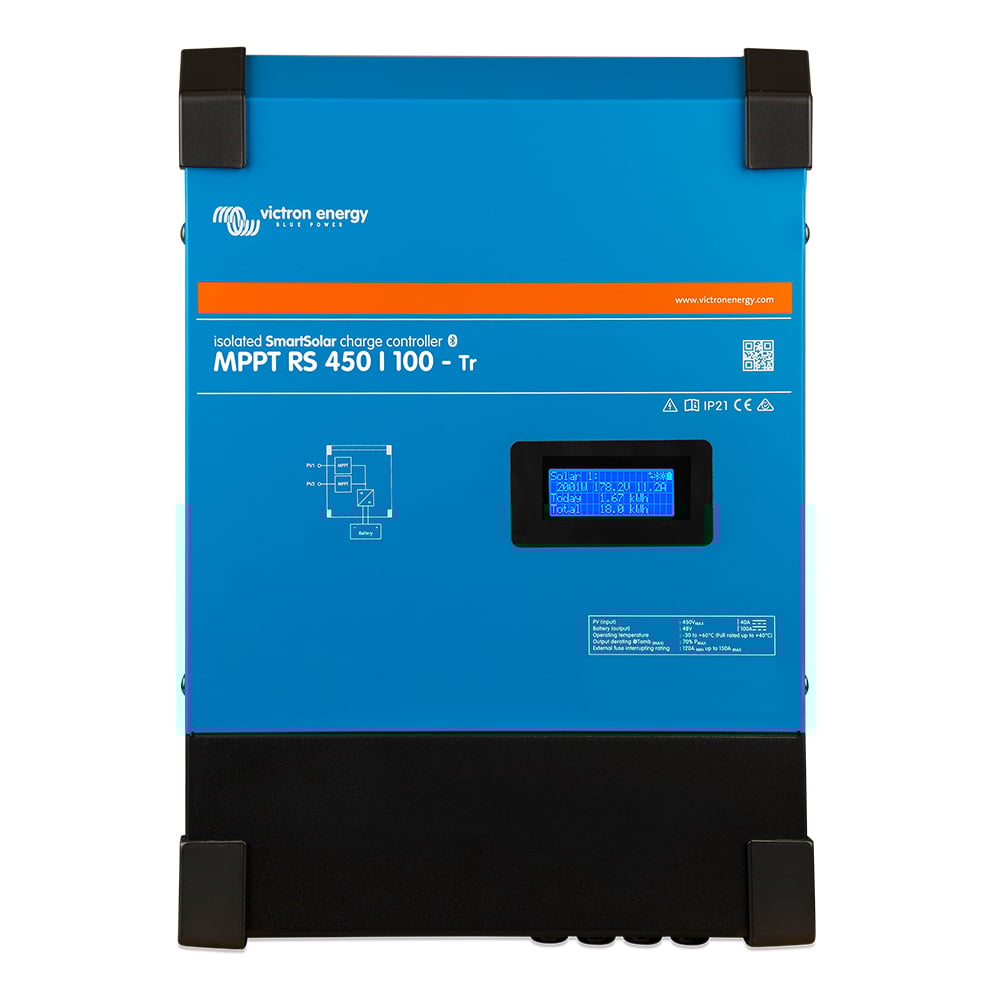

The mppt rs SmartSolar from Victron Energy (mpn scc145110410) is a 48v solar charge controller with a PV input voltage of up to 450 vdc and an output current of 100a. It is used in grid-tied and off-grid Solaranapplications where maximum battery charging power is required. Features With ultra-fast maximum power point tracking (mppt) Multiple independent mppt tracking inputs Isolated PV connections for added safety Wide mppt voltage range Lightweight, efficient and quiet Integrated display and Bluetooth communication PV insulation resistance monitoring for safety at higher voltages VE.Can and VE.Direct connection I/O connections Configure and monitor with VictronConnect app or in VRM portal The integrated BluetoothSmart connection allows quick monitoring or configuration of settings via app. The integrated 30-day history shows the individual performance of each mppt tracker. The app enables the display of e.g. battery voltage and current, PV voltage and current, history data and trends. The VictronConnect app is available for Android, iOS, Windows and macOS x. When the solar controller is connected to a Gx device and the internet, the Victron Remote Management Portal (vrm) provides access to the full power of your SmartSolar rs charge controllers. Additional units connected in series The SmartSolar rs charge controller is equipped with VE.Can bus connections. This allows communication with additional SmartSolar rs & VE.Can mppt units. The additional units are simply "daisy chained" together with an RJ45 cable. When linked together, all individual charge controllers synchronize their charge levels. You can also send your data to a Gx device (such as the CerboGx) via the same cable for monitoring. Technical data Battery voltage: 48v Rated charging current: 100A Max. Charging power: 5.8kW at 57.6V Charging algorithm: multi-stage adaptive (customizable) Max. DC PV voltage: 450V mppt operating voltage range: 80-450V Number of trackers: 2 Max. PV operating input current: 18a per tracker Protection class: IP21 Dimensions: 440 x 313 x 126 mm Weight: 7,9 kg Scope of delivery: 1x Victron SmartSolar mppt rs 450/100 48v charge controller

The LS-EU economy solar charge controller is the new member of the Landstar family and ideal for small systems - especiall for home-systems. Based on the LS-E-series the LS-EU is equipped with a 5V/1.2A USB-output to charge cellphones or supply small electronical devices. Features: 3-step PWM-charging, bulk, balance and float charge supports 3 battery types: lead-acid, gel, AGM displays battery status via integrated LEDs battery temperature compensation very simple configuration and operation integrated USB-output to supply 5V consumers (max. 2A) 5A 12V output for 12V DC consumers battery type and output can be configured via buttons on the charge controller Protection from: deep discharge of battery short-circuit on consumer-output battery overload Technical data:Operation voltage: 12VMax. charging amp battery: 10AMax. discharging amp battery: 10AMax. module voltage: 30V DCVoltage range: 8 - 16VPerformance USB-output: 5V 2APerformance consumer output: 12V 10ASupported battery types: lead-acid, gel, AGMDimensions: 120mm x 67mm x 22mm Delivery scope:1x charge controller LS0102EU1x certificate1x operation manual (englisch)

The Smartsolar mppt 250/70-tr from victron Energy (mpn scc125070210), is part of the latest generation of smart solar controllers from the premium Dutch manufacturer. The controller handles a whopping 70a of solar power and can flexibly work with 12/24/36/48 v batteries, with a maximum Pv input voltage of 250v dc. Ultra fast power tracking and automatic power point detection in case of partial shading are only 2 of the many highlights of this new class of devices. In addition, this model is capable of parallel operation with other controllers of the same type. Compared to the Smartsolar 150/..... Series, the 250/.... Series can handle a maximum Pv input voltage of 250v. This is also one of the reasons why the 250 solar controller family has been able to increase the efficiency by another 1 percent to a total of 99%, defining new standards in the industry. Among all solar charge controllers we know, this value is currently the best. In comparison to the BlueSolar family, the Bluetooth module is already integrated in the controller of the 250 Smartsolar series, which makes the smart dongle superfluous for this device, if you want to analyze and configure the controller via smartphone or tablet. Also new is the optionally available lcd display, which can be simply plugged onto the SmartSolar 250/70-tr as required. The display then provides all the important information about the controller smart configuration and analysis via victron Connect App Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time automatic detection of the maximum power point in case of partial shading In case of partial shading, there may be two or more maximum power points (mppts) on the current-voltage curve. Conventional mppts tend to settle on a local mpp. However, this may not be the optimal mpp. The SmartSolar controller's innovative algorithm will always maximize energy output by adjusting to the optimal mpp key product features of the SmartSolar 250/70-tr 70a 12v 24v 48v mppt victron Energy part number: scc125070210 max pv power: 12 v 1000 w / 24 v 2000 w / 48 v 4000 w max rated charge current 70a, 250v max pv open circuit voltage latest generation ultra-fast mpp tracker ensures best possible yield even in overcast conditions automatic detection of mpp voltage in case of partial shading provides further yield improvement compared to "simple" mppt charge controller with optional lcd display permanently integrated Bluetooth module for app-supported analysis and configuration of the controller (via free victron app on compatible devices) optional lcd display available integrated vE.Direct data communication port to connect for communication with additional devices the gx Color Control Panel or a Smart BMv battery monitor groundbreaking 99% efficiency Parallel operation with other 250/85 controllers possible adjustable constant charging voltage adjustable float charge voltage suitable for all agm, gel, lead-acid calcium-calcium and lithium batteries fully programmable charging algorithms which are later activated and switched manually via a switch on the case integrated protection against battery polarity reversal multi-stage and adaptive charging algorithm remote switching on and off possible via 2-pin plug Protection class ip 43 for the electronic components and protection class ip 22 for the connection area of the controller integrated temperature sensor balances maintenance and constant charging voltage according to temperature Day/night time control and light dimming options Latest generation high-speed mpp tracker Especially in overcast conditions, when light intensity is constantly changing, an extremely fast mppt controller improves energy yield by up to 30% compared to PwM charge controllers and by up to 10% compared to slower mppt controllers optional lcd display available for retrofitting for those who prefer to operate and configure the Smartsolar mppt 250/70-tr directly, the Smartsolar Control scc900600010 display is available for retrofitting. The display allows easy configuration of the controller via key input, and also provides all important performance data at a glance extensive electronic protection Protection against reverse battery connection Pv reverse current lock Protection against overheating of the device Protection against short circuits Protection against reverse polarity Pv connection the vE.Direct data communication port vE.Direct in text- mode transmits all important parameters to other devices coupled to the charge controller every second, offering the possibility of communication with additional devices such as the gx Color Control system panel. The vE.Direct connection is intended for products where full Canbus integration (vE-Direct) would be too costly. More information about vE.Direct can be found in our victron Energy brand store optionally also available as version with MC4 connectors The 250/70-tr is also available as a version with MC4 connectors on the solar side of the charge controller instead of screw terminals Scope of delivery 1x victron scc125070210 SmartSolar mppt 250/70-tr 12v 24v 48v 70a charge controller 1x instruction manual

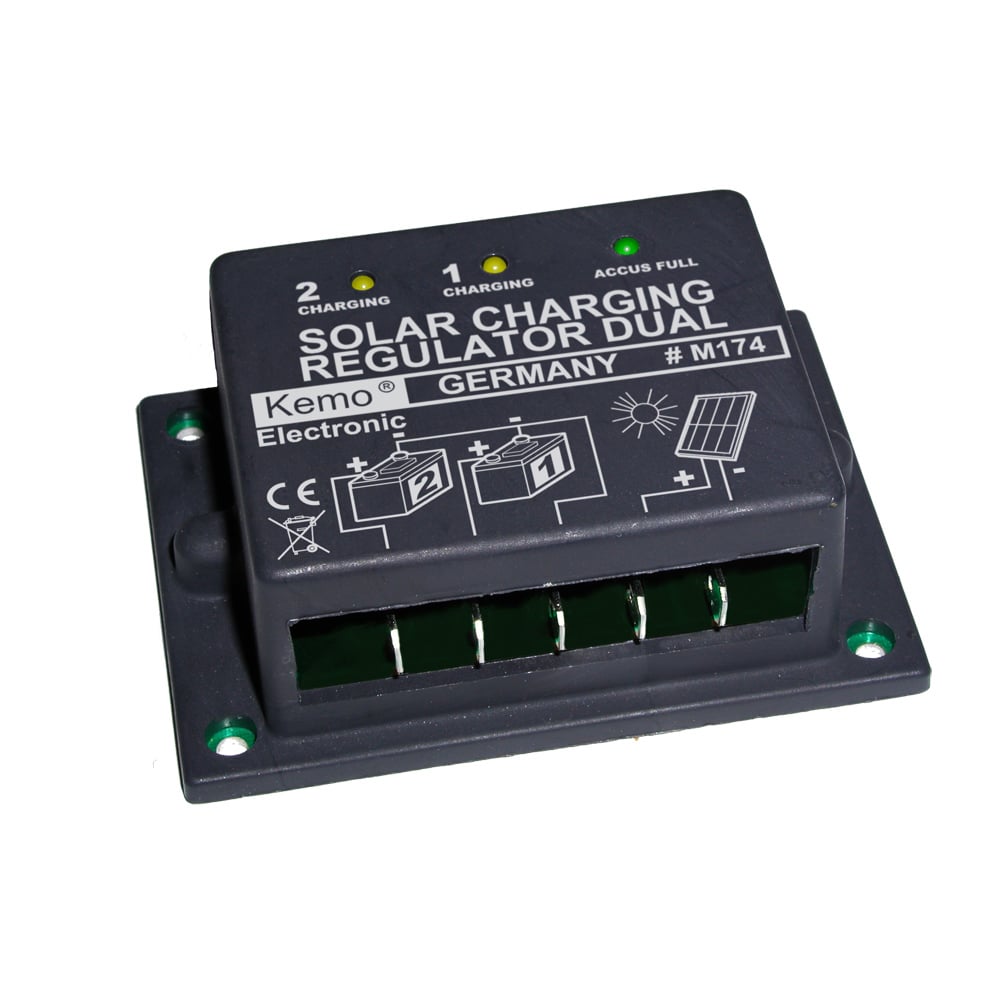

This charge controller is connected in between a 12V DC solar panel and 1 or 2 accumulators to prevent an overload of the accumulators. When there are two accumulators connected they are charged separately. The accumulator with the lower charging voltage gains more charging current. It comes with status-LEDs and a high charging rate: max. 2 x 8A or 1 x 16A. Technical Data:Input voltage: Solar panels 15 - 30V DC no-load voltage; 12V DC nominal voltageMax. Charging current: 16A total (2 accumulators each with max. 8A or 1 accumulator which is parallel-connected to both outputs up to 16A)Connections: 1 or 2 accumulators 12V. If there is only one both connectors are parallel-linked to the accumulator.Displays: 1 display for each accumulator ("accumulator charging" and "all accumulators fully charged)Cooling: At a current of >4A the module has to be attached with the metal bottom side to a cooling element with a surface of more than 300cm²Fuse: a prelemanry fuse F16A is needed (not included)Switch-on voltage: accumulator ca. <12,9V DC (+/- 5%)Switch-off voltage: "fully charged" ca. 14,2V DC (+/- %5)Consumption: <2mANo current reflowDimensions: 87 x 60 x 33mm (with mounting panel) Important assembly note: Depending on the load the module can warm differently. The warmth occurs at the module's aluminium floor plate and might be attached to a cooling element (see assembly instructions).It is important that the panel is fixed planely to a cooling plate with 4 M3-screws or 2,9mm tapping screws. Also the backplate of a metal casing can be used. Only make sure that thealuminium plate cannot distort. This also means that you must not use bigger screws or enlarge the pre-drilled holes. The screws must not touch the module's plastic frame! Please makealso sure that the module is not distorted during the assembly. This can cause the SMD-elements' juntions to break loose and therefore break the module. Please note that the floor plate'smax. temperature according to the instrucions must not be exceeded. Elsewise a bigger cooling plate has to be attached.

The Victron PWM-Light 12V 24V 10A (MPN SCC010010000) is a reasonable-priced PWM charge controller that was especially developed to control lighting systems. There are several possibilities to configure the switching-off/on of these DC consumers. Of course with this charge controller other things like ventilation can be controlled.Please check the manual for detailled information about the possible configurations. Important product features: Load output with low battery voltage disconnect function. Lighting control function, one timer only. Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting. Three stage battery charging (bulk, absorption, float), not programmable. Load output protected against over load and short circuit. Protected against reverse polarity connection of the solar array and/or battery. Day/night timing options: see manual for details Delivery scope:1x Victron Energy SCC010010000 PWM-Light 12/24V-10A 1x Manual
