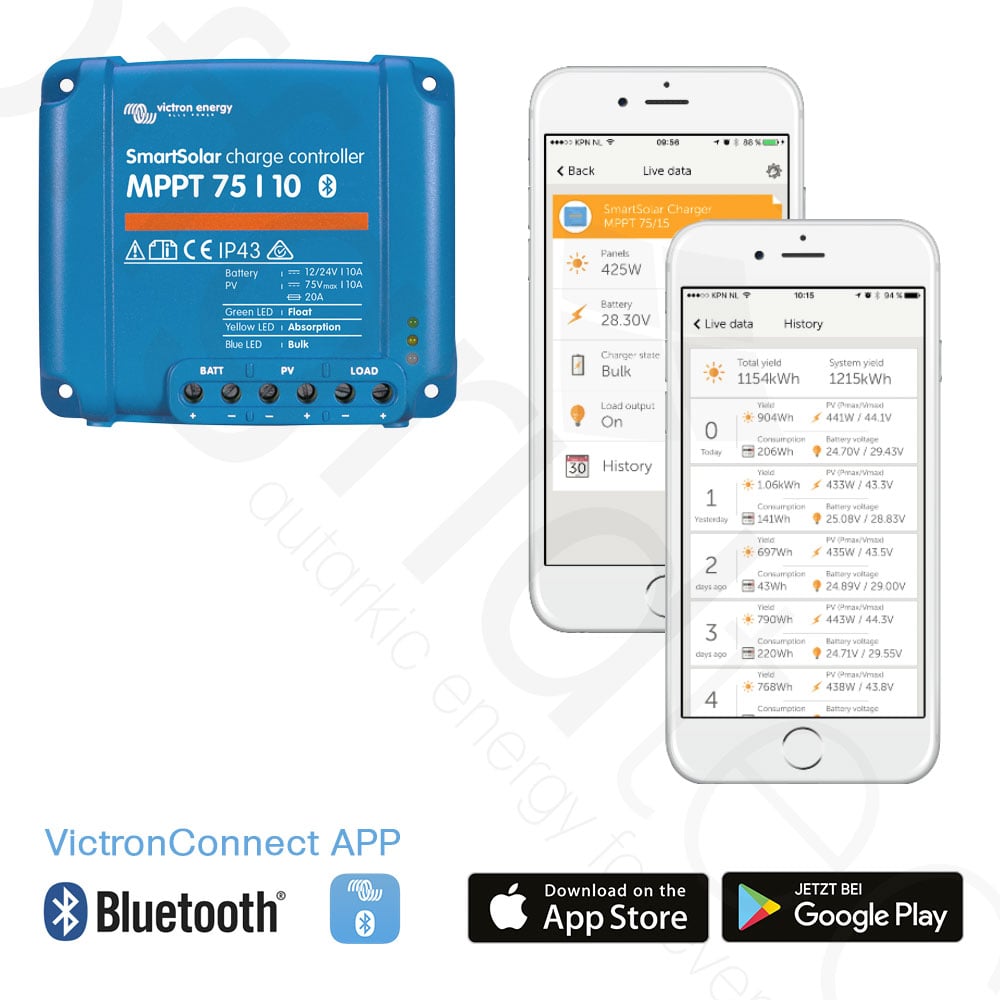

Victron Smartsolar MPPT 75/10 10A 12V 24V controller

The SmartSolar 150/35 mppt from Victron Energy (scc115035210) belongs to the latest generation of smart solar charge controllers, with integrated Bluetooth for data transfer and configuration via app on smartphone or tablet. It supports batteries with a voltage of 12v 24v 36v or even 48v and is therefore very versatile. The maximum charging current is 35a and uses the latest charging methods. Depending on the system voltage, the regulator can thus efficiently use 500w (12v) to 2000w (48v) to charge your batteries. In addition, this device also allows for partial shading compensation and one of the most reliable mppt trackers on the market. Optional, the MPPT-WireBox-M from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. key product features of SmartSolar 150/35 35a 12v 24v 36v 48v mppt latest generation ultra-fast mpp tracker ensures best possible yield even in overcast conditions automatic detection of mpp voltage in case of partial shading provides further yield improvement compared to "simple" mppt charge controller integrated VE.Direct data communication port for connection to additional devices like Bluetooth Smart Dongle or the gx Color Control Panel high maximum efficiency of 98 fully programmable charging algorithms which are later manually activated and toggled via a switch on the housing Rated charge current 35a, 100v maximum PV open circuit voltage 12v:500w / 24v:1000W / 36v:1500w / 48v:2000w integrated protection against battery polarity reversal multi-stage and adaptive charging algorithm integrated temperature sensor balances maintenance and constant charge voltage according to temperature Day/night time control and light dimming option VE-Direct data port for programming, real time data analysis and display of history Modern Apple and Android smartphones, and tablets can be connected via VE.Direct to the system monitors gx Color Control, the Venus gx, or the mppt Control Panel, for example. High-speed mpp tracker of the latest generation Especially in overcast conditions, when light intensity is constantly changing, an extremely fast mppt controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. In addition, the 150/35 features several other innovative technologies such as the VE.Direct communication port. extensive electronic protection Reverse battery connection protection PV reverse current lock Protection against overheating of the device Protection against short circuits Protection against reverse polarity PV connection Scope of delivery 1x Victron Energy scc115035210 SmartSolar mppt 150/35 12v 24v 36v 48v 35a charge controller Instruction manual

The Smartsolar 100/20-48 from Victron Energy (mpn scc110020160r) is a mppt solar charge controller with 20a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar version, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 100/20 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. The most important technical features at a glance 20a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 290W nominal PV power for 24v systems: 580W nominal PV power for 48v systems: 1160W 20a load output high peak efficiency of 98 freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 100V Charging algorithm: multi-stage, adaptive integrated Bluetooth module Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. Intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron Energy Smartsolar mppt 100/20-48 20a 12v 24v 48v solar charge controller 1x instruction manual Note The device shows the imprint 48v - on the packaging of the device the data sheet of the 48v version is printed on the side. Contrary to this confusing information on the device itself, this is as described for both 12v and 24v - and now also suitable for 48v battery banks. Until recently these were separate devices - one for 12v/24v and one for 48v - these two have now been combined and the printing on the case and packaging has been taken from the 48v version

The Smartsolar 75/15 from Victron Energy (mpn scc075015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 75/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 75 10/15 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. The most important technical features at a glance 15a max. charging current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 220W nominal PV power for 24v systems: 440W 15a load output high peak efficiency of 98% freely programmable battery charging algorithm (via the free Victron Connect APP) Light dimming functions programmable (via the free Victron Connect APP) Ultra fast maximum power point tracking max. PV open circuit voltage: 75V Charging algorithm: multi-stage, adaptive integrated Bluetooth modu Ultra fast maximum power point tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves power output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers. intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short-circuit proof. Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within a day, the status of the battery will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charging) will damage a lead-acid battery within a few weeks or months. The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved about once a week. Scope of delivery: 1x Victron EnergySCC075015060R Smartsolar mppt 75/15 15a 12v 24v solar charge controller 1x user manual

The Smartsolar 100/15 from Victron Energy (mpn scc110015060r) is a mppt solar charge controller with 15a max charge current for charging 12v and 24v batteries. Unlike the Bluesolar 100/15, the Smart version has integrated Bluetooth, which eliminates the need to purchase a Bluetooth dongel. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control gx or the mppt Control. The integrated Bluetooth in the SmartSolar series is the wireless solution to setup, monitor and update the controller using Apple and Android smartphones, tablets or other devices. Optional, the MPPT-WireBox-S 100/15 from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. The most important technical features at a glance 15a max charge current, suitable for 12v and 24v batteries nominal PV power for 12v systems: 220w nominal PV power for 24v systems: 440w 15a load output high peak efficiency of 98 freely programmable battery charging algorithm (via free Victron Connect app) Light dimming functions programmable (via free Victron Connect app) Ultra fast maximum power point tracking max. PV open circuit voltage: 100v Charging algorithm: multi-level, adaptive integrated Bluetooth modu Ultrafast Maximum Power Point Tracking Especially in overcast conditions when light intensity is constantly changing, an ultra-fast mppt controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers intelligent load output Deep discharge of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a preset voltage value. Alternatively, an algorithm for intelligent battery management can be selected: see BatteryLife. The load output is short circuit protected Battery Life: intelligent battery management If the solar charge controller is not able to charge the battery to its full capacity within one day, the battery status will constantly alternate between "partially charged" and "end of discharge". This mode of operation (no regular full charge) will damage a lead-acid battery within a few weeks or months The Battery-Life algorithm monitors the battery's state of charge and, if necessary, raises the load disconnect threshold day by day (i.e., disconnects the load earlier) until the energy gained is sufficient to charge the battery to near 100%. From this point, the load disconnection threshold is modulated so that charging to near 100% is achieved approximately once a week Scope of delivery: 1x Victron Energy SCC110015060R Smartsolar mppt 100/15 15a 12v 24v solar charge controller 1x instruction manual
