Accessoires
17 Results
Sorting
VAT-exempt delivery possible*
%
Top seller
1-21-016545

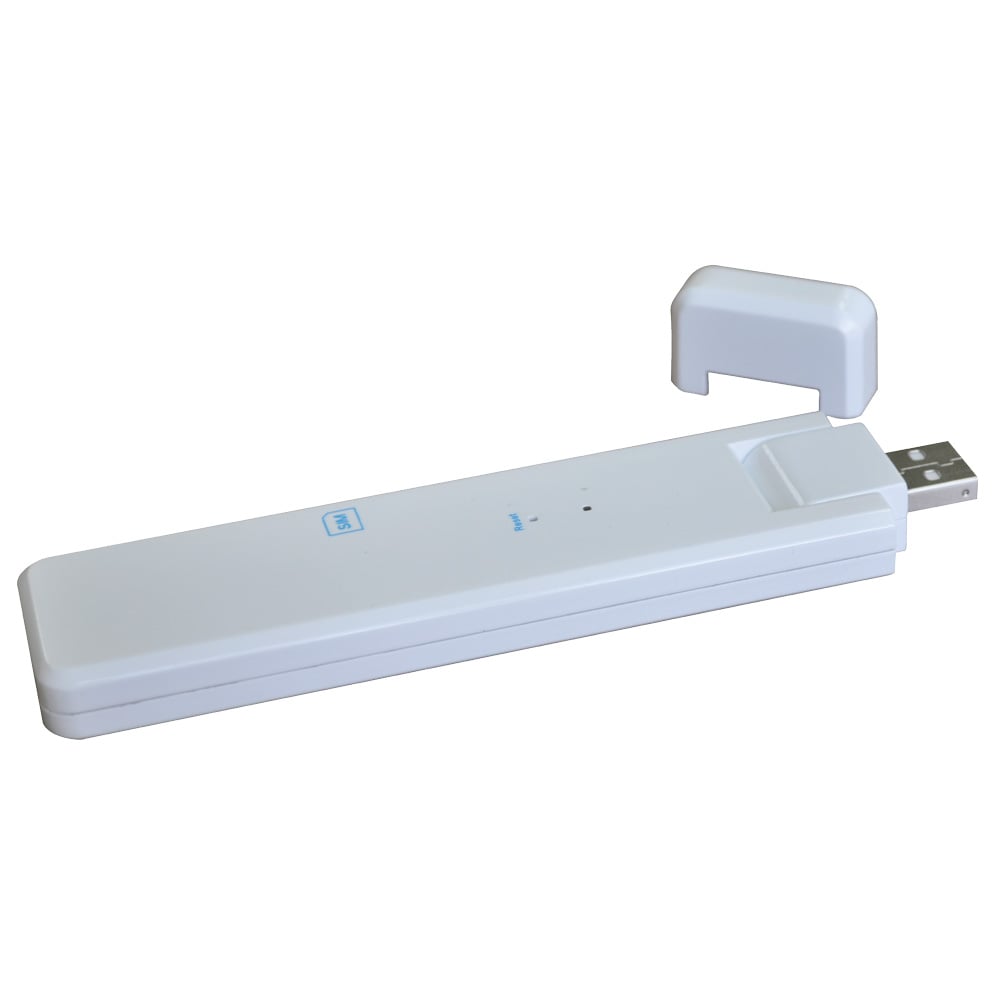

Hoymiles DTU-WLite Datenübertragungs- und Kontrolleinheit
Die Hoymiles Gateway DTU-WLite ist eine Datenübertragungseinheit, die eine drahtlose 2,4G-Kommunikation verwendet, um Informationen und Daten von Mikrowechselrichtern zu sammeln und sie über WLAN-Technologie an das Hoymiles-Überwachungssystem S-Miles Cloud übermittelt. Die DTU ist mit der Hoymiles HM- und MI-Serie kompatibel.
Mit Hilfe von Ihrem DTU-WLite können Sie Daten und Alarme auf Modulebene einfach lesen und den Fernbetrieb und die Fernwartung des Mikrowechselsystems jederzeit und überall über die Hoymiles S-Miles Cloud realisieren und speichern. Die Überwachungskapazität ist auf 4 Module begrenzt. Dadurch ist das System optimal für kleine PV-Anlagen geeignet.
Hinweis: DTU-WLite wird via 5V USB Netzteil an eine Hausstromsteckdose angeschlossen. Das Netzteil ist nicht im Lieferumfang enthalten. Es funktioniert mit nahezu allen USB Netzteilen, die Mindestens 1A Leistung abgeben können.
Eigenschaften
Überwachung auf Modulebene, mit bis zu 4 Solarmodulen
Einfache Installation dank Plug and Play
Fernwartung des Systems über die S-Miles Cloud
Direktanschluss (USB-Port)
Daten und Alarme von Mikrowechselrichtern auf S-Miles Toolkit in Echtzeit
LED-Anzeige
S-Miles Accounterstellung
Die Erstellung des S-Miles Accounts kann direkt vom Endnutzer vorgenommen werden. Im Downloadbereich dieses Artikels ist hierzu die Anleitung von Hoymiles zu finden.
Technische Daten
Typ: Proprietäres 2,4-GHz-Protokoll (Nordic)
Maximale Entfernung (offenes Gelände und je nach Installationsumgebung): bis zu 150m
Begrenzung der Überwachungsdaten von Solarmodulen: 4
Signal: WLAN:802.11b/g/n
Abtastung: Alle 15 Minuten
Lokale APP: S-Miles Toolkit
Leistungsaufnahme Typ 1,0 W / max. 5,0 W
Eingangsspannung: 5V
Umgebungstemperaturbereich: -20 bis +55°C
Abmessungen (BxHxT): 143 x 33 x 12,5 mm
Gewicht: 0,1kg
Zertifikat: CE
Modell des Mikrowechselrichters: HM-Serie & MI-Serie
Lieferumfang:
1x Hoymiles DTU-WLite Datenübertragungseinheit
Die Hoymiles Gateway DTU-WLite ist eine Datenübertragungseinheit, die eine drahtlose 2,4G-Kommunikation verwendet, um Informationen und Daten von...
Shipped in 4-8 Werktage
Shipped in 4-8 Werktage
8-21-015895

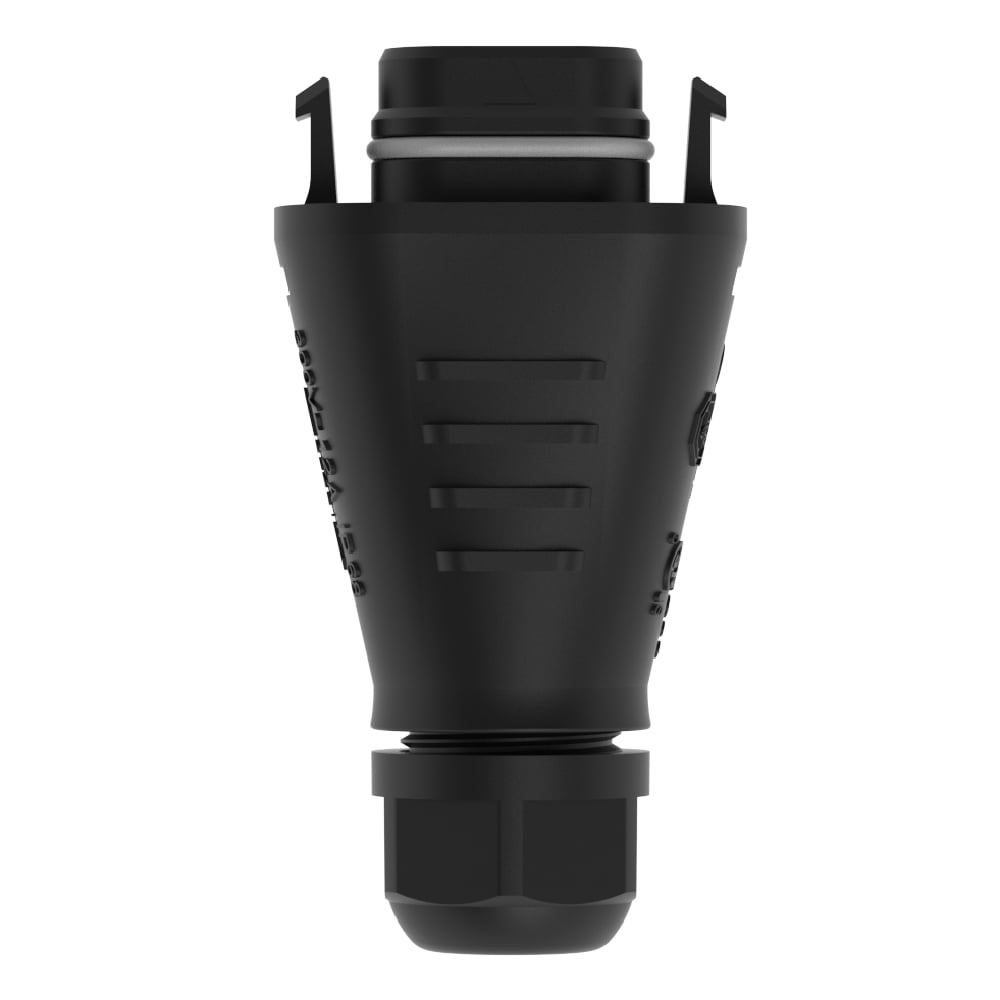

Hoymiles Endkappe für HMS-Inverter
Diese Endkappe wird zur Installation der Hoymiles HMS-Microinverter benötigt. Die Kappe verschließt das offene Ende des Inverters. Gefertigt aus Polycarbonat.
Zubehör Hoymiles HMS-Invertersystem
Zu jedem HMS-Inverter wird ein T-Knoten mit AC-Kabel benötigt
Für jedes Invertersystem (ab einem Microinverter) wird min. eine Endkappe und eine Entriegelungshilfe benötigt
Optional können die Trennhilfe und Anschlusskappe erworben werden
Beispiel HMS Zubehörset:
Eine PV-Anlage mit 4x HMS-18000 (alle zusammengeschaltet)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
1x Endkappe
Oder:
Vier PV-Anlagen mit 4x HMS-1800 (jede als einzelne Mini-Anlage)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
4x Endkappe
Lieferumfang:1x Hoymiles HMS Endkappe
Diese Endkappe wird zur Installation der Hoymiles HMS-Microinverter benötigt. Die Kappe verschließt das offene Ende des Inverters. Gefertig...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-21-014700
Hoymiles hmt 3p-AC box disconnect tool Disconnect Tool
This disconnection aid is required for mounting the Hoymiles hmt microinverter. With the disconnection aid you can disconnect the inverter connection cable from the T-node. Made of Polycarbonate.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles disconnection aid
This disconnection aid is required for mounting the Hoymiles hmt microinverter. With the disconnection aid you can disconnect the inverter connection ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-21-014705
Hoymiles hmt 3p-AC box unlocking aid unlock tool
This unlocking aid is required for mounting the Hoymiles hmt microinverter. With the unlocking aid you can open the T-node (AC-Box). Made of Polycarbonate.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles release aid
This unlocking aid is required for mounting the Hoymiles hmt microinverter. With the unlocking aid you can open the T-node (AC-Box). Made of Polycarbo...
Shipped in 1-3 days
Shipped in 1-3 days
8-21-015900
Hoymiles Trennhilfe für AC Box HMS Mikroinverter Disconnect Tool
Diese Entriegelungshilfe wird zur Montage der Hoymiles HMS-Microinverter benötigt. Mit der Entriegelungshilfe können Sie den T-Knoten (AC-Box) öffnen. Gefertigt aus Polycarbonat.
Zubehör Hoymiles HMS-Invertersystem
Zu jedem HMS-Inverter wird ein T-Knoten mit AC-Kabel benötigt
Für jedes Invertersystem (ab einem Microinverter) wird min. eine Endkappe und eine Entriegelungshilfe benötigt
Optional können die Trennhilfe und Anschlusskappe erworben werden
Beispiel HMS Zubehörset:
Eine PV-Anlage mit 4x HMS-1800 (alle zusammengeschaltet)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
1x Endkappe
Oder:
Vier PV-Anlagen mit 4x HMS-1800 (jede als einzelne Mini-Anlage)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
4x Endkappe
Lieferumfang:1x Hoymiles Entriegelungshilfe
Diese Entriegelungshilfe wird zur Montage der Hoymiles HMS-Microinverter benötigt. Mit der Entriegelungshilfe können Sie den T-Knoten (AC-Bo...
Shipped in 1-3 days
Shipped in 1-3 days
8-21-015905
Hoymiles HMS AC Box Entriegelungshilfe Unlock Tool
Diese Entriegelungshilfe wird zur Montage der Hoymiles HMS-Microinverter benötigt. Mit der Entriegelungshilfe können Sie den T-Knoten (AC-Box) öffnen. Gefertigt aus Polycarbonat.
Zubehör Hoymiles HMS-Invertersystem
Zu jedem HMS-Inverter wird ein T-Knoten mit AC-Kabel benötigt
Für jedes Invertersystem (ab einem Microinverter) wird min. eine Endkappe und eine Entriegelungshilfe benötigt
Optional können die Trennhilfe und Anschlusskappe erworben werden
Beispiel HMS Zubehörset:
Eine PV-Anlage mit 4x HMS-1800 (alle zusammengeschaltet)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
1x Endkappe
Oder:
Vier PV-Anlagen mit 4x HMS-1800 (jede als einzelne Mini-Anlage)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
4x Endkappe
Lieferumfang:1x Hoymiles Entriegelungshilfe
Diese Entriegelungshilfe wird zur Montage der Hoymiles HMS-Microinverter benötigt. Mit der Entriegelungshilfe können Sie den T-Knoten (AC-Bo...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-21-014695
Hoymiles hmt 3p-AC box end cap
This end cap is required for the installation of the Hoymiles hmt microinverters. The cap closes the open end of the inverter. Made of Polycarbonate.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles hmt end cap
This end cap is required for the installation of the Hoymiles hmt microinverters. The cap closes the open end of the inverter. Made of Polycarbonate.A...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-21-014690
Hoymiles T-Node Set with AC Cable 3m for HMT Inverter
This T-node set with a 3m long AC cable is needed to connect the Hoymiles hmt microinverters. The preferred plug connection can be mounted on the open end of the AC cable The connection to the mains must only be done by an electrician.Accessories Hoymiles hmt inverter systemEach hmt inverter is supplied with a T-node with AC cable is requiredFor each inverter system (from one Microinverter) min. one End cap and an Unlocking aid is requiredOptionally the Release aid and connection cap can be purchasedExample hmt accessory set:One PV system with 4x hmt-2250 (all connected together)4x T-node with AC cable1x disconnection aid1x disconnection aid (optional)1x end capOr:Four PV systems with 4x hmt-2250 (each as a single mini system)4x T-node with AC cable1x unlocking aid1x disconnection aid (optional)4x end capScope of delivery:1x Hoymiles T-node with AC cable 3m
This T-node set with a 3m long AC cable is needed to connect the Hoymiles hmt microinverters. The preferred plug connection can be mounted on the open...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-21-015910
Hoymiles T-Knoten Set mit AC-Kabel 2m für HMS-Inverter
Dieses T-Knoten Set mit einem 2m langen AC-Kabel wird zum Anschluss der Hoymiles HMS-Microinverter benötigt. An das offene Ende des AC-Kabels kann die bevorzugte Steckverbindung montiert werden.
Der Anschluss an das Stromnetz darf nur von einem Elektriker vorgenommen werden.
Zubehör Hoymiles HMS-Invertersystem
Zu jedem HMS-Inverter wird ein T-Knoten mit AC-Kabel benötigt
Für jedes Invertersystem (ab einem Microinverter) wird min. eine Endkappe und eine Entriegelungshilfe benötigt
Optional können die Trennhilfe und Anschlusskappe erworben werden
Beispiel HMS Zubehörset:
Eine PV-Anlage mit 4x HMS-1800 (alle zusammengeschaltet)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
1x Endkappe
Oder:
Vier PV-Anlagen mit 4x HMS-1800 (jede als einzelne Mini-Anlage)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
4x Endkappe
Lieferumfang:
1x Hoymiles T-Knoten mit AC-Kabel 2m
Dieses T-Knoten Set mit einem 2m langen AC-Kabel wird zum Anschluss der Hoymiles HMS-Microinverter benötigt. An das offene Ende des AC-Kabels kan...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-21-015425
Hoymiles DTU-Pro-S wifi data transmission unit for hmt / hms
The Hoymiles-Gateway dtu-Pro is a data transmission unit that collects information and data from PV micro-inverters via a 2.4 GHz radio solution and sends it to the S-Miles Cloud, the Hoymiles monitoring platform, via various communication options such as Ethernet or wifi.FeaturesStable communication with hms and HMT series micro-invertersSupports rs485, Ehternet port for communication with peripheral devicesModule level monitoring and data storageLocal configuration with S-Miles toolkitRemote OundM support, including remote upgrade and parameter settingIntelligent zero export control and power export limitationPV generation and load consumption monitoringHow it worksThe dtu-Pro data transmission unit has a monitoring capacity for up to 99 solar modules. This makes the system suitable for more complex PV installations. Users can easily and quickly read the data and alarms at module level. Remote operation, as well as remote maintenance of the PV system, can be conveniently performed at any time and from any location via the Hoymiles S-Miles Cloud.S-Miles account creationThe creation of the S-Miles account can only be done through the dtus dealer. To create the account for you, we need some information from you Click here to access our online account creation form. When creating the account you will automatically receive both a user and an installer access. the transmission of the data and the creation of the account can only be done as soon as you have the Micro-Inverter and the corresponding dtu and you can read the serial numbers on the devices.Technical dataSignal cloud communication: wifi / ethernetSampling rate: every 15 minutesSignal Inverter communication: Sub-1GMax. Distance (outdoor): 400mLimit monitoring data: up to 99 solar modules (depending on installation environment)4-LED indicatorsPower supply input voltage/frequency: 100 v/ac - 240 v/ac / 50 or 60 HzPower supply output voltage/current: 5v / 2APower consumption: 1.5w (typical), 3w (max.)Ambient temperature range: -20°C - +55°CDimensions: 200 x 101 x 29 mm (without antennas)Weight: 0.20kgMounting options: Wall / table mountingProtection class: Indoor IP20Scope of delivery:1x Hoymiles dtu-Pro-S data transmission unit
The Hoymiles-Gateway dtu-Pro is a data transmission unit that collects information and data from PV micro-inverters via a 2.4 GHz radio solution and s...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-21-015915
Hoymiles T-Knoten Set mit AC-Kabel 5m für HMS-Inverter
Dieses T-Knoten Set mit einem 5m langen AC-Kabel wird zum Anschluss der Hoymiles HMS-Microinverter benötigt. An das offene Ende des AC-Kabels kann die bevorzugte Steckverbindung montiert werden.
Der Anschluss an das Stromnetz darf nur von einem Elektriker vorgenommen werden.
Zubehör Hoymiles HMS-Invertersystem
Zu jedem HMS-Inverter wird ein T-Knoten mit AC-Kabel benötigt
Für jedes Invertersystem (ab einem Microinverter) wird min. eine Endkappe und eine Entriegelungshilfe benötigt
Optional können die Trennhilfe und Anschlusskappe erworben werden
Beispiel HMS Zubehörset:
Eine PV-Anlage mit 4x HMS-1800 (alle zusammengeschaltet)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
1x Endkappe
Oder:
Vier PV-Anlagen mit 4x HMS-1800 (jede als einzelne Mini-Anlage)
4x T-Knoten mit AC-Kabel
1x Entriegelungshilfe
1x Trennhilfe (optional)
4x Endkappe
Lieferumfang:
1x Hoymiles T-Knoten mit AC-Kabel 5m
Dieses T-Knoten Set mit einem 5m langen AC-Kabel wird zum Anschluss der Hoymiles HMS-Microinverter benötigt. An das offene Ende des AC-Kabels kan...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-21-014520
Hoymiles dtu Lite data transmission unit data logger micro inverter
The Hoymiles Gateway DTU-Lite is a data transmission unit that collects information and data from microinverters using 2.4G wireless communication and transmits it to the Hoymiles monitoring system S-Miles Cloud via wLAN technology.FeaturesEasy installation thanks to plug and playModule level monitoring, with up to 4 solar modulesReal-time data and alarms from microinverters on S-Miles ToolkitRemote maintenance of the system via S-Miles CloudDirect connection (USB port)How it worksThe DTU-Lite data transfer unit has a monitoring capacity for up to 4 solar modules. This makes the system optimal for small PV installations. Users can easily and quickly read the data and alarms at module level. Remote operation as well as remote maintenance of the PV system can be conveniently performed at any time and from any location via the Hoymiles S-Miles Cloud.Technical DataType: Proprietary 2.4 GHz protocol (Nordic)Maximum distance (open area and depending on installation environment): up to 150mLimitation of solar panel monitoring data: 4Signal: wLAN:802.11b/g/nScanning: every 15 minutesLED indicatorLocal app: S-Miles ToolkitPower consumption type 1.0 w / max. 5.0 wInput voltage: 5VAmbient temperature range: -20 to +55°CDimensions (WxHxD): 143 x 33 x 12.5 mmWeight: 0,1kgCertificate: CEModel of micro inverter: HM series, MI seriesScope of deliveryHoymiles DTU-Lite data transmission unit
The Hoymiles Gateway DTU-Lite is a data transmission unit that collects information and data from microinverters using 2.4G wireless communication and...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
1-21-015330
Hoymiles dtu Pro wifi data transmission unit data logger for hm
The Hoymiles-Gateway dtu-Pro is a data transmission unit that collects information and data from PV micro-inverters via a 2.4 GHz radio solution and sends it to the S-Miles Cloud, the Hoymiles monitoring platform, via various communication options such as Ethernet or wifi.FeaturesStable communication with HM series micro-invertersSupports rs485, Ehternet port for communication with peripheral devicesModule level monitoring and data storageLocal configuration with S-Miles toolkitRemote OundM support, including remote upgrade and parameter settingIntelligent zero export control and power export limitationPV generation and load consumption monitoringHow it worksThe dtu-Pro data transmission unit has a monitoring capacity for up to 99 solar modules. This makes the system suitable for more complex PV installations. Users can easily and quickly read the data and alarms at the module level. Remote operation, as well as remote maintenance of the PV system, can be conveniently performed at any time and from any location via the Hoymiles S-Miles Cloud.S-Miles account creationThe creation of the S-Miles account can only be done through the dtus dealer. To create the account for you, we need some information from you Click here to access our online account creation form. When creating the account you will automatically receive both a user and an installer access. the transmission of the data and the creation of the account can only be done as soon as you have the Micro-Inverter and the corresponding dtu and you can read the serial numbers on the devices.Technical dataSignal cloud communication: wifi / ethernetSampling rate: every 15 minutesSignal inverter communication: 2.4 GHz own hf (Nordic)Max. Distance (outdoor): 200mLimit monitoring data: up to 99 solar modules (depending on installation environment)4-LED indicatorsPower supply input voltage/frequency: 100 v/ac - 240 v/ac / 50 or 60 HzPower supply output voltage/current: 5v / 2APower consumption: 2.5w (typical), 5w (max.)Ambient temperature range: -20°C - +55°CDimensions: 200 x 101 x 29 mm (without antennas)Weight: 0.28kgMounting options: Wall / table mountingScope of delivery:1x Hoymiles dtu-Pro data transmission unit
The Hoymiles-Gateway dtu-Pro is a data transmission unit that collects information and data from PV micro-inverters via a 2.4 GHz radio solution and s...
Shipped in 1-3 days
Shipped in 1-3 days
1-21-015595
Hoymiles electricity meter dtsu666 (ct-3*100a) 3-phase
Hoymiles electricity meter dtsu666 (ct-3 100a) 3-phase has an external current transformer and can be used to measure and display PV power supply, load consumption or export power.Hoymiles Smart Power Export ManagementHoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of power exported to the power grid. The management consists of a meter (CT optional), a Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and a Hoymiles microinverter. The Hoymiles electricity meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.Technical data Hoymiles electricity meter:Input voltage: 154-253v ACDimensions: 72 x 100 x 65 mmCT-Data dimensions: 44 x 77 x 33 mmAmbient temperature: -25°C to 70°CConnection: RS485Cable length: 6 mScope of delivery:1x Hoymiles electricity meter dtsu666 (ct-3 100a) 3-phase1x connection cable
Hoymiles electricity meter dtsu666 (ct-3 100a) 3-phase has an external current transformer and can be used to measure and display PV power supply, loa...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-21-015590
Hoymiles Stromzähler DDSU666 (CT-100A) 1-phasig
Der Hoymiles Stromzähler DDSU666 (CT-100A) 1-phasig besitzt einen externen Stromwandler und kann verwendet werden, um PV-Stromversorgung, Lastverbrauch oder Exportleistung zu messen und anzuzeigen.
Hoymiles Smart Power Export Management
Das Hoymiles Smart Power Export Management ist eine intelligente und zuverlässige Lösung zur Verwaltung der Strommenge, die in das Stromnetz exportiert wird. Das Management besteht aus einem Messgerät (CT-Optional), einem Hoymiles Gateaway DTU-Pro (oder DTU-Pro-S) und einem Hoymiles Mikrowechselrichter. Der Hoymiles Stromzähler kommuniziert Export- oder Lastverbrauchswerte. Um die PV-Produktion genau darstellen zu können muss der Zähler am Ausgang der PV-Anlage installiert werden.
Technische Daten Hoymiles Stromzähler:
Eingangsspannung: 154-286V AC
Abmessungen: 36 x 100 x 65 mm
Abmessungen CT-Data: 30 x 45 x 32 mm
Lieferumfang:
1x Hoymiles Stromzähler DDSU666 (CT-100A) 1-phasig
Der Hoymiles Stromzähler DDSU666 (CT-100A) 1-phasig besitzt einen externen Stromwandler und kann verwendet werden, um PV-Stromversorgung, Lastver...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-21-015420
Hoymiles DTU-Lite-S wifi data transmission unit for hmt / hms
The Hoymiles-Gateway dtu-Lite-S is a data transmission unit that collects information and data from microinverters using a sub-1G radio solution and transmits it to the Hoymiles monitoring system S-Miles Cloud via wLAN technology.FeaturesEasy installation thanks to plug and playModule-level monitoring, with up to 99 solar modulesReal-time data and alarms from microinverters on S-Miles ToolkitRemote maintenance of the system via S-Miles CloudDirect connection (USB port)How it worksThe dtu-Lite-S data transfer unit has a monitoring capacity for up to 99 solar modules. This makes the system ideally suited for a wide variety of PV installations. Users can easily and quickly read the data and alarms at module level. Remote operation as well as remote maintenance of the PV system can be conveniently performed at any time and from any location via the Hoymiles S-Miles Cloud.S-Miles account creationThe creation of the S-Miles account can only be done through the dtus dealer. To create the account for you, we need some information from you Click here to access our online account creation form. When creating the account you will automatically receive both a user and an installer access. the transmission of the data and the creation of the account can only be done as soon as you have the Micro-Inverter and the corresponding dtu and you can read the serial numbers on the devices.Technical DataType: Sub-1GMaximum distance (open area and depending on installation environment): up to 400mLimitation of solar panel monitoring data: 99Signal: wLAN:802.11b/g/nSampling: Every 15 minutesLED indicatorLocal app: S-Miles ToolkitPower consumption type 1.0 w / max. 5.0 wInput voltage: 5VAmbient temperature range: -20 to +55°CDimensions (WxHxD): 143 x 33 x 12.5 mmWeight: 0,1kgCertificate: ce, fcc, ic, rcm, AnatelModel of micro inverter: hms and HMT seriesScope of delivery:1x Hoymiles dtu-Lite-S data transmission unit
The Hoymiles-Gateway dtu-Lite-S is a data transmission unit that collects information and data from microinverters using a sub-1G radio solution and t...
Soon available again
Soon available again
VAT-exempt delivery possible*
1-21-015600
Hoymiles electricity meter dtsu666 (ct-3*250a)
The Hoymiles dtsu666 (ct-3 250a) electricity meter has an external current transformer and can be used to measure and display PV power supply, load consumption or export power.Hoymiles Smart Power Export ManagementHoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of power exported to the power grid. The management consists of a meter (CT optional), a Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and a Hoymiles microinverter. The Hoymiles electricity meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.Technical data Hoymiles electricity meter:Input voltage: 154-253v ACDimensions: 72 x 100 x 65 mmCT-Data dimensions: 44 x 77 x 33 mmAmbient temperature: -25°C to 70°CConnection: RS485Cable length: 6 mScope of delivery:1x Hoymiles electricity meter dtsu666 (ct-3 250a)1x connection cable
The Hoymiles dtsu666 (ct-3 250a) electricity meter has an external current transformer and can be used to measure and display PV power supply, load co...
Soon available again
Soon available again
Topseller
VAT-exempt delivery possible*
Top seller
8-01-005815
1.5m 6mm² MC4 Connection Cable Plug/Socket Extension
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1.5m
equipped with 1x MC4 male + 1x MC4 female
1.5 Meter (€6.82* / 1 Meter)
Content: 1.5 Meter (€6.82* / 1 Meter)
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
More versions available
8-01-013602
10m connection cable micro changeover switch with Betterie bc01 socket to earthed socket (plug angled)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply. special features of the P&P inverter connection cable Immediately ready for use since delivered as Plug & Play version technical features of the 5m Microinverter connection cable Offgridtec-Part number: 8-01-013602 Cable length: 10m Usage; Connection of compatible micro inverters to the house power grid via feed-in socket Cable type: heavy rubber cable H07RN-f 3x2,5 from Lapp-Kabel Connector on socket side: Schuko plug type-f angled Connector on inverter side: Betteri bc01 socket compatible micro inverters EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S TSUN tsol M350/M800 Bosswerk mi300 / MI600 Hoymiles mi-300 / MI-600 a.o. (e.g. Huayu) Scope of delivery: 1x Offgridtec 8-01-013602 10m plug & play connection micro inverter to power outlet
Variants from €44.90*
10 Meter (€5.49* / 1 Meter)
Content: 10 Meter (€5.49* / 1 Meter)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005785
1m 6mm² MC4 Connection Cable Plug/Socket Extension
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1m
equipped with 1x MC4 male + 1x MC4 female
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The eq...
Soon available again
Soon available again
Top seller
8-01-004950
2,5mm² standard flat fuse holder incl. cable
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. The holder is suitable for trucks, cars and much more. You can protect electronic components quickly and easily against overvoltages. You can find suitable flat fuses in our assortment.suitable for truck, car and 12v / 24v solar systems.Technical details:Rated current: max. 20ALxWxH 40x17x45mmTotal length: 25cmsplash water protected by rubber capHousing and cover made of solid rubberfor standard atc / car fusesCable cross section: approx. 2,5mm²/AWG14non-slip surface, therefore easy to open even when wetScope of delivery:1 holder without fuse
0.25 Meter (€7.16* / 1 Meter)
Content: 0.25 Meter (€7.16* / 1 Meter)
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. T...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005795
2m 6mm² MC4 Connection Cable Plug/Socket Extension
2m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 2m
equipped with 1x MC4 male + 1x MC4 female
2 Meter (€5.60* / 1 Meter)
Content: 2 Meter (€5.60* / 1 Meter)
2m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The e...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001310
2m Solar Profile Rail 4x4cm aluminium - sold by the meter
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
Length: 1mMaterial: aluminiumUpper mounting channel: solar sliding block M8 Slot 8Lower mounting channel: hex bolt / t-head bolt (DIN 933 M10)Dimensions: 4x4cm
These profiles are compatible with all installation equipment we offer.
As they are used for substructures these profile might have some slight scratches on the surface.
Note:Because of delivery costs these rails are normally delivered with a max. length of 2m. If a longer rail is needed (max. 6.1m) please contact us.
Alternatively it is possible to connect several profile rails with rail connectors until the needed length is reached. These connectors are alsoavailable in our shop.
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001325
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions: 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.25 Meter (€19.92* / 1 Meter)
Content: 1.25 Meter (€19.92* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
VAT-exempt delivery possible*
Top seller
8-01-001320
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.5 Meter (€19.93* / 1 Meter)
Content: 1.5 Meter (€19.93* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
Top seller
8-04-001170
2x Battery Pole Adaptors with external thread M8
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well as for batteries with M8 internal thread if you prefer to use a roundpole instead of a M8 bolt.
Pole adaptor set with various connection possibilities for batteris with internal thread to normal pole.
Perfect for caravan and boat owners, yacht sportsman, DIY people and solar systems
Product features:
- M8 external thread
- universal use
- for + and -
- for 6 and 12V batteries
- very robust through high-quality production
- very good conductivity
- Material: Copper with silver alloy
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well a...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-013755
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
Accessoires
Are you looking for suitable accessories for your PV system? Then you have come to the right place! From high-performance electricity meters to data transmission units - at Offgridtec you will find the right accessories from Hoymiles. Convince yourself of the quality of our products and browse through our online shop. We will also be happy to advise you personally!
Accessories from Hoymiles at a glance
With us you will find a huge selection of accessories for your Hoymiles devices. Convince yourself today of our high-quality micro inverters, electricity meters or our T-node set.
T-knot set
The Hoymiles T-node set offers a cost-effective solution for PV installations. Its optimised design simplifies the connection between the PV panels and the inverter, requiring fewer parts and cables. However, a qualified electrician is required for safe connection to the grid.
DTU
The Hoymiles DTU (Data Transmission Unit) is a device that collects data and information from PV micro-inverters via a wireless radio network and then sends it to the S-Miles Cloud or to the Hoymiles monitoring platform either via an Ethernet or WLAN connection. The creation of the S-Miles account can only be done through the DTU dealer. To access our online account creation form, please click here.
Electricity meter
Thanks to their external current transformers, the electricity meters from Hoymiles are able to measure and display the PV power supply, load consumption or export power. To obtain accurate readings, the meter must be placed at the output of the PV system. Only then is it able to accurately measure and monitor the energy production and consumption of the entire PV system.
Buy Hoymiles accessories online at Offgridtec
In our online shop you will find high-quality accessories for your solar system, from data transmission units to electricity meters. Do you still have questions? Contact us at any time and let our experts advise you personally. You can reach us by phone at +49 8721 91994-00. You are also welcome to send us an email at [email protected]
FAQ
- What accessories are available from Hoymiles? We have a huge range of accessories for your PV system, such as micro inverters. Micro-inverter systems are inherently more reliable than conventional inverters. In addition to inverters, we also offer electricity meters. Thanks to their external current transformers, these are able to measure and display the PV power supply, load consumption or export power.
- What is behind DTU? The Hoymiles DTU (Data Transmission Unit) is a device that collects data and information from PV micro-inverters via a wireless radio network and then sends it either via an Ethernet or WLAN connection to the S-Miles Cloud or to the Hoymiles monitoring platform.
- Why do you need a T-node set? The Hoymiles T-node set is needed to connect the PV panels to the inverter. However, a qualified electrician is required for safe connection to the grid.
- What can an electricity meter do? An electricity meter is an invaluable tool when it comes to monitoring and planning your energy consumption, because it measures exactly how much electricity is being used. Thanks to this information, you can not only save electricity, but also cash.
