DC DC Inverters
55 Results
Sorting
1-67-012635
Victron Orion-Tr Smart 12/12-18a (220w) dc dc converter
The Orion-Tr Smart 12/12-18a from victron Energy (mpn ori121222120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in dual battery systems in vehicles or boats where the (smart) alternator and starter battery are to be used to charge the service battery. The charger can be used in 12v or 24v systems and is suitable for both lead-acid and lithium batteries. An unlimited number of units can be connected in parallel to increase the output power. Thanks to the Orion-Tr Smart 12/12-18a you can supply any 12v consumer with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Integrated Bluetooth, fully programmable monitoring, changing settings and updating the charger when new software features become available can be done with any Bluetooth-enabled smartphone, tablet or other device. The Orion-Tr Smart can be programmed with a configurable battery charging algorithm or a fixed output. It also features smart generator compatibility - engine run detection. Features of the Orion-Tr Smart 12/12-18a 220w (galvanically isolated) victron Energy part number: ori121222120 for 12 v battery voltage, adjustable output voltage 10-15 v max. 220 w output power at a maximum current of 18 A wide input voltage range: 10 -17 v Protection class ip43, galvanic isolation 200 vDC between input, output and housing can be connected in parallel with any number of identical devices to increase output power can be used for buffer charging of batteries remote on/off switch intelligent generator compatibility: engine run detection Adaptive 3-stage charging algorithm: constant current - constant voltage - conservation For lead-acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges fully. For lithium batteries, the recording time is fixed, by default 2 hours. Alternatively, a fixed output voltage can be selected. Remote on/off switch A remote on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the h terminal (right) of the two-pin plug can be connected to a battery positive terminal or the l terminal (left) of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example). scope of delivery: 1x victron Energy ori121222120 Orion-Tr Smart 12/12-18a 220 w dc-dc converter 1x instruction manual
The Orion-Tr Smart 12/12-18a from victron Energy (mpn ori121222120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in ...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012615
Victron Orion-Tr Smart 12/12-30a (360w) dc dc converter
The Orion-Tr Smart 12/12-30a from Victron Energy (mpn ori121236120) is a galvanically isolated dc-dc converter charger. It is suitable for use in dual battery systems in vehicles or boats where the (smart) alternator and starter battery are to be used to charge the service battery. The charger can be used in 12v or 24V systems and is suitable for both lead acid and lithium batteries. An unlimited number of units can be connected in parallel to increase the output power. Thanks to the Orion-Tr Smart 12/12-30a you can supply any 12v consumer with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Integrated Bluetooth, fully programmable monitoring, changing settings and updating the charger as new software features become available can be done with any Bluetooth-enabled smartphone, tablet or other device. The Orion-Tr Smart can be programmed with a configurable battery charging algorithm or a fixed output. It also features smart generator compatibility - engine run detection. Features of the Orion-Tr Smart 12/12-30a 360w (galvanically isolated) Victron Energy part number: ori121236120 for 12v battery voltage, adjustable output voltage 10-15V max. 360w output power at a maximum current of 30A wide input voltage range: 10 -17V Protection class ip43, galvanic isolation 200v dc between input, output and housing can be connected in parallel with any number of identical devices to increase output power can be used for buffer charging of batteries remote on/off switch intelligent generator compatibility: engine run detection Adaptive 3-step charging algorithm: constant current -constant voltage -maintenance For lead-acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges fully. For lithium batteries, the recording time is fixed, by default 2 hours. Alternatively, a fixed output voltage can be selected. Remote on/off switch A remote on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the h terminal (right) of the two-pin plug can be connected to a battery positive terminal or the l terminal (left) of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example). scope of delivery: 1x Victron Energy ori121236120 Orion-Tr Smart 12/12-30a 360 w dc-dc converter 1x instruction manual
The Orion-Tr Smart 12/12-30a from Victron Energy (mpn ori121236120) is a galvanically isolated dc-dc converter charger. It is suitable for use in dual...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009410
Victron Orion 12/24-8 DC DC Converter 12V to 24V 8A 192W
The Victron Orion 12/24-8 (MPN ORI122408020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 12/24 converts 12V DC into 24V DC with constant 8A (192W). Moreover it compensates possible conductor losses as well as fluctuations of the battery voltage.
Important details:
12V DC operation voltage, 24V output voltage
wide input-voltage-range of 18V to 36V
192W output at constant 8A
max. 20A output current
high efficiency of 95%
weight: 0.4kg
Delivery scope:1x Victron ORI122408020 Orion 12/24-8 DC DC Converter 12V to 24V 8A 192W
The Victron Orion 12/24-8 (MPN ORI122408020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-con...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
1-67-012275
Victron Orion-Tr 12/12-18 220w dc-dc voltage converter isolated
The Orion-Tr 12/12-18 from Victron Energy (mpn ori121222110) is a galvanically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (8-17v) to a regulated 12v output voltage (10-15v) and delivers a constant continuous current of 18a, which is equivalent to 220w of power.
Thanks to the Orion-Tr 12/12-18, you can supply any 12v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 12/12-18 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 12/12-18 220w (with galvanic isolation)
Victron Energy part number: ori121222110
for 12v battery voltage, adjustable output voltage 10-15V
max. 220w output power at a maximum current of 18a
wide input voltage range: 8-17V
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices for increased performance
remote on/off switch
wide input voltage range: 8-17V
high efficiency of 87
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled with a power save switch or by the motor's run/stop switch (see manual)
Scope of delivery:
1x Victron Energy ori121222110 Orion-Tr 12/12-18 18a 220w dc-dc voltage converter
The Orion-Tr 12/12-18 from Victron Energy (mpn ori121222110) is a galvanically isolated dc-dc voltage converter and provides regulated dc voltage for ...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012305
Victron Orion-Tr 24/24-12 280w dc-dc voltage converter isolated
Der Orion-Tr 24/24-12 von Victron Energy (MPN ORI242428110) ist ein galvanisch isolierter DC-DC Spannungs-Wandler und sorgt für eine geregelte Gleichspannung und somit für den störungsfreien Betrieb Ihrer DC-Verbraucher. Der kompakte Orion-TR DC-DC Spannungswandler wandelt die DC-Eingangsspannung (16-35V) in eine regelbare 24V Ausgangsspannung (20-30V) um und liefert einen konstanten Dauerstrom von 12A, was einer Leistung von 280W entspricht.
Dank des Orion-Tr 24/24-12 können Sie jeden 24V Verbraucher mit genau der passenden Spannung versorgen. Die richtige Spannung ist dabei auch bei längeren Leitungen gewährleistet, da der Orion die Spannung an auftretende Leitungsverluste anpassen kann. Bei vielen empfindlichen Elektronik Geräten ist das Einhalten der genauen Betriebsspannung essenziell für eine reibungslose Funktion. Weiterhin beherrscht der Orion-Tr 24/24-12 die Parallelschaltung mit baugleichen Geräten und besitzt einen fernsteuerbaren Ein- Ausschalter.
wichtige Merkmale des Orion-Tr 24/24-12 280W (mit galvanischer Trennung)
Victron Energy Teilenummer: ORI242428110
für 24V Batteriespannung, regelbare Ausgangsspannung 20-30V
max. 280W Ausgangsleistung bei einem maximalen Strom von 12A
breiter Eingangsspannugsbereich: 16-35V
Schutzart IP43, galvanische Trennung 200V DC zwischen Eingang, Ausgang und Gehäuse
kann mit gleichartigen Geräten zur Leistungssteigerung parallel verschalten werden
fernbedienbarer Ein- und Ausschalter
hoher Wirkungsgrad von 87%
Nicht zum Laden von Batterien geeignet. Erwägen Sie bitte den Einsatz eines Orion-Tr Smart zum Laden der Batterien.
fernbedienbarer Ein/Aus-Schalter
Durch den fernbedienbaren Ein-/Aus-Anschluss ist kein Hochstrom-Schalter in der Eingangsverkabelung mehr notwendig. Der fernbedienbare Ein-/Aus-Anschluss lässt sich mit einem Stromsparschalter oder durch den Run/Stopp Schalter des Motors steuern (siehe Handbuch).
Lieferumfang:
1x Victron Energy ORI242428110 Orion-Tr 24/24-12 12A 280W DC-DC Spannungswandler
Der Orion-Tr 24/24-12 von Victron Energy (MPN ORI242428110) ist ein galvanisch isolierter DC-DC Spannungs-Wandler und sorgt für eine geregelte Gl...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009375
Victron Orion-Tr 24/12-15 180W DC DC Converter
The Victron Orion 24/12-15 180W (MPN ORI241215200R) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 24/12 converts 24V DC into 12V DC with constant 15A (180W). Moreover it compensates possible conductor losses as well as fluctuations of the battery voltage.
Important details:
24V DC operation voltage, 12V DC output voltage
wide input-voltage-range of 18V to 36V
180W output at constant 15A
Version not insulated
Delivery scope:
1x Victron ORI241215200R Orion 24/12-15 DC DC Converter 24V to 12V 15A 180W
The Victron Orion 24/12-15 180W (MPN ORI241215200R) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
1-67-012280
Victron Orion-Tr 12/12-30 360w dc-dc voltage converter isolated
The Orion-Tr 12/12-30 from Victron Energy (mpn ori121240110) is a galvanically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (10-17v) to a regulated 12v output voltage (10-15v) and delivers a constant continuous current of 30a, which is equivalent to 360w of power.
Thanks to the Orion-Tr 12/12-30, you can supply any 12v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 12/12-30 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 12/12-30 360w (with galvanic isolation)
Victron Energy part number: ori121240110
for 12v battery voltage, adjustable output voltage 10-15V
max. 360w output power at a maximum current of 30a
wide input voltage range: 10-17V
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices for increased performance
remote on/off switch
wide input voltage range: 10-17V
high efficiency of 87
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled by a power save switch or by the motor's run/stop switch (see manual)
Scope of delivery:
1x Victron Energy ori121240110 Orion-Tr 12/12-30 30a 360w dc-dc voltage converter
The Orion-Tr 12/12-30 from Victron Energy (mpn ori121240110) is a galvanically isolated dc-dc voltage converter and provides regulated dc voltage for ...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009520
Victron Orion-Tr 48/12-9 DC-DC Converter isolated 48V to 12V 9A 110W
The Victron Orion-Tr 48/12-9 (MPN ORI481210110) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 48/12 converts an adjustable input voltage of 32-70V DC into an adjustable DC output voltage of 10-15V with constant 9A (110W) to supply any 12V-consumer with the right voltage. Especially when it comes to sensitive electronics a precise voltage is vital for flawless operation.
Additionally the Orion-Tr 48/12 supports parallel operation with identical devices and is equipped with a remote controllable on-/off-switch.
Important details:
48V DC operation voltage, adjustable 12V output voltage 10-15V
supports parallel operation with identical devices - increases output current
remote control possible
protection class IP43
wide input-voltage-range of 8V to 17V
110W output at constant 9A
max. 12.5A output current
high efficiency of 87%
weight: 0.42kg
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
These 48V DC-DC converters out of the Orion-series provide a clean output voltage of 10-15V and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance models
Thanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery charging
For example to charge a 12V battery bank in a 48V-system.
Parallel operation
Any number of units can be connected parallely.
Delivery scope:
1x Victron ORI481210110 Orion 48/12-9 DC-DC Converter 48V to 12V (10-15V adjustable) 9A 120W
The Victron Orion-Tr 48/12-9 (MPN ORI481210110) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted op...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009420
Victron Orion 12/24-20 DC DC Converter 12V to 24V 10A 240W
The Victron Orion 12/24-20 (MPN ORI122420020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 12/24 converts 12V DC into 24V DC with constant 20A (480W). Compared to smaller models out of this series it is possible to adjust the output voltage (20-30V).Moreover the 12/24 can be used for trickle charge of your battery and supports parallel operation with identical devices to increase the output current.
Important details:
12V DC operation voltage, adjustable output voltage 20-30V
supports parallel operation with identical devices - increases output current
can be used for trickle charge
remote control possible
temperature-controlled ventilation
wide input-voltage-range of 9V to 18V
480W output at constant 20A
max. 30A output current
high efficiency of 93%
weight: 0.4kg
DC-DC converter out of the Orion-series provide a clean 24V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery chargingThanks to the adjustable output voltage it is possible to charge a 24V battery through a 12V-system.
Parallel operationUp to 5 units can be connected parallely.
Delivery scope:1x Victron ORI122420020 Orion 12/24-20 DC DC Converter 12V to 24V 20A 480W
The Victron Orion 12/24-20 (MPN ORI122420020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-co...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009455
Victron Orion-Tr 12/24-5 DC-DC Converter isolated 12V to 24V 5A 120W
The Victron Orion-Tr 12/24-5 (MPN ORI122410110) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 12/24 converts an adjustable input voltage of 8-17V DC into an adjustable DC output voltage of 20-30V with constant 5A (120W) to supply any 12V-consumer with the right voltage. Especially when it comes to sensitive electronics a precise voltage is vital for flawless operation.
Additionally the Orion Tr 12/24 supports parallel operation with identical devices and is equipped with a remote controllable on-/off-switch.
Important details:
12V DC operation voltage, adjustable output voltage 20-30V
supports parallel operation with identical devices - increases output current
remote control possible
IP43
wide input-voltage-range of 8V to 17V
120W output at constant 5A
max. 6.3A output current
high efficiency of 87%
weight: 0.42kg
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
These 12V DC-DC converters out of the Orion-series provide a clean output voltage of 20-30V and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance models
Thanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery charging
Parallel operation
Up to 5 units can be connected parallely.
Delivery scope:
1x Victron ORI122410110 Orion 12/24-5 DC-DC Converter 12V to 24V (20-30V adjustable) 5A 240W
The Victron Orion-Tr 12/24-5 (MPN ORI122410110) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted op...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009470

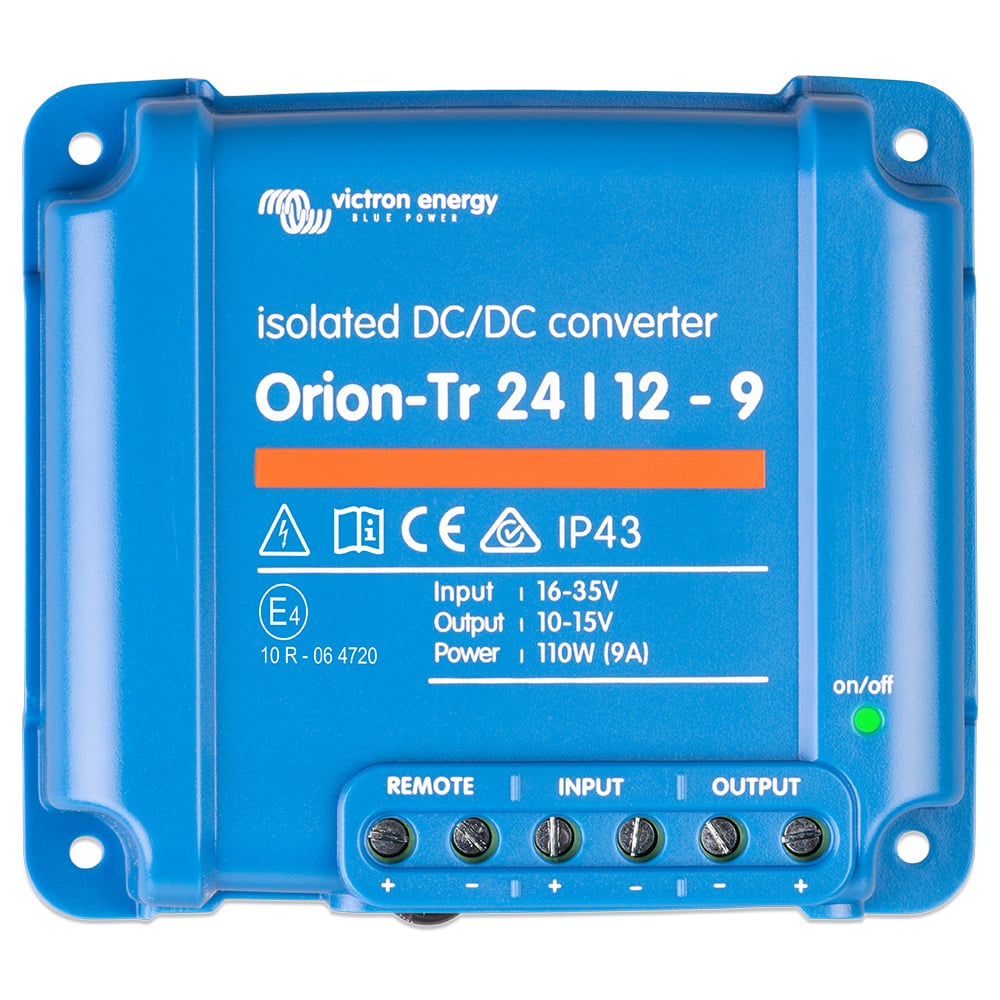

Victron Orion-Tr 24/12-9 DC-DC Converter isolated 24V to 12V 9A 110W
The Victron Orion-Tr 24/12-9 (MPN ORI241210110R) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 24/12 converts an adjustable input voltage of 16-31V DC into an adjustable DC output voltage of 10-15V with constant 9A (110W) to supply any 12V-consumer with the right voltage. Especially when it comes to sensitive electronics a precise voltage is vital for flawless operation.
Additionally the Orion-Tr 24/12 supports parallel operation with identical devices and is equipped with a remote controllable on-/off-switch.
Important details:
24V DC operation voltage, adjustable output voltage 10-15V
supports parallel operation with identical devices - increases output current
remote control possible
protection class IP43
wide input-voltage-range of 16V to 35V
110W output at constant 9A
max. 12.5A output current
high efficiency of 87%
weight: 0.42kg
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
These 24V DC-DC converters out of the Orion-series provide a clean output voltage of 10-15V and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance models
Thanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery charging
For example to charge a 12V-battery via a 24V-system.
Parallel operation
Up to 5 units can be connected parallely.
Delivery scope:
1x Victron ORI241210110R Orion 24/12-9 DC-DC Converter 24V to 12V (10-15V adjustable) 9A 110W
The Victron Orion-Tr 24/12-9 (MPN ORI241210110R) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted o...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009415
Victron Orion 12/24-10 DC DC Converter 12V to 24V 10A 240W
The Victron Orion 12/24-10 (MPN ORI122410020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 12/24 converts 12V DC into 24V DC with constant 10A (240W). Compared to smaller models out of this series it is possible to adjust the output voltage (20-30V).Moreover the 12/24 can be used for trickle charge of your battery and supports parallel operation with identical devices to increase the output current.
Important details:
12V DC operation voltage, adjustable output voltage 20-30V
supports parallel operation with identical devices - increases output current
can be used for trickle charge
remote control possible
temperature-controlled ventilation
wide input-voltage-range of 9V to 18V
240W output at constant 10A
max. 10A output current
high efficiency of 95%
weight: 0.4kg
DC-DC converter out of the Orion-series provide a clean 24V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery chargingThanks to the adjustable output voltage it is possible to charge a 24V battery through a 12V-system.
Parallel operationUp to 5 units can be connected parallely.
Delivery scope:1x Victron ORI122410020 Orion 12/24-10 DC DC Converter 12V to 24V 10A 240W
The Victron Orion 12/24-10 (MPN ORI122410020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-co...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
1-67-009395
Victron Orion 24/12-40 DC DC Converter 24V to 12V 40A 480W
The Victron Orion 24/12-40 (MPN ORI241240020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 24/12 converts 24V DC into 12V DC with constant 40A (480W). Compared to smaller devices out of this series the device's ventilation is temperature-controlled.It's total efficiency lies at 95%. Additionally there is an integrated on-/off-switch that can be remote controlled.
Important details:
24V DC operation voltage, 12V DC output voltage
remote controllable on-/off-switch
wide input-voltage-range of 18V to 36V
480W output at constant 40A
max. 55A output current
high efficiency of 95%
weight: 0.85kg
DC-DC converter out of the Orion-series provide a clean 12V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Delivery scope:1x Victron ORI241240020 Orion 24/12-40 DC DC Converter 24V to 12V 40A 480W
The Victron Orion 24/12-40 (MPN ORI241240020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-co...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012650
Victron Orion-Tr Smart 24/24-12a (280w) dc dc converter
The Orion-Tr Smart 24/24-12 from victron Energy (mpn ori242428120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in dual battery systems in vehicles or boats where the (smart) alternator and starter battery are to be used to charge the service battery. The charger can be used in 12v or 24v systems and is suitable for both lead-acid and lithium batteries. An unlimited number of units can be connected in parallel to increase the output power. Thanks to the Orion-Tr Smart 24/24-12a you can supply any 24v consumer with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Integrated Bluetooth, fully programmable monitoring, changing settings and updating the charger when new software features become available can be done with any Bluetooth-enabled smartphone, tablet or other device. The Orion-Tr Smart can be programmed with a configurable battery charging algorithm or a fixed output. It also features smart generator compatibility - engine run detection. Features of the Orion-Tr Smart 24/24-12a 280w (galvanically isolated) victron Energy part number: ori242428120 for 24 v battery voltage, adjustable output voltage 20-30 v max. 280 w output power at a maximum current of 12A wide input voltage range: 16-35 v Protection class ip43, galvanic isolation 200 vDC between input, output and housing can be connected in parallel with any number of identical devices to increase output power can be used for buffer charging of batteries remote on/off switch intelligent generator compatibility: engine run detection Adaptive 3-stage charging algorithm: constant current - constant voltage - conservation For lead-acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery is fully charged. For lithium batteries, the recording time is fixed, by default 2 hours. Alternatively, a fixed output voltage can be selected. Remote on/off switch A remote on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the h terminal (right) of the two-pin plug can be connected to a battery positive terminal or the l terminal (left) of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example). scope of delivery: 1x victron Energy ori242428120 Orion-Tr Smart 24/24-12a 280 w dc-dc converter1x instruction manual
The Orion-Tr Smart 24/24-12 from victron Energy (mpn ori242428120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in d...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-011035
Victron Orion-Tr 48/12-20 240w dc-dc voltage converter isolated
The Orion-Tr 48/12-20 from Victron Energy (mpn ori481224110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (40-70v) to a regulated 12v output voltage (10-15v) and delivers a constant continuous current of 20a, which is equivalent to 240w of power.
Thanks to the Orion-Tr 48/12-20, you can supply any 12v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, as the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 48/12-20 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 48/12-20 240w (with galvanic isolation)
Victron Energy part number: ori481224110
for 48v battery voltage, adjustable output voltage 10-15v
max. 360w output power at a maximum current of 20a
wide input voltage range: 40-70v
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices to increase power output
remote on/off switch
high efficiency of 87%
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled with a power save switch or by the motor's run/stop switch (see manual).
Scope of delivery:
1x Victron Energy ori481224110 Orion-Tr 48/12-20 20a 240w dc-dc voltage converter
The Orion-Tr 48/12-20 from Victron Energy (mpn ori481224110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009405
Victron Orion 24/12-70 DC DC Converter with pole clamps
The Victron Orion 24/12-70-V2 (MPN ORI241270030) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.Compared to the other version of the 24/12-70 this model comes with pole clamps as connection terminal. The 24/12-70 converts 24V DC into 12V DC with constant 70A (840W). Compared to smaller models out of this series it is possible to adjust the output voltage (10-15V).Moreover the 24/12-70 can be used for trickle charge of your battery and supports parallel operation with identical devices to increase the output current.
Important details:
24V DC operation voltage, adjustable output voltage 10-15V
supports parallel operation with identical devices - increases output current
can be used for trickle charge
equipped with pole clamps as connection terminal
remote control possible
temperature-controlled ventilation
wide input-voltage-range of 18V to 36V
840W output at constant 70A
max. 70A output current
high efficiency of 92%
weight: 0.9kg
DC-DC converter out of the Orion-series provide a clean 12V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery chargingThanks to the adjustable output voltage it is possible to charge a 12V battery through a 24V-system.
Parallel operationUp to 5 units can be connected parallely.
Delivery scope:1x Victron ORI241270030 Orion 24/12-70-V2 DC DC Converter 24V to 12V 70A 840W with pole clamps
The Victron Orion 24/12-70-V2 (MPN ORI241270030) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
1-67-009400
Victron Orion 24/12-70 DC DC Converter 24V to 12V 70A 840W
The Victron Orion 24/12-70 (MPN ORI241270020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 24/12 converts 24V DC into 12V DC with constant 70A (840W). Compared to smaller models out of this series it is possible to adjust the output voltage (10-15V).Moreover the 24/12-70 can be used for trickle charge of your battery and supports parallel operation with identical devices to increase the output current.
Important details:
24V DC operation voltage, adjustable output voltage 10-15V
supports parallel operation with identical devices - increases output current
can be used for trickle charge
remote control possible
temperature-controlled ventilation
wide input-voltage-range of 18V to 36V
840W output at constant 70A
max. 70A output current
high efficiency of 92%
weight: 0.9kg
DC-DC converter out of the Orion-series provide a clean 12V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery chargingThanks to the adjustable output voltage it is possible to charge a 12V battery through a 24V-system.
Parallel operationUp to 5 units can be connected parallely.
Delivery scope:1x Victron ORI241270020 Orion 24/12-70 DC DC Converter 24V to 12V 70A 840W
The Victron Orion 24/12-70 (MPN ORI241270020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-co...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012645
Victron Orion-Tr Smart 24/12-20a (240w) dc dc converter
The Orion-Tr Smart 24/12-20 from victron Energy (mpn ori241224120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in dual battery systems in vehicles or boats where the (smart) alternator and starter battery are to be used to charge the service battery. The charger can be used in 12v or 24v systems and is suitable for both lead-acid and lithium batteries. An unlimited number of units can be connected in parallel to increase the output power. Thanks to the Orion-Tr Smart 24/12-20a you can supply any 12v consumer with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Integrated Bluetooth, fully programmable monitoring, changing settings and updating the charger when new software features become available can be done with any Bluetooth-enabled smartphone, tablet or other device. The Orion-Tr Smart can be programmed with a configurable battery charging algorithm or a fixed output. It also features smart generator compatibility - engine run detection. Features of the Orion-Tr Smart 24/12-20a 240w (galvanically isolated) victron Energy part number: ori241224120 for 24 v battery voltage, adjustable output voltage 10-15 v max. 240 w output power at a maximum current of 30 A wide input voltage range: 20-35 v Protection class ip43, galvanic isolation 200 vDC between input, output and housing can be connected in parallel with any number of identical devices to increase output power can be used for buffer charging of batteries remote on/off switch intelligent generator compatibility: engine run detection Adaptive 3-stage charging algorithm: constant current - constant voltage - conservation For lead-acid batteries, it is important to keep the recording time short during shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges fully. For lithium batteries, the recording time is fixed, by default 2 hours. Alternatively, a fixed output voltage can be selected. Remote on/off switch A remote on/off switch or a relay contact can be connected to the two-pin connector. Alternatively, the h terminal (right) of the two-pin plug can be connected to a battery positive terminal or the l terminal (left) of the two-pin plug can be connected to the battery negative terminal (or to the body of a vehicle, for example). scope of delivery: 1x victron Energy ori241224120 Orion-Tr Smart 24/12-20a 240 w dc-dc converter 1x instruction manual
The Orion-Tr Smart 24/12-20 from victron Energy (mpn ori241224120) is a galvanically isolated dc-dc converter and charger. It is suitable for use in d...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012290
Victron Orion-Tr 12/24-15 360w dc-dc voltage converter isolated
The Orion-Tr 12/24-15 from Victron Energy (mpn ori241224110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (10-17v) to a regulated 24v output voltage (20-30v) and delivers a constant continuous current of 15a, which is equivalent to 360w of power.
Thanks to the Orion-Tr 12/24-15, you can supply any 24v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 12/24-15 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 12/24-15 360w (with galvanic isolation)
Victron Energy part number: ori241224110
for 12v battery voltage, adjustable output voltage 20-30V
max. 360w output power at a maximum current of 15a
wide input voltage range: 10-17V
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices for increased performance
remote on/off switch
high efficiency of 87
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled by a power save switch or by the motor's run/stop switch (see manual).
Scope of delivery:
1x Victron Energy ori241224110 Orion-Tr 12/24-15 15a 360w dc-dc voltage converter
The Orion-Tr 12/24-15 from Victron Energy (mpn ori241224110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009385
Victron Orion-Tr 24/12-20 240W DC DC Converter
The Victron Orion 24/12-20 240W (MPN ORI241220200R) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 24/12 converts 24V DC into 12V DC with constant 20A (240W). Moreover it compensates possible conductor losses as well as fluctuations of the battery voltage.
Important details:
24V DC operation voltage, 12V DC output voltage
wide input-voltage-range of 18V to 36V
240W output at constant 20A
Version not insulated
Delivery scope:
1x Victron ORI241220200R Orion 24/12-20 DC DC Converter 24V to 12V 20A 240W
The Victron Orion 24/12-20 240W (MPN ORI241220200R) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of you...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009390
Victron Orion 24/12-25 300W DC DC Converter
The Victron Orion 24/12-25A (MPN ORI241225020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers. The 24/12 converts 24V DC into 12V DC with constant 25A (300W). Compared to smaller models out of this series it is possible to adjust the output voltage (10-15V).Moreover the 24/12-25 can be used for trickle charge of your battery and supports parallel operation with identical devices to increase the output current.
Important details:
24V DC operation voltage, 12V DC output voltage
supports parallel operation with identical devices - increases output current
can be used for trickle charge
remote control possible
wide input-voltage-range of 18V to 36V
300W output at constant 25A
max. 35A output current
high efficiency of 96%
weight: 0.7kg
DC-DC converter out of the Orion-series provide a clean 12V output current and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance modelsThanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Adjustable output voltage allows battery chargingThanks to the adjustable output voltage it is possible to charge a 12V battery through a 24V-system.
Parallel operationUp to 5 units can be connected parallely.
Delivery scope:1x Victron ORI241225020 Orion 24/12-25A DC DC Converter 24V to 12V 25A 300W
The Victron Orion 24/12-25A (MPN ORI241225020) DC DC converter provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-c...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
1-67-012345
Victron Orion-Tr 48/48-8 380w dc-dc voltage converter isolated
The Orion-Tr 48/48-8 from Victron Energy (mpn ori484841110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (40-70v) to a regulated 48v output voltage (40-60v) and delivers a constant continuous current of 8a, which is equivalent to 380w of power.
Thanks to the Orion-Tr 48/48-8, you can supply any 48v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 48/48-8 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 48/48-8 380w (with galvanic isolation)
Victron Energy part number: ori484841110
for 48v battery voltage, adjustable output voltage 40-60V
max. 380w output power at a maximum current of 8a
wide input voltage range: 40-70V
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices for increased performance
remote on/off switch
high efficiency of 87%
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled by a power save switch or by the motor's run/stop switch (see manual).
Scope of delivery:
1x Victron Energy ori484841110 Orion-Tr 48/48-8 8a 380w dc-dc voltage converter
The Orion-Tr 48/48-8 from Victron Energy (mpn ori484841110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for ...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-009490
Victron Orion-Tr 24/24-5 DC-DC Converter isolated 24V to 24V 5A 120W
The Victron Orion-Tr 24/24-5 (MPN ORI242410110R) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted operation of your DC-consumers.
The 24/24 converts an adjustable input voltage of 16-35V DC into an adjustable DC output voltage of 20-30V with constant 5A (120W) to supply any 24V-consumer with the right voltage. Especially when it comes to sensitive electronics a precise voltage is vital for flawless operation.
Additionally the Orion-Tr 24/24 supports parallel operation with identical devices and is equipped with a remote controllable on-/off-switch.
Important details:
24V DC operation voltage, adjustable output voltage 20-30V
supports parallel operation with identical devices - increases output current
remote control possible
protection class IP43
wide input-voltage-range of 16V to 35V
120W output at constant 9A
max. 6.3A output current
high efficiency of 87%
weight: 0.42kg
Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.
These 24V DC-DC converters out of the Orion-series provide a clean output voltage of 20-30V and compensate possible conductor losses as well as fluctuations of the battery voltage.
Remote on-/off-connection on all high-performance models
Thanks to the remote on-/off-switch a high-current-switch on the input-cabling is not necessary. It can be controlled via a power-saving-switch or through the motor's run/stop-switch (see manual).
Parallel operation
Any number of units can be connected parallely.
Delivery scope:
1x Victron ORI242410110R Orion 24/24-5 DC-DC Converter 24V to 24V (20-30V adjustable) 5A 120W
The Victron Orion-Tr 24/24-5 (MPN ORI242410110R) is an isolated DC-DC converter and provides constant DC-voltage and therefore ensures uninterrupted o...
Shipped in 1-3 days
Shipped in 1-3 days
1-67-012335
Victron Orion-Tr 48/24-16 380w dc-dc voltage converter isolated
The Orion-Tr 48/24-16 from Victron Energy (mpn ori482441110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (40-70v) to a regulated 24v output voltage (20-30v) and provides a constant continuous current of 16a, equivalent to 380w of power.
Thanks to the Orion-Tr 48/24-16, you can supply any 24v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 48/24-16 can be connected in parallel with identical devices and has a remote-controlled on/off switch.
important features of the Orion-Tr 48/24-16 380w (with galvanic isolation)
Victron Energy part number: ori482441110
for 48v battery voltage, adjustable output voltage 20-30V
max. 380w output power at a maximum current of 16a
wide input voltage range: 40-70V
Protection class ip43, galvanic isolation 200v dc between input, output and housing
can be connected in parallel with similar devices for increased performance
remote on/off switch
high efficiency of 87%
Ne convient pas pour charger des batteries. Veuillez envisager l'utilisation d'un Orion-Tr Smart pour charger les batteries.
remote on/off switch
The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled with a power save switch or by the motor's run/stop switch (see manual).
Scope of delivery:
1x Victron Energy ori482441110 Orion-Tr 48/24-16 16a 380w dc-dc voltage converter
The Orion-Tr 48/24-16 from Victron Energy (mpn ori482441110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for...
Shipped in 1-3 days
Shipped in 1-3 days
Topseller
VAT-exempt delivery possible*
Top seller
8-01-005815
1.5m 6mm² MC4 Connection Cable Plug/Socket Extension
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1.5m
equipped with 1x MC4 male + 1x MC4 female
1.5 Meter (€6.82* / 1 Meter)
Content: 1.5 Meter (€6.82* / 1 Meter)
1.5m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005785
1m 6mm² MC4 Connection Cable Plug/Socket Extension
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 1m
equipped with 1x MC4 male + 1x MC4 female
1m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp the leading cable producer in Germany.The eq...
Shipped in 1-3 days
Shipped in 1-3 days
Top seller
8-01-004950
2,5mm² standard flat fuse holder incl. cable
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. The holder is suitable for trucks, cars and much more. You can protect electronic components quickly and easily against overvoltages. You can find suitable flat fuses in our assortment.suitable for truck, car and 12v / 24v solar systems.Technical details:Rated current: max. 20ALxWxH 40x17x45mmTotal length: 25cmsplash water protected by rubber capHousing and cover made of solid rubberfor standard atc / car fusesCable cross section: approx. 2,5mm²/AWG14non-slip surface, therefore easy to open even when wetScope of delivery:1 holder without fuse
0.25 Meter (€7.16* / 1 Meter)
Content: 0.25 Meter (€7.16* / 1 Meter)
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. T...
Shipped in 1-3 days
Shipped in 1-3 days
Top seller
8-04-001170
2x Battery Pole Adaptors with external thread M8
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well as for batteries with M8 internal thread if you prefer to use a roundpole instead of a M8 bolt.
Pole adaptor set with various connection possibilities for batteris with internal thread to normal pole.
Perfect for caravan and boat owners, yacht sportsman, DIY people and solar systems
Product features:
- M8 external thread
- universal use
- for + and -
- for 6 and 12V batteries
- very robust through high-quality production
- very good conductivity
- Material: Copper with silver alloy
Battery pole adaptor (+ and -) with external thread for batteries with M8 internal thread
Suitable for Westech Gel batteries 100Ah and 200Ah as well a...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-013755
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001285
35mm End Clamp for Solar Modules
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions: 70 x 30 x 39mm
With 4 end clamps modules can be mounted on profile rails.
Features:
material: aluminuium
opening for M8 screws
frame height of 35mm
dimensions...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-005790
3m 6mm² MC4 Connection Cable Plug/Socket Extension
3m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The equipped MC4-connectors are as well German originals made by MultiContact. The final assembly of these cables takes place in our manufactory in Lower Bavaria.
This connection cable is fabricated with professional tools to ensure an extremely high tensile strength which resists even hardest conditions and constant environmental influences.
Application:
ideal for flexible connections of solar modules on different roof sides or module rows
for parallel connection of solar modules
Advantages:
Plug and Play - unpack and install - you do not need any professional tools
irradiated solar cable (only two producers worldwide provide this technology)
planning certainty thanks to a long manufacturer's warranty of 10 years
available in different lengths and colors and therefore suitable for nearly every task
Technical data:
cable type: Lapp Ölflex XLR-R 6mm² TÜV- and UL-certified
max. voltage: 1000V
length: 3m
equipped with 1x MC4 male + 1x MC4 female
3 Meter (€4.36* / 1 Meter)
Content: 3 Meter (€4.36* / 1 Meter)
3m 6mm² MC4 connection cable (equipped with MC4 plug and socket) with irradiated solar cable made by Lapp, the leading cable producer in Germany.The e...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
More versions available
8-01-013601
5m connection cable micro changeover switch with Betterie bc01 socket to earthed socket (plug angled)
The 5m Plug & Play Micro Inverter Connection Cable from Offgridtec (mpn 8-01-013601) connects your Micro Inverter (e.g.Envertech) with a common grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply. special features of the P&P inverter connection cable Immediately ready for use since delivered as Plug & Play version technical features of the 5m Microinverter connection cable Offgridtec-Part number: 8-01-013601 Cable length: 5m Usage; Connection of compatible micro inverters to the house power grid via feed-in socket Cable type: heavy rubber cable H07RN-f 3x2,5 from Lapp-Kabel Connector on socket side: Schuko plug type-f angled Connector on inverter side: Betteri bc01 socket compatible micro inverters EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S TSUN tsol M350/M800 Bosswerk mi300 / MI600 Hoymiles mi-300 / MI-600 a.o. (e.g. Huayu) Scope of delivery: 1x Offgridtec 8-01-013601 5m plug & play connection micro inverter to power outlet
5 Meter (€8.98* / 1 Meter)
Content: 5 Meter (€8.98* / 1 Meter)
The 5m Plug & Play Micro Inverter Connection Cable from Offgridtec (mpn 8-01-013601) connects your Micro Inverter (e.g.Envertech) with a common gr...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001385
6.0mm² Standard Car Flat Fuse Holder incl. cable
This fuse holder is fully isolated, the housing is made of rubber (fully molded). Thanks to that the fuse is additionally protected from corrosion.It is suitable for various vehicles. Electronical components can be quickly and easily protected from overvoltage. Fitting fuses are available in our shop.
Details:
suitable for flat fuses up to 16A (ATC/vehicle fuses)
dimensions housing: 40 x 17 x 45mm
total length: 25cm
splash-proof
housing and cover made of rubber
cable diameter 6mm²
Deliver scope: fuse holder without fuse
0.34 Meter (€7.32* / 1 Meter)
Content: 0.34 Meter (€7.32* / 1 Meter)
This fuse holder is fully isolated, the housing is made of rubber (fully molded). Thanks to that the fuse is additionally protected from corrosion.It ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001680
Adaptor Sheet for hanger bolt M10 A2 82 x 30 x 5mm
Adaptor sheet for M10 hanger bolts
Aluminium
For M10 hanger bolts
Adaptor sheet for M10 hanger bolts
Aluminium
For M10 hanger bolts
Shipped in 1-3 days
Shipped in 1-3 days
DC DC Inverters
DC/DC converters are an essential component in many electronic and power systems. They are used to convert a DC voltage from one level to another, allowing efficient and effective regulation of power within a system. At Offgridtec you will find the highest quality DC/DC converters from the best manufacturers for your application!
What is a DC/DC converter: Function and application areas
A DC/DC regulator or DC/DC converter is a voltage converter that converts electrical energy from one DC voltage to another, e.g. for batteries or for solar systems. The function of the DC/DC converter is very simple: it takes the input voltage, adjusts it to the desired output voltage and then delivers the current with the specified output voltage. DC/DC converters are often used to adapt the voltage to the current demand of a device or system.
DC/DC converters with and without galvanic isolation or insulation
In DC/DC converters, galvanic isolation helps to separate the input and output voltages so that the output voltage is not affected by input voltage fluctuations.
DC/DC converters without galvanic isolation, on the other hand, are much simpler in design and are more commonly used in low-power applications. However, they are a relatively low-cost solution for applications where current needs to be transferred from one voltage level to another.
Buy voltage transformers DC/DC with different efficiencies online at Offgridtec
A DC/DC converter is essential for any electrical system that needs a reliable power supply. With us you get the most reliable DC/DC voltage regulators in various degrees of efficiency. Let our top manufacturers inspire you! We at Offgridtec convince with comprehensive support by our experts and the best prices!
If you have any questions or requests, please call us at +49 8721 91994-00 or send us an e-mail: [email protected] We will be happy to assist you!
FAQ
- What does a DC/DC converter do? A DC/DC converter is a device that takes a DC electrical signal and converts it to another DC voltage. Generally, you need a DC/DC converter when the voltage of your power source is not compatible with the voltage of the device you want to power.
- When do I need a DC/DC converter? A DC/DC converter is needed when you need to convert your direct current (DC) source to another DC voltage. This can be used for a variety of applications, such as charging batteries, powering appliances and transferring power between circuits.
- What is the efficiency of DC/DC converters? The efficiency of a DC/DC converter is the ratio between the output power and the input power. It is usually expressed as a percentage and calculated by dividing the output power by the input power.
- What is an AC/DC converter? An AC/DC converter is a device that converts alternating current (AC) into direct current (DC). It is generally used where an AC voltage needs to be converted to a DC voltage, e.g. in solar power supply.
