Solar Cables
15 Results
Sorting
VAT-exempt delivery possible*
Top seller
8-01-006295

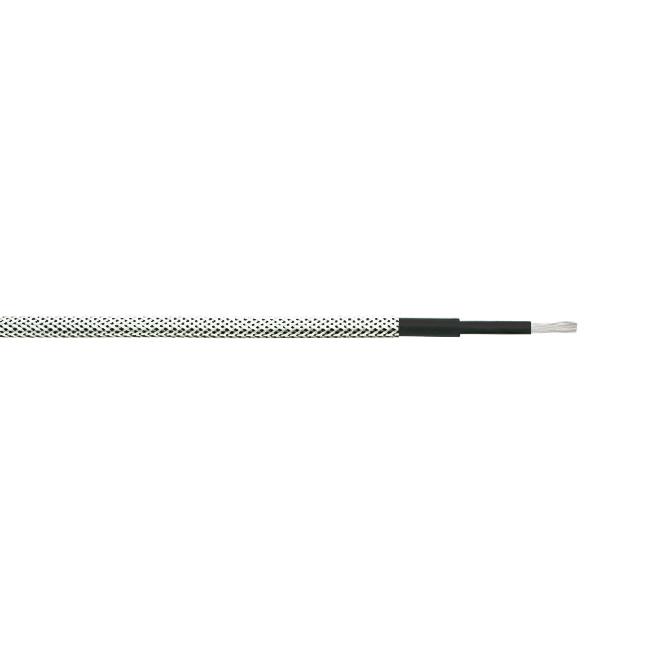

Lapp SOLAR XLR-R 1X6 WH/BK
Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect earthed and unearthed photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜV Rheinland according to 2 PfG 1169/08.2007 (PV1-F) design.
This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length.
Important product features:
Cable cross-section: 6mm²Manufacturer: Lapp KabelColour outer insulation: Black
H1Z2Z2 Solar cables from Lapp can generally be laid in protective pipes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with VDE 0100 Part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted.
Conductor structure
1. conductor: fine stranded tinned copper wire, according to IEC 60228, class 52. core insulation: electron beam cross-linked polyolefin co-polymer3. outer sheath electron beam cross-linked polyolefin co-polymer
Electrical properties
Rated voltage: U0 /U according to IEC AC 1000/1000 V - DC 1500/1500 VMax. permissible system voltage: 1.8 kV DC (conductor/conductor, not earthed system) according to TÜV 2 PfG 1169/08.2007 Test voltage AC 6.5 kV - DC 15 kV
Thermal properties
Temperature range fixed: -40° C to +120° C max. conductor temperature (according to EN 60216-2)Temperature range fixed installation: -40 °C to +90 °C ambient temperature (according to TÜV 2 PfG 1169/08.2007)Installation temperature flexible: max. -25 °CThermal pressure resistance according to EN 60811-3-1Humidity-heat test according to EN 60068-2-78 at 85% air humidity
Mechanical properties
Minimum bending radius when occasionally moved: 4x outer diameterMinimum bending radius if permanently installed: 5 x cable diameterDynamic penetration according to DKE requirements profile PV1-F AK 411.2.3 Annex FTear resistance according to DKE requirements profile PV1-F AK 411.2.3 Annex GTest of tear resistance and elongation according to EN 60811
Chemical properties
Weathering / UV resistance according to EN 50618Ozone resistance according to EN 50396, method BHalogen-free according to EN 50267, EN 50525-1Flame retardant according to IEC 60332-1-2Acid and alkali resistance according to EN 60811-404 (oxalic acid and caustic soda)
Scope of delivery
1x 1m Lapp solar cable H1Z2Z2-K 1X6 WH/BK
Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cab...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-006280
Lapp Solar cable XLS-R T 2X6 BK/RD
solar cable xls-r t bk/rd solar cables - Key product features:
1. solar cables xls-r t are halogen-free, double-insulated and cross-linked twin cables for permanent outdoor use. These cables are used in the construction of photovoltaic systems both for wiring the individual solar modules to each other and for wiring to the inverter
2. Construction data --- Conductor: Fine stranded tinned cu wire, according to iec 60228, class 5 --- Core insulation: temperature resistant and halogen-free co-polyolefin, radiation crosslinked Pair colors: black/red --- Outer sheath: flame retardant and halogen-free co-polymer, radiation crosslinked Outer sheath color: black
3. Special features of the cross-linked compound are, besides the extended temperature range, very good values regarding uv-, ozone-, and weathering resistance as well as abrasion resistance. They are used for cabling solar modules to each other, as well as for connecting the individual module rows and the inverter.
This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length.
Electrical properties
Rated voltage u0/u according to vde: ac 600/1000 v / dc 900/1500 v
Maximum permissible dc voltage: 1.8 kv dc (conductor/conductor, not grounded system)
Test voltage ac 6.5 kv dielectric strength tests according to en 50395
thermal properties
temperature range fixed: -40° c to +100° c max. conductor temperature
Short circuit temperature +200°c
installation temperature flexible: max. -25 °c
thematic life according to en 60216-2
Thermal pressure resistance according to en 60811-3-1
Humidity-heat test according to en 60068-2-78 at 85% humidity
Mechanical properties
Minimum bending radius occasionally moved: 15 x cable diameter
permanently installed: 5 x cable diameter
Dynamic penetration: according to requirement profile ak 411.2.3 appendix F
Tear propagation resistance: according to requirement profile ak 411.2.3 Annex G
Testing of insulation and sheath tear strength as well as elongation: according to en 60811
chemical properties
Ozone resistance: according to en 50396 part 8.1.3 method B
Weathering / Uv resistance according to hd 605/A1
Fire behavior flame retardant according to iec 60332-1-2
Halogen-free according to iec 60754-1
Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda)
EC Directives
The cables conform to the EC directives 2006/95/ec (low voltage directive) and 2002/95/ec and 2011/65/ec (RoHS, restriction of the use of certain hazardous substances).
installation in the ground
In principle, solar cables can be laid underground in protective pipes suitable for underground installation if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The installation of the cables and the correct design of the cable trench must comply with vDE 0100 part 520 or comparable standards.
solar cable xls-r t bk/rd solar cables - Key product features:
1. solar cables xls-r t are halogen-free, double-insulated and cross-li...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-006275
Lapp solar cable SOLAR XLS-R T 2X4 BK/RD
Lapp SOLAR XLS-R T 2x4mm is a radiation cross-linked high-end solar cable made in Germany with optimised cable design, the solar cable is slim, light and robust and saves a lot of time during installation.
The twin cable can be easily separated into two cables if necessary. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the cable together.
This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length.
Product features
Weather/UV resistant according to HD 605/A1
Ozone resistant according to EN 50396
Halogen free and flame retardant
Good notch and abrasion resistance
XLS-R T= X-Linked Standard-Reduced Twin
Proven electron beam crosslinked quality
Standard references / approvals
Also available as TÜV PV1-F certified version on request - Ideal for stand-alone PV systems
Areas of application
Ideal for stand-alone PV systems
Gable and flat roof photovoltaic systems
Photovoltaic or solar field systems
Flexible or building-integrated PV systems
Benefit
Easy to separate into two individual lines
Reduced outer diameters allow space- and weight-saving installation
Robust against mechanical impact
Reduction of fire spread and toxic smoke formation in case of fire
Exact quantity control during installation due to metre marking on the cable jacket
Structure
Fine stranded, tinned copper conductor
Core insulation of irradiated copolymer
Outer sheath of irradiated copolymer
Outer sheath colour: Black
Cores connected in parallel with separator
Technical data
Core ID code: black / red - blue / red
Classification: ETIM 5.0 Class-ID: EC001578 ETIM 5.0
Class-Description: Flexible cable
Conductor construction: Fine-stranded according to VDE 0295, Class 5 / IEC 60228 Cl.5
Minimum bending radius: Fixed installation: 4 x outer diameter
Rated voltage: AC U0/U : 600/1000 V DC U0/U : 900/1500 V
Max. permissible system voltage: DC 1.8 kV (conductor-conductor, not earthed system)
Test voltage: AC 6500 V
Temperature range: -40°C to +100°C max. conductor temperature
Lapp SOLAR XLS-R T 2x4mm is a radiation cross-linked high-end solar cable made in Germany with optimised cable design, the solar cable is slim, light and robust and saves a lot of time during installation.
The twin cable can be easily separated into two cables if necessary. You do not need any special tools for this. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the cable together.
Lapp SOLAR XLS-R T 2x4mm is a radiation cross-linked high-end solar cable made in Germany with optimised cable design, the solar cable is slim, l...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-013370
Offgridtec® Adapter cable Anderson male to DC-8mm male for fsp modules and solar case 20cm
With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to various power stations with dc-7909 - 8mm connector. The cable has a pure Anderson 50a connector on one end and a dc-7909 - 8mm male connector on the other end. Thanks to the Plug and Play principle, connecting Offgridtec FSP modules or solar cases to a compatible Power Station is simple and straightforward. Features Anderson connector 50a dc-7909 - 8mm Male Connector - Shank Length 9mm Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (grey) Compatible with Power Stations with DC-8mm connector Length: 20cm Wire gauge: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Shank length DC connector 9mm - Please check if the connector of your power station is compatible before purchase Offgridtec always offers the highest quality Thanks to our many years of experience in the field of solar cables and wires, our wide range of products always offers you the right one for your needs and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm
0.2 Meter (€99.50* / 1 Meter)
Content: 0.2 Meter (€99.50* / 1 Meter)
With this practical adapter cable (mpn 013370) the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected to vario...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-012660
Adapter cable 20cm Anderson to solar connector for fsp modules and solar cases
With this practical adapter cable (mpn 8-01-012660), the solar cases and foldable solar modules from Offgridtec can be easily connected to various devices. The cable has an Anderson plug for the solar module at one end and leads to an solar connector, which is suitable for many devices.
Anderson plug 50a - compatible with solar modules
solar-connector plug
Length: 20 cm
Scope of delivery:
1x adapter cable 20 cm
0.2 Meter (€74.50* / 1 Meter)
Content: 0.2 Meter (€74.50* / 1 Meter)
With this practical adapter cable (mpn 8-01-012660), the solar cases and foldable solar modules from Offgridtec can be easily connected to various dev...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-013365
Offgridtec® Adapter cable Anderson connector parallel connection fsp modules and solar case 20cm
With this practical adapter cable (mpn 013365), the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected in parallel. The cable has an Anderson connector for the solar modules at both ends. Thanks to the plug and play principle, connecting two modules in parallel is simple and straightforward. Features Anderson connector on both sides 50a Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (gray) Length: 20cm Cable cross section: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Offgridtec always offers highest quality Thanks to our many years of experience in the field of solar cables and conductors, we can always offer you the right product for your needs with our wide product range and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems, where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm
0.2 Meter (€149.50* / 1 Meter)
Content: 0.2 Meter (€149.50* / 1 Meter)
With this practical adapter cable (mpn 013365), the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected in para...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-015495
Offgridtec 1x10mm² Solar Cable Black
The 10mm² Offgridtec solar cable is used to wire solar modules and is suitable for direct burial and for use in and on protective insulated equipment and installations. This item is sold by the meter. Each item is equivalent to one meter. For example, if you buy 10x this item, you will receive a coherent piece with 10m length. Scope of delivery: 1x 10mm² Offgridtec solar cable (quantity according to meter specification)
The 10mm² Offgridtec solar cable is used to wire solar modules and is suitable for direct burial and for use in and on protective insulated equip...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-007800
solar cable XLS-R T 2X4 BK/RD
The solar cable xls-r t 2x2,5mm is a radiation crosslinked high-end solar cable made in Germany with optimized cable design is the solar cable -slim, light and robust and saves a lot of time during installation. The twin cable can be easily separated into two cables if needed. Nevertheless, the connection of the two wires is extremely stable if you prefer to leave the cable together.
This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length.
Product features
Weather/Uv resistant according to hd 605/a1 Ozone resistant according to en 50396 Halogen free and flame retardant Good notch and abrasion resistance xls-r t= X-Linked Standard-Reduced twin - Proven electron beam crosslinked quality
Standard references / Approvals
Also available as tÜv pv1-f certified version on request - Ideal for pv stand-alone systems
Areas of application
Ideal for pv stand-alone systems Gable and flat roof photovoltaic systems Photovoltaic or solar field systems Flexible or building-integrated pv systems
Benefit
Easy to separate into two individual lines Reduced outer diameters enable space and weight-saving installation Robust against mechanical impact Reduction of fire propagation and toxic smoke gas formation in the event of fire Exact quantity control during installation thanks to meter marking on the cable sheathing
Structure
Fine stranded, tinned copper conductor Core insulation made of radiation crosslinked copolymer Outer sheath made of radiation crosslinked copolymer Outer sheath color: black Cores connected in parallel with separating web
technical data
Core ID code: black / red blue / red Classification: EtIM 5.0 Class ID: ec001578 EtIM 5.0 Class description: Flexible cable Conductor stranding: Fine stranded according to vde 0295, class 5 / iec 60228 Cl.5 Minimum bending radius: Fixed installation: 4 x outer diameter Nominal voltage: AC u0/u : 600/1000 v dc u0/u : 900/1500 v max. permissible system voltage: dc 1.8 kv (conductor-conductor, not grounded system) Test voltage: AC 6500 v temperature range: 40°C to +100°c max. conductor temperature
The solar cable xls-r t 2x2,5mm is a radiation crosslinked high-end solar cable made in Germany with optimized cable design the solar cable is -slim, light and robust and saves a lot of time during installation.
The solar cable xls-r t 2x2,5mm is a radiation crosslinked high-end solar cable made in Germany with optimized cable design is the solar cable -slim, ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-014315
Offgridtec® Adapter cable Anderson plug series connection fsp modules and solar case 20cm
With this practical adapter cable (mpn 013365), the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected in series. The cable has an Anderson connector at both ends for the solar modules. Thanks to the plug and play principle, connecting two modules in series is simple and straightforward. Features Anderson connector on both sides 50a Compatible with Offgridtec FSP modules, solar cases and all solar modules with 50a Anderson connector (gray) Length: 20cm Cable cross section: 16 AWG Reverse polarity protected Quick and easy connection thanks to plug and play principle Offgridtec always offers highest quality Thanks to our many years of experience in the field of solar cables and conductors, we can always offer you the right product for your needs with our wide product range and with the well-known Offgridtec quality. Our cables are especially suitable for connection in solar systems, where high mechanical stress and extreme weather conditions can occur. Scope of delivery: 1x adapter cable 20cm
With this practical adapter cable (mpn 013365), the foldable solar modules and solar cases from Offgridtec can be easily and quickly connected in seri...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
8-01-015020
Helukabel Solarflex-X h1z2z2-k en50618 1x10mm² black - sold by meter
This article is sold by the meter. Each article corresponds to one meter. For example, if you buy 10x this item, you will get one continuous piece with 10m length. The SOLARFLEX®-X h1z2z2-k is used for the cabling of solar modules and is suitable for direct burial. The cable is suitable for use in and on protective insulated devices and systems (protection class II). Important product features Cable cross section: 10mm² Manufacturer Helukabel Color outer insulation: Black Color inner insulation: White resistant to: Uv radiation, ozone, atmospheric agents, water for outdoor use buriable halogen-free Conductor structure Stranded copper wire, tinned, flexible according to din vde 0295 cl. 5 / iec 60228 cl. 5 Core insulation: cross-linked special compound Outer sheath: cross-linked special compound Insulation material: copolymer Electrical properties Rated voltage: ac u0/u 1000/1000 v - dc u0/u 1500/1500 v Test voltage: 6500 v Permissible operating temperature at conductor: +120°C Chemical properties halogen-free according to din vde 0482-754-1 / din en 60754-1 /iec 60754-1 flame-retardant according to din vde 0482-332-1-2 / din en 60332-1-2 /iec 60332-1-2 Smoke density according to din vde 0482-1034-1+2 / din en 61034-1+2 / iec 61034-1+2 Uv-resistant according to din vde 0283-618 / din en 50618 Annex E ozone-resistant according to din vde 0283-618 / din en 50618 weather resistant according to din vde 0283-618 /din en 50618 appendix E water resistant according to din vde 0285-525-2-21 /din en 50525-2-21 appendix E DC voltage resistance of insulation according to din vde 0283-618 / din en 50618 Tab. 2 Certifications: TÜv Rheinland
This article is sold by the meter. Each article corresponds to one meter. For example, if you buy 10x this item, you will get one continuous piece wit...
Soon available again
Soon available again
VAT-exempt delivery possible*
8-01-011263
Adapter cable 20cm Anderson to Suaoki Power Station for fsp modules
This handy adapter cable from Offgridtec (mpn 8-01-011263) allows you to connect an fsp module to the Suaoki Power Station and many other power stations with little effort. The cable has an Anderson connector for the fsp module on one end and leads to a MINI Anderson connector for the Suaoki Power Station. Anderson connector - compatible with fsp modules MINI-Anderson connector - compatible with Suaoki Power Station 20 cm length Scope of delivery: 1x adapter cable 20 cm
0.2 Meter (€74.50* / 1 Meter)
Content: 0.2 Meter (€74.50* / 1 Meter)
This handy adapter cable from Offgridtec (mpn 8-01-011263) allows you to connect an fsp module to the Suaoki Power Station and many other power statio...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-006300
Lapp solar cable SOLAR XLR-R 1X4 WH/BK
Lapp solar xlr-r cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect grounded and ungrounded photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜv Rheinland according to 2 PfG 1169/08.2007 (pv1-f) design.
Important product features:
Cable cross-section: 1x4mm
Manufacturer: Lapp Kabel
Color outer insulation: Black
Color inner insulation: White
xlr-r solar cables from Lapp can generally be laid in protective tubes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with vde 0100 part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted.
Conductor construction
1. Conductor: Fine stranded wire of tinned cu-wires, according to iec 60228, class 5
2. Core insulation: electron beam crosslinked polyolefin co-polymer
3. Outer sheath Electron beam crosslinked polyolefin co-polymer Outer sheath color: black or black with red or blue stripe
Electrical properties
Rated voltage: u0 /u according to iec ac 600/1000 v dc 900/1500 v
Max. permissible system voltage: 1.8 kv dc (conductor/conductor, not grounded system) according to TÜv 2 PfG 1169/08.2007 Test voltage ac 6.5 kv
Thermal characteristics
Temperature range fixed: -40° c to +120° c max. conductor temperature (according to en 60216-2)
Temperature range according to fixed installation: -40 °c to +90 °c ambient temperature TÜv 2 PfG 1169/08.2007
installation temperature flexible: max. -25 °c
Thermal pressure resistance according to en 60811-3-1
Humidity-heat test according to en 60068-2-78 at 85% humidity
mechanical properties
Minimum bending radius occasionally moved: 15 x cable diameter
permanently installed: 5 x cable diameter
Dynamic penetration according to dke requirement profile Pv1-F ak 411.2.3 appendix F
Tear resistance according to dke requirement profile Pv1-F ak 411.2.3 Annex G
Testing of tensile strength and elongation according to en 60811
chemical properties
Weathering / Uv resistance according to hd 605/A1
Ozone resistance according to en 50396
Halogen free according to en 50267
Fire resistance flame retardant according to iec 60332-1-2
Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda)
Lapp solar xlr-r cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cabl...
Shipped in 1-3 days
Shipped in 1-3 days
8-01-016370
ÖLFLEX© SOLAR XLR-R 1X6 WH/BK
ÖLFLEX® solar h1z2z2 cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect grounded and ungrounded photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜv Rheinland according to 2 PfG 1169/08.2007 (pv1-f) design.
Important product features:
Cable cross section: 6mm²
Manufacturer: Lapp Kabel
Color outer insulation: Black
Color inner insulation: White
h1z2z2 Solar cables from Lapp can generally be laid in protective tubes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with vde 0100 part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted.
Conductor construction
1. Conductor: Fine stranded wire of tinned cu-wires, according to iec 60228, class 5
2. Core insulation: electron beam crosslinked polyolefin co-polymer
3. Outer sheath Electron beam crosslinked polyolefin co-polymer Outer sheath color: black or black with red or blue stripe
Electrical properties
Rated voltage: u0 /u according to iec ac 600/1000 v dc 900/1500 v
Max. permissible system voltage: 1.8 kv dc (conductor/conductor, not grounded system) according to TÜv 2 PfG 1169/08.2007 test voltage ac 6.5 kv
Thermal properties
Temperature range fixed: -40° c to +120° c max. conductor temperature (according to en 60216-2)
Temperature range according to fixed installation: -40 °c to +90 °c ambient temperature TÜv 2 PfG 1169/08.2007
installation temperature flexible: max. -25 °c
Thermal pressure resistance according to en 60811-3-1
Humidity-heat test according to en 60068-2-78 at 85% humidity
Mechanical properties
Minimum bending radius occasionally moved: 15 x cable diameter
permanently installed: 5 x cable diameter
Dynamic penetration according to dke requirement profile Pv1-F ak 411.2.3 appendix F
Tear resistance according to dke requirement profile Pv1-F ak 411.2.3 Annex G
Testing of tensile strength and elongation according to en 60811
chemical properties
Weathering / Uv resistance according to hd 605/A1
Ozone resistance according to en 50396
Halogen free according to en 50267
Fire resistance flame retardant according to iec 60332-1-2
Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda)
ÖLFLEX® solar h1z2z2 cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-link...
Shipped in 2-5 days
Shipped in 2-5 days
VAT-exempt delivery possible*
Top seller
8-01-010325
Lappkabel h1z2z2-k 1x10mm² wh/bk solar cable by the meter
Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect earthed and unearthed photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜV Rheinland according to 2 PfG 1169/08.2007 (PV1-F) design.
This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length.
Important product features:
Cable cross-section: 6mm²Manufacturer: Lapp KabelColour outer insulation: Black
H1Z2Z2 Solar cables from Lapp can generally be laid in protective pipes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with VDE 0100 Part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted.
Conductor structure
1. conductor: fine stranded tinned copper wire, according to IEC 60228, class 52. core insulation: electron beam cross-linked polyolefin co-polymer3. outer sheath electron beam cross-linked polyolefin co-polymer
Electrical properties
Rated voltage: U0 /U according to IEC AC 1000/1000 V - DC 1500/1500 VMax. permissible system voltage: 1.8 kV DC (conductor/conductor, not earthed system) according to TÜV 2 PfG 1169/08.2007 Test voltage AC 6.5 kV - DC 15 kV
Thermal properties
Temperature range fixed: -40° C to +120° C max. conductor temperature (according to EN 60216-2)Temperature range fixed installation: -40 °C to +90 °C ambient temperature (according to TÜV 2 PfG 1169/08.2007)Installation temperature flexible: max. -25 °CThermal pressure resistance according to EN 60811-3-1Humidity-heat test according to EN 60068-2-78 at 85% air humidity
Mechanical properties
Minimum bending radius when occasionally moved: 4x outer diameterMinimum bending radius if permanently installed: 5 x cable diameterDynamic penetration according to DKE requirements profile PV1-F AK 411.2.3 Annex FTear resistance according to DKE requirements profile PV1-F AK 411.2.3 Annex GTest of tear resistance and elongation according to EN 60811
Chemical properties
Weathering / UV resistance according to EN 50618Ozone resistance according to EN 50396, method BHalogen-free according to EN 50267, EN 50525-1Flame retardant according to IEC 60332-1-2Acid and alkali resistance according to EN 60811-404 (oxalic acid and caustic soda)
Scope of delivery
1x 1m Lapp solar cable H1Z2Z2-K 1X6 WH/BK
Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cab...
Soon available again
Soon available again
VAT-exempt delivery possible*
8-01-006310
4mm² ÖLFLEX© Solar V4A 1X4
Lapp SOLAR V4A sind UV- ozon und witterungsbeständige, doppeltisolierte Solarleitungen zur ständigen Verwendung im Freien. Sie werden für den Photovoltaik-Anlagenbau zur Verkabelung der einzelnen Solarmodule untereinander, sowohl aber auch für die Verdrahtung mit dem Wechselrichter verwendet. Besonderheiten sind der erweiterte Temperaturbereich und sehr gute Werte bezügl. UV-, Ozon-, und Flexibilität. Die zusätzliche Armierung besteht aus einem rostfreien V4A-Edelstahlgeflecht und schützt die Leitung zuverlässig gegen Marder, Nagetiere und Termiten.
Bei diesem Artikel handelt es sich um Meterware. Jeder Artikel entspricht einen Meter. Wenn Sie z.B. 10x diesen Artikel kaufen, erhalten Sie ein zusammenhängendes Stück mit 10m Länge.
Dieses High-Tec Kabel besteht aus 4 Schichte die sich wie folgt aufbauen:
1. Leiter : feindrähtige Litze aus verzinnten Cu-Drähten, gemäß IEC 60228, Klasse 5
2. Aderisolation : temperaturbeständiges und halogenfreies Co-Polyolefin, strahlenvernetzt Aderfarbe: schwarz
3. Außenmantel : flammwidriges und halogenfreies Co-Polymer, strahlenvernetzt hochgradig witterungs- und UV-beständig Außenmantelfarbe : schwarz
4. Armierung : Dichtes Geflecht aus V4A Edelstahldrähten (X5CrNiMo 17/12/2) als rostfreier Schutz vor Marder, Nager und Termiten
Produkteigenschaften
Witterungs-/UV beständig nach HD 605/A1
Halogenfrei und flammwidrig
Gute mechanische Festigkeit
Anwendungsgebiete
Für PV-Anlagen auf beispielsweise Stall- und Scheunendächern in besonders bewaldeten Regionen oder landwirtschaflichen Betrieben
Giebel- und Flachdach Photovoltaikanlagen
Photovoltaik- bzw. Solarfeldanlagen
Nutzen
Rostfreies Edelstahlgeflecht (Klasse V4A) schützt wirkungsvoll bei erhöhtem Schadensrisiko durch Marder, Nager oder auch Termiten
Robust gegen mechanische Einwirkung
Reduktion der Brandausweitung sowie der toxischen Rauchgasbildung im Brandfall
Aufbau
Feindrähtiger, verzinnter Kupferleiter
Aderisolation aus strahlenvernetztem Copolymer
Außenmantel aus strahlenvernetztem Copolymer
Außenmantelfarbe: Schwarz
Armierung aus rostfreiem V4A-Edelstahlgeflecht
Technische Daten
Leiterquerschnitt: 4mm²
Ader-Ident-Code: Schwarz
Klassifikation: ETIM 5.0 Class-ID: EC001578 + ETIM 5.0 Class-Description: Flexible Leitung
Leiteraufbau: Feindrähtig nach VDE 0295, Klasse 5 / IEC 60228 Cl.5
Mindestbiegeradius: Fest verlegt: 5 x Außendurchmesser
Nennspannung: AC U0/U : 600/1000 V DC U0/U : 900/1500 V
max. zulässige Systemspannung: DC 1,8 kV (Leiter-Leiter, nicht geerdetes System)
Prüfspannung: AC 6500 V
Temperaturbereich: -40°C bis +100°C max. Leitertemperatur
Lapp SOLAR V4A sind UV- ozon und witterungsbeständige, doppeltisolierte Solarleitungen zur ständigen Verwendung im Freien. Sie werden f...
Soon available again
Soon available again
Topseller
VAT-exempt delivery possible*
Top seller
More versions available
8-01-010071
40A 32V MEGA-Fuse Sicherung
Victron dc fuses Mega fuses for operating voltages up to a maximum of 32v. Ideal for use as a fuse on the battery cable of voltage converters and inverters or even charge controllers with high charging currents different mega fuse holders (also modular) available Suitable for the mega fuses listed above, the following Victron fuse holders can be used: standard mega fuse holder modular mega fuse holder with coverFor the modular fuse holder, 2 busbars are also available for expansion, with the help of which you can individually fuse up to 6 high-current circuits: Victron Busbar 5 cip100200100 - for max 500a and 5 modular fuse holders Victron Busbar 6 cip100200100 - for max 1500a and 6 modular fuse holders Scope of delivery:1x Victron dc mega fuse of your choice
Variants from €4.39*
Victron dc fuses Mega fuses for operating voltages up to a maximum of 32v. Ideal for use as a fuse on the battery cable of voltage converters and inve...
Shipped in 1-3 days
Shipped in 1-3 days
Top seller
8-01-001390
10A Flat Fuse 6 - 32V
10A standard flat fuse for vehicles, industry and 12V/24V solar systems.
Details:Max. current 10AVoltage 6 - 32VHigh quality with smallest tolerancesWide spectrum of possible applications for professionals or in the private sector: vehicles, boats, protection of battery cables, etc.Color: red
10A standard flat fuse for vehicles, industry and 12V/24V solar systems.
Details:Max. current 10AVoltage 6 - 32VHigh quality with smallest tolerances...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
More versions available
8-01-013602
10m connection cable micro changeover switch with Betterie bc01 socket to earthed socket (plug angled)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard grounded socket (Schuko). The cable is equipped with the Betteri bc01 socket part on the inverter side and an angled Schuko plug type f on the socket side. This cable is used for the connection between the micro inverter and your house power supply.
special features of the P&P inverter connection cable
Immediately ready for use since delivered as Plug & Play version
technical features of the 5m Microinverter connection cable
Offgridtec-Part number: 8-01-013602
Cable length: 10m
Usage; Connection of compatible micro inverters to the house power grid via feed-in socket
Connector on socket side: Schuko plug type-f angled
Connector on inverter side: Betteri bc01 socket
compatible micro inverters
EVT Inverter Series from Envertech evt300s / evt560s / EVT1200S
TSUN tsol M350/M800
Bosswerk mi300 / MI600
Hoymiles mi-300 / MI-600
a.o. (e.g. Huayu)
Scope of delivery:
1x Offgridtec 8-01-013602 10m plug & play connection micro inverter to power outlet
Variants from €44.90*
10 Meter (€5.49* / 1 Meter)
Content: 10 Meter (€5.49* / 1 Meter)
The 10m Plug & Play Micro Inverter connection cable from Offgridtec (mpn 8-01-013602) connects your micro inverter (e.g.Envertech) with a standard...
Shipped in 1-3 days
Shipped in 1-3 days
Top seller
8-01-001395
15A Flat Fuse 6 - 32V
15A standard flat fuse for vehicles, industry and 12V/24V solar systems.
Details:Max. current 15AVoltage 6 - 32VHigh quality with smallest tolerancesWide spectrum of possible applications for professionals or in the private sector: vehicles, boats, protection of battery cables, etc.Color: blue
15A standard flat fuse for vehicles, industry and 12V/24V solar systems.
Details:Max. current 15AVoltage 6 - 32VHigh quality with smallest tolerances...
Shipped in 1-3 days
Shipped in 1-3 days
Top seller
8-01-004950
2,5mm² standard flat fuse holder incl. cable
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. The holder is suitable for trucks, cars and much more. You can protect electronic components quickly and easily against overvoltages. You can find suitable flat fuses in our assortment.suitable for truck, car and 12v / 24v solar systems.Technical details:Rated current: max. 20ALxWxH 40x17x45mmTotal length: 25cmsplash water protected by rubber capHousing and cover made of solid rubberfor standard atc / car fusesCable cross section: approx. 2,5mm²/AWG14non-slip surface, therefore easy to open even when wetScope of delivery:1 holder without fuse
This fuse holder is fully insulated, the housing is made of rubber, or fully potted. The fuse is additionally protected from corrosion by the cover. T...
Soon available again
Soon available again
Top seller
8-04-001400
20a automotive flat fuse 6-32v
20a standard flat fuse for automotive, industrial and 12v/24v solar systems. The proven DC flat fuses can also be used perfectly in the hobby and leisure sector. Matching flat fuse holders for different cable cross-sections can also be found in our storefor a maximum current of 20aVoltage: 6...32Vhigh quality with smallest possible tolerances and in matt designwide range of applications in the professional as well as in the private sector: kfz, boat, protection of battery cables and many more...Scope of delivery: 1 piece flat fuse 20a
20a standard flat fuse for automotive, industrial and 12v/24v solar systems. The proven DC flat fuses can also be used perfectly in the hobby and leis...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001310
2m Solar Profile Rail 4x4cm aluminium - sold by the meter
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
Length: 1mMaterial: aluminiumUpper mounting channel: solar sliding block M8 Slot 8Lower mounting channel: hex bolt / t-head bolt (DIN 933 M10)Dimensions: 4x4cm
These profiles are compatible with all installation equipment we offer.
As they are used for substructures these profile might have some slight scratches on the surface.
Note:Because of delivery costs these rails are normally delivered with a max. length of 2m. If a longer rail is needed (max. 6.1m) please contact us.
Alternatively it is possible to connect several profile rails with rail connectors until the needed length is reached. These connectors are alsoavailable in our shop.
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems. ...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
Top seller
8-01-001320
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.5 Meter (€19.93* / 1 Meter)
Content: 1.5 Meter (€19.93* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
VAT-exempt delivery possible*
Top seller
8-01-001315
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems.
Length: 2mMaterial: aluminiumUpper mounting channel: solar sliding block M8 Slot 8Lower mounting channel: hex bolt / t-head boltDimensions: 4x4cm
These profiles are compatible with all installation equipment we offer.
As they are used for substructures these profile might have some slight scratches on the surface.
Example:2 x 2m solar profile = two rails with 2m each
Note:Because of delivery costs these rails are normally delivered with a max. length of 2m. If a longer rail is needed (max. 6.1m) please contact us.
Alternatively it is possible to connect several profile rails with rail connectors until the needed length is reached. These connectors are alsoavailable in our shop.
2 Meter (€17.45* / 1 Meter)
Content: 2 Meter (€17.45* / 1 Meter)
For a quick and easy installation of solar modules. These rails can be used for all common module types for flat roofs, pitch roofs or field systems. ...
Shipped in 2-5 days
Shipped in 2-5 days
VAT-exempt delivery possible*
Top seller
8-01-001325
2m Solar Profile Rail 4x4cm aluminium (upside sliding block)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mounted systems.PropertiesLength per article: 1.5 mMaterial: aluminumMounting channel top: solar slot stone m8 slot 8Mounting channel bottom: hexagon screw din 933 M10Dimensions: 40 x 40 mmOur offered solar profiles are compatible with our offered solar fasteners.These profiles are intended for a substructure and may therefore have scratches on the surface.Notice: By means of the rail connectors available from us, several solar profiles can be connected together to achieve the desired length.Scope of delivery:1x 1.5m solar profile rail
1.25 Meter (€19.92* / 1 Meter)
Content: 1.25 Meter (€19.92* / 1 Meter)
Profile rails for quick and easy mounting of solar modules. Suitable for all common module types on flat and pitched roofs as well as for ground-mount...
Shipped in 2-5 days
Shipped in 2-5 days
Solar Cables
Using solar energy as a source of electricity has become increasingly popular in recent years, and for good reason: solar energy is one of the most efficient and cost-effective ways to generate electricity and has the potential to drastically reduce our dependence on fossil fuels and combat climate change. However, for solar systems to work efficiently, they need the right solar cable. Offgridtec offers a wide range of solar cables so that you can find the right model for your system.
What is the purpose of a solar cable?
Solar cables are the crucial components of a solar system. They connect all the photovoltaic modules and the inverter together and form the link between the solar system and the home's electricity grid. They are also designed to withstand corrosion, ultraviolet radiation and other environmental factors. In addition, solar cables must also be able to withstand extreme temperatures and the electrical currents associated with power demand. These cables are designed to withstand years of harsh weather conditions and can also be used indoors.
Solar cables at a glance
The type of cable used for a solar installation depends on several factors, e.g.:
- the total power of the solar system
- the distance between the solar installation and the inverter
- the local building regulations and
- the voltage drop
In addition to selecting the right type of cable, the quality and size of the conductor must also be considered. The cross-section of a solar cable is a decisive factor for the successful design and operation of solar energy systems, as it affects how safely and efficiently the electricity is transmitted. In our online shop, we stock solar cables in different thicknesses. You will find solar cables with a cross-section of 4 mm, 6 mm and 10 mm.
Buy solar cables online at Offgridtec
n view of the increasing demand for green energy solutions such as solar energy, it is important to invest in reliable and high-quality solar cables. This is the only way for a solar system to work efficiently and reliably. In our Offgridtec online shop, you will find high-quality solar cables at a low price. If you have any questions, let our experts advise you personally. You can reach us by phone at +49 8721 91994-00. You are also welcome to send us an email at [email protected].
FAQ
- What is a solar cable? Solar cables are the crucial components of a solar system. They connect all photovoltaic modules and the inverter to each other and form the connection between the solar system and the house's power grid.
- What are solar cables made of? Solar cables consist of two parts: the conductor and the insulation. The conductor is the metal wire inside the cable that carries the electrical current. The insulation is the material that surrounds the conductor and prevents the current from escaping from the cable. It can be made of rubber, plastic or other materials.
- How large must the cable cross-section be? In normal domestic installations, each cable must have a cross-section of at least 1.5 mm. Stronger currents must be connected with stronger cables, here at least 2.5 mm is prescribed.
- What distinguishes Offgridtec's solar cables? Our solar cables withstand corrosion, ultraviolet radiation and other environmental factors and convince with their long service life. They can also be used indoors.
