Solar Cable 4 mm² H1Z2Z2-K 1X4 WH/BK Single-Conductor EN50618 IEC60228 Red

Our Offgridtec H1Z2Z2-K 1X4 WH/BK solar cable (MPN 024653) is the ideal solution for efficient and reliable cabling of your photovoltaic system. This high-quality cable has a conductor cross-section of 4 mm², is TÜV-certified, and meets all requirements of the EN 50618 and IEC 60228 standards. H1Z2Z2-K cables are characterized by their high UV resistance, ozone resistance, and excellent weather resistance, making them perfect for long-term outdoor use. Flexible and easy to install, this solar cable ensures a secure connection for your PV system.

Since this item is sold by the meter, each item corresponds to one meter. For example, if you purchase 10 of these items, you will receive a single continuous piece 10 meters long.

Key product features:

• Single-core
• Outer jacket color: Red
• TÜV-certified
• Standards: EN 50618 and IEC 60228
• For grounded and ungrounded systems

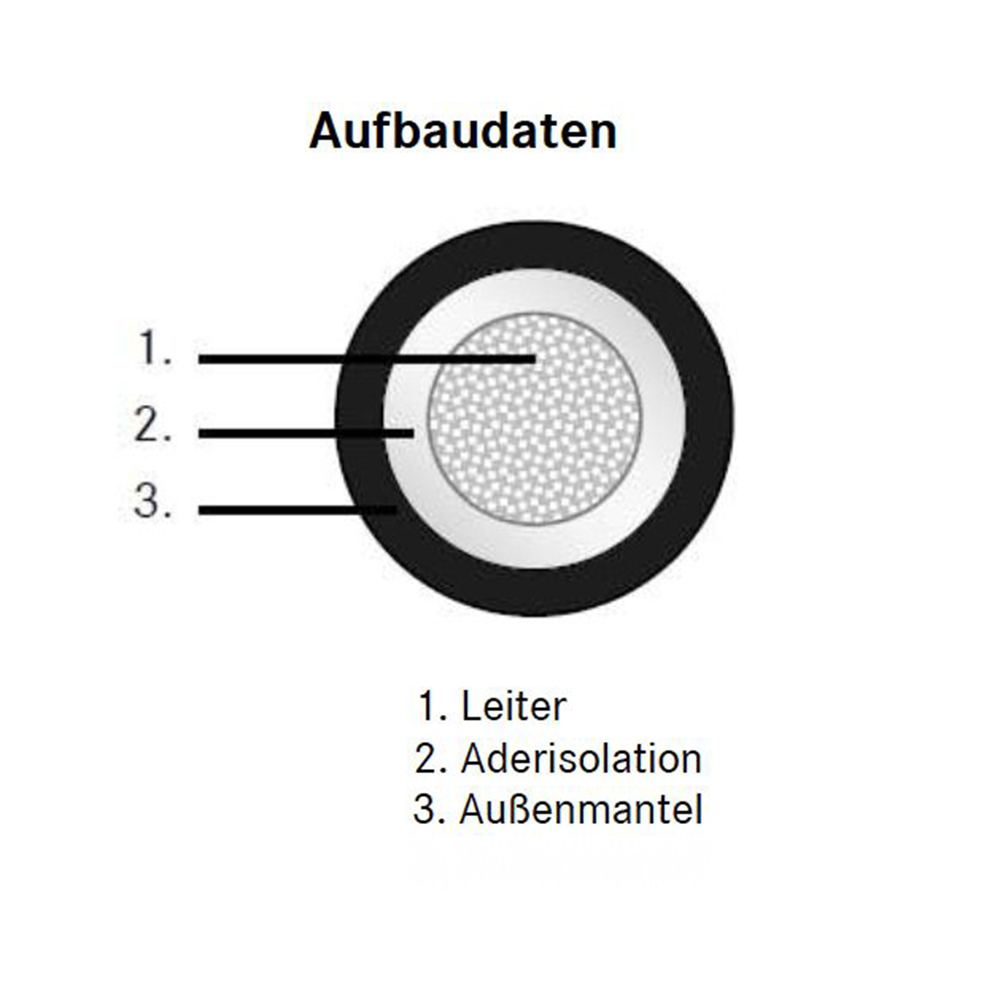

Conductor construction

1. Conductor: Fine-stranded stranded wire made of tinned copper wires, in accordance with IEC 60228, Class 5
2. Conductor insulation: Electron beam cross-linked polyolefin copolymer
3. Outer sheath: Electron beam cross-linked polyolefin copolymer

IEC 60228 Compliance

• Weather- and UV-resistant
• Ozone-resistant
• Halogen-free
• Flame resistance: flame-retardant
• Acid and alkali resistant

Technical data

• Maximum voltage: 1.5 kV DC
• Number of conductors: 1-core
• Conductor type: fine-stranded
• Conductor cross-section: 4 mm²
• Conductor material: Copper (Cu), tin-plated surface
• Cable type: H1Z2Z2-K
• Operating temperature range: -40°C to +90°C
• Conductor resistance (20°C): ≤ 4.95 Ω/km
• Insulation resistance (70°C): ≥ 0.007 MΩ·km
• Cable outer diameter: 4.3 ± 0.2 mm

Contents

1x 1m solar cable H1Z2Z2-K 1X4 WH/BK red
