Solar Cable 4mm² H1Z2Z2-K 1X4 WH/BK Single-Conductor EN50618 IEC60228 Black

Our Offgridtec H1Z2Z2-K 1X4 WH/BK solar cable (MPN 024648) is the ideal solution for efficient and safe wiring of your photovoltaic system. With a conductor cross-section of 4 mm², TÜV-certified, and compliant with EN 50618 and IEC 60228 standards, this high-quality cable meets all the requirements of modern solar systems. The H1Z2Z2-K cable impresses with its high UV resistance, ozone resistance, and excellent weather resistance—making it perfectly suited for long-term outdoor use. The flexible, easy-to-install single-core cable ensures a reliable connection for your PV components.

Since this item is sold by the meter, each item corresponds to one meter. For example, if you purchase 10 of these items, you will receive a single continuous length of 10 meters.

Key product features:

• Single-core
• Outer jacket color: Black
• TÜV-certified
• Standards: EN 50618 and IEC 60228
• For grounded and ungrounded systems

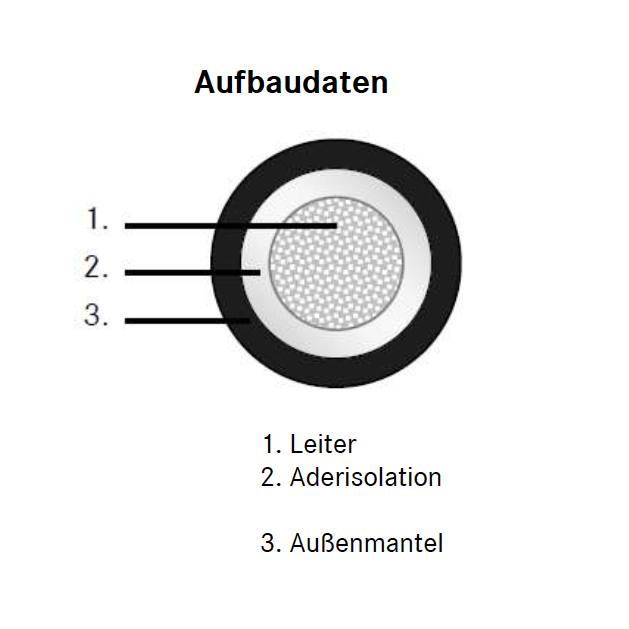

Conductor construction

1. Conductor: Fine-stranded cable made of tinned copper wires, in accordance with IEC 60228, Class 5
2. Conductor insulation: Electron beam cross-linked polyolefin copolymer
3. Outer sheath: Electron beam cross-linked polyolefin copolymer

IEC 60228 Compliance

• Weather- and UV-resistant
• Ozone-resistant
• Halogen-free
• Flame resistance: flame-retardant
• Acid and alkali resistant

Technical data

• Maximum voltage: 1.5 kV DC
• Number of conductors: 1-conductor
• Conductor type: fine-stranded
• Conductor cross-section: 4 mm²
• Conductor material: Copper (Cu), tin-plated surface
• Cable type: H1Z2Z2-K
• Operating temperature range: -40°C to +90°C
• Conductor resistance (20°C): ≤ 4.95 Ω/km
• Insulation resistance (70°C): ≥ 0.007 MΩ·km
• Cable outer diameter: 4.3 ± 0.2 mm

Scope of delivery

1x 1m solar cable H1Z2Z2-K 1X4 WH/BK black
