LAPP ÖLFLEX® SOLAR H1 BUR 1x6 BK

The ÖLFLEX SOLAR H1 BUR solar cable from Lapp (MPN: 38115807) is the perfect choice if you want to wire your photovoltaic system efficiently and reliably. With a conductor cross-section of 6 mm², TÜV certification, and compliance with all major standards (EN 50618 and IEC 62930), you’re on the safe side. The cable is highly resistant to UV rays and ozone, as well as weatherproof, making it perfect for long-term outdoor use. It is flexible, easy to install, and ensures a safe and organized connection in your PV system.

Since this item is sold by the meter, each item corresponds to one meter. For example, if you purchase 10 of these items, you will receive a single continuous piece 10 meters long.

Key product features:

• Halogen-free insulation for enhanced fire safety
• Extremely durable and heat-resistant
• Cross-linked polyethylene
• IEC-certified – suitable for worldwide use
• TÜV-certified
• Standards: EN50618 and IEC62930
• For grounded and ungrounded systems

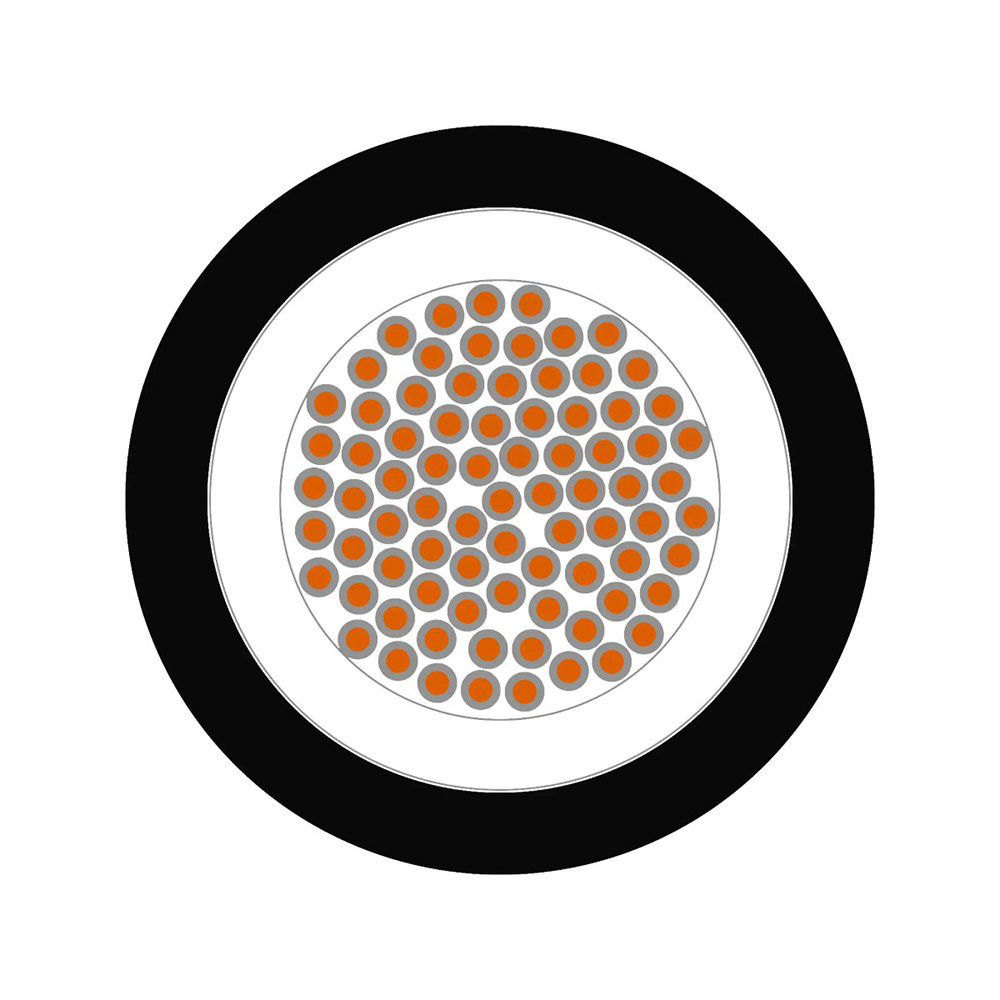

Conductor construction

1. Conductor: IEC 60228 Class 5: fine-stranded, conductor material (tinned copper)
2. Conductor insulation: Cross-linked polyethylene, XLPE
3. Outer sheath: Cross-linked polyethylene, XLPE

Applications

• For connecting solar modules.
• Suitable for DC up to 1.8 kV.
• Can be installed permanently, flexible, and also suitable for equipment or installation conduits
• Power grids, ventilation and air conditioning technology, robotics, renewable energy (solar)

EN50618 & IEC62930 Compliance

• UV and weather resistance
• Temperature resistance
• Chemical resistance
• Water resistance
• Halogen-free
• Fire resistance (flame-retardant)
• Ozone resistance
• Acid and alkali resistant

Technical data

• Maximum operating voltage: 1.8 kV DC
• Test voltage: 6.5 kV
• Short-circuit temperature (5 s): 250 °C
• Copper content: 57.6 kg/km
• Conductor cross-section: 6 mm²
• Cable dimensions: 1x6
• Number of conductors: 1
• Conductor material: tinned copper
• Operating temperature range (permanently installed): -40°C to +120°C
• Operating temperature range for occasional movement: -25°C to +120°C
• Weight: 89 kg/km

Scope of delivery

1x LAPP ÖLFLEX Solar Cable H1 BUR 1x6 BK sold by the meter
