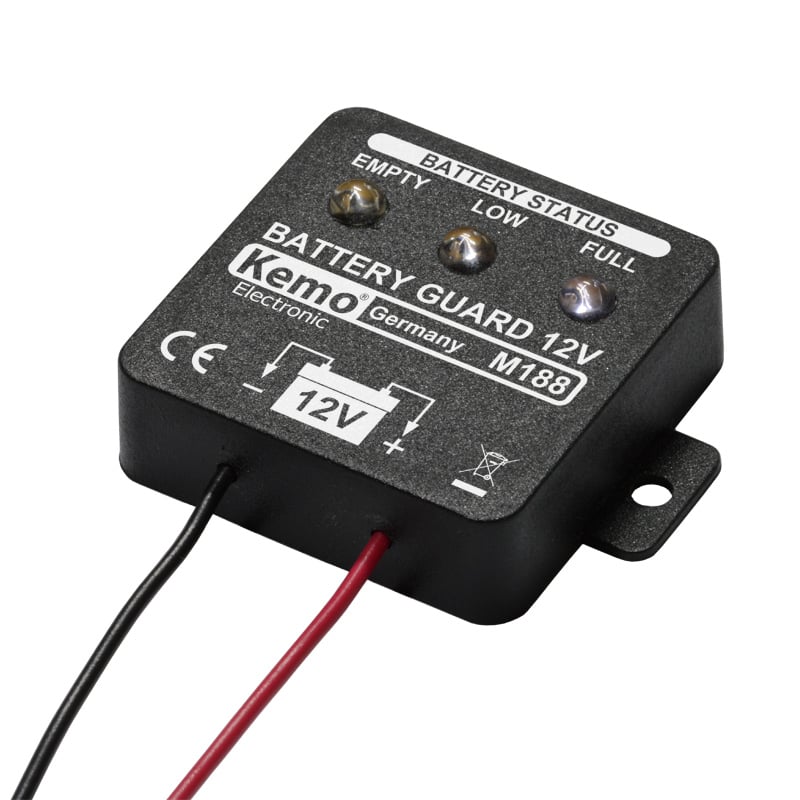

Indicates in 5 steps via 3 LEDs the actual charging condition during operation of an 12 V accumulators. Thus it is easier to control the accumulator and a total discharge can be prevented. In addition it is checked whether the accumulator is in order and it receives the full charging voltage from the battery charger. (If the Battery guard is connected during charging of the battery.) The Battery guard is designed to monitor a battery in a closed, active circuit.Very low consumption of less than 4.9 mA!

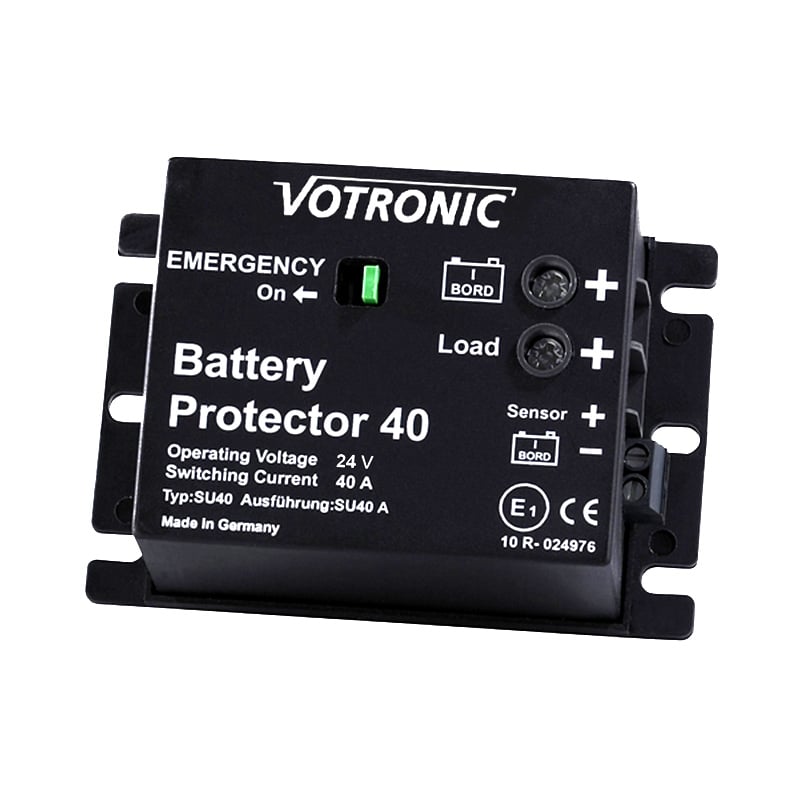

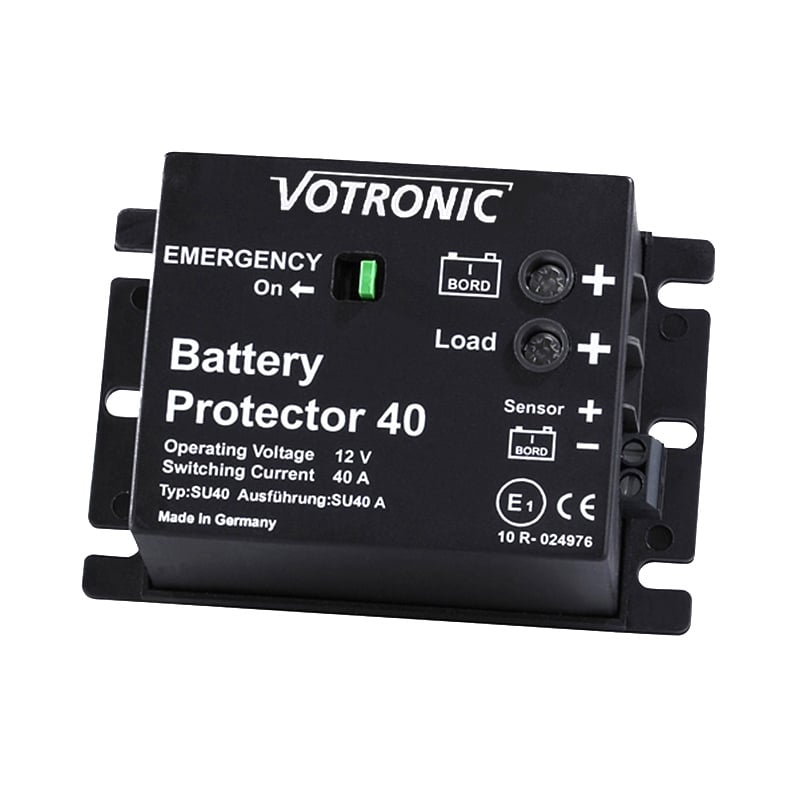

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The Victron Energy Battery Balancer MPN BBA000100100 is a charge equalizer for 24V and 48V battery banks. It equalizes the charge level of two serially connected 12V batteries or several parallely connected battery strings. This prevents damages on the battery caused by imbalanced charging levels. The problem: The life-span of an expensive battery bank can be reduced drastically by imbalanced charge levelsA battery with slightly increased leakage current within a 24V or 48V bank consisting of several serially/parallely connected batteries may cause an insufficient charging of parallely connected batteries or an overload of serially connected ones. Moreover new cells or batteries should have the same charge level when connected in series. Small differences can be smoothed out during constant voltage phase or equalizing charge. Bigger differences however lead to damages. Reason for that is excessive gas development through an overload (batteries with higher initial charge) and sulfating caused by insufficient charging (batteries with lower initial charge). The solution: battery balancing with the Victron Battery BalancerThe battery balancer equalizes the charge level of two serially connected 12V batteries or of several parallely connected battery strings. If the charging voltage of a 24V-system exceeds 27.3V the battery balancer compares the charge level of both batteries (serial). It drains power (up to 0.7A) from the battery (or battery string) with the higher voltage. The consequent difference between the charging currents leads to a balanced charge level of all connected batteries or battery strings.If necessary several battery balancers can be connected parallely.A 48V battery bank can be equalized with 3 battery balancers. LED DisplayGreen: on (battery voltage >27.3V)Orange: lower battery circle active (deviation >0.1V)Orange: upper battery circle active (deviation >0.1V)Red: Alarm (deviation >0.2V) Active until deviation falls back under 0.14V or system voltage drops to 26.6V or less Alarm-RelayOpen by default. Shuts close when red LED turns on, opens when red LED turns off Resetting alarmThere are two sockets two connect a push button. If both sockets are connected the realy is reset"Reset" remains until the alarm is over. After that the relay shuts close again. Delivery scope:1x Victron BBA000100100 Battery Balancer1x manual

victron bmv Smart 712 battery monitor The bmv 712 Smart from victron Energy (mpn bam030712000r) is the latest battery computer in the bmv family. It provides very precise data on parameters such as battery voltage, current, power, ampere hours consumed, state of charge and remaining runtime at the current discharge rate. The measurement resolution is very accurate and precise compared to similar products, and it is equipped with an integrated Bluetooth module that allows you to access many functions and status reports of the battery computer via a free app. Main features of the victron Smart bmv 712 battery monitor integrated Bluetooth - The Smart bmv 712 is ready for the "Internet of Things" thanks to integrated Bluetooth. In the meantime, in addition to the bmv 712, numerous other victron articles also have the integrated Bluetooth module. networking, evaluation and configuration have never been as convenient as they are today free app victronConnect - The victronConnect app enables you to evaluate and configure all victron products with vE.Direct interface. Depending on the device, numerous parameters can be evaluated directly via cell phone, computer or tablet. options for data logging and data export are also available. So you always know relatively quickly how your system is doing simplest installation - All electrical connections are made with the PCB connector on the current shunt. The shunt is connected to the Wachter via a standard rj12 telephone cable. Included: rj 12 cable (10 m) and battery cable with fuse (2 m); no other components are required. also included are a separate front bezel fu¨r a square or round display; a safety ring for rear mounting and screws for front mounting huge range of functions - Numerous battery monitoring functions and generously sized electronic components on the Smart bmv's circuit board allow you to gain deep insight into the life of your battery. In addition, the bmv allows you to detect and fix problems, even in larger battery banks, before damage occurs other features of the bmv 712 battery computer Programmable visual and audible alarm Programmable relay to disconnect insignificant loads or switch on a generator if required A 500 amp quick connect shunt and connection kit Shunt capacity selectable up to 10,000 amps vE.Direct communication port Stores a wide range of history data that can be used to evaluate usage patterns and battery condition Wide input voltage range: 6.5 - 70v High current measurement resolution 10 ma (0.01 a) Additional input for measuring voltage (of a second battery), temperature or midpoint voltage and associated alarm and relay settings high-resolution measurement data from up to 2 batteries Current ± 0.01a Voltage ± 0.01 v ampere-hour ± 0.1 ah State of charge (0 - 100%) ± 0.1% Remaining time ± 1 min Temperature (0 - 50°C or 30 - 120°F) ± 1°C/°F Accuracy of current measurement ± 0.4% low self-consumption The bmv's power consumption is only 0.7 ah per month (1 ma) at 12 v and 0.6 ah per month (0.8 ma) at 24 v. Lithium-ion batteries in particular have almost no capacity left when they are discharged to the point of shutdown due to low voltage After shutdown due to low voltage, the reserve capacity of a lithium-ion battery is approximately 1 ah per 1000 ah of battery capacity. The battery will be damaged if the remaining reserve capacity is drawn from the battery. For example, a residual current of 10 ma can damage a 200 ah battery if the system is left in a discharged state for over 8 days intelligent: Monitoring the midpoint voltage One damaged cell or battery can destroy an entire large, expensive battery bank. If batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please also refer to the bmv manual, section 5.2 for more information victron recommends the Battery Balancer (bms012201000) to maximize the life of lead-acid batteries connected in series Scope of delivery: 1x victron bmv Smart 712, battery monitor 1x shunt (included) 500 a / 50 mv 1x 10 meter 6 wire UTP cable with rj12 connectors, and cable with fuse for the '+' connection

This battery saver protects your car battery from total discharge by switching off consumers such as ice boxes, heaters, radios + television sets, etc. in time. It switches on again automatically after return of the normal voltage. The interrupting voltage is adjustable: approx. 10.4 - 13.3 V. Important installation instructions, please note! Depending on the load the module heats up. The heat is dissipated from the aluminum plate at the bottom of the module. Under certain circumstances it must be mounted on a cooling surface according to installation instructions. It is important that the module is fixed with 4 M3 screws (or 2.9mm metal screws) on the cooling surface. This may be the back wall of a metal casing. The aluminum plate on the bottom of the module must not bend, do not use larger screws and do not drill larger holes. The screw heads must rest on the plate of the module, rather than on the plastic edge of the module! During assembly, the module should not be curled up (if the ground is not flat). The reason: on the inside of the aluminum base of the module the thin insulating layer are directly soldered on the electronic SMD components. When the aluminum floor of the module curls up, the joints and the module start loosen and the module is defective. Please ensure that the maximum specified temperature (as specified in the module's description) is not exceeded. Otherwise apply a larger cooling plate.

The bmv 712 Smart from victron Energy (mpn bam030712200) is the latest battery computer in the bmv family. It provides precise data on parameters such as battery voltage, current, power, ampere hours consumed, state of charge and remaining time at the current discharge rate. The measurement resolution is very accurate and precise compared to similar products. In addition, it is equipped with an integrated Bluetooth module that allows you to access many functions and status reports of the battery computer via the free victronConnect app. Main features of the victron bmv 712 Smart battery monitor Built-in Bluetooth Module: With its built-in Bluetooth:module, the bmv Smart is already for the "Internet of Things". Meanwhile, in addition to the bmv 712, most other victron products also have integrated Bluetooth. networking, evaluation and communication has never been as convenient as it is today. Free victron Bluetooth app: The victronConnect app allows you to evaluate all victron products with vE.Direct interface. Depending on the device, numerous parameters can be read out directly via cell phone, computer or tablet. You can display all important data on one screen, adjust settings and update to the latest software. options for data logging and data export are also available. So you always know how your system is doing. Easy installation: All electrical connections are made to the current shunt using the PCB connector. The shunt is connected to the monitor via a standard RJ12 telephone cable. Included in delivery: RJ12 cable (10 m) and battery cable with fuse (2 m). No other components are required. also included is a separate front bezel for a square or round display, a safety ring for rear mounting and screws for front mounting. Huge range of functions: Numerous battery monitoring functions and generously sized electronic components on the Smart bmv's circuit board allow you to gain deep insights into the life of your battery. In addition, with the help of the bmv, you can detect and fix problems, even in larger battery banks, before damage occurs. More features of the bmv 712 battery computer Programmable visual and audible alarm Programmable relay to switch off essential loads or switch on to a generator when needed One 500 amp quick connect shunt and connection kit Shunt capacity selectable up to 10,000 amps vE.Direct communication port Stores a wide range of history data that can be used to evaluate usage patterns and battery condition Wide input voltage range: 6.5 - 70 v High current measurement resolution 10 ma (0.01a) Additional input for measuring voltage (of a second battery), temperature or midpoint voltage and associated alarm and relay settings High resolution measurement data from up to 2 batteries Current ± 0.01a Voltage ± 0.01v ampere-hour ± 0.1 ah State of charge (0-100%) ± 0.1% Remaining time ± 1 min Temperature (0-50°C or 30-120°F) ± 1°C/°F Accuracy of current measurement ±0.4% Low self consumption The current consumption of the bmv is only 0.7 ah per month (1 ma) at 12 v and 0.6 ah per month (0.8 ma) at 24 v. In particular, lithium-ion batteries have almost no capacity left when they are discharged to the point of shutdown due to low voltage. After shutdown due to low voltage, the reserve capacity of a lithium-ion battery is approximately 1 ah per 1000 ah of battery capacity. The battery will be damaged if the remaining reserve capacity is drawn from the battery. For example, a residual current of 10 ma can damage a 200 ah battery if the system is left in a discharged state for over 8 days. midpoint voltage monitoring One damaged cell or battery can destroy an entire large, expensive battery bank. When batteries are connected in series, measuring the midpoint voltage can provide a timely warning. Please also refer to the bmv manual, section 5.2 for more information. victron recommends the Battery Balancer (bms012201000) to maximize the life of lead-acid batteries connected in series. Scope of delivery: 1x victron bmv Smart 712, Battery Monitor 1x shunt 500 a / 50 mv 1x 10 meter 6 wire UTP cable with RJ12 connectors 1x 2 meter battery cable with fuse 1x front panel 1x mounting material

Protection from deep discharge of AGM, gel and wet batteries After a delay time of 0 - 10min this relay toggles and interrupts the current flow when the measured voltage falls below a predefined value (V<). The relay switches back into stand-by mode when the voltage reaches a predefined value V> (end voltage).

This battery saver protects your car battery from total discharge by switching off consumers such as ice boxes, heaters, radios + television sets, etc. in time. It switches on again automatically after return of the normal voltage. The interrupting voltage is adjustable: approx. 10.4 - 13.3 V. Important installation instructions, please note! Depending on the load the module heats up. The heat is dissipated from the aluminum plate at the bottom of the module. Under certain circumstances it must be mounted on a cooling surface according to installation instructions. It is important that the module is fixed with 4 M3 screws (or 2.9mm metal screws) on the cooling surface. This may be the back wall of a metal casing. The aluminum plate on the bottom of the module must not bend, do not use larger screws and do not drill larger holes. The screw heads must rest on the plate of the module, rather than on the plastic edge of the module! During assembly, the module should not be curled up (if the ground is not flat). The reason: on the inside of the aluminum base of the module the thin insulating layer are directly soldered on the electronic SMD components. When the aluminum floor of the module curls up, the joints and the module start loosen and the module is defective. Please ensure that the maximum specified temperature (as specified in the module's description) is not exceeded. Otherwise apply a larger cooling plate.

The voltage measurement relais monitors the direct current at binding post A1 and A2. Application:Protection from deep discharge and overload  for AGM, GEL and lead acid batteries. The relais starts working when the measured voltage sinks under a pre-defined value V< (battery is discharged) and the programmed deceleration time of 0-10min has run out. This is displayed by a yellow led warning light.The relais switches back to stand-by mode when the monitored voltage exceeds the pre-defined value V> (end-of-charge voltage) Supply voltage: 20 - 31V DCPower consumption: 0,8 WattOperation mode: continuous modeMeasurement accuracy: 2% over temperature and voltage rangeRepeating accuracy: +/-2% Measurement range: Undervoltage: 21 - 25VOvervoltage: 26 - 30VHysteresis: 1V Contact:Number of changers: 1Contact material: AgSnO2max. switching voltage: 250V ACmax. switching current: 8Amax. switching power: 2000VAmax. switch-on current: 30A

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The voltage measurement relais monitors the direct current at binding post A1 and A2. Application:Protection from deep discharge and overload  for AGM, GEL and lead acid batteries. The relais starts working when the measured voltage sinks under a pre-defined value V< (battery is discharged) and the programmed deceleration time of 0-10min has run out. This is displayed by a yellow led warning light.The relais switches back to stand-by mode when the monitored voltage exceeds the pre-defined value V> (end-of-charge voltage) Supply voltage: 40 - 62vdcPower consumption: 0,8 WattOperation mode: continuous modeMeasurement accuracy: 2% over temperature and voltage rangeRepeating accuracy: +/-2% Measurement range: Undervoltage: 42 - 50VOvervoltage: 52 - 60VHysteresis: 1V Contact:Number of changers: 1Contact material: AgSnO2max. switching voltage: 250V ACmax. switching current: 8Amax. switching power: 2000VAmax. switch-on current: 30A

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. High switching current 100 A, short-time overload up to 180 A is admissible, can be switched over to 12 V/24 V board mains supply Based on programmed characteristic diagrams of battery, the intelligent automatic switching threshold always calculates the disconnection point “empty” being appropriate for optimized capacity utilization and safe protection of the battery, from powerful consumers (low switching threshold at shorter response time) to very small loads (e. g. “hidden” current consumers with response times over days/months with high response threshold) Operation with 3 defined disconnection thresholds can be (manually) adjusted The higher set values are keeping the starting ability of intervention vehicles with only one battery circuit (according to DIN EN 1789) The preliminary alarm with visual (LED) and audible indication (beeper, can be switched-off), as well as a separate warning terminal (PNP, plus output, 0.2 A) allow to the user to take countermeasures in time (such as to disconnect consumers, which are not required) Solid threaded battery connections for cable lugs M6, protection caps included in the standard delivery

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. Switching current 40 A, short-time overload up to 60 A is admissible, display of the switching state is visible from outside EMERGENCY ON function by switch at the unit; remote control is possible by external switch Automatic reset, as soon as the battery voltage is again in the normal range (charging) Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation Bi-stable power relay, very low own consumption: less than 3 mA (according to EN 13976) No own consumption after disconnection by external switch, such as remote control as battery main switch Solid terminal screws for battery and load cable cross sections up to 10 mm² Execution “Motor” with higher disconnection thresholds keeps the starting ability of intervention vehicles with only one battery circuit according to DIN EN 1789

The VOTRONIC units Battery Protector 40 and Battery Protector 100 are connected between supply battery and consumers, and they are suitable for all types and brands of lead batteries (acid, gel, AGM). The units protect the battery from dangerous total discharge and the consumers and equipment from undervoltage and overvoltage. Apart from that, they can be used as remote-controlled battery main switch by means of an external switch. High switching current 100 A, short-time overload up to 180 A is admissible, can be switched over to 12 V/24 V board mains supply Based on programmed characteristic diagrams of battery, the intelligent automatic switching threshold always calculates the disconnection point “empty” being appropriate for optimized capacity utilization and safe protection of the battery, from powerful consumers (low switching threshold at shorter response time) to very small loads (e. g. “hidden” current consumers with response times over days/months with high response threshold) Operation with 3 defined disconnection thresholds can be (manually) adjusted The higher set values are keeping the starting ability of intervention vehicles with only one battery circuit (according to DIN EN 1789) The preliminary alarm with visual (LED) and audible indication (beeper, can be switched-off), as well as a separate warning terminal (PNP, plus output, 0.2 A) allow to the user to take countermeasures in time (such as to disconnect consumers, which are not required) Solid threaded battery connections for cable lugs M6, protection caps included in the standard delivery

The Battery Watch is an essential element of any well-equipped battery system, offering you a 600-gram electronic watchdog that ensures a much longer lifespan for your batteries. The unit monitors the optimum condition of your batteries and can also be used as a main battery isolation switch. LED lights provide a clear read out and the undervoltage can be set using DIP switches. Robust and durableCompletely corrosion-proof material with aluminium heat sinks, the electronic components are encased in synthetic materials.Fast installationThe composite end plates feature connection lugs and solid bolt connections with nuts and locking rings to ensure easy installation.
