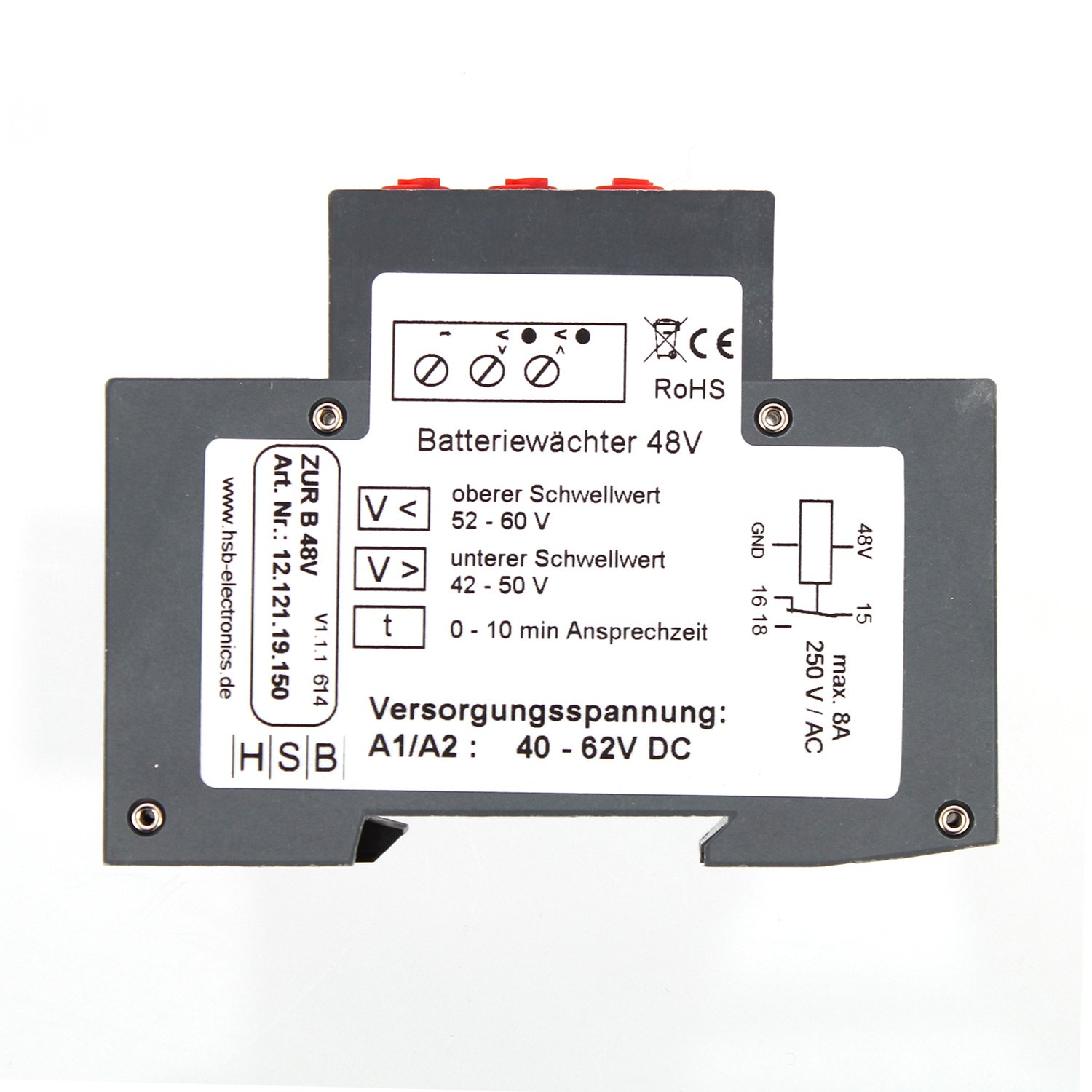

The voltage measurement relais monitors the direct current at binding post A1 and A2.

Application:
Protection from deep discharge and overload  for AGM, GEL and lead acid batteries.

The relais starts working when the measured voltage sinks under a pre-defined value V< (battery is discharged) and the programmed deceleration time of 0-10min has run out. This is displayed by a yellow led warning light.
The relais switches back to stand-by mode when the monitored voltage exceeds the pre-defined value V> (end-of-charge voltage)

Supply voltage: 40 - 62vdc
Power consumption: 0,8 Watt
Operation mode: continuous mode
Measurement accuracy: 2% over temperature and voltage range
Repeating accuracy: +/-2%

Measurement range:
Undervoltage: 42 - 50V
Overvoltage: 52 - 60V
Hysteresis: 1V

Contact:
Number of changers: 1
Contact material: AgSnO2
max. switching voltage: 250V AC
max. switching current: 8A
max. switching power: 2000VA
max. switch-on current: 30A

Spannungsueberwachung_Anleitung.pdf Download
Certification: EMC Directive 2004/108/EC
Connection terminal: Plus-Minus-Screws (2,5mm²)
Manufacturer: Westech
Measuring range: Overvoltage: 52-60V
Own consumption: 0,8W
Pollution level: 2 (250V)
Product Type: Battery monitor
Repeatability: ± 2%
Response time: 0...10 minutes
System voltage: 48V DC
Weight: 77 g
