Offgridtec® MobileBlack XL 360W motorhome solar system 30A MPPT DUO charge controller PERC solar module

The Offgridtec® MobileBlack series impresses with its attractive visual design in elegant black and its extremely convincing performance parameters. From the OLP V2 solar modules with their state-of-the-art shingle design and outstanding cell efficiency of over 22.68% to the Offgridtec® MPPT Pro dual charge controller, this is truly a successful selection and product composition from Offgridtec.

MobileBlack XL Caravan Complete System

This complete system contains everything you need to charge your batteries on the go. The dual controller included in the set allows you to charge your on-board battery and the starter battery at the same time, as it has a corresponding auxiliary charging output. The scope of delivery includes comprehensive information material explaining the installation and connection step by step – this applies to both the technical connection and the bonding of the retaining spoilers and the roof feed-through. The roof feed-through is probably one of the most critical points, as this is where the transition to the interior of the motorhome takes place. The feed-through is made of the same material as the spoilers – the PEG screw connection complies with protection class IP68 and is therefore completely watertight when installed correctly.

Scope of delivery of the MobileBlack XL Caravan solar system

• Offgridtec® OLP 180W V2 solar panel 23.4V PERC shingle technology (1x or 2x depending on selection)
• 1x Offgridtec® 30A MPPT dual solar charge controller with auxiliary charge and AES switch output

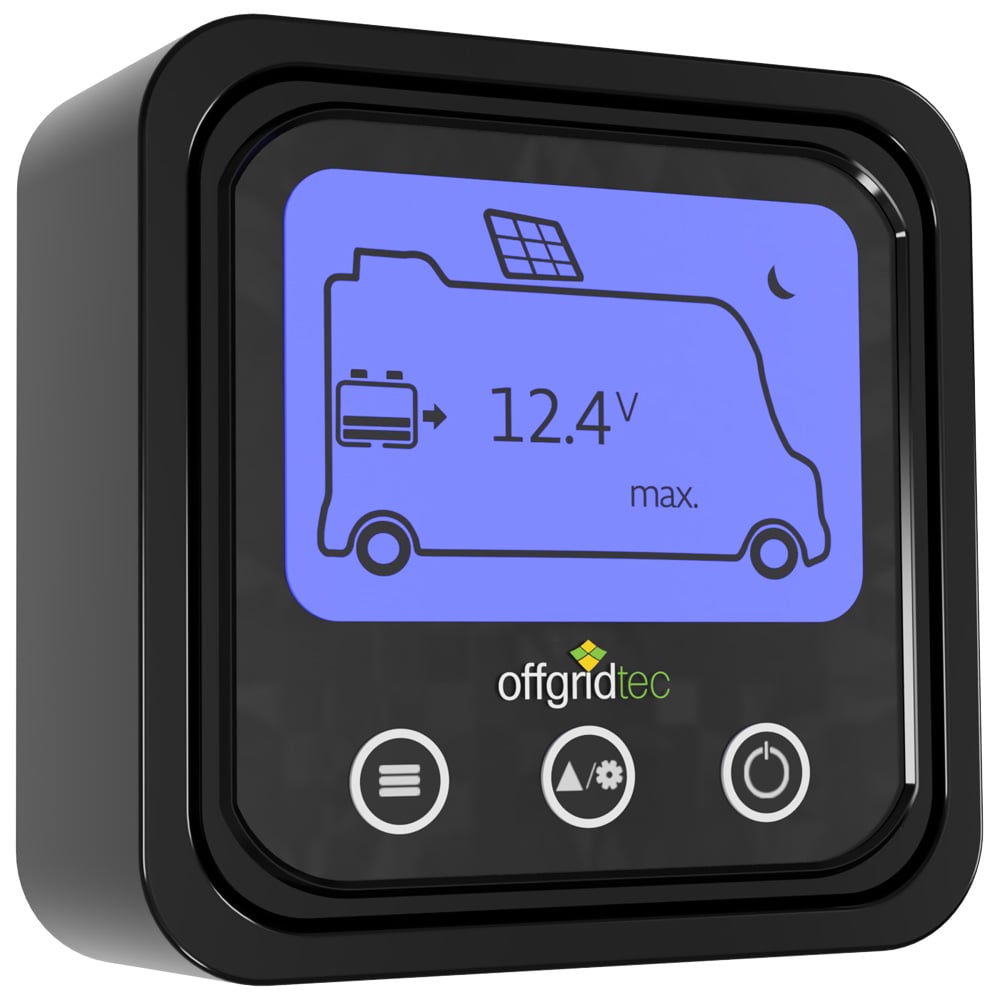

• 1x remote display for MPPT Pro Duo charge controller
• 1x Offgridtec ABS cable gland 1-way – black with waterproof PEG screw connection
• Offgridtec 68 cm ABS mounting profiles (1 pair) – for attaching the solar modules, black (1x or 2x depending on selection)
• 1x Offgridtec 8m 2x6mm H07RNF - connection cable from solar module to solar charge controller in caravan design
• 1x Offgridtec 1.5m 10mm² battery connection cable with MIDI fuse holder - connection cable from solar charge controller to battery with battery terminals and M8 cable lug connection
• 1x Dekalin adhesive set with Dekasyl MS-5 polymer adhesive, Dekavator bonding agent, cleaning cloth, and operating instructions
• 40A MIDI fuse
• additionally for 2 modules: 1x Offgridtec MC4 branch sockets & 1x Dekalin Dekasyl MS-5 strong adhesive

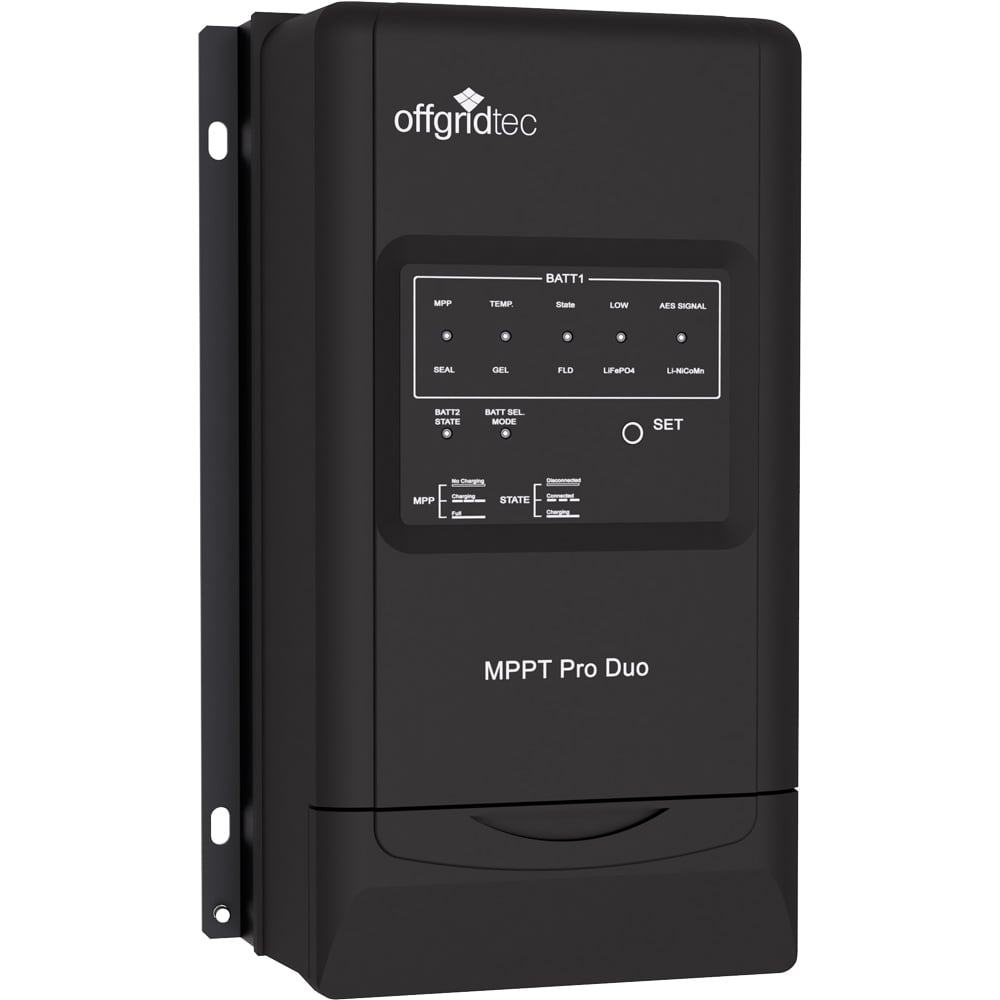

The Offgridtec® MPPT Pro Duo 30A solar charge controller

The MPPT Pro Duo controller can handle a maximum charging current of 30A. This means that this system can theoretically be expanded to just under 400W of solar module power—however, taking into account the module selection (expansion only with identical panels), an expansion of a maximum of 1 module would probably make the most sense for this systemthe device also has a secondary charging output, which can be used to charge the starter battery in parallel with the on-board battery during longer periods of inactivity – a feature that is certainly very much appreciated in a mobile home. To ensure optimum efficiency, the device also has an AES switching output, which enables refrigerators with "AES" to automatically switch from gas to 12V operation when there is excess solar power.

• maximum charging current 30A – 390W module power theoretically usable
• 30A load output for 12V consumers directly on the charge controller
• the clear remote display allows the controller to be installed in hard-to-reach places in the vehicle without restricting operation and overview of the system parameters
• AES control signal for car refrigerators to prevent energy wastage
• 100V maximum PV input voltage
• Digital circuit control of the adaptive three-stage charging mode to improve battery life
• Max Power Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%
• Dimensions: 24.7 cm x 16.5 cm x 6.9 cm (LxWxH)
• Weight: 1.4 kg
• Self-consumption: 26mA at 12V
• Active temperature compensation for optimal charging and ensuring a long battery life
• Supports all major battery types (lead acid, AGM, GEL, LiFePo4)
• Max. efficiency: 98%

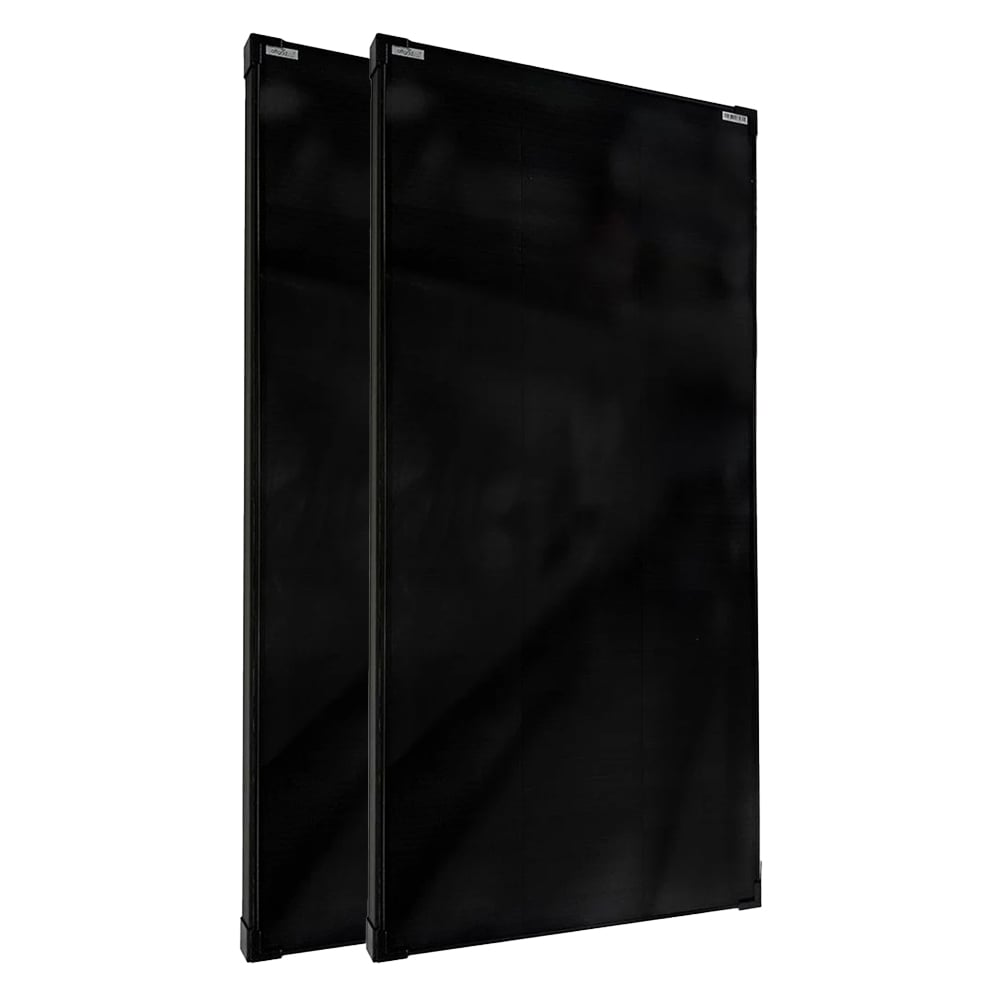

The OLP 180W V2 solar panel 23.4V PERC shingle technology

The Offgridtec OLP 180W V2 (MPN 3-01-018485) is specially designed for 12V systems and offers optimized performance in a compact design. With its overlapping wafer design and advanced PERC technology, it ensures outstanding performance and is ideal for various applications that require a powerful energy source.

• Generator power: 180 Wp
• Module voltage (Vmp): 23.4 V
• Max. current (Imp): 7.69 A
• Open-circuit voltage (Voc): 27.61 V
• Short-circuit current (Isc): 8.15 A
• Max. system voltage: 1000V DC
• Cell type: Monocrystalline PERC
• Power tolerance: +/- 3%
• Operating temperature: -40 to +85°C
• Cells per module: 3 x 41
• Cell size: 210 x 33.7mm
• Accessories: XC802 + 0.9 m cable + MC4
• Dimensions: 670 x 1435 x 35 mm
• Weight: 10.42 kg

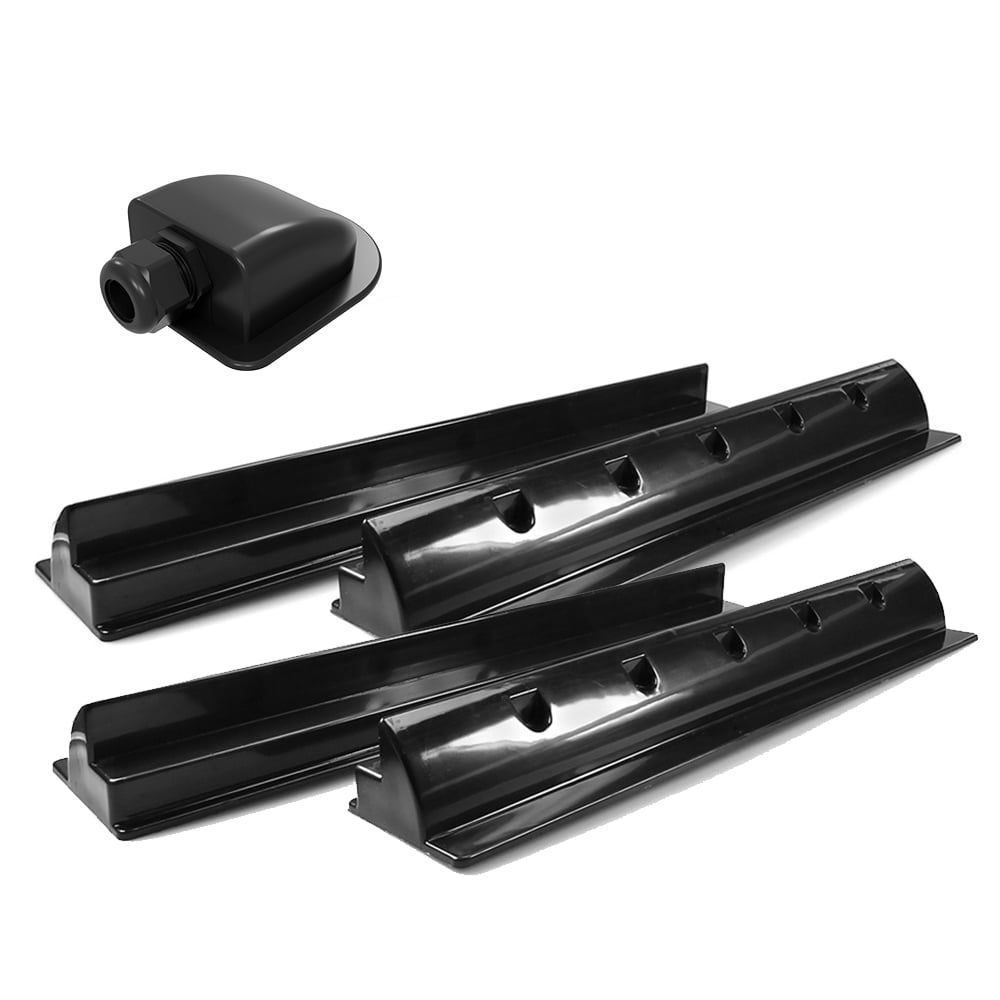

The professional solar mounting system

Spoiler profiles are the first choice, especially for caravans and motorhomes, when it comes to clean mounting of solar modules. If the modules are mounted in the direction of travel, wind noise is no longer an issue (this also applies to alcove vehicles). Thanks to the closed design of the spoilers, no branches or similar objects can get caught under the solar modules.
Spoiler dimensions: L x W x H: 68 cm x 8.9 cm (of which approx. 3 cm is the module contact surface per spoiler) x 6.5 cm.

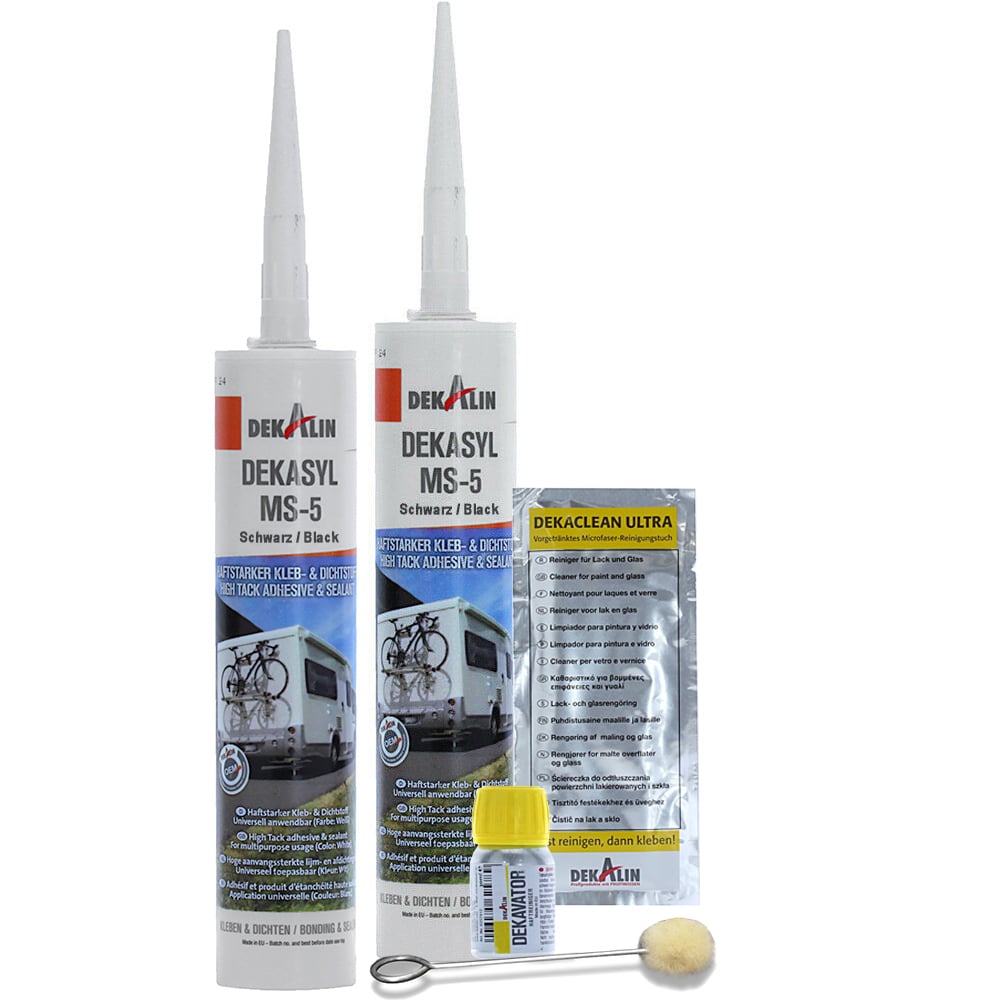

Adhesion

When used in harsh motorhome or boat conditions, a properly executed adhesive bond is superior to any screw connection. On painted or GRP surfaces, a strength of over 4 N/mm² can be achieved, which, calculated on the basis of the adhesive surface, is a value that would never be achievable with a screw connection in the thin aluminum or GRP carrier layer. This adhesive set enables even a layman to create an absolutely secure connection between spoilers and the respective substrate.

The Dekalin adhesive set contains all the components needed to enable even DIY enthusiasts to create a professional connection. Stainless steel screws for attaching the solar modules are included, as are detailed adhesive instructions. All you need in addition is a standard hand lever press for cartridges and a lint-free cloth.

The ABS mounting profiles

Cable entries from the roof into the interior are always quite tricky, as it must be ensured that everything is absolutely watertight and remains so even after many years.

Even the smallest amount of water ingress can often cause irreparable damage to the interior insulation and furnishings. This is especially true since moisture is often only noticed at a fairly late stage. This is why the roof feed-throughs were developed: The housings are made of the same UV- and weather-resistant material as the mounting brackets offered in the online shop. They are extremely stable and absolutely slip-resistant. The wide adhesive edge ensures optimal sealing. The penetrations are glued using the adhesive set that you also use to glue the solar mounting brackets. The housings can also be painted as desired and thus adapted to the surface on which they are to be installed

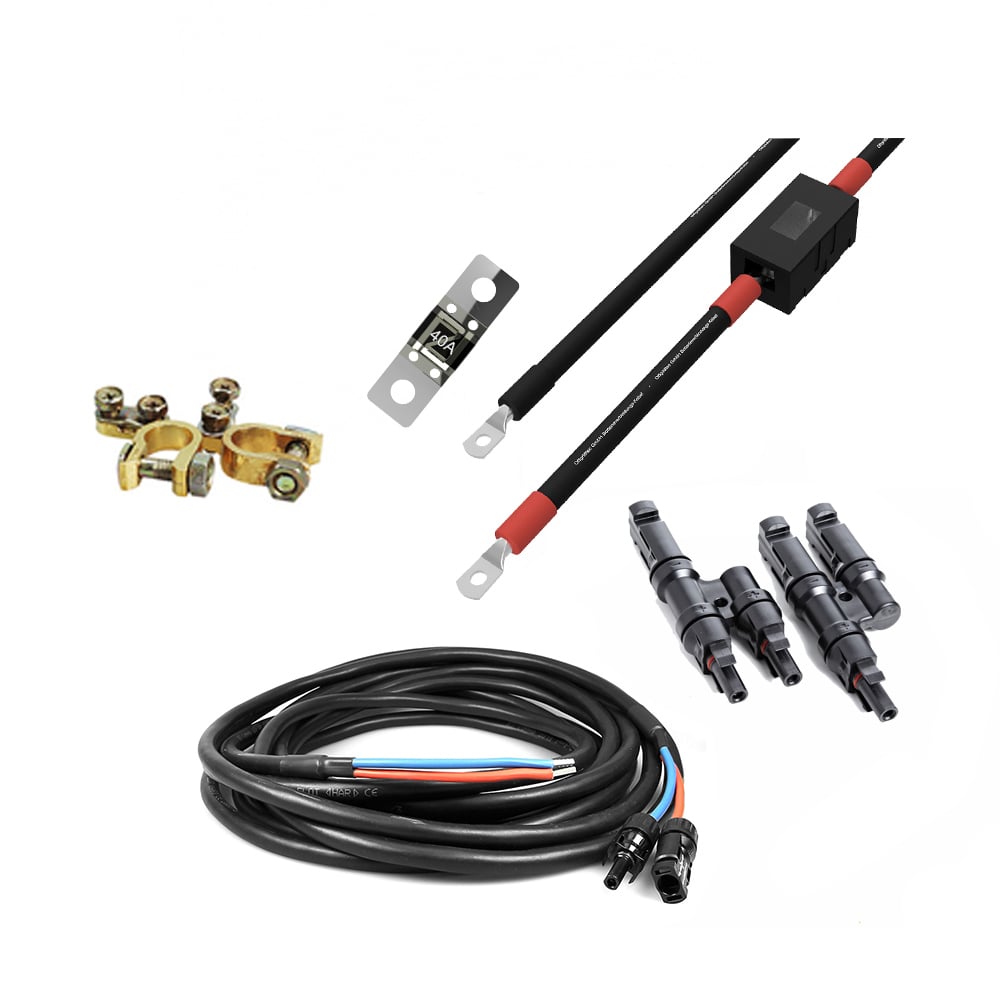

The professional cabling set

All necessary cables are delivered plug & play and are already pre-crimped with specialist tools. This means you do not need to purchase special pliers for the MC-4 connectors.

Individual system adaptation available on request

We strive to fulfill every request from our customers to the best of our ability. Of course, this is not always 100% possible when it comes to the individual requirements of a solar system. If you would like to make adjustments to one of our systems, simply send us an email at info@offgridtec.com - just let us know which system your request relates to and what changes you would like (e.g., additional module, spoiler color, adhesive or cable routing, other charge controller, etc.) and our sales team will send you a quote as soon as possible. Please contact customer service for any costs that may be incurred, different charge controller, etc.) and you will receive a corresponding offer from our sales team as soon as possible. Please contact customer service for any costs that may be incurred.

Scope of delivery:

1x Offgridtec 4-01-014245-001 Offgridtec® MobileBlack XL 180W 12V MPPT caravan solar system

or

1x Offgridtec 4-01-014245-002 Offgridtec® MobileBlack XL 360W 12V MPPT caravan solar system
