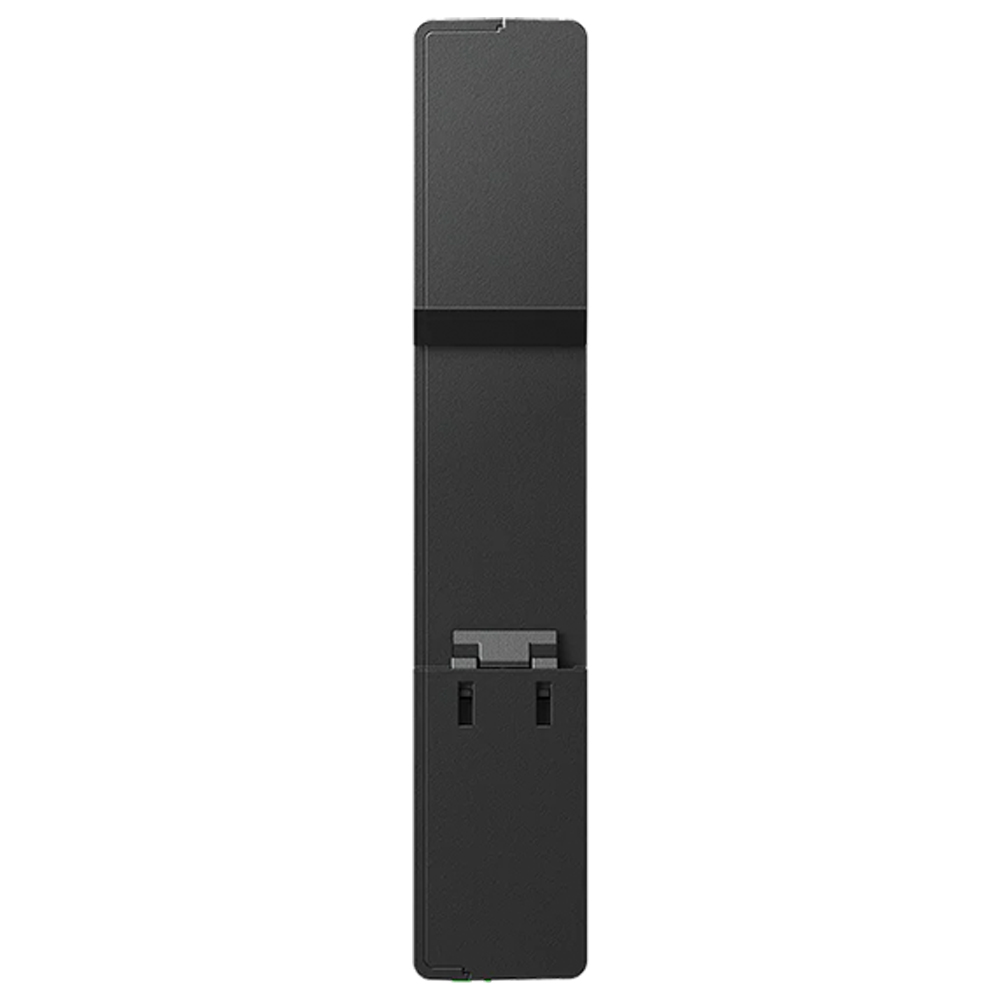

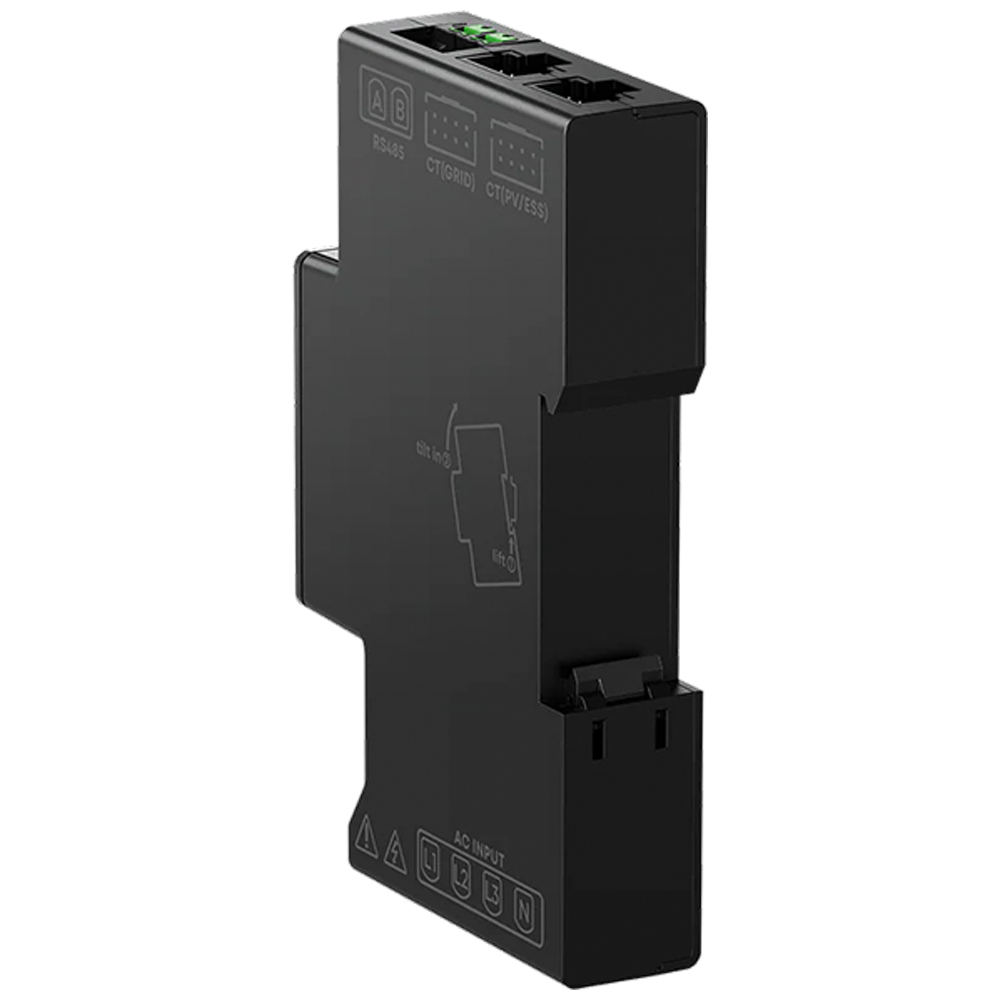

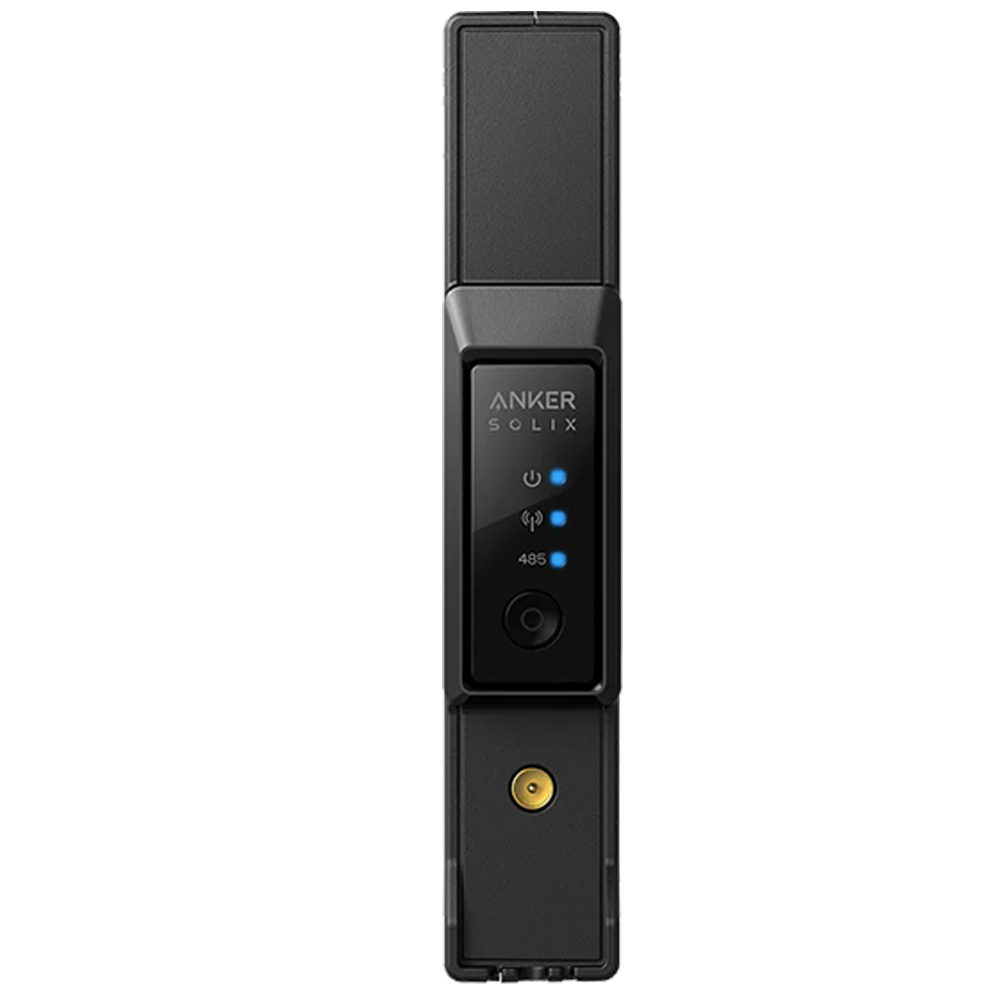

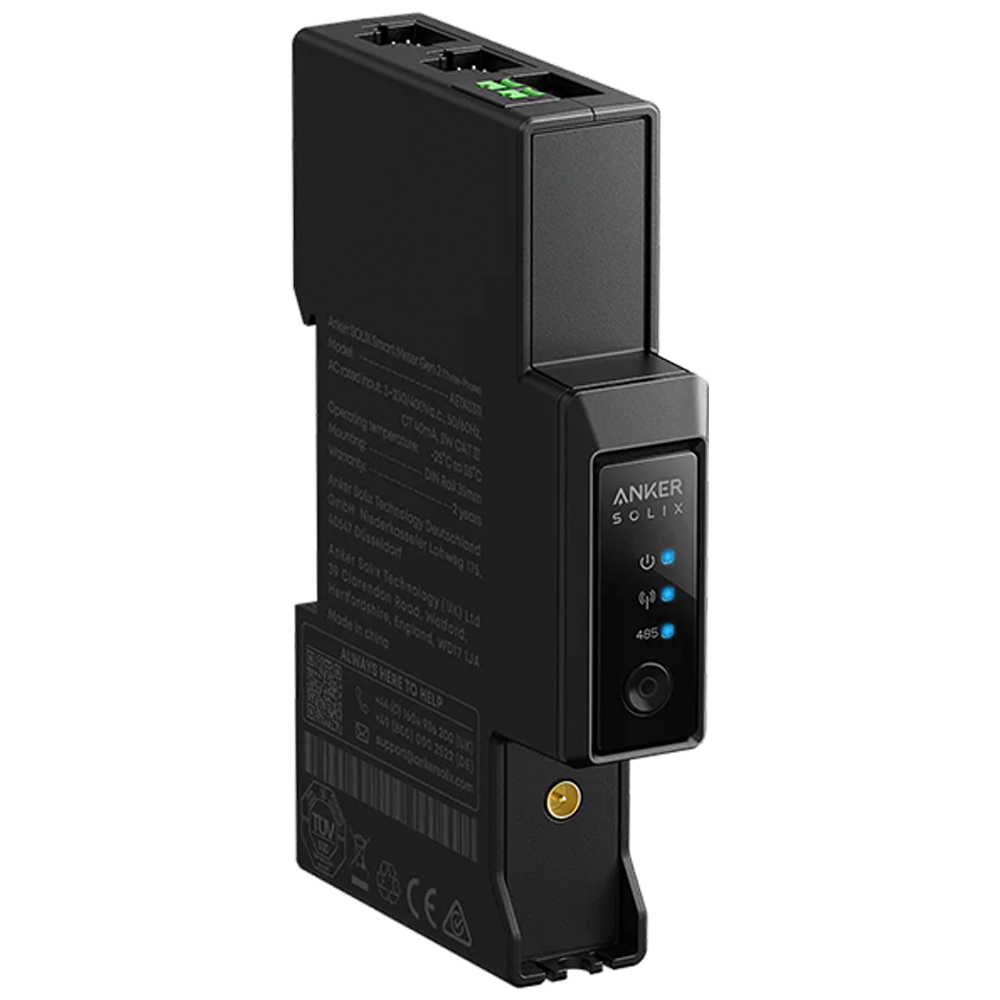

Anker Solix Smart Meter Gen 2, Three-Phase

The Anker SOLIX Smart Meter Gen 2 (MPN: AE1X0311) stands out as an exceptionally compact electricity meter for DIN rails and enables precise, real-time monitoring of voltage, current, and power. This lets you keep track of your energy consumption at all times and analyze household appliances as well as photovoltaic or energy storage systems (ESS) separately. This ensures smart and secure energy management. A particularly handy feature: connection errors in the current transformers are automatically detected and corrected. Thanks to Bluetooth and Wi-Fi connectivity, the smart meter connects effortlessly to the Anker app. This allows you to conveniently control and monitor all operating modes and functions remotely. With its compact height of just 19 mm, the Smart Meter Gen 2 saves up to 50% space in the distribution box compared to the previous model. This means it fits easily even in tight control cabinets.

Your Benefits

• Real-time grid monitoring with a response time of <3 s
• No energy loss with an accuracy of <10 W
• Dual-circuit monitoring—complete energy control
• Intelligent, automatic error correction during current transformer installation
• Snap-In technology—thanks to high-quality Weidmüller SNAP IN connectors, you can connect wires quickly, securely, and completely tool-free
• Flexible CT cables—you can choose between two flexible CT cable options: 63A (with a 10 mm opening) or 120A (with a 16 mm opening)
• Easy DIN-rail mounting—insert the device, snap it into place, and you’re done
• Connectivity and Communication - Wi-Fi, Bluetooth, or RS485
• Complete safety and circuit protection
• 2-year manufacturer’s warranty—find more information here
• *Please note: This feature is available exclusively in combination with the Solarbank 4 Pro and the Solarbank Max AC.

Dual-Circuit Monitoring*

This system lets you keep track of everything at all times. The electricity meter independently monitors both your home’s main power grid and your energy storage system or third-party solar systems (two current transformers required). This way, you can see exactly where your electricity comes from and how it’s being used.

Intelligent, Automatic Error Correction*

Soon, the Smart Meter Gen 2 (three-phase system) will automatically detect and correct typical installation errors such as reversed CT polarity or phase deviations. The system independently checks whether the CT ring and the phase conductors L1/L2/L3 are correctly assigned or whether the CT orientation has been accidentally reversed entirely. This saves you time and helps you avoid errors. Important Notes: Installation should always be performed by a qualified electrician in accordance with the installation instructions.

Complete Safety and Circuit Protection*

With its intelligent overcurrent detection, the system ensures maximum safety. It monitors your high-power grid connections around the clock. As soon as a risk is detected, the system works seamlessly with your solar bank and automatically adjusts the output power. This reliably prevents overloads, ensuring safe and worry-free operation.

Technical Specifications

• Voltage: 3~230/400 V AC
• Frequency: 50/60 Hz
• Max. measured value per channel: 120 A
• Power consumption: <2 W
• Compatible CT: 63 A CT (Ø 10 mm) / 120 A CT (Ø 16 mm)
• Communication: RS485, Bluetooth, Wi-Fi (2.4 GHz)
• DIN rail: 35 mm
• Operating temperature range: -25°C to +55°C
• Protection rating: IP20
• Weight: 85 g
• Dimensions: 105 x 66.7 x 19 mm

Package Contents

1x Smart Meter Gen 2, 3-phase
1x Triple CT Cable Assembly (63 A)
1x Antenna Extension
1x Safety Information
