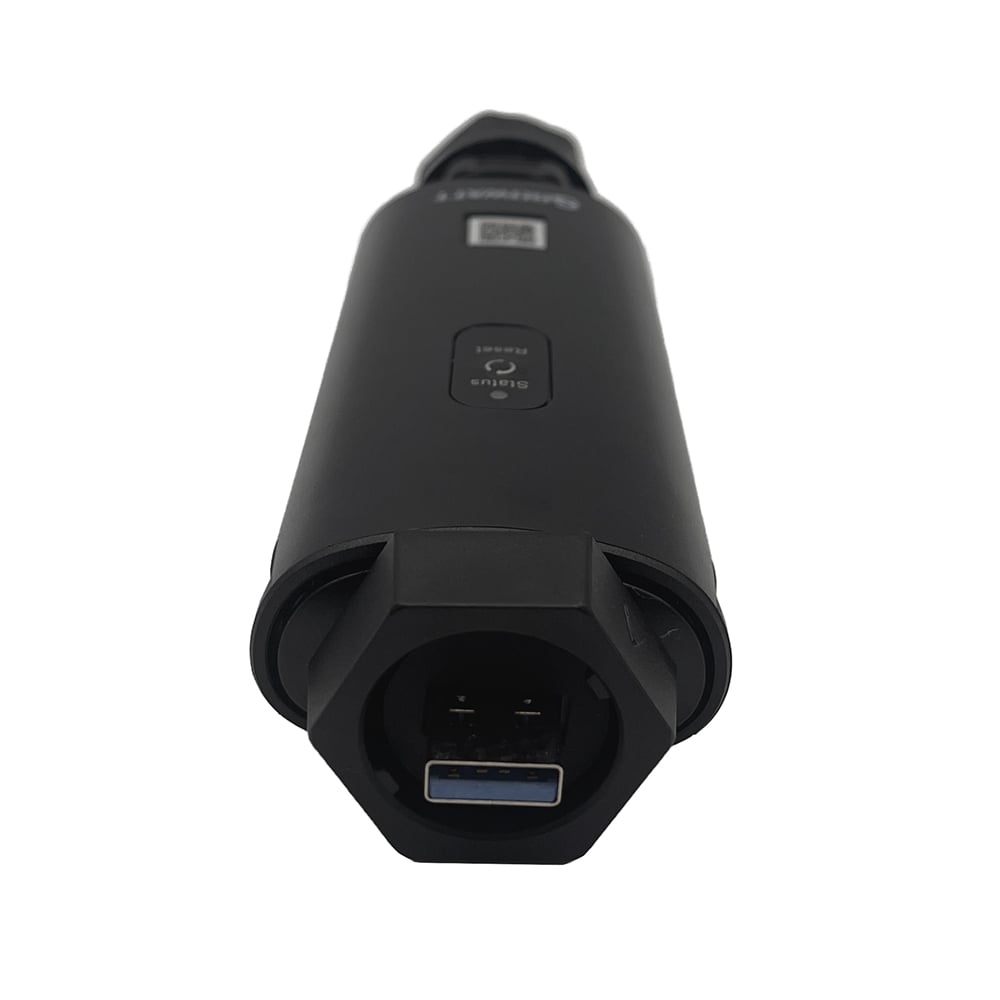

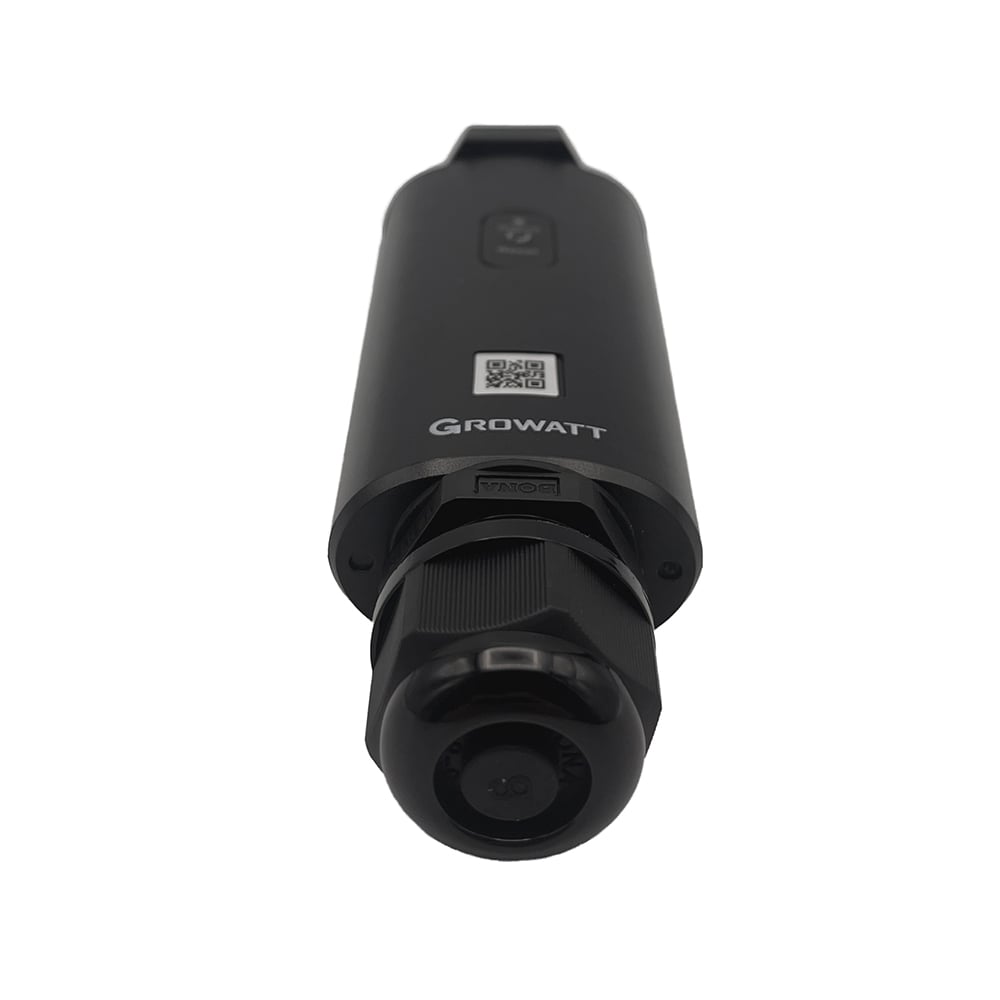

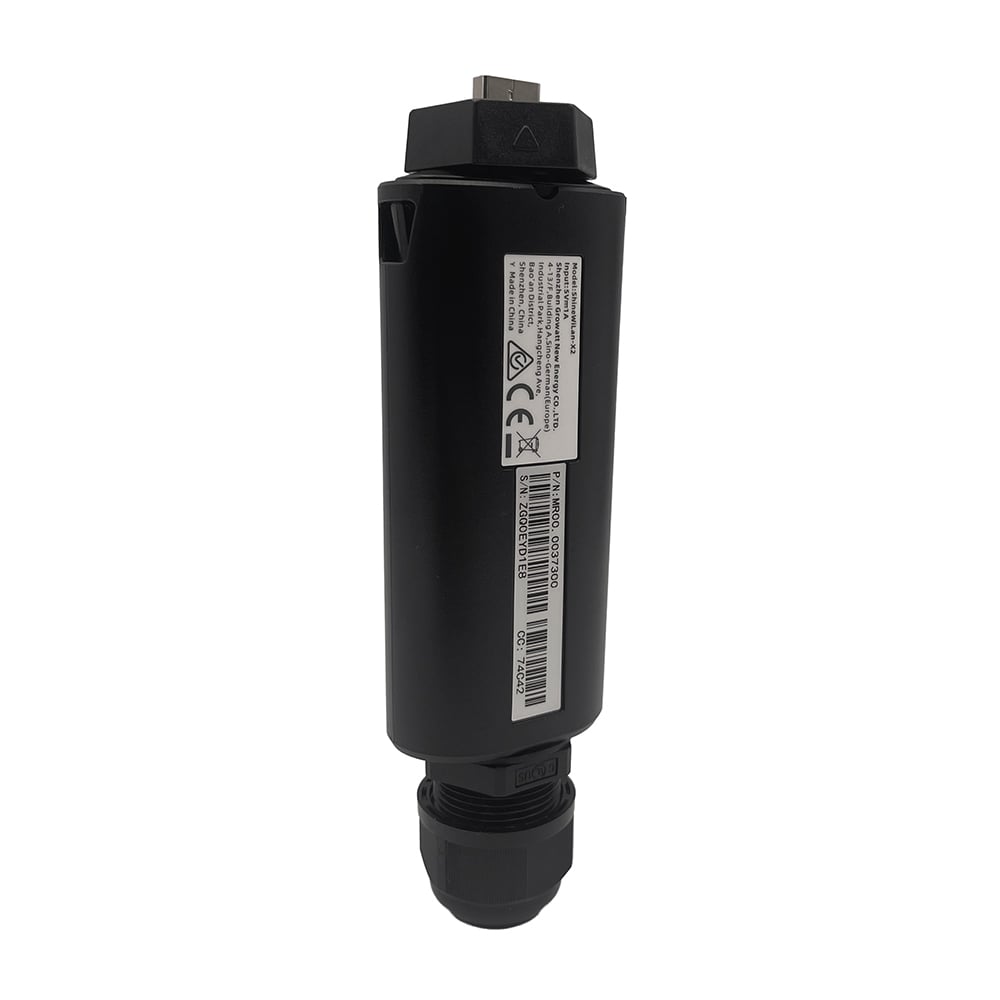

The Growatt ShineWiLan-X2 (MPN Shine WiLan-X2) is an intelligent data logger that connects Growatt inverters to the internet via Wi-Fi, LAN, or Bluetooth. It enables easy and reliable real-time monitoring of energy production – conveniently via the ShinePhone app or the ShineServer. This way, you always have an overview of your photovoltaic system's performance, can detect faults early, and optimize your solar system's efficiency.

The data logger is compatible with all Growatt PV and hybrid inverters with a USB port and offers a plug-and-play LAN connection for quick installation. Thanks to its built-in memory and support for retransmitting data, measurement values are reliably stored and synchronized.

The Shine WiLan-X2 at a glance

  • 3-in-1 design: Wi-Fi, LAN, and Bluetooth in one device
  • Remote monitoring & maintenance: control via app & ShineServer
  • Storage for up to 1 month of data
  • Interruption point transmission
  • Firmware upgrade function
  • LED indicator
  • Plug-and-play

Compatibility

The ShineWiLan-X2 is compatible with the following Growatt inverters with USB ports:

  • MAX 80-150KTL3-X LV/MV
  • MIN 2.5-6KTL-X/X2
  • MID 12-30KTL3-XH
  • MID 33-50KTL3-X2
  • MIN 2.5-6KTL-XE/XH/XA
  • SPH 3-6KTL BL-UP
  • SPH 4-10KTL3 BH-UP
  • WIT 4-15K-HU

Growatt Monitoring Platform

With the ShineWiLan-X2 data logger, the Growatt monitoring platform can be used. It is available as a smartphone app (for iOS and Android) as well as a web version. The use of the platform is free of charge. Through Shine, all owned Growatt products can be configured and monitored. Storage data is kept for a period of one month. In the case of wireless communication, data protection plays a major role, and information can be encrypted. The Growatt servers are located in Frankfurt.

Technical Data

  • Rated voltage: 5V
  • Rated current: 500mA
  • Wireless standard: 802.11 b/g/n
  • Inverter communication: Modbus RTU
  • Data transmission interval: 5 min
  • Wireless frequency range: 2.4GHz
  • Data interface: USB
  • Dimensions: 47 x 152 x 28 mm
  • Weight: 94 g
  • Protection class: IP65
  • Operating temperature range: -30°C to +65°C

Scope of delivery:

1x Growatt ShineWiLan-X2 monitoring data logger

Growatt_Shine_WiLan_X2_Datenblatt.pdf Download
Growatt_ShineWiLan_X2_Benutzerhandbuch_DE_202412.pdf Download
Growatt_ShineWiLan-X2_CE_EMC.pdf Download
Growatt_ShineWiLan_X2_Schnellanleitung_DE_202412.pdf Download
Growatt_ShineWiLan-X2_CE_LVD.pdf Download
Growatt_ShineWilan-X2_NB_CE.pdf Download
Growatt_ShineWiLan-X2_CE_RED.pdf Download
Category name: Datenübertragungseinheit
Display: LED power indicator
Funkstandard: 802.11 b/g/n
Manufacturer: Growatt
Nennspannung: 5V
Nominal current: 500mA
Operating temperature range: -30°C - +65°C
Protection type: IP65
Weight: 94,0 g
