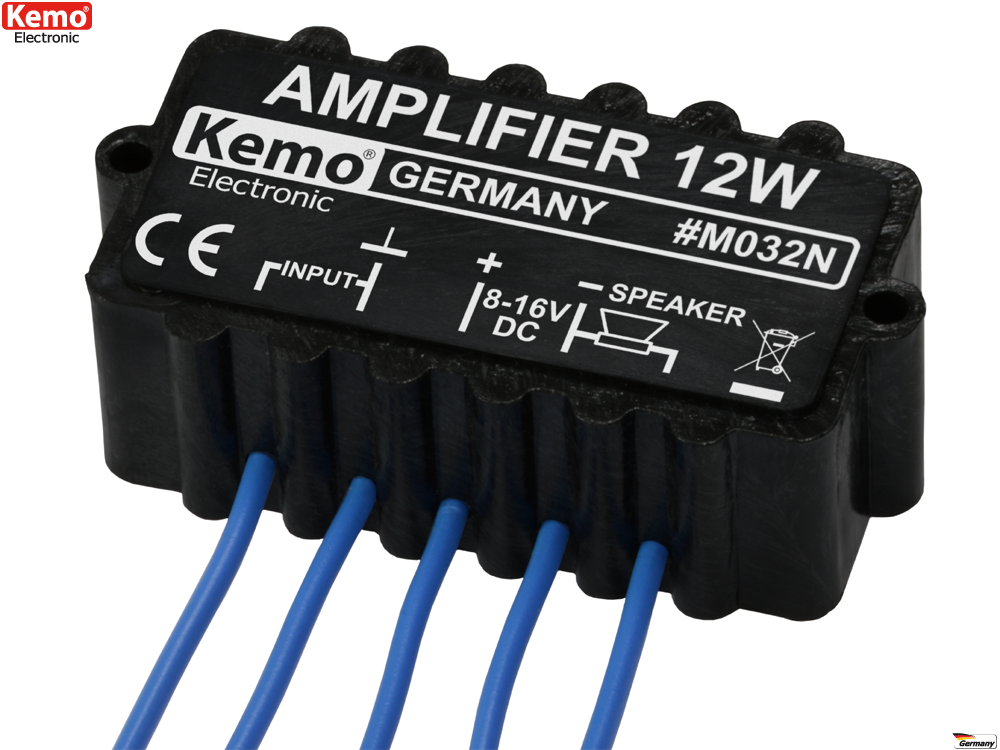

Kemo amplifier 12 W, universal M032N
Product number:
2-12-0M032N
2-12-0M032N
Robust amplifier module for universal use. The module is moisture-proof and vibration-proof. The encapsulation compound and the module housing are made of a special, highly thermally conductive plastic. Therefore, no additional heat sinks are required. The module is electronically protected against overheating and overload.
Technical data:
Operating voltage: 8 - 16 V/DC
Current consumption: max. 800 mA
Input sensitivity: < 80 mV
Speaker connection: 4 - 16 ohms
Music power: max. 12 W at 16 V on a 4 ohm speaker
Frequency response: approx. 40 - 20,000 Hz
Dimensions: approx. 70 x 36 x 23 mm (without mounting brackets)
Technical data:
Operating voltage: 8 - 16 V/DC
Current consumption: max. 800 mA
Input sensitivity: < 80 mV
Speaker connection: 4 - 16 ohms
Music power: max. 12 W at 16 V on a 4 ohm speaker
Frequency response: approx. 40 - 20,000 Hz
Dimensions: approx. 70 x 36 x 23 mm (without mounting brackets)
Manufacturer:
Kemo Electonic
Manufactuerer Information
Kemo Electronic
Kemo-Electronic GmbH
Leher Landstr. 20
27607 Geestland
Germany
Mail: info@kemo-electronic.de
Tel.: +49 4743 93380
