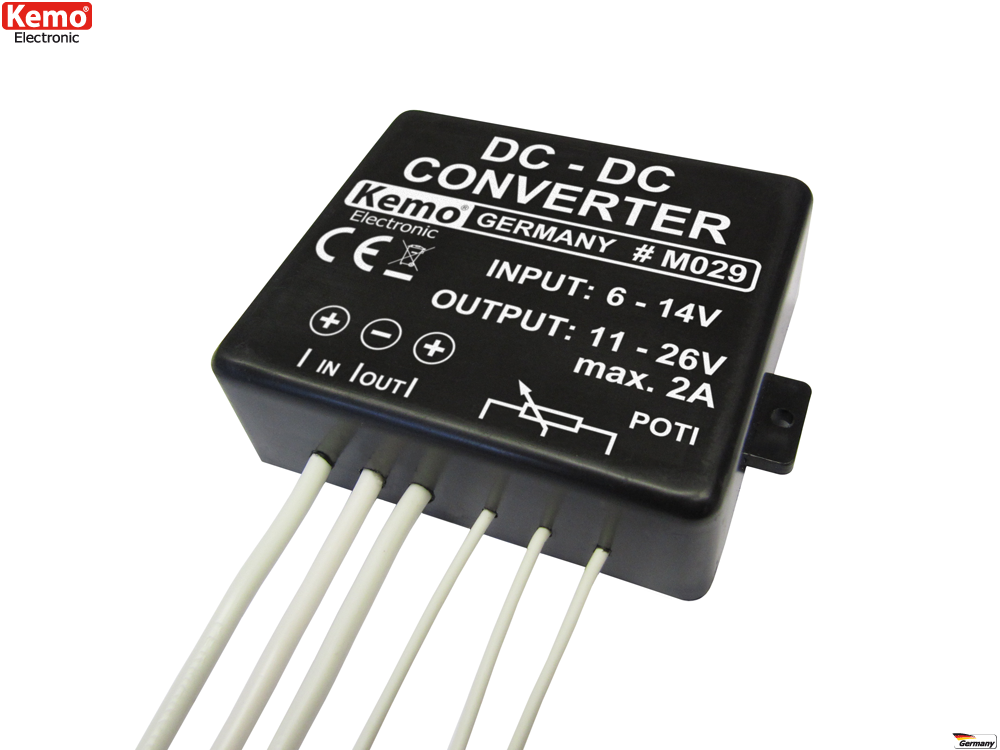

Kemo DC voltage converter M029
Product number:
2-12-00M029
2-12-00M029
Shipped in 1-3 days
€19.73*
Product number:
2-12-00M029
Input: 6 - 14 V/DC, Output: 11 - 26 V/DC This electronically controlled DC voltage converter generates an output voltage that is almost twice as high as the small input voltage. The output voltage decreases with higher loads. With an additional 4.7 k linear potentiometer, the output voltage can be limited upwards at input voltages above 10 V.
Technical data:
Input voltage: 6 - 14 V/DC
Output voltage: 11 - 26 V/DC (depending on load)
Output current: max. 2 A

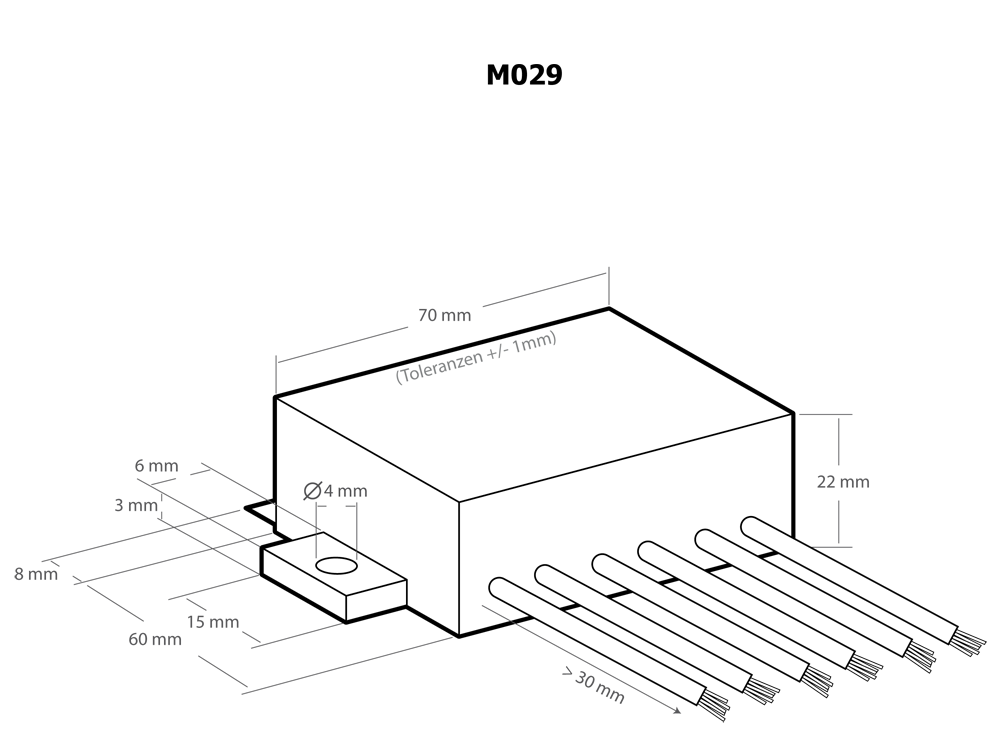

Dimensions: approx. 70 x 60 x 23 mm (without mounting brackets)
Technical data:
Input voltage: 6 - 14 V/DC
Output voltage: 11 - 26 V/DC (depending on load)
Output current: max. 2 A
Dimensions: approx. 70 x 60 x 23 mm (without mounting brackets)
Manufacturer:
Kemo Electonic
ean:
4024028030296
mpn:
M029
Manufactuerer Information
Kemo Electronic
Kemo-Electronic GmbH
Leher Landstr. 20
27607 Geestland
Germany
Mail: info@kemo-electronic.de
Tel.: +49 4743 93380
