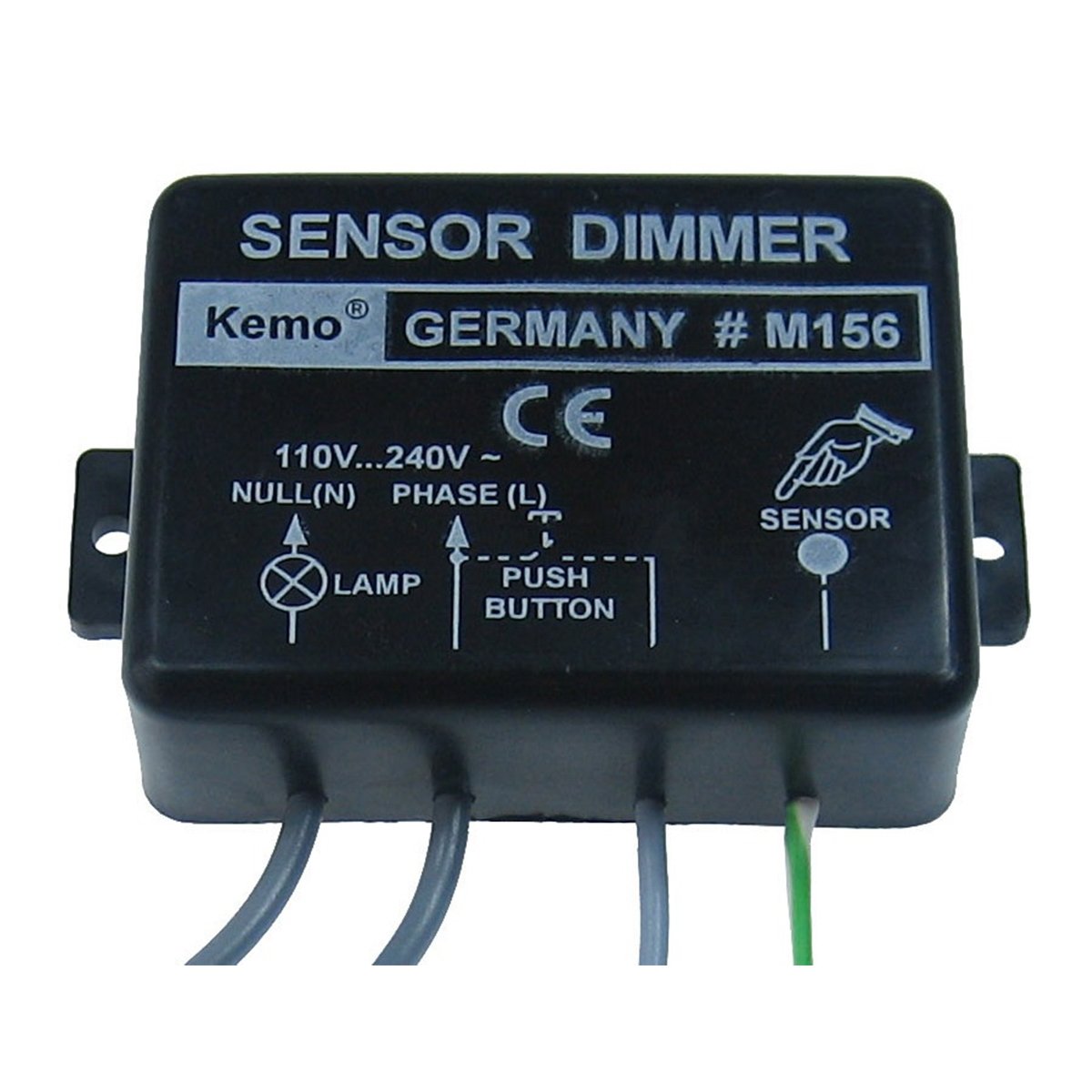

The Kemo m156 power controller can be used to control resistive or inductive loads (incandescent lamps, electric motors, electromagnets, etc.) that can be regulated in power with phase angle control. When the pushbutton is pressed, the power automatically goes up and down and stops in the setting when the pushbutton is released. When the pushbutton is tapped briefly in the desired setting, the power controller switches off and switches on again after tapping again in the last setting. Can also be used as a light swell in the cycle range 5-9 seconds per up and down swell.

Technical data

  • Operating voltage: 220-240 v/ac, 50-60 Hz
  • Load capacity: max. 6A
  • Connectable loads: resistive loads, electric motors and other inductive loads that can be controlled by phase angle control with rated voltage 220-240 V/AC
  • Operation: via push button switch or sensor contact with finger (not included)
  • Threshold frequency: approx. 5-9 seconds for 1x up and down regulation

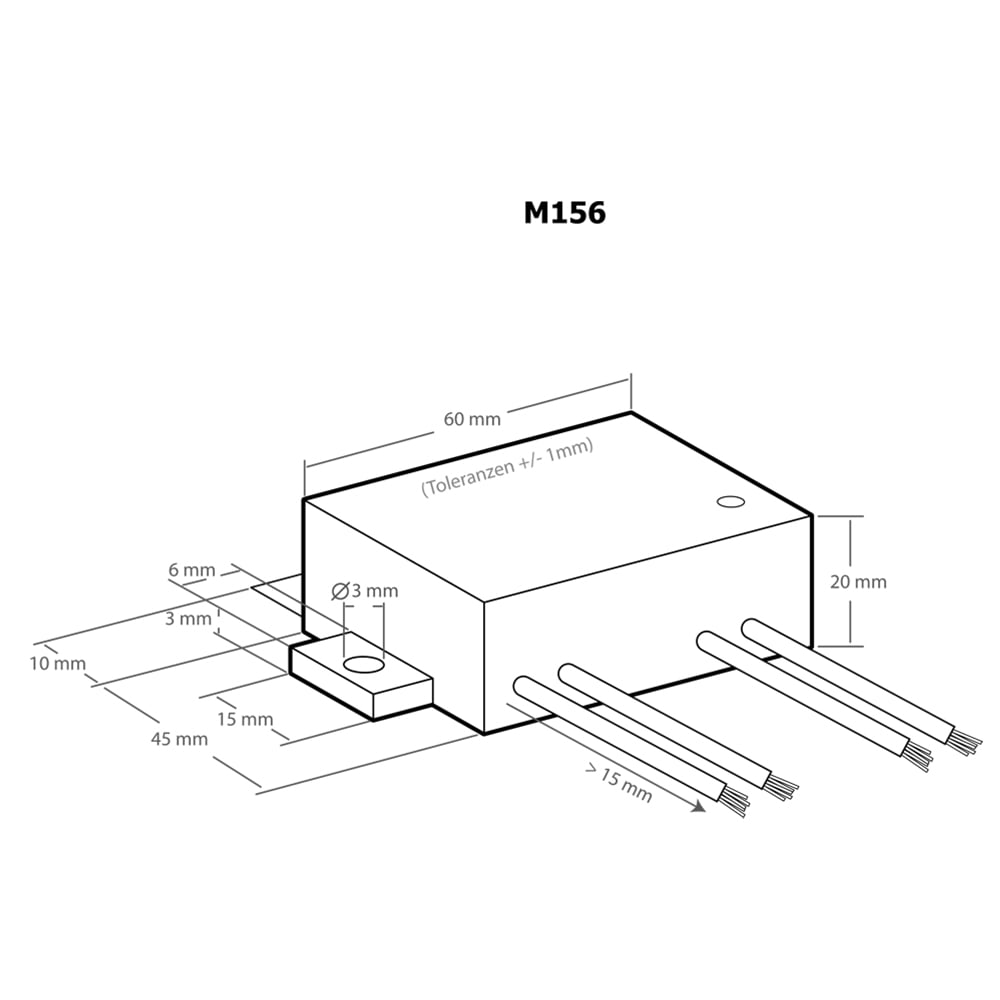

  • Dimensions: approx. 80 x 56 x 23 mm (without mounting straps)

Assembly instructions:

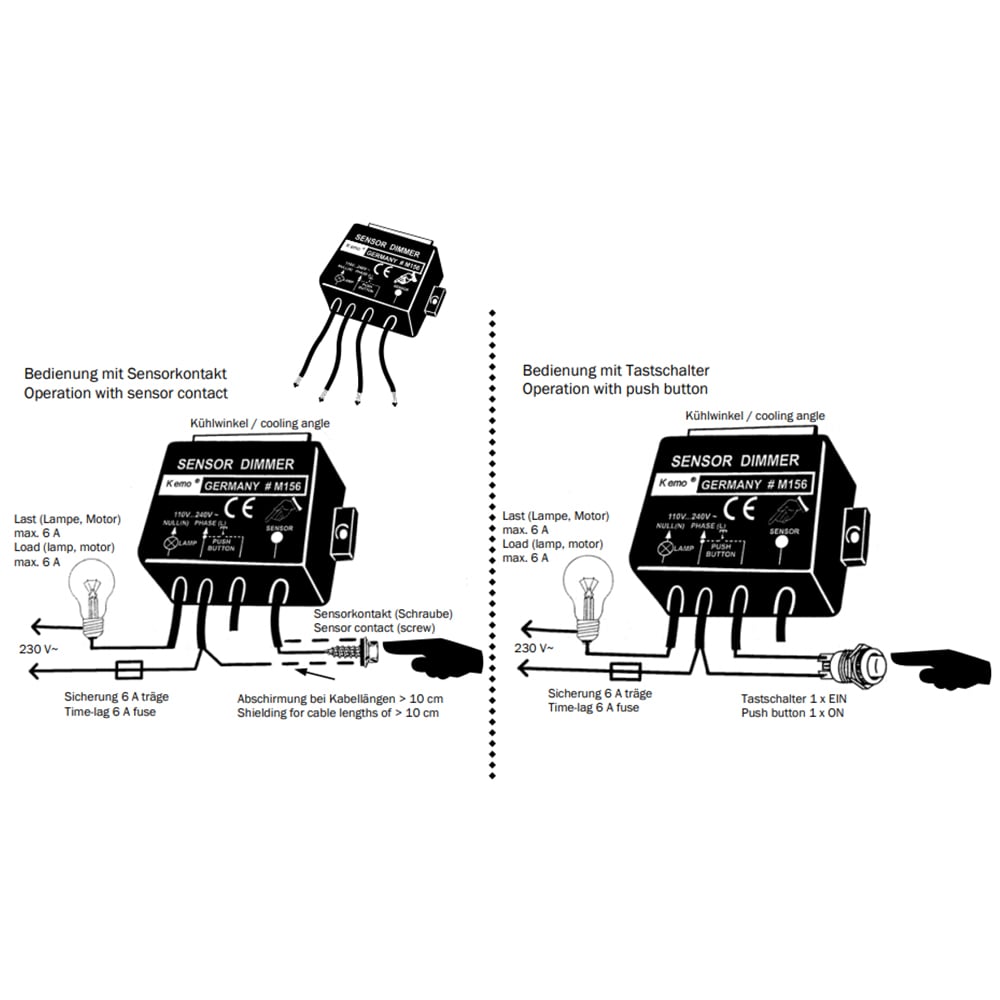

The module must be connected in compliance with VDE safety regulations (contact protection, upstream fuses, fire protection, etc.) according to the drawing. The max. load capacity is 6a. So loads (lamps, motors) up to approx. max. 1380w can be connected. But you have to consider that the current consumption at the moment of switching on is partly considerably higher, so that you should not load the dimmer higher than 1000w with large individual loads (e.g. 1000w halogen spotlights). In addition, the module will heat up depending on the connected load. It must therefore be mounted in a well ventilated location and cooled if the load is >500W. For cooling, screw the module with the cooling bracket to a well ventilated and insulated metal part (heat sink) with a size of min. 100x50x3 mm or larger.

Scope of delivery:

1x Kemo m156 230v power controller

Kemo_M156_Beschreibung.pdf Download
Manufacturer: Kemo Electonic
Weight: 0,1 kg
ean: 4024028031569
mpn: M156
