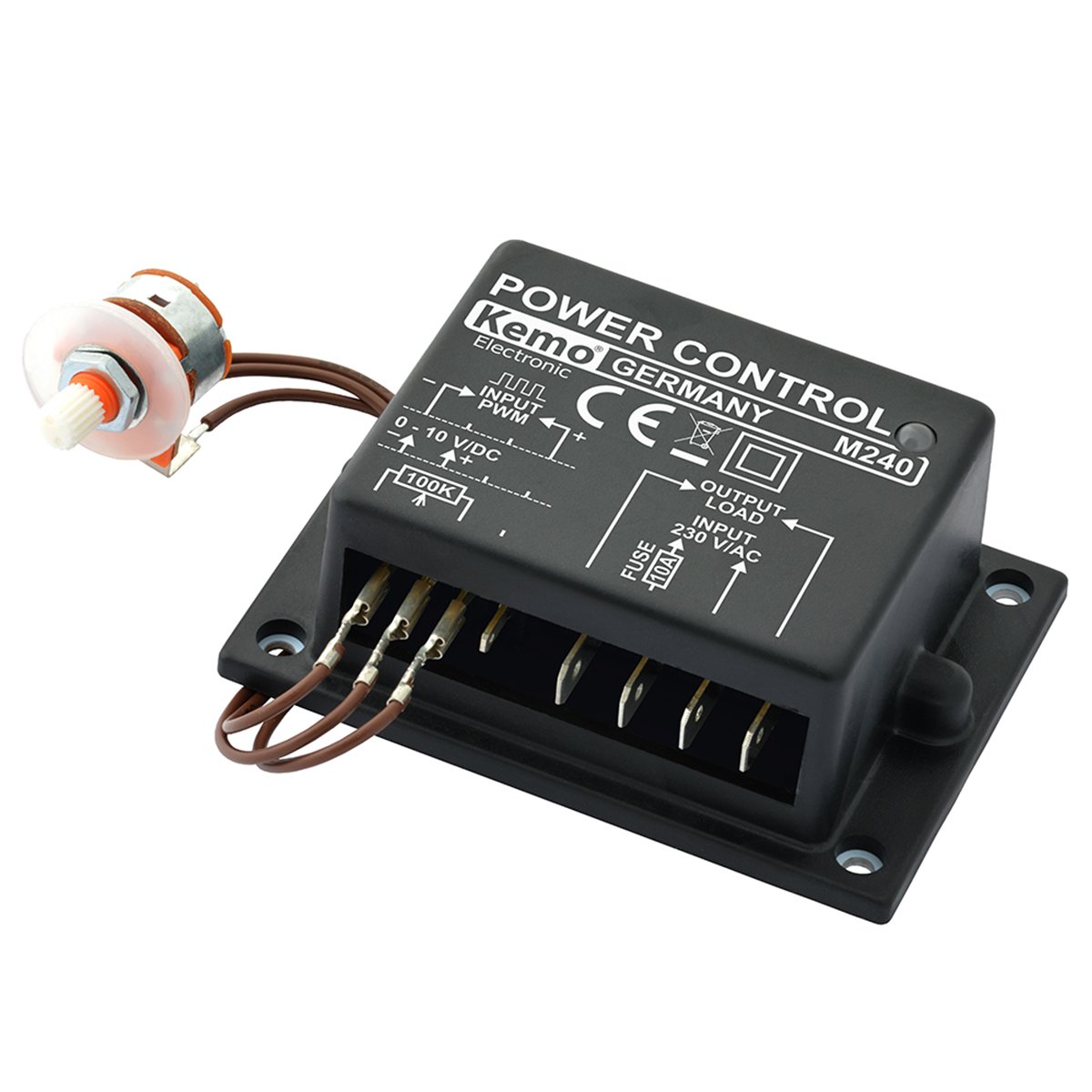

Kemo M240 Power Regulator 230 V/AC, 10 A, Multifunction
The Kemo M240 is a power controller for 230 V/AC consumers such as motors, lamps, many dimmable LEDs, etc. The controller is overload-proof and can be controlled via a potentiometer, a control voltage, or PWM signals.

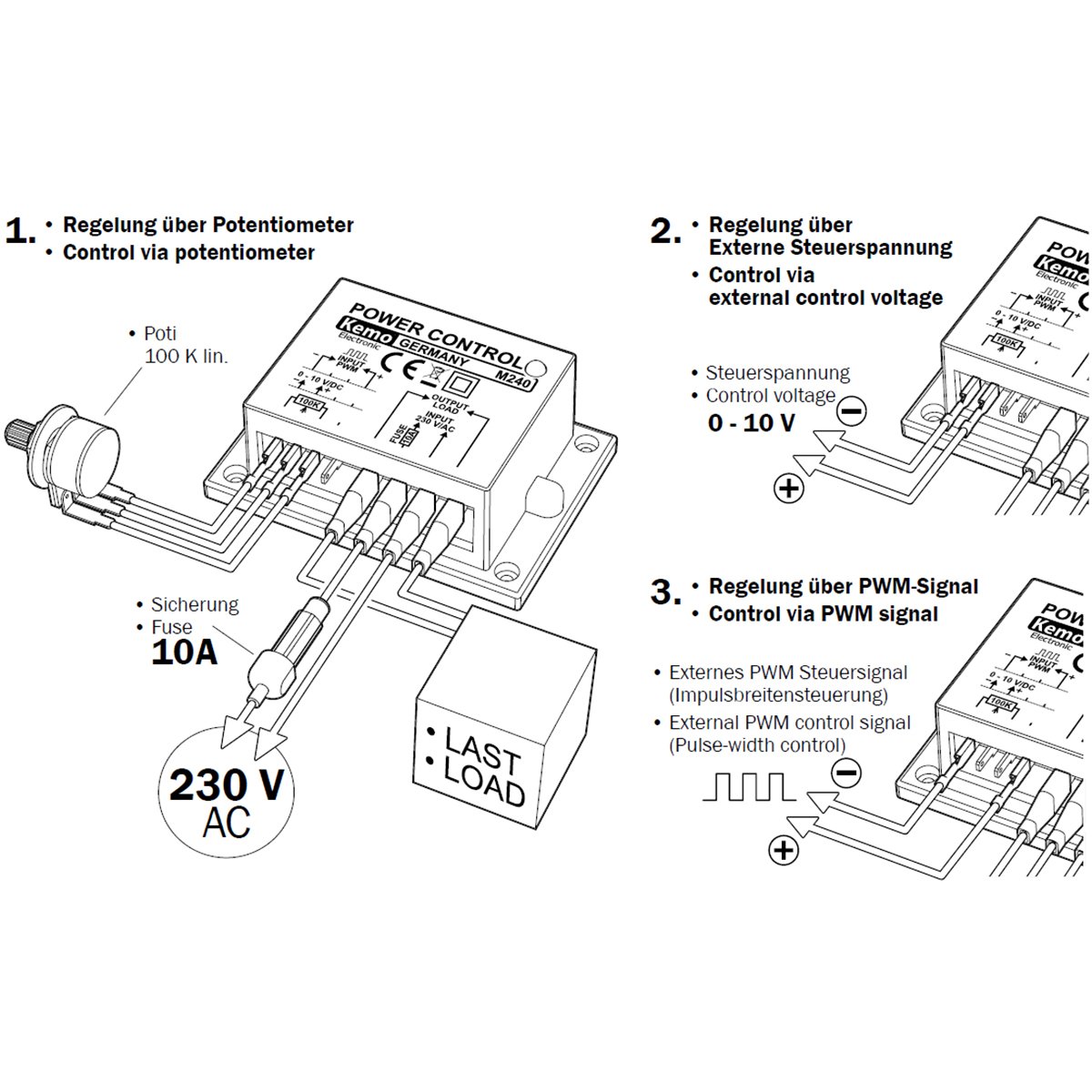

Control options
- Potentiometer 100 K lin
- Control voltage 0-10 V/DC
- PWM signal 3–24 V, 100–10,000 Hz
Technical data
- Operating voltage: 220-230 V/AC, 50-60 Hz
- Max. connectable load: 10A (2,300W)
- Control type: Phase angle control
- Switch-on: Soft start
- Operating indicator, overload indicator: 2-color LED
- Control signal input is completely isolated from the load control circuit
- Connections: Plug contacts, flat plugs 6.3 mm and 2.8 mm
- Dimensions: approx. 87 x 60 x 33 mm
Installation instructions:
The module must be installed in such a way that it is well ventilated (it may heat up depending on the load) and that it is isolated (no possibility of contact with fingers or other body parts. There are open connections that carry mains voltage). The module should be installed close to the device to be controlled (max. 2 m). The aluminum base plate of the module should not exceed 60°C. If the module is loaded with <800W, no additional heat sink is required. For loads between 800W and 2300W, the module with the aluminum base plate should be screwed onto a cooling surface. The module has 8 flat plugs for connection: 4 x 2.8mm flat plugs and 4 x 6.3mm flat plugs.
Scope of delivery:
1x Kemo M240 230V power controller
Manufactuerer Information
Kemo Electronic
Kemo-Electronic GmbH
Leher Landstr. 20
27607 Geestland
Germany
Mail: info@kemo-electronic.de
Tel.: +49 4743 93380
