Kemo master/slave switch 230 V/AC (400 V/AC)
Shipped in 1-3 Days (Mo-Fri)
€18.25*

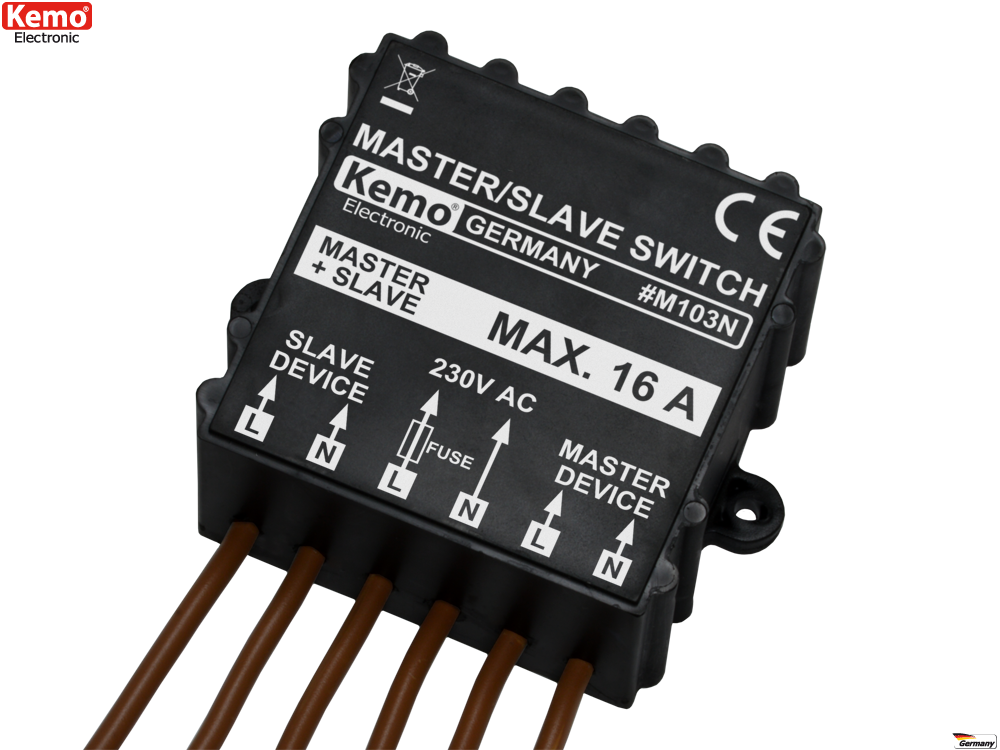

The Kemo Master/Slave (MPN M103N) automatically turns on another device when a machine, lamp, etc., is turned on. It can monitor single-phase or three-phase (three-wire) machines (by sampling one phase). On the output side, single-phase devices (e.g., vacuum cleaners) can be automatically turned on (or three-phase loads via an auxiliary relay, not included). Max. 15 A each, max. total power: 3600 W. Please refer to the connection example in the download.
Technical Specifications
- Operating voltage: 230 V AC
- Max. currents: 15 A for the master, 15 A for the slave; however, the total current must not exceed 16 A!
- Trigger current: The module trips at currents of approximately Ø 40 mA or less
- Operating temperature range: approx. –15 °C to +70 °C
- Switching function: 1 relay contact (ON), max. 16 A
- Power consumption: Module <0.5 W
- Dimensions: approx. 67 x 65 x 37 mm (without mounting brackets)
- Connection: via connection cable (single-core wires)
- Standards: EN 55014-1 : 2018-08 Emission, EN 55014-2 : 2016-01 Immunity, EN 61000-3-2 : 2019-02 Power-line harmonics, EN 61000-3-3 : 2020-07 Power-line fluctuations / flicker
Package Contents:
1x Kemo Master/Slave Switch
