Kiwigrid VoyagerX Home Energy Management System

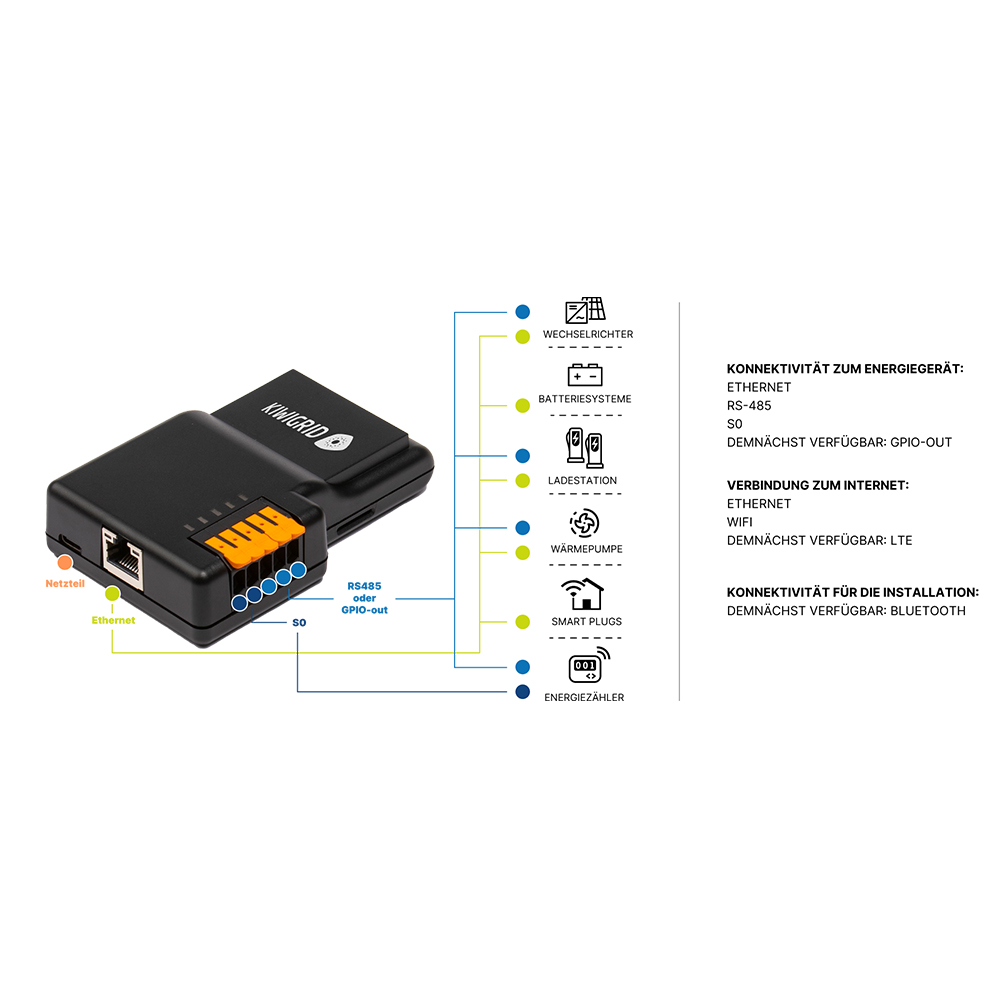

The VoyagerX Energy Manager from Kiwigrid (MPN: VoyagerX) is a compact and powerful device for modern energy management. It connects various energy devices—such as photovoltaic systems, battery storage units, wallboxes, heat pumps, and energy meters from different manufacturers—into a centrally controlled system. Unlike conventional gateways, it does not require complex mounting on a DIN rail inside the control cabinet; instead, it can be flexibly mounted directly on or next to the devices, even when space is limited. You can easily install it yourself, while qualified technicians can conveniently handle the configuration remotely. Thanks to numerous interfaces for wired and wireless connections—such as Ethernet, fieldbuses, Wi-Fi, Bluetooth, and LTE—as well as a powerful 4-core processor, the Energy Manager is ideally equipped for all current and future applications, including complex ones. At the same time, it serves as an interface between your energy systems and the KiwiOS Energy IoT platform, allowing you to control and monitor all devices centrally and efficiently.

Highlights of the Energy Manager

• 4-core processor – The gateway is as powerful as a modern smartphone. This makes it ideally suited for future applications in the Energy IoT (Internet of Things)
• High processing power— High performance and modern OSGI architecture enable parallel execution of applications, ensuring maximum use-case flexibility
• Energy Cost Optimization – By integrating dynamic electricity rates and strategically controlling high-power consumers, you can reduce your energy costs.
• Transparency Across All Devices – Inverters, heat pumps, battery storage systems, and wallboxes are seamlessly integrated. All data is clearly displayed.
• Smart Control – Set up custom control schedules for your devices and receive forecasts for optimal operation.
• Automatic maximization of self-consumption— Get the most out of your PV system. Storage systems and electric vehicles are charged intelligently.
• High level of security— featuring state-of-the-art methods for encrypting data transmission and authenticating users and devices
• Flexible installation— with screws or adhesive pads/magnets
• Made in Germany— A German company with servers in Frankfurt
• Wide compatibility— future-proof and manufacturer-independent complete system
• You can find a list of compatible devices—such as those from Haier, Growatt, go-e, SolaX, Pylontech, and many more— here
• You can find instructional videos for the Kiwigrid app here

What is a Home Energy Management System?

A home energy management system (HEMS) used in conjunction with the VoyagerX Energy Manager is a smart solution that allows you to centrally control and monitor all major energy-consuming devices in your home, such as your solar system, battery storage, heat pump, and electric vehicle charging station. The gateway connects these devices regardless of the manufacturer, collects all energy data in one place, and ensures that electricity is used optimally. This allows you to save energy, reduce costs, and easily manage your devices via the app or remotely.

Installation Type

Recommended: Wall mounting with the included screws
Alternatively: Using an adhesive pad or magnets on a suitable surface

The VoyagerX does not need to be mounted on a DIN rail in a control cabinet, which is usually crowded. There is also no need for complex cabling between the power equipment and the control cabinet. Instead, it can be flexibly mounted directly on the power equipment or on the wall. This allows power equipment to be placed in decentralized locations, which is particularly advantageous for existing systems or retrofits. Connecting the devices is straightforward, and configuration is particularly quick thanks to the user-friendly installation wizard.

Your financial incentive

Generate revenue by connecting to the energy market: ≈ €0.27 per day*
Reduce costs through ToU (Time of Use) rate optimization: ≈ €0.54 per day*
Take advantage of PV self-consumption optimization: ≈ €2.73 per day*
Transparency and cost awareness through real-time visualization: ≈ €1.36 per day*

• Average per day: 4.90 €
• Average per year: 1,800 €

*Potential savings calculated for a 9.1 kWp PV system at 30 cents/kWh

Technical Specifications

• Supply voltage: 230 V
• Min. power consumption: 2 W
• Max. power consumption: 10 W
• Mains frequency: 50 Hz
• Permissible ambient temperature: 0°C – +50°C
• Permissible relative humidity: 15–85% RH
• Housing material: Plastic (ABS)
• Protection rating: IP20
• Weight: 88 g
• Dimensions: 65 x 24 x 102 mm

Package contents

1x Energy Manager VoyagerX
1x USB-C power adapter (dimensions: 45 x 25 x 90 mm)
1x network cable – 50 cm
1x RS-485 cable, 3-wire, 50 cm
1x S0 cable, 2-wire, 50 cm
2x countersunk screws
1x adhesive pad
3x neodymium magnets
1x Quick Start Guide
