LAPP H07RN-F 4G70 Rubber-Insulated Cable, 4-Conductor, 70 mm², 450/750 V, Sold by the Meter

The LAPP H07RN-F 4G70 (MPN: 16001163) is a robust, four-conductor rubber-sheathed cable with a conductor cross-sectional area of 70 mm² per conductor. It is suitable for applications subject to high mechanical stress in dry and damp environments, as well as in protected outdoor settings. Thanks to its flexible design in accordance with EN 50525-2-21, the cable can be used for portable equipment, tools, machines, and other electrical equipment. The cable is rated for a nominal voltage of 450/750 V and features a durable rubber jacket that offers good resistance to mechanical stress and oil.

Robust rubber hose cable for demanding applications

• H07RN-F rubber-sheathed cable with 4 conductors, 70 mm² each
• Suitable for high mechanical stress in indoor and outdoor environments
• Flexible, fine-stranded copper conductors in accordance with IEC/EN 60228 Class 5
• Rated voltage 450/750 V
• Rubber-insulated conductors and durable rubber outer jacket
• Oil-resistant outer jacket in accordance with EN 50363-2-1
• Flame-retardant design in accordance with IEC 60332-1-2 / EN 60332-1-2
• Suitable for use in dry and damp environments as well as outdoors

For portable equipment and industrial applications

This cable is one of the classic rubber-sheathed cables for demanding installations and mobile applications. It is used wherever electrical equipment is regularly moved or exposed to mechanical stress. Typical applications include, for example, workshops, construction sites, agricultural operations, mobile machinery, power tools, or portable motors. The cable can also be used outdoors, provided that applicable installation regulations are followed.

Flexible conductor design for easy installation

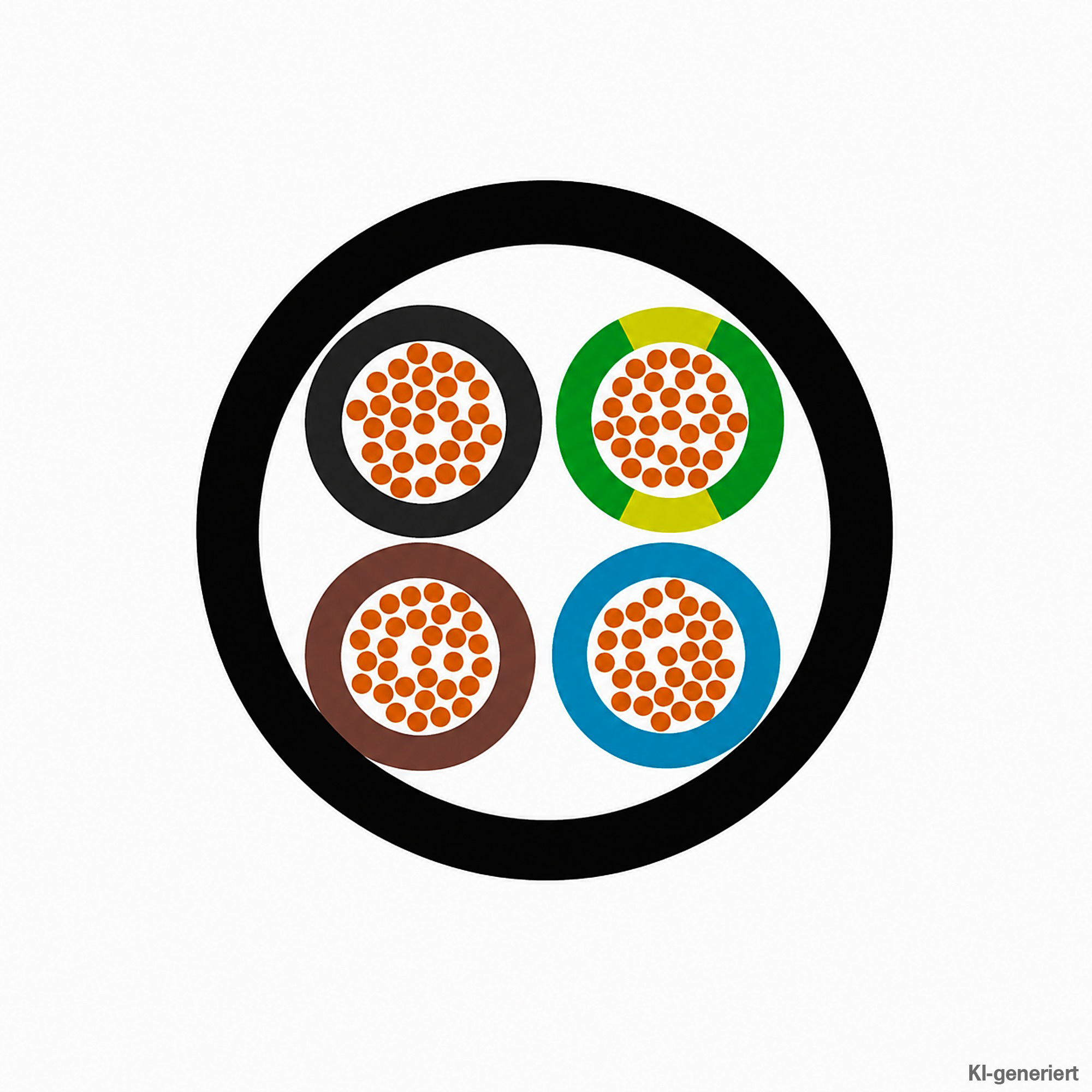

The cable features fine-stranded copper conductors of conductor class 5. Thanks to this flexible conductor design, the cable is easier to install than rigid installation cables and is particularly suitable for applications involving regular movement or frequent connection and disconnection of devices. The conductors are rubber-insulated and color-coded in accordance with applicable standards. The four-conductor version also includes an integrated green-yellow protective conductor.

Robust outer jacket for demanding operating conditions

The outer jacket consists of an EM2 rubber compound in accordance with EN 50363-2-1. This material reliably protects the cable from mechanical stress while also offering good oil resistance. In addition, the cable is flame-retardant, thereby meeting the requirements for safe use in industrial and commercial environments. The permissible temperature range is from -25 °C to +60 °C (maximum conductor temperature). The minimum bending radius is four times the outer diameter.

Installation Notes

The H07RN-F is not intended for continuous operational movement, forced guidance, or use on cable drums under constant tensile stress. Likewise, tensile loads exceeding 15 N/mm² of conductor cross-section are not permitted. For fixed installations, the applicable installation regulations, particularly VDE 0100-520, must be observed.

Technical Data

• Cable Type: H07RN-F
• Configuration: 4G70
• Conductors: fine-stranded copper strands in accordance with IEC/EN 60228, Class 5
• Number of conductors: 4
• Conductor cross-sectional area: 70 mm²
• Conductor insulation: EI4 rubber compound per EN 50363-1
• Outer sheath: EM2 rubber compound per EN 50363-2-1
• Rated voltage: U₀/U 450/750 V
• Test voltage: 2,500 V AC
• Temperature range: -25 °C to +60 °C
• Minimum bending radius: 4 × outer diameter
• Flame resistance: IEC 60332-1-2 / EN 60332-1-2
• Oil-resistant in accordance with EN 50363-2-1
• Standard: EN 50525-2-21
• EU Directives: 2014/35/EU (Low Voltage), 2011/65/EU (RoHS)

Contents

1x LAPP H07RN-F 4G70 rubber-sheathed cable (sold by the meter)
