LAPP ÖLFLEX CLASSIC 110 3G2.5 BK Control Cable 300/500 V, Sold by the Meter

The LAPP ÖLFLEX® CLASSIC 110 3G2.5 BK (1119885) is an unshielded PVC connection and control cable designed for fixed installation and occasionally flexible applications involving moderate mechanical stress. It features three fine-stranded copper conductors with a cross-sectional area of 2.5 mm², including a protective ground conductor, and is rated for 300/500 V. The black, oil- and UV-resistant PVC outer jacket is suitable for applications in mechanical and plant engineering as well as in measurement, regulation, and control technology. It is supplied by the meter in the ordered length.

ÖLFLEX CLASSIC 110 3G2.5 BK Control Cable

• 3 conductors, each with a cross-sectional area of 2.5 mm²
• Green-yellow protective conductor
• Class 5 fine-stranded copper conductors
• Rated voltage: 300/500 V
• Unshielded version
• Black, oil- and UV-resistant PVC outer jacket
• VDE-registered under VDE-REG 7030
• Flame-retardant according to IEC 60332-1-2 and EN 60332-1-2
• For fixed and occasionally moving installations
• Suitable for use within defined operating limits in drag chains and torsional applications

For machines, systems, and control technology

The ÖLFLEX CLASSIC 110 is suitable as a connection and interconnecting cable for control systems in machine tools, production facilities, conveyor systems, and assembly lines. Additional applications include measurement and control technology. With an outer diameter of 8.1 mm, the cable can be installed in a compact manner.

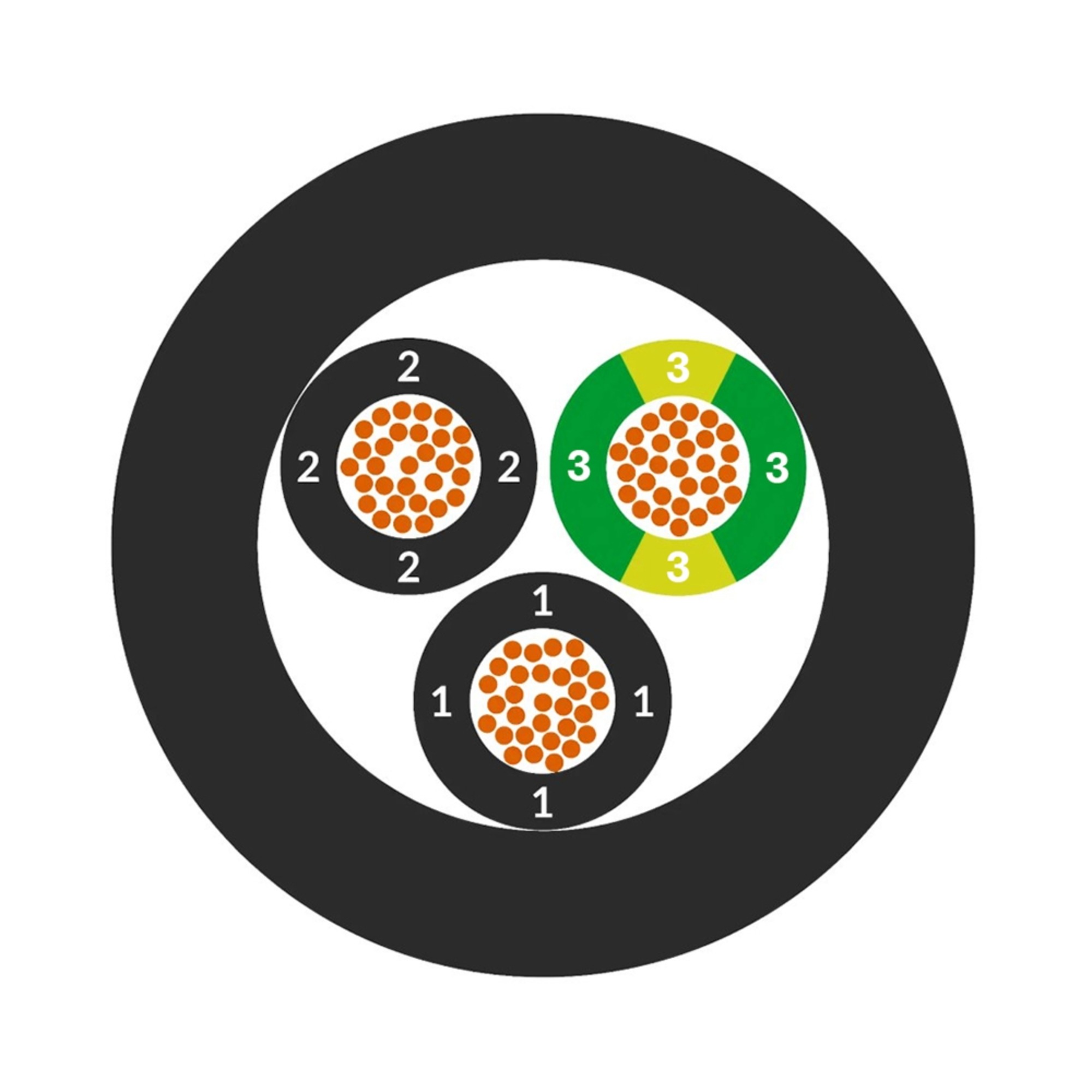

3G2.5 with integrated ground wire

The designation 3G2.5 stands for three conductors, each with a cross-sectional area of 2.5 mm², including a green-yellow protective conductor. The other conductors are black and marked with white numbers. Class 5 fine-stranded copper conductors allow for both fixed installation and occasional flexible applications.

Oil- and UV-resistant PVC outer jacket

The black PVC outer jacket is oil- and UV-resistant and, at room temperature, largely resistant to acids, alkalis, and certain oils. For fixed installation, the specified temperature range is -40 to +80 °C; for occasional movement, it is -15 to +70 °C. Within the defined operating conditions, the cable can also be used in drag chains and for torsional applications.

Technical Data

• Product Type: Connection and control cable
• Model: 3G2.5
• Number of conductors: 3
• Nominal conductor cross-section: 2.5 mm²
• Protective conductor: Yes, green-yellow
• Conductors: bare copper, fine-stranded
• Conductor class: Class 5 per IEC/EN 60228
• Conductor insulation: PVC compound TI2
• Outer jacket: PVC compound TM2
• Sheath color: Black, similar to RAL 9005
• Conductor marking: black conductors with white numbers, protective conductor green-yellow
• Shielding: unshielded

• Rated voltage: 300/500 V
• Test voltage (conductor to conductor): 4,000 V AC
• Maximum conductor resistance at 20 °C: 7.98 Ω/km

• Nominal outer diameter: 8.1 mm
• Minimum bending radius, permanently installed: 4 × outer diameter
• Minimum bending radius, for occasional movement: 10 × outer diameter
• Temperature range, permanently installed: -40 to +80 °C
• Temperature range, for cables subject to occasional movement: -15 to +70 °C
• Flame resistance: IEC 60332-1-2 / EN 60332-1-2
• Oil resistance: EN 50290-2-22 TM54
• VDE registration: VDE-REG 7030

Scope of delivery

1 × LAPP ÖLFLEX® CLASSIC 110 3G2.5 BK in the ordered length
