LAPP UNITRONIC LiYY 0028310 10x0.25 Data Cable, 10-conductor, 0.25 mm², sold by the meter

The LAPP UNITRONIC LiYY 10x0.25 (MPN: 0028310) is a flexible, 10-conductor low-frequency data cable with a conductor cross-sectional area of 0.25 mm² per conductor. It is designed for the transmission of data and signals at machine interfaces, as well as for control, regulation, and measurement circuits. The fine-stranded bare copper conductors and the flexible PVC construction allow for both fixed installation and applications involving occasional movement. The individual wires are identified by their colors in accordance with DIN 47100. The cable is intended for use in dry and damp environments.

Versatile 10-conductor data cable for signal and control circuits

• 10 conductors, each with a cross-sectional area of 0.25 mm²
• For data and signal transmission in the low-frequency range
• Suitable for control, regulation, and measurement circuits
• Fine-stranded conductors made of bare copper
• Designed for fixed installation and occasional movement
• PVC conductor insulation and flexible PVC outer jacket
• Conductor identification via color code in accordance with DIN 47100
• Unshielded cable construction
• Nominal outer diameter of 6.8 mm
• Suitable for use in dry and damp environments
• Flame-retardant per IEC 60332-1-2
• CPR fire class Eca
• LABS-free according to VDMA 24364-B2-L
• CE-marked and EAC-certified

Data and signal transmission in the low-frequency range

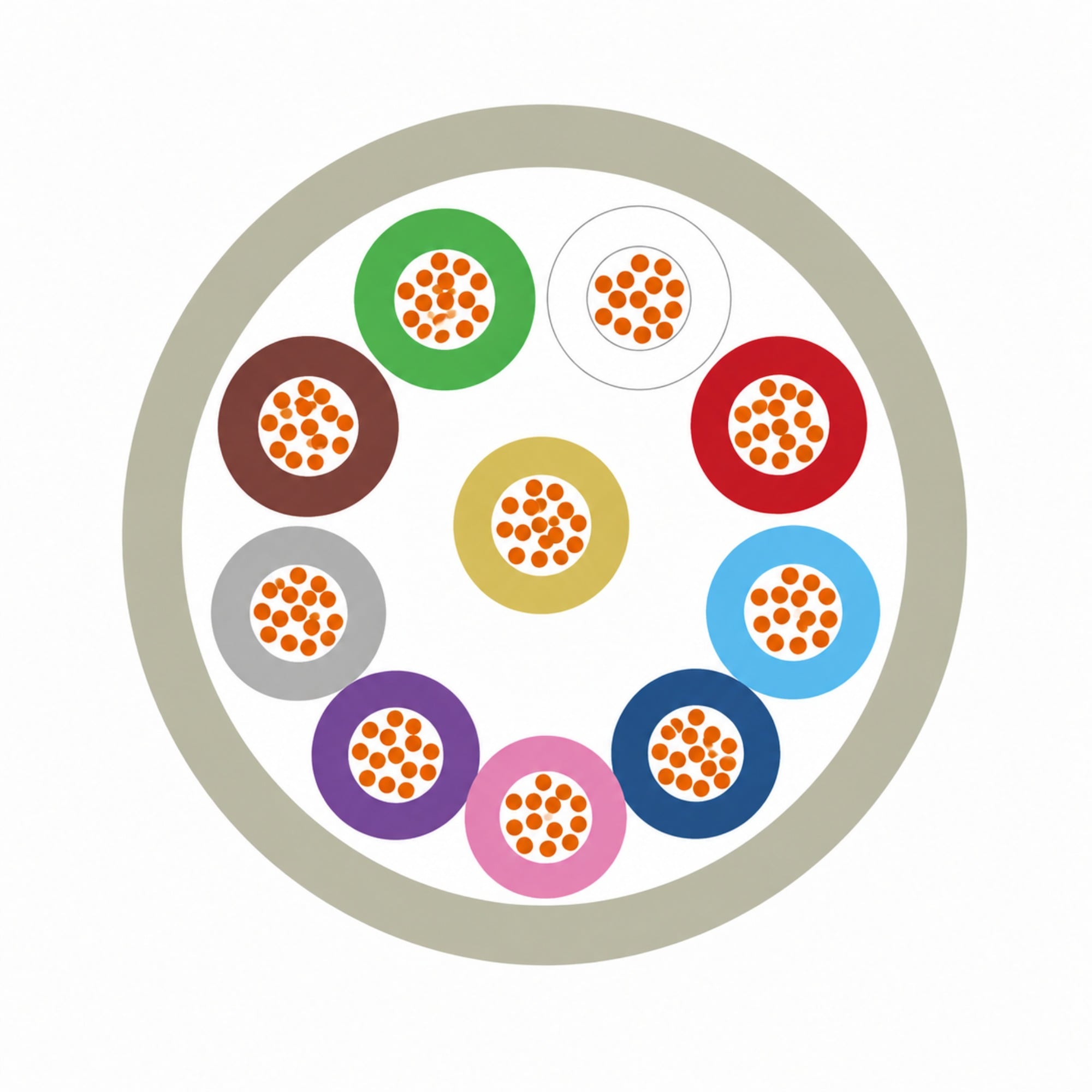

The UNITRONIC LiYY series from LAPP is specifically designed for low-frequency data and signal applications. Typical areas of application include machine interfaces as well as control, regulation, and measurement circuits. It is also intended for use in computer systems, measurement and control technology, office equipment, and scales. With a total of ten conductors, the 0028310 variant allows multiple signals to be transmitted through a single cable. Each conductor has a cross-sectional area of 0.25 mm². The conductors are stranded in layers and can be distinguished by their colors in accordance with DIN 47100, which simplifies the assignment of individual conductors during installation and connection. The product-specific specifications on page 3 of the current product information confirm the 10-conductor configuration and a nominal outer diameter of 6.8 mm.

Flexible PVC construction for various installation methods

The ten conductors consist of fine-stranded, bare copper. Polyvinyl chloride (PVC) is used for both the conductor insulation and the gray outer jacket. A protective conductor is not included. Additionally, the UNITRONIC LiYY 10x0.25 is unshielded, which should be taken into account when selecting it for applications with specific requirements regarding electromagnetic interference. The flexible construction allows for both fixed installation and occasional movement. For fixed installation, the minimum bending radius is four times the outer diameter, or 27.2 mm. For applications involving occasional movement, a minimum of ten times the outer diameter, or 68 mm, must be maintained.

Specified Temperature Ranges and Flame-Retardant Design

For permanent installation, the UNITRONIC LiYY 10x0.25 is rated for temperatures ranging from -40 °C to +80 °C. For applications involving occasional movement, the specified temperature range is -5 °C to +70 °C. Thus, the cable covers a variety of operating conditions within suitable installation environments. The cable is flame-retardant in accordance with IEC 60332-1-2 and is classified as CPR fire class Eca. The cable also bears the CE marking and has EAC certification. However, a flame-retardancy test according to UN/ECE-R118 is expressly indicated as “No” for variant 0028310.

Important Selection Notes

The data cable is not UV-resistant, not oil-resistant, and not halogen-free. For outdoor use, oil-contaminated environments, or applications requiring halogen-free cables, a suitably designed alternative should therefore be selected. This version also lacks shielding. Before use, you should therefore verify whether the specific application requires a shielded data cable.

Technical Specifications

• Number of conductors: 10
• Nominal conductor cross-section: 0.25 mm²
• Conductor material: bare copper
• Conductor construction: fine-stranded
• Nominal outer diameter: 6.8 mm
• Conductor insulation material: PVC
• Outer sheath material: PVC
• Outer jacket color: gray
• Conductor identification: Colors
• Conductor color code: DIN 47100
• Test voltage: 1.5 kV
• Max. conductor resistance at 20 °C: 79 Ω/km
• Operating capacitance (conductor-to-conductor) at 800 Hz, approx.: 108 nF/km
• Inductance at 800 Hz, approx.: 0.725 mH/km
• Minimum bending radius, permanently installed: 4 x outer diameter / 27.2 mm
• Minimum bending radius, for cables moved occasionally: 10 × outer diameter / 68 mm
• Temperature range, permanently installed: -40 °C to +80 °C (max. conductor temperature)
• Temperature range, for cables that are occasionally moved: -5 °C to +70 °C (max. conductor temperature)
• Weight: 58 kg/km
• Copper content: 24 kg/km

Scope of delivery

LAPP UNITRONIC LiYY 10x0.25 data cable - sold by the meter
