LAPP UNITRONIC LiYY 0028404 4x0.34 Data Cable, 4-Conductor, 0.34 mm², Sold by the Meter

The LAPP UNITRONIC LiYY 4x0.34 (MPN: 0028404) is a flexible, 4-conductor low-frequency data cable with a conductor cross-sectional area of 0.34 mm² per conductor. It is designed for the transmission of data and signals at machine interfaces, as well as for control, regulation, and measurement circuits. Fine-stranded bare copper conductors and the flexible PVC construction allow for both fixed installation and applications involving occasional movement. The individual wires are color-coded according to DIN 47100. The cable is intended for use in dry and damp environments.

Flexible data cable for control, measurement, and signal applications

• 4 conductors, each with a cross-sectional area of 0.34 mm²
• For data and signal transmission in the low-frequency range
• Suitable for use in control, regulation, and measurement circuits
• Fine-stranded conductors made of bare copper
• Suitable for fixed installation and occasional movement
• PVC conductor insulation and flexible PVC outer jacket
• Conductor identification via color code in accordance with DIN 47100
• Compact nominal outer diameter of 4.8 mm
• Intended for use in dry and damp environments
• Flame-retardant per IEC 60332-1-2
• CPR fire class Eca
• LABS-free in accordance with VDMA 24364-B2-L
• CE-marked and EAC-certified

Data transmission for machinery and control systems

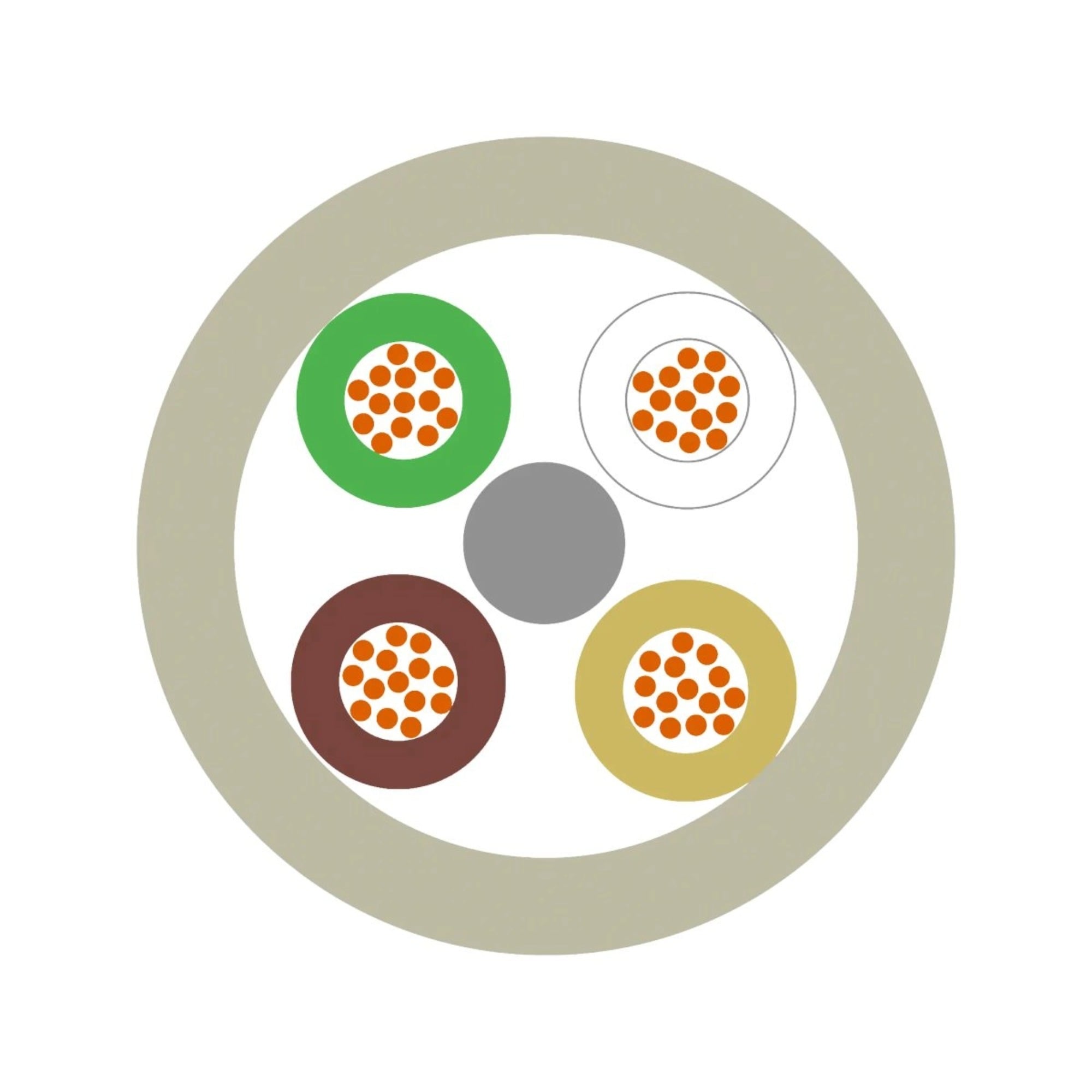

The UNITRONIC LiYY series from LAPP is designed for low-frequency data and signal applications. Machine interfaces, as well as control, regulation, and measurement circuits, are considered primary areas of application. Applications in, for example, computing systems, measurement and control technology, office equipment, and scales are also intended. The 0028404 version combines four conductors, each with a cross-sectional area of 0.34 mm², in a round, unshielded cable with a nominal outer diameter of 4.8 mm. Color coding in accordance with DIN 47100 allows the individual conductors to be clearly distinguished during connection and installation. The fine-stranded conductor construction also facilitates flexible handling during installation.

For fixed installation and occasional movement

The construction, consisting of fine-stranded copper conductors, PVC conductor insulation, and a PVC outer jacket, allows for various installation methods. The cable can be installed in a fixed layout or used in applications involving occasional movement. Depending on the installation method, different minimum bending radii must be observed. For fixed installation, the specified minimum bending radius is four times the outer diameter, or 19.2 mm. For applications involving occasional movement, the minimum bending radius is ten times the outer diameter, or 48 mm.

PVC Construction and Specified Operating Conditions

Both the insulation of the individual conductors and the gray outer jacket are made of polyvinyl chloride (PVC). This version does not include a ground conductor. Furthermore, it is an unshielded data cable. These characteristics should be taken into account, particularly when selecting cables for environments prone to interference. For fixed installation, the specified temperature range is -40 °C to +80 °C. For applications involving occasional movement, the permissible range is -5 °C to +70 °C. The cable is flame-retardant in accordance with IEC 60332-1-2 and is classified as CPR fire class Eca.

Important Selection Notes

The data cable is not UV-resistant, not oil-resistant, and not halogen-free. Accordingly, it should be verified prior to use whether the respective environmental conditions require these properties. For outdoor applications or in areas with corresponding chemical, thermal, or electromagnetic requirements, a cable with different specifications may be necessary. The cable is intended for the transmission of data and signals.

Technical Specifications

• Number of conductors: 4
• Nominal conductor cross-section: 0.34 mm²
• Conductor material: bare copper
• Conductor construction: fine-stranded
• Nominal outer diameter: 4.8 mm
• Conductor insulation material: PVC
• Outer sheath material: PVC
• Outer jacket color: gray
• Conductor identification: Colors
• Conductor color code: DIN 47100
• Test voltage: 1.5 kV
• Max. conductor resistance at 20 °C: 57 Ω/km
• Operating capacitance (conductor-to-conductor) at 800 Hz, approx.: 95 nF/km
• Minimum bending radius, permanently installed: 4 x outer diameter / 19.2 mm
• Minimum bending radius, for cables moved occasionally: 10 × outer diameter / 48 mm
• Temperature range, permanently installed: -40 °C to +80 °C (max. conductor temperature)
• Temperature range, for cables moved occasionally: -5 °C to +70 °C (max. conductor temperature)
• Weight: 43 kg/km
• Copper content: 13.1 kg/km

Scope of delivery

LAPP UNITRONIC LiYY 4x0.34 data cable - sold by the meter
