Offgridtec 1 m 4 mm² professional connection cable for solar module to solar charge controller
Shipped in 1-3 days
€4.19*
€3.52**

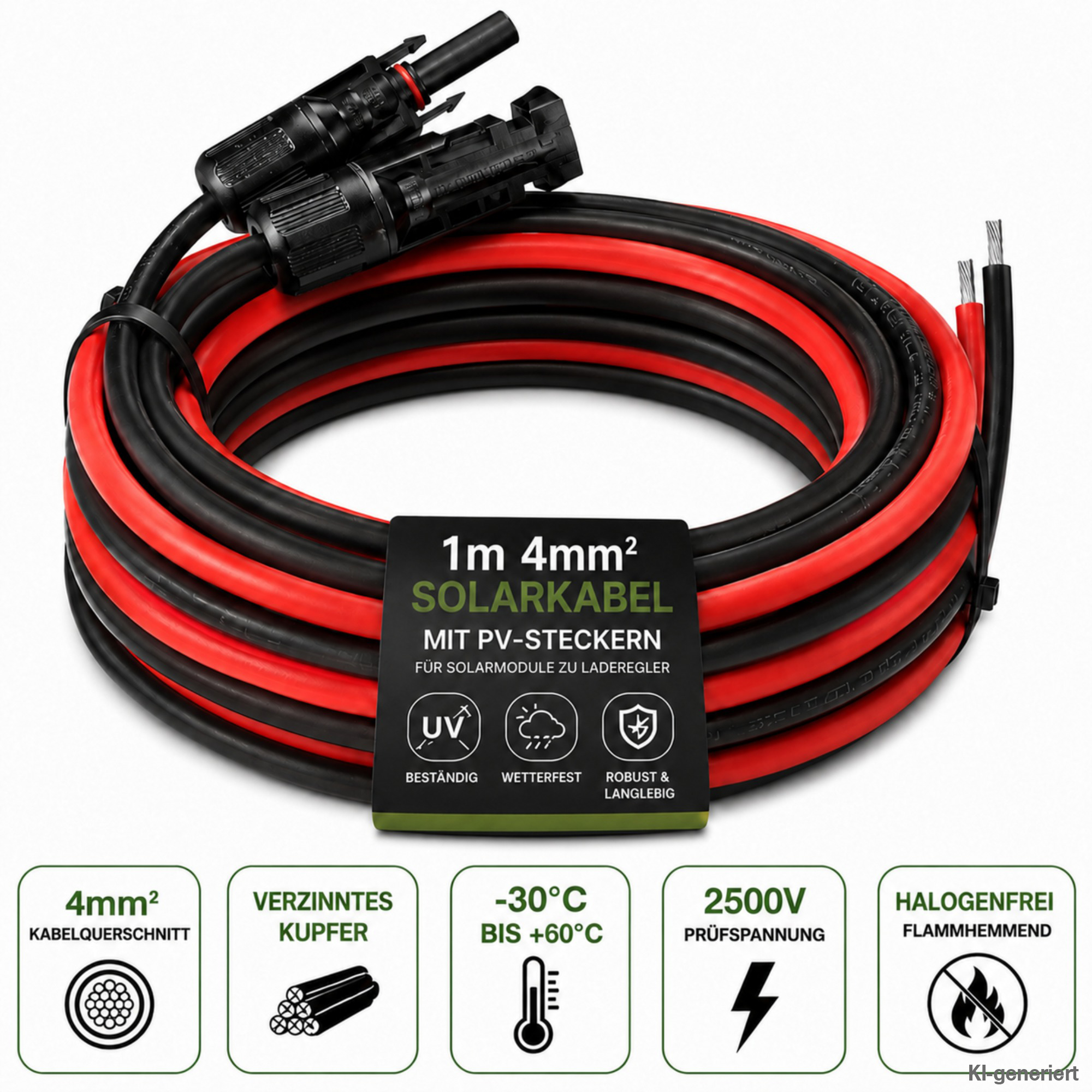

This 2-wire solar cable professionally connects the solar charge controller to the solar modules in a solar system. On the module side, the cable has original Multi-Contact MC4 connectors, and on the charge controller side, the cable ends are cut for easy removal of the sheath and exposure of the bare wire. The cable can be connected to any charge controller with a suitable connector (min. 4mm²). Most 12V modules have MC-4 connectors. If your module has different connectors, you will find the appropriate adapters in our shop.
All components have been crimped with specialist tools and offer optimum connection quality. The cable is manufactured at our factory in Lower Bavaria.

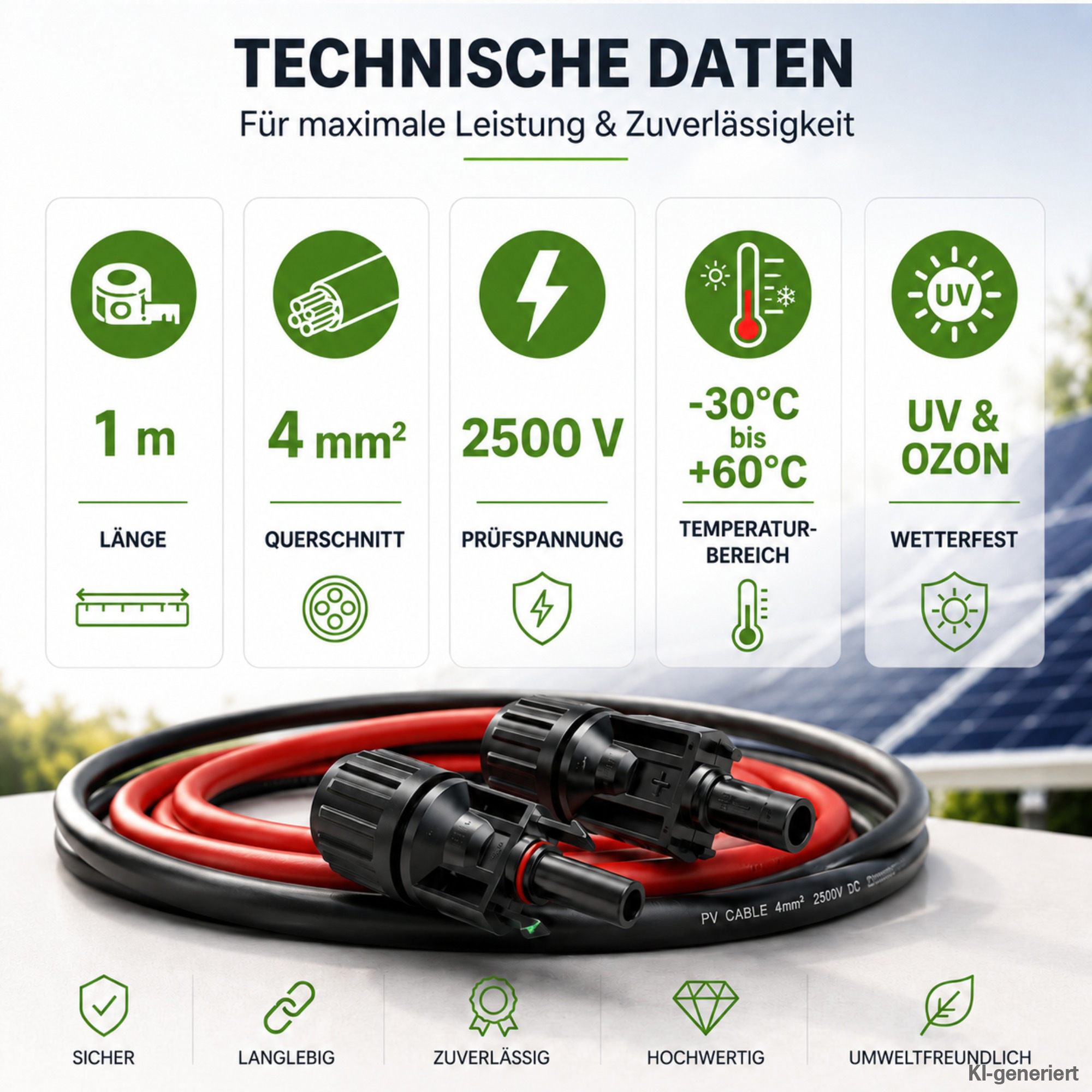

Solar cable properties
- 4mm² cable cross-section
- double insulated
- highly flexible
- VDE 0295 class 5 and IEC 60228
- resistant to: UV, ozone, weather, water
- highly resistant to chemicals and oil Fire resistant according to VDE 0482-332-2
Properties of MC-4 plug & socket
-touch protection, unplugged IP2X
- Protection class, plugged in IP67
- Operating temperature range -40°C to 90°C
- Insulation material PA
- Locking system Snap-in
- Cable strain relief according to IEC 61984
- Contact system MC contact lamellae
- Contact material Copper, tin-plated
- Flame class UL94-V0
- Protection class II
- System voltage up to 1000V
- Rated current up to
- Properties of wire end sleeves
- Material: Copper / Tin
Length: 1 m
