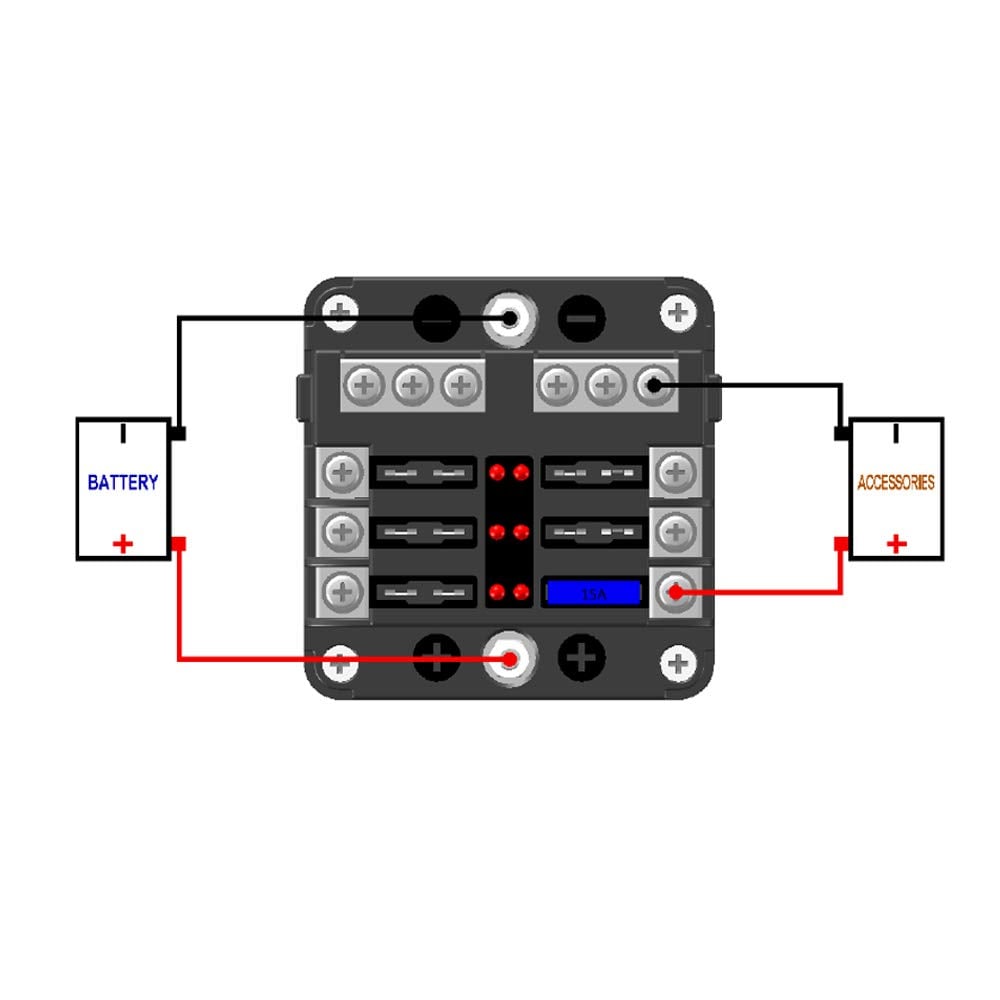

The 6-way fuse holder from Offgridtec (mpn 012826) provides professional distribution and fusing of small and medium loads. It consolidates branch circuits and eliminates the clutter of in-line fuses for electronics and other equipment. Includes flat fuses from 5a-20a, nameplates and screws for mounting, in addition to the 6-pin fuse holder. The fuse holder is made of environmentally friendly PBT material with high mechanical strength, insulation, heat resistance and flame retardance

Flat fuses

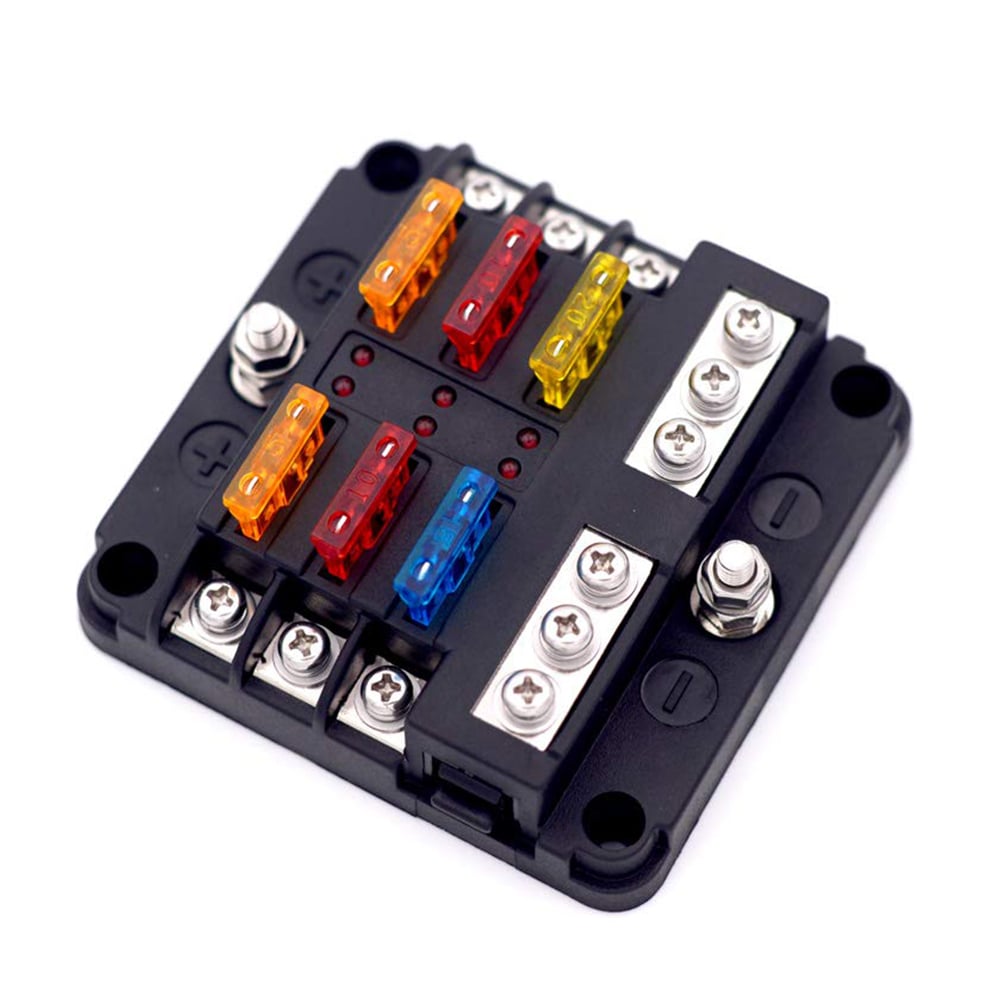

The fuse holder contains 12 flat fuses, of which 2x 5a, 2x 10a, 4x 15a, and 4x 20a. The fuses meet the high Offgridtec quality standards, have a long service life and offer a wide acceptable temperature range. The included multi-function labels make it very easy to identify and connect the connected wires. The integrated led indicators provide additional protection. When a fuse blows, the red led lights up immediately and you can quickly identify the fault and fix it right away.

High quality workmanship

The fuse holder is well protected by the clip-lock protective cover. The insulating cover with push-latch system can be easily opened by pressing. The transparent design provides additional protection for your blade fuses. The holder is made of eco-friendly PBT material with high mechanical strength, insulation, heat resistance and flame retardant. Problems such as cracks, deformation, burns or short circuits hardly occur.

Mounting

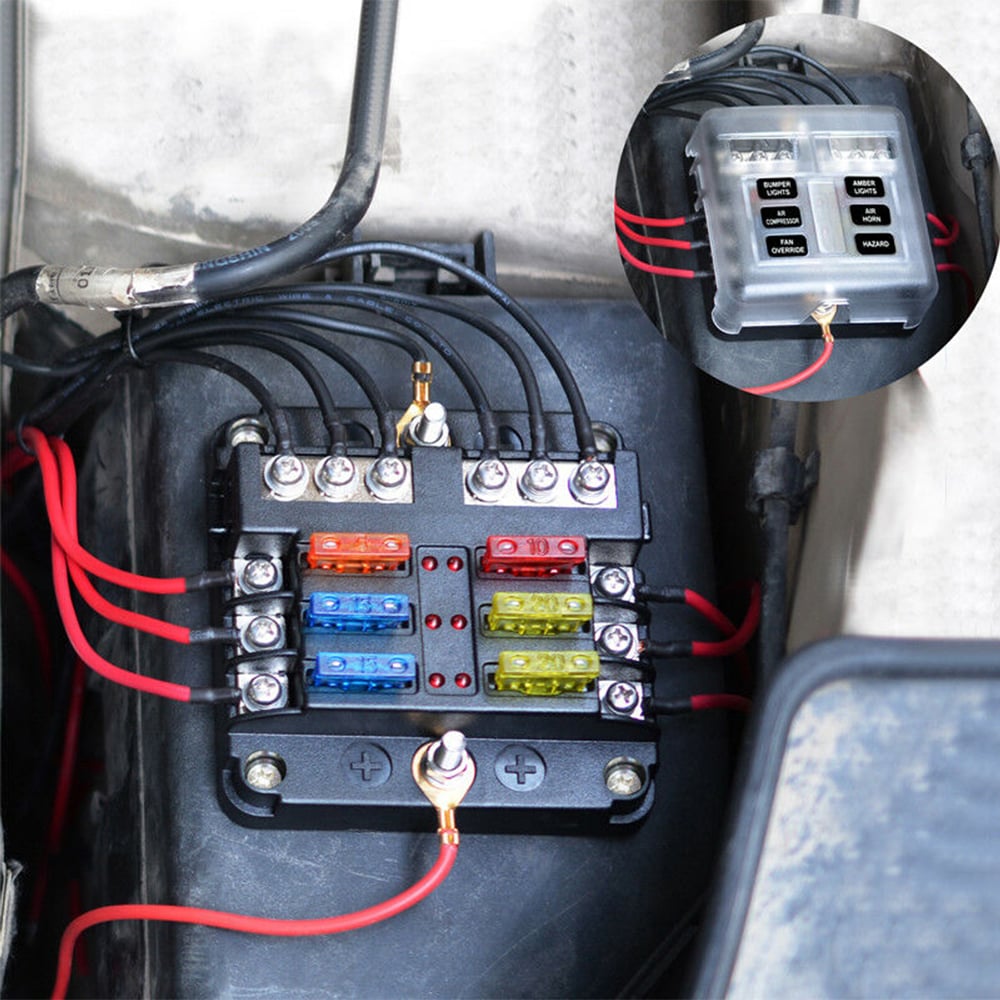

The set also includes four stainless steel screws. These sturdy screws are corrosion resistant and ensure a long and safe installation. The input and output connections of the fuse holder are fixed with quick mounting screws and the fuse box is fixed with the stainless steel screws, which makes the installation easier and safer.

Technical data

  • Weight: 176g

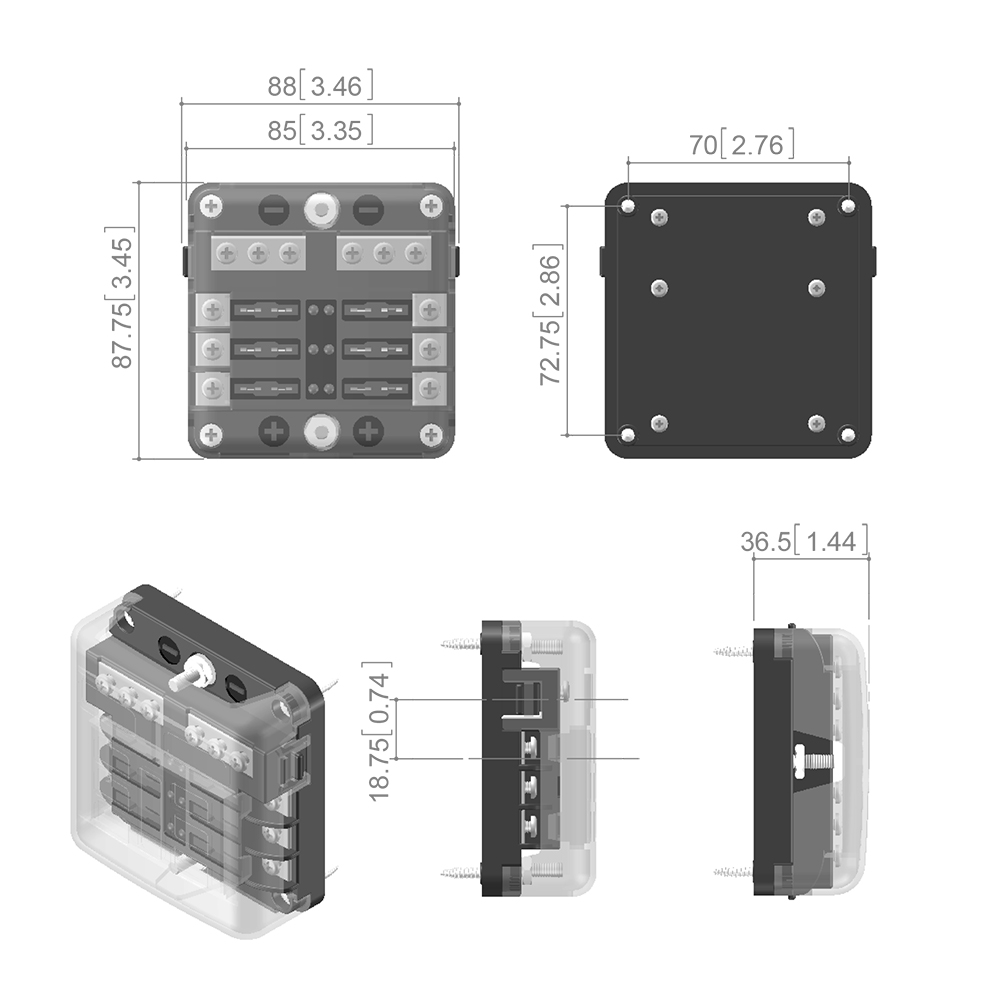

  • Dimensions: 87.75 x 85 x 36.5 mm
  • Input voltage: 12v-32v DC
  • Input current: 100A
  • Rated power output terminals: max. 30a per circuit
  • Number of circuits/fuse slots: 6
  • Main line connection: M5 grub screw
  • Main wire: 4-6AWG
  • Single line connection: m4 threaded stud
  • Single line: 12-16AWG
  • Working temperature: -30°C - +85°C

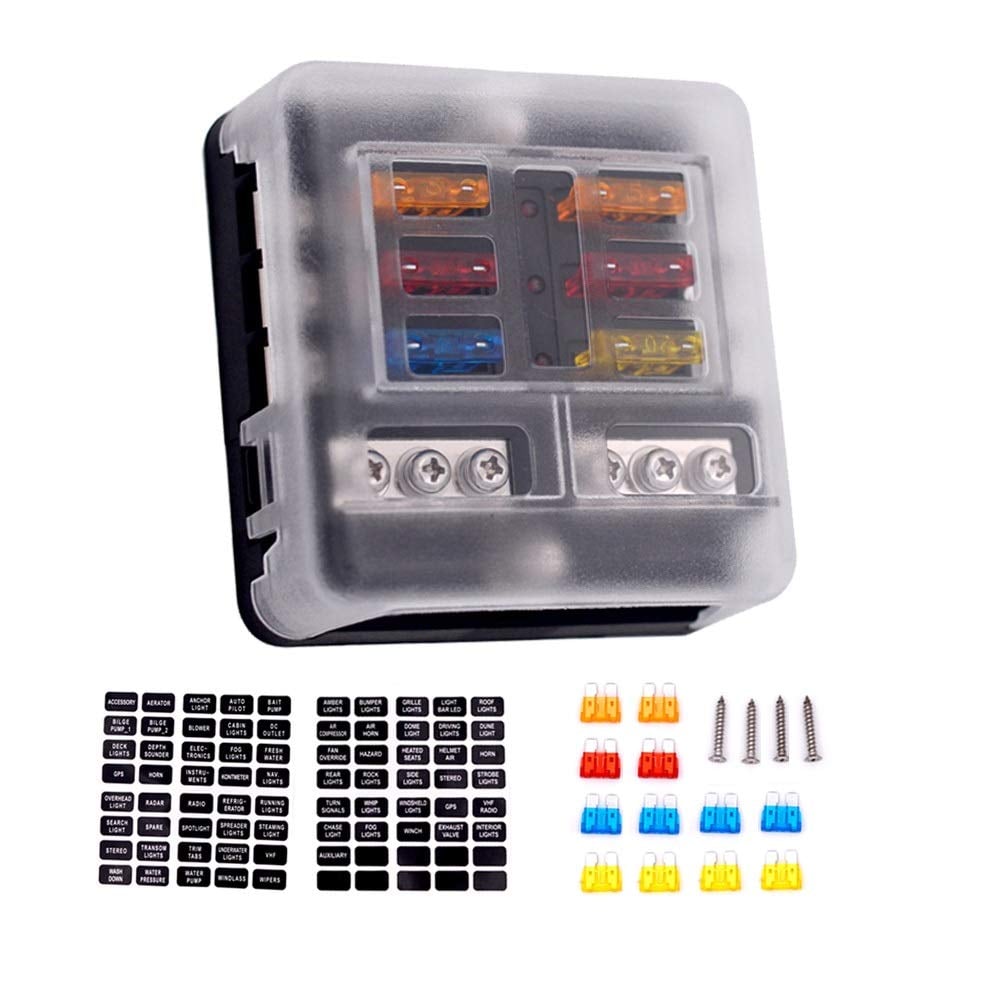

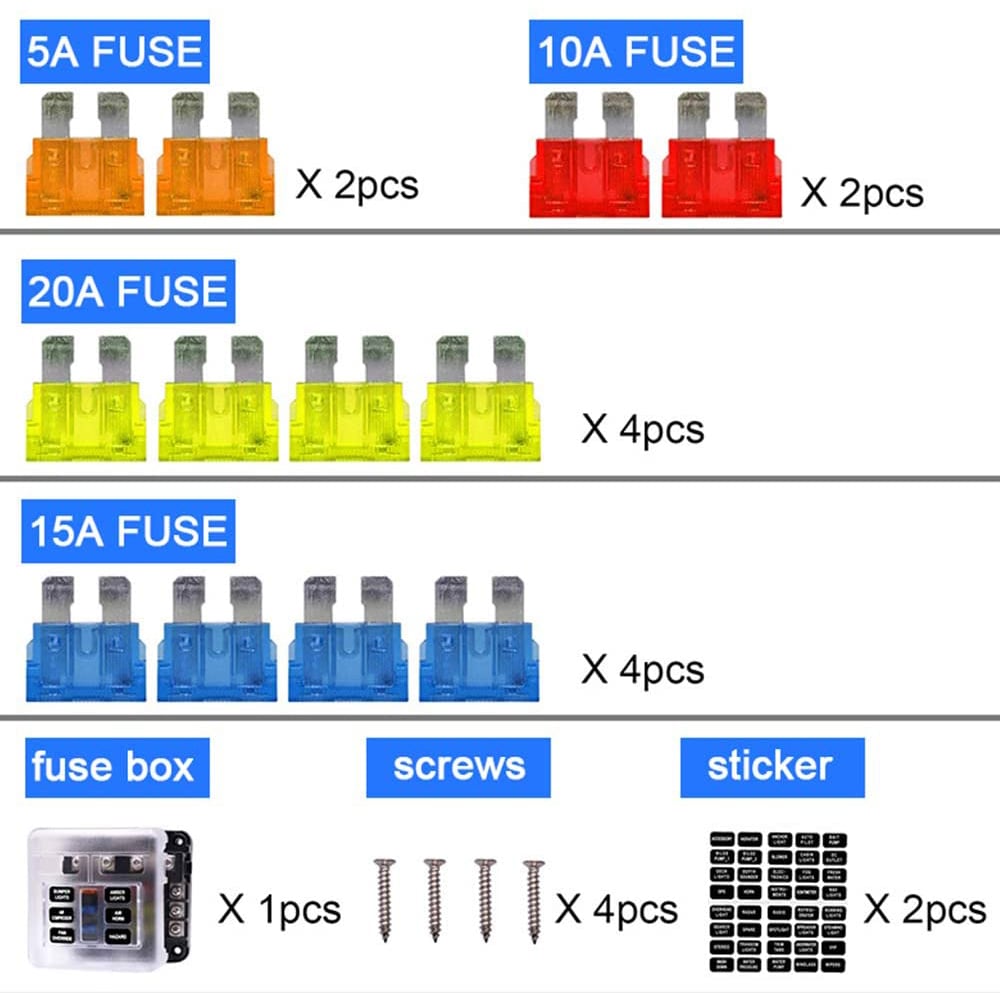

Scope of delivery:

1x 6-pole fuse holder
2x 5a fuse sheet orange
2x 10a fuse blade red
4x 15a fuse blade blue
4x 20a fuse sheet yellow
2x sticker
4x screws

Dimensions: 88 x 85 x 37 mm
Manufacturer: Offgridtec
Weight: 0,17 KG
ean: 4250983259544
mpn: 012826
