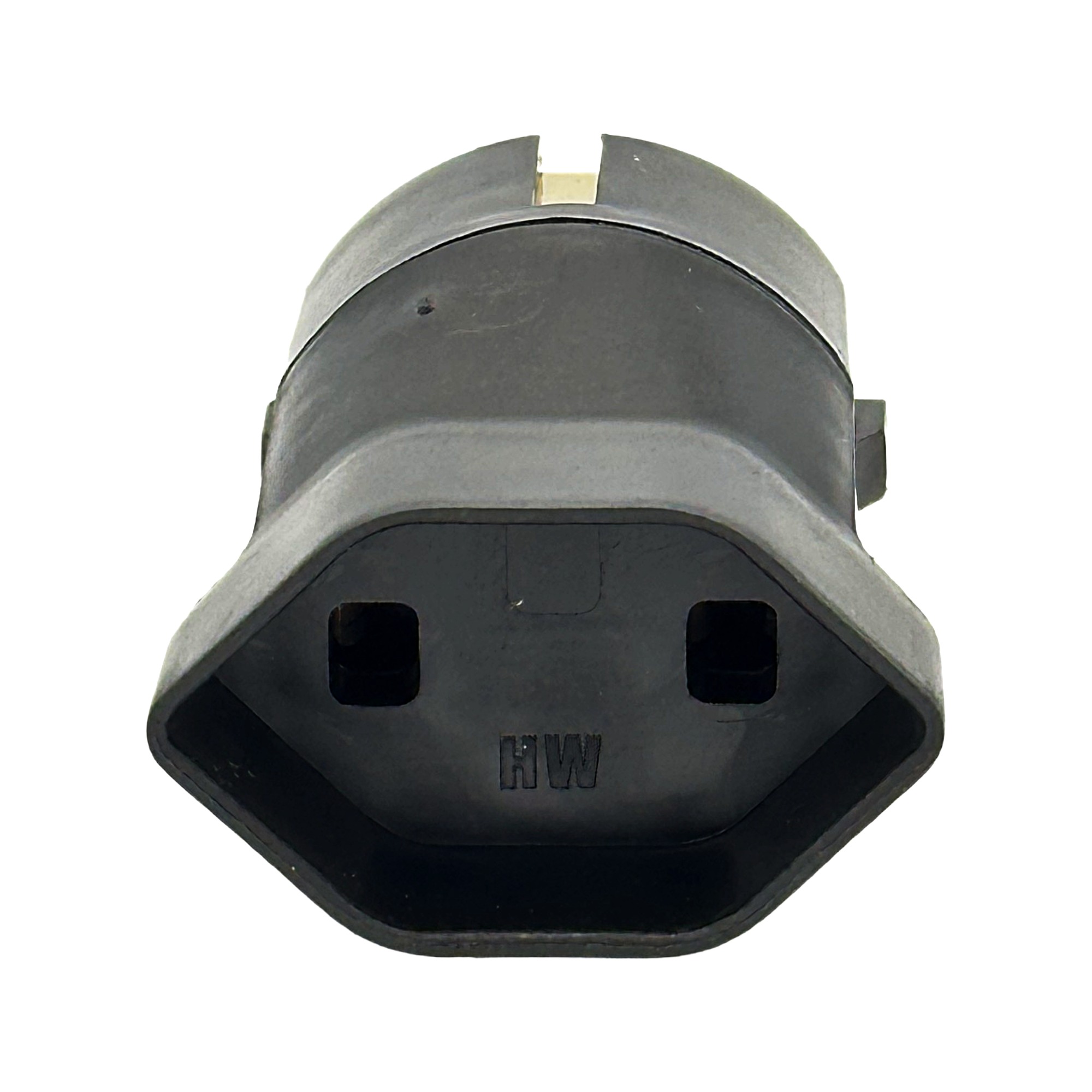

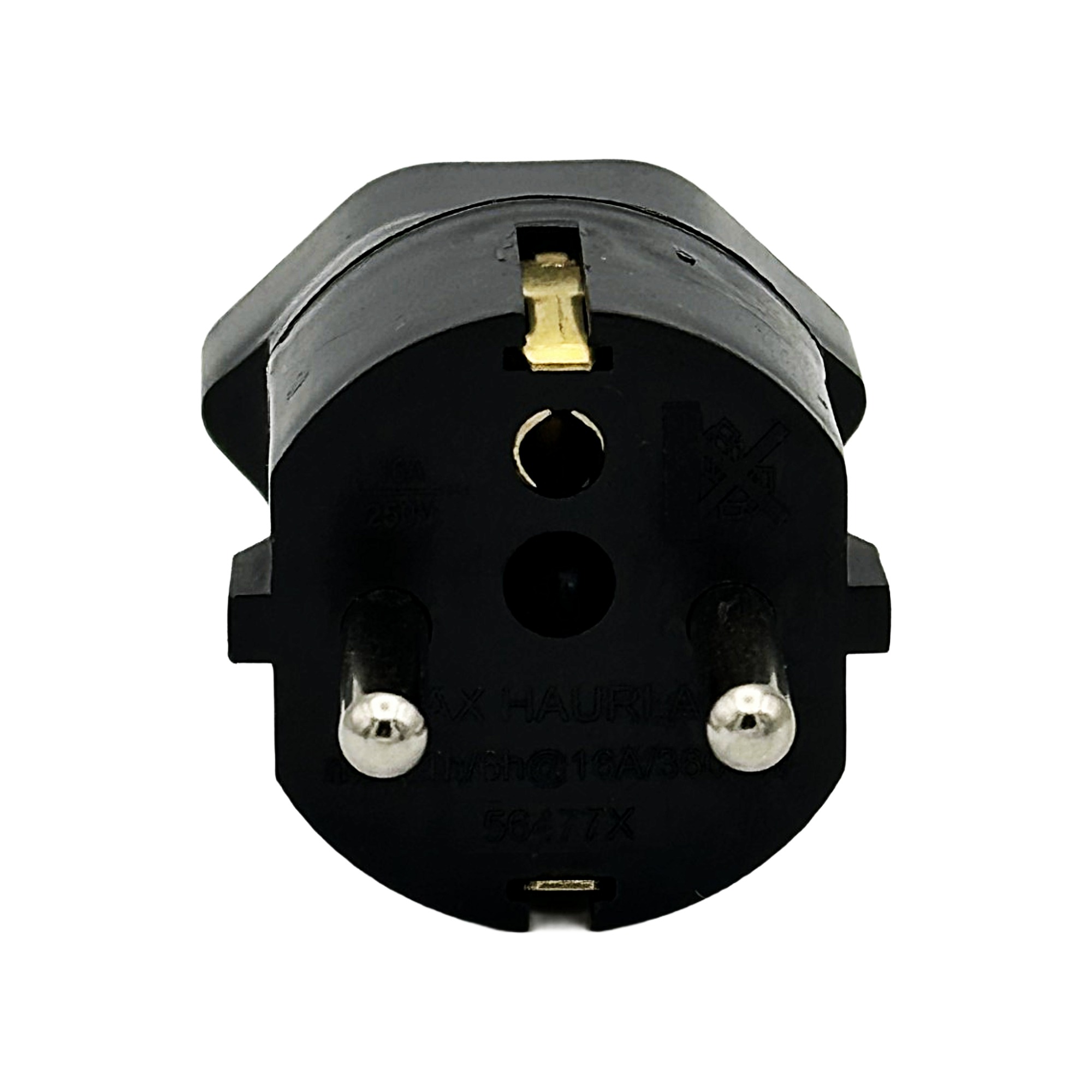

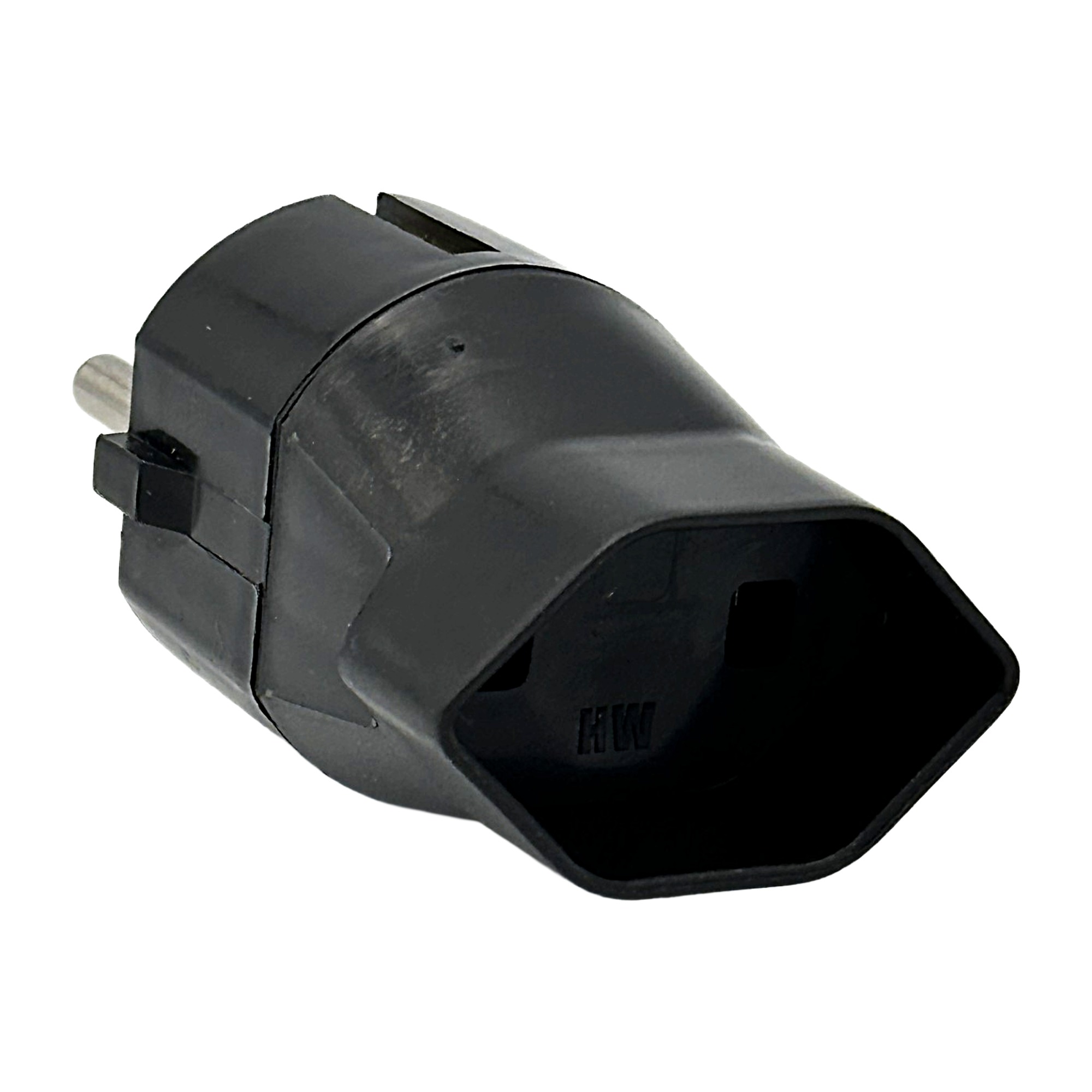

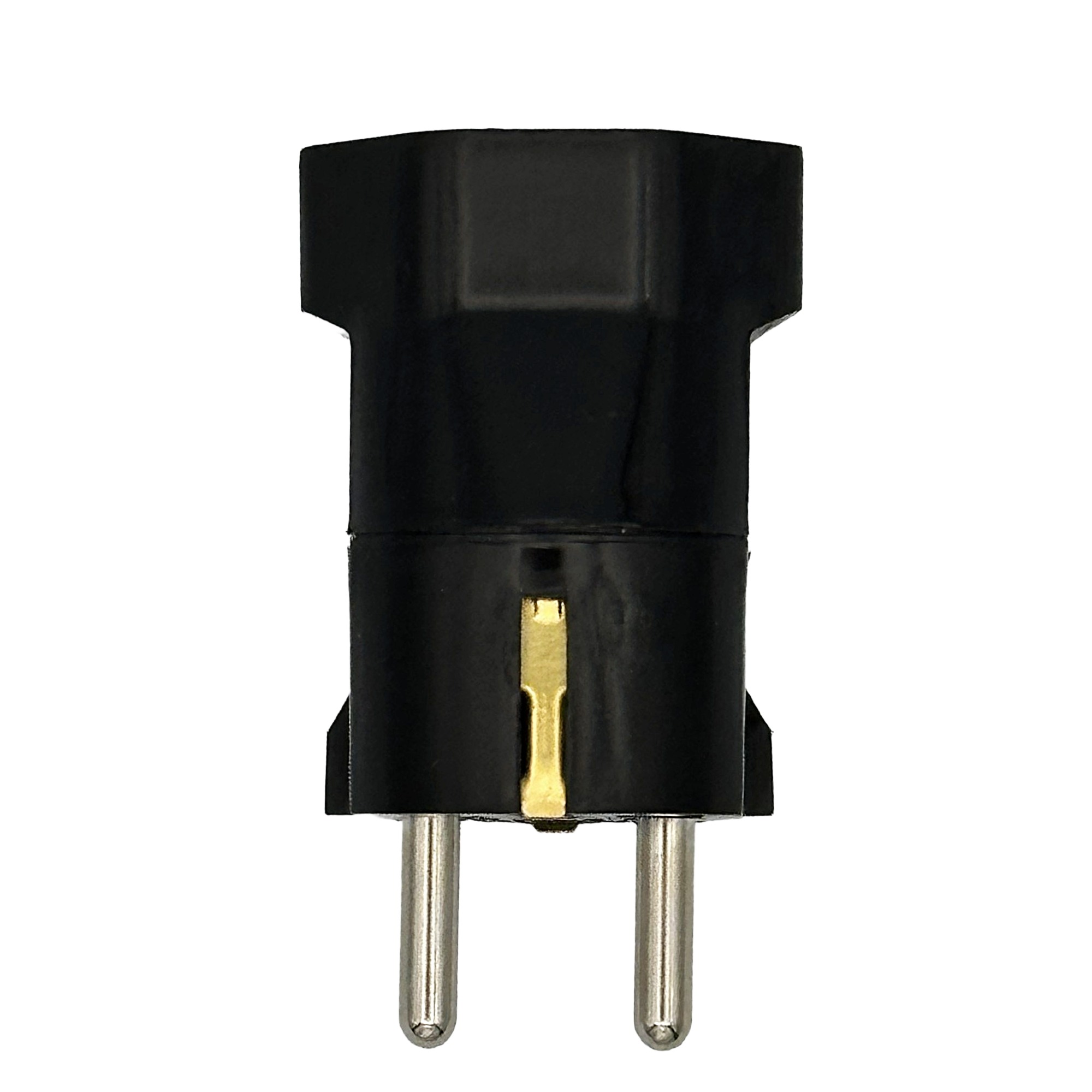

Offgridtec Fixed Adapter: Schuko to Type 21, 2-pole, 16A, black, for power stations

The Offgridtec Schuko to Type 21 Fixed Adapter (MPN: 018330) is a 2-pole adapter designed for permanently converting existing Schuko outlets on Powerstations to the Swiss Type 21 (T21) plug system. This makes it suitable for applications requiring a 2-pole Swiss connection for Class II protected devices. The adapter itself does not perform any voltage conversion but rather adapts the plug system. The reason for this specific design lies in the electrical safety concept of Powerstations. In Switzerland, the use of 3-pole outlets on Powerstations is not permitted without an external ground connection. The 2-pole Type 21 connection is therefore intended for appropriately suitable, insulated appliances.

Converting Schuko to Swiss Type 21 for Powerstations

• Fixed adapter for converting Schuko to Swiss Type 21 (T21)
• Designed specifically for PowerStations
• 2-pole version (L + N) without protective conductor
• For Class II appliances
• Rated current up to 16 A
• Black plastic housing
• Non-removable design for permanent installation
• Without an integrated switch

For Class II devices

The design features terminals for the phase and neutral conductors (L + N), but no ground conductor. Accordingly, the adapter is intended for Class II equipment. Such equipment is designed—through its electrical construction or protective insulation—in such a way that a ground connection is not required for its intended operation. This 2-pole connection solution is therefore not intended for equipment whose safe operation requires a ground conductor. This should therefore be verified before connection.

Technical Specifications

• Connection: Schuko to Type 21 (T21)
• Plug type: Schuko
• Socket type: Type 21 (T21)
• Number of poles: 2-pole, L + N
• Protection class of intended devices: Protection Class II
• Voltage: 250 V
• Rated current: 16 A
• Color: Black
• Material: Plastic
• Protection rating: IP20
• Switch: No
• Design: Non-removable
• Net weight: 27 g
• Dimensions: 74 x 40 x 36 mm

Package Contents

1x Offgridtec fixed adapter, Schuko to Type 21
