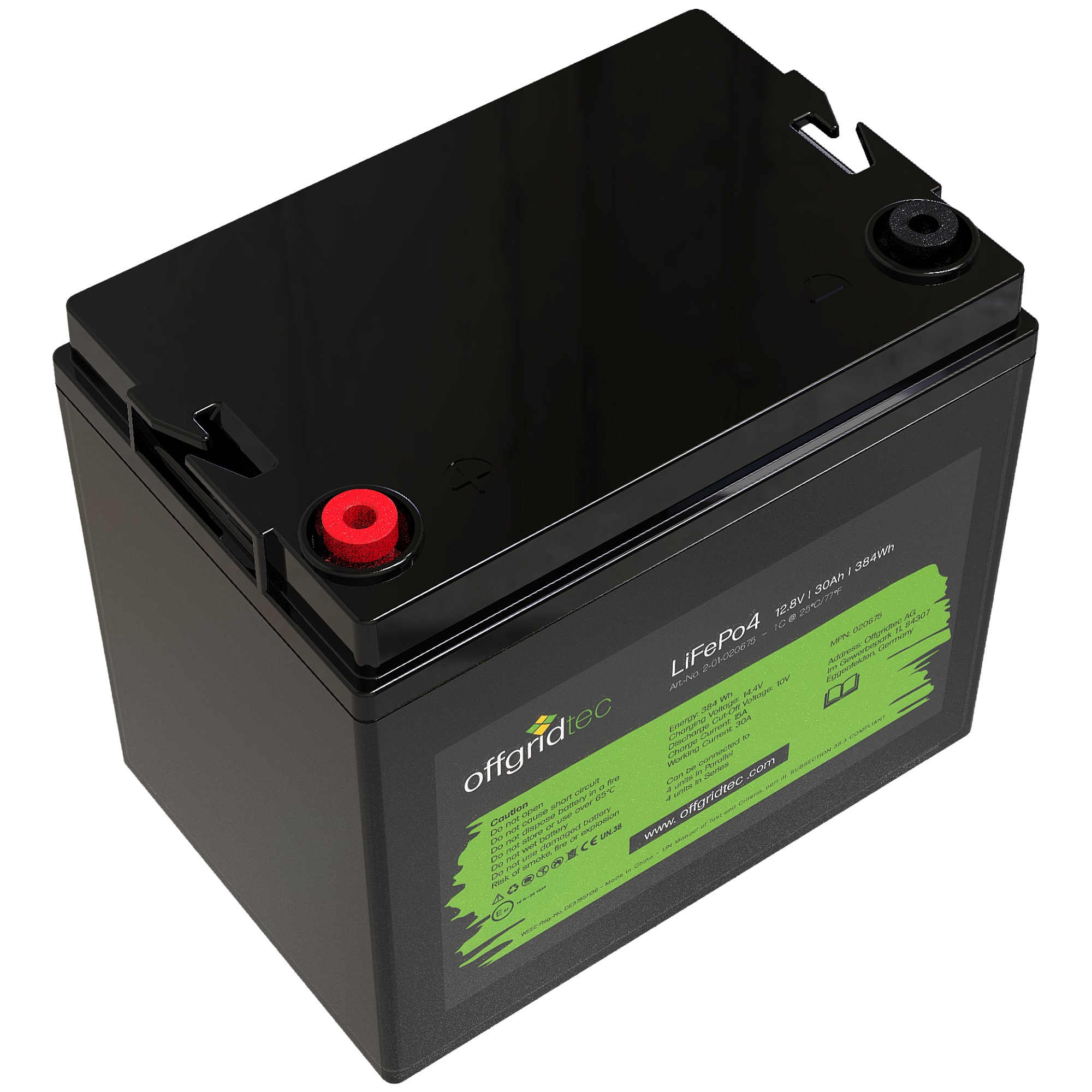

Offgridtec LiFePo4 battery 12/30 12.8V 30Ah BMS integrated 384Wh

The Offgridtec LiFePO4 12/30 battery (MPN 020675) is a state-of-the-art and efficient energy storage solution. With a capacity of 30 Ah and a nominal voltage of 12.8 V, it ensures both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery is easy to install and can be flexibly integrated into custom energy storage systems via parallel connection. Equipped with an integrated Battery Management System (BMS), the battery is protected against overcharging, deep discharge, short circuits, and overheating. This not only extends its service life but also enhances safety during operation. The high-performance battery boasts a lifespan of up to 2,000 charge cycles, ensuring you’ll benefit from a reliable power supply for a long time.

The LiFePO4 12/30 Battery at a Glance

• Integrated BMS with numerous protective features
• Long service life: 2,000 cycles
• UPS, emergency power supply
• Lightweight
• Higher performance
• Superior safety
• Increased flexibility
• Up to 4 units in parallel
• Fast charging, 98% high power density

All-around performer—flexible with lithium technology from Offgridtec

Despite higher upfront costs compared to AGM or gel batteries, Offgridtec’s LiFePO4 batteries offer excellent value for money. With a service life of up to 2,000 charge cycles, they generally far exceed the maximum service life of even the best lead-acid batteries. The LiFePO4 battery, with a nominal voltage of 12.8 V and a nominal capacity of 30 Ah, stands out for its space-saving design and a weight of just 3.34 kg—a weight reduction of about 70% compared to conventional batteries. The energy extraction efficiency is an impressive 92%, which is considerably higher than the 80% achieved by lead-acid batteries. This aspect can be of crucial importance, particularly in off-grid systems—especially in off-grid solar or wind power installations.

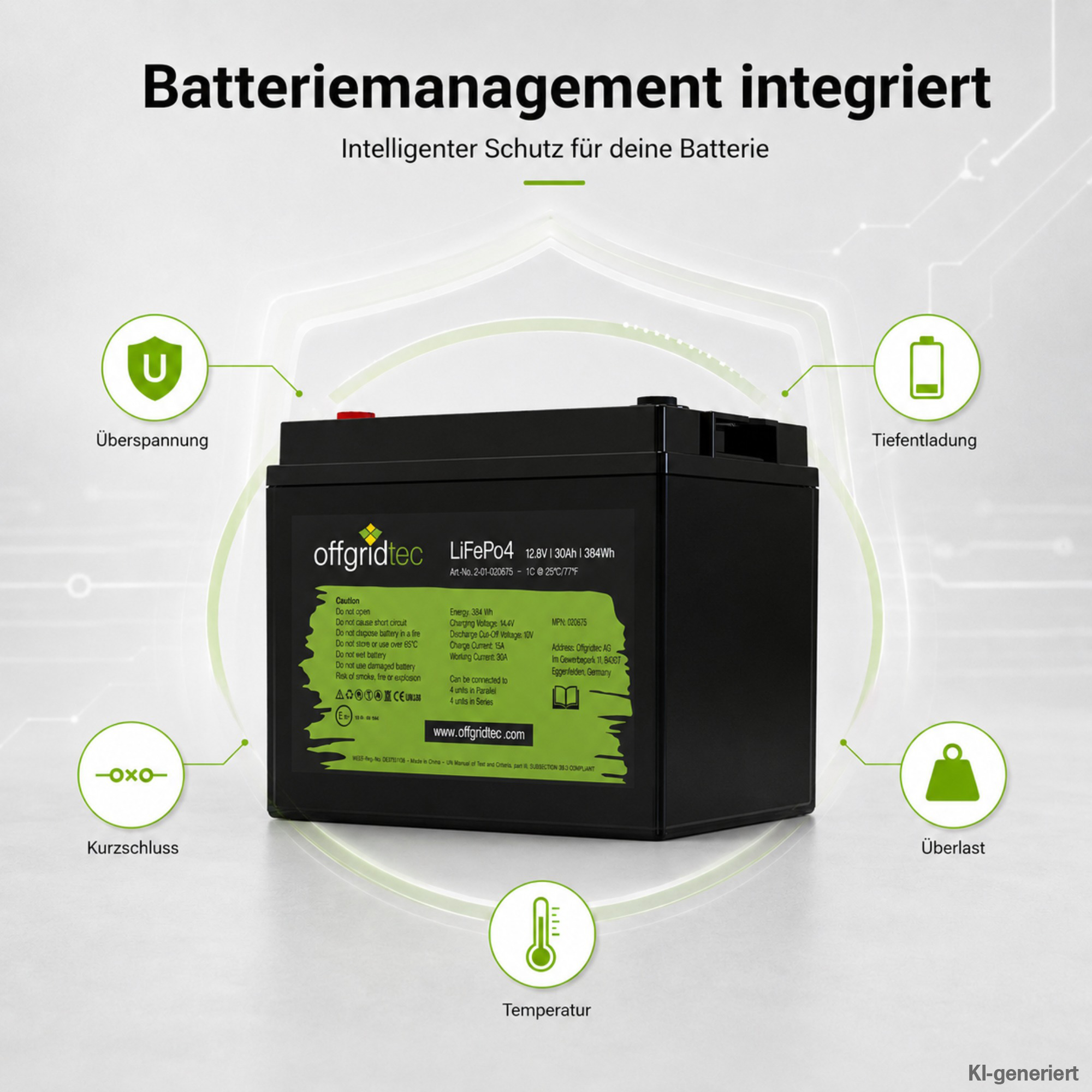

Integrated BMS

The LiFePO4 battery provides automatic protection through its internal battery management system. The lithium iron phosphate chemistry eliminates the risk of explosion or fire due to severe impacts, overcharging, or short circuits. By precisely controlling these parameters, the BMS ensures optimal battery utilization and extends the battery’s service life.

• Overvoltage Protection
• Undervoltage Protection
• Overload Protection
• Short-Circuit Protection
• Protection of the cells against excessively high or low temperatures

Applications

• Renewable energy systems, such as photovoltaic and solar systems
• Vehicles, such as RVs, trailers, and campers
• Marine applications, such as fishing boats and electric boats
• Uninterruptible power supply (UPS) for emergencies

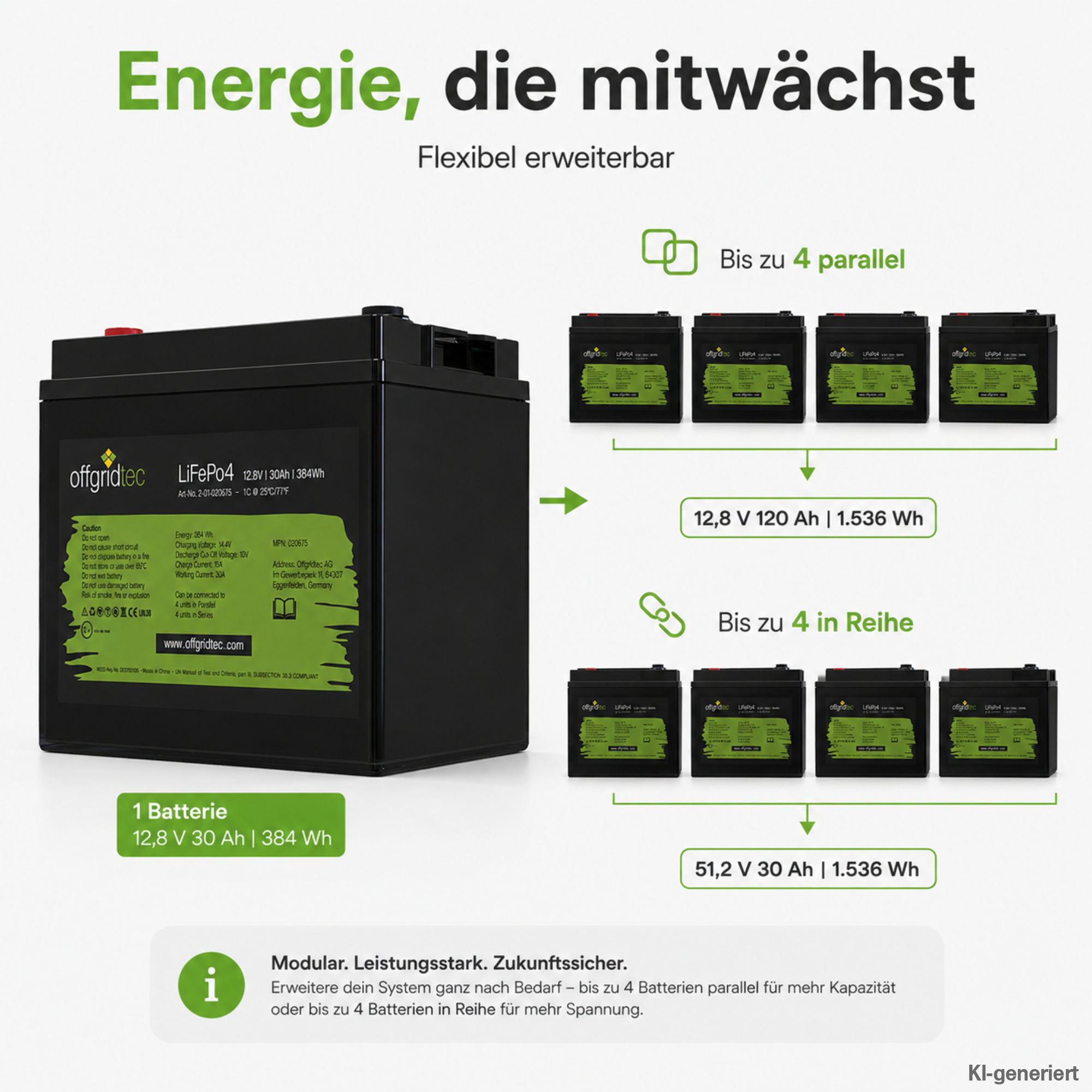

Parallel Connection

Connecting our LiFePO4 batteries in parallel gives you greater flexibility. Thanks to the modular design, you can use up to four 12.8V batteries in series and four in parallel. This allows you to easily adjust the capacity and power of your system.

LiFePO4 Technology

A LiFePO4 battery stands for “lithium iron phosphate battery” and is a type of lithium-ion battery. It is characterized by a specific chemical composition in which lithium iron phosphate is used as the cathode material. These batteries can withstand thousands of charge cycles, resulting in a longer overall service life compared to other battery types. They are considered safer than some other lithium-ion batteries because they are less prone to overheating or thermal instability. Furthermore, they offer a constant voltage and power output throughout most of their discharge cycle, a high discharge rate, and a lightweight design.

Advantages of Offgridtec LiFePO4 over conventional batteries

• Longer cycle life: Up to 20 times longer in cycle life and 5 times longer in standby compared to lead-acid batteries
• Lightweight: Up to 40% lighter than comparable lead-acid batteries
• Higher power output: Twice the power output of a lead-acid battery at high discharge rates
• Low self-discharge: Delivers twice the performance of a lead-acid battery, even at high discharge rates
• High efficiency: 92% energy utilization compared to 80% for lead-acid batteries
• Enhanced safety features: Integrated BMS protects against overcharging, deep discharge, and short circuits; IP65-rated housing

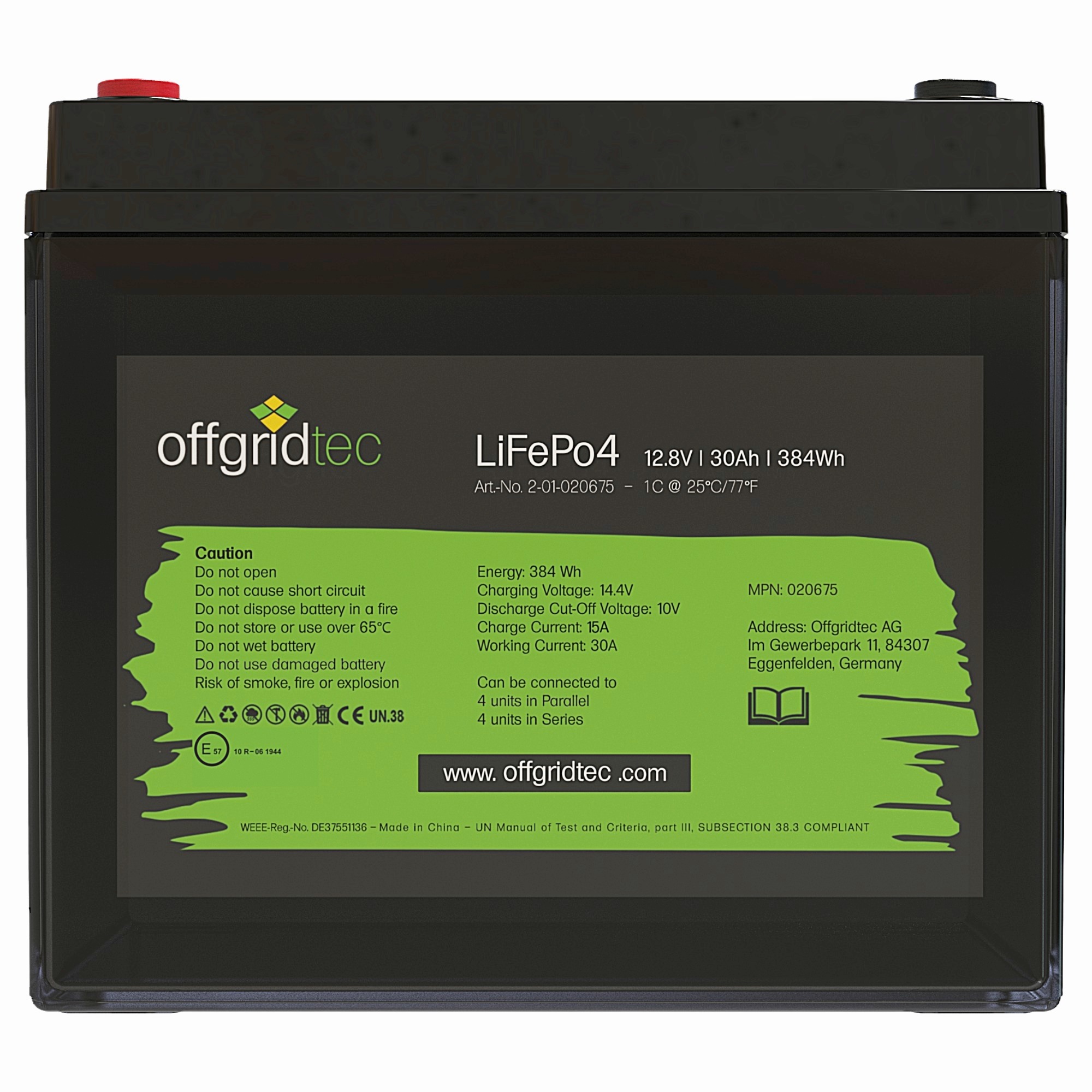

Technical Specifications

• Nominal voltage: 12.8 V
• Rated capacity: 30 Ah
• Max. charging voltage: 14.6 V
• Discharge voltage: 10 V
• Charging current: 15 A
• Operating current: 30 A
• Max. pulse current: 60 A
• Rated battery energy: 384 Wh
• Connection: M6
• Protection rating: IP65
• Weight: 3.34 kg
• Dimensions: 194 x 132 x 170 mm
• Service life: 2,000 cycles

Package Contents

1x Offgridtec LifePo4 Battery 12/30 12.8V 30Ah with integrated BMS 384Wh
