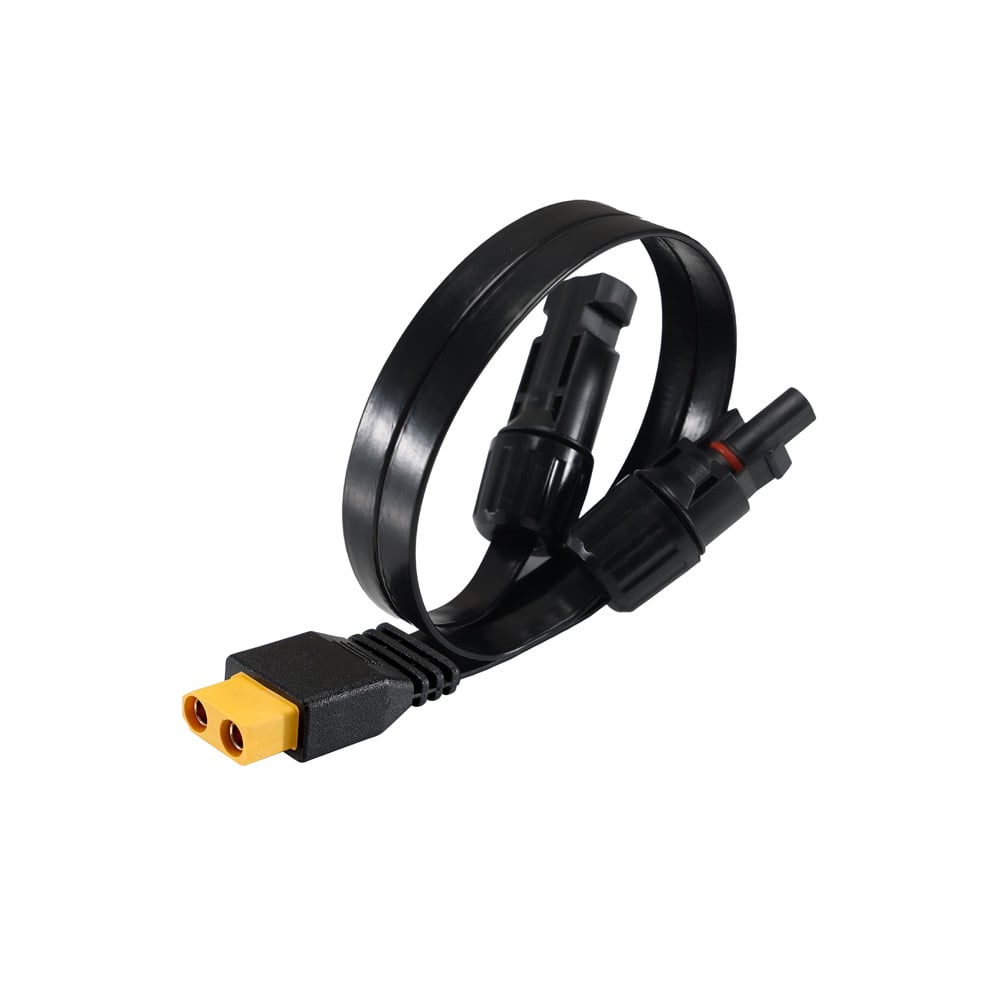

Offgridtec XT90 to PV connector 2.5 m flat cable 4 mm² connection cable (super flat)
Soon available again
€13.48*
€11.33**
Similar Products
0.5 Meter (€36.30* / 1 Meter)
Content: 0.5 Meter (€36.30* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
0.5 Meter (€15.90* / 1 Meter)
Content: 0.5 Meter (€15.90* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
1.5 Meter (€8.47* / 1 Meter)
Content: 1.5 Meter (€8.47* / 1 Meter)
Soon available again
Soon available again
0.5 Meter (€16.30* / 1 Meter)
Content: 0.5 Meter (€16.30* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
1.5 Meter (€8.65* / 1 Meter)
Content: 1.5 Meter (€8.65* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
2.5 Meter (€7.07* / 1 Meter)
Content: 2.5 Meter (€7.07* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
0.5 Meter (€14.80* / 1 Meter)
Content: 0.5 Meter (€14.80* / 1 Meter)
Shipped in 1-3 days
Shipped in 1-3 days
Product is expected to be back in stock on 22 December 2025
Product is expected to be back in stock on 22 December 2025
The XT90 to PV Plug Flat Cable from Offgridtec (MPN: 024622) is the convenient solution for safely and efficiently connecting power stations with XT90 connectors to solar modules with PV connectors. The extra-flat cable design allows for discreet and flexible installation – even in places where conventional round cables are too thick: for example, through window and door gaps in balcony power plants, under PVC or wooden floors in tiny houses, behind wall paneling in campers, boats, or garden sheds, and along motorhome or vehicle roofs. The 4 mm² flat cable ensures minimal voltage losses and high efficiency even over longer distances. It is available in lengths of 0.5 m, 1.5 m, and 2.5 m and can be used immediately without tools – simply plug and play!
Advantages of the Super Flat XT90 PV connector cable
- Super-flat design for optimum flexibility in confined spaces
- 4 mm² cable cross-section for powerful energy transmission
- Various cable lengths: 0.5 m, 1.5 m, 2.5 m
- Ready to use immediately – no additional assembly or adapters required
- High reliability and secure plug connections
Compatible with
- power stations with XT90 input: e.g., Bluetti AC200 / AC300, Anker SOLIX F2000
- Solar modules with PV connectors (e.g., Offgridtec, Trina Solar, or Luxen Solar)
Areas of application
- Solar power supply in campers, motorhomes, or boats, where flat cable structures are useful and space-saving

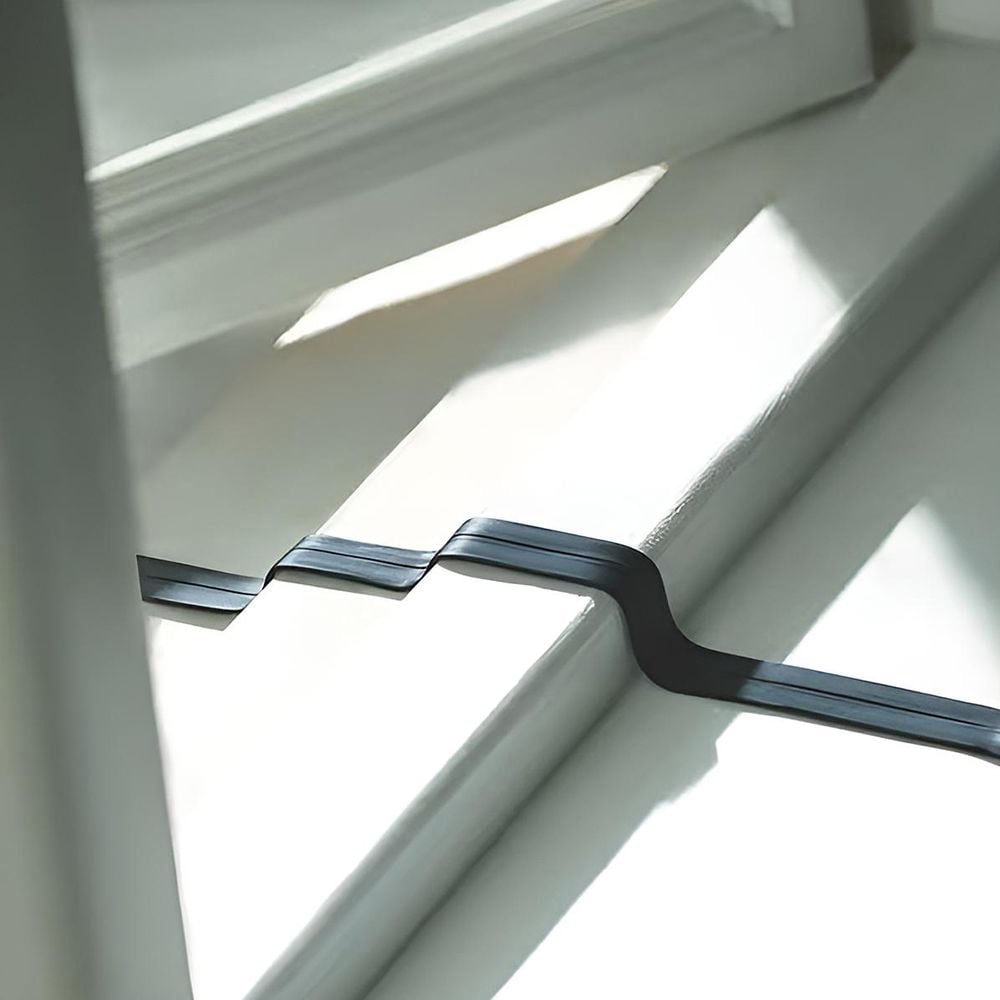

- Connection of power station and solar panel through window or door gaps in balcony power plants
- Power supply for garden sheds, tiny houses, or outdoor events (e.g., festivals, construction sites, mobile exhibition stands)
- Replacement cable/extension when thick standard cables are too inflexible or visually distracting
- Retrofitting mobile solar cases with XT90 or PV plug connections
Technical data
- Cable type: Flat cable (solar cable)
- Conductor cross-section: 4 mm²
- Connection A: XT90 plug
- Connection B: PV plug
- Polarity: Reverse connection (PV - → XT90 + / PV + → XT90 -)
Scope of delivery
1x Offgridtec XT90 to PV plug flat cable (super flat)
